Part of the New Holland Repair Manuals.

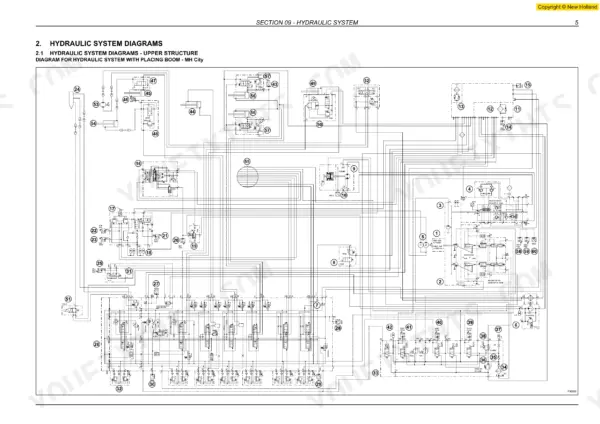

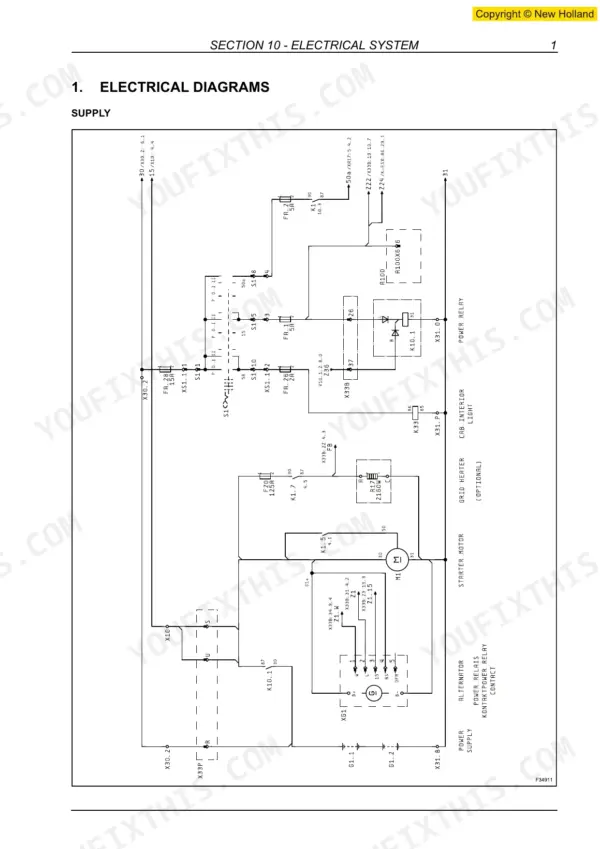

Every single page of this 761-page New Holland mh city, mh plus, mh 5.6 repair manual pdf (OEM #87677413A) is dedicated to getting your wheel excavators back in the dirt and generating revenue. Inside, you get full electrical diagrams, complete hydraulic schematics for the variable-displacement twin pump, and step-by-step calibration procedures for both running and stopped engines. Open up the troubleshooting charts to quickly diagnose rear rigid axle issues, steering faults, or stabilizer cylinder leaks without second-guessing yourself. Verify the priority valve pressure hits exactly 350 bar and confirm the hydraulic oil tank is topped off before bleeding air from the system. Quit wasting hours hunting down phantom electrical shorts. Download this bookmarked file directly to your tablet, click straight to the exact factory procedure, and get to work.
What's Inside This New Holland MH City, MH Plus, MH 5.6 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Precautions | 10-27 | General Safety Instructions, Use Instruction |
| Controls and Instruments | 28-43 | Switches and Push-Buttons, Controls and Pedals, Multi-Function Display |
| Upper Structure | 92-161 | Main Components, Slewing Bearing, Rotation Gearmotor (Disassembly and Assembly, Special Tools), Multi-Cooler (Technical Specifications), Hydraulic Pumps, Muffler |
| Undercarriage | 162-393 | Undercarriage Components, Rear Rigid Axle (Technical Specifications, Disassembly and Assembly, Troubleshooting, Special Tools) |
| Front Attachment | 394-461 | Hydraulic Cylinders, Boom Cylinder, Dipper Cylinder, Bucket Cylinder, Boom Adjusting Cylinder, Buckets, Quick Coupler, Clamshell Bucket |
| Steering System | 462-487 | Operation, Power Steering (Disassembly and Assembly), Priority Valve, Troubleshooting |
| Brake System | 488-501 | Service Brake, Accumulators |
| Hydraulic System | 502-645 | Hydraulic System Diagrams, Hydraulic System Diagrams - Undercarriage, Hydraulic System Diagrams Blade and/or Stabilizers, Hydraulic Pumps, Variable-Displacement Twin Pump |
| Electrical System | 646-699 | Electrical Diagrams, Batteries, Bulbs |
| Electronics | 700-731 | Components of Line 2, Power Control System |
| Calibration | 732-761 | Calibrations with the Engine Running, Calibrations with the Engine Stopped |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| HYDRAULIC PUMPS | 39 | p. 6 |
| HYDRAULIC OIL TANK | 41 | p. 6 |
| Ring nut torque | 4050 Nm (331.90 lbf·ft) | p. 85 |
| Coolant temperature for check | 50 °C | p. 137 |
| Operating pressure (max) | 7 bar (102 psi) | p. 87 |
| Pilot control pressure after the engine start | Y3 | p. 35 |
New Holland MH City, MH Plus, MH 5.6 Common Problems This Manual Covers
New Holland MH excavator hydraulic system loses pressure and power under load, oil leaking near pump
Check the load-limit regulator function on page 720; it balances pump power absorption against engine output, so a mismatch points to worn pump seals or contaminated fluid. Replace O-rings and seal rings per page 17 whenever hydraulic lines are opened, never reuse them. Verify by-pass filter calibration reads 2 bar (29 psi) on page 64, and confirm system pressure stays under the 7 bar (102 psi) maximum on page 87 before condemning the pump.
Manual Section: Electronics - Power Control System p. 720Engine overheats during continuous operation in high ambient temperatures, radiator fins clogged with debris
Check coolant temperature against the 50°C reference point on page 137 before assuming a fan or thermostat fault. Inspect radiator fins for packed debris and clean with low-pressure air or water, not a scraper. Never check or adjust the fan belt with the engine running, per the warning on page 15. Review the fan motor revolutions logic on page 720, since the load-limit regulator adjusts fan speed off turbocharger, coolant, and hydraulic oil temperature.
Manual Section: Upper Structure - Multi-Cooler p. 137Machine won't restart after hydraulic pressure engagement during maintenance, safety sensor lockout tripped
Confirm hydraulic pressure is fully disengaged before restarting; the E04 safety sensor code locks out the starter until residual pressure drops to zero. Bleed air from the hydraulic system per the procedure on page 104, then verify pilot control pressure reads normally at start-up per the reference on page 35. Cycle the key off for 30 seconds and recheck the troubleshooting procedures on page 87 before attempting a second start.
Manual Section: Upper Structure - Service Procedures p. 104Hydraulic fluid filter clogs quickly, oil flow restricted and system slow to respond
Pull the hydraulic fluid filter and inspect the element for metal particles or heavy sediment; replace it if the by-pass valve trips below the 2 bar (29 psi) setting on page 64. Confirm system operating pressure stays under the 7 bar (102 psi) maximum specified on page 87. Drain visibly contaminated fluid, refill with clean oil, and shorten the filter change interval if debris returns within one service cycle.
Manual Section: Hydraulic System p. 64Turret rotation grinds or binds when slewing under load, bearing bolts loosening over time
Check the torque specification chart for slewing bearing hardware; the exact M16 torque figure is model-specific on page 89, so confirm which MH variant you're servicing before torquing. Verify rotation speed at maximum pressure does not exceed 2900 rpm as listed on page 84, since sustained over-speed accelerates bearing wear. Inspect the raceway for pitting, clean the mounting face, and retorque bolts in a criss-cross pattern across two passes.
Manual Section: Upper Structure - Slewing Bearing p. 89Frequently Asked Questions
How to reset error codes on New Holland MH City wheel excavator?
Resetting of faults on the New Holland MH City wheel excavator is a function reserved for the Service Department and requires a password. The relevant menu is disabled in normal machine operation. p. 42
What are the torque specifications for New Holland MH Plus dipper cylinder bolts?
For the New Holland MH Plus dipper cylinder, the nut (18) should be tightened to 7280 Nm (5369.44 lbf·ft) and the screws (5) to 267 Nm (196.92 lbf·ft). These torques are applied using specific tools 380000812 and 000000000 for the nut. p. 418
What are the common error codes for New Holland MH 5.6 excavator?
A common error code for the New Holland MH 5.6 excavator is 7048, which indicates 'Error water in fuel sensor'. This warning is displayed on the multi-function display when water is detected in the fuel filter separator. p. 146
How to reset the engine alarm on New Holland MH City?
Resetting of faults, which may include engine alarms, is a function reserved for the Service Department and requires a password. The relevant menu for resetting faults is disabled in normal machine operation. p. 42
Is this New Holland MH City, Plus, 5.6 Repair Manual a digital download?
Instant PDF download. You get the full 761-page searchable Repair Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Can I print this New Holland MH City, Plus, 5.6 manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Can I find wiring schematics in this New Holland MH City, Plus, 5.6 manual?
Yes, full electrical schematics are included with wire colors, connector locations, and circuit descriptions.
