Part of the New Holland Repair Manuals.
This is the New Holland service manual for the Speedrower 200 and Speedrower 240 self-propelled windrower, part number 47698329, 1st edition English, April 2014.
It covers engine code F4HE9687, a 6-cylinder turbocharged and after cooled engine. It also covers the planetary final drives, suspended rear axle, hydrostatic drive, hydraulics, cab climate, UCM and CAN network. Fault codes come with circuit tests by code, and the fold-out electrical and hydraulic schematics are at the back.
The introduction prints the fluid capacities: 454 l (120 US gal) of fuel and 16 l (16.9 US qt) of engine oil with filter. Engine specifications list torque at rated RPM separately for the SR200 and the SR240.
What's Inside This New Holland Speedrower 200, Speedrower 240 Manual

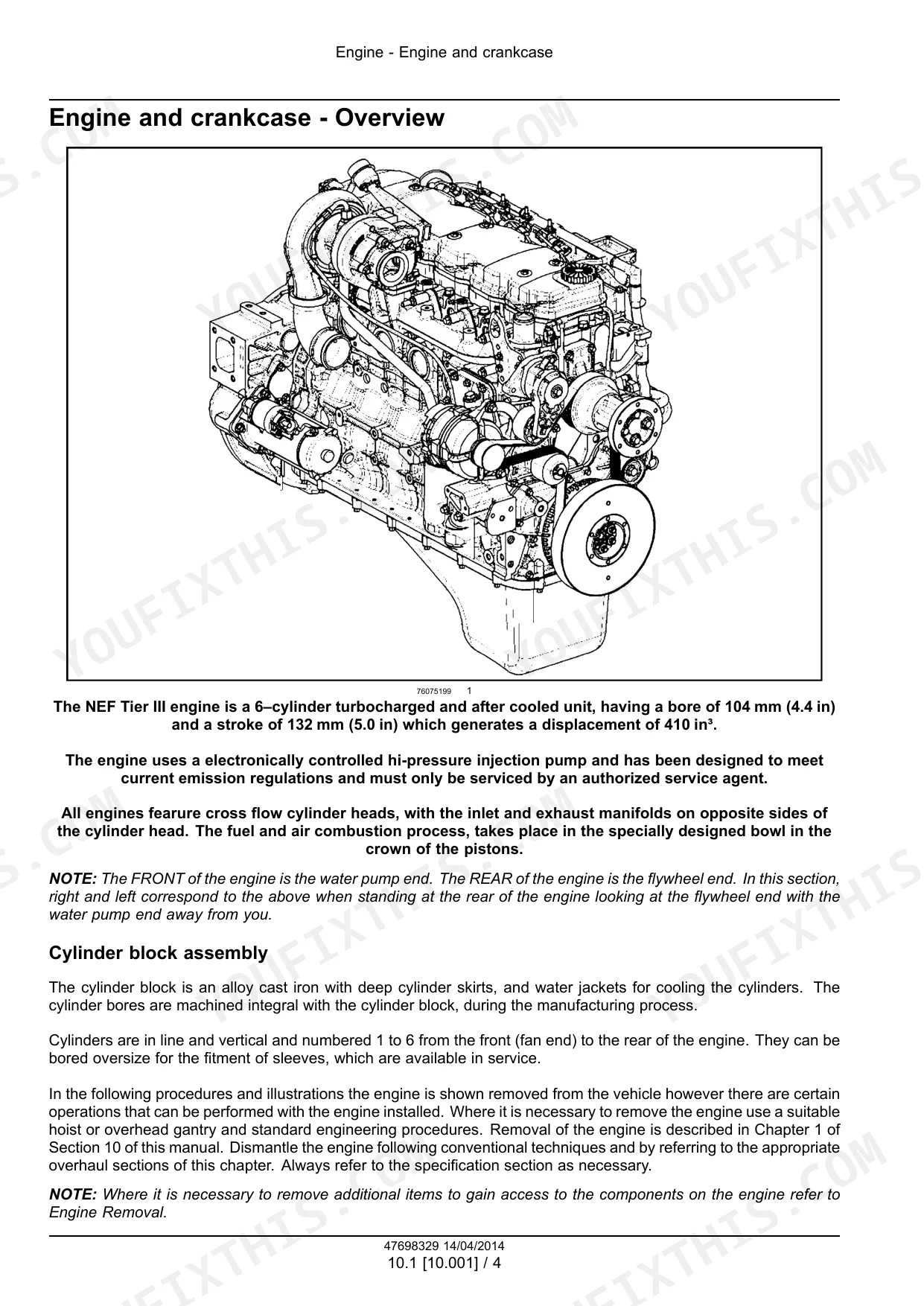

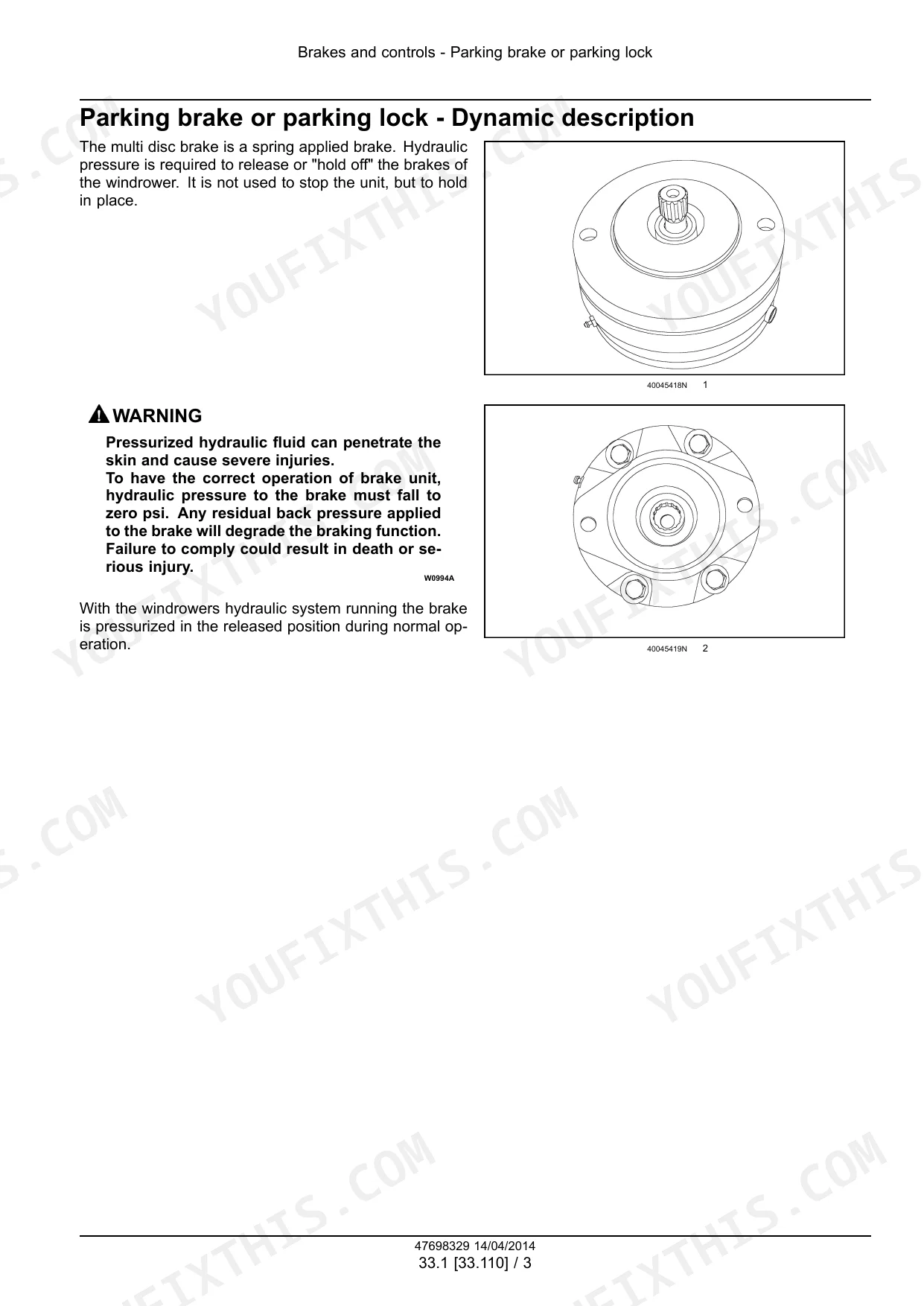

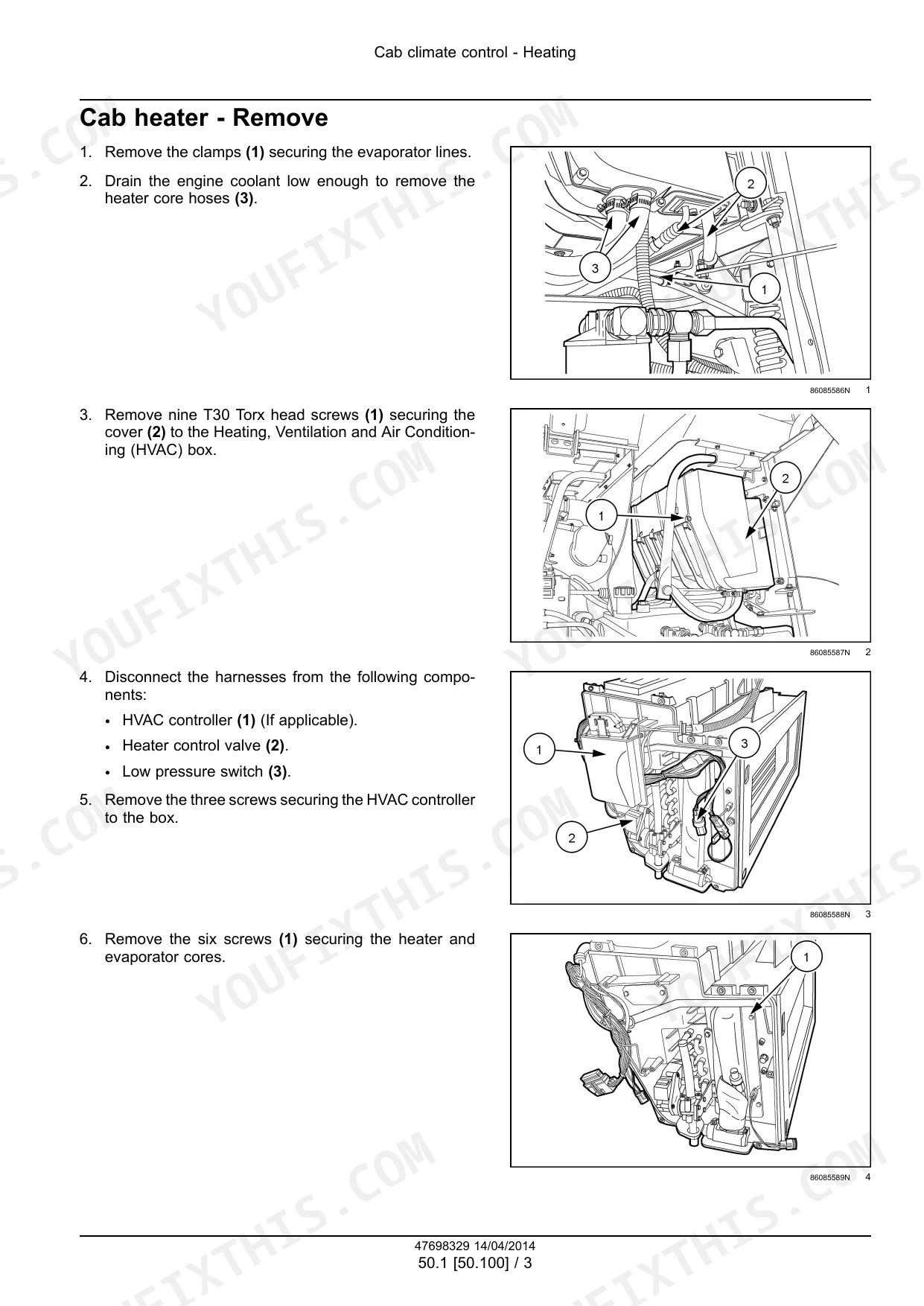

| System | Pages | Key Topics |
|---|---|---|
| Introduction and Specifications | 1-51 | Model Applicability, Safety Rules, Fluid Capacities, Lubricants, Product Identification, Engine Serial Number, Assembly Instructions |
| Engine | 52-127 | Engine Specifications, Engine Removal and Installation, Fuel Filters, Fuel Injection Tests, Air Cleaners, Intake and Exhaust, Cooling System, Troubleshooting |
| Front Axle System | 128-155 | Planetary Hubs, Two-Speed and Three-Speed Drives, Final Drive Removal and Installation, Gears and Shafts, Hub Disassembly and Assembly |
| Rear Axle System | 156-191 | Rear Tires, Suspended Rear Axle, Axle Extension Adjustment, Wheel Supports, Air Springs, Axle Tubes, Tightening Torques |
| Hydrostatic Drive | 192-249 | Transmission and Steering Control, Ground Drive Pumps and Motors, Case Pressure Tests, Hydrostatic Schematics, Charge Pump Troubleshooting, Range-Shift Testing |
| Power Take-Off (PTO) | 250-259 | Hydraulic Pump Drive, Multifunction Valve Cartridges, Charge Pressure Relief Valve, Header Drive Pump Case Pressure Tests |
| Brakes and Controls | 260-281 | Parking Brake Operation, Parking Brake Control Valve Removal, Disassembly and Installation, Brake Bleeding |
| Hydraulic Systems | 282-511 | Hydraulic Schematics, Propulsion Circuits, Main Lift System, Pump Control Valves, Fixed Displacement Pumps, Charge Pump, Reservoir and Return Lines, Header Drive Diagnostics |
| Steering | 512-521 | Steering Wheel Removal and Installation, Telescoping Lock Knob, Steering Column Splines and Puller |
| Cab Climate Control | 522-625 | Cab Heater, Heater Control Valve, Air Filters, Blower Motor, Refrigerant and Oil, Compressor, Pressure Diagnosis, Air Conditioning Troubleshooting |

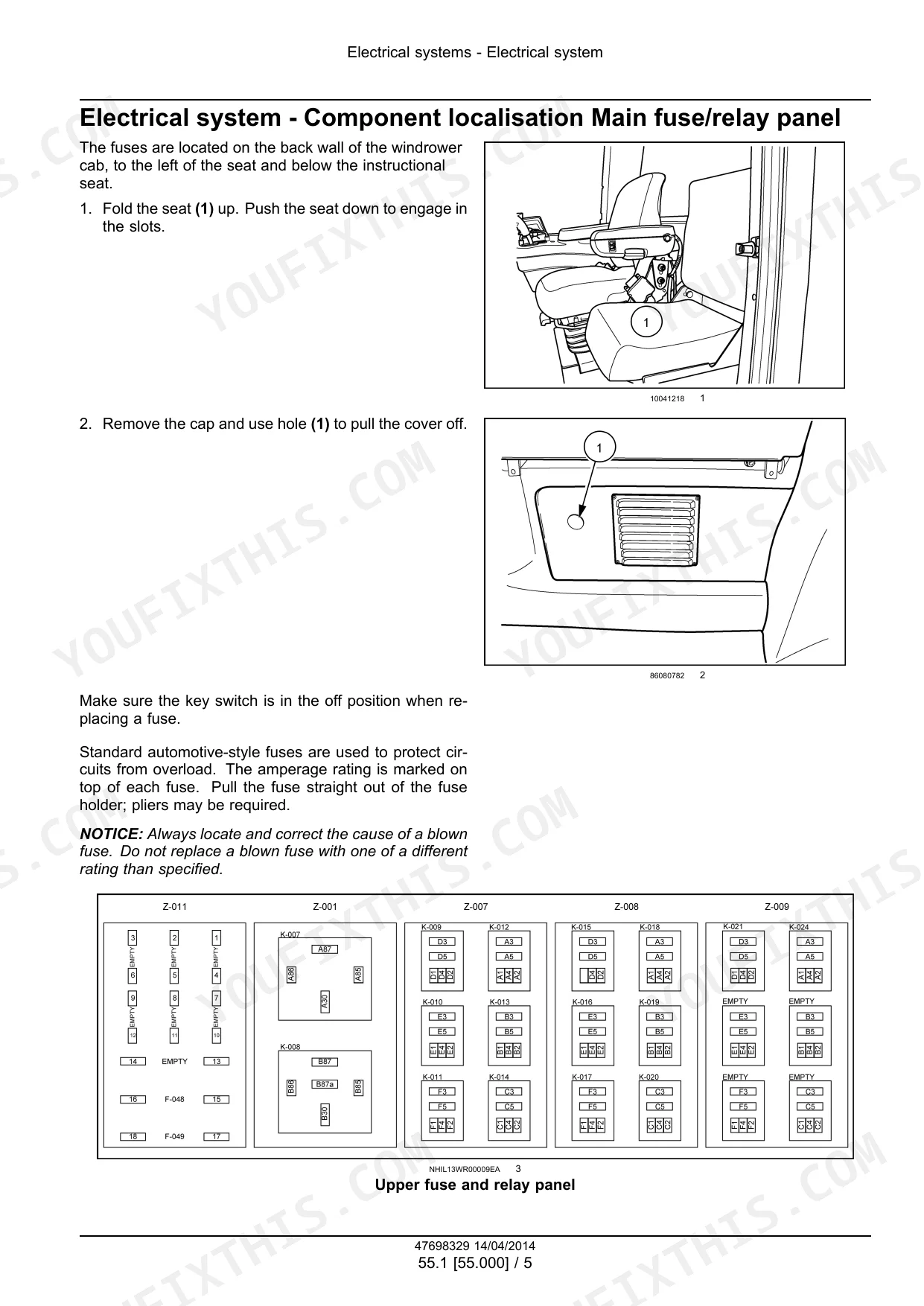

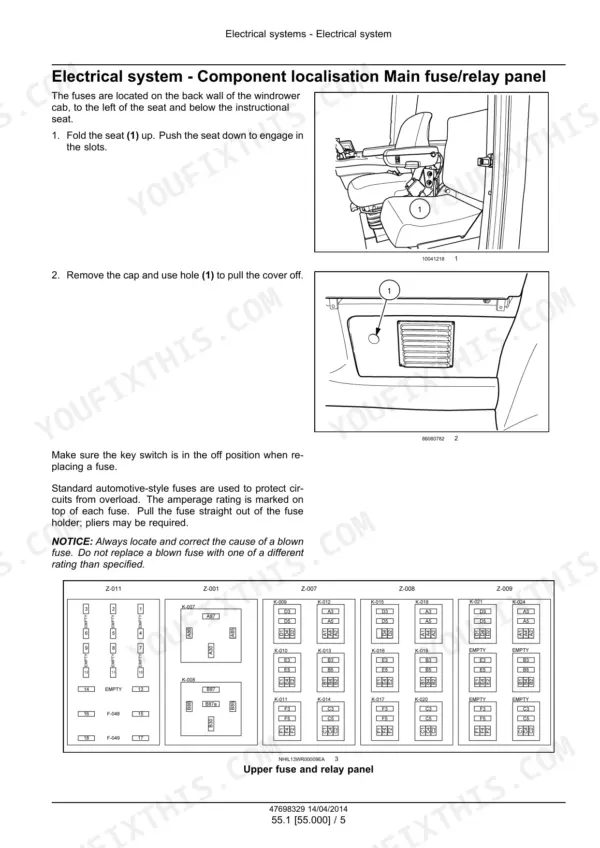

| Electrical System | 626-724 | Starting System, Fuse and Relay Panel, CAN Network, UCM, DATAR Engine Tests, MFH and Sensor Calibration, Wiring Continuity Tests |
| Hydrostatic Drive Control System | 725-754 | Neutral Adjustment, B-059 and B-060 Calibration, Four-Line Display Procedure, Color Touch Screen Procedure |
| HVAC Control System | 755-762 | EST Model Selection, ATC Adaptor Harness, Protocol Adaptor Connection, Controller Software Download, Programming Status |
| Harnesses and Connectors | 763-1474 | Power Distribution Schematics, Starting and Charging, Engine Control, Header and Propulsion Wiring, HVAC Wiring, CAN and Displays, Connector Diagrams, Pin and Wire References |
| Warning Indicators and Cab Controls | 1475-1490 | Alarm Code Index, IntelliView IV Alarms, Four-Line Display Alarms, Multi-Function Handle Removal and Installation |
| Fault Codes: E05xx Engine ECU | 1491-1926 | ECU Recovery, Rail Pressure Sensors, Boost Pressure Sensors, Coolant Temperature, Oil Pressure Sensors, Sensor Supply Voltage |
| Fault Codes: E00xx-E01xx | 1927-2352 | Alternator Charge Voltage, Lift Arm Position Sensors, Hydraulic Oil Temperature, Ground Speed Sensors, Header Speed Sensors, Solenoid Circuits, 5V Reference Supplies |

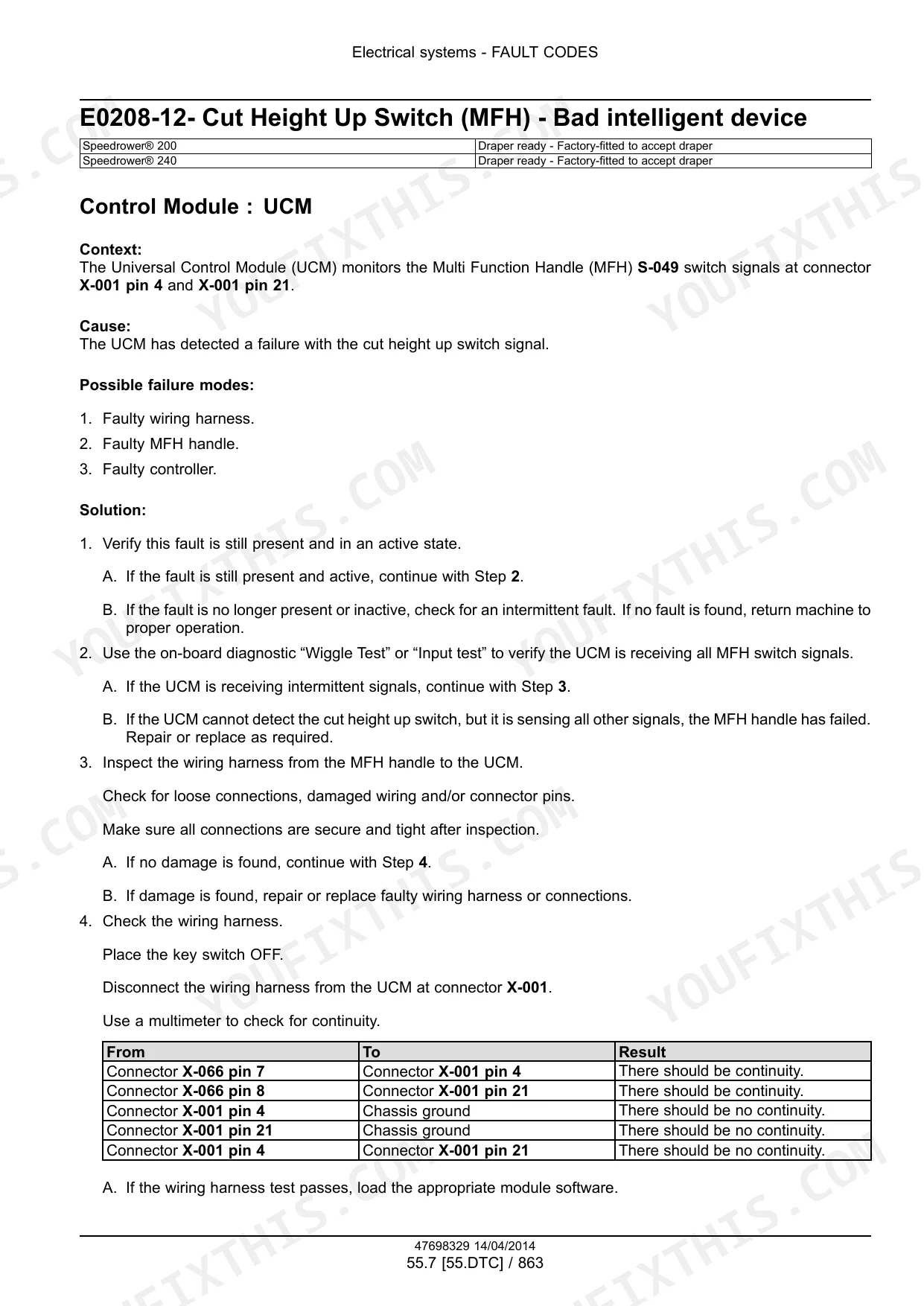

| Fault Codes: E02xx-E04xx and Index | 2353-2915 | MFH Switches, Propulsion Controls, Hydraulic Charge and Level Switches, Engine Monitoring, Deck Shift Solenoids, Merger Height Solenoids, Fault Code Index |

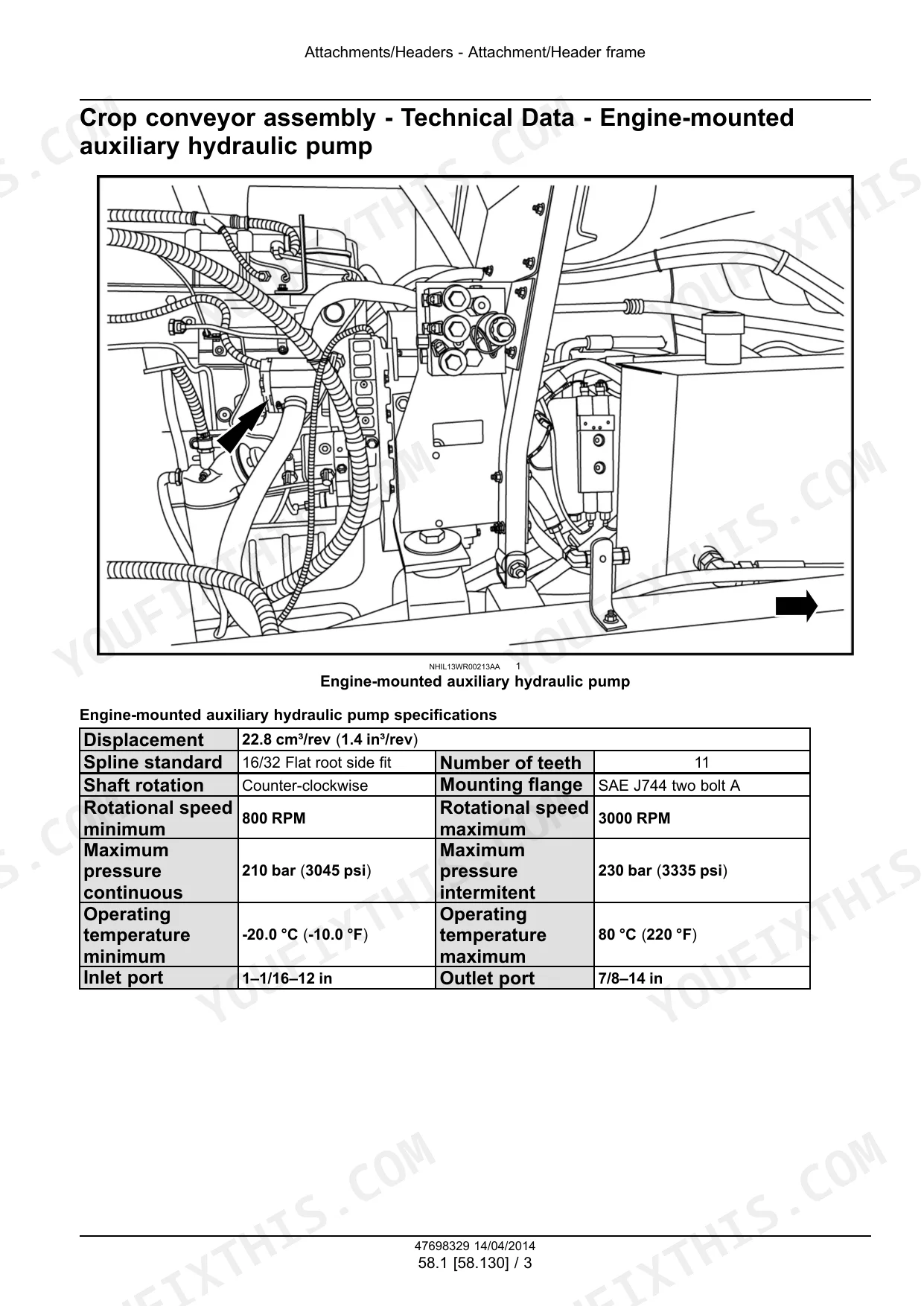

| Attachments and Headers | 2916-2997 | Merger Hydraulic Motor, Merger Manifold, Lift and Deflector Cylinders, Model HS Sickle Header Adapter, Merger Belt, Rollers and Drive Chain |
| Platform, Cab, Bodywork and Decals | 2998-3076 | Pneumatic Operator Seat, Seat Restraints, Cab Suspension, Steering Column and Cab Frame, Consoles and Displays, Cab Doors and Handles, Special Tool Index |
| Fold-Out Electrical and Hydraulic Schematics | 3077-3094 | Fold-Out Electrical Schematics 47705560 and 47705561, Wiring and Component Legends, Schematic Frame Index, Fold-Out Hydraulic Schematic 47705562 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine oil capacity (SR200 / SR240) | 16 l (16.9 US qt) with filter | p. 47 |
| Flywheel gearbox capacity | 2.5 l (2.6 US qt) | p. 47 |
| Cooling system capacity | 31.4 l (8.3 US gal) | p. 47 |
| Fuel tank capacity | 454 l (120 US gal) | p. 47 |
| Final drives capacity | 0.89 l (0.94 US qt) | p. 47 |
| Rated engine speed | 2200 RPM | p. 55 |
| Engine idle speed | 900 RPM | p. 55 |
| Maximum no-load engine speed | 2250 RPM | p. 55 |
| Engine torque at rated RPM, Speedrower 200 | 636 N·m (469 ft-lb) | p. 55 |
| Engine torque at rated RPM, Speedrower 240 | 768 N·m (566 ft-lb) | p. 55 |
| Peak engine torque, Speedrower 200 | 830N·m (612 ft-lb) @ 1600 RPM | p. 55 |
| Peak engine torque, Speedrower 240 | 961N·m (709 ft-lb) @ 1600 RPM | p. 55 |
| Tractor weight (SR200, SR240) | 5092 kg (11,225 lb) | p. 159 |
| Rear tire inflation pressure | 138 kPa (20 psi) | p. 159 |
| Rear axle extension bolt torque | 960 N·m (708 lb ft) | p. 159 |
| Rear axle pivot pin bolt torque | 400 N·m (295 lb ft) | p. 159 |
| Rear wheel to wheel hub torque | 115 N·m (85 lb ft) | p. 159 |
| Hydrostatic pump A-port relief (system warm) | 379 bar (5500 psi) | p. 231 |
| Charge pump relief setting | 23 bar (330 psi) | p. 231 |
| Header lift pump relief setting | 221 bar (3200 psi) | p. 231 |
New Holland Speedrower 200, Speedrower 240 Common Problems This Manual Covers
Engine does not start
Engine - Troubleshooting lists this symptom as The Engine Does Not Start. The causes it lists start with a dead or faulty battery and also include no fuel in the tank, where the remedy is to refuel. The same Engine section also covers the fuel filters, fuel injection tests, air cleaners and the cooling system, and the Electrical system section carries the DATAR engine tests.
Manual Section: Engine - Troubleshooting p. 72Noisy charge pump
Pump - Troubleshooting - Charge Pump lists low oil supply as a cause of a noisy charge pump, and the remedy it gives is to fill the reservoir. The Hydrostatic Drive section around that table also covers the ground drive pumps and motors, case pressure tests and range-shift testing.
Manual Section: Pump - Troubleshooting - Charge Pump p. 226Foaming hydraulic fluid
Charge pump - Troubleshooting in the Hydraulic Systems section traces foaming fluid to improper fluid. The remedy it gives is to drain and refill with proper fluid. The lubricants and fluid capacities tables are in the Introduction, and the same Hydraulic Systems section covers the charge pump, reservoir and return lines.

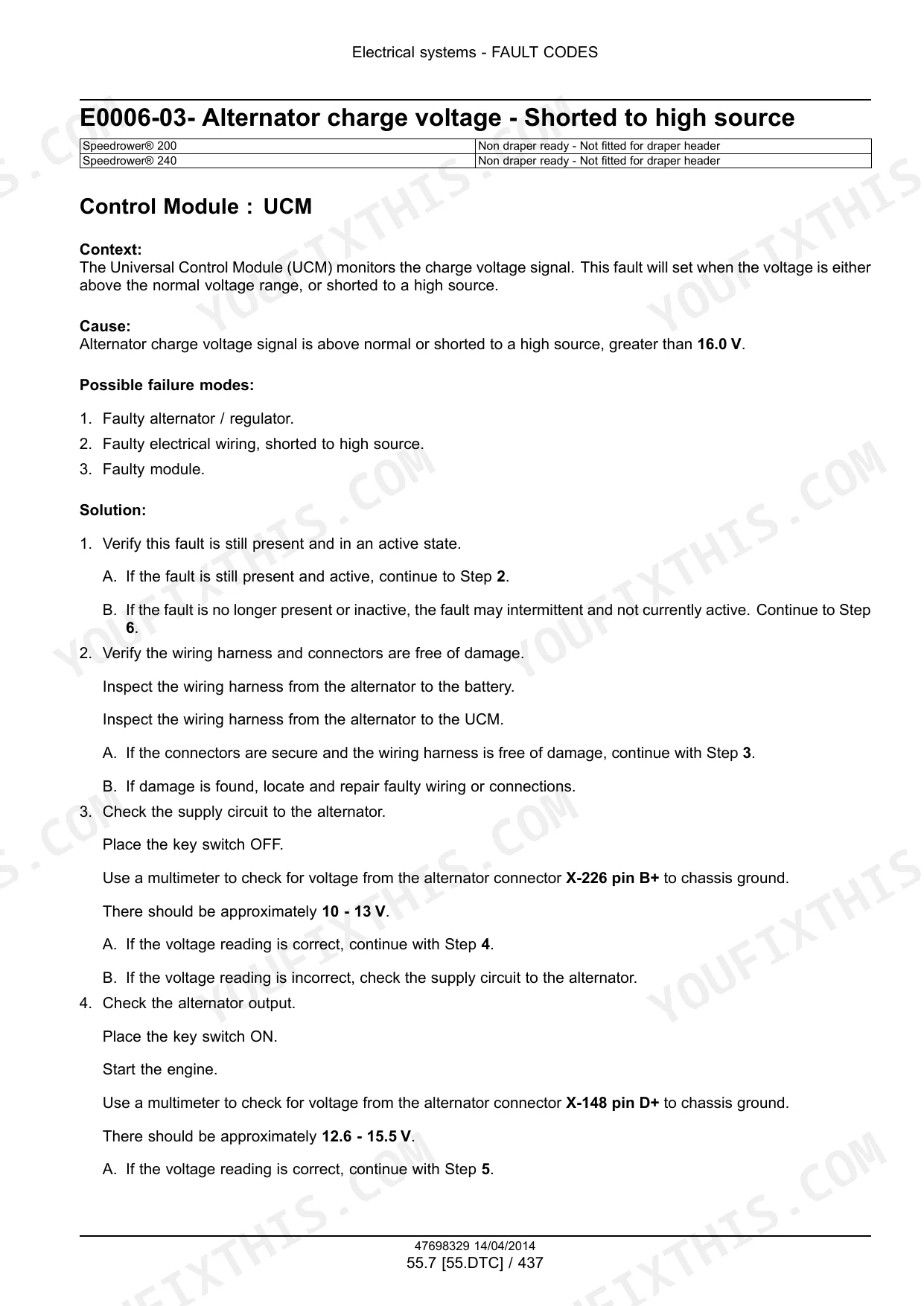

Manual Section: Charge pump - Troubleshooting p. 485Fault code E0006-03 Alternator charge voltage - Shorted to high source
The circuit test for this code in FAULT CODES expects about 12.6 - 15.5 V. If the reading is wrong, stop the engine. The book says the alternator's internal voltage regulator has failed and the alternator must be replaced. The Harnesses and connectors section carries the electrical schematic sheet for Starting/Charging, and the connector diagrams for the same circuit.
Manual Section: Electrical systems - FAULT CODES p. 1927Frequently Asked Questions
Which machines does the New Holland Speedrower 200/240 service manual cover?
It covers the Speedrower 200 and Speedrower 240 self-propelled windrower. The cover reads part number 47698329, 1st edition English, April 2014. Engine code F4HE9687 is listed for both models in North America and the International Region. p. 1
What is the fuel tank capacity and engine oil fill of the Speedrower 200 and 240?
Both models carry 454 l (120 US gal) of fuel. Engine oil is 16 l (16.9 US qt) with the filter. The cooling system holds 31.4 l (8.3 US gal) and the flywheel gearbox 2.5 l (2.6 US qt). Final drives take 0.89 l (0.94 US qt). p. 47
How do the engine torque figures differ between the Speedrower 200 and the Speedrower 240?
Both run 2200 RPM rated, 900 RPM idle and 2250 RPM maximum no-load. At rated RPM the SR200 makes 636 N·m (469 ft-lb) and the SR240 makes 768 N·m (566 ft-lb). Peak torque is 830N·m (612 ft-lb) for the SR200 and 961N·m (709 ft-lb) for the SR240, both at 1600 RPM. p. 55
What does the Speedrower 200/240 weigh and what are the rear axle torques?
Tractor weight is 5092 kg (11,225 lb) for both models, and the book notes that weights are approximate. On the non-powered rear axle, axle extension bolts take 960 N·m (708 lb ft) and pivot pin bolts take 400 N·m (295 lb ft). Wheel to wheel hub is 115 N·m (85 lb ft). Use LOCTITE 277 on the threads of all bolts and nuts in that section. Rear tire inflation pressure is 138 kPa (20 psi). p. 159
Does the Speedrower 200/240 service manual include wiring diagrams, hydraulic schematics and fault codes?
Yes. Harnesses and connectors holds the electrical schematic sheets, for example sheet 08 - Starting/Charging, plus the connector diagrams. Hydraulic schemas are in Hydraulic systems, and the merger manifold is in Attachments/Headers. Fold-out electrical schematics 47705560 and 47705561 and fold-out hydraulic schematic 47705562 are at the back. The FAULT CODES - DTC section carries circuit tests by code, such as E0500-12- ECU Recovery - Suppressed - Bad Intelligent Device. p. 763
