Part of the New Holland Repair Manuals.
This is the New Holland TC5090 Tier 3 service manual, part number 48040924, from CNH Industrial Latin America.
It covers six TC5090 Hydrostatic Machine Tier III variants from PIN HCCY3595HGCG04491 and above. You get hydrostatic pressure tests and schemas, hydraulic and pneumatic systems, electrical sheets SH02 to SH31 and DTC fault codes. It also covers every crop system, from the header belt to the unload tube. The engine section covers removal, installation and engine-mounted systems only.
Troubleshooting tables in the brake, compressor, battery and starter sections give a cause and a remedy for each symptom, and the hydrostatic pump settings are printed with both bar and psi.
What's Inside This New Holland TC5090 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and Specifications | 1-44 | Model Applicability, Safety Rules, Servicing Instructions, Maintenance Chart, Crop Adjustments, Lubricants and Capacities, Grain Loss Measurement, Belt Identification |
| Engine | 45-128 | Engine Removal and Installation, Air Cleaners, Fuel Filters and Tanks, Intake and Exhaust, Lubrication, Aftercooler, Cooling System, Rotary Screen |

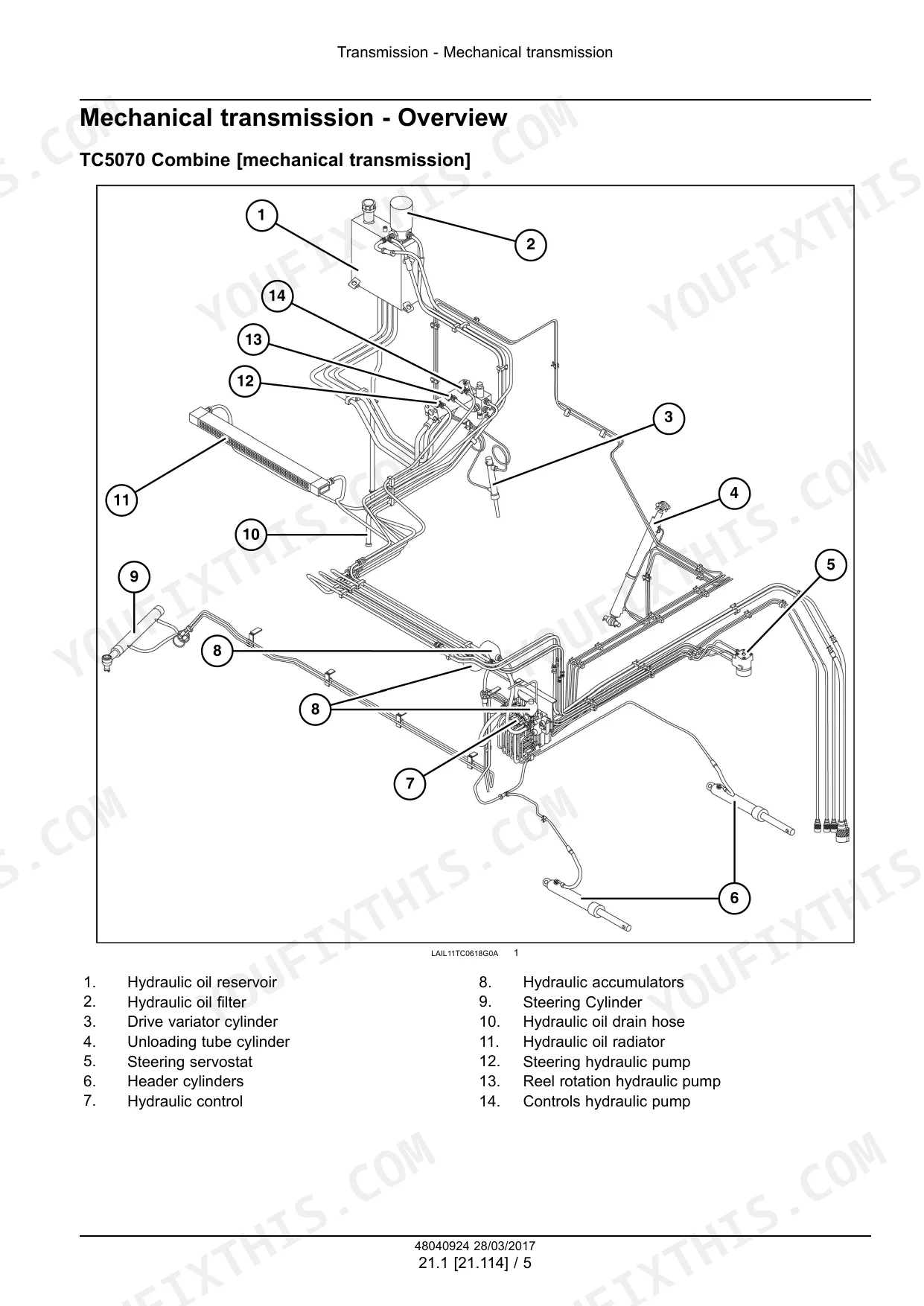

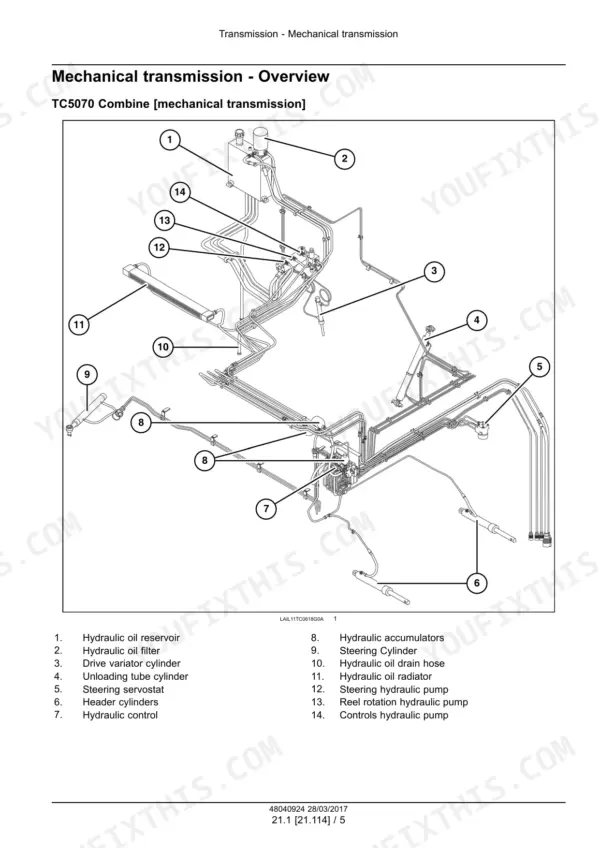

| Clutch and Transmission | 129-364 | Clutch Bleeding and Travel, Mechanical Transmission, Gearbox Service, Internal Shafts and Gears, Differential, External Controls, Traction Variator |
| Front and Rear Axles | 365-410 | Final Drives, Lubricant Drain and Filling, Wheel Hubs, Rear Axle Removal, Pivot Shafts and Bushings, Wheel Toe-In |
| Hydrostatic Drive | 411-486 | Pump and Motor Specifications, Sectional Views, Pump Overhaul, Pressure Tests, Hydraulic Schematics, Travel Adjustment, Fluid Changes, Hydrostatic Controls |
| Brakes and Hydraulic Systems | 487-580 | Service Brakes, Brake Pedals and Bleeding, Calipers and Discs, Parking Brake, Hydraulic Schematics, Reservoir and Filters, Pump Service, Control Valves |
| Pneumatic System | 581-628 | Pneumatic Clutch, Control Valves, System Diagrams, Compressor Service, Reservoir Bleeding, Pressure Regulator, Compressor Troubleshooting, Operated Cylinders |
| Steering, Wheels and Tracks | 629-684 | Steering Control Valve, Valve Overhaul, Rear Wheel Liquid Ballast, Track Installation, Drive Chain Tension, Track Lubrication and Servicing |

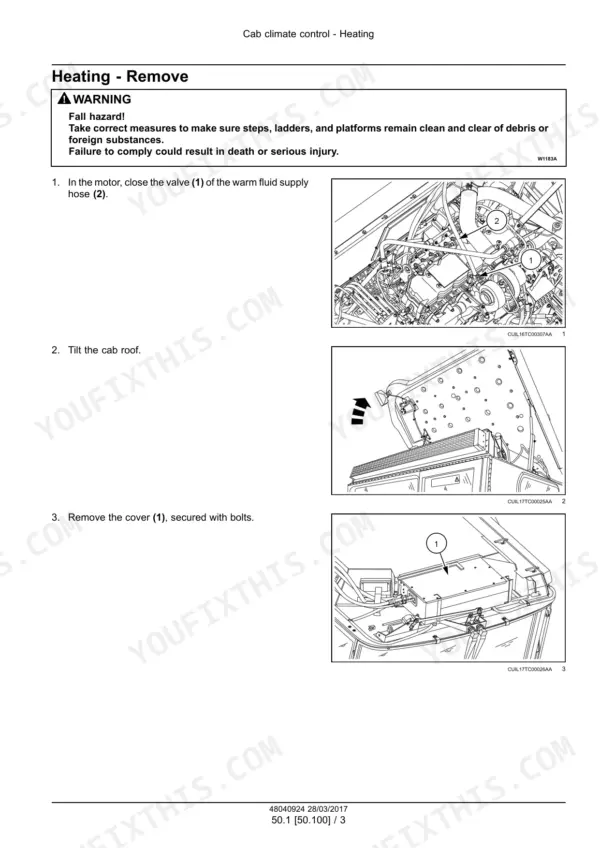

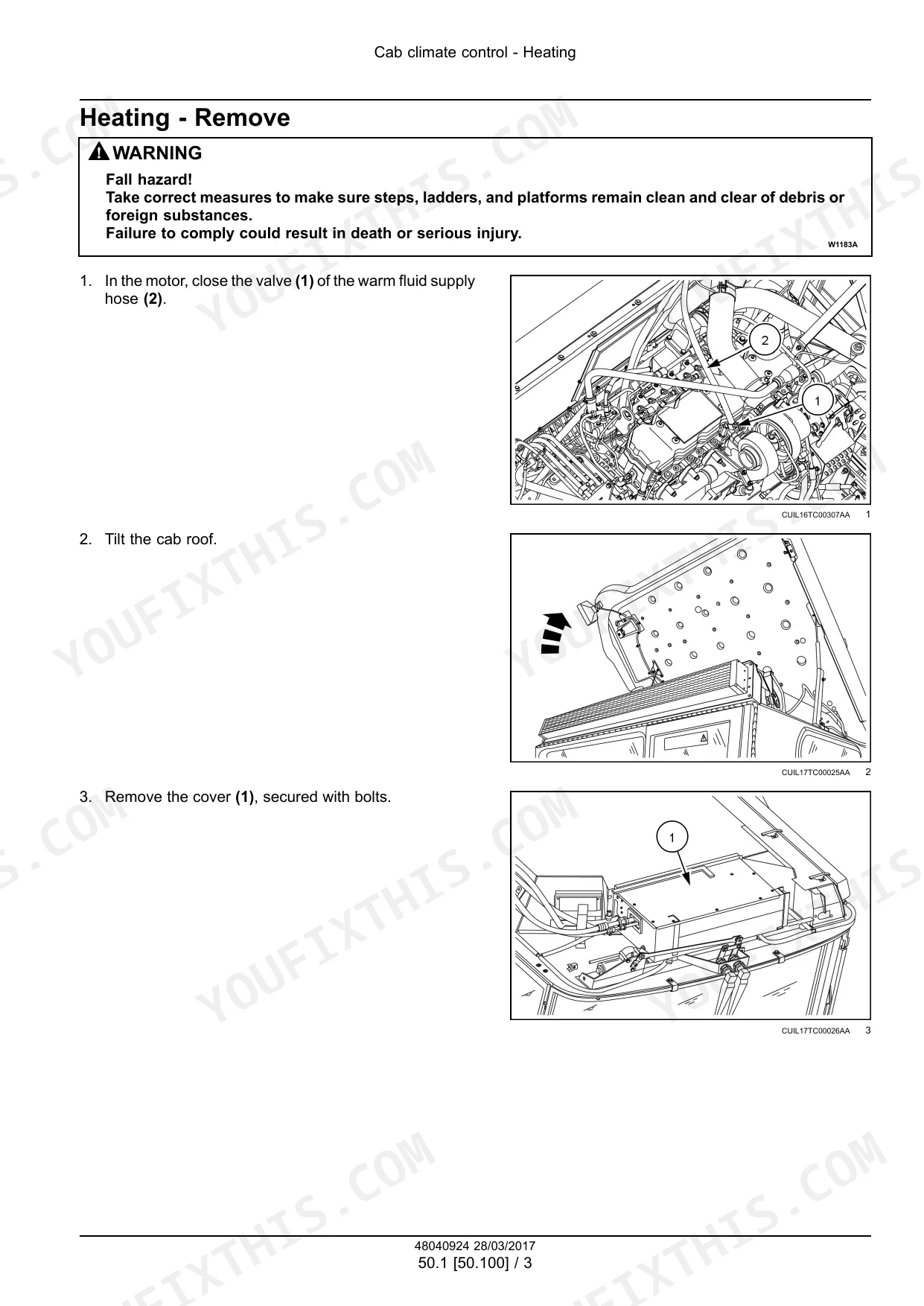

| Cab Climate Control | 685-734 | Heating, Heater Control Valve, Refrigerant Specifications, Compressor, Recovery and Charging, Vacuum and Leakage Tests, Condenser, Evaporator |
| Electrical - Harnesses, Connectors and Wiring Schematics | 735-971 | Fuse and Relay Box, Connector Pinouts, Wiring Schematic Sheets, ECU Connections, Sensors, Grounding, Electrical Component Descriptions |

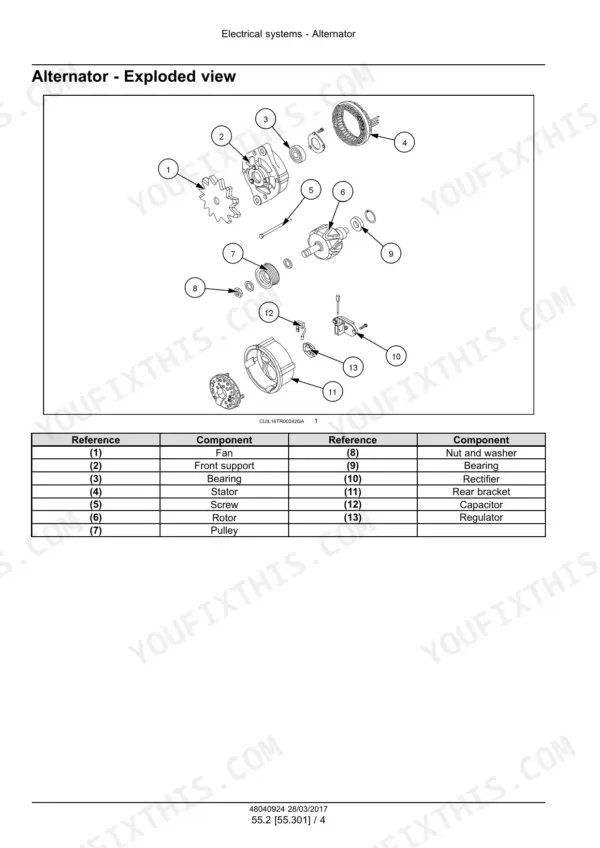

| Electrical - Alternator | 972-997 | Specifications, Operating Description, Preliminary Tests, Component Tests, Removal and Installation, Disassembly and Assembly, Troubleshooting |

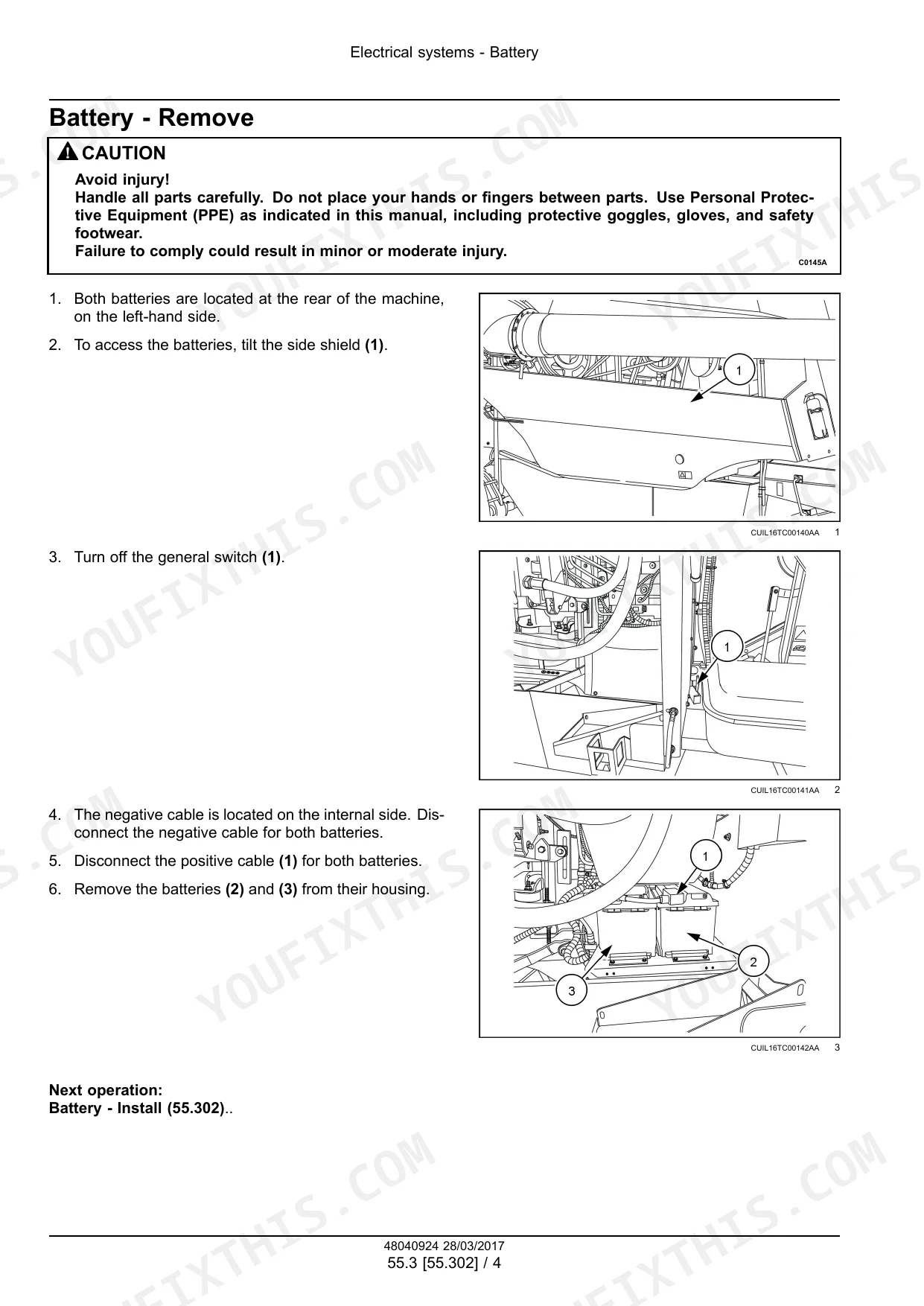

| Electrical - Battery | 998-1007 | Specifications, Removal, Installation, Battery Testing, Troubleshooting |
| Electrical - Engine Starting System | 1008-1019 | Starter Specifications, Operating Description, Removal, Installation, Starter Testing, Troubleshooting |
| Electrical - Fault Codes (DTC) | 1020-1248 | Console Keyboard Faults, Vehicle Controller Faults, ECU Faults, Sensor Voltage Errors, Fuel Rail and Injector Faults, CAN Communication Errors |
| Header and Product Feeding | 1249-1328 | Header Belt Tension, Feed Chain, Feeder Housing, Feeder Drive, Reversing System, Stone Trap, Slip Clutch |
| Threshing | 1329-1376 | Drive Belt Tension, Threshing Drum, Cylinder Removal and Installation, Drum Balancing, Electrical Variator, Concave Clearance |
| Separation | 1377-1468 | Beater, Rotary Separator, Separator Concave, Drive Speed Adjustment, Straw Walkers, Walker Balancing, Crankshafts |
| Residue Handling | 1469-1482 | Straw Chopper Specifications, Chopper Operation, Spreader Hood, Chopper Drive Adjustment, Drive Belt Tension |

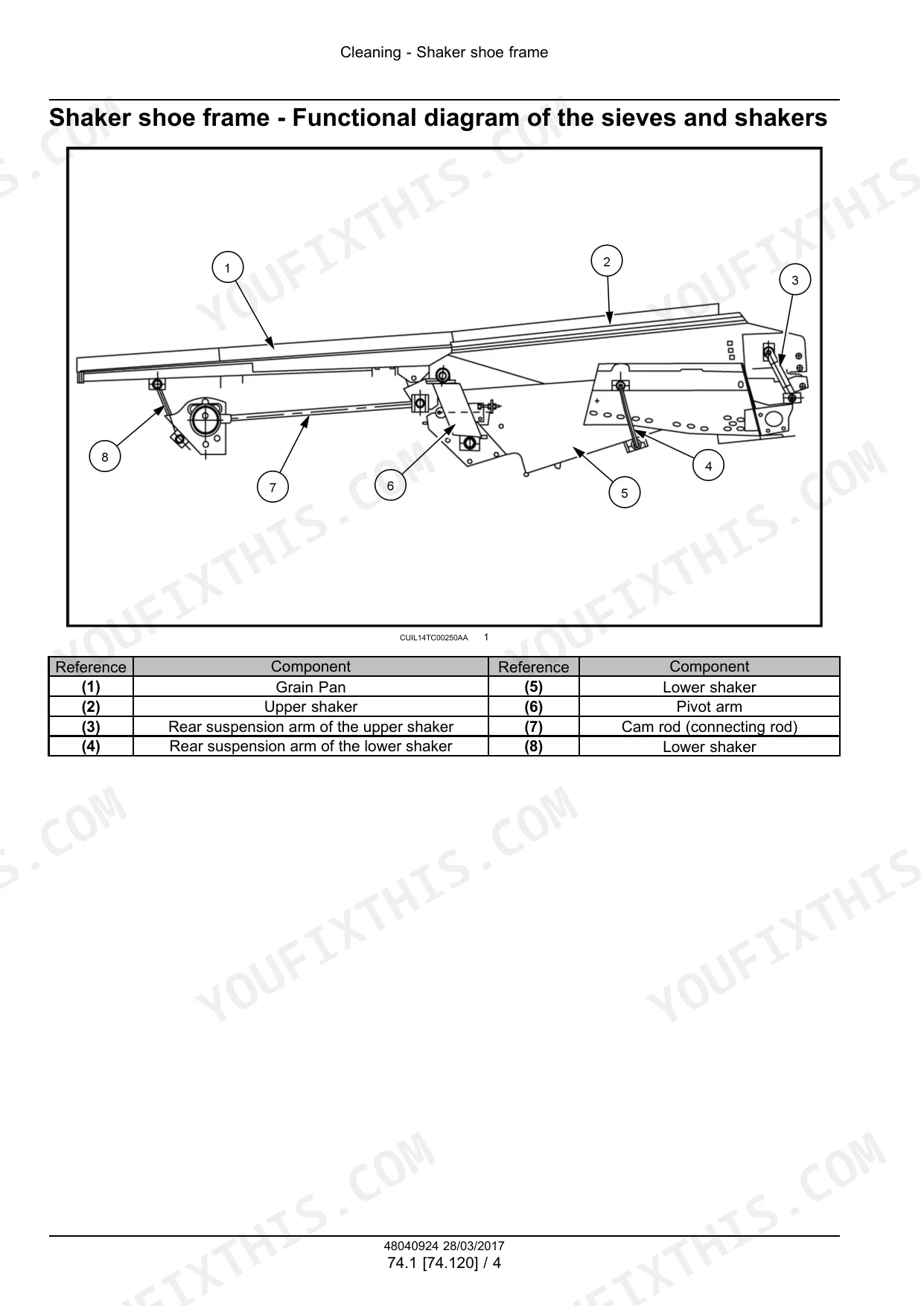

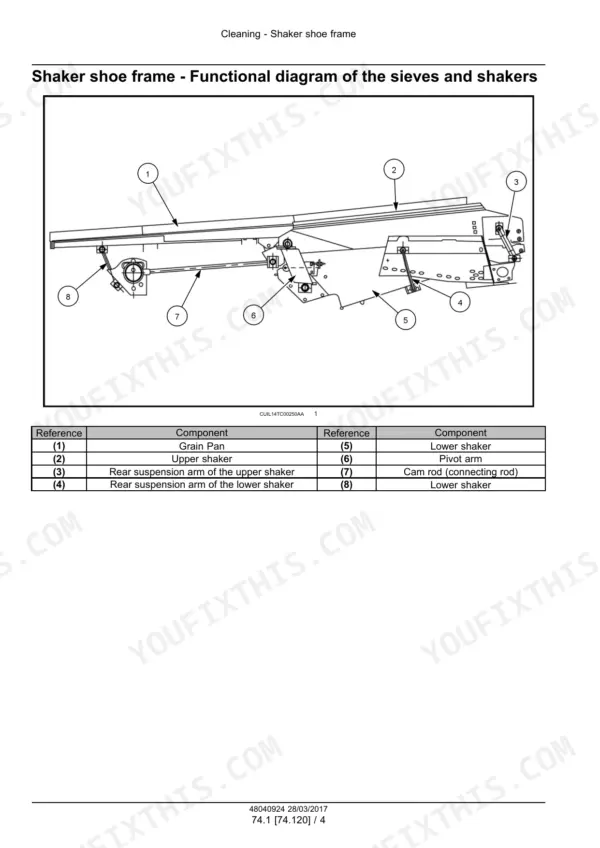

| Cleaning | 1483-1642 | Shaker Shoe Frame, Grain Pan, Upper and Lower Sieves, Cleaning Fan, Speed Variator, Drive Belts, Tailings Return |

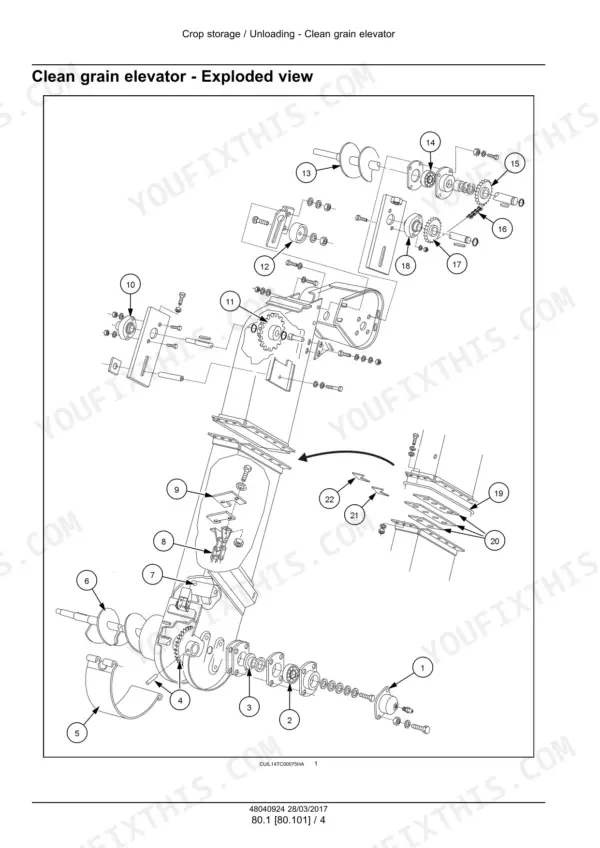

| Crop Storage and Unloading | 1643-1729 | Clean Grain Elevator, Elevator Chains, Grain Augers, Tank Filling Auger, Safety Clutch, Unload Drive, Unload Tube |
| Special Tool Index | 1730-1731 | Transmission Nut Spanner, Steering Seal Installer, Guide Pivot, Mandrels and Bearing Supports |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine oil quantity | 15.0 l | p. 40 |
| Engine + filter oil quantity | 16.0 l | p. 40 |
| Final reducer oil quantity | 5.0 l each | p. 40 |
| Oil reservoir capacity [hydrostatic transmission] | 40 l | p. 546 |
| Steering actuator circuit | 26 l | p. 460 |
| Differential gear bolts tightening torque | 69 N·m | p. 140 |
| Gearbox primary shaft nut | 150 - 170 N·m (111 - 125 lb ft) | p. 168 |
| Shifting disk shaft journal securing torque | 190 - 210 N·m (140 - 155 lb ft) | p. 168 |
| Hydrostatic pump high pressure setting on port A | 420.0 bar (6090.0 psi) | p. 414 |
| Hydrostatic pump maximum volumetric displacement | 75.0 cm³/rev (4.6 in³/rev) | p. 414 |
| Hydrostatic transmission supply pressure | 20 bar (290 psi) | p. 460 |
| Hydrostatic transmission maximum oil working temperature | 93 °C (199 °F) | p. 460 |
| Hydraulic system rated pressure | 165 - 172 bar (2393 - 2494 psi) | p. 546 |
| Hydraulic pump gear nut torque (left thread) | 70 N·m (51.6 lb ft) | p. 546 |
| Steering safety valve maximum pressure | 135 bar (1958 psi) | p. 632 |
| Original rear tires | 12.5/80 - 18 | p. 679 |
| Beater speed | 875 RPM | p. 1380 |
| Straw chopper speed, corn | 1600 RPM | p. 1472 |
| Straw chopper speed, other crops | 2800 RPM | p. 1472 |
| Cleaning fan velocity | 350 - 1000 RPM | p. 1572 |
New Holland TC5090 Common Problems This Manual Covers
Service brakes lose efficiency

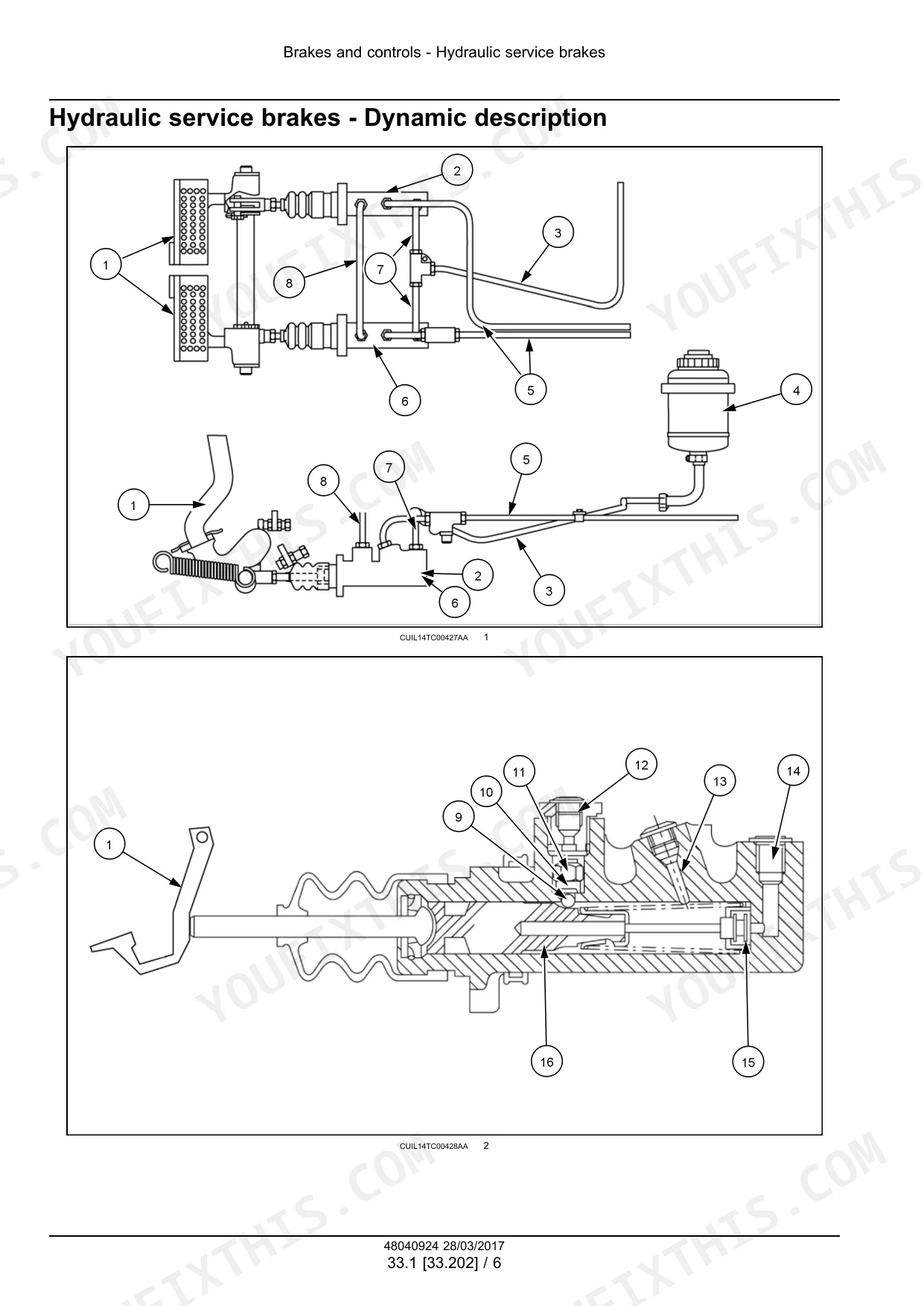

The service brakes troubleshooting chart lists air in the circuit as a cause. Bleed the system using the brake pedal and bleeding procedure. The same brakes and controls section also covers the brake pedals, the calipers and discs, and the parking brake, so the related checks are in one place.
Manual Section: Hydraulic service brakes - Troubleshooting p. 525Pneumatic compressor is noisy
The pneumatic compressor troubleshooting table lists low engine oil level as one cause of a noisy compressor. Check the engine oil level and fill it to spec. That's 15.0 l for the engine alone or 16.0 l with a filter change. If the noise stays, work through the compressor service and pressure regulator procedures.
Manual Section: Pneumatic compressor - Troubleshooting p. 615Battery does not charge
Before you blame the alternator, the battery troubleshooting table sends you to the terminals. Loose or corroded terminals are a listed cause, so clean and tighten the connections. If it still won't charge, run the battery testing procedure. Then move on to the alternator preliminary tests and component tests.
Manual Section: Battery - Troubleshooting p. 1006Slow starter motor speed
The engine starting system troubleshooting chart lists loose or corroded battery connections as a cause of slow starter motor speed. Clean and tighten those connections before you pull anything off the machine. If it still cranks slowly, the starter testing procedure and specifications will show whether the starter itself is at fault.
Manual Section: Engine starter - Troubleshooting p. 1018Frequently Asked Questions
Which machines does the New Holland TC5090 Tier 3 service manual cover?
It covers six TC5090 Hydrostatic Machine Tier III variants, all from PIN HCCY3595HGCG04491 and above. Four of them are feeder short with fixed shoe, feeder short with self leveling shoe, rice with feeder long and fixed shoe, and rice with feeder short. The other two have no straw walker: one is feeder long with fixed shoe, the other feeder short. Check your PIN plate before ordering. The book is part number 48040924, dated March 2017. p. 2
How much engine oil does the New Holland TC5090 combine take?
The engine takes 15.0 l, or 16.0 l if you change the filter at the same time. The manual calls for AMBRA SUPER SAE 15W40. Each final reducer takes 5.0 l, and the hydraulic systems section lists an oil reservoir capacity of 40 l for the hydrostatic transmission. The engine and final reducer figures are in the consumables table at the front of the book. p. 40
What are the hydrostatic drive pressures on the New Holland TC5090?
The high pressure setting on hydrostatic pump port A is 420.0 bar (6090.0 psi). Supply pressure is 20 bar (290 psi), and maximum oil working temperature is 93 °C (199 °F). The pump's maximum displacement is 75.0 cm³/rev (4.6 in³/rev). The pressure test procedures and hydrostatic schemas show where to put your gauges. p. 414
What speeds are specified for the TC5090 cleaning fan and straw chopper?
Cleaning fan velocity is 350 - 1000 RPM, set through the fan speed variator. The straw chopper runs at 1600 RPM for corn and 2800 RPM for other crops. Beater speed is 875 RPM. The crop adjustments and grain loss measurement pages help you confirm the settings once you're cutting. p. 1572
Does the New Holland TC5090 service manual include wiring diagrams, hydraulic schemas and fault codes?
Yes. Electrical schematic sheets SH02 to SH31 come with component lists, starting at p.871. Hydrostatic transmission and hydraulic system schemas are included too. The FAULT CODES - DTC section lists codes such as E124 - Water in Fuel and E135 - Coolant Temperature High. p. 871
