Part of the New Holland Repair Manuals.
Every system on your machine gets stripped down and rebuilt in this 709-page New Holland T3 Series service manual pdf (OEM #47977155), covering the T3.50F, T3.55F, T3.65F, and T3.75F tractors. You get detailed electrical schematics tracing every cab control fault, complex hydraulic diagrams for the main lift system, and an entire section dedicated to step-by-step engine teardowns. Open up to complete planetary drive rebuilds, PTO clutch adjustments, and page after page of factory troubleshooting charts. Set the main lift system relief valve to 190 bar and verify the front axle differential backlash is sitting strictly between 0.15 and 0.20 mm before reassembly. Wrenching blind is a quick way to ruin a good tractor. Grab this bookmarked digital download, load it on your shop tablet, and knock out the repair right the first time.
What's Inside This New Holland T3.50F, T3.55F, T3.65F, T3.75F Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 7-22 | Safety Rules, Basic Instructions |
| Engine - 10 | 23-182 | Engine and Crankcase, Valve Drive and Gears, Cylinder Heads, Connecting Rods and Pistons, Crankshaft and Flywheel, Fuel Injection System, Engine Cooling System, Fan and Drive |
| Clutch - 18 | 183-206 | Clutch and Components |
| Transmission - 21 | 207-254 | Mechanical Transmission, Power Shuttle Transmission, Creeper, Gearbox |
| Four-Wheel Drive (4WD) System - 23 | 255-280 | Mechanical Control, Electro-Hydraulic Control, Drive Shaft |
| Front Axle System - 25 | 281-332 | Powered Front Axle, Front Bevel Gear Set and Differential, Final Drive Hub, Steering Knuckles, And Shafts |
| Rear Axle System - 27 | 333-368 | Powered Rear Axle, Rear Bevel Gear Set and Differential, Planetary and Final Drives |
| Hydrostatic Drive - 29 | 369-376 | Rear Hydrostatic Transmission |
| Power Take-Off (PTO) - 31 | 377-404 | Rear Mechanical Control, Clutches |
| Brakes and Controls - 33 | 405-452 | Hydraulic Service Brakes, Parking Brake or Parking Lock, Trailer Brake Hydraulic Control |
| Hydraulic Systems - 35 | 453-518 | Auxiliary Hydraulic Valves and Lines, Front Hitch Cylinders and Lines, Main Lift System |
| Steering - 41 | 519-574 | Steering Control, Cylinders |
| Wheels - 44 | 575-582 | Front Wheels |
| Electrical Systems - 55 | 583-694 | Electrical System, Harnesses and Connectors, Engine Starting System, Alternator, Battery, Engine Oil System, Transmission Control System, Cab Controls |
| Platform, Cab, Bodywork, and Decals - 90 | 695-707 | Operator Platform Less Cab |
New Holland T3.50F, T3.55F, T3.65F, T3.75F Common Problems This Manual Covers

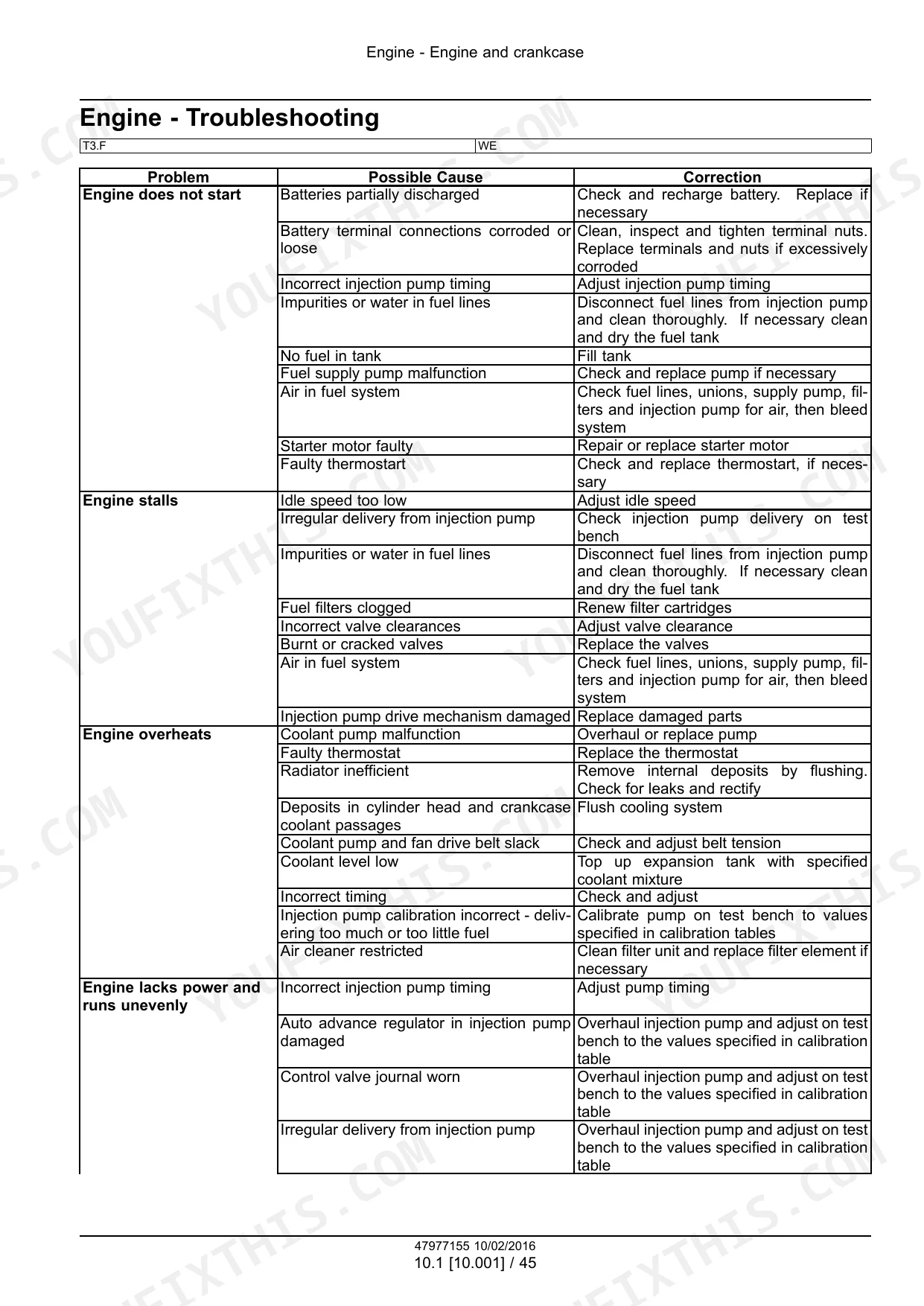

New Holland T3.50F engine starts fine but stalls out completely after 10 to 15 minutes
Inspect the fuel delivery system and injector pump. If the engine dies after a 10 to 15 minute interval, check the fuel lines for vacuum locks or contamination. Review the troubleshooting procedures. Replace the fuel injector O-rings and bleed the air from the lines.
Manual Section: Engine TroubleshootingTrailer brake warning light stays illuminated and hydraulic release pressure reads 0 to 11 bar
Test the trailer brake hydraulic control lines for blockages. If the gauge shows a release pressure of 0-11 bar, investigate the return valve for sticking. Consult the hydraulic schematic on page 430 to trace the flow path. Clean the valve body and replace the seals to restore pressure.
Manual Section: Trailer Brake Hydraulic Control Troubleshooting p. 430Main hydraulic lift fails to operate or drops implement immediately when placed under load
Verify the main lift system pump output with a diagnostic gauge. If the reading indicates a system pressure of 0 bar, tear down the assembly and check for worn hydraulic pump seals. Replace all damaged cylinder O-rings and retest the lifting capacity to ensure it holds steady.
Manual Section: Main Lift System TroubleshootingFrequently Asked Questions
What is the normal engine oil pressure when the engine is hot and at fast idling speed?
The normal engine oil pressure, with the engine hot and at fast idling speed, should be between 2.9 and 3.9 bar (42.0 - 56.6 psi) for all models.
What are the valve clearances for intake and exhaust valves during normal running when the engine is cold?
For normal running with a cold engine, the intake valve clearance should be 0.25 - 0.35 mm, and the exhaust valve clearance should also be 0.25 - 0.35 mm.
What is the maximum permitted wear for crankshaft assembly end float?
The crankshaft assembly end float is specified as 0.082 - 0.334 mm, with a maximum permitted wear end float of 0.40 mm.
What coolant mixture is recommended for freezing protection down to -35 °C?
For protection down to -35 °C, the cooling system should be filled with a permanent coolant mixture of water and "NEW HOLLAND AMBRA AGRIFLU" antifreeze, with the antifreeze making up 50% of the volume.
Is this New Holland T3 Series SERVICE MANUAL a digital download?
Immediate download of the complete 709-page searchable SERVICE MANUAL. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this New Holland T3 Series SERVICE MANUAL?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
Are hydraulic system diagrams in this New Holland T3 Series SERVICE MANUAL?
Yes, this New Holland T3 Series SERVICE MANUAL includes hydraulic system diagrams, circuit schematics, and component specifications.
