Matched to the TC18 compact tractor, this New Holland TC18 owner's manual PDF reproduces the 104-page factory operator manual under OEM part number 86837071. Controls and instruments, engine starting and tractor hydraulics are laid out in the operation chapter, while the lubrication and maintenance section covers recommended lubricants and coolants, fuel and oil service routines, and the wiring diagrams you trace when a circuit goes dead. A delivery report checklist runs through tire pressure, fan belt tension, battery and fluid levels, and a torque table lists minimum hardware tightening values. Change the transmission, rear axle and hydraulic oil every 300 hours, refill the H.S.T. transmission with 16 liters (16.9 qts.), and bring the rear wheels to 122 N·m (90 ft. lbs.). Bookmarks and searchable text help on screen, and the pages print clean.
What's Inside This New Holland TC18 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 7-19 | Precautionary Statements |
| General Information | 20-23 | Minimum Hardware Tightening Torques |
| Operation | 24-51 | Controls and Instruments, Starting the Engine, Tractor Hydraulics |

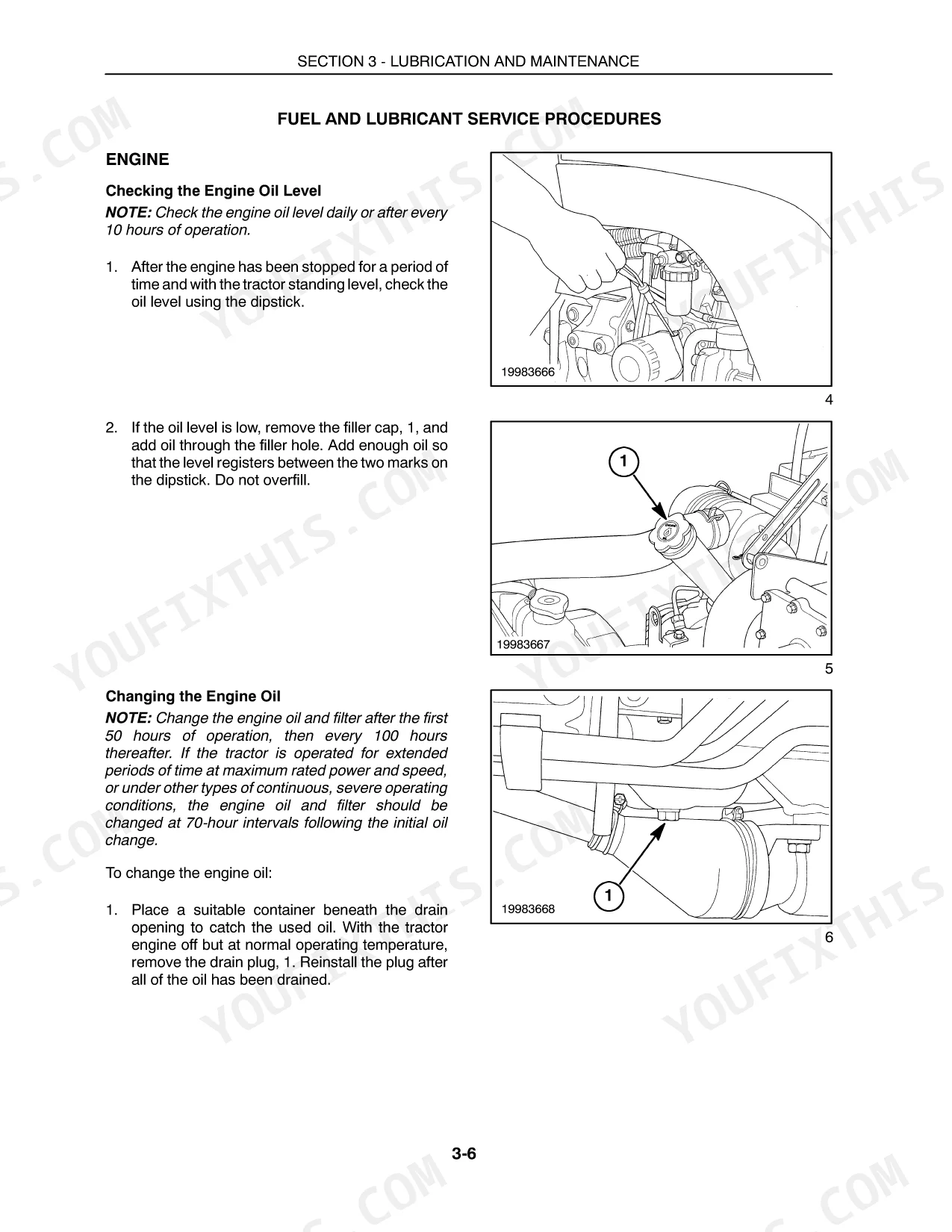

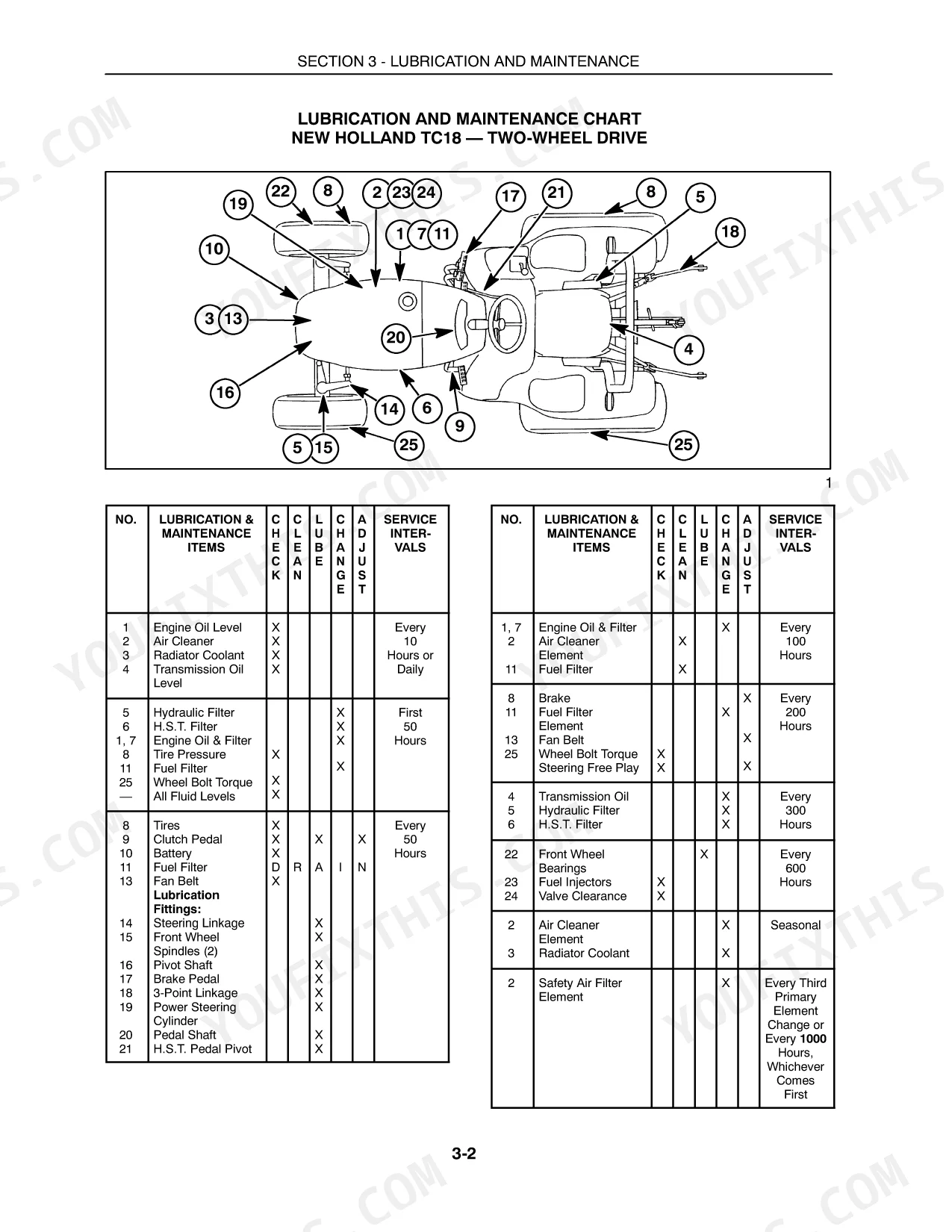

| Lubrication and Maintenance | 52-89 | Recommended Lubricants and Coolants, Fuel and Lubricant Service Procedures, General Maintenance |

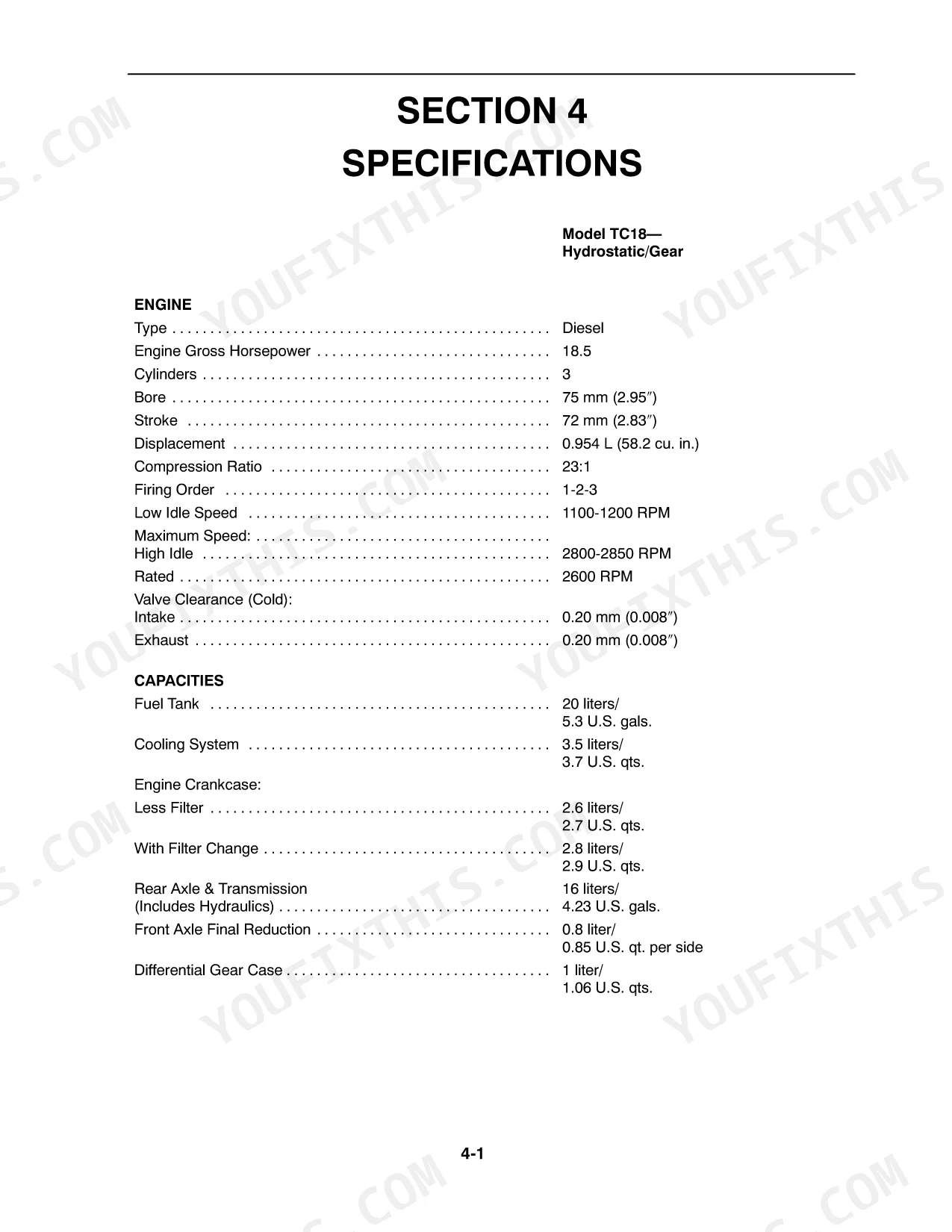

| Specifications | 90-97 | General Dimensions |
| Delivery Report | 100-104 | Tire Pressure, Air Cleaner Element, Radiator Coolant Level, Fan Belt Tension, Battery, Engine Oil Level, Power Steering Reservoir, Transmission and Rear Axle Oil Level |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front Wheel Torque | 88 N·m (65 ft. lbs.) | p. 78 |
| Rear Wheel Torque | 122 N·m (90 ft. lbs.) | p. 78 |
| Transmission, rear axle, and hydraulic system oil change interval | after every 300 hours of operation | p. 15 |
| H.S.T. transmission oil capacity | 16 liters (16.9 qts.) | p. 90 |
| Fuel Tank Capacity | 20 liters | p. 90 |
| Engine Crankcase Oil Capacity (With Filter Change) | 2.8 liters | p. 90 |
| Rear Axle & Transmission Oil Capacity | 16 liters | p. 90 |
| Front Axle Final Reduction Oil Capacity | 0.8 liter | p. 90 |
| Differential Gear Case Oil Capacity | 1 liter | p. 90 |
| Radiator Cap Pressure | 0.9 bar | p. 91 |
| Hydraulic System Relief Valve Setting | 130 bar | p. 92 |
New Holland TC18 Common Problems This Manual Covers
Engine cranks but will not start after running out of fuel or changing the fuel filter
Bleed the fuel system following pages 59 and 60. Confirm fuel is in the tank, open the shutoff valve, then open the bleed screw at the pump until air-free fuel flows and close it. If it still won't fire, loosen the injector line fittings (page 61), crank until clean fuel shows, and tighten to 24-29 N·m (18-22 ft. lbs.). Fuel in the injection system is under high pressure (page 60); check for leaks with cardboard, never your hand.
Manual Section: Bleeding the Fuel System p. 59Coolant temperature gauge needle climbs out of the green and into the red range

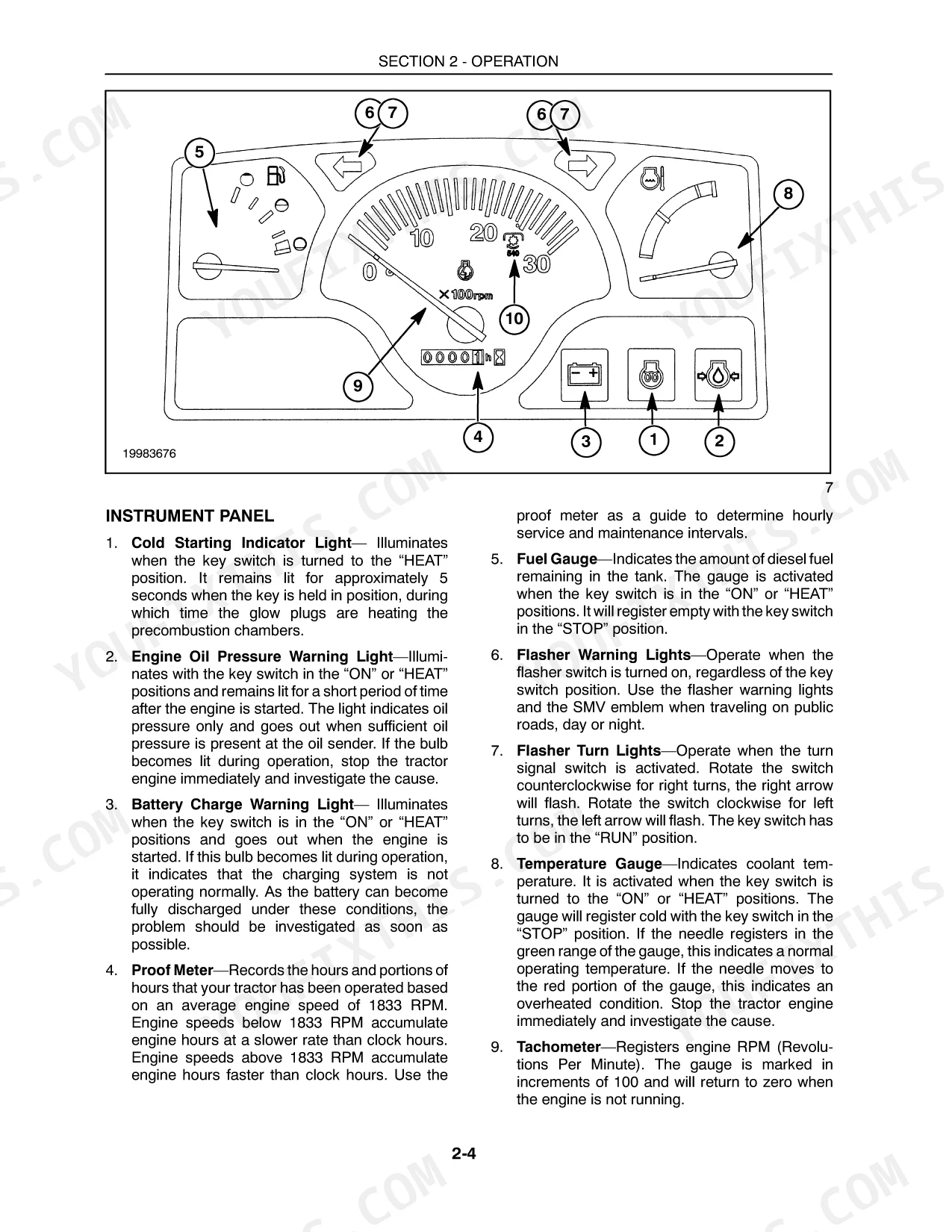

Stop the engine immediately when the needle reaches red, as page 27 directs, and investigate the cause before you try to finish the field. Once it has cooled, work through the daily checks listed on page 30: radiator coolant, engine oil level, and air cleaner. Confirm the radiator cap on the tractor carries the 0.9 bar rating listed on page 91.
Manual Section: Temperature Gauge p. 27Battery charge warning light comes on during operation and battery runs flat
Check the charging system as soon as possible; page 27 warns the battery can fully discharge while that light is on. To get going again, jump start following page 30: shield your eyes, connect positive to positive, then auxiliary negative to the tractor starter ground terminal, and start from the seat. Idle with lights on, then disconnect in reverse order to protect the alternator. Wear eye and skin protection and keep sparks and flame away from the battery.
Manual Section: Starting the Tractor with Jumper Cables p. 30Brake pedal travel excessive or one pedal travels farther than the other
Adjust each pedal following page 82. Loosen the locknut and rotate the brake rod until you have 19 mm to 30 mm (3/4 to 1-3/16 in.) of pedal free play; lengthening the rod adds play, shortening it removes play. Test drive to confirm both rear wheels brake equally, and readjust until they do before heading back out to the field.
Manual Section: Brake Adjustment p. 82Steering wheel free play on manual steering models exceeds 50 mm in rotation
Measure play at the wheel against the 20 mm to 35 mm range on page 80. First confirm all link bolts are tightened properly, and install new parts where wear is severe. Then loosen the adjuster locknut on the right side of the steering gearbox, turn the adjuster screw clockwise to reduce play, and tighten the locknut securely once it is set.
Manual Section: Steering Wheel Free Play Adjustment p. 80Frequently Asked Questions
How do you bleed the fuel system on a New Holland TC18 that cranks but will not start?
To bleed the fuel system, first ensure there is adequate fuel in the tank and open the fuel shutoff valve. Open the bleed screw at the pump until air-free fuel flows, then close it. Finally, push the hand throttle to the high speed position and turn the engine over for a few seconds to bleed the high pressure fuel tubes. p. 60
How do you bleed the injector lines on a New Holland TC18?
Bleed the injector lines by loosening the injector line fittings at the injectors. Move the hand throttle to the wide open position and crank the engine until air-free fuel flows from each connection. Tighten the fittings to 24-29 N-m (18-22 ft. lbs.). p. 61
What are the replacement specifications for the fuel filter on the New Holland TC18?
The diesel fuel filter should be changed after the first 50 hours of operation, and then every 200 operating hours thereafter. Ensure the shutoff valve is in the 'C' position before removing the sediment bowl. p. 59
How do you fix new Holland TC18 starter motor cranks but diesel engine will not fire or keep running?
Check the interlock conditions on page 29: rear and mid PTO in OFF, range lever in NEUTRAL, and you in the seat or the parking brake engaged. If any of these are not met, the fuel solenoid is not energized and no fuel reaches the injection pump. Start only from the operator's seat, never beside the tractor, and do not bypass the neutral start switches (page 9). Crank no longer than 30 seconds at a time. p. 29
What format is this New Holland TC18 manual in?
Straight to your device: 104 pages of searchable Owner's Manual, downloadable the moment payment goes through.
Is printing allowed for this New Holland TC18 Owner's Manual?
Yes. It prints from any PDF reader, so run off the pages you need for your own repair work.

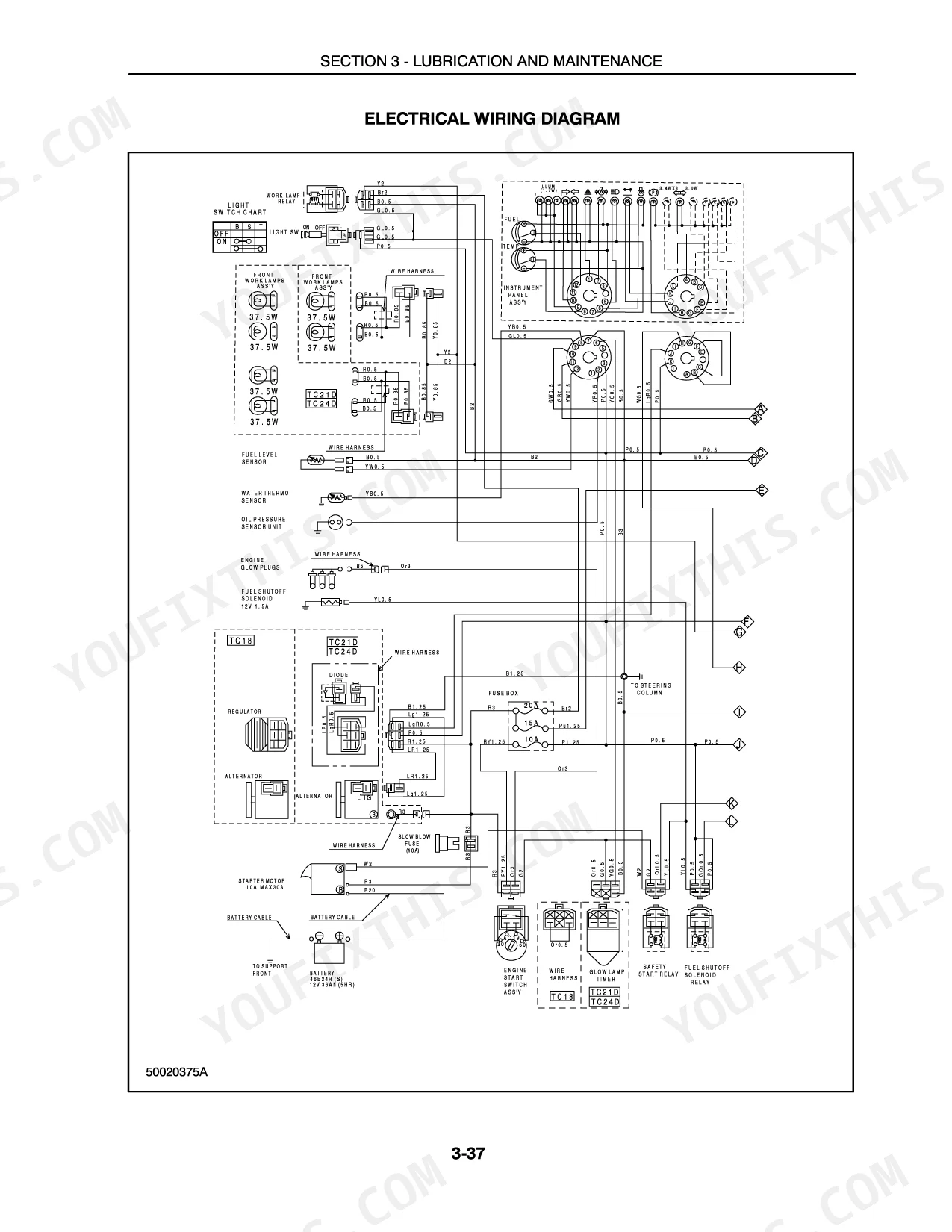

Are electrical wiring diagrams included in this New Holland TC18 Owner's Manual?
Yes, this New Holland TC18 Owner's Manual includes a wiring diagram for the electrical system. You can see one on page 88.
