The D-179 won't fire after a filter change, or the hydraulic oil level keeps dropping and you can't see where it's going. This factory Case service manual covers the 380B industrial tractor. Many sections are shared with the Case 85 Series ag tractors.
It covers the engine, the fuel system with the Bosch VE and VA injection pumps, electrical, steering and front axle, power train, brakes and hydraulics. Separate chapters explain how the hydrostatic steering and the tractor hydraulic system work.
Most jobs don't stall on the wrenching. They stall with the head torqued to the second stage and nobody sure of the final figure. The specs are in the book, down to injector opening pressure and pump timing. Look up the number, finish the job and get back in the field.
What's Inside This Case 380B Manual
| System | Pages | Key Topics |
|---|---|---|
| Specifications and Special Tools (1000-1280) | 1-88 | Table of Contents, Hand Signals, Serial Numbers, General Specifications, Special Service Tools, Fuel System, Steering and Hydraulic Specifications |
| Engine Troubleshooting (2201) | 89-110 | Engine Troubleshooting Chart: Engine Will Not Turn, Hard Starting, Smoke, Will Not Run, Misfire, Noise, Overheating, Low Power |
| Engine Overhaul (2215-2240) | 111-242 | Cylinder Head, Valves and Rocker Arm, Cylinder Block, Pistons and Connecting Rods, Crankshaft, Bearings and Seals, Camshaft and Idler Gear |

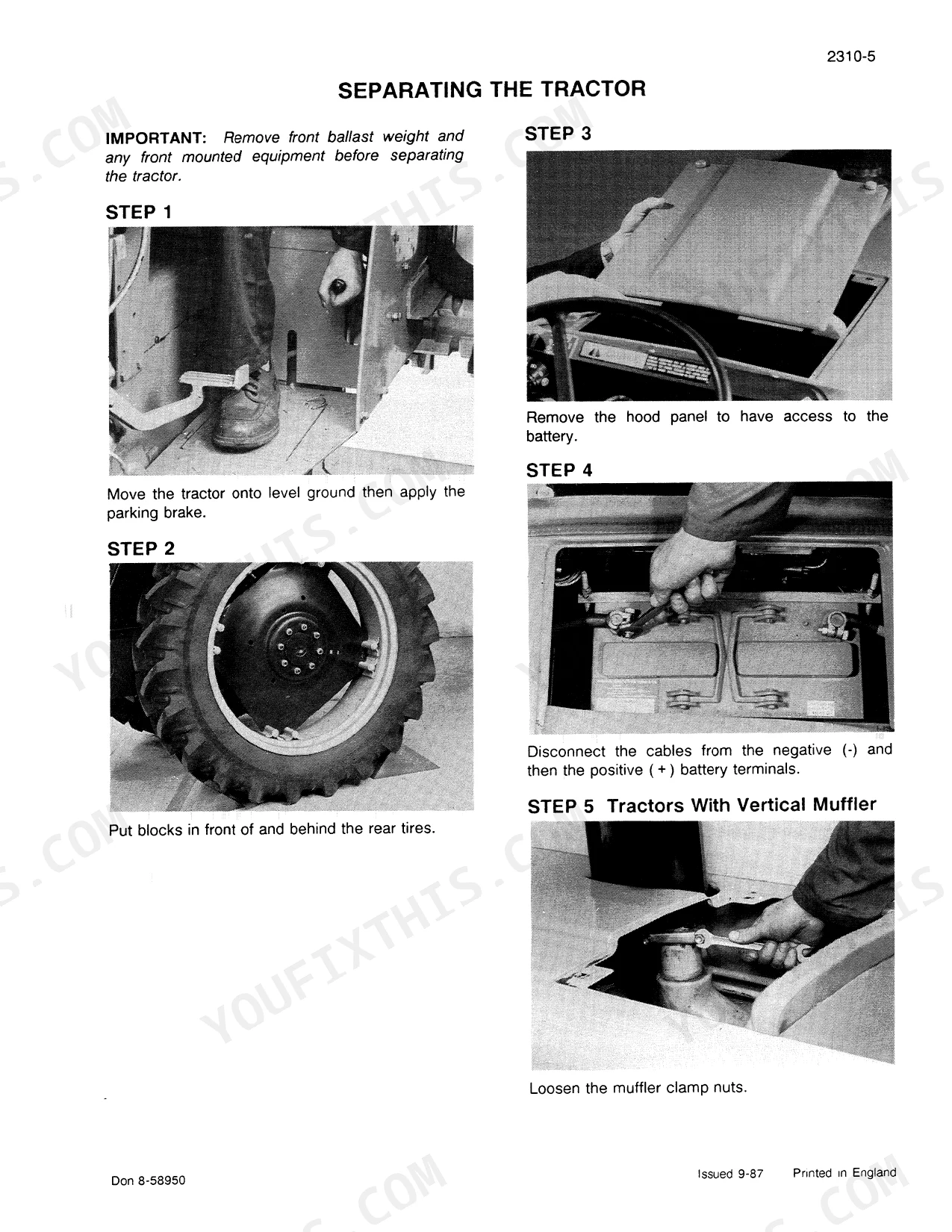

| Engine Lubrication, Separating and Cooling (2245-2355) | 243-312 | Lubrication System, Separating the Tractor, Cooling System |
| Engine Removal (2410-2415) | 313-346 | 4 Cylinder Engine Removal, 3 Cylinder Engine Removal with Heavy Duty Cast 2WD Front Axle |
| Fuel System and VE Injection Pump (3310-3311) | 347-392 | Fuel Filters and Air Removal, VE Type Fuel Injection Pump Removal and Tractor Settings |
| VA Injection Pump and Injectors (3312-3313) | 393-444 | VA Type Fuel Injection Pump, Fuel Injectors |

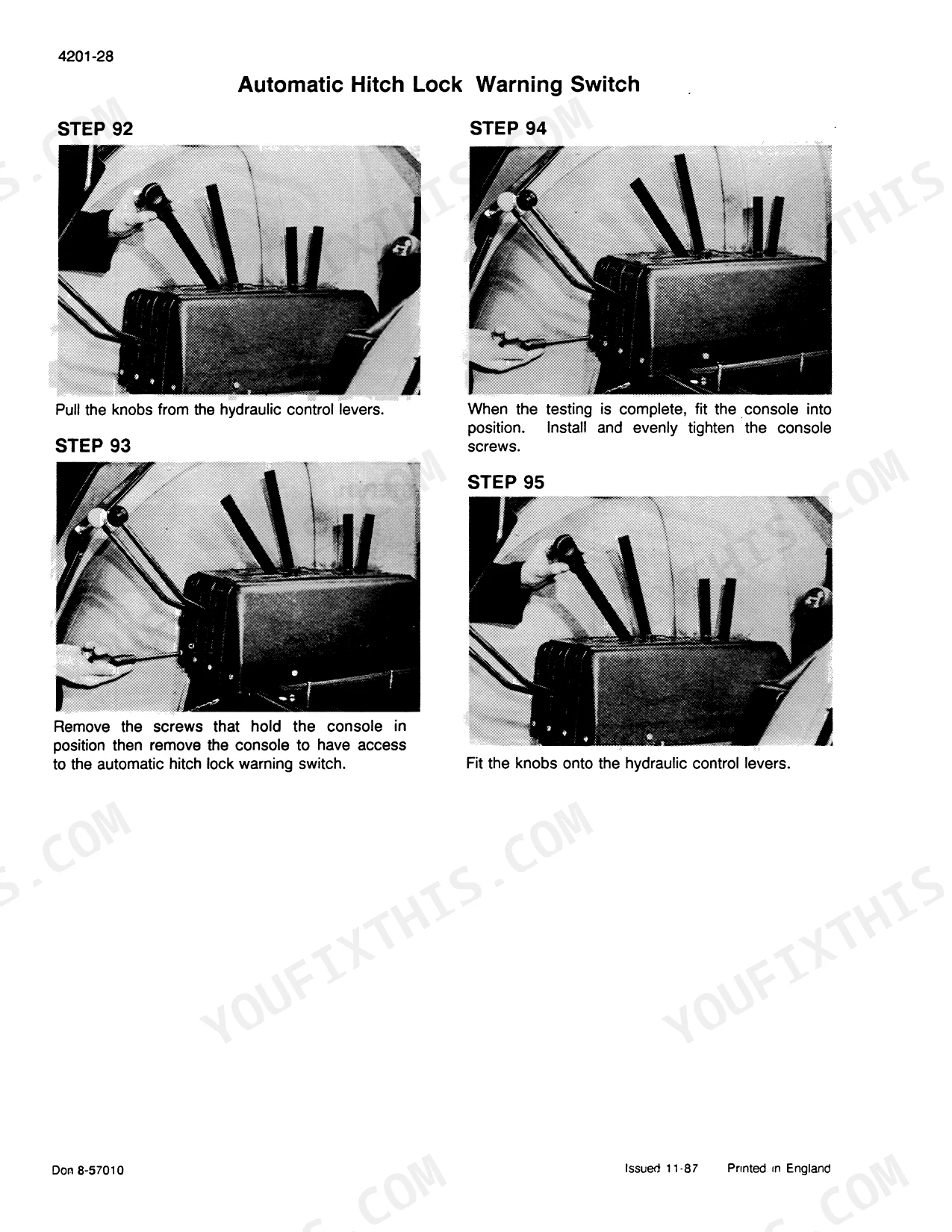

| Electrical Troubleshooting (4201) | 445-570 | Lighting System Component Location and Operation, Electrical Troubleshooting, Using a Multimeter |
| Fuses, Battery, Alternator and Starting Motor (4210-4330) | 571-644 | Fuse Locations and Ratings, Cable Color Code Abbreviations, Battery Servicing and Testing, Lucas A-115 and A-127 Alternators, Starting Motor and Solenoid Switch |
| Steering Hand Pump and Steering System (5015-5025) | 645-714 | Steering Hand Pump, Steering System Testing and Troubleshooting |
| Front Axles (5330-5340) | 715-768 | Front Axle for 2WD Tractors, Heavy Duty Cast 2WD Front Axle |
| Steering Cylinders (5420-5430) | 769-806 | Steering Cylinder for 2WD Front Axle and Heavy Duty Cast 2WD Front Axle |

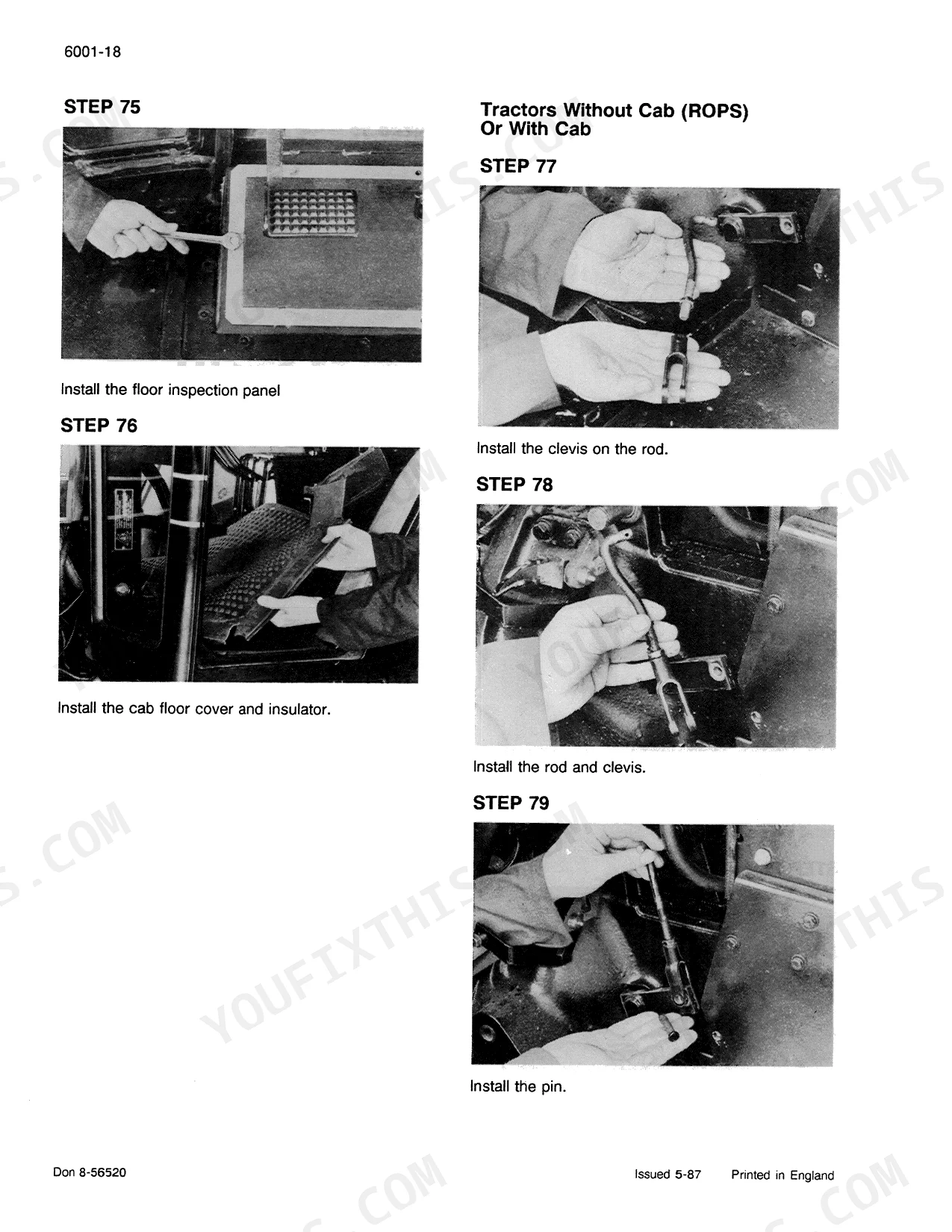

| Clutch Controls, Rear Axle and Steering Support (6001-6306) | 807-916 | Clutch Controls, Linkages and Release Bearing, Rear Axle, Engine Clutch and Flywheel, Steering Support Removal |
| Speedbox and Range Gearbox (6310-6315) | 917-1034 | Speedbox, Range Section Gearbox |
| Forward and Reverse Transmission (6325-6326) | 1035-1098 | Forward and Reverse Transmission, Forward/Reverse Transmission Troubleshooting |

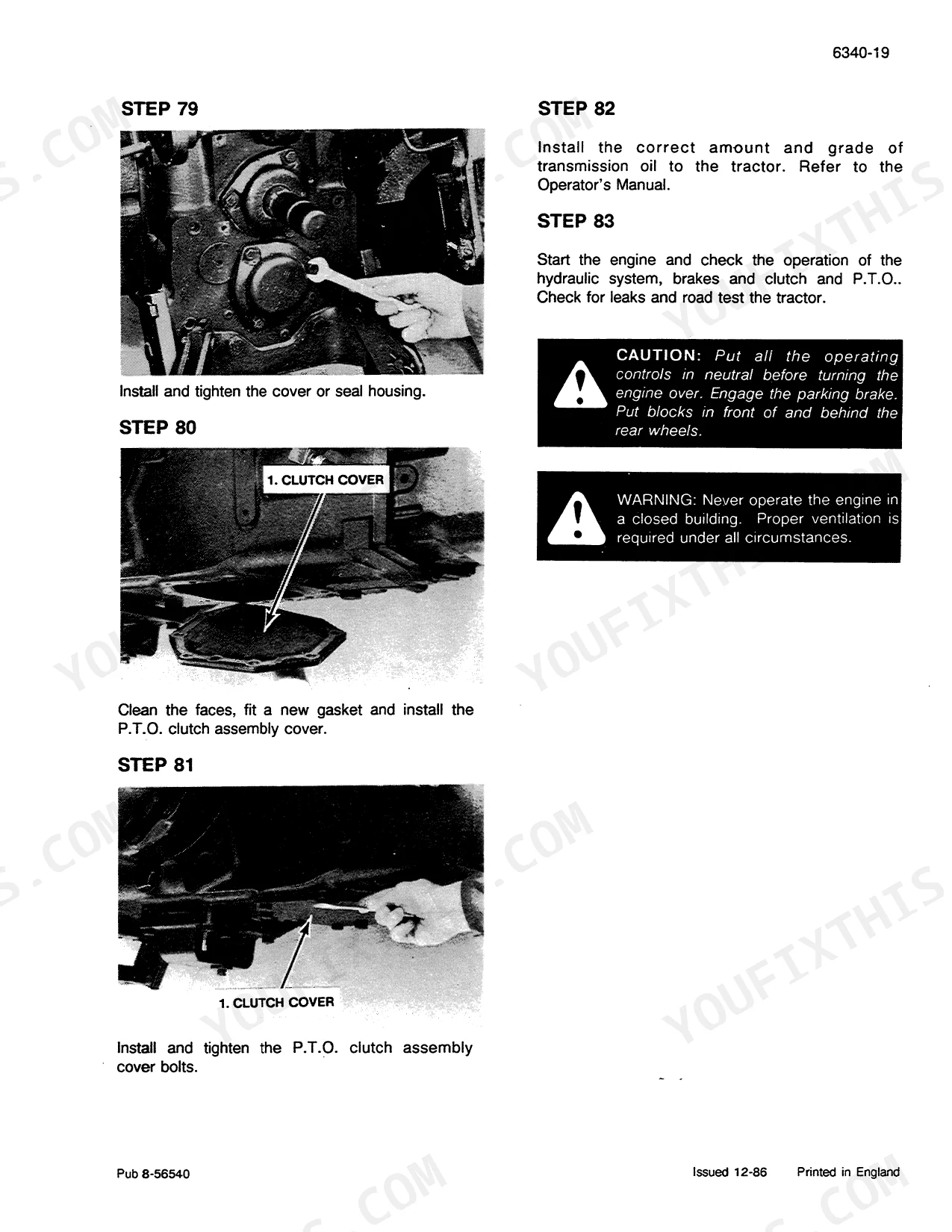

| Differential and PTO (6330-6342) | 1099-1182 | Differential, PTO Clutch and Lower Shaft, Engine Clutch and Flywheel, PTO Testing and Troubleshooting |
| Separating the Transmission (6410-6411) | 1183-1230 | Speedbox Removal, Rangebox Removal |

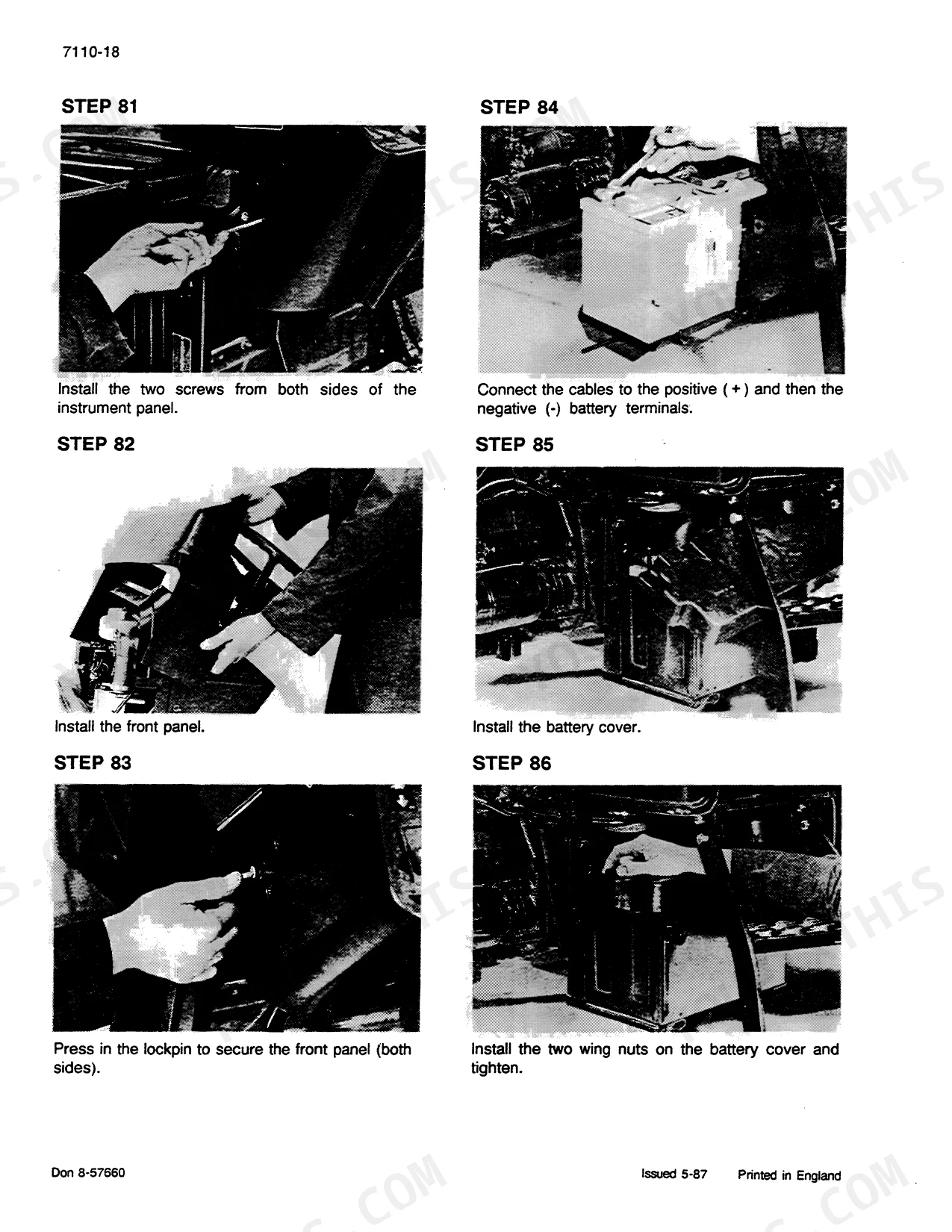

| Brakes (7105-7115) | 1231-1312 | Disc Brake Servicing, Brake Master Cylinders and Controls, Park Brake |
| Hydraulic Troubleshooting and Hitch Adjustments (8001-8005) | 1313-1368 | Hydraulic Troubleshooting Flow Charts and Test Points, Hydraulic Control Levers and Hitch Adjustments |

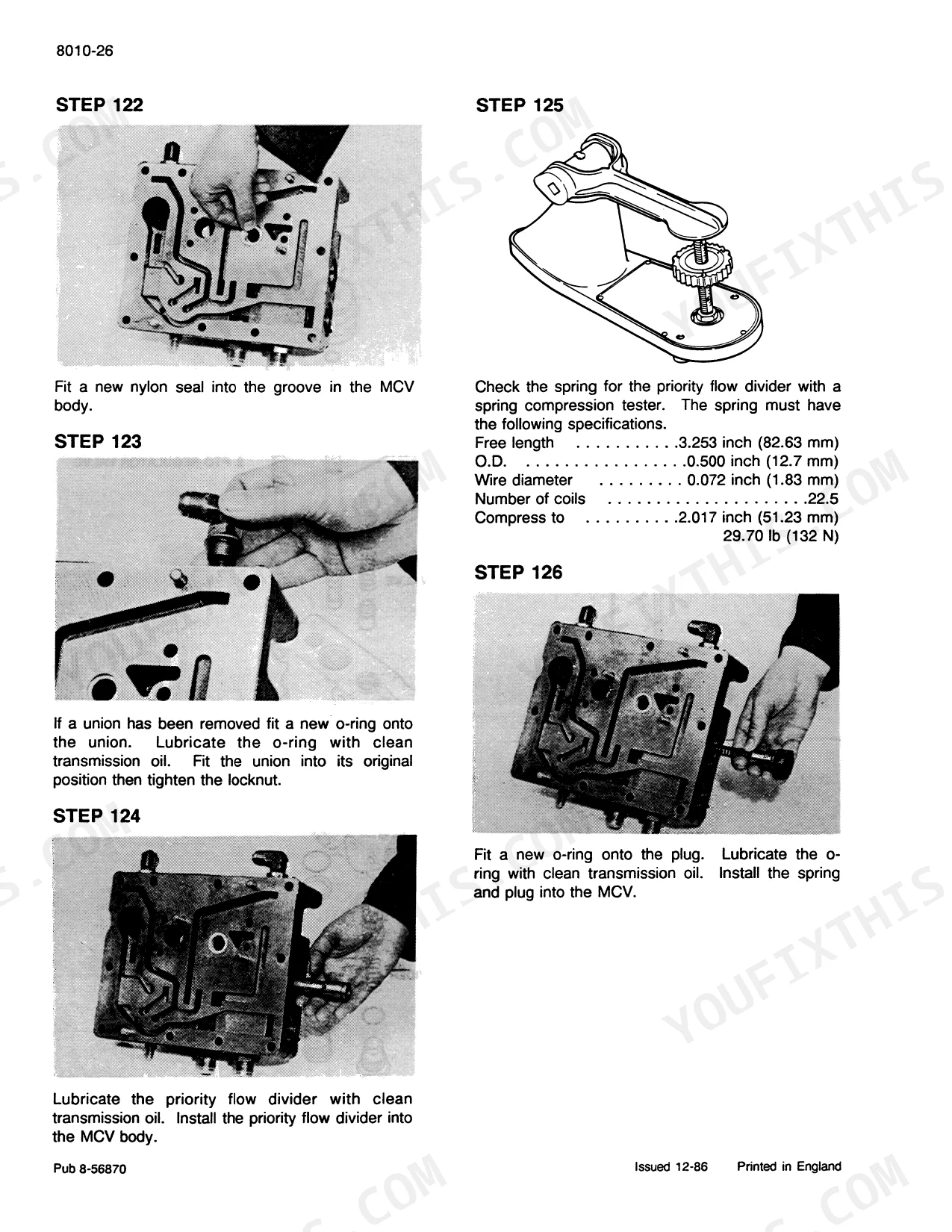

| Control Valves, Filter and Pump (8010-8025) | 1369-1498 | Multi Control Valve (MCV), Unloading and Flow Control Valve, Hydraulic Filter and Pump, Remote Auxiliary Valves |

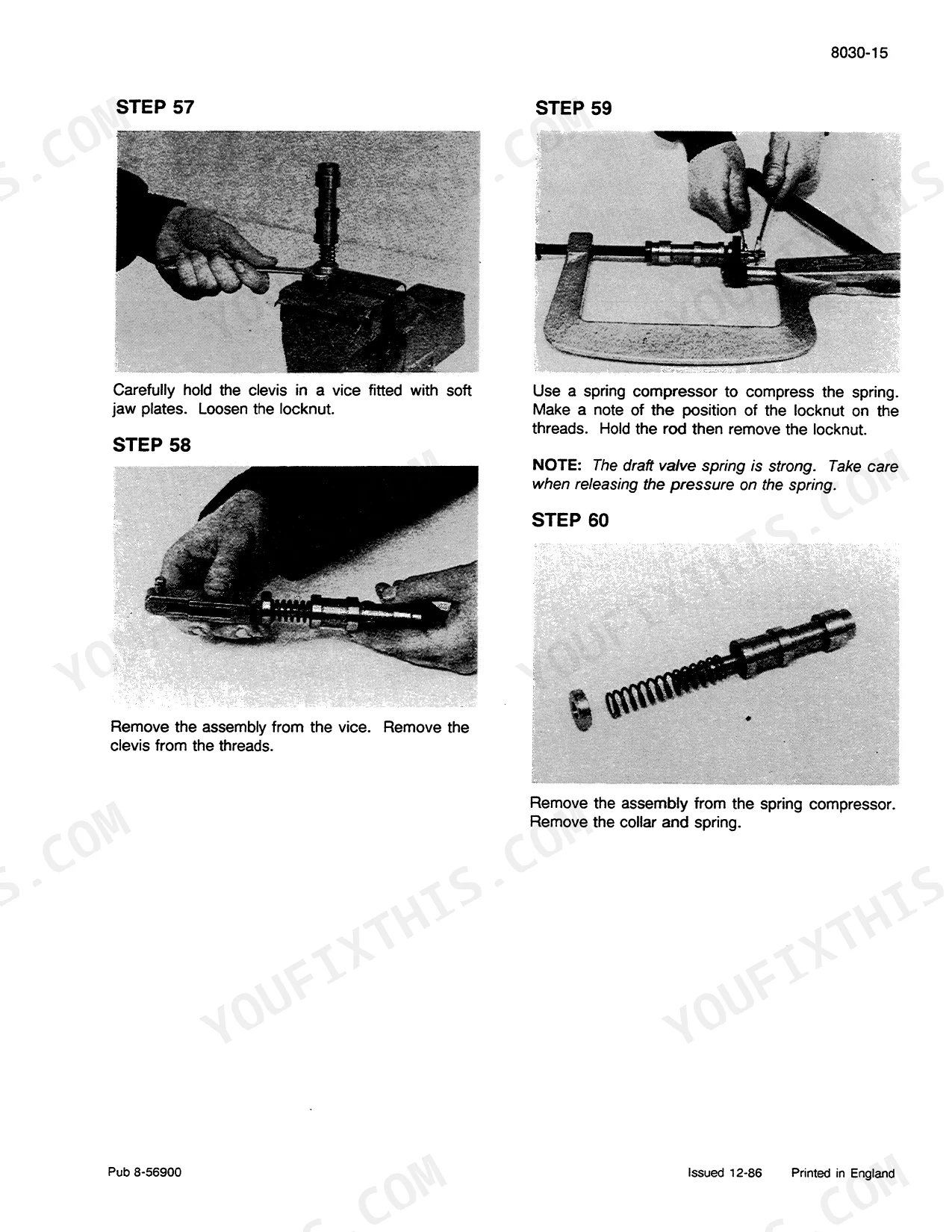

| Draft Cylinder, Control Levers and Housing (8030-8040) | 1499-1636 | Draft Cylinder Assembly and Rockshaft, Hydraulic Control Levers and Raise Rate Valve, Hydraulic Housing Removal |
| Hood, Fenders and How It Works (9240-10080) | 1637-1716 | Hoodsheet, Fenders and Seatdeck; How the Steering System and the Hydraulic System Work |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine (380B) | D-179, 3 cylinder | p. 70 |
| Injection pump, VA type (485, 248 and 380B) static timing | 14° BTC | p. 69 |
| Injection pump, VA type (485, 248 and 380B) total advance | 26° BTC; starts to advance at 800 RPM | p. 69 |
| Injection pump, VE type (485, 248 and 380B) static timing | 8° BTC; plunger travel for static timing 0.039 inch (1.0 mm) | p. 71 |
| VE pump total plunger travel (485, 248 and 380B) | 0.086 to 0.087 inch (2.19 to 2.21 mm) | p. 71 |
| Injector nozzle (380B) | Bosch DLLA 150S 836 | p. 72 |
| Injector opening pressure | 3263 to 3379 PSI (22.5 to 23.3 MPa) | p. 72 |
| Injection pump hub to drive gear bolts | 19 to 21 lb ft (25 to 28 Nm) | p. 72 |
| Cylinder head bolts (three stages) | 29 lb ft (40 Nm), 58 lb ft (80 Nm), 101 to 109 lb ft (140 to 150 Nm) | p. 114 |
| Transmission case capacity without MFD | 36 Quarts (34 Litres), HY-TRAN Fluid | p. 81 |
| Transmission case capacity with MFD | 38.6 Quarts (36.5 Litres), HY-TRAN Fluid | p. 81 |
| Hydraulic filter by-pass valve opens at | 3.6 to 7.3 PSI (25 to 50 kPa) | p. 81 |
| MCV pilot relief valve operating pressure | 2500 to 2600 PSI (17.25 to 17.93 MPa) | p. 83 |
| Steering hand pump relief valve opens at | 2150 PSI (14.82 MPa); input 3 GPM | p. 77 |
Case 380B Common Problems This Manual Covers
Engine cranks slowly or will not turn over fast enough to start
Bring the battery to a full charge and make sure the cable clamps are clean and tight. The starter motor must crank the engine at 200 to 300 RPM. Check the amperage the starter motor draws. That reading can show damage in the batteries, cables, solenoid or starter motor. The procedure is in the Electrical section under battery servicing and testing and starting motor.
Manual Section: Electrical - Battery Servicing and Testing / Starting Motor p. 94Voltmeter reads zero at the solenoid battery terminal
To test the solenoid switch, connect a voltmeter between the battery terminal (30) and a good ground. A zero reading means a loose or corroded cable connection. Clean and tighten the connection before you condemn the solenoid or pull the starter. The test is covered in the Electrical section under the starting motor.
Manual Section: Electrical - Starting Motor p. 629Hydraulic oil level drops after the engine has run
Let the tractor stand at rest for at least one hour and check the static level. Then run the engine at 1600 RPM for three minutes and recheck. If the level falls, confirm the rubber plug is in place. Next, inspect the lubricant transfer pump screen. If it is blocked, clean it and repair the source of contamination. This is covered in the Hydraulics section with the troubleshooting flow charts.
Manual Section: Hydraulics - Hydraulic Troubleshooting Flow Charts / Filter and Pump p. 1316Air or dirt in the fuel system after a filter change or running dry
The fuel system must always be free of air and dirt. The filters stop dirt and water from reaching the injection components, so a neglected or badly fitted filter puts the Bosch pump and injectors at risk. Filter service and the air removal procedure are in the Fuel System section under fuel filters and air removal.
Manual Section: Fuel System - Fuel Filters and Air Removal p. 348Frequently Asked Questions
What engine is in the Case 380B tractor?
The 380B uses the D-179 three cylinder diesel. It's the same engine type as in the Case 485 and 248, so most of the engine and fuel specs carry across all three. p. 70
What is the injection pump timing on a Case 380B?
First find out which Bosch pump you have. The VE type pump (EP/VE3/10F 1090 R276-2) times statically at 8 degrees BTC, with 0.039 inch (1.0 mm) of plunger travel at that point. Total plunger travel is 0.086 to 0.087 inch (2.19 to 2.21 mm). The VA type pump (EP/VA3/10H 1090 CR 43-3) times statically at 14 degrees BTC. It starts to advance at 800 RPM and reaches 26 degrees BTC total advance. The injectors use a Bosch DLLA 150S 836 nozzle that opens at 3263 to 3379 PSI (22.5 to 23.3 MPa). p. 71
How much oil does the 380B transmission case hold?
Without MFD, the transmission case holds 36 quarts (34 litres). With MFD it holds 38.6 quarts (36.5 litres). Both use HY-TRAN fluid. Check whether your tractor has MFD before you open the drums. p. 81
Why does my 380B crank slowly or not start?
Before you chase anything, make sure the battery has a full charge and the cable clamps are clean and tight. The starter has to crank the engine at 200 to 300 RPM. Measure the amperage the starter motor draws. That reading can point to damage in the batteries, cables, solenoid or starter motor. To test the solenoid, connect a voltmeter between the battery terminal (30) and a good ground. If it reads zero, look for a loose or corroded cable connection. p. 94
Why does the hydraulic oil level drop on my 380B?
Let the tractor stand at rest for at least one hour, then check the static level. Run the engine at 1600 RPM for three minutes and check again. If the level drops, make sure the rubber plug is in place. Then check the lubricant transfer pump screen. If the screen is blocked, clean it and repair whatever is contaminating the oil. A blocked screen will come back if the contamination source isn't fixed. p. 1316
