Somewhere there is a printed answer for how these compact diesels come apart, and this is it: the Case IH 234, 244, 254 service manual PDF, factory document GSS-1507-1, 316 pages covering all three tractors. Fourteen sections run from splitting the tractor through front axle, steering, engine, fuel system, cooling, clutch, transmission, differential, rear axle carriers, brakes, PTO and mower drive, and hydraulics. Wiring diagrams map the electrical system, hydraulic schematics trace oil from the pump to the hitch case, and troubleshooting charts let you test a fuel shut off that refuses to respond. Hold steering shaft ball nut end play between 0 and 0.03 mm (0.001 inch), and pull size 32 hydraulic fittings to 225 to 240 ft lb. Splitting a tractor is miserable enough to do once. Bookmarked, keyword searchable pages let you verify the measurement, order the right part the first time, and get your 234 back in the field while the weather holds.
What's Inside This Case IH 234, 244, 254 Manual

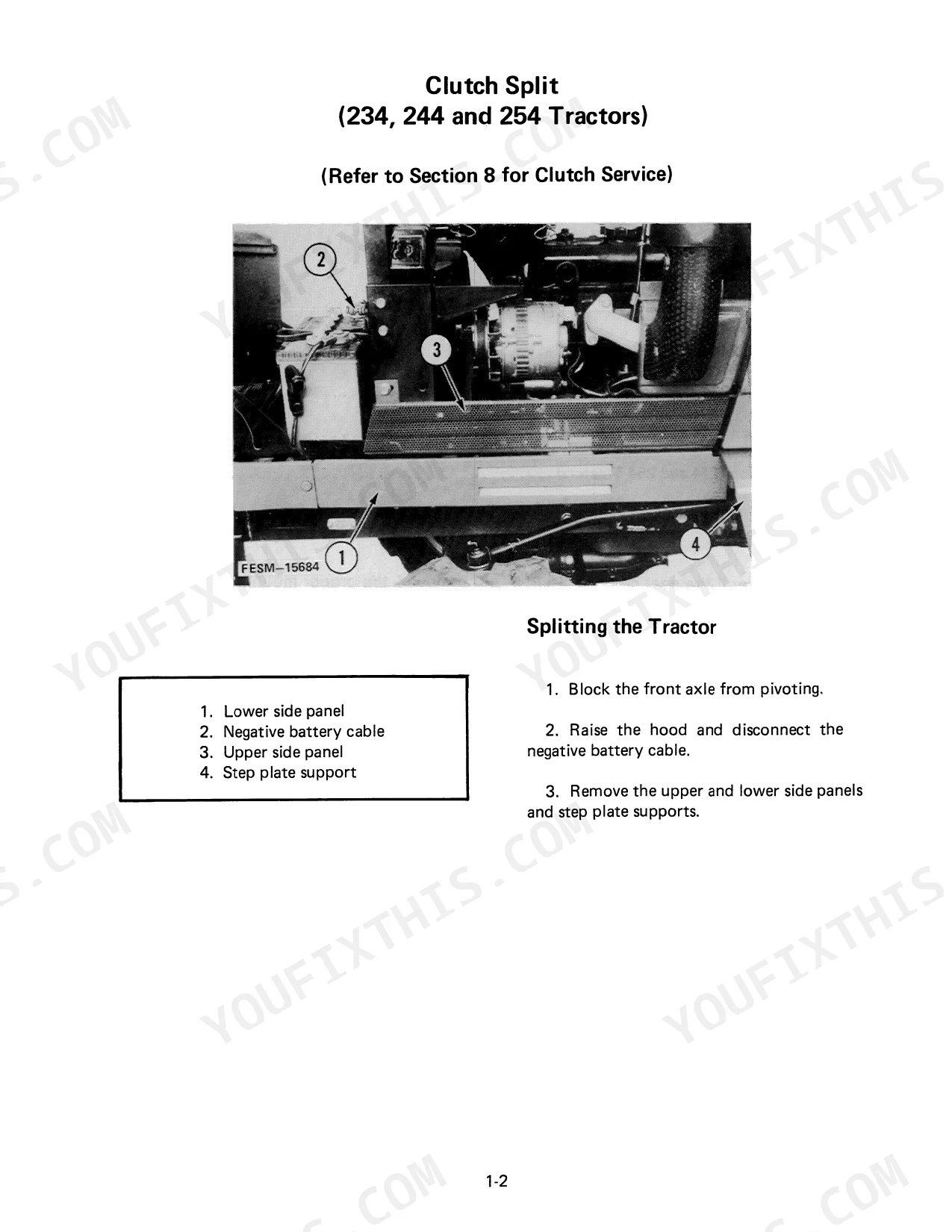

| System | Pages | Key Topics |
|---|---|---|
| Splitting the Tractor | 18-35 | Clutch Split, Transmission Split |
| Front End, Axle, and Wheels | 36-59 | Four-Wheel Drive Axle, Two-Wheel Drive Axle |
| Steering | 60-67 | Steering Gearbox Removal, Steering Gearbox Disassembly |
| Engine | 68-111 | Cylinder Head Assembly, Connecting Rods, Pistons and Piston Rings, Crankshaft and Main Bearings |
| Fuel System | 112-131 | Injection Pump Service, Pump Drive Camshaft |
| Electrical System | 132-141 | Fuel Shut-Off Test Procedure |
| Cooling System | 142-145 | Radiator (234 Tractor), Radiator (244 and 254 Tractors) |
| Clutch and Flywheel | 146-157 | Clutch and Flywheel Service, Clutch Housing Replacement |
| Transmission | 158-217 | Speed Transmission (244 and 254 Tractors), Range Transmission (244 and 254 Tractors) |
| Differential | 218-223 | Differential Assembly |
| Rear Axle Carriers | 224-239 | Rear Axle Carrier (234 Tractors), Rear Axle Carrier (244 and 254 Tractors) |
| Brakes | 240-243 | Brake Assembly Service |
| Power Take-Off & Mower | 244-275 | PTO Output Shaft (234 Tractor), PTO Output Shaft (244 and 254 Tractors), Live Rear PTO (244 and 254 Tractors) |
| Hydraulic System | 276-316 | Hydraulic Hitch Case (Cover), Hydraulic Pump Service |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Standard Torque Data for Hydraulic Tubes and Fittings (Size 4) | 9-12 ft-lb | p. 7 |
| Standard Torque Data for Hydraulic Tubes and Fittings (Size 32) | 225-240 ft-lb | p. 7 |
| O-ring Boss Plug Torque (Size 4) | 6-10 ft-lb | p. 7 |
| O-ring Boss Plug Torque (Size 32) | 250-300 ft-lb | p. 7 |
| Steering shaft ball nut end play | 0 to 0.03 mm (0 to 0.001 inch) | p. 65 |
| Sector shaft adjusting screw clearance | 0 to 0.05 mm (0 to 0.002 inch) | p. 66 |
| Cam Lobe Height (new) | 44 mm (1.732 in.) | p. 113 |
| Minimum Allowable Cam Lobe Height | 43 mm (1.693 in.) | p. 113 |
| Starter no-load terminal voltage | 11.5 V | p. 133 |
| Starter no-load current | 100 A | p. 133 |
| Gear teeth to inner case wall clearance limit | 0.05 mm (0.002 inch) | p. 301 |
| Gear shaft diameter limit (234 tractor) | 12.598 mm (0.495 inch) | p. 301 |
Case IH 234, 244, 254 Common Problems This Manual Covers
Engine cranks strong but will not fire after sitting through the winter
Check the fuel shut-off solenoid and key switch using the troubleshooting steps that start on page 135. Bleed air from the lines, then run the delivery valve leakage test on page 124; a drop below 16563 kPa (1849 psi) inside 5 seconds fails the valve. Torque replacement holders to 39 to 49 N·m (29 to 36 ft. lbs.).
Manual Section: Electrical System p. 135Live PTO keeps spinning when the clutch pedal is pushed all the way down
Test the live PTO control valve oil pressure with a gauge; the reading should hold at 55 ± 10 kg/cm² (782 ± 142 psi) per page 274. Low pressure points to a leaking control valve O-ring or worn clutch pack. Pull the valve, replace the seals, and retest before hooking the baler back up.
Manual Section: Power Take-Off & Mower p. 274Frequently Asked Questions
What are the torque specifications for the front wheel bolts on the Case IH 234, 244, and 254 tractors?
For the 234 tractor, the front wheel bolts should be torqued to 118 to 131 N-m (87 to 97 ft. lbs.). For the 244 and 254 tractors, the front wheel bolts should also be torqued to 118 to 131 N-m (87 to 97 ft. lbs.). p. 52
How do you fix case IH 254 three-point hitch drops under load, implement sinks while running the loader?
Check the rockshaft position lever and check valve first; a hitch that drops in neutral usually means internal leakage. Pull the hydraulic pump and measure gear teeth to case wall clearance per page 301; anything over 0.05 mm (0.002 inch) means worn parts, so replace the pump gears and reseal the hitch case cover O-rings. p. 301
How do you fix hydraulics quit with no warning, loader and hitch both dead at full throttle?
Check fluid level in the transmission case first; the hydraulics draw from it and total capacity is 21 litres, spec on page 30. Drain and inspect the suction filter for debris from a failing pump. If flow is still dead, measure shaft to bushing clearance; more than 0.177 mm (0.006 inch) calls for a pump overhaul. p. 276
How do you fix excessive steering wheel free play, front wheels wander and clunk over rough ground?
Measure free play at the steering wheel rim; anything past the 10 to 12 mm spec on page 66 needs adjustment. Set the sector shaft adjusting screw to 0 to 0.05 mm (0 to 0.002 inch) clearance, then check ball nut end play against the 0 to 0.03 mm limit on page 65. Replace the gearbox seals if fluid weeps from the shaft. p. 66
Will this Case IH 234 Service Manual download right away?
You download the Service Manual yourself: 316 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Can I print a copy of this Case IH 234 Service Manual for the shop?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Does this Case IH 234 Service Manual have electrical diagrams?
Yes, you get complete wiring diagrams with circuit descriptions, ground locations, and connector identification. See page 138 for an example.
