Your 9130 has a dual off in the yard, or the cab on a 9270 is blowing warm and the crop won't wait. This is the Case IH factory service manual set for the 9100 and 9200 Series four-wheel-drive articulated tractors, with sections issued 1988 to 1995.
It covers engine removal by model group, powershift and synchromesh transmissions, PTO, driveline, differential lock and articulation steering. Caliper brakes, remote hydraulics and the electronic hitch are in there too. The 9200 sections carry wiring schematics. The 9100 sections give wiring code tables and circuit tests.
A torque figure from memory or a forum post is how disc bolts back off and a dual walks off the hub. Confirm your engine and model group here first, so the parts you order fit the first time and you get back in the field before the weather turns.
What's Inside This Case IH 9110–9280 Manual
| System | Pages | Key Topics |
|---|---|---|
| Table of Contents and General Information, 9100 Series (1001-1003) | 1-58 | Master Table of Contents, SAE Fastener Torque Chart, Torque Data for Hydraulic Tubes and Fittings, Fluid Capacities and Types, Power Train and Diesel Engine Specifications, Travel Speeds, Overall Measurements, Tire Code Numbers, Tire Pressure and Load, Tread Settings, Articulation and Oscillation Stop Settings |

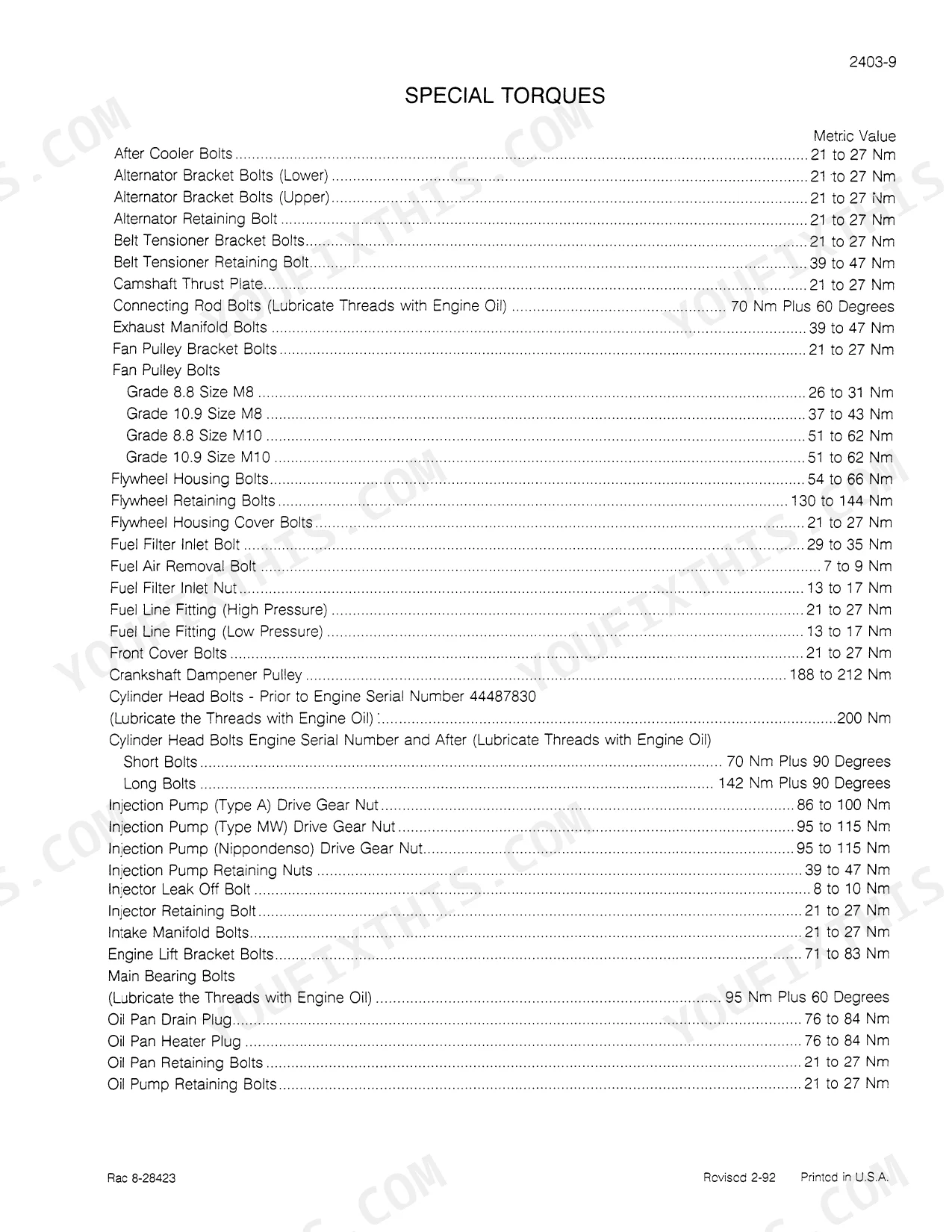

| Engine Troubleshooting, Specifications and Removal (2001-2005, 2403) | 59-154 | Engine Troubleshooting Charts, Engine Tune-Up Checks and Adjustments, Specification Details and Special Torques for the 6-830 Diesel Engine, Engine Removal and Installation for 9110/9130 and 9210/9230, For 9250/9260, And for 9170/9180 and 9270/9280 Tractors |

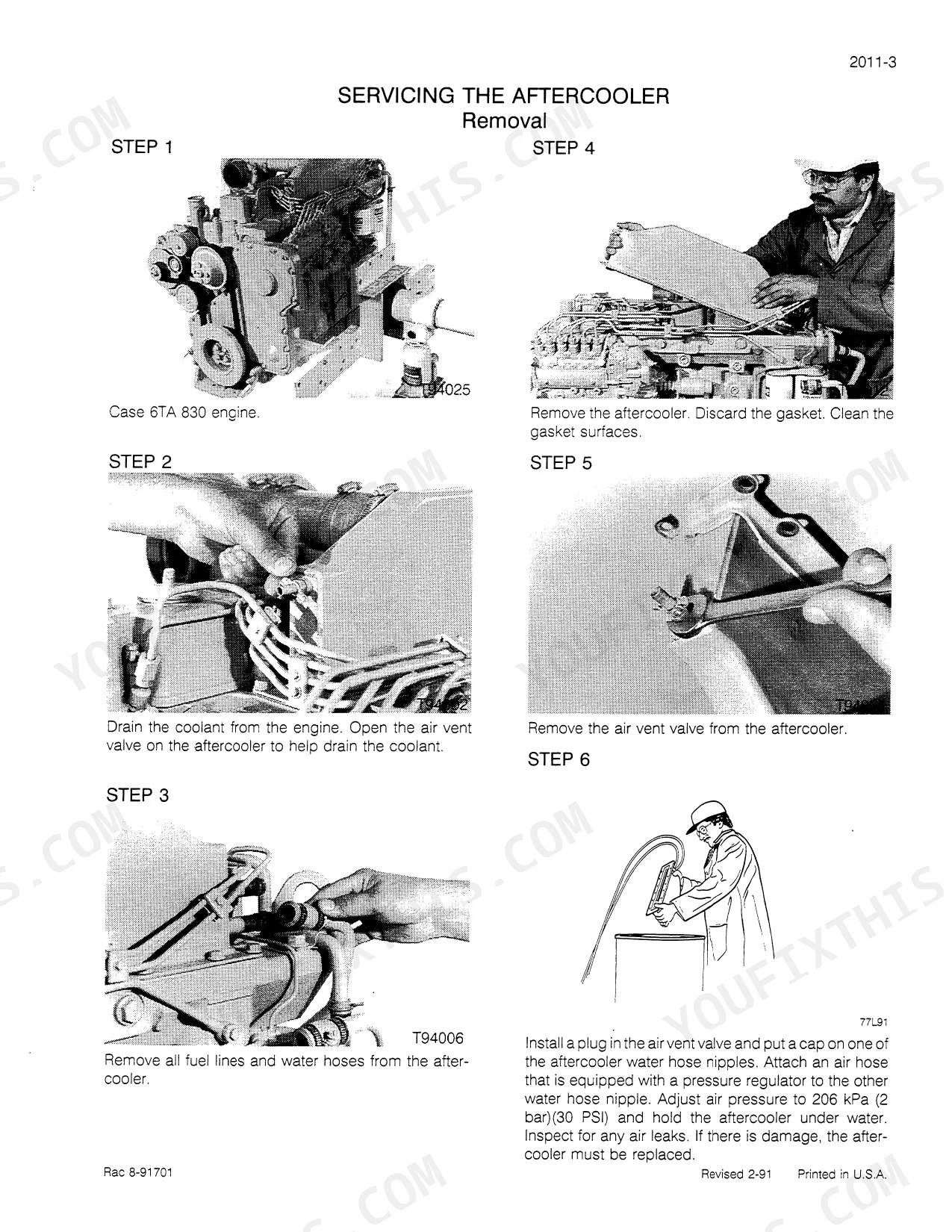

| Engine Overhaul: Cylinder Head, Block, Lubrication, Cooling and Turbocharger (2011-2465) | 155-334 | Aftercooler, Cylinder Head, Valves and Valve Train on the 6-830 Engine, Crankshaft, Pistons, Rods, Sleeves, Camshaft, Bearings, Seals and Flywheel on the 6-830 Engine, Oil Pan, Oil Pump, Oil Cooler and Oil Filter Housing, Thermostat, Water Pump, Fan Pulley and Belt Tensioner, Turbocharger |
| Fuel System, Injection Pump and Injectors (3410-3413) | 335-384 | Fuel Systems and Filters, Injection Pump Drive Gear, Timing Pin, Fuel Shutoff Solenoid, Primer Pump and Pump Timing, Fuel Injectors |
| Wiring Schematic and Troubleshooting, 9110-9130 and 9210-9230 (4001, 4008) | 385-527 | Instrument Cluster, Gauge Panel, Electronic Hitch Control, Differential Lock, Air Conditioning and Front Axle Steering Controller Circuits, Wiring Codes and Test Points, Wire Color Abbreviations and Circuit Diagram Legends, Harness Connectors, Circuit Tests and Failure Codes for 9210 and 9230 Tractors |
| Wiring Schematic and Troubleshooting, 9240-9260 Incl. Later Serials (4005, 4010) | 528-637 | Schematic Symbols, Relay and Circuit Breaker Identification, Starter, Alternator and Key Switch, Instrument Cluster, Neutral Safety Start, Powershift, Electronic Hitch and Lamp Circuits, Electronic Steerable Axle Diagnostic Codes, Circuit Diagram Legends, Harness Connectors, Electronic Hitch Control, Headlamps, Air Conditioning Circuits and Error Codes for Later 9240 and 9260 Tractors |
| Wiring Schematic and Troubleshooting, 9150 and 9250 (4002, 4009) | 638-770 | Batteries, Starter, Alternator, Fuel Shutoff, Key Switch and Neutral Start Switches, Instrument Cluster, Gauge Panel, Hitch, Differential Lock and Air Conditioning Circuit Tests, Circuit Diagram Legends, Neutral Safety Start, Main Cab and Overhead Harness Connectors, Air Conditioning Circuits for 9250 Tractors |
| Wiring Schematic and Troubleshooting, 9170-9180 and 9270-9280 (4003, 4006-4007) | 771-952 | Batteries, Starter, Alternator, Fuel Shutoff, Key Switch, Instrument Cluster, Gauge Panel, Hitch and Differential Lock Circuit Tests, Circuit Diagram Legends, Harness Connectors and Circuit Tests for 9270 and 9280 Tractors, Earlier and Later Serial Numbers |

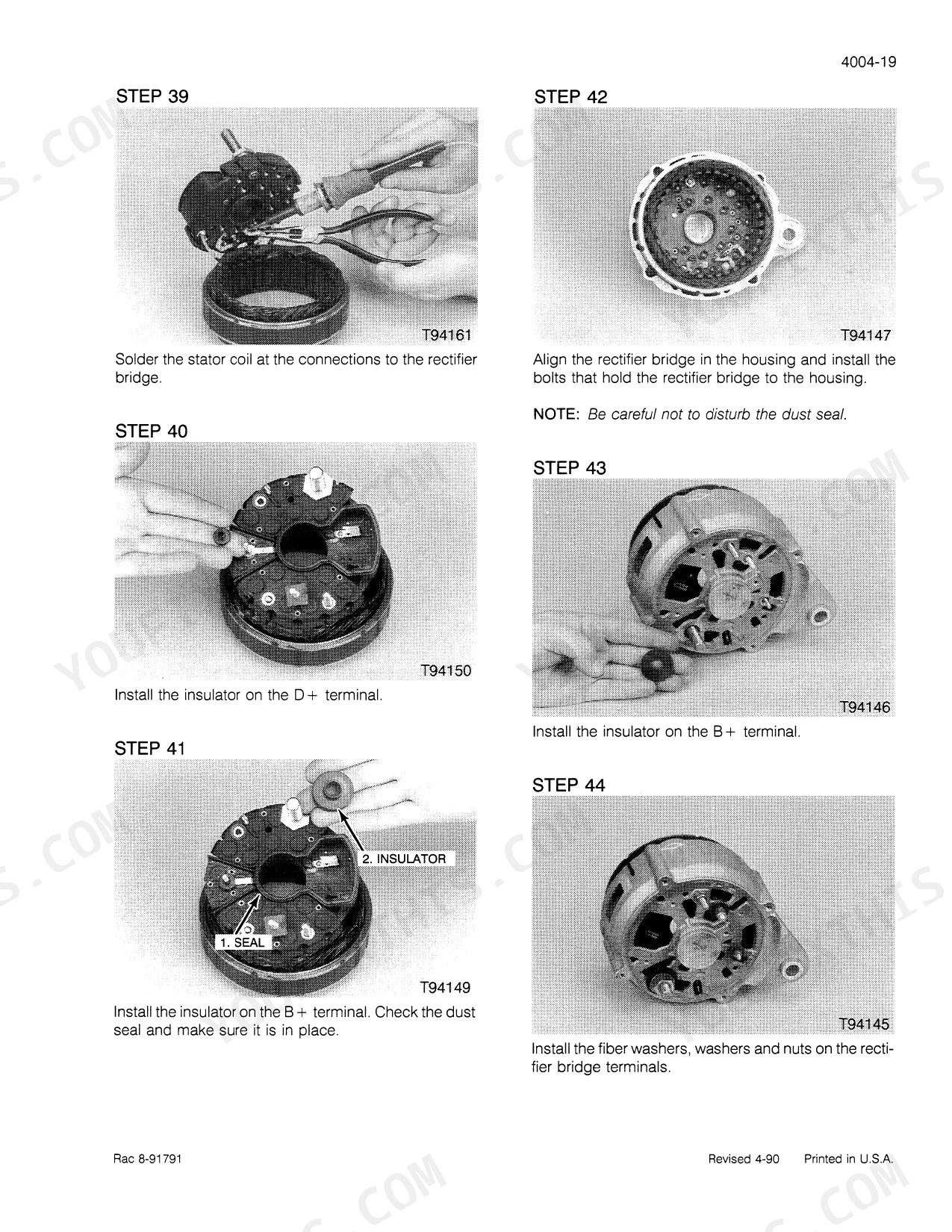

| Alternators, Starting Motor and Battery Servicing (4004, 4012, 4014, 4235) | 953-1066 | Alternator Testing and Overhaul, Delco 21-Si Alternator, Delco Remy 42-Mt Starting Motor, Battery Servicing and Testing |

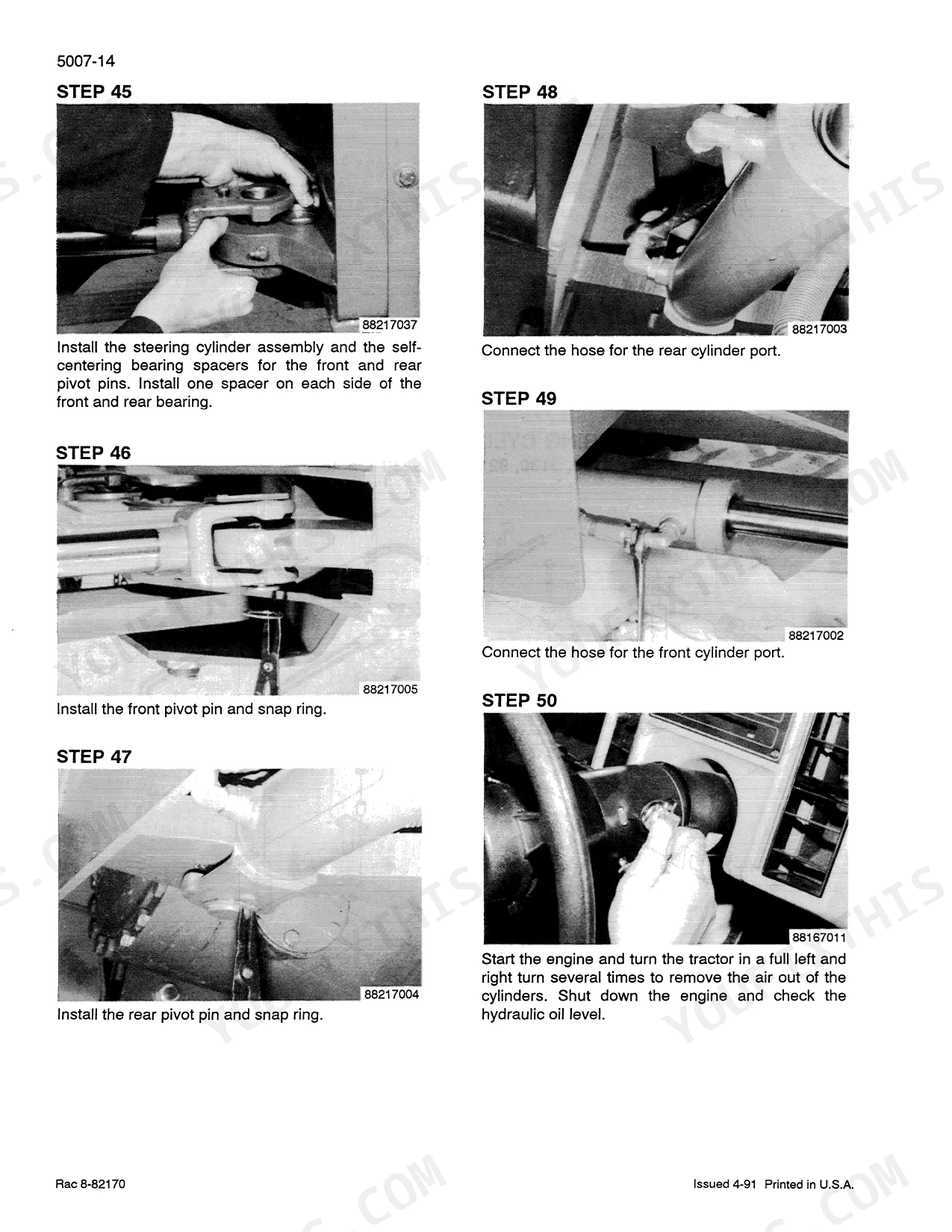

| Steering Column, Hand Pumps, Front Axle Steer, Articulation Steering and Valves (9001, 5002-5009, 9003, 9004) | 1067-1246 | Tilt and Telescoping Steering Column, Steering Hand Pump, Front Axle Steer Turntable and Cylinder, Front Axle Steering Electronic Alignment and Calibration, Articulation Steering Makeup Valve, Steering Priority Valve, Articulation Steering Cylinders, Double Selector Steering Valve |
| Electronic and Rear Steering, 9240-9260 (5010, 5011, 9012) | 1247-1350 | Electronic Steering Calibration, Steering Components, Electronically Controlled Rear Steering Operation and Error Codes |
| Transmission Removal, Powershift and Hm-12 Synchromesh Service (6001, 6002, 6004, 6012, 6019, 6020) | 1351-1632 | Powershift and Synchromesh Transmission Removal and Installation by Model Group, Powershift Transmission Disassembly, Inspection, Assembly and Specifications, Hm-12 Synchromesh Transmission Service and Master Clutch Air Test |
| PTO Drive Unit and Driveline (6005, 6007) | 1633-1740 | PTO Drive Unit, Rear Driveline and PTO Driveline Carrier and Hanger Bearing Replacement |

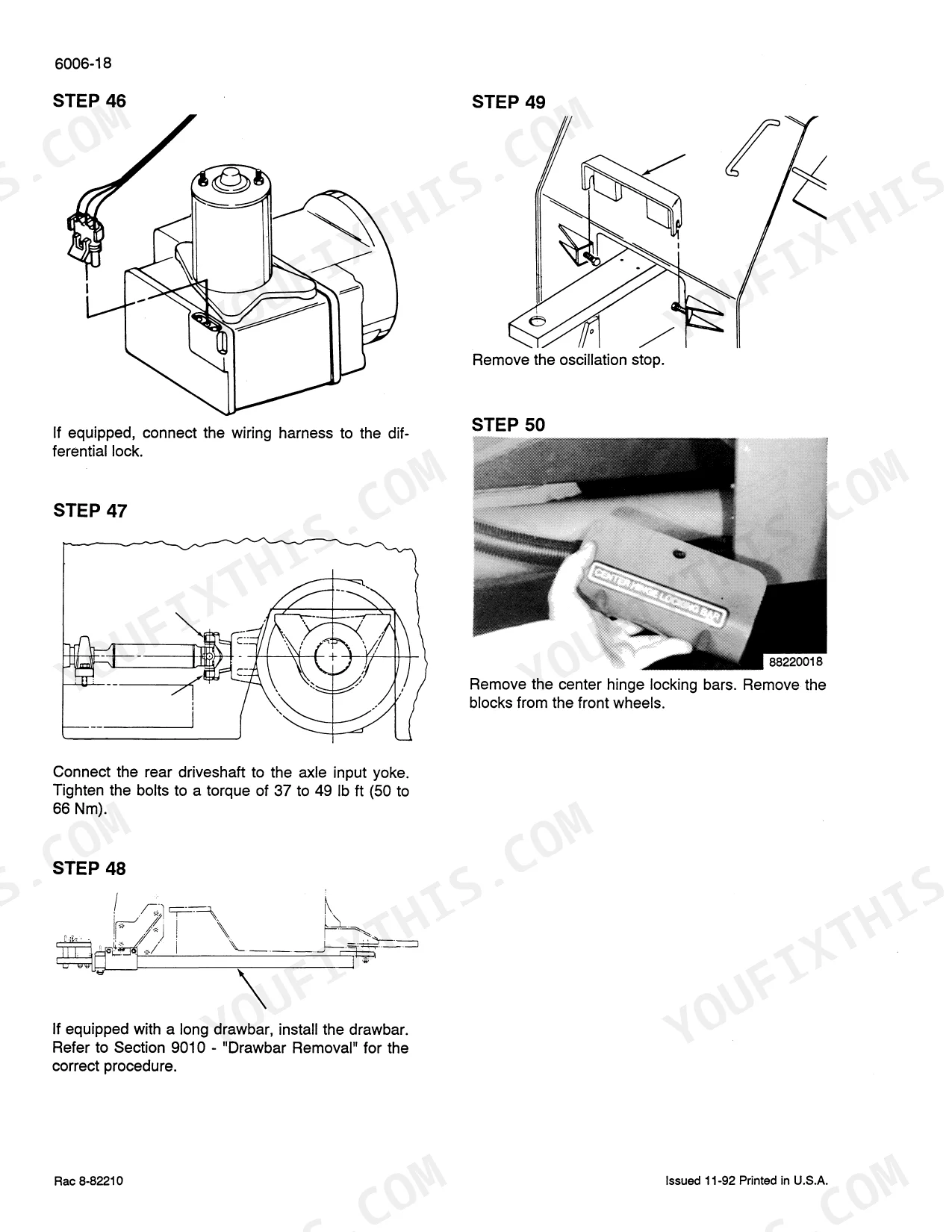

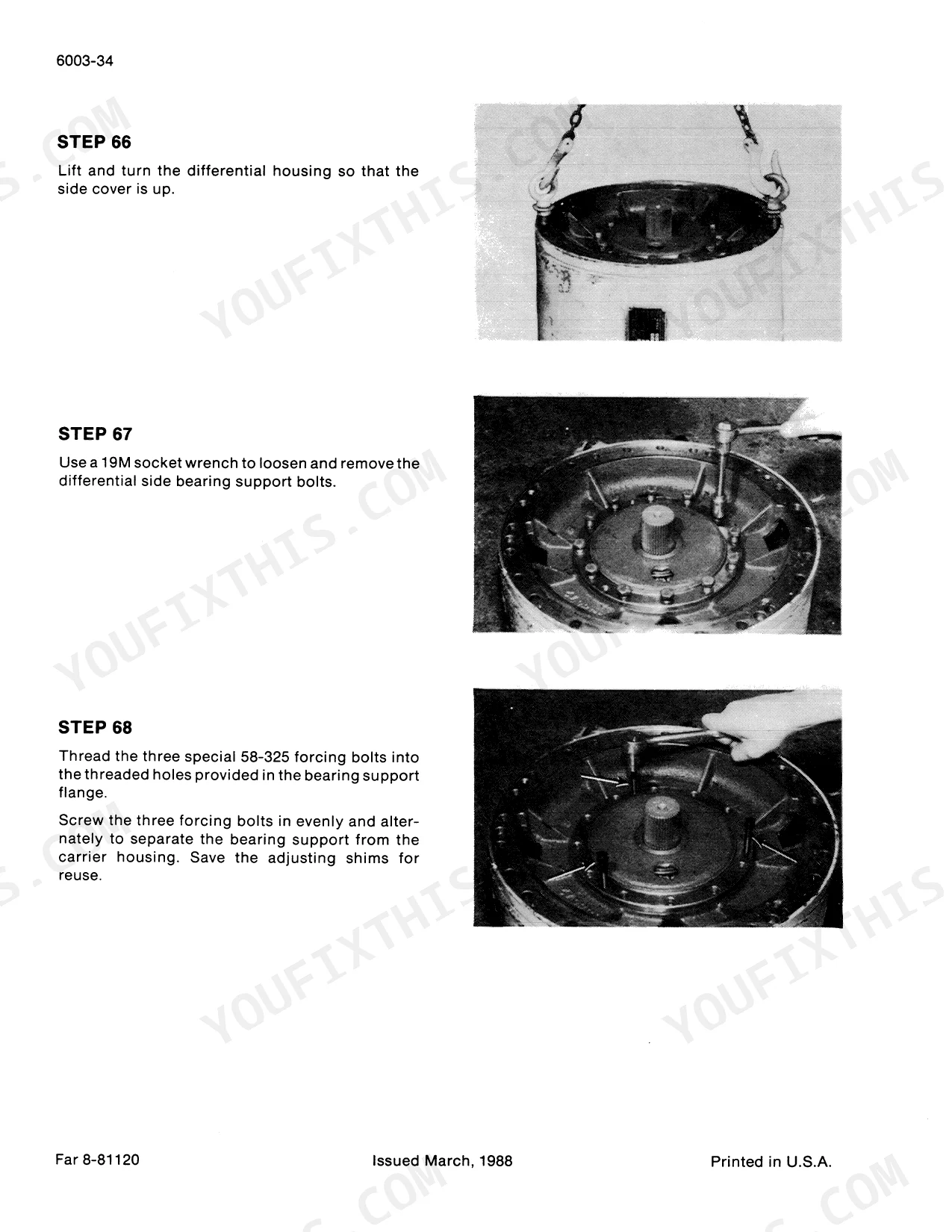

| Axle Repair and Removal (6003, 6006, 6013, 6024) | 1741-2002 | K592-20/30 Series Axle Repair, 698-68/78 and 698-85/95 RABA Axle Repair, Front and Rear Axle Removal and Installation by Model Group |
| Charge Pump, PTO Drop Box, Couplers, Master Clutch and Synchroshift Repair (6008-6017, 6021, 6023) | 2003-2226 | Powershift Charge Pump Repair, PTO Drop Box, Differential Lock Electric Shaft Motor, Engine to Transmission Drive Coupler Removal and Installation, Synchromesh Transmission Master Clutch Removal, 12 Speed Synchroshift and 24 Speed Hi-Lo Synchroshift Transmission Repair (Model Hm-2) |

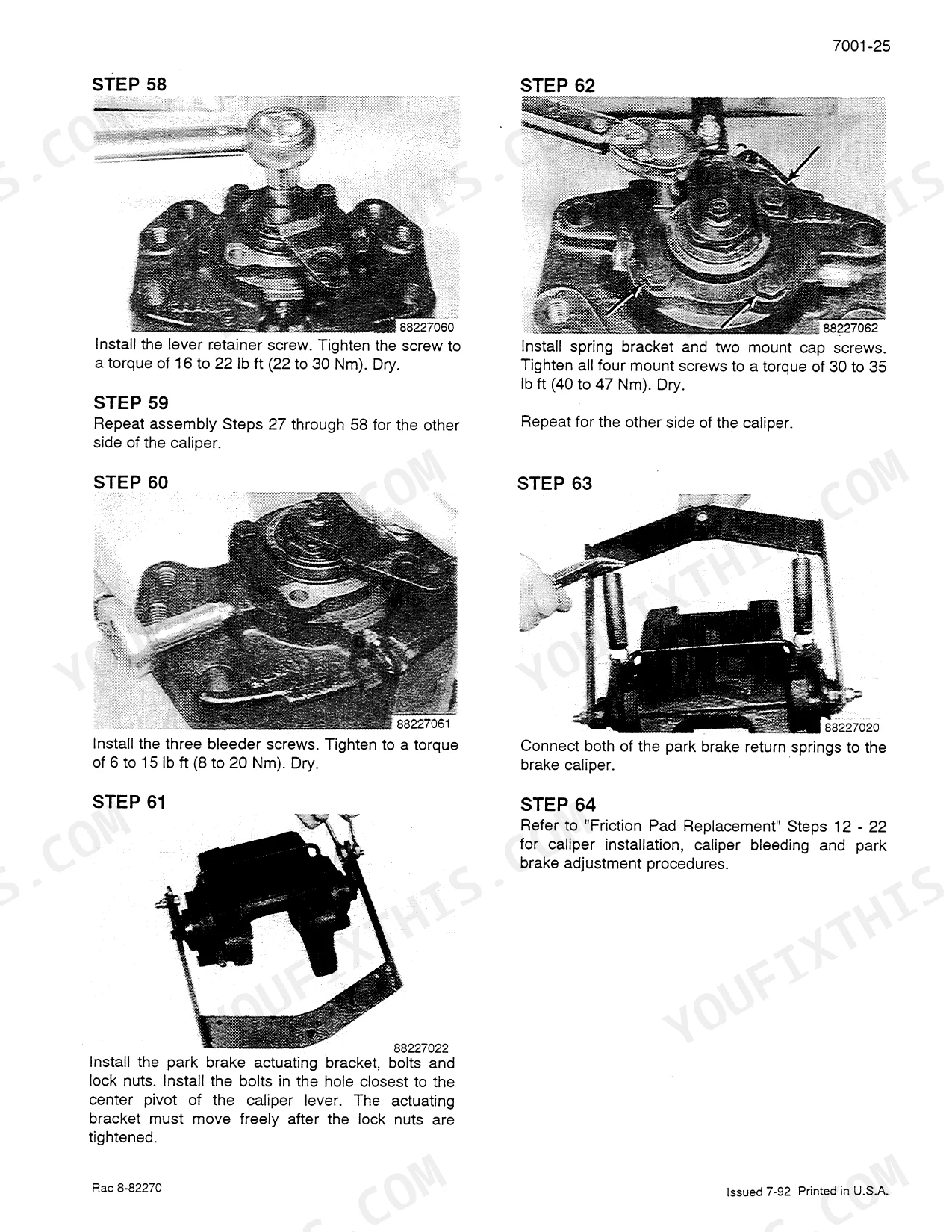

| Brakes and Master Cylinder (7001-7003) | 2227-2292 | Caliper Disc Brake System, 9200 Series Brake Master Cylinder |
| Hydraulics: Schematics, Troubleshooting, Remote Valve, Pumps, Filters and Hitch (8001-8023) | 2293-2627 | Hydraulic Schematics and Hydraulic Troubleshooting for 9110-9150, 9170-9180, 9240-9260 and 9270-9280 Tractors, Remote Hydraulic Valve with and Without Steering Priority, Hydraulic Piston Pump, Hydraulic Gear Pumps, Hydraulic Filters, Electronic Hitch Alignment, Hitch Valve and Null Adjustment |
| Cab, Air Conditioning, Seats, Radiator, Drawbar, Hinge and Hood (1901, 9001-9015) | 2628-2985 | Cab Removal and Installation, Air Conditioner Compressor, System and Component Service, A/C Module and Controls, R-134a System Service, Air/Air Seat, Mechanical Seat, Radiator Removal, Drawbar Removal, Hinge Bearing and Connecting Link, Hood, Grille and Radiator Support, Center Hinge Bearing Replacement |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine model, 9110 / 9130 (Case) | 6T8.3 / 6TA8.3 | p. 13 |
| Engine bore and stroke, 9110 / 9130 | 114 mm / 135 mm | p. 13 |
| Engine displacement, 9110 / 9130 | 504.5 Cubic Inch (8.27 L) | p. 13 |
| Engine governed speed (no load), 9110 / 9130 | 2310 RPM | p. 13 |
| Engine rated speed, 9110 / 9130 | 1700 to 2100 RPM | p. 13 |
| Engine idle speed (approximate), 9110 / 9130 | 850 RPM | p. 13 |
| Compression ratio, 9110 / 9130 | 16.5:1 | p. 13 |
| Engine oil pressure (warm at 2100 RPM), 9110 / 9130 | 43 to 54 PSI (296 to 372 kPa) | p. 13 |
| Engine crankcase capacity, 9110 / 9130 | 22 quarts (21 l) | p. 11 |
| Cooling system capacity (9110 / 9130) | 8-3/4 U.S. gallons (32.1 L) (9110); 9-1/2 U.S. gallons (36 L) (9130) | p. 11 |
| Fuel tank capacity, 9110 / 9130 | 115 gallons (435 L) | p. 11 |
| Engine model, 9150 (Cummins) | LTA-10-A | p. 31 |
| Engine displacement, 9150 | 611 Cubic Inch (10.0 L) | p. 31 |
| Fuel tank capacity, 9150 | 170 U.S. gallons (643 L) | p. 29 |
| Engine model, 9170 / 9180 (Cummins) | NTA-855-A | p. 49 |
| Engine displacement, 9170 / 9180 | 855 Cubic Inch (14.0 L) | p. 49 |
| Hydraulic reservoir capacity (with filter), 9170 / 9180 | 26 U.S. gallons (98 L) | p. 47 |
| Fuel tank capacity, 9170 / 9180 | 250 U.S. gallons (947.5 L) | p. 47 |
| Wheel disc bolt torque (hub mounted duals), 9110 / 9130 | 600 lb ft (813 Nm) wet | p. 19 |
| A/C refrigerant capacity (9210 / 9230 / 9250; 9270 / 9280) | 3.3 to 3.5 lb (1.5 to 1.6 kg) R-134a (9210 / 9230 / 9250); 3.5 to 3.7 lb (1.6 to 1.7 kg) R-134a (9270 / 9280) | p. 2816 |
Case IH 9110–9280 Common Problems This Manual Covers
Engine has low power and lugs down under load
Check the load before you pull the injection pump. The engine troubleshooting chart lists an overloaded tractor as a cause. Shift to a lower gear, lighten the implement load, and look for malfunctioning accessories that are adding to the overload.
Manual Section: Engine Troubleshooting (2001) - The Engine Has Low Power p. 72Rear steering error code E1.0 on a 9240 or 9260
E1.0 means the rear steering controller has lost battery voltage and is seeing less than 9.7 volts. Start at the batteries and cables using the battery servicing pages. Then work back along the feed to the controller using the electronic and rear steering pages.
Manual Section: Electronic Rear Steering (5012) - Error Codes p. 1306Transmission error code E-71 on the dash display
On tractors built before P.I.N. JCB0028400, E-71 means transmission shift solenoids T and V have an open circuit. That points to a harness failure. Check the transmission harness at the transmission before you condemn the solenoids or tear into the powershift.
Manual Section: Powershift Transmission (6004) - Error Code Display Guide p. 1450Electronic hitch lamp failure code shows, then disappears
The lamp failure code only displays before hitch reset. Once you reset the hitch, the code will not come back, so write it down before you touch anything. Then trace the lamp circuit using the electronic hitch coverage in the Hydraulics section.
Manual Section: Wiring Schematic and Troubleshooting 9110-9130 (4001) - Electronic Hitch Failure Codes p. 419Frequently Asked Questions
What engines are in the Case IH 9110, 9130, 9150, 9170 and 9180 tractors?
The 9110 runs a Case 6T8.3 and the 9130 a Case 6TA8.3, both 504.5 cubic inch (8.27 L). The 9150 carries a Cummins LTA-10-A at 611 cubic inch (10.0 L). The 9170 and 9180 use the Cummins NTA-855-A at 855 cubic inch (14.0 L). p. 13
What is the wheel disc bolt torque on the 9110 and 9130 tractors?
The wheel disc bolts take 600 lb ft (813 Nm), wet. Retighten them after the first 3 hours, then every 10 hours until they hold that torque. p. 19
How do I recall and clear the last rear steering error code on a 9240 or 9260?
With the unit on, move the selector switch to the crab position and briefly press the calibration button. That brings back the last error. To clear it from memory, hold the calibration button until that error has displayed six times in sequence. p. 579
How are powershift transmission error codes displayed and cleared?
The code shows in the two most significant digits of the gear LCD on the dash. You get an E, then a blank, then the two digit code, and it keeps repeating. It clears when you put the mode lever in neutral and/or fix the problem. p. 1448
How much refrigerant does the 9200 series air conditioning take?
The 9210, 9230 and 9250 take 3.3 to 3.5 lb (1.5 to 1.6 kg) of R-134a. The 9270 and 9280 take 3.5 to 3.7 lb (1.6 to 1.7 kg). Refrigerant oil is 9.5 fl oz (280 cc) of PAG SP-20. p. 2816
