Part of the Case IH Repair Manuals.
The hitch will not lift a loaded implement, or you select forward and the tractor just sits there. This is the Case IH service manual for those days on the Farmall 110A, 120A, 125A and 140A. It is part number 47377791, 1st edition, November 2012.
It covers the clutch, the 8x8 and 16x8 Power Shuttle and mechanical transmissions, 4WD, both front axles, and the rear axle and final drives. It also covers the PTO, brakes, hydraulics, steering, cab A/C and wiring schematic frames. The engine chapter covers removal and installation only.
When you are alone in the shed with a split tractor and nobody to call, you work from these pressure tables and torque figures.
What's Inside This Case IH Farmall 110A–140A Manual

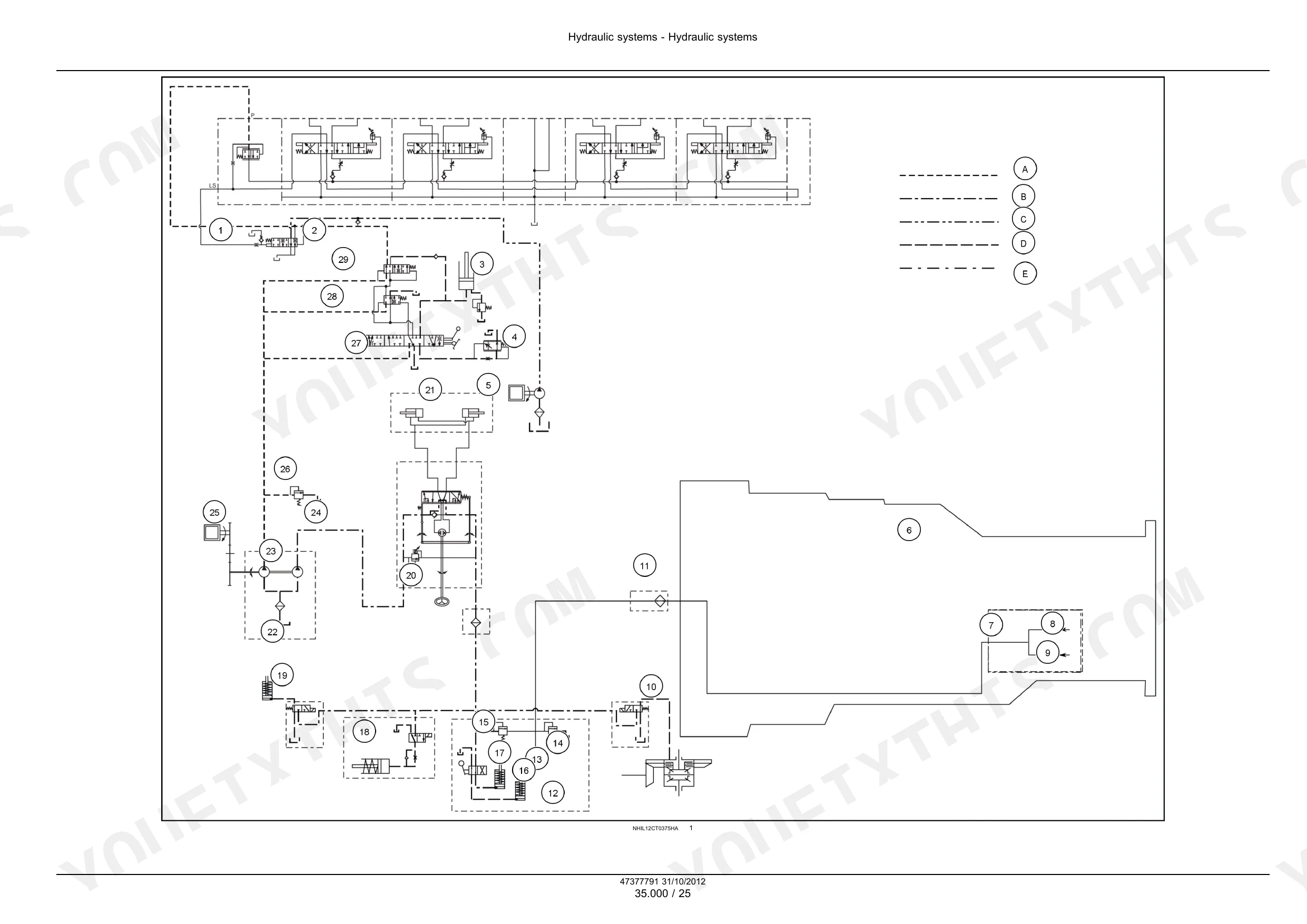

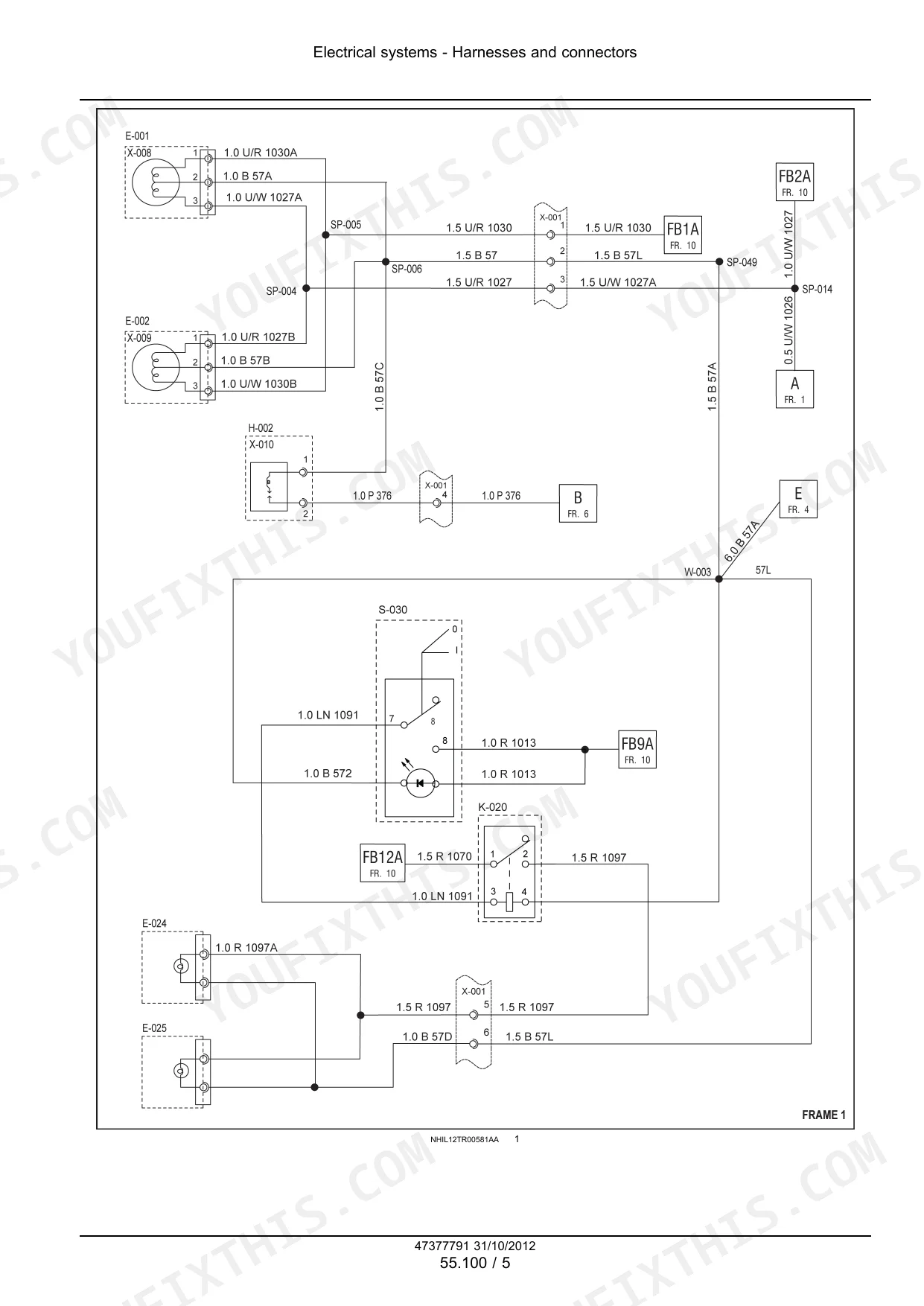

| System | Pages | Key Topics |
|---|---|---|
| Introduction, Safety and Standard Torques | 1-29 | Contents, Ecology and Environment, International Symbols, Personal Safety and Safety Rules, Minimum Tightening Torques for Normal Assembly, Standard Torque Data for Hydraulics, Shop and Assembly Instructions, Biodiesel Fuels, General Welding |
| Engine Removal and Installation | 30-47 | Engine and Crankcase: Engine Removal and Installation Procedures, Tractor Split Between Engine and Transmission |
| Clutch and Damper Plate | 48-69 | Clutch General Specification and Torque, Overview, Pedal Free Travel Adjustment, Clutch Removal, Disassembly, Inspection and Installation, PTO Drive Disc Bearing, Clutch Troubleshooting, Viscous or Flexible Coupling Damper Plate |
| 8x8 Power Shuttle Transmission | 70-152 | Static Description and Sectional View, Forward and Reverse Clutches, Control Valve, Shift Cover, Shift Forks and Rails, Transmission Disassembly and Assembly, Clutch Pack, Power Shuttle Pressure Test, Troubleshooting |
| 16x8 Power Shuttle Transmission (Hi-Lo) | 153-232 | Static Description of the 16x8 Power Shuttle Transmission, Sectional View, Hi-Lo and Forward/Reverse Clutch Packs, Control Valve, Shift Cover, Shift Forks and Rails, Side Mounted Shift Mechanism for ROPS and Cab Tractors |
| Mechanical Transmission and Shuttle Controls | 233-283 | Mechanical Transmission Description, Removal, Overhaul and Installation, Power Shuttle Transmission External Controls Adjustment |
| Four-Wheel Drive (4WD) System | 284-309 | Electrohydraulic Front-Wheel Drive Clutch Control, 4WD Gearbox (Transfer Case) Torque, Gear Ratios, Removal and Overhaul |
| Front Axle - CNH Heavy Duty (125A, 140A) | 310-357 | Powered Front Axle General Specification and Power Flow, Gear Ratios, Ring and Pinion Backlash and Shims, Front Bevel Gear Set and Differential Overhaul, Final Drive Hubs, Steering Knuckles and Shafts |
| Front Axle (110A, 120A) | 358-411 | Powered Front Axle Specification and Torque, Front Axle Removal, Differential General Specification and Overhaul, Planetary Drive and Hub, Axle Shaft, Steering Knuckle and King Pin |
| Rear Axle, Differential and Final Drives | 412-465 | Powered Rear Axle General Specification and Torque by Model, Rear Axle Troubleshooting, Rear Bevel Gear Set and Differential, Differential Lock, Planetary Final Drives |
| Power Take-Off (PTO) | 466-513 | One-Speed Rear PTO Gear Service, Two-Speed Rear PTO General Specification, Pressure Regulating and Relief Valve Settings, Driven Shaft, PTO Clutch Removal, Disassembly and Assembly |
| Parking Brake and Hydraulic Service Brakes | 514-553 | Parking Brake Description and Adjustment, Hydraulic Service Brakes Specification and Torque, Brake Master Cylinder, Brake Lines, Bleeding, Adjustment and Test, Brake Pedals, Slave Cylinder, Brake Troubleshooting |
| Hydraulic Systems and Hydraulic Schematics | 554-600 | Hydraulic Oil Capacity and Type, Torque, Special Tools, Hydraulic Standard and Symbols, Hydraulic Schematic Frames 01-10 for Mechanical Shuttle, 8x8 and 16x8 Power Shuttle, Remote Valves and Tandem Pump |
| Priority Valve, Auxiliary Pump and Hitch Valve | 601-662 | Pump Control Valves Dynamic Description, Priority/Regulator Valve Overhaul, Optional Engine-Mounted Auxiliary Hydraulic Pump Specification, Flow Test and Overhaul, Three-Point Hitch Control Valve, Three-Point Hitch Cylinder |
| Remote Control Valves and Tandem Pump | 663-735 | Remote Control Valves and Couplers, Remote Valve Pressure Test and Troubleshooting, Tandem Gear Pump General Specification, Main Pump and Steering Pump Pressure and Flow Tests, Low Pressure and Lubrication Circuit Tests |
| Rear Three-Point Hitch | 736-779 | Rear Three-Point Hitch Torque, Dynamic Description, Adjustments, Control Linkage Rod and Roller Setting, Hitch Troubleshooting |
| Steering | 780-815 | Steering Column, Hydraulic Control Components Troubleshooting, Power Steering Pump, Steering Cylinders |
| Cab Ventilation and Air Conditioning | 816-883 | Ventilation, Air Conditioning General Specification, Decontaminating, Evacuate and Recharging, A/C Compressor, Condenser and Receiver/Dryer Replacement |
| Electrical System, Instruments and Fuses | 884-904 | Electrical Components General Specification by Model, Instrument Panel Component Identification, Control Locations, Fuse and Relay Locations, Instrument Cluster Replacement |
| Wiring Schematic Frames | 905-990 | Harnesses and Connectors: Electrical Schematic Frames 01-16 for Tractors Without Cab and Frames 01-24 for Cab Tractors, With Component Identifier Lists |
| Starting, Charging, Battery and Cab Controls | 991-1040 | Engine Starter Specification and Torque, Alternator Tests Including Charging Current and Controlled Voltage, Battery Testing, Cab Controls Removal and Installation |
| Cab, Doors, Special Tools and Electrical Schematic | 1041-1089 | Cab and Platform Removal and Installation, Cab Doors, Rear Window, Handle and Lock, Special Tool Index, Fold-Out Electrical Schematic 47453450 for Farmall 110A, 120A, 125A and 140A Tractors with Cab |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

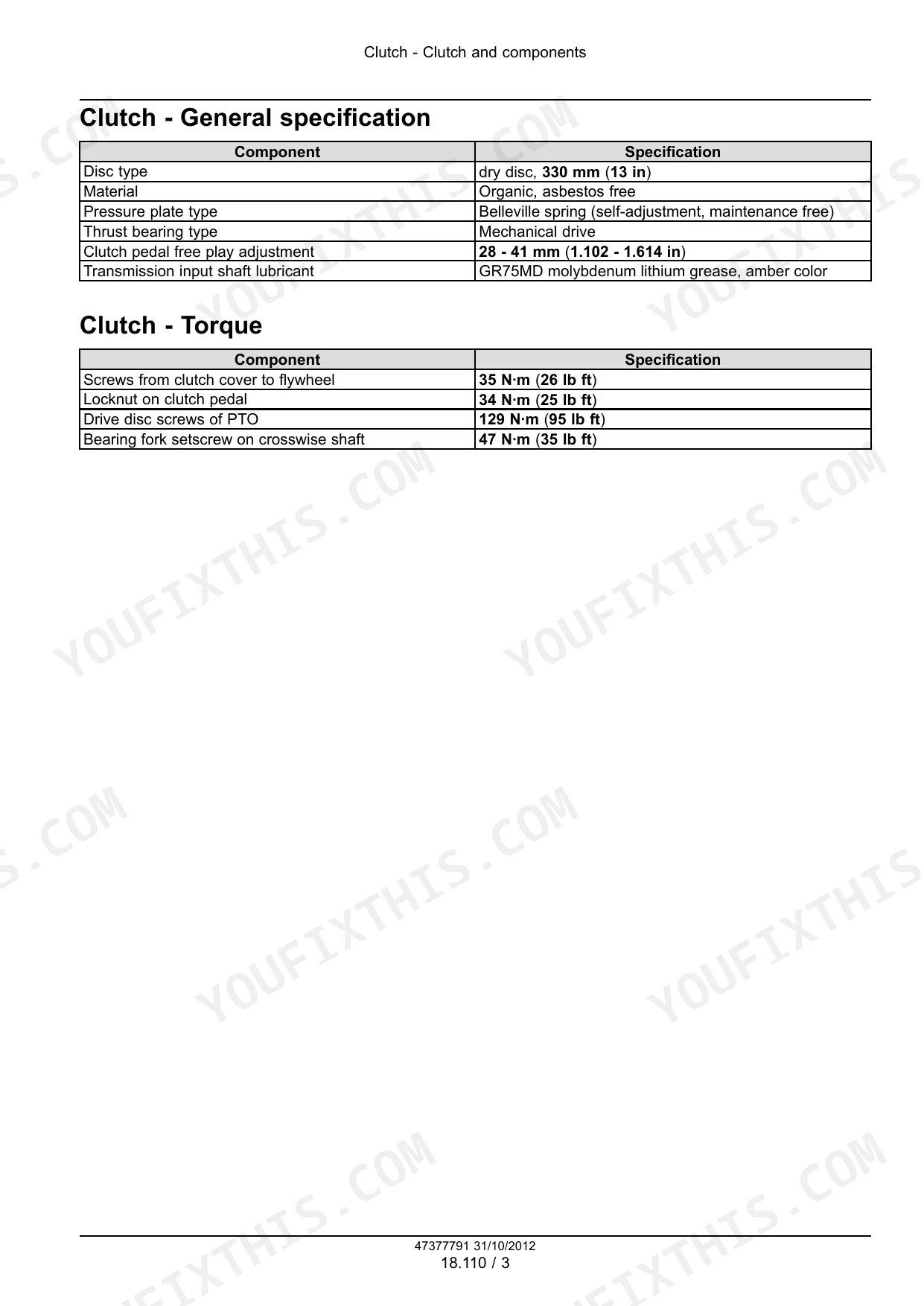

| Clutch disc (8x8 mechanical shuttle) | dry disc, 330 mm (13 in) | p. 51 |
| Clutch pedal free play | 28 - 41 mm (1.102 - 1.614 in) | p. 51 |
| Power Shuttle main low pressure | 1500 - 1800 kPa (218 - 261 psi) | p. 143 |
| Power Shuttle lubrication pressure | 300 - 500 kPa (44 - 73 psi) | p. 143 |
| Hydraulic oil maximum capacity (includes filter) | 66 l (17.4 US gal) | p. 557 |
| Hydraulic oil | CASE IH AKCELA NEXPLORE™ FLUID, MAT 3525 | p. 557 |
| Rear axle oil capacity | 60.0 l (15.9 US gal) | p. 415 |
| Main hydraulic pump flow at 2200 RPM (new pump) | 49 l/min (13 US gpm) | p. 707 |
| System relief valve activation | 176 - 182 bar (2552 - 2639 psi) | p. 707 |
| Steering pump flow at 2200 RPM (new pump) | 27 l/min (7 US gpm) | p. 707 |
| PTO pressure regulating valve @ 2100 RPM | 1172 - 1379 kPa (170 - 200 psi) | p. 477 |
| Rear disc to hub nuts (manual adjust wheels) | 244 - 298 N·m (180 - 220 lb ft) | p. 415 |
| Rear disc to rim nuts (manual adjust wheels) | 280 - 340 N·m (207 - 251 lb ft) | p. 415 |
| Rear axle drawbar | 4309.0 kg (9499.7 lb) (Farmall 110A, Farmall 120A) / 5300.0 kg (11684.5 lb) (Farmall 125A, Farmall 140A) | p. 415 |
| Brake discs per side | 3 (Farmall 110A, Farmall 120A) / 4 (Farmall 125A, Farmall 140A) | p. 528 |

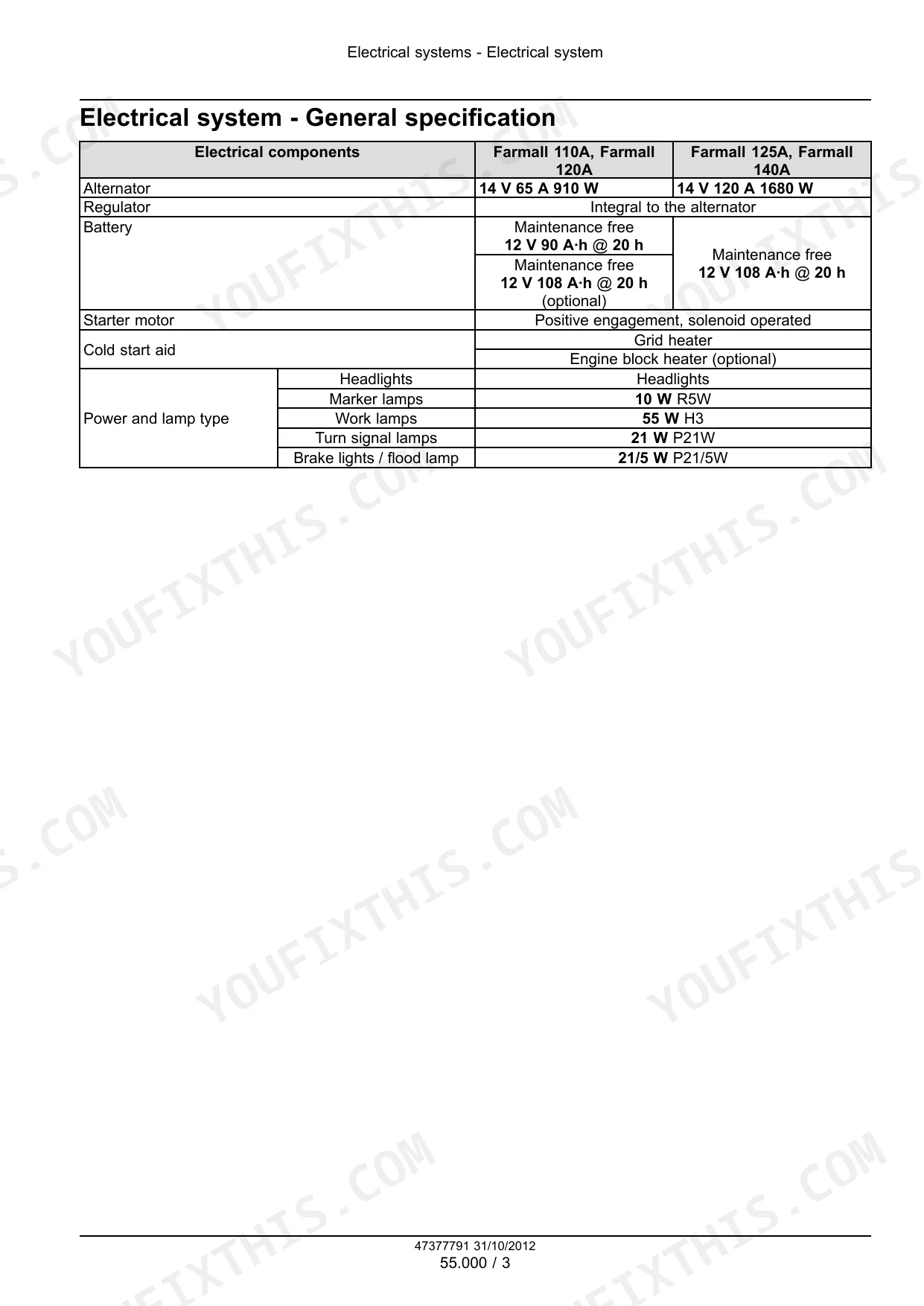

| Alternator | 14 V 65 A 910 W (Farmall 110A, Farmall 120A) / 14 V 120 A 1680 W (Farmall 125A, Farmall 140A) | p. 887 |
| Starter | Iskra gear starter 3 kW | p. 993 |
Case IH Farmall 110A–140A Common Problems This Manual Covers

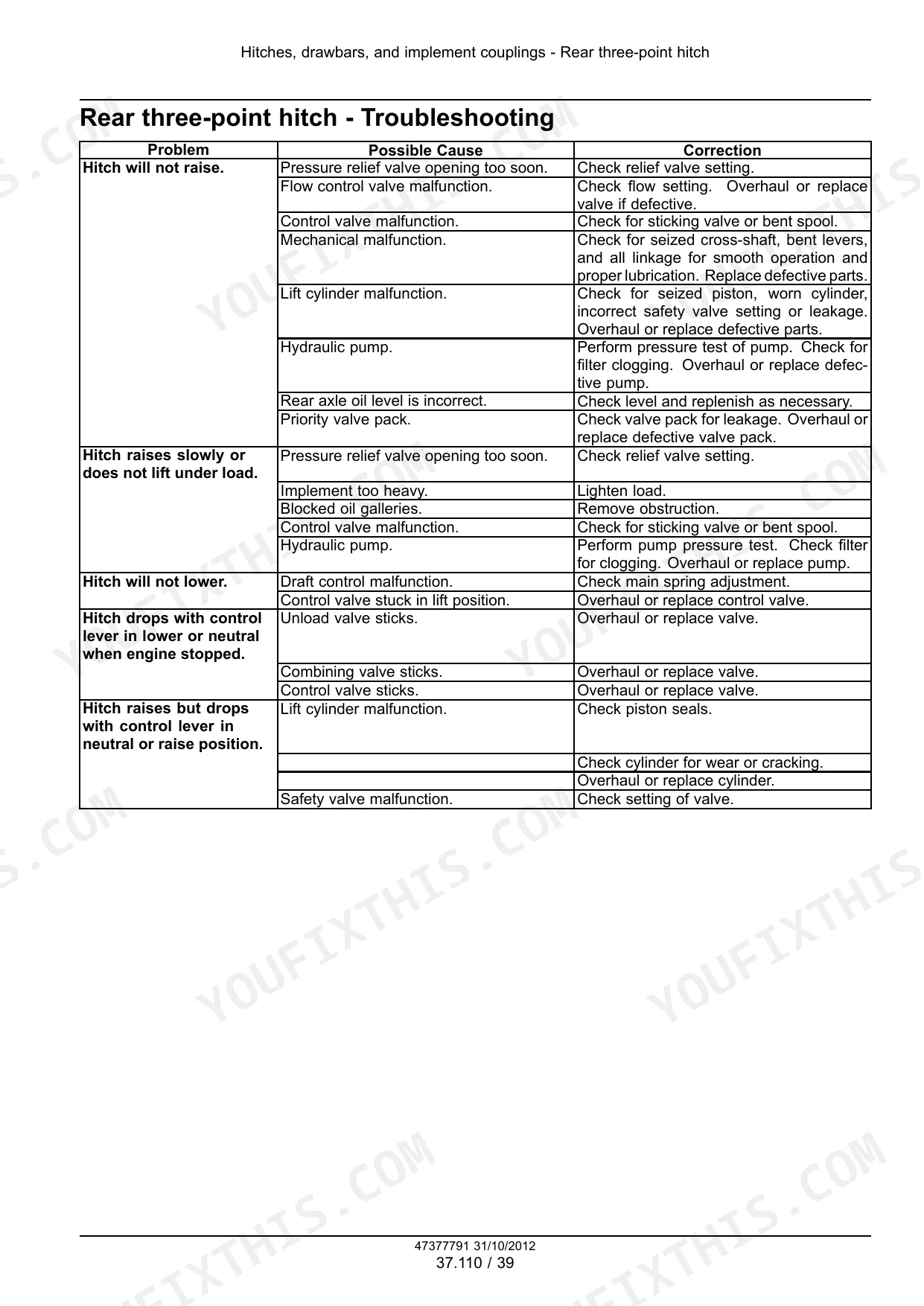

Three-point hitch will not raise, or lifts slowly under load
Work down the Rear Three-Point Hitch troubleshooting table on page 775. Start with rear axle oil level and filter clogging, then check the relief valve setting. Then run the main pump test on page 725 at 2100 RPM. The relief valve should read 176 - 182 bar (2552 - 2639 psi). Only after that should you look at the control valve spool, lift cylinder or priority valve pack.
Manual Section: Rear Three-Point Hitch - troubleshooting; Tandem Pump - main pump pressure and flow test p. 775Power Shuttle tractor will not move in forward or reverse
The Power Shuttle troubleshooting table on page 151 points to low system pressure or low forward/reverse clutch pressure. For the pressure test on page 142, warm the oil to 55 °C (130 °F) using the PTO, remotes and steering. Install a 0 - 300 psi gauge at the low-pressure point and the FWD and REV ports. Page 143 calls for 1500 - 1800 kPa (218 - 261 psi). If the reading is out of range, adjust the low-pressure regulating valve and test again. If the pressure does not change, replace the valve. If it is still out, suspect an internal leak.
Manual Section: 8x8 Power Shuttle Transmission - pressure test and troubleshooting p. 151Engine revs rise but the tractor does not pick up speed
Page 61 lists this as clutch disc slip. Check the clutch adjustment, chafing of the clutch disc and pressure plate failure. First measure pedal free travel against page 53: 28 - 41 mm (1.102 - 1.614 in). If it is out, loosen the locknut on the clutch rod, adjust, and retorque the locknut to 34 N·m (25 lb ft). If adjustment does not cure it, split the tractor and inspect the 330 mm (13 in) dry disc.
Manual Section: Clutch and Damper Plate - pedal free travel adjustment and troubleshooting p. 61Steering wheel heavy or steering slow to react
The steering troubleshooting table on page 787 lists a damaged hydraulic pump, flow divider or steering cylinder leaks, and wear of the steering unit. For slow reaction, it says to check pump flow first. The steering pump test on page 727 runs at 2100 RPM with the load valve closed to 137 bar (1987 psi). Minimum flow is 27 l/min (7.1 US gpm) for a new pump and 24 l/min (6.3 US gpm) for a used one. Overhaul the pump if the flow is below that.
Manual Section: Steering - troubleshooting; Tandem Pump - steering pump pressure and flow test p. 787Frequently Asked Questions

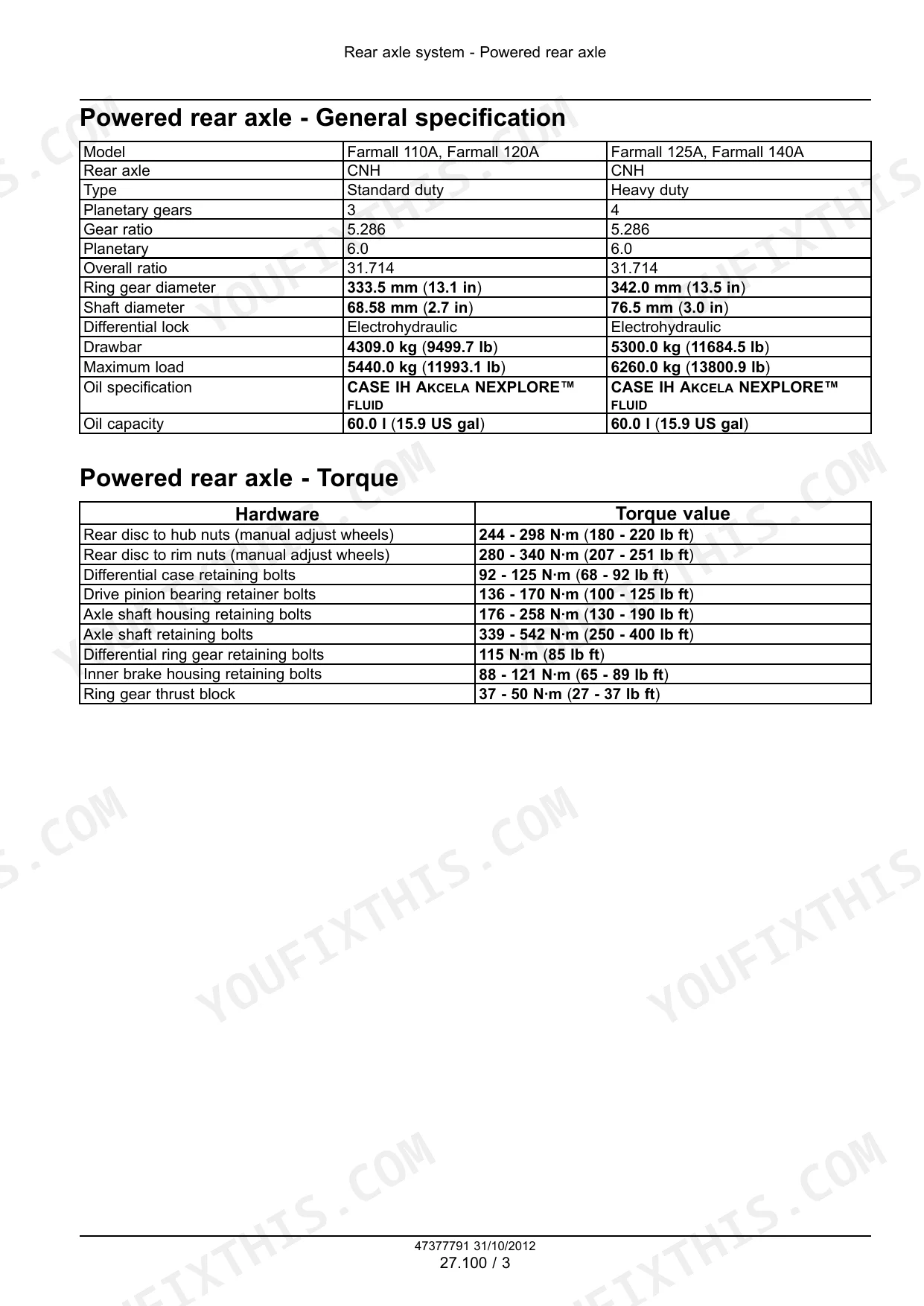

What are the torque specs for the Farmall 140A rear wheel nuts?
The powered rear axle spec on page 415 gives rear disc to hub nuts (manual adjust wheels) at 244 - 298 N·m (180 - 220 lb ft). Rear disc to rim nuts are 280 - 340 N·m (207 - 251 lb ft). The 140A uses the heavy duty rear axle with 4 planetary gears. p. 415
What is the hydraulic pressure test procedure for a Farmall 120A?
The main pump high pressure and flow test is on page 725. Set the engine to 2100 RPM and close the load valve until 137 bar (1987 psi). Keep oil temperature at or below 75 °C (167 °F). The relief valve must read 176 - 182 bar (2552 - 2639 psi). If it is out of range, replace the pump's pressure relief valve, then record flow at 166 bar (2407 psi). Page 707 lists main pump maximum flow at 2200 RPM: 49 l/min (13 US gpm) new and 44 l/min (12 US gpm) used. p. 725
Farmall 125A hitch will not lift or hydraulics are weak - where do I start?
Start with the cheap checks in the hitch troubleshooting table on page 775: rear axle oil level and a clogged filter. Next, pressure test the pump and check the relief valve setting. After that, the table points to the flow control valve, then the control valve (sticking valve or bent spool). The lift cylinder and priority valve pack come last. If the hitch lifts slowly only under load, the table also lists an implement that is too heavy and blocked oil galleries. p. 775
What hydraulic oil and how much does a Farmall 110A take?
Page 557 explains that the rear axle, transmission, steering, lubrication and hydraulic systems all run off the rear axle oil reservoir. Maximum capacity is 66 l (17.4 US gal) including the filter. The oil is CASE IH AKCELA NEXPLORE™ FLUID to CASE IH AGRICULTURE specification MAT 3525. p. 557
Does the Farmall 110A-140A service manual cover an engine rebuild?
No. The engine chapter on page 32 has two procedures: Engine - Remove and Engine - Install. The book has no engine overhaul steps and no engine specifications. What it gives you is the procedure for getting the engine out and back in, including the split between engine and transmission for clutch work. p. 32
