Need the factory operating procedures for your Case IH Farmall 50A, 60A, or 70A? This 184-page operator manual (OEM #47752713) puts factory-standard procedures for all three Farmall variants in one searchable file. Inside: a complete controls section mapping each dashboard indicator, PTO switch, and transmission lever on the platform, plus step-by-step procedures for starting, transport, three-point linkage, and hydraulic system operation. Maintenance intervals run from the 10-hour daily checks straight through to the 1,200-hour service milestone, with a troubleshooting section covering engine, electrical, hydraulic, and brake faults by symptom. Torque the rear disc-to-hub bolts to 192 N·m (142 lb ft); swap the fuel filter at 600 hours. Your machine is down. Get the factory answer, not a forum guess. Bookmarked and keyword-searchable; open it on any device and find the spec you need fast.
What's Inside This Case IH FARMALL 50A, FARMALL 60A, FARMALL 70A Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | 7-16 | Lubrication and Maintenance General Information, Refueling the Tractor, Fuel Saving Tips for Optimum Performance, Biodiesel Fuel, Machine Shields and Guards - Basic Instructions |
| Safety Information | 17-44 | Personal Safety, Safety Rules, Proposition 65, Ecology and the Environment, Safety Signs, Instructional Signs |

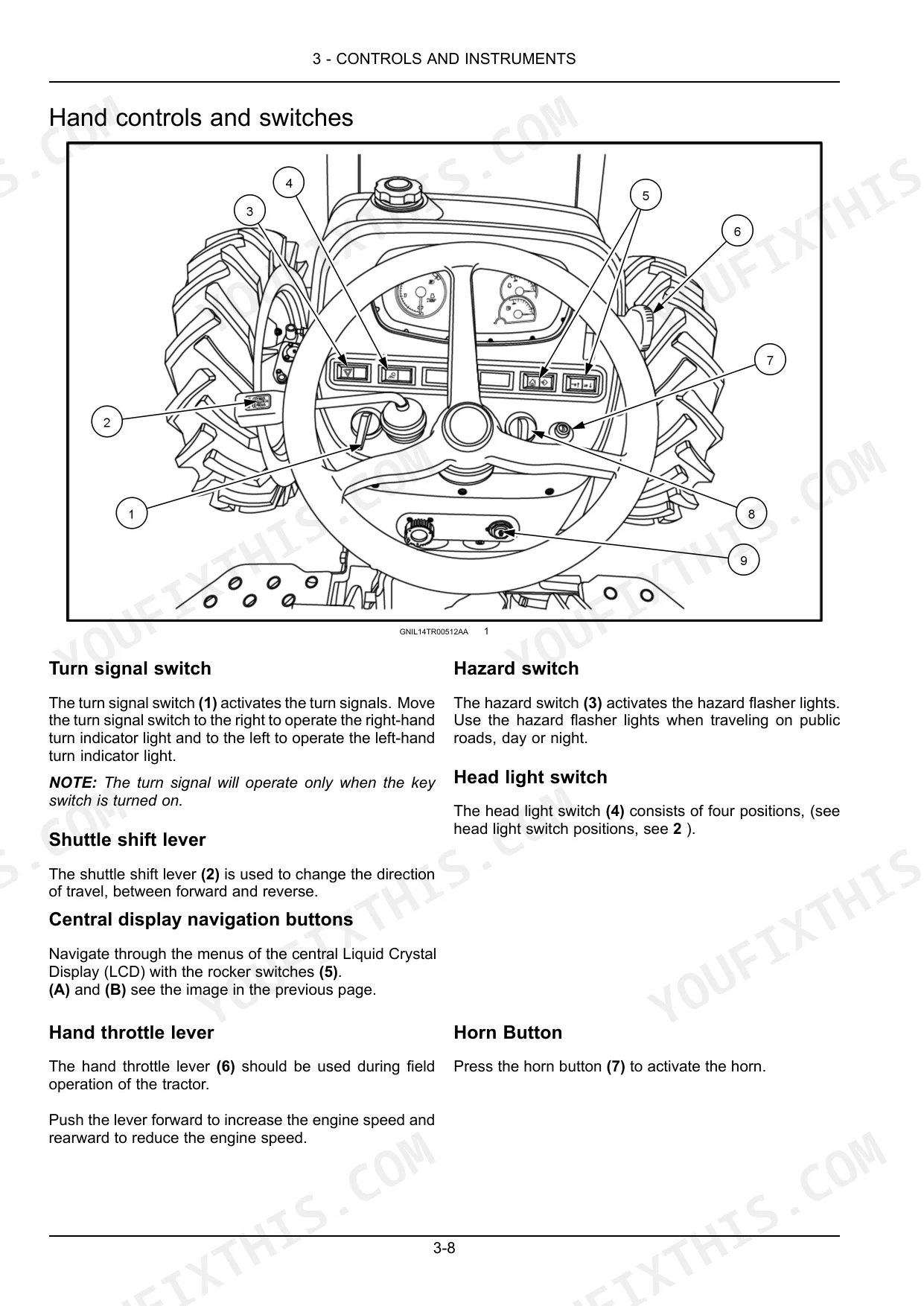

| Controls and Instruments | 45-72 | Access to Operator's Platform (Before Operating), Operator's Seat (Seat Belt) |

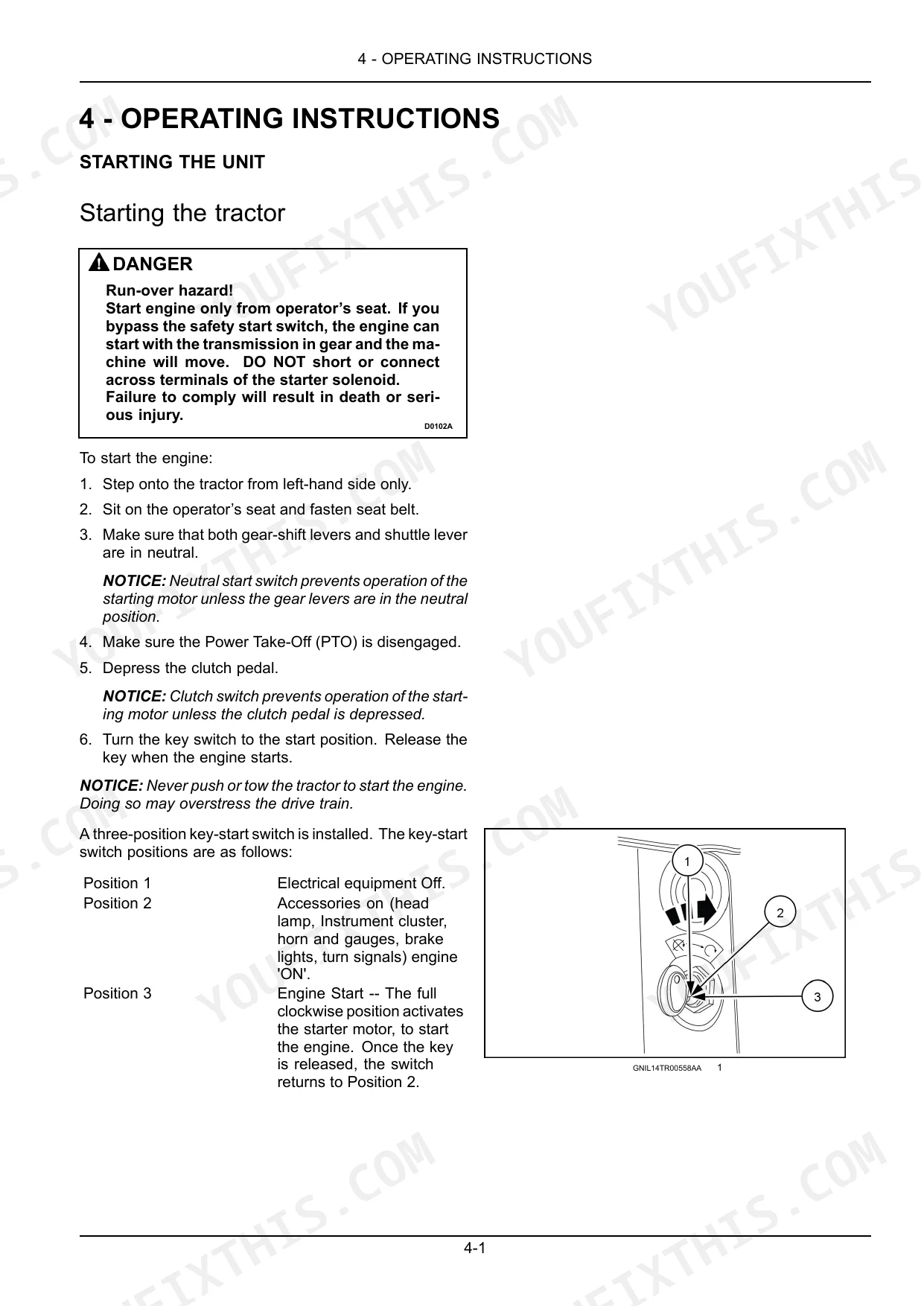

| Operating Instructions | 73-80 | Starting the Unit (Starting the Tractor), Stopping the Unit (Shut Off the Engine), Moving the Unit (Roll Over Protective Structure Frame - Basic Instructions) |
| Transport Operations | 81-84 | Road Transport (Towing Attachments), Recovery Transport (Towing the Tractor) |
| Working Operations | 85-110 | Power Take Off (Two-Speed Rear Power Take-Off - Grouped Safety Message, Attaching Power-Take Off Driven Equipment) |

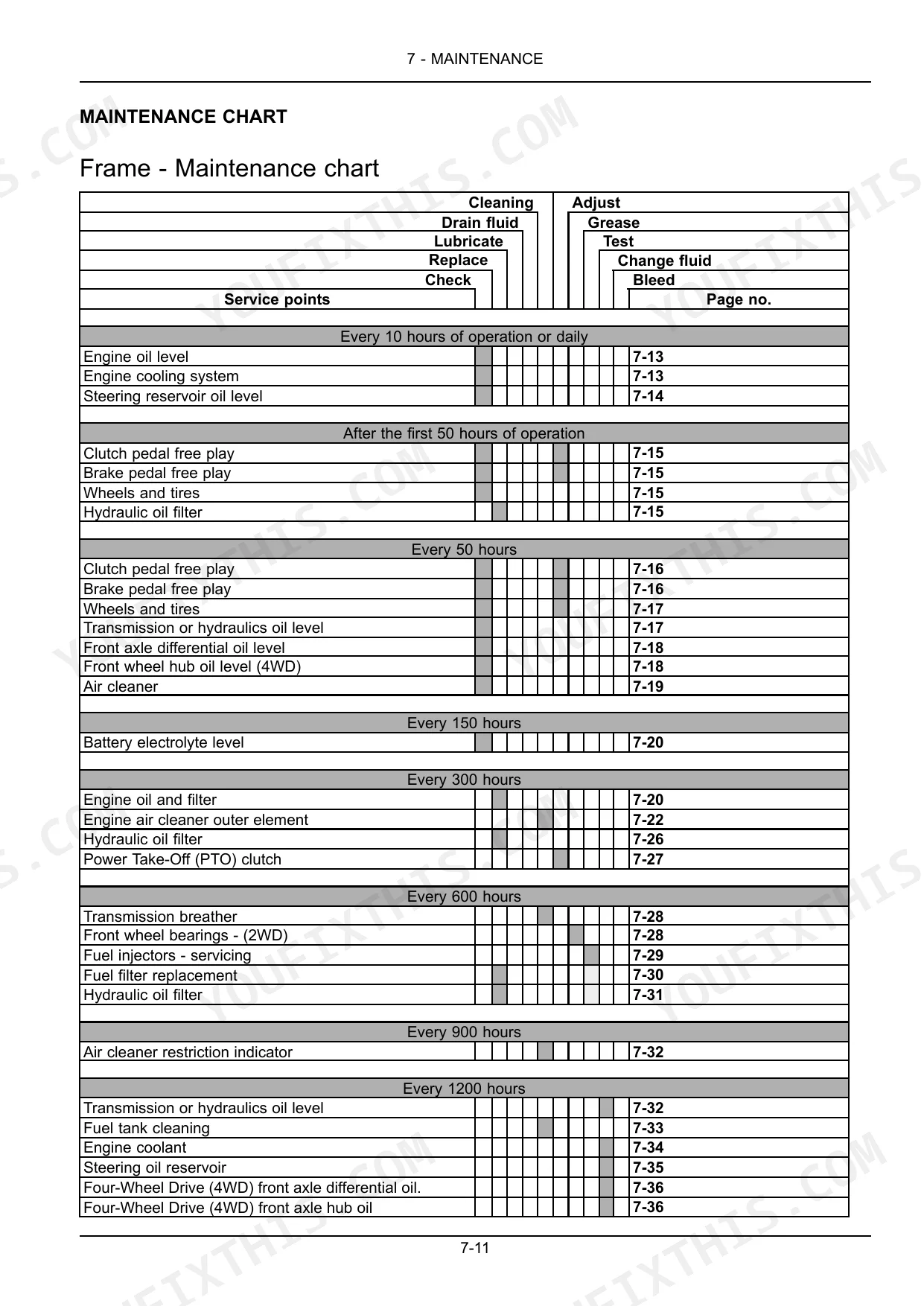

| Maintenance | 111-160 | Maintenance Chart (Frame - Maintenance Chart), Every 10 Hours of Operation or Daily (Engine Oil Level, Engine Cooling System, Steering Oil Reservoir Level) |

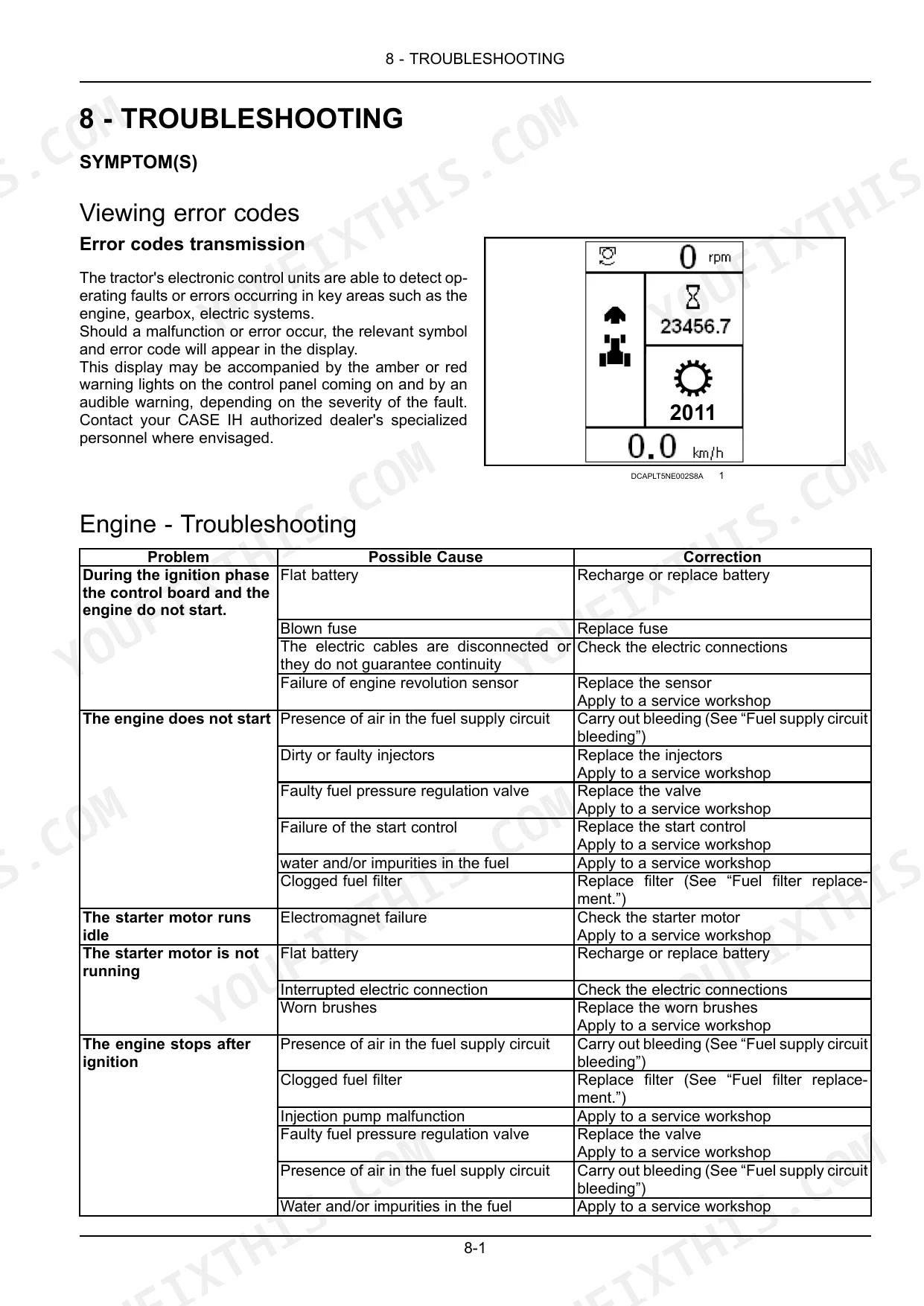

| Troubleshooting | 161-168 | Viewing Error Codes, Engine - Troubleshooting, Electrical Systems - Troubleshooting, Hydraulic Systems - Troubleshooting, Brakes and Controls - Troubleshooting |

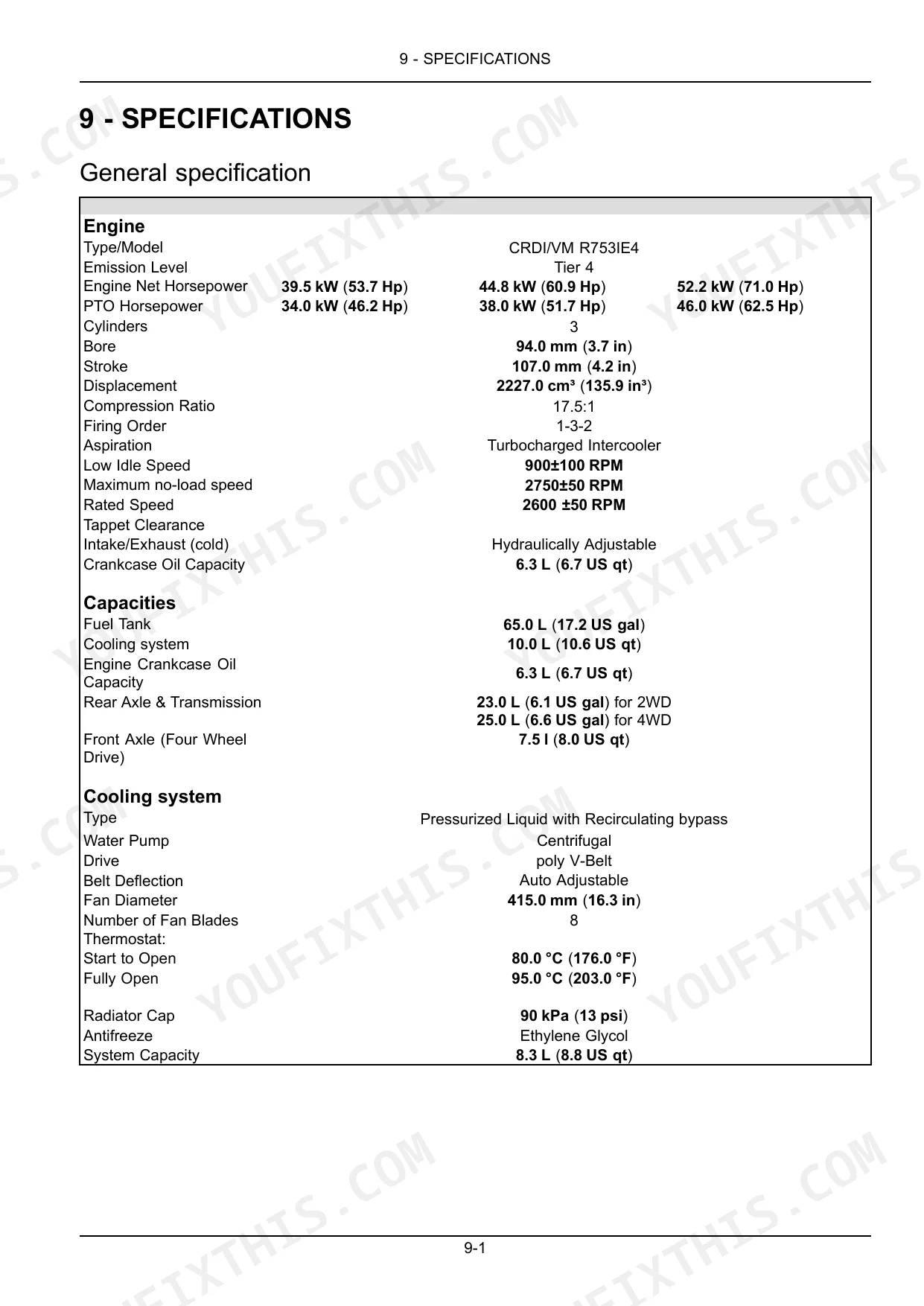

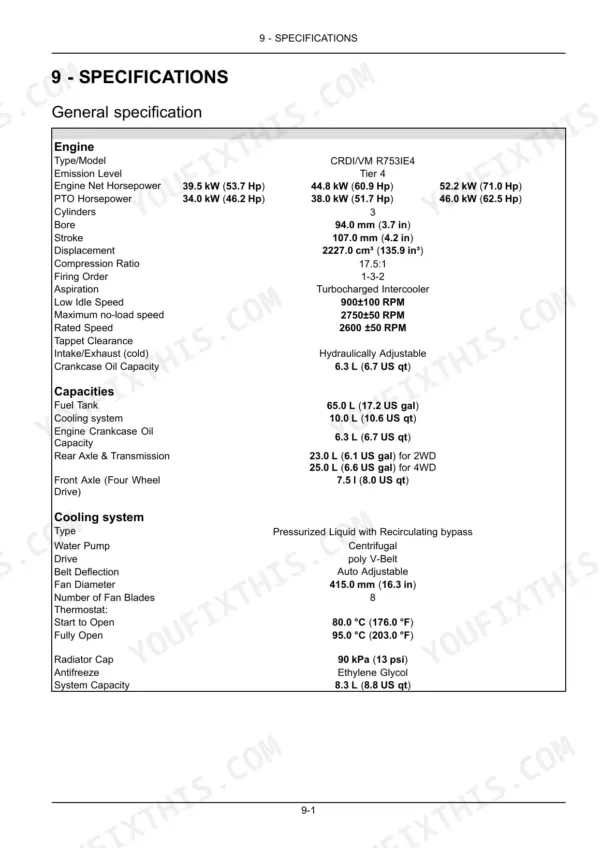

| Specifications | 169-176 | General Specification, Engine, Electrical System, Fuel System, Brakes, Steering |
| Accessories | 177-178 | Front-End Loader, Control Valve Joystick, Quick Couplers, Joystick Positions, Safety Latch |
| Forms and Declarations | 179-180 | Pre-Delivery Report - Owner's Copy, Inoperative Service Checks, Safety Items Check, Operative Service Checks, Pre-Delivery Report - Dealer's Copy |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Front disc to hub bolts torque | 123 N·m (91 lb ft) | p. 127 |
| Rear disc to hub bolts torque | 192 N·m (142 lb ft) | p. 127 |
| Fuel filter replacement interval | 600 operating hours | p. 140 |
| Engine oil filter replacement interval | 300 hours | p. 121 |
| PTO Clutch Disc Size | 280 mm (11 in) | p. 171 |
| Transmission Clutch Disc Diameter | 280 mm (11 in) | p. 172 |
| Engine Crankcase Oil Capacity | 6.3 L (6.7 US qt) | p. 169 |
| Fuel Tank Capacity | 65.0 L (17.2 US gal) | p. 169 |
| Cooling System Capacity | 10.0 L (10.6 US qt) | p. 169 |
| FARMALL 50A, 60A, 70A 2WD models | ||
| Rear Axle & Transmission Oil Capacity (2WD) | 23.0 L (6.1 US gal) | p. 169 |
| FARMALL 50A, 60A, 70A 4WD models | ||
| Rear Axle & Transmission Oil Capacity (4WD) | 25.0 L (6.6 US gal) | p. 169 |
| Front Axle (4WD) Oil Capacity | 7.5 l (8.0 US qt) | p. 169 |
Case IH FARMALL 50A, FARMALL 60A, FARMALL 70A Common Problems This Manual Covers
Case IH Farmall 50A stalls under load or loses RPM during heavy PTO operation p. 161
Inspect the fuel delivery system and check the dashboard for fault code E03 on page 168. Drain water from the separator daily. Replace the fuel filter every 600 operating hours as specified on page 140 to ensure proper fuel pressure to the common rail.
Manual Section: Engine - TroubleshootingEngine turns over slowly or starter motor refuses to engage when turning the key p. 161
Verify battery voltage and inspect the starter relay circuit wiring. Check the specifications on page 170 to confirm the starter motor requires 2.0 kW (2.7 Hp). Clean the battery terminals and ensure the alternator provides the full 75 A output to keep the system charged.
Manual Section: Electrical Systems - TroubleshootingTractor experiences difficulty shifting gears or transmission feels like it is slipping during heavy field work p. 126
Measure the clutch pedal free play and compare it to the specification on page 126. Adjust the linkage until you achieve exactly 35 - 40 mm (1.38 - 1.57 in) of travel. Inspect the pedal return spring if the play remains out of tolerance.
Manual Section: MaintenanceDashboard displays error code E01 and warning light flashes immediately after cold startup p. 168
Shut off the engine immediately and check the crankcase oil level on the dipstick. Add the correct fluid type to maintain the 6.3 L (6.7 US qt) total capacity listed on page 169. Replace the engine oil filter every 300 hours to prevent pressure drops.
Manual Section: Digital Instrument Fault CodesFrequently Asked Questions
How to reset the Case IH Farmall 50A/60A/70A error codes?
The manual states that to resolve error codes, the operator should contact an authorized CASE IH dealer and report the displayed error code. There is no user-operable procedure for resetting error codes directly provided in the manual.
How to reset the Case IH Farmall transmission warning light?
If a malfunction or error occurs, the relevant symbol and error code will appear on the display, potentially with an audible warning. To resolve such problems, including those that might trigger a transmission warning light, the operator should contact an authorized CASE IH dealer and report the error code displayed. No specific user-operable reset procedure for a transmission warning light is provided.
What are the replacement specifications for Fuel filter?
The diesel fuel filter should be changed after 600 operating hours. The procedure involves removing the electrical connector and sensor, draining fuel, removing the old filter, filling the new filter with diesel fuel, lubricating the gasket, installing the new filter, and bleeding air from the fuel system.
What are the replacement specifications for Oil filter?
The engine oil filter should always be changed when changing engine oil. After removing the old filter and cleaning the mounting surface, lubricate the seal of the new filter with clean engine oil. Install the new filter, tightening until the seal meets the mating surface, then tighten an additional 3/4 of a turn. The combined capacity of the engine crankcase and oil filter is 6.3 L (1.7 US gal).
Is this Case IH Farmall 50A, 60A, 70A Operator Manual a digital download?
This is a 184-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Is this Case IH Farmall 50A, 60A, 70A Operator Manual printable?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
