You are about to set a gauge on the lift circuit, drain the rear housing or read a code off the dash. This Case IH service manual covers the Farmall 65C, 75C, 85C and 95C utility tractors, 2WD and 4WD, with cab or platform.
Each engine family has its own chapter, covering specifications, overhaul and cooling. The drivetrain chapters cover the clutch, the mechanical transmission with splitter, Power Shuttle HI-LO and Power Shuttle 16+16. Axles, PTO, brakes, hydrostatic steering, rear and front lift, cab A/C and wiring diagrams for the cab and platform versions are also in the book.
Losing a day because the three-point hitch won't lift and the dealer is an hour away is a hard way to learn. The fault code chapter covers the EDC rear lift, transmission, ADIC panel, MFD and front lift, so you can fix it and get back in the field.
What's Inside This Case IH Farmall 65C, Farmall 75C, Farmall 85C, Farmall 95C Manual
| System | Pages | Key Topics |
|---|---|---|
| Binder Labels and Complete Contents | 1-52 | Spine Labels Vol. 1 and Vol. 2, Complete Contents of Books 1 to 6 (87758599 to 87758604) |
| General | 53-78 | General Instructions, Health and Safety, Minimum Hardware Tightening Torques, Emissions Warranty, Consumables and Capacities |
| Engine | 79-206 | Engine (Farmall 85C and 95C), Engine (Farmall 65C and 75C), Specifications for Types 44STA/MNG and 44STA/MND, Special Tools, Engine Removal and Overhaul, Checks and Measurements, Cooling System, Specifications for Types F5AE9484A*A and F5AE9484B*A, Engine Removal and Installation, Torque |
| Clutch | 207-236 | Specifications, Special Tools, PTO Control Clutch, Clutch Overhaul and Adjustments |
| Gear Transmission and Drive Lines | 237-332 | Mechanical Transmission and Splitter, Power Shuttle Transmissions (Hi-Lo and 16+16), Drive Lines, Gearbox and Shuttle, Creeper Unit, Splitter, Fuel Tank Removal, Overhaul, Power Shuttle Transmission with Hi-Lo Function, Power Shuttle 16+16, Control Valve and Solenoid Valves, Front-Wheel Drive Transmission, Drive Line Overhaul |
| Front and Rear Axle Mechanical Transmission | 333-408 | Front Axle Mechanical Transmission, Rear Axle Mechanical Transmission, Front Axle, Differential, Epicyclic Final Drives with Brake, Bevel Drive, Differential and Lock, Final Drives |

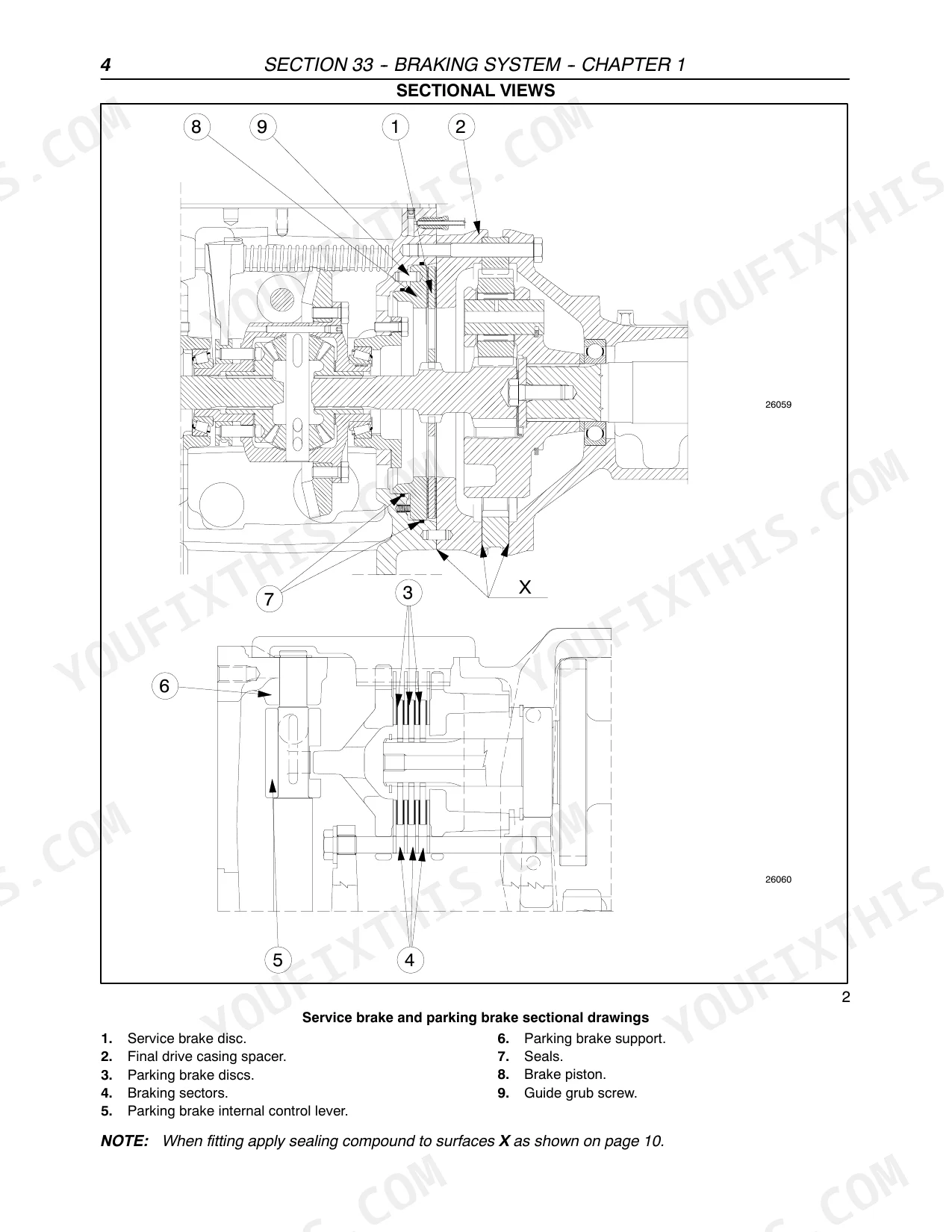

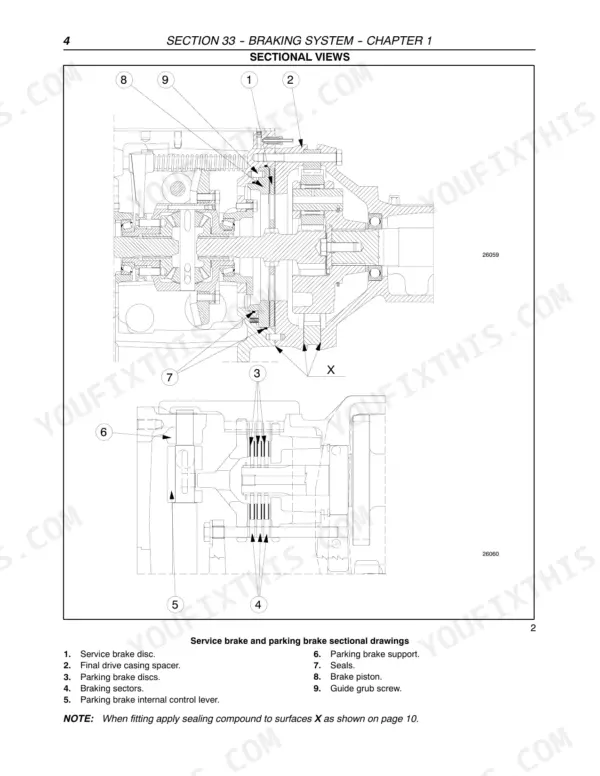

| Mechanical Power Take-Off and Braking System | 409-446 | Mechanical Power Take-Off, Braking System, Rear PTO, PTO Revs Selection, Overhaul, Service Brakes, Brake Disks, Handbrake Control Adjustment |

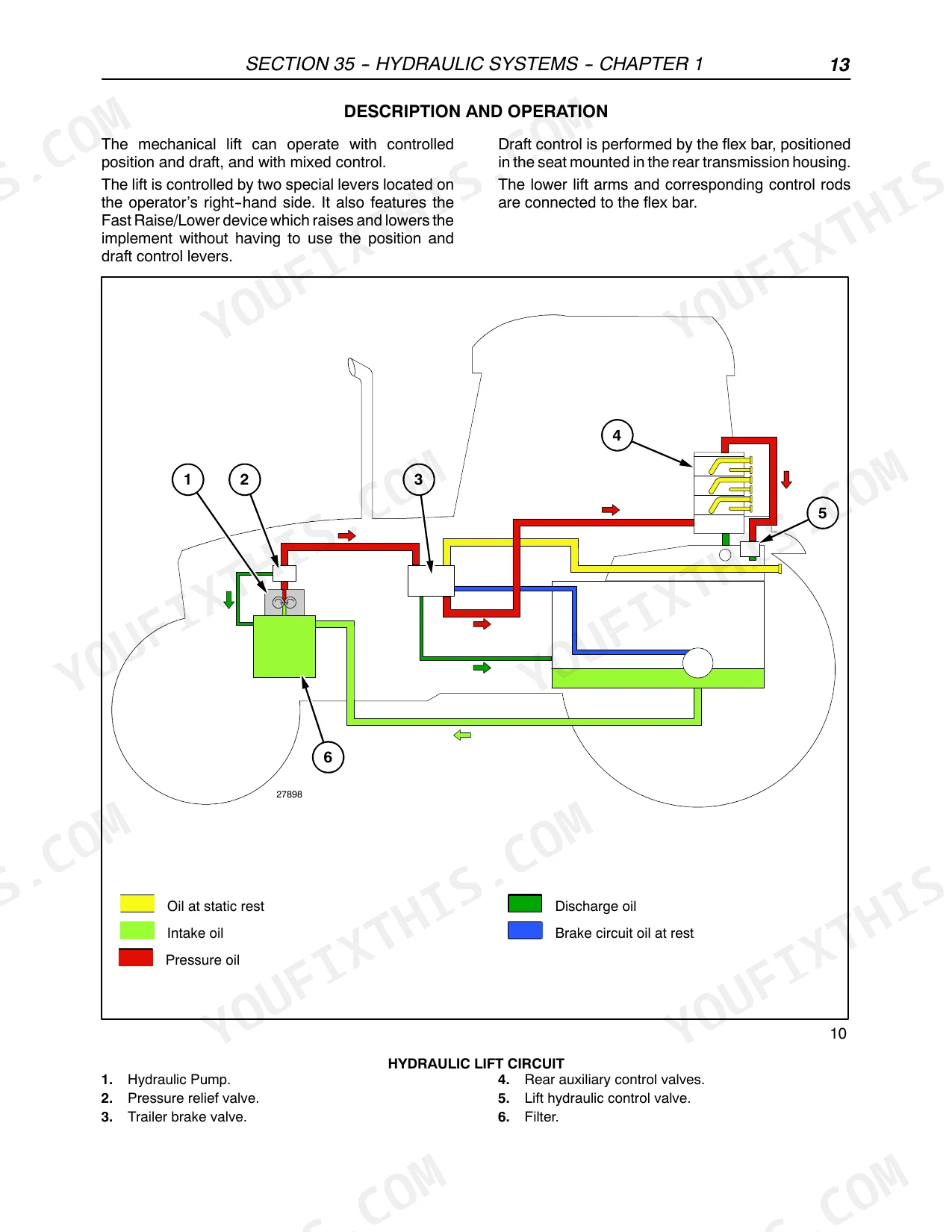

| Hydraulic Systems | 447-598 | Rear Mechanical Hydraulic Lift, Open Center Auxiliary Control Valves, Trailer Brake Auxiliary Control Valve, Electronically Controlled Hydraulic Lift and Gear Pump, Front Lift and Front PTO (Farmall 75C, 85C, 95C), Lift Specifications, Relief and Cylinder Safety Valve Settings, Position and Draft Control, Lift Control Valve, Auxiliary Control Valve Overhaul, Single/Double Acting Switch, Front PTO |
| Steering | 599-640 | Hydrostatic Steering Specifications, Power Steering Control Valve, Cylinders, Steering Oil Pump Overhaul |

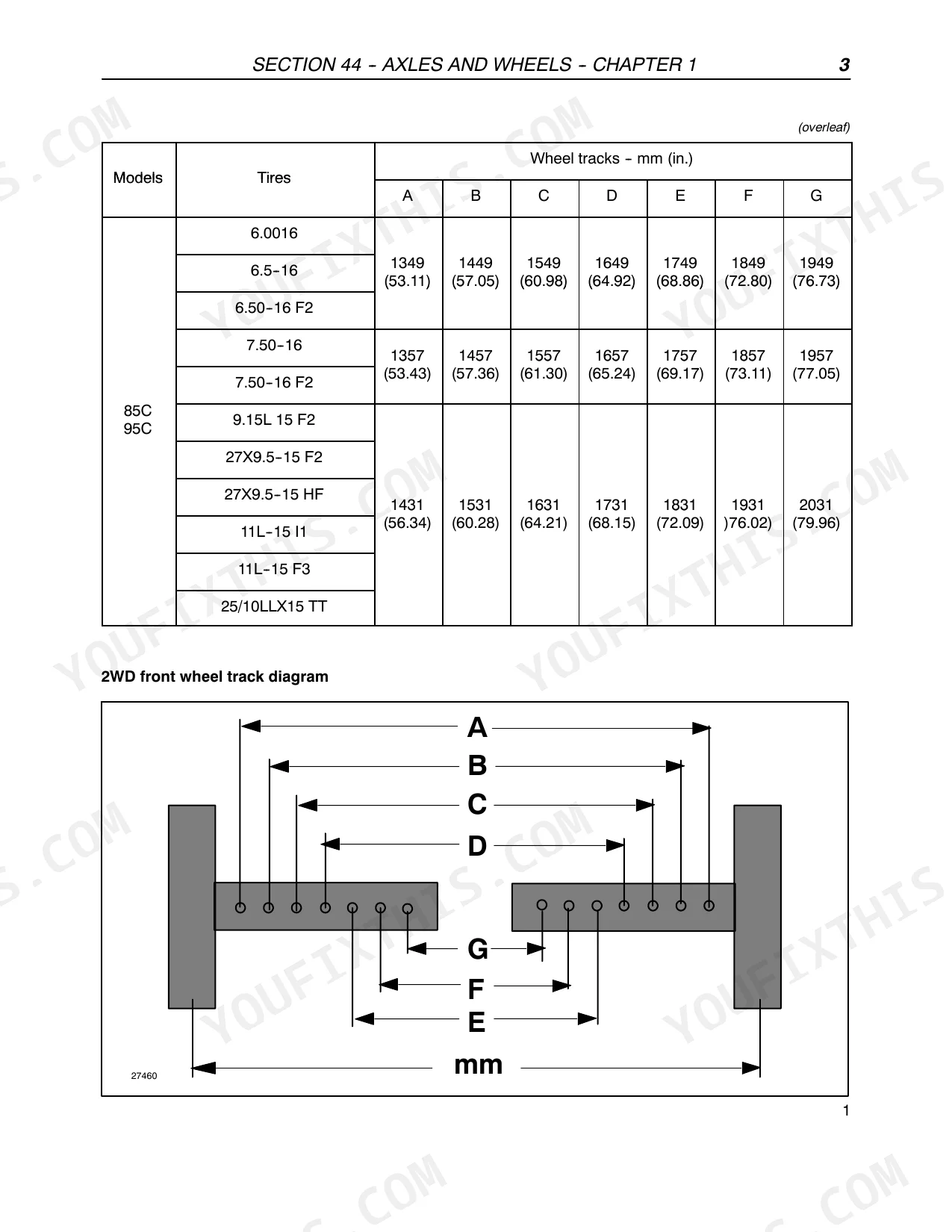

| Axles and Wheels | 641-660 | Front Axle Torque Data, Stub Axles, Leading Wheel Alignment |

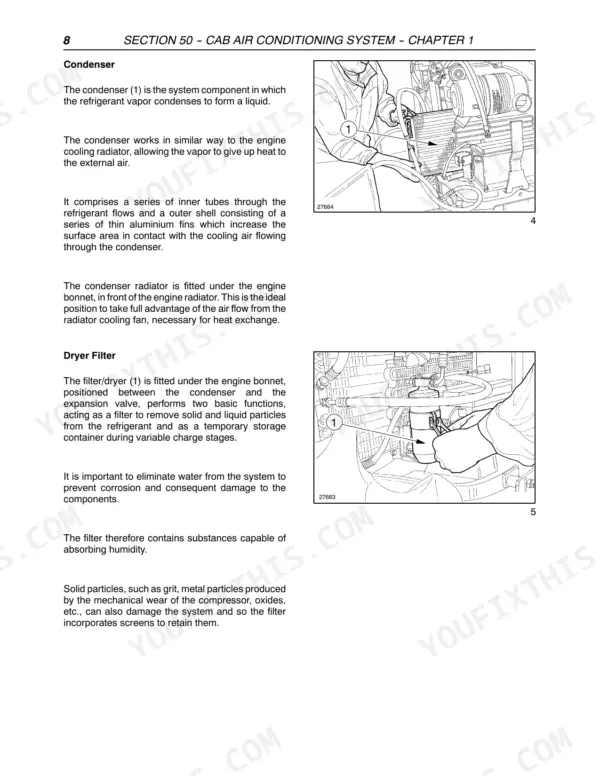

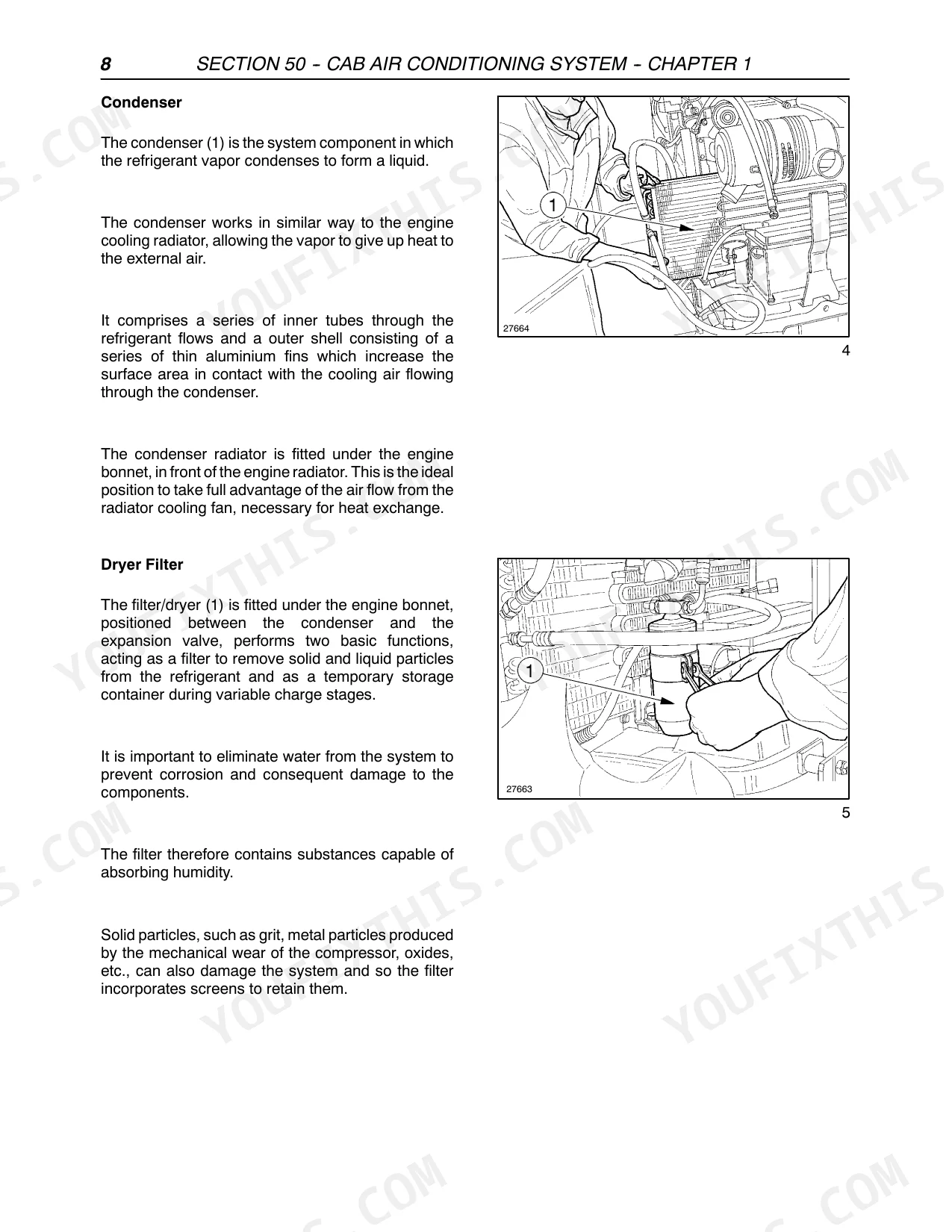

| Cab Air Conditioning System | 661-700 | Safety, Specifications, Refrigerant Recovery and Charging Stations, Fault Diagnosis, Evaporator and Cab Fan Units |
| Instrument Cluster and Electrical Components | 701-732 | Instrument Cluster, Electrical Components, Analog and Digital Instrument Panels, Warning and Indicator Lights, Transmitters, Sensors and Switches, Component Descriptions, Electronic Lift Unit Control Indicator Lights |
| Starting, Charging and Battery | 733-770 | Starter Motor, Alternator and Charging System Testing, Battery Specifications, Troubleshooting and Testing |

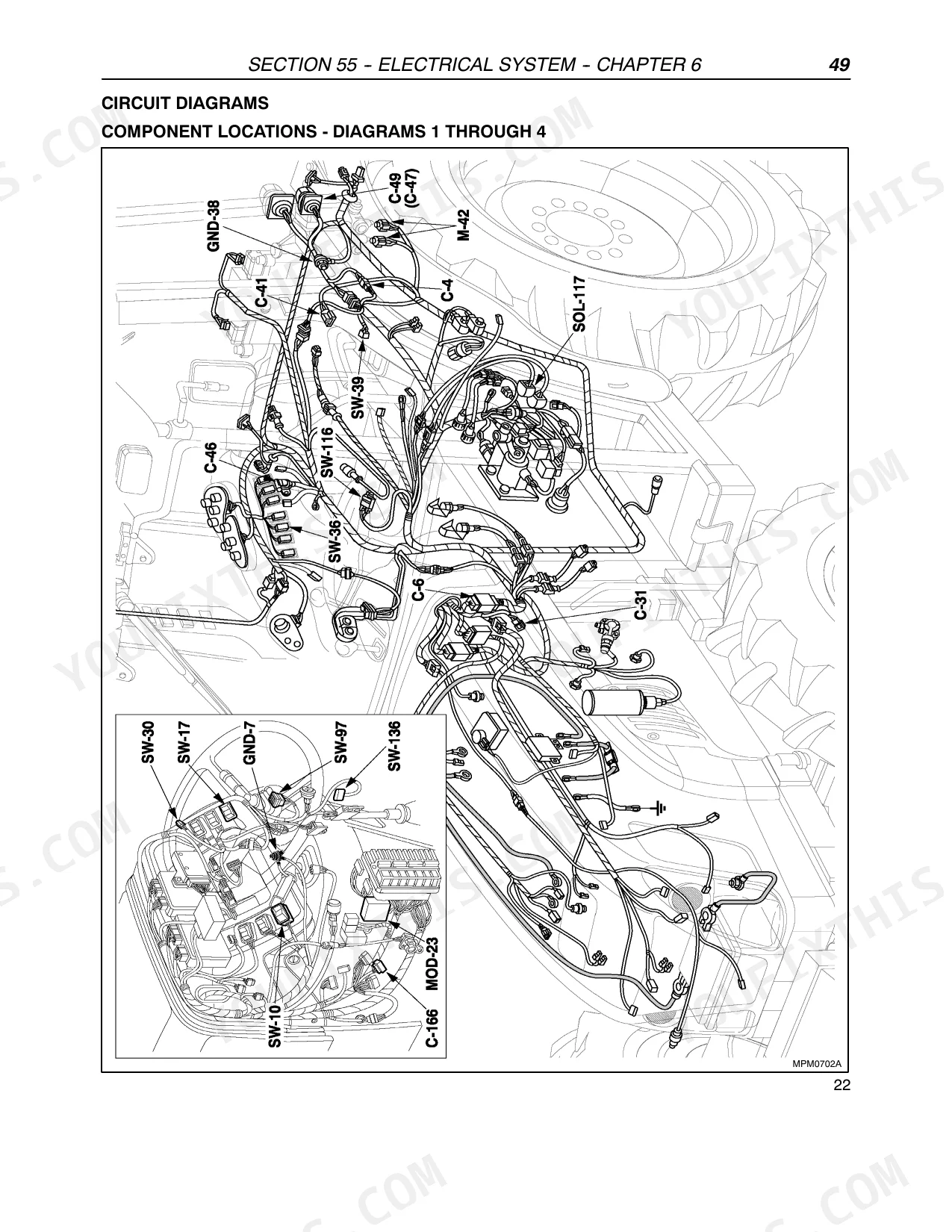

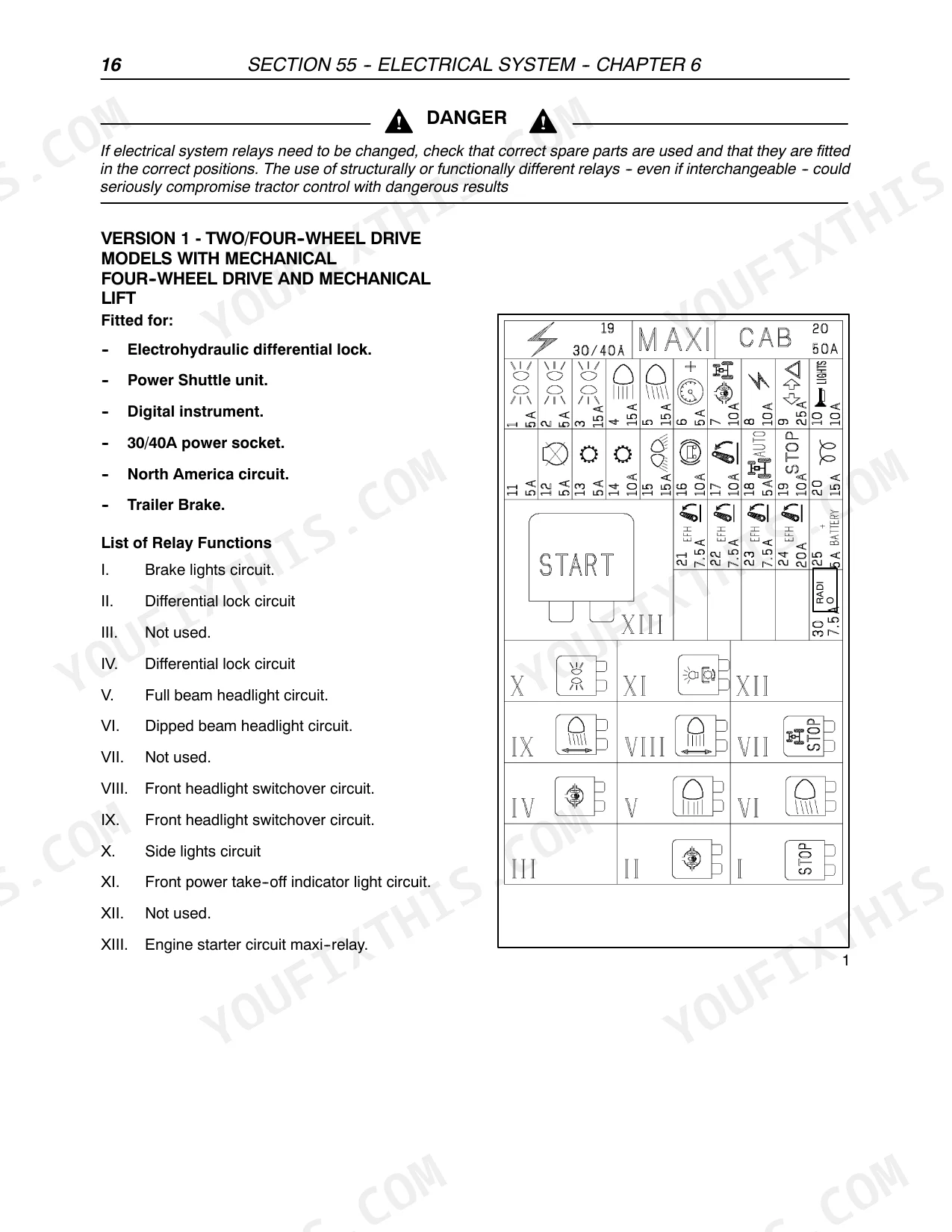

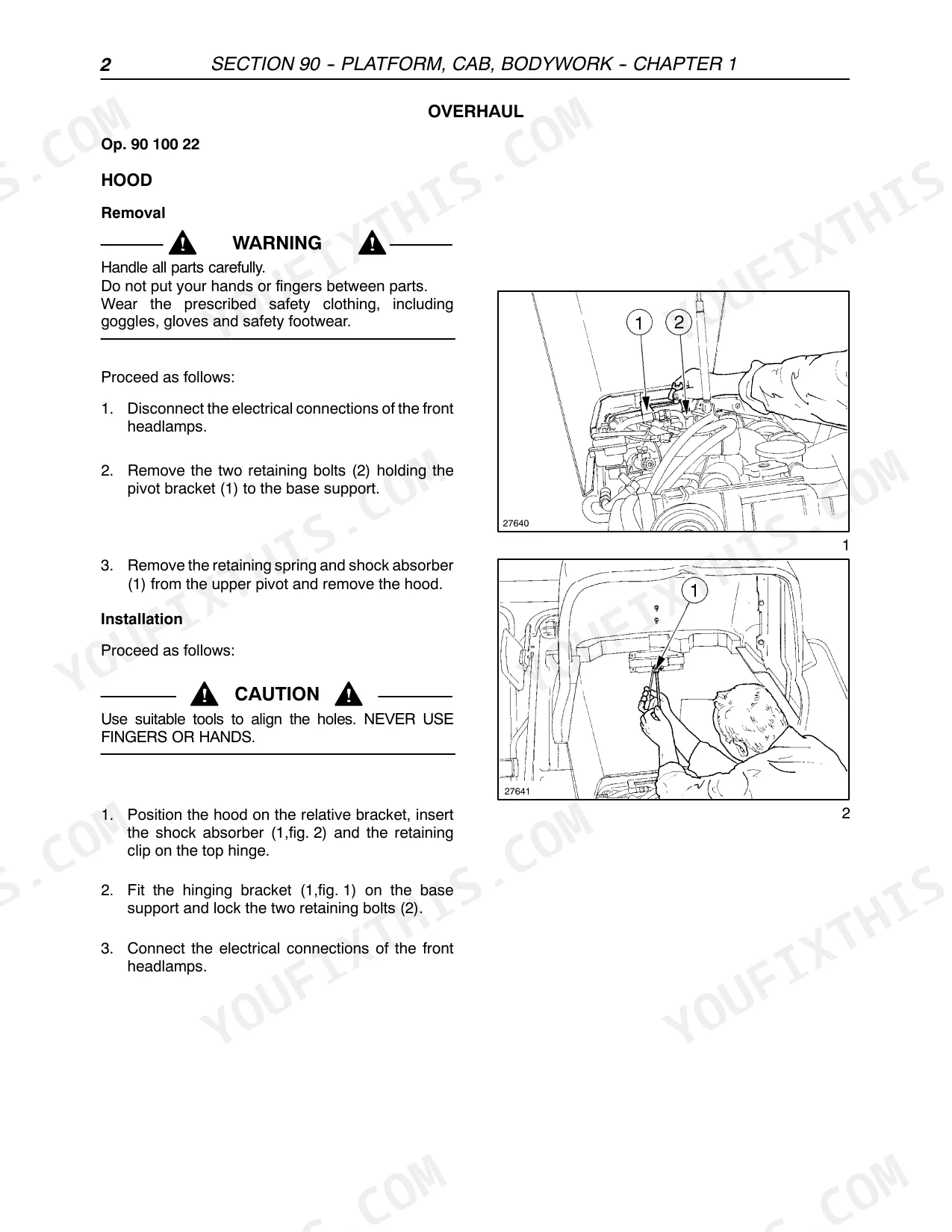

| Electrical System – Cab Models Wiring Diagrams | 771-1176 | Cab Tractors: Versions and Wiring Diagram Guide, Cab Version 1 Wiring Diagrams, Cab Version 2 Wiring Diagrams, Cab Version 3 Wiring Diagrams, Cab Version 4 Wiring Diagrams, Cab Version 5 Wiring Diagrams, Five Cab Versions, Fuses and Relays, How to Use the Wiring Diagrams, Symbols, 2WD Models, Electrohydraulic Differential Lock, Electrohydraulic Four-Wheel Drive and Differential Lock |
| Platform Tractors: Versions, Fuses and Ground Points | 1177-1206 | Roll Bar Versions, Maxi-Relay, Main Fusebox, Ground Points Layout, How to Use the Wiring Diagrams |
| Platform Version 1 Wiring Diagrams | 1207-1258 | 2WD Models, Rear Mechanical Lift: Wiring Diagrams: Component Locations and Circuit Diagrams |
| Platform Version 2 Wiring Diagrams | 1259-1312 | Electrohydraulic Four-Wheel Drive and Differential Lock, Rear Mechanical Lift: Wiring Diagrams: Component Locations and Circuit Diagrams |
| Platform Version 3 Wiring Diagrams | 1313-1366 | Permanent Four-Wheel Drive, Electrohydraulic Differential Lock, Rear Mechanical Lift: Wiring Diagrams: Component Locations and Circuit Diagrams |
| Connectors | 1367-1476 | Electrical Circuit Components, Versions for Tractors with and Without Cab, Connector Pin-Out List |
| Fault Codes and Calibrations | 1477-1668 | Fault Codes, HH Menu and Calibrations, Electronic Front Lift, EDC Rear Hydraulic Lift, Transmission, Control Panel (ADIC) and MFD Fault Codes, Menu Access, Clutch and Synchronizer Calibration, Lift Calibrations, Hardware Information, Stored Data Deletion, Electrical Circuit Components, Connectors |
| Cab | 1669-1694 | Hood, Cab and Bodywork Overhaul |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Engine type and max power | 44STA/MNG, 63 kW (86 Hp) at 2300 rpm (Farmall 85C) / 44STA/MND, 71 kW (97 Hp) at 2300 rpm (Farmall 95C) / F5AE9484A*A, 48 kW (65 Hp) at 2300 rpm (Farmall 65C) / F5AE9484B*A, 57 kW (78 HP) at 2300 rpm (Farmall 75C) | p. 82 |
| Maximum torque | 370 Nm (273 ft-lbs) at 1300 rpm (Farmall 85C) / 418 Nm (308 ft-lbs) at 1300 rpm (Farmall 95C) / 290 Nm (214 ft-lbs) at 1250 rpm (Farmall 65C) / 330 Nm (243 ft-lbs) at 1250 rpm (Farmall 75C) | p. 82 |
| Cooling system capacity | 14.0 L (3.7 gal) without cab; 16.0 L (4.2 gal) with cab | p. 77 |
| Fuel tank capacity | 88 L (23 gal) | p. 77 |
| Engine oil sump capacity | 8.9 L (2.35 gal) without filter; 9.5 L (2.51 gal) with filter, AKCELA No. 1 Engine Oil SAE 15W-40 | p. 77 |
| Rear transmission, gearbox, hydraulic lift, PTO and steering oil | 42 L (11.1 gal), AKCELA NEXPLORE (MAT 3525) | p. 77 |
| Front axle housing oil | 4.5 L (4.76 qt) | p. 77 |
| A/C refrigerant charge | 1.40 L (2.96 pt) R-134a | p. 77 |
| Rear lift pressure relief valve setting | 190 to 195 bar (2756 to 2828 psi) | p. 448 |
| Rear lift cylinder safety valve setting | 210 to 215 bar (3046 to 3118 psi) | p. 448 |
| Power steering pressure relief valve | 165 to 170 bar (2393 to 2466 psi) | p. 600 |
| Power steering cylinder safety valve | 230 to 240 bar (3336 to 3481 psi) | p. 600 |
| Front wheel to hub nut torque | 115 Nm (85 ft-lbs), M 18x1.5 | p. 645 |
| Farmall 85C, 95C | ||
| Bore x stroke, displacement | 104 mm (4.09 in.) x 132 mm (5.20 in.), 4485 cm3 (274 cu. in.) | p. 82 |
| Engine oil pressure, warm | 1.2 bar (17.40 psi) at slow idle; 3.9 bar (56.56 psi) at fast idle | p. 82 |
| Italia version trailer brake valve | ||
| Trailer brake release pressure | 11 to 12 bar (11.2 to 12.2 kg/cm2) at 1000 rpm, oil 40-50 °C | p. 509 |
| Power Shuttle / Dual Command (module SB) | ||
| Clutch and synchronizer calibration engine speed | 1200 to 1300 rpm, fast range, 1st gear, parking brake engaged | p. 1617 |
Case IH Farmall 65C, Farmall 75C, Farmall 85C, Farmall 95C Common Problems This Manual Covers
Fault 1023 or 1024 on the EDC rear lift
Code 1023 means the rear lift control panel is disconnected. Code 1024 means the arms need to be calibrated. Both are listed under the EDC rear lift fault codes in the Fault codes and calibrations chapter. That chapter also covers the HH menu and calibration procedures.
Manual Section: Fault codes and calibrations: EDC rear lift fault codes, HH menu and calibrations p. 1478Transmission fault 2024, clutches A and B not calibrated
Run the clutch and synchronizer calibration from module SB, H1 menu. Clear any other displayed error first. Use the fast range, 1st gear, parking brake on and 1200 to 1300 rpm. Release the clutch pedal with the shuttle in forward. Press the switch to position C and wait for the display to show End.
Manual Section: Fault codes and calibrations: transmission fault codes, clutch and synchronizer calibration p. 1508Electronic front lift flashes only one fault code
The front lift indicator light flashes the fault code, and the control unit shows only one code at a time. The most serious fault comes first. To find out whether other codes are stored, eliminate that fault so the control unit can move on to the next code.
Manual Section: Fault codes and calibrations: electronic front lift p. 598Zero trailer brake release pressure with warning light on
Test at 1000 rpm with oil at 40 to 50 °C; release pressure should be 11 to 12 bar. At 0 bar, make sure the parking brake is off and check the release pressure control valve adjustment. Replace a faulty trailer brake circuit safety switch. Overhaul or replace a faulty hydraulic pump.
Manual Section: Hydraulic systems: trailer brake valve (Italia version) p. 509Frequently Asked Questions
How do I calibrate the Power Shuttle clutches?
Fault 2024 means clutches A and B are not calibrated. The procedure runs from module SB, H1 menu. If the display shows an error code, remove that cause first. Select the fast range, engage 1st gear and apply the parking brake. Bring the engine to 1200 to 1300 rpm. Release the clutch pedal with the shuttle lever in forward. Press the switch into position C. The clutches and synchronizer calibrate automatically, and the display shows End when it's done. p. 1617
What does fault code 1024 mean on a Farmall with electronic lift?
On the EDC rear lift, 1024 means the arms need to be calibrated. The code next to it, 1023, means the rear lift control panel is disconnected. The fault codes and calibrations chapter lists the EDC rear lift codes and covers the HH menu and calibrations. p. 1478
What is the lift relief valve setting on the Case IH Farmall 65C, 75C, 85C, 95C tractor?
The rear lift pressure relief valve is set to 190 to 195 bar (2756 to 2828 psi). The rear lift cylinder safety valve sits higher, at 210 to 215 bar (3046 to 3118 psi). On the steering side, the relief valve is 165 to 170 bar (2393 to 2466 psi) and the cylinder safety valve is 230 to 240 bar (3336 to 3481 psi). p. 448
How much oil goes in the rear transmission?
The rear transmission, gearbox, hydraulic lift, PTO and hydraulic steering share one fill of 42 L (11.1 gal) AKCELA NEXPLORE (MAT 3525). The engine sump takes 8.9 L (2.35 gal) without the filter or 9.5 L (2.51 gal) with it, using AKCELA No. 1 SAE 15W-40. The front axle housing holds 4.5 L (4.76 qt). p. 77
What engine is in the Farmall 85C and 95C?
The 85C uses a 44STA/MNG rated at 63 kW (86 Hp). The 95C uses a 44STA/MND rated at 71 kW (97 Hp). Both make maximum power at 2300 rpm from 4485 cm3 (274 cu. in.), with a 104 mm bore and 132 mm stroke. Maximum torque is 370 Nm (273 ft-lbs) on the 85C and 418 Nm (308 ft-lbs) on the 95C, both at 1300 rpm. All four models are 4-cylinder engines with a BOSCH pump. p. 82
