Part of the Case IH Repair Manuals.
This is Case IH Service Manual part number 51526052, 1st edition November 2018. It covers the Farmall 80N, 80V, 90N, 90V, 100N, 100V, 110N and 110V Tier 4A (interim) tractors from PIN HLRQ010N*JLU***** and above, North America.
It covers the clutch, the mechanical and Power Shuttle transmissions, creeper, reverser and Hi-Lo, 4WD, both axles, PTO, brakes, hydraulic schemas, remote valves, three-point hitch, steering and cab climate control. It also has the electrical schematic sheets and fault codes. For the engine, it covers removal and installation only.
What's Inside This Case IH Farmall 80N to 110N and 80V to 110V Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 1-29 | Cover, Contents, Note to the Owner, Safety Rules, Ecology, Consumables and Capacities |
| Engine and Crankcase | 30-89 | Engine Removal and Installation, From the Transmission and Complete, Level Make Up |
| Engine Fuel Tanks and Fuel System | 90-203 | Fuel Tank Emptying, Filling and Removal, Fuel Cooler Lines, Auxiliary Fuel Tank, Fuel Filters |
| Engine Cooling System | 204-283 | Radiator Drain and Fluid Change, Conventional and OAT Coolant, Radiator Removal, Expansion Tank |

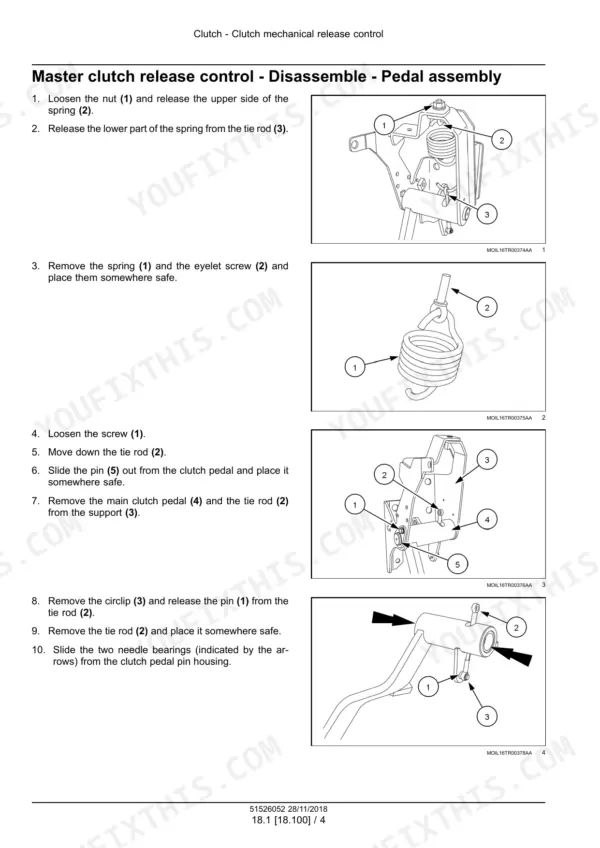

| Clutch Release Control and Clutch | 284-341 | Mechanical Release Pedal and Travel Adjustment, PTO Clutch Release Link, Hydraulic Release Control, Clutch Specifications, Troubleshooting |
| Mechanical Transmission | 342-381 | Constant-Mesh Gearbox with Synchronisers on All Gears, Gearbox Overhaul Bracket, Sectional Views, Troubleshooting |
| Power Shuttle Transmission | 382-437 | General Specification, Sectional View, Static Description, External Controls |
| Transmission Creeper, Reverser and Hi-Lo | 438-513 | Creeper Specification and Troubleshooting, Reverser, Hi-Lo Unit |
| Four-Wheel Drive (4WD) System | 514-545 | Electro-Hydraulic Control, 4WD Gearbox Sectional View, Disassembly and Assembly, Drive Shaft |
| Powered Front Axle | 546-637 | Front Axle Specifications and Torques, Special Tools, Sectional Views, Final Drives, Non-Powered Front Axle |
| Powered Rear Axle | 638-685 | Rear Axle Torques and Special Tools, Housing Reseal, Differential, Planetary Final Drives |
| Power Take-Off (PTO) Rear Control | 686-744 | PTO Specifications, Torques, Sectional View, Tie Rod Adjustment, Troubleshooting |

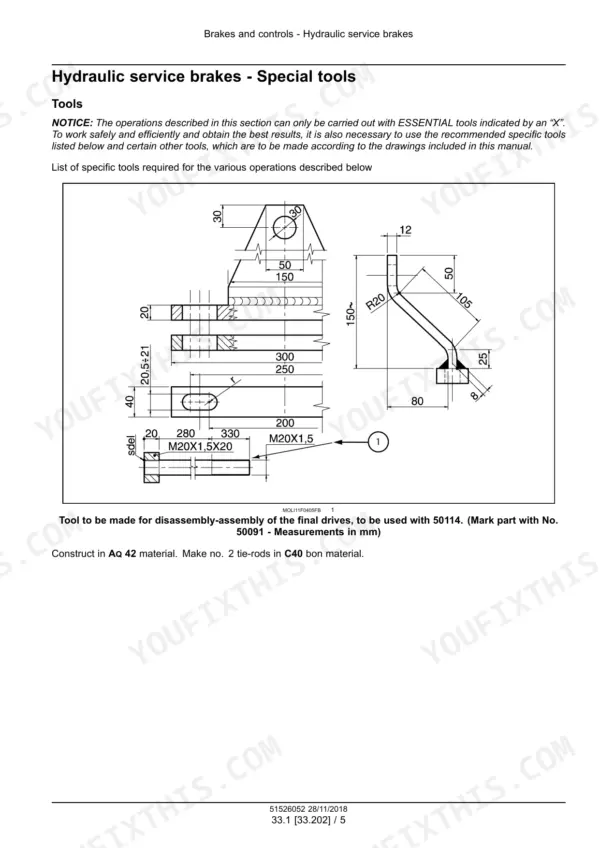

| Brakes and Hydraulic Service Brakes | 745-854 | Service Brake Specifications, Sectional View, Brake Pedal Adjustment, Troubleshooting, Parking Brake, Trailer Brake |
| Hydraulic Systems | 855-888 | Hydraulic Schemas for Mechanical and Electro-Hydraulic Transmission Versions, Pumps |
| Hydraulic Remote Control Valves | 889-1028 | Remote Control Valve Torques, Diverter and Open Centre Hydraulic Schemas, Electro-Hydraulic and Mid-Mount Remote Valves |
| Rear Three-Point Hitch | 1029-1125 | Rear Hitch Specifications, Torques, Sectional View, Lift Control, Troubleshooting |
| Frames, Ballasts, Steering and Wheels | 1126-1207 | Front Ballast, Power Steering Wheel, Hydraulic Control Components and Troubleshooting, Front and Rear Wheels |

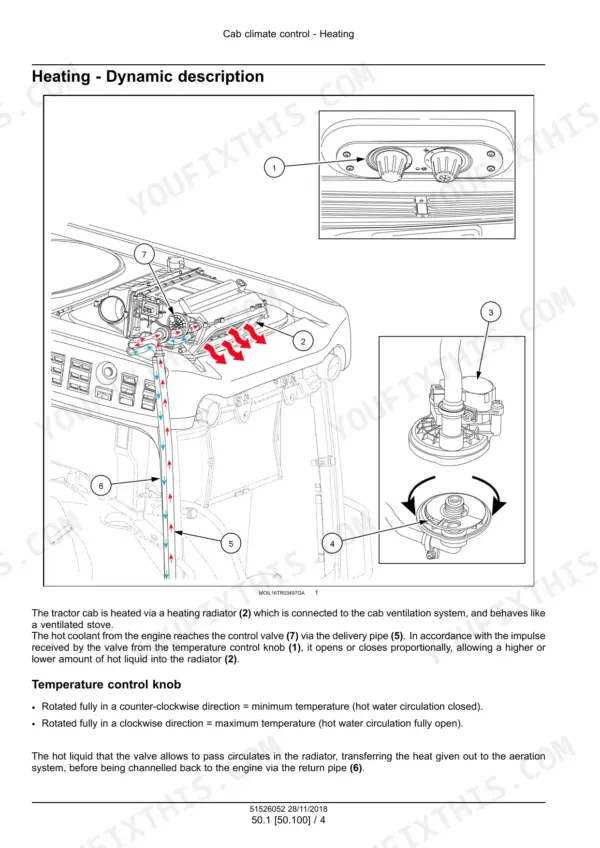

| Cab Climate Control Heating | 1208-1367 | Heating and Troubleshooting, Ventilation Air Filter, Air Conditioning Specifications and Service |
| Electrical Harnesses and Connectors | 1368-2171 | Component Localization for Platform and Cab Models, Electrical Schematic Sheets, Component Diagrams and Connectors |

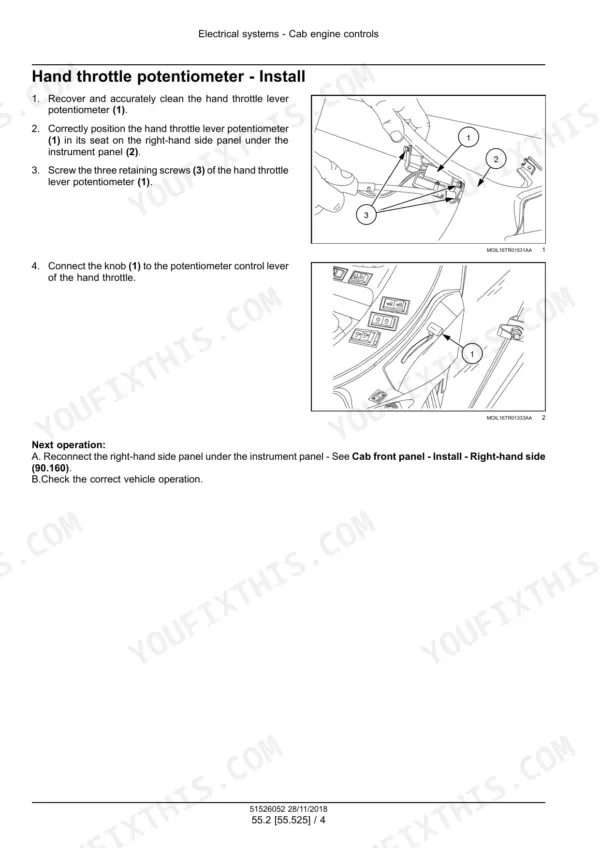

| Electrical Cab Engine Controls | 2172-2297 | Cab Engine Controls, Engine Control System ECU, Engine Starter, Alternator, Battery |

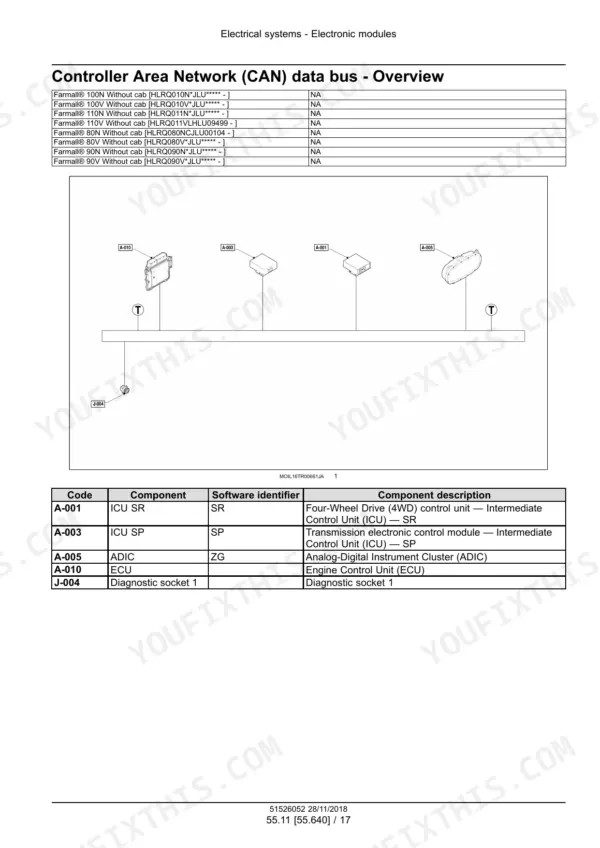

| Electrical Electronic Modules | 2298-2812 | Electronic Modules Overview, Transmission Controls, 4WD Control, PTO Control, Lift Control |

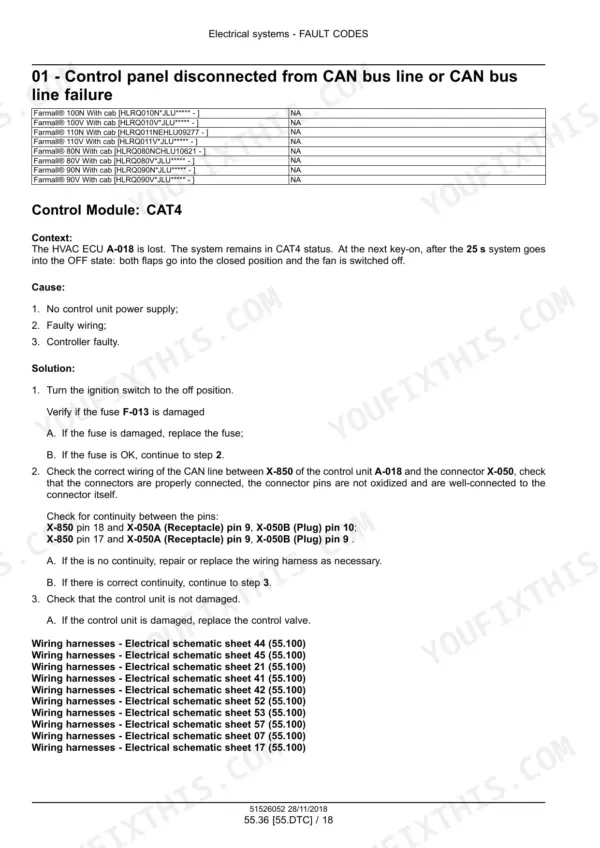

| Electrical Fault Codes | 2813-3629 | Fault Code Pages with Control Module, Context, Possible Failure Modes and Solution |

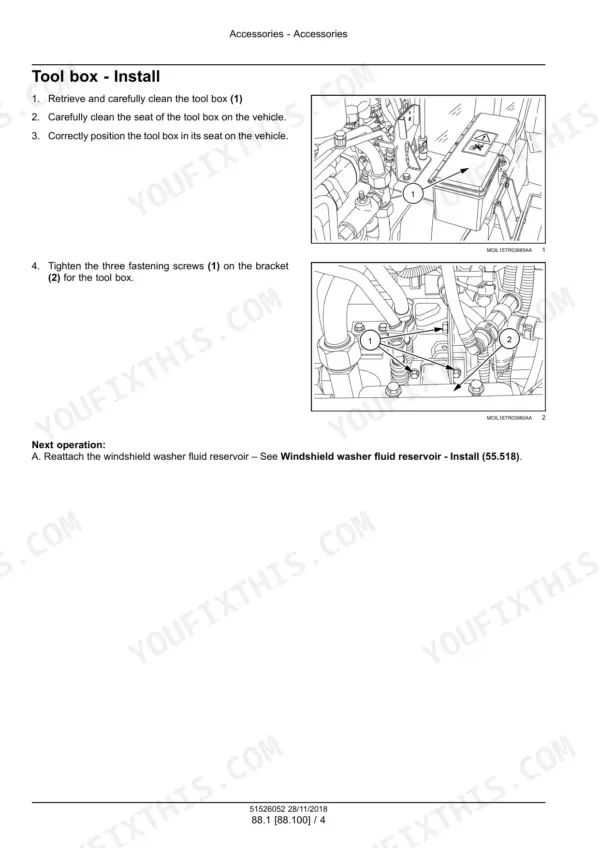

| Accessories, Platform and Cab | 3630-3843 | Tool Box, Cab and Platform Torques, Cab Interior, Doors, Hood and Panels |
| Special Tool Index | 3844-3853 | Genuine and Reference Special Tool Numbers Listed Against Each Job, From the Engine Accessory Belt Check Onward |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Cooling system capacity, models with cab | 16.00 L (4.23 US gal) | p. 21 |
| Cooling system capacity, models without cab | 14.00 L (3.70 US gal) | p. 21 |
| Engine oil sump, MIN-MAX | 6.4 - 8.1 L (1.7 - 2.1 US gal) | p. 21 |
| Front axle housing oil | 4.00 L (1.06 US gal) | p. 21 |
| Front axle final drives oil, each | 0.60 L (0.16 US gal) | p. 21 |
| Rear axle, transmission, hydraulic lift, PTO and steering oil | 44.0 L (11.6 US gal) | p. 21 |
| Fuel, main + auxiliary tank, N models | 72.0 L (19.0 US gal) | p. 21 |
| A/C refrigerant R134A quantity | 1075.0 g (37.9 oz) | p. 1247 |
| A/C system delivery side pressure | 16 - 24 bar (232 - 348 psi) | p. 1247 |
| Main clutch driven plate thickness, LUK 11"/11" | 9.6 - 10.4 mm (0.37795 - 0.4094 in) | p. 312 |
| Mechanical transmission | 4 ranges, 16 speeds | p. 342 |
| Power Shuttle and services working pressure | 15.7 bar (227.65 psi) | p. 382 |
| Power Shuttle driven plate thickness | 2.00 - 2.08 mm (0.0787 - 0.0818 in) | p. 382 |
| Front planetary final reduction ratio | 12: (12+60) = 1: 6 | p. 547 |
| Engine speed at 540 RPM PTO | 2196 RPM | p. 686 |
| Engine speed at 1000 RPM PTO (option) | 2260 RPM | p. 686 |
| Service brake working pressure | 17.6 bar (255 psi) | p. 745 |
| Rear lift pressure relief valve setting | 190 - 195 bar (2755 - 2828 psi) | p. 1033 |
| Rear three-point hitch maximum lift at ball ends | 2600 kg (5732 lb) | p. 1040 |
| Alternator maximum output | 120 A | p. 2226 |
Case IH Farmall 80N to 110N and 80V to 110V Common Problems This Manual Covers
Clutch slips
If the disks are worn, check them against the clutch data, replace any part worn up to or over the limit, then adjust the levers and clutch control linkage. Replace a distorted or damaged Belleville spring disk. If oil or grease is on the friction lining, replace the discs, then find and stop the source of the lubricant. On the LUK 11"/11" clutch, the driven plate should measure 9.6 to 10.4 mm (0.37795 to 0.4094 in).
Manual Section: Clutch troubleshooting p. 335The lift does not raise
Go through the Rear Three-Point Hitch troubleshooting list in order. A clogged oil filter is the cheapest fix, so change the filter first. Next, check whether the control valve is locked in the drain position and release it. If both of those are fine, the hydraulic pump is faulty and needs an overhaul or replacement.
Manual Section: Rear three-point hitch troubleshooting p. 1082Steering wheel excessively stiff
The steering hydraulic control troubleshooting gives three causes. A faulty hydraulic pump needs repair. A pressure relief valve that is set wrong needs to be calibrated correctly. If foreign bodies have jammed the relief valve or are holding it open, clear them out and clean the filter.
Manual Section: Steering: hydraulic control components troubleshooting p. 1183Brake pedal stroke too long
If there is air in the brake circuit, bleed it. Replace the brake control pumps if they are worn. If the control pipes leak, find and fix the cause of the leak. Service brake working pressure is 17.6 bar (255 psi), and brake pedal adjustment is covered in the same section.
Manual Section: Hydraulic service brakes troubleshooting p. 800Frequently Asked Questions
Which Farmall N and V tractors does this manual cover?
It covers the Farmall 80N, 80V, 90N, 90V, 100N, 100V, 110N and 110V Tier 4A (interim) tractors, PIN HLRQ010N*JLU***** and above. The book is Case IH part number 51526052, 1st edition November 2018. p. 1
How much oil does the Farmall 80N to 110V rear axle, transmission and hydraulic system take?
The rear axle, transmission, hydraulic lift, PTO and hydrostatic steering all share one 44.0 L (11.6 US gal) supply. The front axle housing takes 4.00 L (1.06 US gal), and each front final drive takes 0.60 L (0.16 US gal). The engine sump holds 6.4 to 8.1 L (1.7 to 2.1 US gal) between MIN and MAX. p. 21
What does the Farmall 80N to 110V rear three-point hitch lift?
The three-point linkage is Category 1st and 2nd, and maximum lift at the ball ends is 2600 kg (5732 lb). The rear lift pressure relief valve is set at 190 to 195 bar (2755 to 2828 psi). p. 1040
What engine speed gives 540 and 1000 RPM PTO speed on the Farmall 80N to 110V?
The PTO shaft turns 540 RPM at 2196 engine RPM. With the optional 1000 RPM PTO, you get 1000 RPM at 2260 engine RPM. p. 686
What is the Power Shuttle working pressure on the Farmall 80N to 110V?
The Power Shuttle and services working pressure is 15.7 bar (227.65 psi). Driven plates should measure 2.00 to 2.08 mm (0.0787 to 0.0818 in). p. 382
