Part of the Case IH Repair Manuals.
This is the Case IH service manual for the Farmall 90C, 100C, 110C and 120C Efficient Power Tier 4B (final), part number 47878246, 1st edition June 2015.
It covers tractors with and without cab, with Hi-Lo transmission or with mechanical or Power Shuttle transmission. Clutch, transmissions, axles, brakes, pumps and remote valves, front loader circuits, SCR exhaust treatment, schematic sheets and fault code cards are all in it.
What's Inside This Case IH Farmall 90C, Farmall 100C, Farmall 110C, Farmall 120C Manual

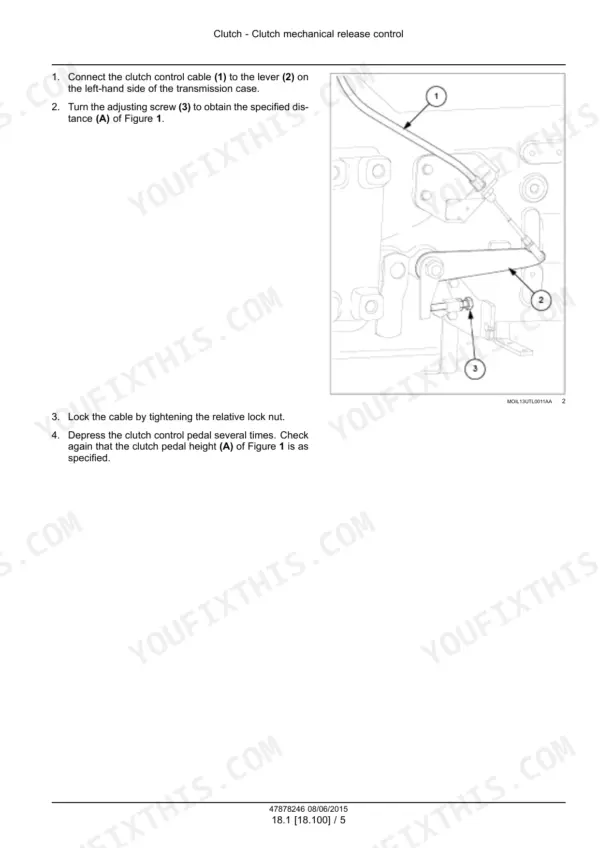

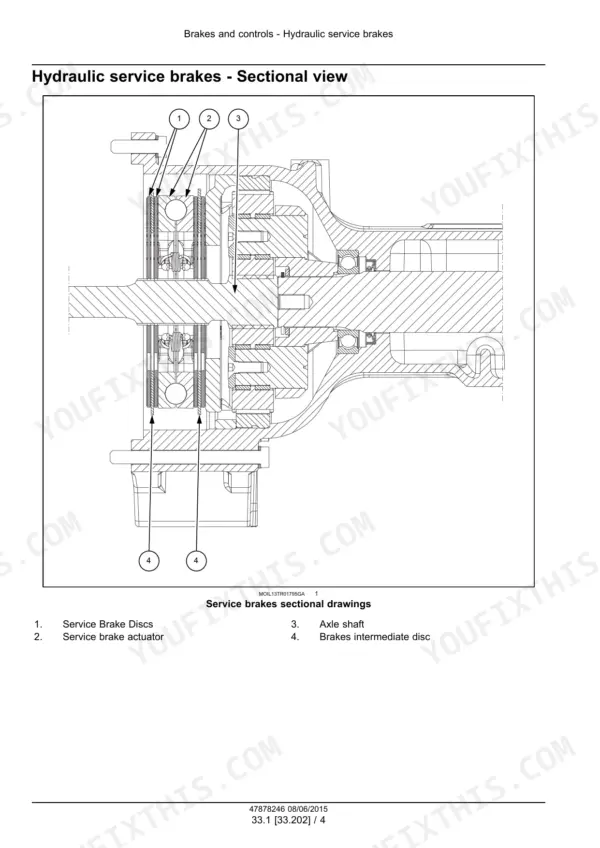

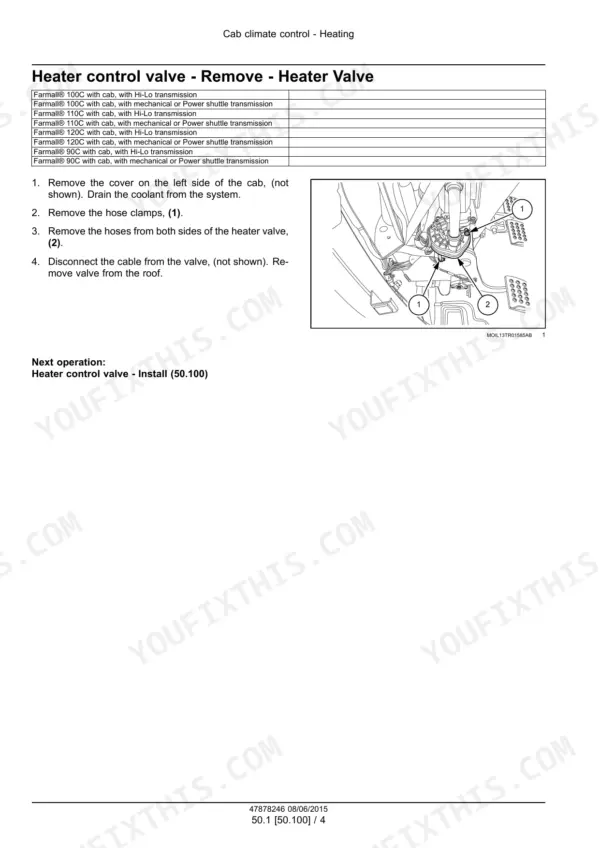

| System | Pages | Key Topics |
|---|---|---|
| Introduction | 1-23 | Cover, Variant List, Product and Engine Link Table, Contents, Advice, Safety Rules, Basic Instructions |
| Engine and Crankcase | 24-96 | Engine Removal and Installation, Fuel Tanks and Supports, Air Cleaner |
| Engine SCR Exhaust Treatment | 97-137 | SCR Functional Diagram, Coolant Control Valve, DEF System Components |
| Engine Cooling System | 138-181 | Fan and Drive, Aftercooler |
| Clutch Release Control and Clutch | 182-227 | Mechanical and Hydraulic Clutch Release Control, Clutch Torques and Specifications, Clutch Troubleshooting |
| Mechanical Transmission and Controls | 228-297 | Mechanical Transmission External Controls, Power Shuttle Troubleshooting, Master Clutch Housing |
| Power Shuttle Transmission and Controls | 298-417 | Power Shuttle External Controls and Hydraulic Schema, Internal Components, Creeper, Reverser, Hi-Lo Unit |
| Four-Wheel Drive (4WD) System | 418-489 | Mechanical 4WD Control, Electro-Hydraulic Control, Drive Shaft |
| Front Axle System | 490-622 | Powered Front Axle Torques and Specifications, Axle Housing, Front Bevel Gear Set, Final Drives, Non-Powered Front Axle |
| Rear Axle System | 623-707 | Rear Bevel Gear Set and Differential Specifications, Torques, Troubleshooting, Final Drives |
| Power Take-Off (PTO) | 708-871 | Rear Mechanical and Electro-Hydraulic PTO Control, Troubleshooting, One-Speed and Two-Speed Rear PTO |
| Brakes and Controls | 872-909 | Hydraulic Service Brakes Torques and Specifications, Parking Brake, Trailer Brake |
| Hydraulic Systems Pumps and Valves | 910-1043 | Lift and Services Pump Specifications, Remote Control Valves and Hydraulic Schemas, Front Loader Circuits |
| Hitches, Drawbars and Implement Couplings | 1044-1165 | Drawbars and Towing Hitches, Lift Capacity, Cylinder and Valve Calibration, Rear Three-Point Hitch, Front Hitch |
| Steering Control | 1166-1235 | Tie Rods, Hydraulic Control Components, Troubleshooting, Steering Pump |
| Wheels | 1236-1251 | Front and Rear Wheel Torques |
| Cab Climate Control | 1252-1364 | Heating, Ventilation, Air Conditioning Specifications and Compressor |

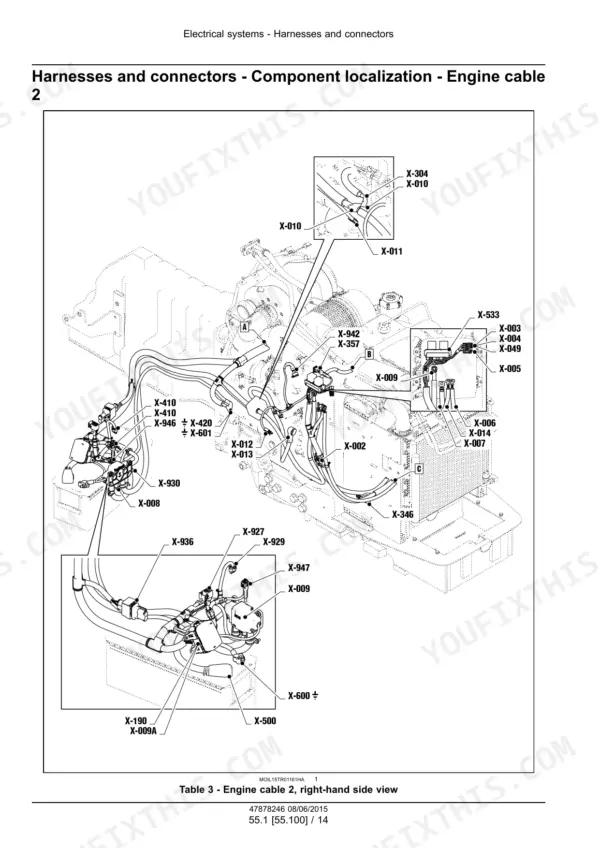

| Electrical Harnesses and Connectors | 1365-2357 | Component Localization and Harness Views, Electrical Schematic Sheets for Each Configuration, Connectors |

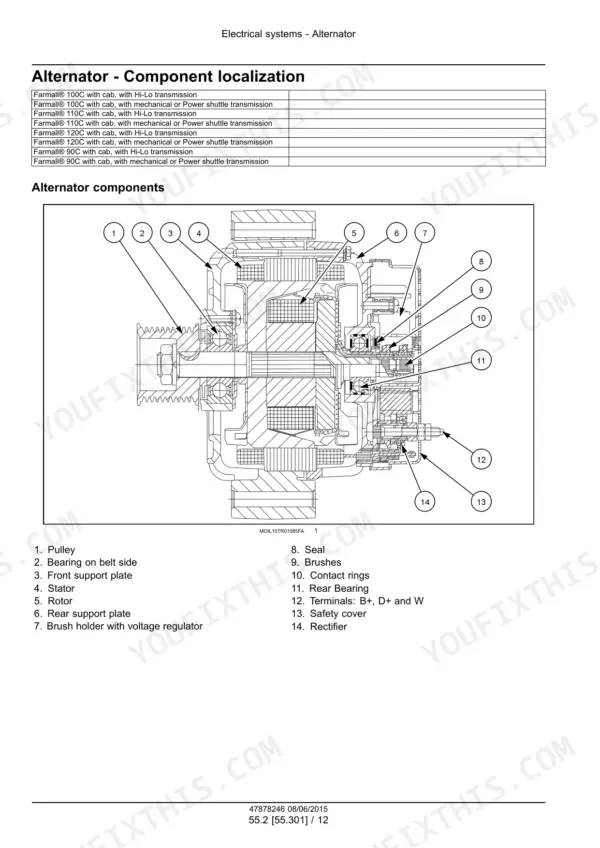

| Electrical Alternator, Battery and Starting | 2358-2448 | Alternator Specifications and Torques, Battery, Engine Intake and Exhaust System, Starting |

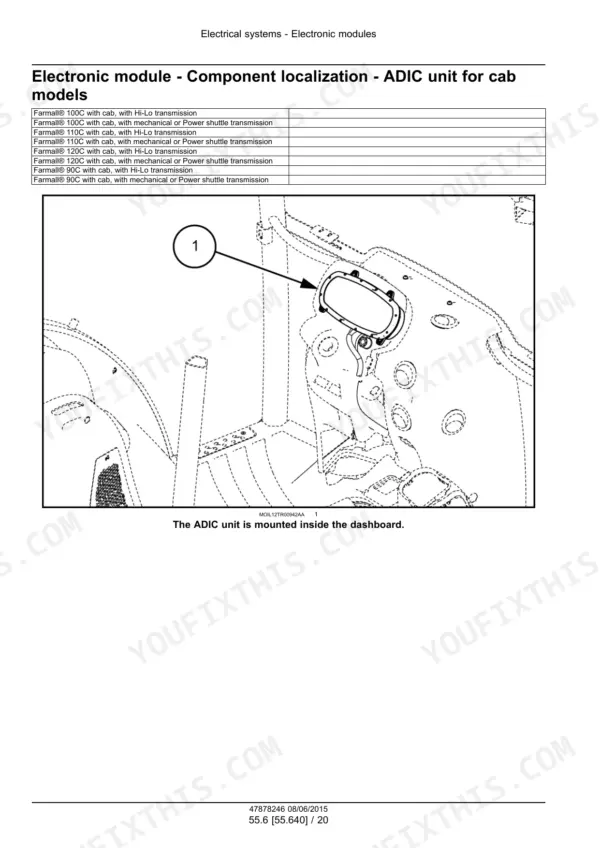

| Electrical Electronic Modules | 2449-2601 | Electronic Modules, Wiper and Washer System, External Lighting, Warning Indicators and Instruments |

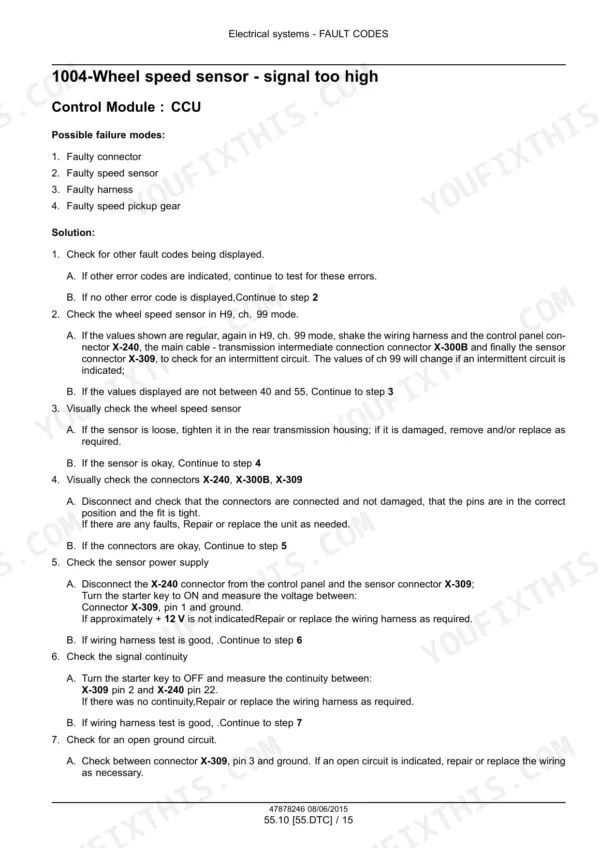

| Electrical Fault Codes | 2602-3461 | DTC Cards for Engine, Central and Instrument Controllers with Cause, Possible Failure Modes and Solution |
| Front Loader and Bucket | 3462-3515 | Loader Arm, Bucket, Front Loader Generic Sub-Group |
| Platform, Cab and Bodywork: Cab | 3516-3649 | Cab, Cab Interior, Interior Trim, Doors and Hatches |
| Platform, Cab and Bodywork: Operator Platform | 3650-3709 | Operator Platform Less Cab, Engine Hood and Panels, Special Tool Index |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Main clutch driven plate thickness, 73/98 and 79/106 kW/HP models | 9.6 - 10.4 mm | p. 205 |
| Clutch release lever screw torque, M16 X 1.5 | 136 - 165 N·m (100 - 122 lb ft) | p. 204 |
| Power Shuttle working pressure | 17.50 - 18.50 Kg/cm² (248.91 - 263.13 psi) | p. 245 |
| Power Shuttle clutch engagement relief valve | 18 bar (261 psi) | p. 302 |
| Power Shuttle lubrication relief valve | 3.5 bar (50 psi) | p. 302 |
| Hi-Lo clutch driving plate thickness | 1.60 - 1.70 mm (0.06 - 0.07 in) | p. 360 |
| Powered front axle pinion-crown ratio, 30 km/h | 8/30 = 1:3.75 | p. 493 |
| Rear axle bevel drive ratio, 40 km/h model | 9/40 = 1:4.4 | p. 623 |
| Engine speed at 540 RPM PTO, mechanical one-speed PTO | 1957 RPM | p. 750 |
| Engine speed at 1000 RPM PTO, two-speed 540/1000 PTO | 2125 RPM | p. 802 |
| PTO clutch working pressure | 17.5 - 18.5 Kg/cm² (248.9 - 263.1 psi) | p. 751 |
| Service brake operating pressure | 17.60 bar (255.20 psi) | p. 872 |
| Lift hydraulic pump | 45 l/min (11.89 US gpm) | p. 910 |
| Remote control valve pressure relief setting | 190 - 195 bar (2755 - 2828 psi) | p. 917 |
| Rear hitch lift capacity at ball ends, with supplementary cylinder | 3018 kg (6654 lb) | p. 1044 |
| Rear hitch cylinder safety valve calibration | 220 - 225 bar | p. 1044 |
| Steering relief valve calibration | 165 - 170 bar (2392.5 - 2465 psi) | p. 1176 |
| A/C refrigerant HFC-134a quantity | 650.0 g (22.9 oz) | p. 1267 |
| A/C compressor (Sanden SD 7H15) displacement | 155 cm³ (9.46 in³) | p. 1270 |
| Alternator Iskra AAK4860 maximum output | 120 A | p. 2358 |
Case IH Farmall 90C, Farmall 100C, Farmall 110C, Farmall 120C Common Problems This Manual Covers
The clutch slips
Go to the clutch troubleshooting table in Clutch Release Control and Clutch. If the disks are worn, replace the worn parts and then adjust the levers on the pressure plates and the clutch controls. If the Belleville spring is stretched or damaged, replace it. If there is oil or grease on the friction surfaces, fit new disks. Measure the driven plate thickness against the clutch specifications table before you reassemble.
Manual Section: Clutch troubleshooting p. 221Steering wheel excessively stiff
The Steering Control troubleshooting lists three causes. If the hydraulic pump is faulty, repair it. If a non-return valve is held open by foreign bodies or its ball is missing, clear out the debris, clean the filter and fit a new ball. If the pressure relief valve is set wrong, calibrate it to 165 - 170 bar (2392.5 - 2465 psi).
Manual Section: Steering: power steering control valve troubleshooting p. 1209The lift operates in jerks
Check the oil level in the tank first and top it up if it is low. If the pump inlet filter is clogged, clean or replace it. Air in the pump suction pipe also makes the lift jerk, so check the suction pipe, its fittings and the seal. The lift pump spec of 45 l/min (11.89 US gpm) is in Hydraulic Systems Pumps and Valves.
Manual Section: Rear three-point hitch troubleshooting p. 1114Tractor does not move (Power Shuttle)
Put a gauge on the system and check system pressure first, against the 17.50 - 18.50 Kg/cm² (248.91 - 263.13 psi) working spec. If system pressure is good, check forward clutch pressure, then reverse clutch pressure. If either one is low, repair that clutch as needed. These steps are in the Power Shuttle troubleshooting table in Mechanical Transmission and Controls.
Manual Section: Power shuttle transmission troubleshooting p. 236Frequently Asked Questions
Does this manual cover my Farmall 90C, 100C, 110C or 120C Efficient Power?
Yes, if it is a Farmall 90C, 100C, 110C or 120C Efficient Power Tier 4B (final). It covers tractors with and without cab, with Hi-Lo transmission or with mechanical or Power Shuttle transmission. The part number is 47878246, 1st edition June 2015. The book prints no serial number range, so match it by model and transmission. p. 1
How much does the rear hitch on the Farmall 90C to 120C lift?
At the ball ends it lifts 3018 kg (6654 lb) with the supplementary cylinder fitted. It is a Category I and II hitch. The cylinder safety valve is calibrated at 220 - 225 bar. p. 1044
What engine speed gives 540 and 1000 RPM PTO speed on the Farmall 90C to 120C?
With the mechanical one-speed PTO, the PTO turns 540 RPM at 1957 engine RPM. With the two-speed 540/1000 PTO, it turns 1000 RPM at 2125 engine RPM. p. 750
What is the Power Shuttle working pressure on the Farmall 90C to 120C?
Working pressure is 17.50 - 18.50 Kg/cm² (248.91 - 263.13 psi). The clutch engagement relief valve is set at 18 bar (261 psi). The lubrication relief valve is set at 3.5 bar (50 psi). p. 245
Does the manual include wiring diagrams and fault codes?
Yes. It has electrical schematic sheets for each configuration, for example sheet 03 for power distribution and the main battery. The fault codes section has a card for each code with the cause, possible failure modes and solution. p. 1395
