This Case IH factory repair manual covers the JX1080U, JX1090U and JX1100U utility tractors, with all seven books collated into one file. It starts with the 4.5 L four-cylinder diesel, naturally aspirated on the JX1080U and turbocharged on the other two. It then covers every transmission option: 12 x 12 synchronized shuttle, 20 x 12 and 24 x 12 two-speed powershift, and 24 x 24 power shuttle.
It also covers the MFD front axle, electro-hydraulic PTO, mechanical and electronic draft control on the three-point hitch, remote hydraulics, hydrostatic steering and cab air conditioning. You get electrical circuit diagrams and step-by-step fault code procedures too.
Nothing eats a dry week like a tractor sitting in the shed with a problem you can't pin down. Keep this file on the shop laptop or your phone so the specs go wherever the tractor quits, and you get back in the field before the weather turns.
What's Inside This Case IH JX1080U, JX1090U, JX1100U Repair Manual

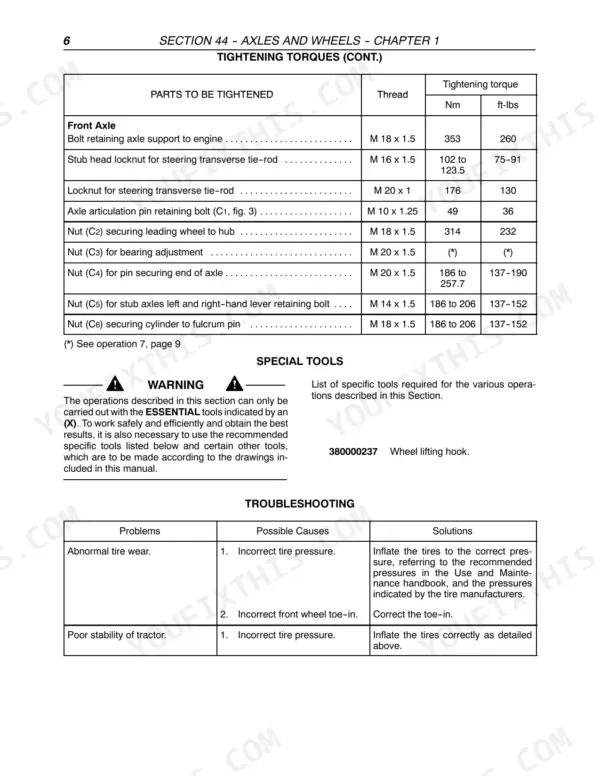

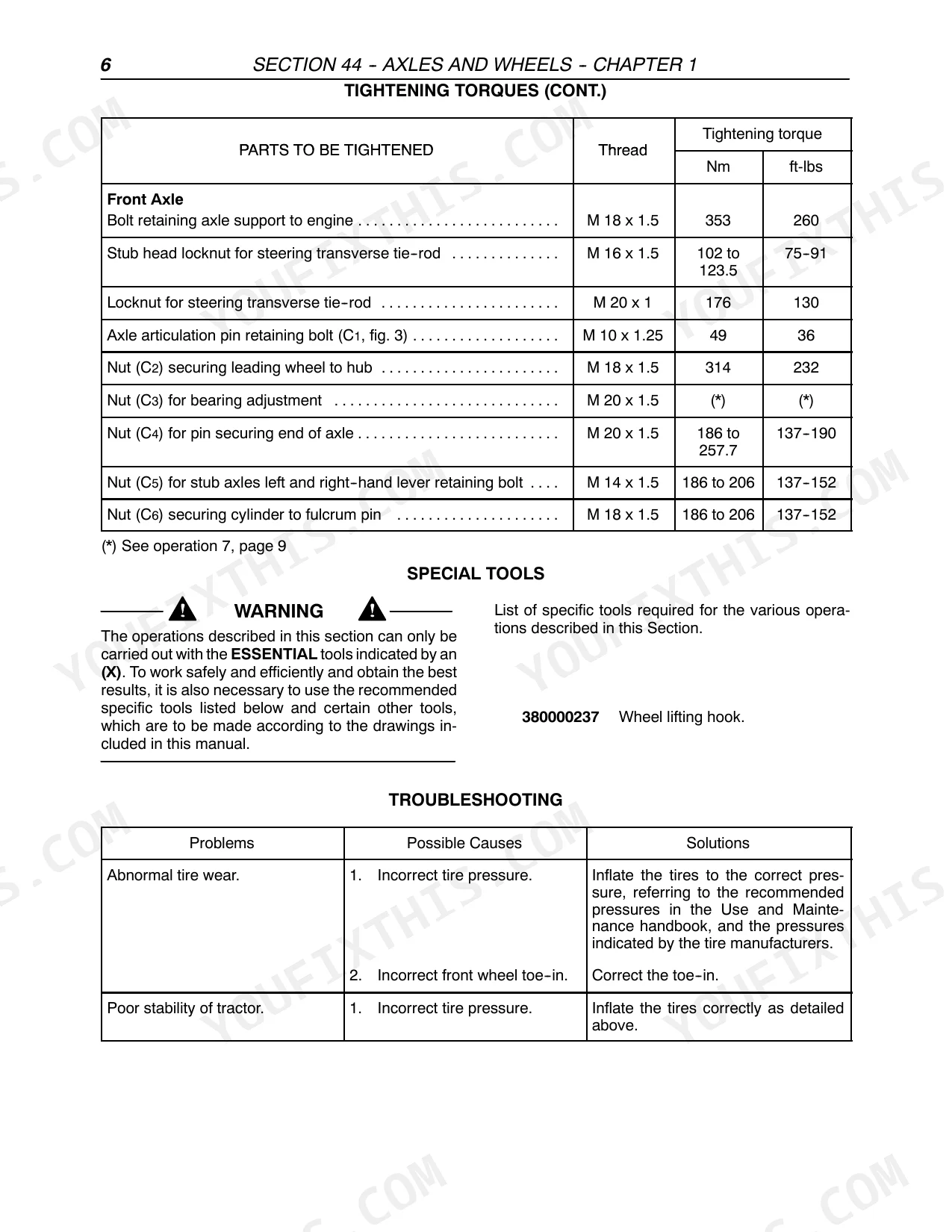

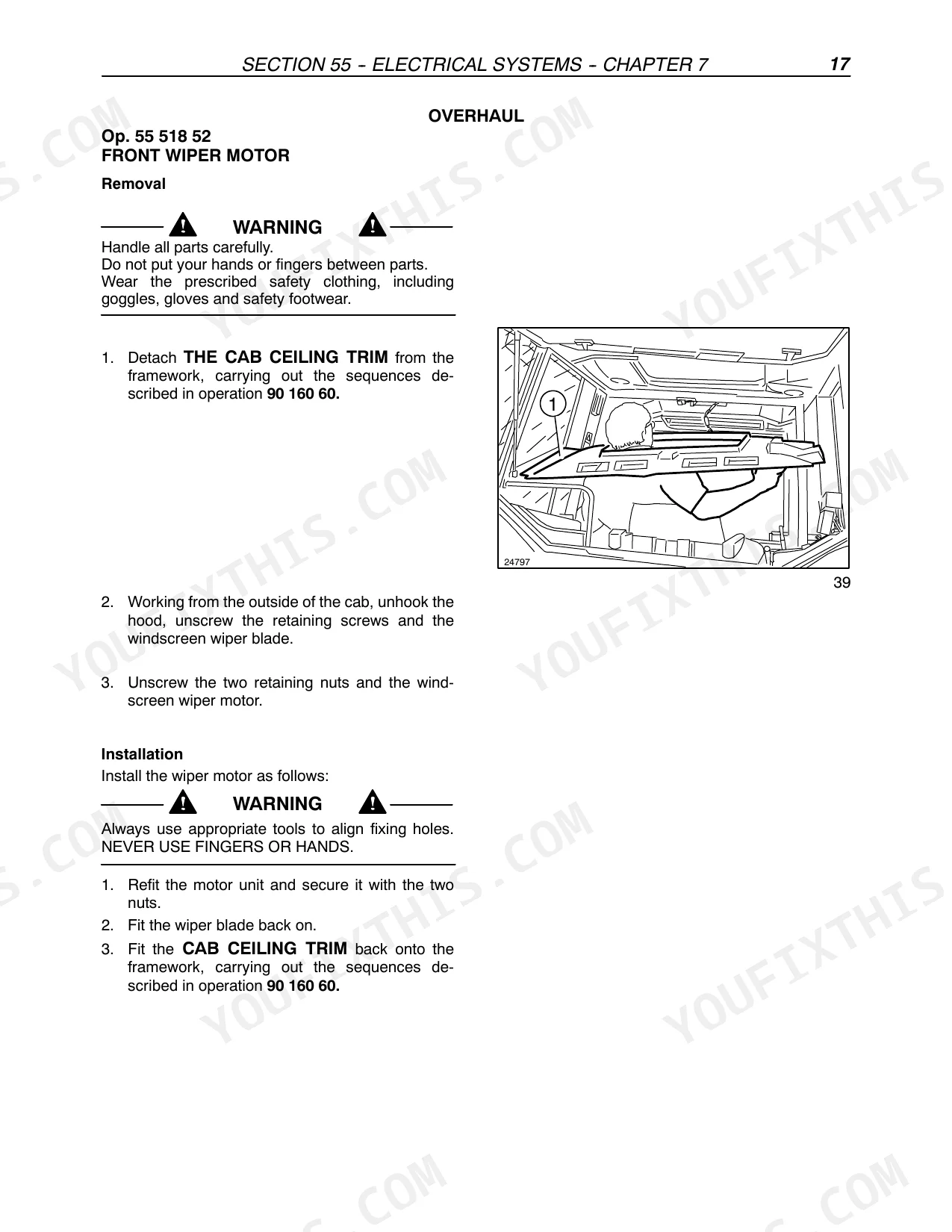

| System | Pages | Key Topics |
|---|---|---|
| Complete Contents | 1-36 | Section List and Collated Chapter Contents of All Seven Books |
| General | 37-62 | Safety, Health and Ecology, Minimum Hardware Torques, Filling and Topping-Up Capacities |
| Engine | 63-194 | Engine Specifications, Torques, Special Tools, Troubleshooting, Overhaul, Injection Pump, Coolant Pump, Radiator |
| Clutch | 195-206 | Clutch Specifications, Troubleshooting, Removal and Installation, Release Levers |
| Transmissions | 207-316 | 12 X 12 Synchronized Mechanical Shuttle and Reverser, 20 X 12 Powershift with Creeper, 24 X 24 Power Shuttle, 24 X 12 Powershift, Hydraulic Clutch Diagrams |
| MFD Transfer Box and Front Axle | 317-382 | Transfer Box Control Valve and Overhaul, Front Mechanical Axle, Differential Lock |
| Rear Axle Mechanical Transmission | 383-446 | Bevel Drive, Differential, Final Drives, Rear Differential Lock |
| Electro-Hydraulic Power Take-Off | 447-476 | PTO Specifications, PTO Clutch Overhaul |
| Brakes | 477-496 | Oil-Bath Service Brakes, Hydraulic Diagram of Brakes, Troubleshooting, Handbrake |
| Hydraulic System, Hitch and Auxiliary Valves | 497-592 | Hydraulic Pump Specifications, System Configuration, Mechanical Draft Control Hitch, Mid-Mount and Rear Auxiliary Control Valves |
| Low Pressure Hydraulics and Electronic Draft Control | 593-694 | Steering and Lubrication Circuit Schematics, Low-Pressure Overhaul and Adjustments, EDC Functional Diagrams, ECU, Pressure and Flow Testing |
| Hydrostatic Power Steering | 695-730 | Steering Specifications, Troubleshooting, Steering Motor and Cylinder Overhaul |
| Axles and Wheels, 2WD | 731-746 | 2WD Front Axle, Hubs, Troubleshooting |
| Air Conditioning | 747-794 | Cab Air Conditioning Specifications, Compressor, Refrigerant Charging and Diagnosis |
| Electrical Systems, Instruments and Components | 795-872 | Instrument Cluster, Switches, Starter Motor, Alternator, Battery |
| Electrical Circuits | 873-1082 | Fuses and Relays, Wire Colour Code, Harness Layouts, Circuit Diagrams |
| Components Testing | 1083-1100 | Switches and Sensors |
| Fault Codes and Transmission Error Codes | 1101-1340 | Fault Code Display, Harness Repair, CAN Testing, Error Code Listing, Clutch Pedal Potentiometer, Power Shuttle and Powershift Error Codes |
| PTO, MFD, Differential Lock, Cluster and EDC Error Codes | 1341-1520 | PTO Clutch Solenoid, MFD, Differential Lock, Instrument Cluster, Lift Arm Position Sensor, Draft Sensor, Radar |
| Diagnostics and Calibrations | 1521-1558 | HH Menu, H4 Menu, Calibrations, CAN Bus Network |

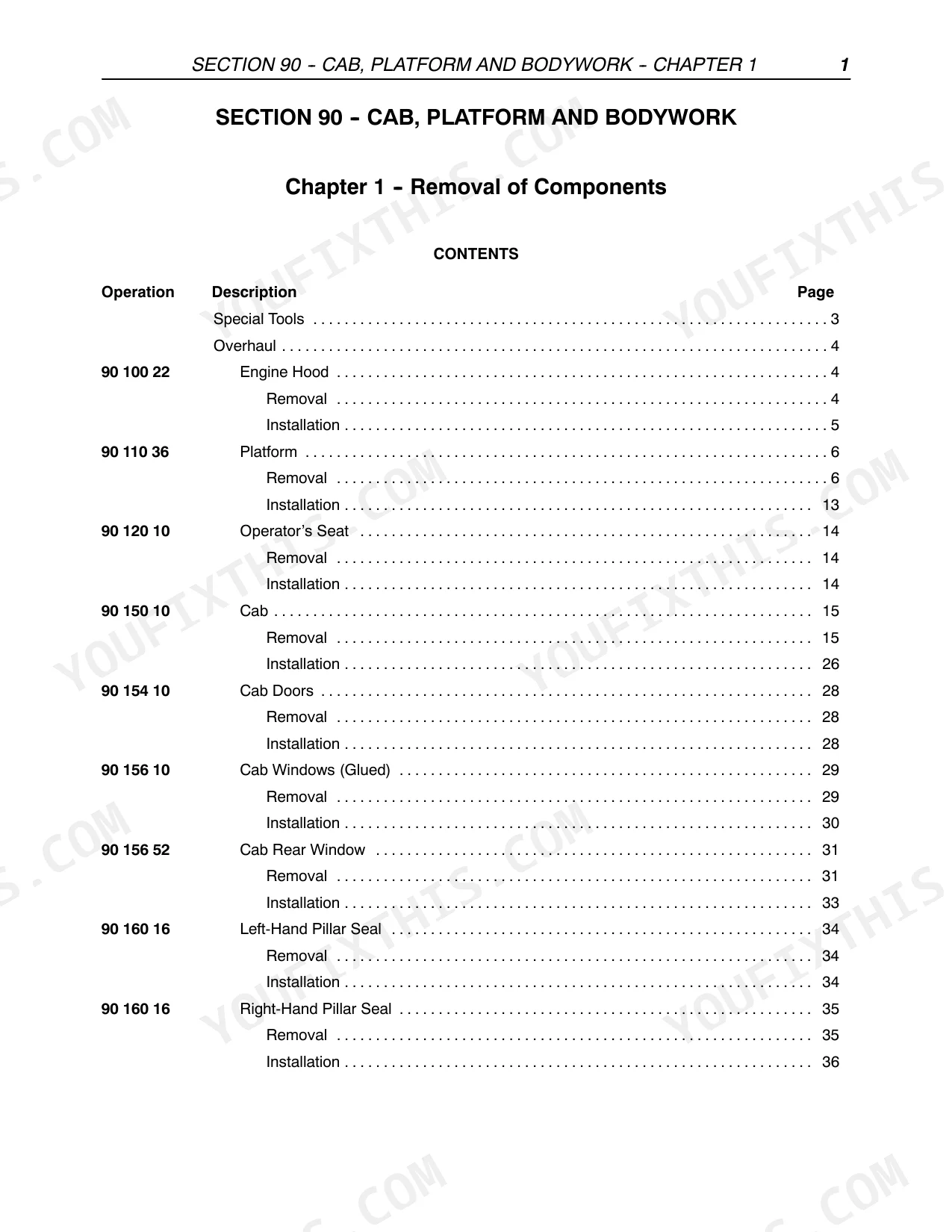

| Cab, Platform and Bodywork | 1559-1604 | Engine Hood, Platform, Seat and Cab Removal |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine max power, JX1100U | 73.5 kW (98 HP) | p. 65 |
| Engine total displacement | 273.67 in3. (4.5L) | p. 65 |
| Engine max torque at 1400 rev/min, JX1100U | 370 Nm (272 lb.-ft.) | p. 65 |
| Engine oil pressure, warm, slow idle | 17.4 psi (1.2 bar) | p. 66 |
| Engine oil pressure, warm, fast idle | 55.1 psi (3.8 bar) | p. 66 |
| Valve clearance, engine cold, intake | 0.01 ± 0.001 in (0.30 ± 0.05 mm) | p. 66 |
| Valve clearance, engine cold, exhaust | 0.02 ± 0.001 in (0.55 ± 0.05 mm) | p. 66 |
| Cooling system capacity, with cab | 4.22 US gal. (16 liters) | p. 61 |
| Engine sump capacity with filter | 2.50 US gal. (9.5 liters) | p. 61 |
| Fuel tank capacity, JX1090U and JX1100U | 33.55 US gal. (127 liters) | p. 61 |
| Rear axle, transmission, hydraulic lift, PTO and steering oil | 14.52 US gal. (55 liters) | p. 61 |
| Cylinder head bolts M 12 x 1.75 x 70 torque | 45 - 55 Nm (33 - 41 ft.-lbs.) plus 90° | p. 75 |
| Hitch pressure relief valve setting | 2756 to 2828 psi (190 to 195 bar) | p. 521 |
| Battery capacity | 132 Ah, 12 V | p. 864 |

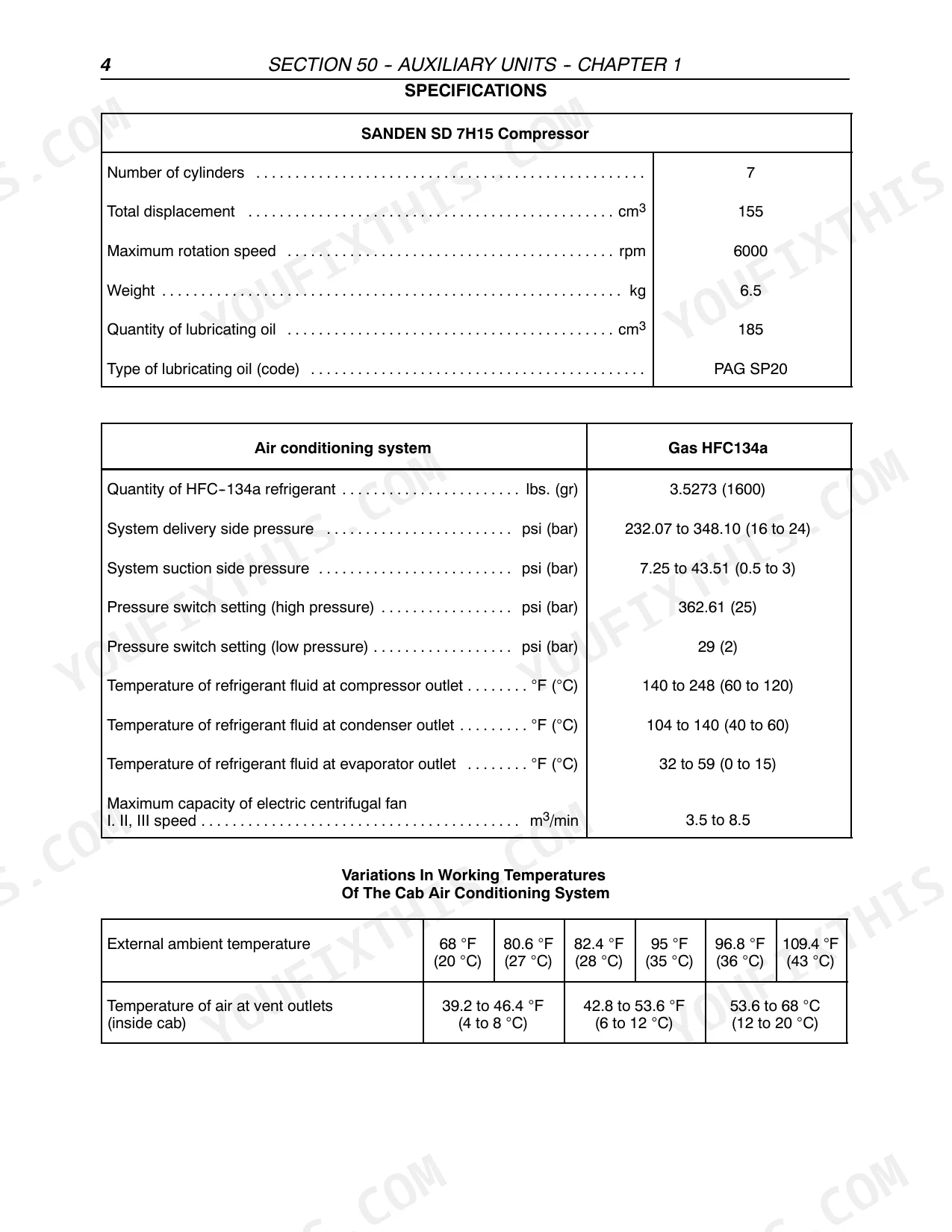

| A/C refrigerant charge, HFC-134a | 3.5273 lbs (1600 gr) | p. 750 |
Case IH JX1080U, JX1090U, JX1100U Common Problems This Manual Covers
Engine does not start
Start with the cheap checks in the Engine troubleshooting chart: battery charge, corroded or loose terminals and fuel in the tank. Then check for water or dirt in the lines and air in the system, which needs bleeding. After that, test the fuel supply pump, thermostarter, starter motor and injection pump timing.
Manual Section: Engine - Engine does not start p. 84Engine overheating
Check the coolant level at the expansion tank, the pump and fan belt tension and the air filter first. If those are fine, the Engine section covers the thermostat, coolant pump overhaul, radiator flushing and deposits in the head and crankcase passages. It also covers engine timing and injection pump calibration on a test bench.
Manual Section: Engine - Engine overheating p. 85Clutch slips

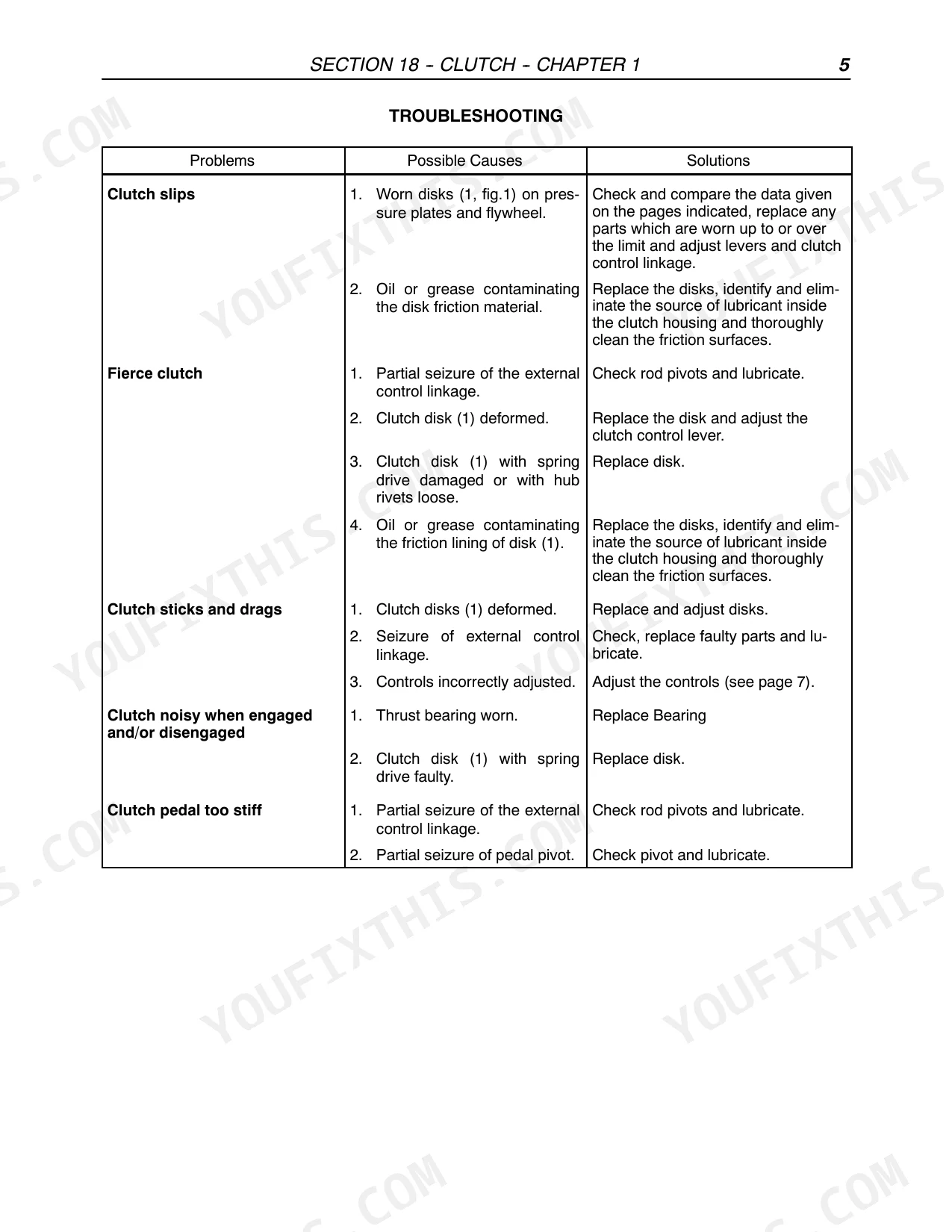

The Clutch section traces slip to two causes: worn disks on the pressure plates and flywheel, or oil and grease on the friction material. Measure the disks against the limits and replace them. Adjust the release levers and linkage, and find and fix the oil source before you button it up.
Manual Section: Clutch - Clutch slips p. 199Brake pedal stroke too long

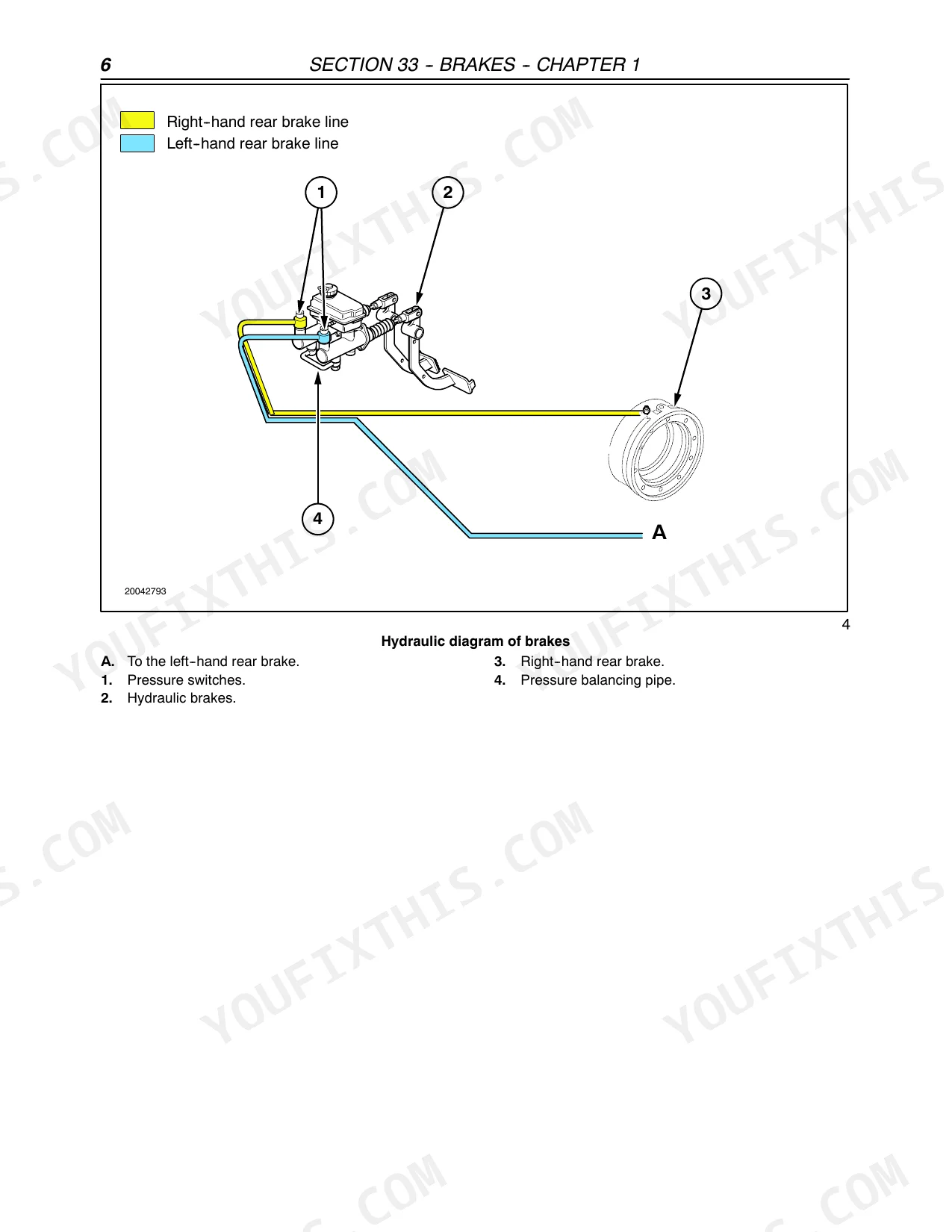

Air in the circuit is the first item in the Brakes troubleshooting chart, so bleed the circuit before anything else. If the long pedal comes back, look at worn brake control pumps or leaking control pipes. Use the hydraulic diagram of the brakes to trace the lines on these oil-bath brakes.
Manual Section: Brakes - Pedal stroke too long p. 483Frequently Asked Questions
How much engine oil does the JX1090U take, and what grade?
The sump holds 2.35 US gal. (8.9 liters) without the filter and 2.50 US gal. (9.5 liters) with the filter. The manual calls for Akcela No 1 Engine Oil, MS 1121 (SAE 15W-40) or NH 1121 (SAE 10W-30). p. 61
What is the cooling system capacity of the JX1100U with a cab?
With the cab it is 4.22 US gal. (16 liters). Without the cab it is 3.69 US gal. (14 liters). The manual specifies water and Akcela Premium Anti-Freeze mixed 50% + 50%. Top up through the expansion tank. p. 61
What are the valve clearances on the JX1080U, JX1090U and JX1100U engine?
Set them with the engine cold: intake 0.01 ± 0.001 in (0.30 ± 0.05 mm), exhaust 0.02 ± 0.001 in (0.55 ± 0.05 mm). p. 66
What battery does the JX1100U use?
It takes a 12 V sealed maintenance-free battery rated at 132 Ah and 960 A cold start. It sits on top of the front axle support. p. 864
What torque and angle do the JX1090U cylinder head bolts take?
It depends on bolt length. M 12 x 1.75 x 70: 45 - 55 Nm (33 - 41 ft.-lbs.) then 90°. M 12 x 1.75 x 140: 35 - 45 Nm then 180°. M 12 x 1.75 x 180: 65 - 75 Nm then 180°. p. 75
