Covering six tractors from the MXM120 up to the MXM190, this Case IH MXM120 operator manual PDF runs 436 pages under OEM ID 82999278. Each transmission option gets its own controls chapter (Synchro Shift, Two Speed Powershift, Semi-Powershift and Full Powershift), followed by field operation of the front and rear PTO, mechanical draft control, electronic hitch control and trailer brakes. Fault finding covers engine, transmissions, hydraulics, brakes and electrics. On the MXM175 and MXM190, fit the 254 mm service replacement hydraulic filter rather than the 204 mm factory fit, and torque disc to hub fixings to 500 Nm (369 lbf.ft.); the MXM120 to MXM155 take 250 Nm. Whether you are due the 50-hour, 300-hour or 1200-hour/12 month service, each has its own section in the lubrication and maintenance chapter. Bookmarks and a searchable text layer take you straight to rear wheel track adjustment, so the discs go back on at those torques.
What's Inside This Case IH MXM120–MXM190 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information and Safety | 8-25 | To the Owner, Product Identification, Ecology and the Environment, Safety Precautions, Safety Decals, International Symbols, Airborne Noise Emission |

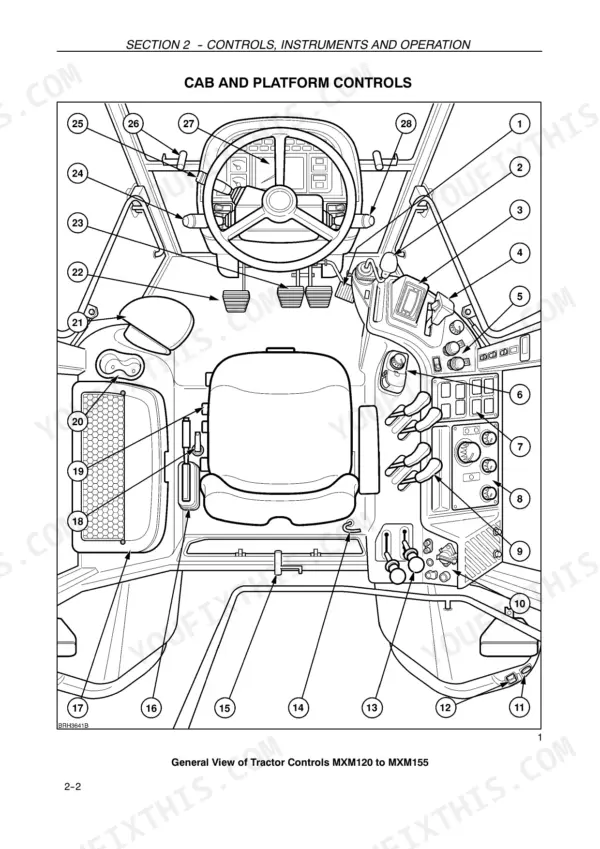

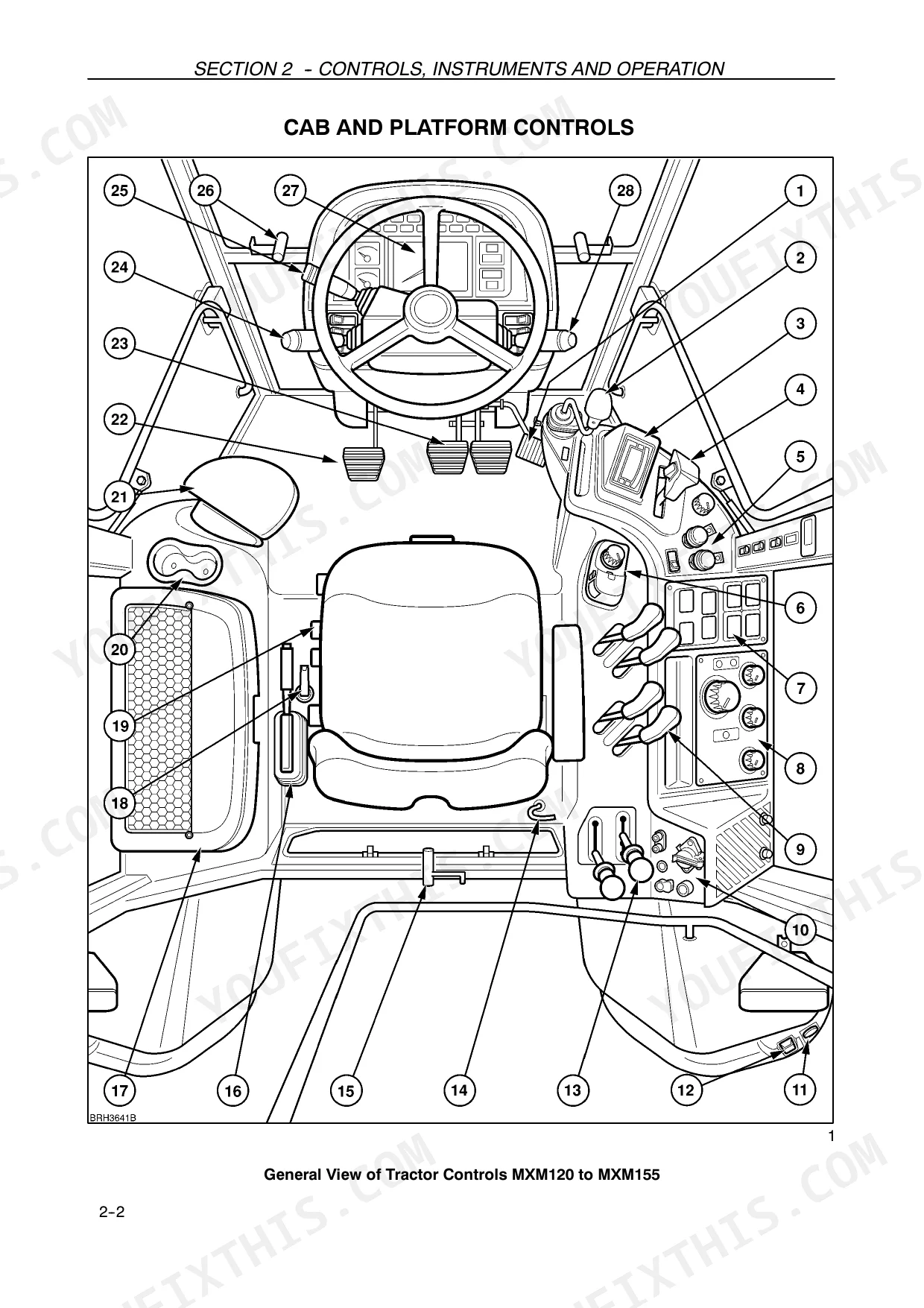

| Controls, Instruments and Operation | 26-137 | Cab, Electrical Power Sockets, Cleaning the Tractor, Seats, Handbrake, Throttle and Foot Controls, Instrument Console, Analogue/Digital Instruments |

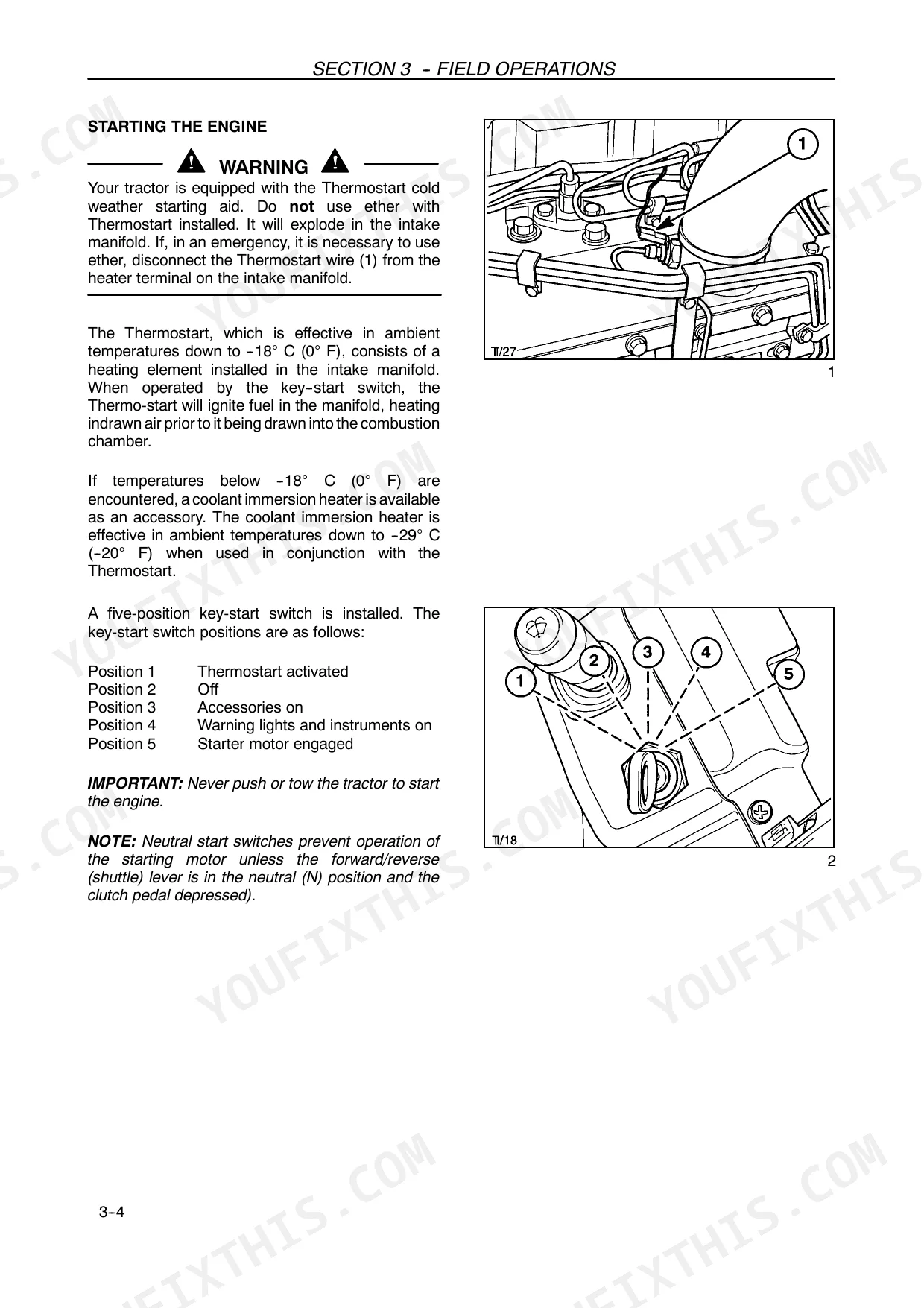

| Field Operation | 138-299 | Starting and Stopping the Engine, Power Management, Constant Engine Speed, Headland Management Control, Rear Power Take-Off, Front Power Take-Off and Three-Point Hitch |

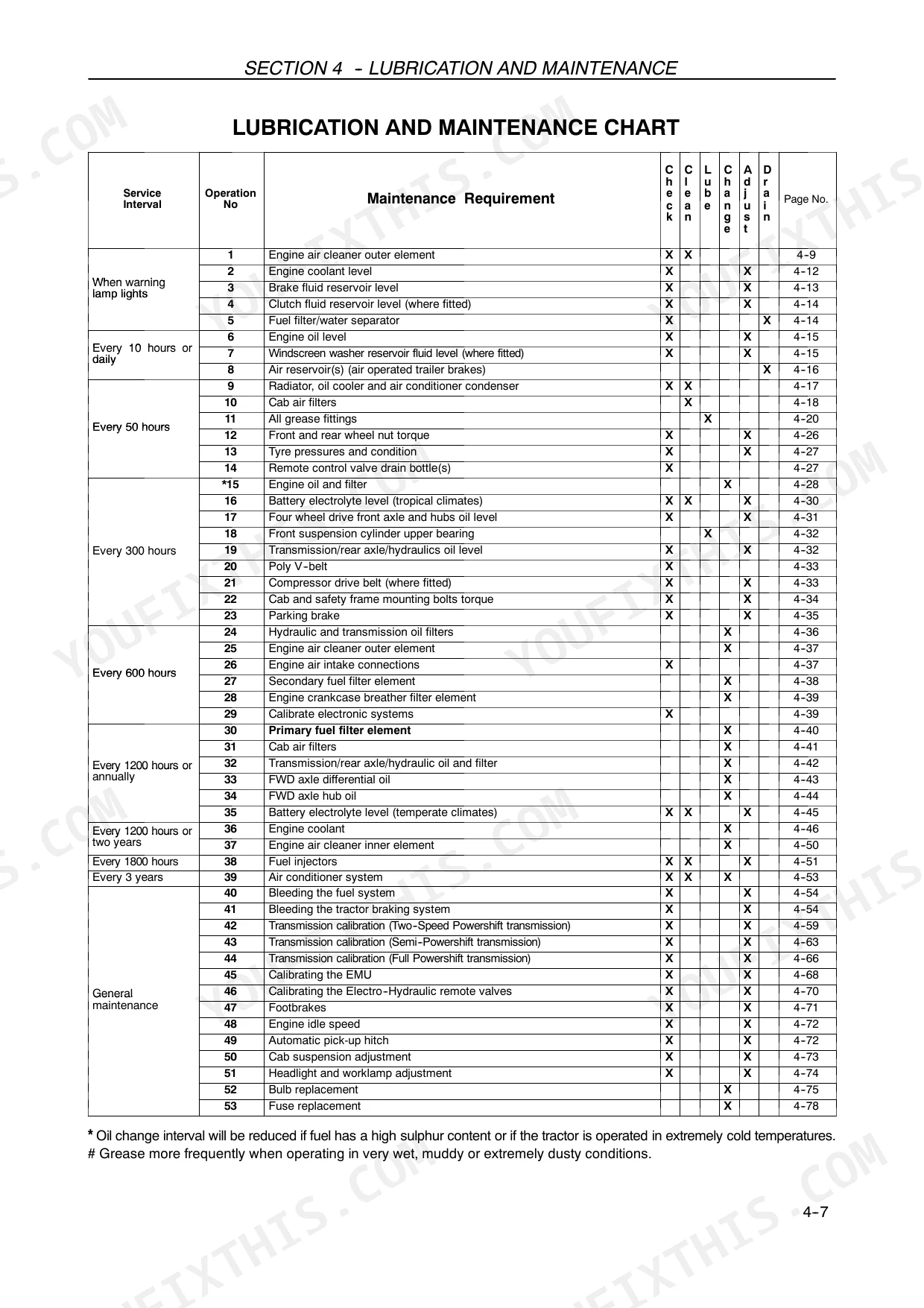

| Lubrication and Maintenance | 300-383 | Guard Removal, Lubrication and Maintenance Chart, Lubricants and Coolants, Servicing - When the Warning Lamp Lights, 10-Hour/Daily Service, 50-Hour Service, 300-Hour Service |
| Fault Finding | 384-395 | Introduction, Engine, Transmission - Semi Powershift and Full Powershift, Transmission - Two-Speed Powershift, Transmission - Synchro Shift, Hydraulics, Rear Three-Point Hitch |
| Vehicle Storage | 396-397 | Tractor Storage, Preparation for Use After Storage |
| Accessories | 398-405 | Rotating Beacon, Automatic Engine Shut Down, Amp Socket and Cable, Auxiliary Headlamps, Engine Coolant Immersion Heater, Transmission Oil Heater, Steerable Front Fenders |

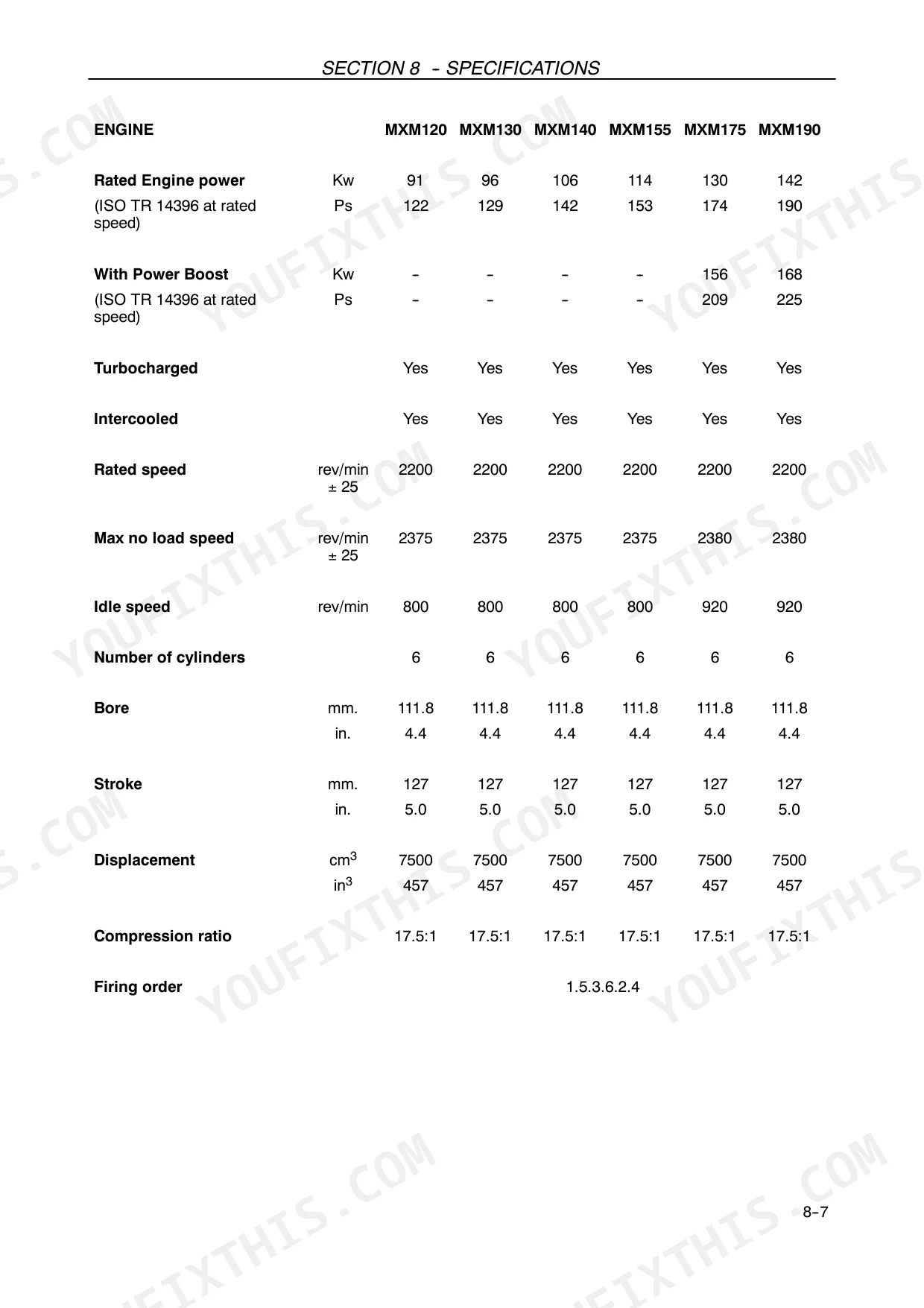

| Specification | 406-423 | Tractor Weight, Engine, Fuel System, Cooling System, Transmission Options, Hydraulic System, Three-Point Hitch, Front 3-Point Hitch |
| 1St 50 Hour Service Sheets | 424-427 | Inoperative Service Checks, Safety Items Checks, Operative Service Checks, Performance Service Checks |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Disc to Hub Fixings (MXM120 to MXM155) | 250 Nm (184 lbf.ft.) | p. 284 |
| Disc to Hub Fixings (MXM175 and MXM190) | 500 Nm (369 lbf.ft.) | p. 276 |
| Automatic pick-up hitch locknut torque | 100 Nm (72 lbf. ft.) | p. 371 |
| Battery rating | 1 x 176/1300 Amp hrs/CCA | p. 419 |
| Alternator | 120 amp | p. 419 |
| Engine Oil Capacity (including filter) | 19 litres | p. 328 |
| MXM175, MXM190 | ||
| Hydraulic filter (1) dimensions (Original/factory fit) | Length 204mm, Diameter 94.3mm | p. 301 |
| Hydraulic filter (1) dimensions (Service replacement filter) | Length 254mm, Diameter 116.8mm | p. 301 |
| Fuel Tank Capacity (MXM175 / MXM190) | 388 litres | p. 304 |
| MXM120, MXM130, MXM140, MXM155 | ||
| Fuel Tank Capacity (MXM120 to MXM155) | 285 litres | p. 304 |
| MXM120, MXM130, MXM140 | ||
| 4WD Differential Oil Capacity (Standard axle) | 9.0 litres | p. 342 |
| 4WD Differential Oil Capacity (Heavy Duty axle) | 14.0 litres | p. 342 |
Case IH MXM120–MXM190 Series Common Problems This Manual Covers

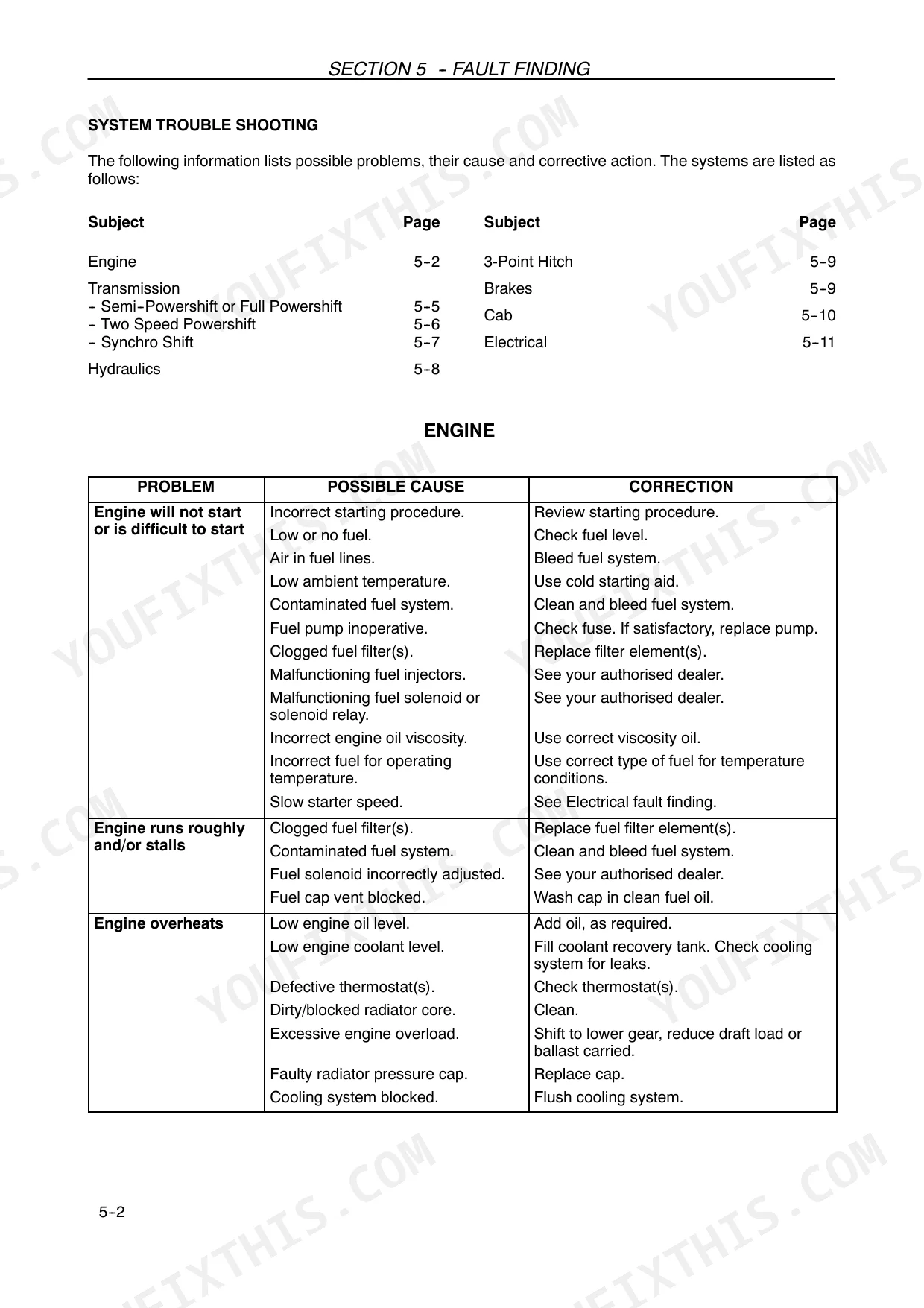

Case IH MXM120 to MXM190 engine overheating during heavy field work with low coolant in recovery tank
Check the coolant recovery tank only after the engine cools. The system is pressurised, so turn the cap slowly to the first stop with a thick cloth and let pressure escape (page 345). Top up coolant and engine oil, then tighten or replace leaking hoses. Clean a dirty radiator core, check the fan belt tensioner, and shift to a lower gear or reduce draft load per page 385.
Manual Section: Engine Troubleshooting p. 385Full powershift transmission jerky gear shifting and poor inching control when using the clutch pedal
Verify clutch calibration by running the transmission clutch calibration procedure. Uncalibrated clutches are the first cause the page 388 chart gives for jerky shifts and poor inching. If shifting stays rough, check the clutch pedal switch and re-adjust it. If neither step cures it, see your authorised dealer before working the tractor again.
Manual Section: Transmission - Semi or Full Powershift Troubleshooting p. 388Powershift transmission showing low oil pressure and high operating temperature during heavy work
Check the transmission oil level with the engine stopped, because page 300 forbids servicing with the engine running, and add oil as required. If the grade or viscosity is wrong, drain and refill, but let hot oil cool to moderately warm first (page 341). Replace a blocked transmission oil filter, tightening it 3/4 of a turn after the faces just meet per page 335, and clean the oil cooler.
Manual Section: Transmission - Semi or Full Powershift Troubleshooting p. 388Remote hydraulics oil overheats and remote equipment cylinders operate too fast or too slowly
Check the hydraulic oil level and correct it, since both too low and too high cause overheating on page 391. Clean a blocked hydraulic oil cooler and replace blocked oil filters. If the flow control is set wrong, allow the oil to cool, then adjust flow control before running the remote cylinders again. Mismatched hydraulic loads need your authorised dealer.
Manual Section: Hydraulics Troubleshooting p. 391Three-point hitch status light flashes continually and linkage does not move with control lever
Check whether the lift control lever is out of phase with the lower links and put it back in phase, then recalibrate the 3-point linkage as page 392 directs. Verify the height limit control is positioned correctly. If an error code appears or the light keeps flashing after recalibration, suspect the electrical control circuit and see your authorised dealer.
Manual Section: Three-Point Hitch Troubleshooting p. 392Starter cranks slowly and alternator light stays on with engine running
Clean and tighten loose or corroded battery connections, wearing eye protection and avoiding sparks near the batteries (pages 22 and 383). Check battery open circuit voltage for a minimum of 12.6 volts, plus electrolyte level and specific gravity. Check the drive belt and tensioner, and use correct viscosity engine oil for the ambient temperature. A suspect alternator goes to your authorised dealer, per page 394.
Manual Section: Electrical System Troubleshooting p. 394Frequently Asked Questions
How do I clear Case IH MXM fault codes?
Fault codes are considered critical and require the attention of your dealer. The fault code and warning light will continue to flash until the fault is rectified or the key-start switch is turned off. p. 61
What are the replacement specs for hydraulic filters on the Case IH MXM120–MXM190 Series?
At the first 50-hour service, the hydraulic filter (1) must be changed for a larger capacity service replacement filter. The original factory filter is 204mm in length and 94.3mm in diameter, while the service replacement filter is 254mm in length and 116.8mm in diameter. p. 301
What is the engine oil capacity for the MXM120/130/140 models?
The engine oil capacity for the MXM120, MXM130, and MXM140 models is 19.0 litres (20.0 U.S. qts.). p. 420
What is the torque specification for the front disc to hub bolts on a 2WD Case IH MXM120–MXM190 Series tractor?
The torque specification for the front disc to hub bolts on a 2WD tractor is 210 Nm (155 lbf. ft.). p. 325
How often should the engine air cleaner outer element be cleaned?
The engine air cleaner outer element should be cleaned when the restriction indicator light on the instrument console illuminates or every 600 hours, whichever comes first. p. 308
What format is this Case IH MXM120 manual in?
A 436-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Am I able to print pages from this Case IH MXM120 manual?
Yes. Print the sections you need to take out to the shop for your own use. Standard letter or A4 paper works.
