Part of the Case IH Repair Manuals.
This is Case IH service manual part number 47488212, dated February 2013, and it replaces 84354095. It covers the Rowtrac 350, 400, 450 and 500 from PIN ZDF100001. It also covers the Steiger 350 to 600 and the Quadtrac 450 to 600 from PIN ZBF100001, ZCF100001 and ZDF100001. It runs from engine, cooling and SCR through the PS4 and PS6 powershifts, axles, PTO, PFC pump, remote hydraulics, tracks, A/C, wiring frames and fault codes.
What's Inside This Case IH Rowtrac 350–500, Steiger 350–600, Quadtrac 450–600 Manual

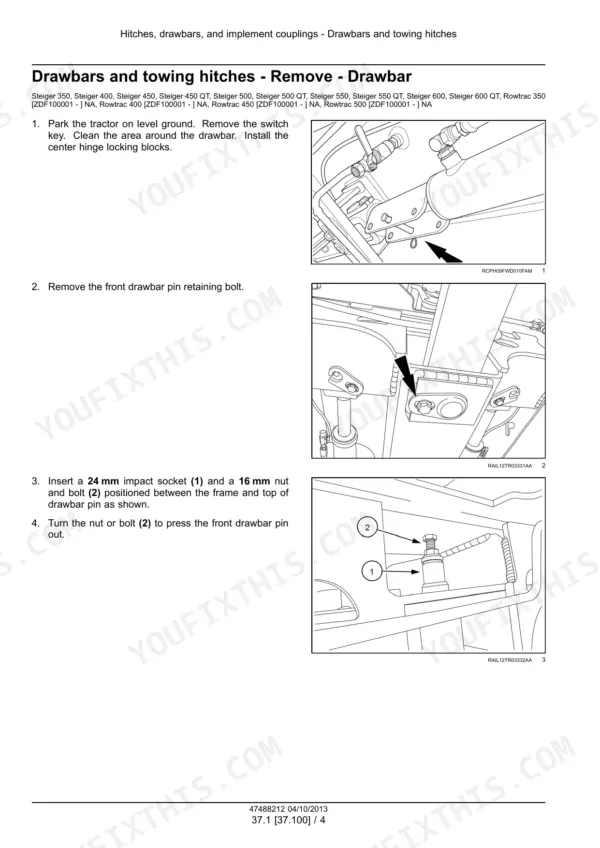

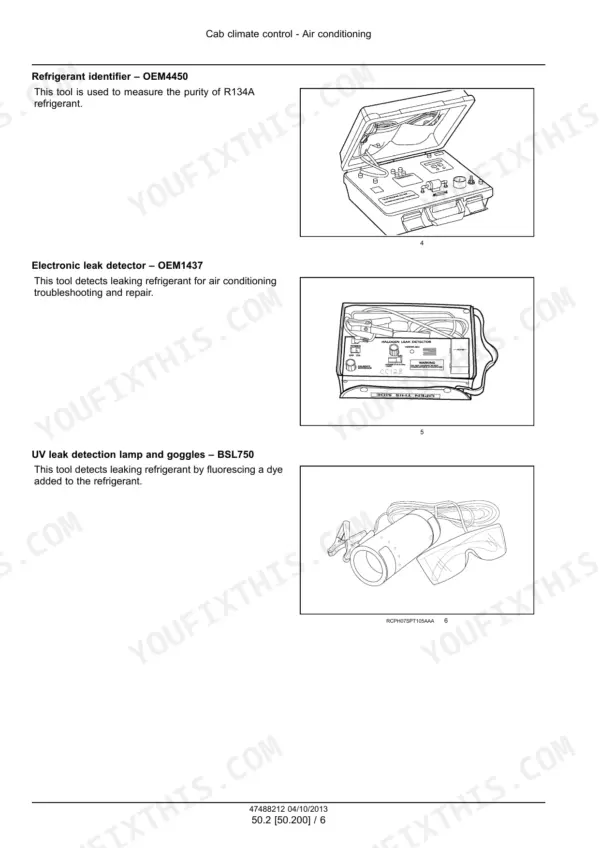

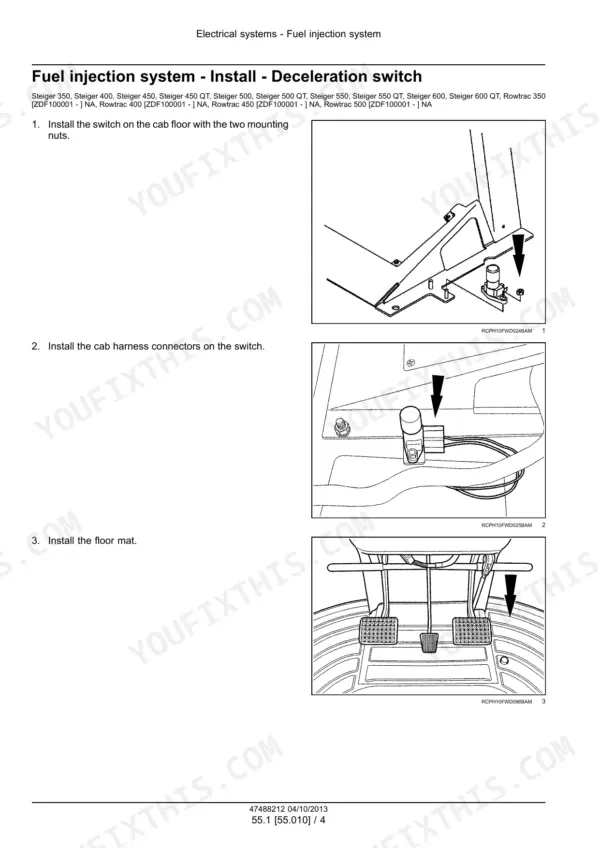

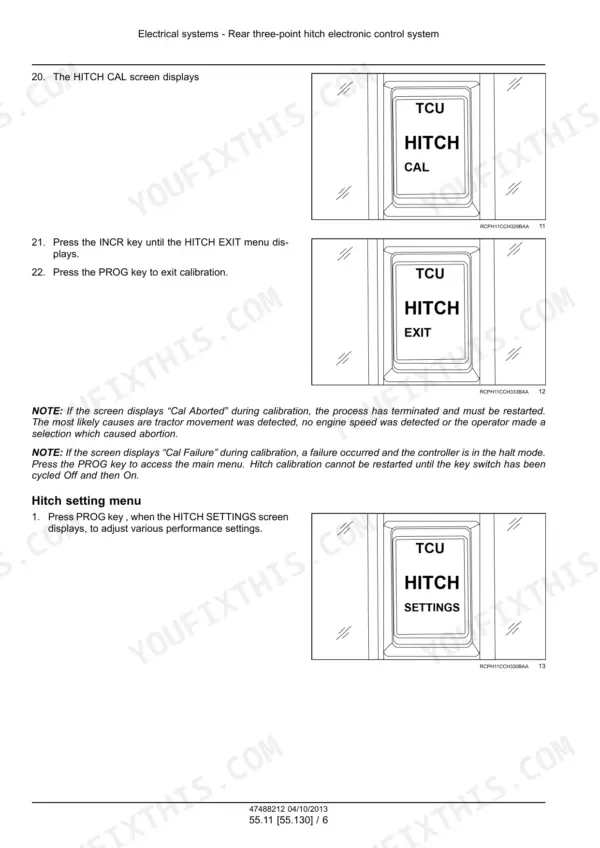

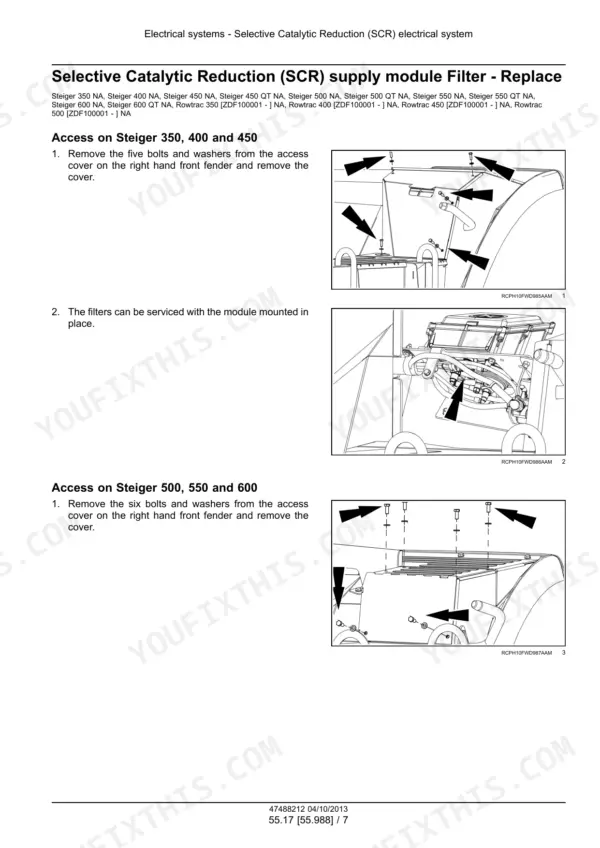

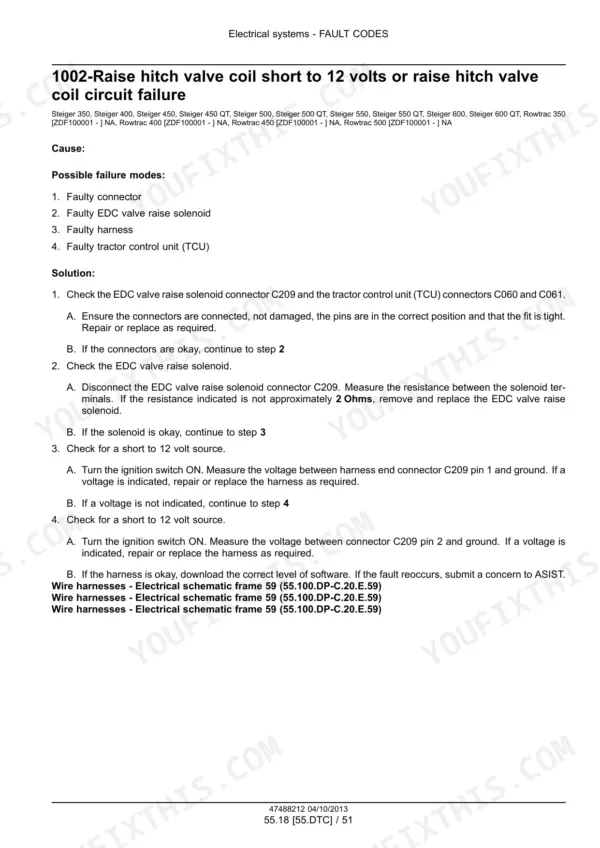

| System | Pages | Key Topics |
|---|---|---|
| Introduction | 1-45 | Cover, PIN List, Product and Engine Link, Safety Rules, Product Identification, Minimum Tightening Torques, Capacities by PIN Range, Machine Orientation |
| Engine and Crankcase | 46-101 | Engine and Crankcase Service |
| Engine Air Cleaners, Cooling, Fan and Drive | 102-211 | Air Cleaners and Lines, Engine Cooling System, Fan and Drive, Fan Pressure Test |
| Engine SCR Exhaust Treatment | 212-238 | SCR Exhaust Treatment Remove and Install (p212-214), SCR Muffler and Catalyst (p216-218), DEF/AdBlue Tank Remove, Install and Cleaning (p220-226), Coolant Control Valve (p228-230) |
| Powershift Transmission | 239-420 | PS4 and PS6 Torques, Special Tools, Pressure Test Specifications, Service Procedures, Removal |
| Powershift Transmission External Controls | 421-494 | Transmission Control Valve, External Controls, Gearbox Internal Components |
| Powershift Transmission Internal Components | 495-805 | Clutch Pack Clearance Test, Transmission Internals |
| Powered Front Axle | 806-1550 | Front Axle, Bevel Gear Set and Differential, Final Drives, Track Yoke Assembly |
| Powered Rear Axle | 1551-2314 | Rear Axle, Bevel Gear Set and Differential, Planetary and Final Drives, Track Yoke Assembly |
| Power Take-Off (PTO) | 2315-2471 | Rear Electro-Hydraulic Control, One-Speed Rear PTO, PTO Pressure Test, PTO Gearbox |
| Parking Brake and Service Brakes | 2472-2549 | Parking Brake or Parking Lock, Hydraulic Service Brakes |
| Hydraulic Systems Schema and Pump Controls | 2550-2600 | Hydraulic Schema, Pump Control Valves, Charge Pump |
| Variable Displacement Pump | 2601-2666 | PFC Piston Pump General Specification, Flow Test (P2609), Inspection (P2635) and Installation (P2654) |
| Remote Control Valves and Auxiliary Hydraulics | 2667-2801 | Remote Control Valves, Auxiliary Hydraulic Pump, Reservoir, Cooler and Filters, Combination Pump Units, High Flow Hydraulics |
| Drawbars, Hitches and Frame | 2802-2869 | Drawbars and Towing Hitches, Frame, Drawbar and Hitch Assembly |
| Steering and Wheels | 2870-2935 | Steering Control, Hydraulic Control Components, Relief Test, Steering Pump, Front and Rear Wheels |
| Tracks and Track Suspension | 2936-3203 | Tracks, Track Frame and Driving Wheels, Track Tension Units, Track Rollers |
| Cab Climate Control | 3204-3309 | Ventilation, Air Conditioning, R134a Charge, Problem Solving, Cab Pressurizing System |
| Electrical Control Systems | 3310-3389 | Fuel Injection, Engine Intake and Exhaust, Transmission, Remote Valve, Axle and Rear PTO Control, HVAC Control |
| Electrical Harnesses and Schematics | 3390-3591 | Legends, Fuse, Relay and Component Tables, Electrical Schematic Frames, Sensor and Connector Tables |
| Electrical Hitch, Charging and Modules | 3592-3656 | Rear Three-Point Hitch Electronic Control, Alternator, Battery, External Lighting, Cab PTO Controls, Electronic Modules |
| Electrical SCR System | 3657-3743 | SCR Electrical System and Temperature Sensors |
| Electrical Fault Codes | 3744-4695 | Fault Code Contents, Fault Code Cards, ATC Climate Codes, EDC Engine Codes, Index |
| Platform, Cab and Bodywork | 4696-4883 | Engine Hood and Panels, Shields and Latches, Operator Seat, Cab, Cab Interior, Special Tool Index |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine oil with filter, Steiger and Rowtrac 350 (product identification numbers ZDF and after) | 25 l (6.6 US gal) | p. 39 |
| Engine oil with filter, all other models and Quadtrac (product identification numbers ZDF and after) | 28 l (7.5 US gal) | p. 39 |
| Cooling system, Steiger 350, 400, 450 and all Rowtrac (product identification numbers ZDF and after) | 49 l (13 US gal) | p. 39 |
| Cooling system, Steiger 500, 550, 600 and all Quadtrac (product identification numbers ZDF and after) | 70 l (18.4 US gal) | p. 39 |
| Transmission oil, 350 to standard 500 and Rowtrac (product identification numbers ZDF and after) | 57 l (15.1 US gal) | p. 39 |
| Hydraulic and axle system, Rowtrac (product identification numbers ZDF and after) | 201 l (53 US gal) | p. 39 |
| Hydraulic and axle system, Quadtrac (product identification numbers ZDF and after) | 299 l (79 US gal) | p. 39 |
| Powershift transmission main pressure, 1000 / 2000 RPM | 18.6 - 20.7 bar (270 - 300 psi) / 19.7 - 21.7 bar (285 - 315 psi) | p. 244 |
| PS4 transmission mounting bolts torque | 282 - 319 N·m (208 - 235 lb ft) | p. 243 |
| PFC piston pump flow, standard A10V071DFR | 151 l/min at 138 bar (40 US gpm at 2000 psi) | p. 2601 |
| PFC piston pump high pressure standby, standard | 207 - 213 bar (3000 - 3090 psi) | p. 2601 |
| PTO clutch pressure, 1000 / 2000 RPM | 14.8 - 18.3 bar (215 - 265 psi) / 16.5 - 20.4 bar (239 - 296 psi) | p. 2360 |
| Parking brake regulated circuit pressure | 2000 kPa (290 psi) | p. 2474 |
| Steering relief pressure | 18271 - 18961 kPa (2650 - 2750 psi) | p. 2903 |
| Fan drive pump pressure, 965 mm (38 in) fan | 26600 kPa ± 690 kPa (3850 psi ± 100 psi) | p. 164 |
| Fan drive pump pressure, 1067 mm (42 in) fan | 22400 kPa ± 690 kPa (3250 psi ± 100 psi) | p. 164 |
| A/C refrigerant R134a charge, all model tractors | 1.9 kg (4.2 lb) | p. 3214 |
| Alternator charging voltage check | 12.8 - 14.5 V | p. 3602 |
| Rowtrac idler wheel bolts torque | 665 - 745 N·m (490 - 550 lb ft) | p. 2936 |
| Quadtrac alignment plate mounting bolts torque, lubed | 678 - 793 N·m (500 - 585 lb ft) | p. 2936 |
Case IH Rowtrac 350–500, Steiger 350–600, Quadtrac 450–600 Common Problems This Manual Covers
A/C blows warm, and both the low side and high side gauges read low
Both sides reading low means the system is short of refrigerant. Find and repair the leak first, then check the compressor oil level. Evacuate the system and recharge it with the full R134a charge of 1.9 kg (4.2 lb), which is the same on all model tractors.
Manual Section: Air conditioning problem solving p. 3285A/C low side pressure reads high while high side pressure reads low
That split points at the compressor. Check compressor power and ground before you pull anything. If the electrical side is good, the compressor probably has an internal leak. In that case recover the refrigerant, replace both the compressor and the receiver-drier, then evacuate and recharge.
Manual Section: Air conditioning problem solving p. 3286A/C low side pressure reads low while high side pressure reads high
Non-condensables, meaning air and/or moisture, have got into the system. Recover the refrigerant, replace the receiver-drier, evacuate the system and recharge it to spec. If that doesn't clear it, the other cause the manual lists is a restriction on the high side.
Manual Section: Air conditioning problem solving p. 3286A/C low side and high side pressures both read high
The system is overcharged. Recover the refrigerant and recharge it with the specified charge of R134a. If the readings stay high, look at the thermal expansion valve and at air flow across the condenser.
Manual Section: Air conditioning problem solving p. 3287Frequently Asked Questions
Does this manual cover my Case IH Rowtrac, Steiger or Quadtrac?
It covers the Rowtrac 350, 400, 450 and 500 from PIN ZDF100001 and above. It also covers the Steiger 350, 400, 450, 500, 550 and 600 and the Quadtrac 450, 500, 550 and 600. On the Steiger and Quadtrac it spans three PIN ranges, starting at ZBF100001, ZCF100001 and ZDF100001. All of these are Tier 4 tractors. The book is part number 47488212, dated February 2013, and it replaces 84354095. p. 2
What are the fluid capacities on the Steiger, Quadtrac and Rowtrac?
The manual prints one table for ZCF and before and a separate one for ZDF and after. Figures for ZDF and after: engine oil with filter is 25 l (6.6 US gal) on the Steiger and Rowtrac 350 and 28 l (7.5 US gal) on every other model and Quadtrac. Cooling is 49 l (13 US gal) on the Steiger 350, 400, 450 and all Rowtrac, and 70 l (18.4 US gal) on the Steiger 500, 550, 600 and all Quadtrac. Transmission is 57 l (15.1 US gal) on the 350 to standard 500 and Rowtrac. The hydraulic and axle system takes 201 l (53 US gal) on Rowtrac and 299 l (79 US gal) on Quadtrac. p. 39
What pressures does the manual give for the transmission, PTO and steering?
Powershift main pressure is 18.6 - 20.7 bar (270 - 300 psi) at 1000 RPM and 19.7 - 21.7 bar (285 - 315 psi) at 2000 RPM. PTO clutch pressure is 14.8 - 18.3 bar (215 - 265 psi) at 1000 RPM. Steering relief is 18271 - 18961 kPa (2650 - 2750 psi). PFC piston pump high pressure standby is 207 - 213 bar (3000 - 3090 psi). p. 244
What are the track torques on the Rowtrac and Quadtrac?
Rowtrac idler wheel bolts take 665 - 745 N·m (490 - 550 lb ft). Quadtrac alignment plate mounting bolts take 678 - 793 N·m (500 - 585 lb ft), and that figure is for lubed threads. p. 2936
Does the manual include wiring diagrams, hydraulic schematics and fault codes?

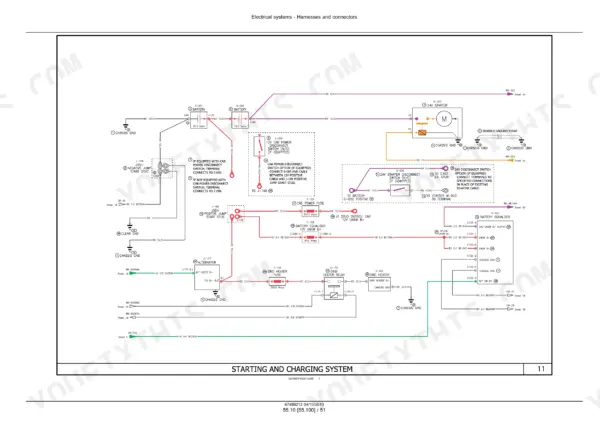

Yes. You get a hydraulic schema of the machine and steering circuit schematics. You also get the electrical schematic frames, such as frame 11 for starting and charging and frame 28 for the transmission. The fault codes section has a card for each code. p. 3431
