The rear remote won't come back to center, the cab is blowing warm air, and the seed tender is waiting at the field edge. This is the factory Case IH service manual, CNH part number 47488213, dated March 2013. It covers Steiger 350 through 600 wheeled tractors and Quadtrac 450 through 600 track tractors, PIN ZCF100001 and above and ZDF100001 and above.
It includes the PS4 and PS6 powershift pressure tests with worksheets, PFC pump standby settings, SCR exhaust treatment, EHR remote valves, harnesses and connectors, and fault codes with step-by-step checks. At 10 at night it's just you and a stalled tractor in the shed, with nobody to call. This book has the answers.
Sections are numbered by system: engine 10, transmission 21, hydraulics 35 and electrical 55. Go straight to the one you need and get back in the field before the weather turns.
What's Inside This Case IH Steiger 350–600, Quadtrac 450–600 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction (Safety, Torque, Capacities) | 1-43 | Safety Rules, Basic Instructions, Minimum Tightening Torques, Capacities by Product Identification Number |

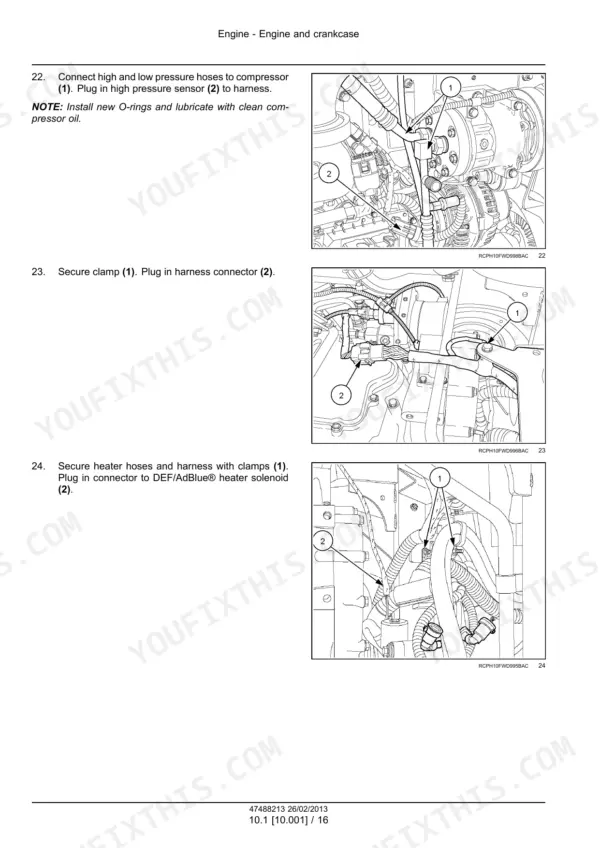

| Engine (10) | 44-235 | Engine and Crankcase, Air Cleaners and Lines, Engine Cooling System, Fan and Drive, Selective Catalytic Reduction (SCR) Exhaust Treatment |
| Powershift Transmission (21) | 236-801 | Powershift Transmission, Pressure Test Specifications and Worksheets, External Controls, Gearbox Internal Components, PS4 and PS6 Transmission Internal Components |

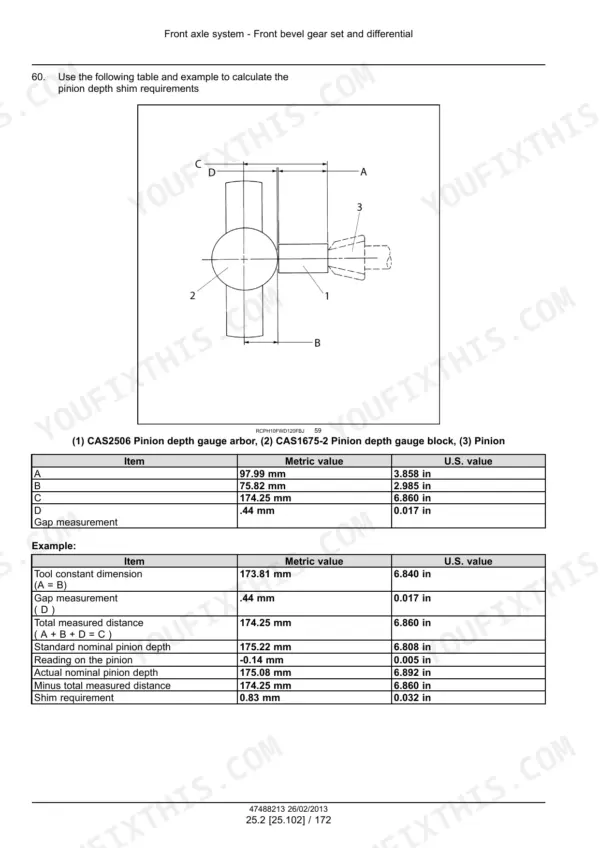

| Front Axle System (25) | 802-1423 | Powered Front Axle, Front Bevel Gear Set and Differential, Final Drives, 300 Series and Quadtrac Front Axles |
| Rear Axle System (27) | 1424-2087 | Powered Rear Axle, Rear Bevel Gear Set and Differential, Planetary and Final Drives |
| Power Take-Off (PTO) (31) | 2088-2245 | Rear Electro-Hydraulic Control, One-Speed Rear PTO, PTO Pressure Test, PTO Gearbox |

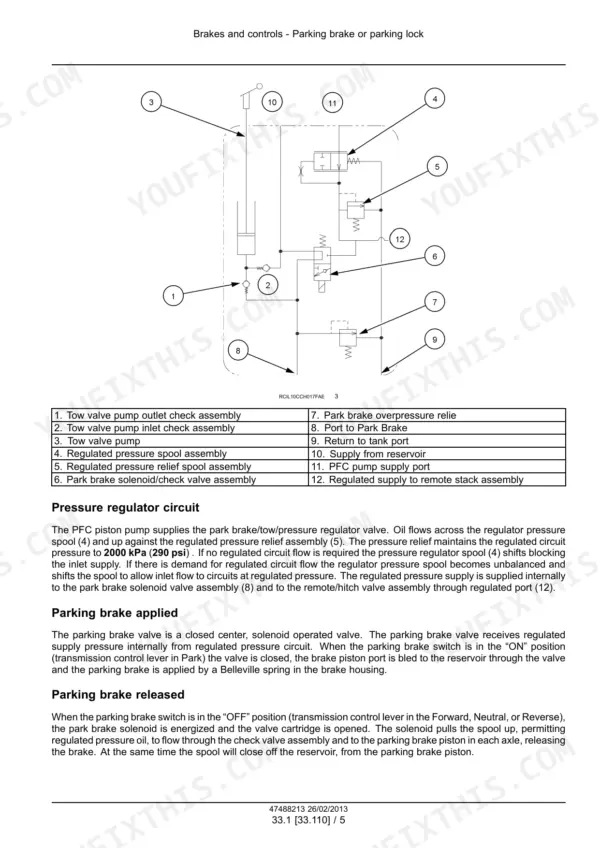

| Brakes and Controls (33) | 2246-2311 | Parking Brake or Parking Lock, Hydraulic Service Brakes |
| Hydraulic Systems (35) | 2312-2561 | Hydraulic Schema, Pump Control Valves, Charge Pump, Variable Displacement PFC Piston Pump, Remote Control Valves, Auxiliary Hydraulic Pump and Lines, Reservoir, Cooler and Filters, Combination Pump Units, High Flow Hydraulics |
| Hitches, Drawbars, Frames and Ballasting (37, 39) | 2562-2591 | Drawbars and Towing Hitches, Frame, Drawbar and Hitch Assembly |
| Steering (41) | 2592-2655 | Steering Control, Hydraulic Control Components, Steering Pump, Auxiliary Steering |
| Wheels (44) | 2656-2671 | Front Wheels, Rear Wheels, Dual Wheel Installation |
| Tracks and Track Suspension (48) | 2672-2827 | Quadtrac Tracks, Track Frame and Driving Wheels, Track Tension Units, Track Rollers |

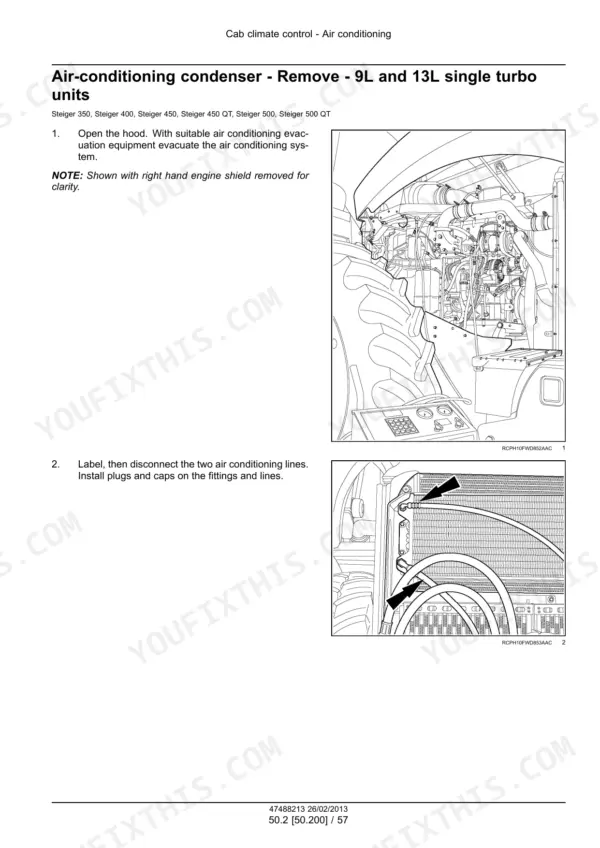

| Cab Climate Control (50) | 2828-2931 | Ventilation, Air Conditioning, R134a Refrigerant Charge, Air Conditioning Problem Solving, Cab Pressurizing System |

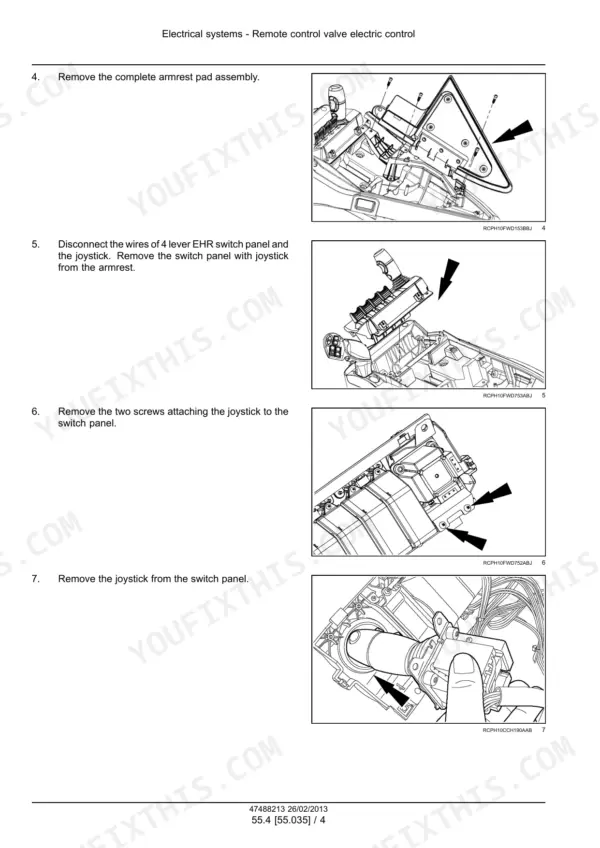

| Electrical Control Systems (55.010-55.051) | 2932-3010 | Fuel Injection, Engine Intake and Exhaust, Transmission Control, Remote Control Valve Electric Control, Front and Rear Axle Control, Rear PTO Control, HVAC Control Systems and Cab HVAC Controls |

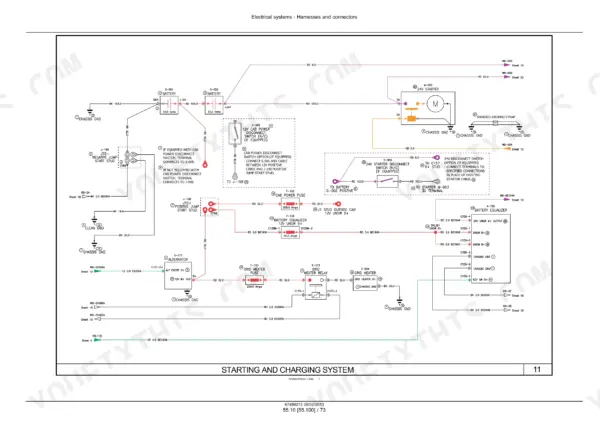

| Harnesses, Connectors and Electrical Schematics (55.100) | 3011-3368 | Wire Harnesses, Electrical Symbols, Electrical Schematic Frames, Connectors |
| Hitch Control, Charging, Lighting, Modules and SCR Electrical (55.130-55.988) | 3369-3469 | Rear Three-Point Hitch Electronic Control System, Alternator, Battery, External Lighting, Cab PTO Controls, Electronic Modules, SCR Electrical System |

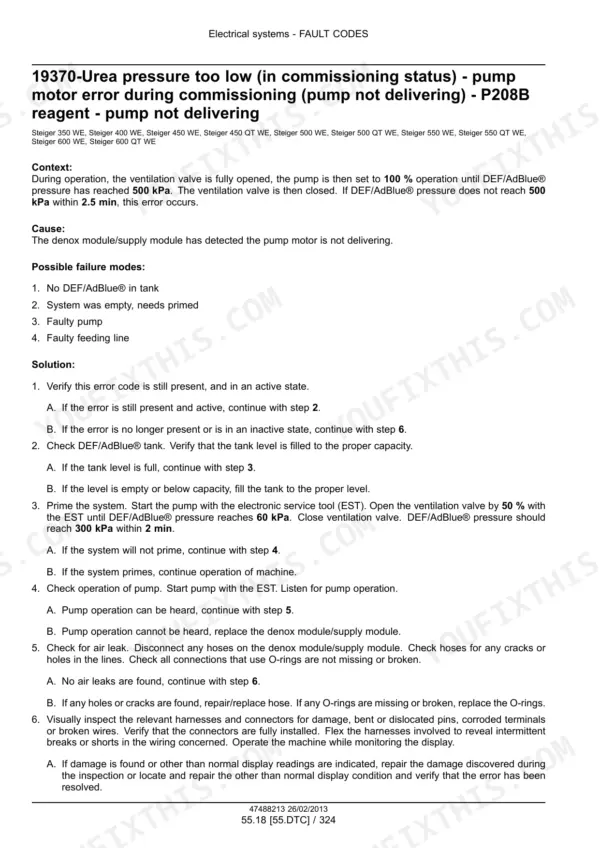

| Fault Codes (DTC) | 3470-4459 | Fault Codes with Possible Failure Modes and Solution Steps, Automatic Temperature Control, Edc, Hitch Valve, EHR (Remote Valve), Rear Remote, PTO |
| Platform, Cab, Bodywork and Decals (90) | 4460-4591 | Engine Hood and Panels, Engine Shields, Hood Latches and Trims, Pneumatically-Adjusted Operator Seat, Cab, Cab Interior |
| Special Tool Index | 4592-4637 | PS4 Transmission, PS6 Transmission, Pressure Test, Powered Front Axle, Powered Rear Axle, Cab Removal |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine oil exchange capacity with filter, Steiger 350 (Product ID ZDF and After) | 25 l (6.6 US gal) | p. 40 |
| Engine oil exchange capacity with filter, all other models and Quadtrac (Product ID ZDF and After) | 28 l (7.5 US gal) | p. 40 |
| Coolant capacity, 500, 550, 600 and all Quadtrac models | 70 l (18.4 US gal) | p. 40 |
| Transmission oil, 500 Scraper, 550 and 600 | 72 l (19 US gal) | p. 40 |
| Hydraulic/axle system approximate total capacity, Quadtrac | 299 l (79 US gal) | p. 40 |
| Hydraulic/axle system, add if Three Point Hitch equipped | 19 l (5 US gal) | p. 40 |
| Powershift transmission main pressure at 1000 RPM | 18.6 - 20.7 bar (270 - 300 psi) | p. 246 |
| Transmission accumulator charge | 10 bar (145 psi) | p. 251 |
| PTO clutch pressure at 1000 RPM | 14.8 - 18.3 bar (215 - 265 psi) | p. 2138 |
| PFC piston pump low pressure standby (2000 engine RPM, no flow) | 45 - 50 bar (653 - 725 psi) | p. 2367 |
| PFC piston pump high pressure standby (2000 engine RPM, no flow) | 207 - 213 bar (3000 - 3090 psi) | p. 2367 |
| High flow pump, 400 - 600 at 2100 engine RPM | 216 l/min (57 US gpm) | p. 2368 |
| A/C R134a refrigerant charge, all model tractors | 1.9 kg (4.2 lb) | p. 2842 |
| Front dual wheel installation, first two inner wheel bolts | 530 - 570 N·m (391 - 420 lb ft) | p. 2661 |
| PTO PWM solenoid valve coil resistance | 9.9 Ω at 20 °C (68 °F) | p. 2986 |
| Remote valve section tie bolts | 47 - 52 N·m (35 - 38 lb ft) | p. 4188 |
Case IH Steiger 350–600, Quadtrac 450–600 Common Problems This Manual Covers
Fault code 4112: rear remote valve will not return to neutral
If a remote valve section was replaced recently, check the tie bolt torque first, because over-torqued tie bolts are a listed cause. They must be 47 - 52 N·m (35 - 38 lb ft). Next check for other EHR error codes, then check the system oil for contamination. The other failure modes are a spool stuck by contamination and a faulty EHR valve. Change hydraulic fluid and filters on the operator manual schedule, because poor maintenance can make valve spools stick.
Manual Section: Electrical systems - FAULT CODES - 4112-Rear remote no.1 - unable to reach neutral p. 4188Powershift transmission shows low pressure in certain gears only
A sticking solenoid valve can cause this. Main pressure should read 18.6 - 20.7 bar (270 - 300 psi) at 1000 RPM. Use the Engaged Clutch Pack table to find the clutch that all the low gears share. For example, low readings only in 2, 7, 8 and 14 point to clutch 1M/solenoid Y. Clean the range selector valve area thoroughly. Then fit a new solenoid, or swap in one that is working correctly. Drive the tractor and record pressures in every gear, forward and reverse. If the problem moves with the solenoid, replace it. If nothing changes, swap the solenoids back and run the transmission clutch pressure test.
Manual Section: Transmission - Powershift transmission - Pressure test - Solenoid swap test p. 297Air conditioning blows only slightly cool
Suspect a high side flow restriction. It is most likely between the receiver/drier and the thermal expansion valve, or inside the receiver/drier itself. Look for frost or condensation on the receiver/drier and on the liquid line to it. Also check whether the low pressure switch is activating. Frost forms downstream of the restriction, so the frost line shows you where it is. Remove the restriction or replace the part.
Manual Section: Cab climate control - Air conditioning - Problem solving p. 2913Tractor will not move: bottom of clutch pedal switch open circuit
The fault code means the bottom of clutch pedal switch circuit is open or the bottom of clutch relay is stuck open. Find clutch disconnect switch connector C626 on the center console, just to the left of the clutch pedal. Unplug it and measure pin A to pin B. You should read about 4.0 Ω with the pedal released and an open circuit with it pushed down. If you get any other reading, replace the switch. If the switch checks good, replace the bottom of clutch neutral relay with a known good one, erase the code and continue operation. The other suspects are the connector, switch adjustment and the TCU.
Manual Section: Electrical systems - FAULT CODES - Bottom of clutch pedal switch open circuit or bottom of clutch relay stuck open p. 3867Frequently Asked Questions
What is the engine oil capacity on the Steiger and Quadtrac 350-600?
On PIN ZDF and after, an oil change with filter takes about 25 l (6.6 US gal) on the Steiger 350 only. All other models and every Quadtrac take about 28 l (7.5 US gal). Coolant is 49 l (13 US gal) on the 350, 400 and 450. It is 70 l (18.4 US gal) on the 500, 550, 600 and all Quadtrac models. The capacities table for ZCF and before lists different engine oil figures, so check your PIN before you pour. p. 40
What torque do the wheel bolts take on a Steiger/Quadtrac dual wheel installation?
The manual gives it for the front duals. Hang the inner wheel on the axle with two wheel bolts, threads lubricated with SAE 10W-30 oil, and torque them to 530 - 570 N·m (391 - 420 lb ft). Line up the cutouts on the spacer with those two bolts. Fit the remaining eight bolts, lubricated the same way, and torque them to 922 - 962 N·m (680 - 709 lb ft). The outer wheel then goes on the spacer with ten wheel bolts. p. 2661
How do I clear a fault code on a Case IH Steiger?
Fault code 6004, rear diff lock switch failure, shows how the manual handles it. Clear the code with the approved diagnostic equipment, run the tractor under normal conditions and retest. If the code does not come back, the system is working. If it does, use the Electronic Service Tool (EST) in monitor mode to watch the switch operate. Possible causes are a bad switch, the harness/wiring or the tractor control unit (TCU). Contact ASIST before you replace a TCU. p. 4351
How much R134a refrigerant does the Steiger air conditioning take?
The R134a charge is 1.9 kg (4.2 lb) on all model tractors covered by this book. Section 50, Cab climate control, also has the air conditioning problem solving procedures, which help if the cab still won't cool after charging. p. 2842
What are the hydraulic pump standby pressures on the Steiger/Quadtrac 350-600?
The standard flow PFC piston pump (A10V071DFR series) is pressure/flow compensated with variable displacement. At 2000 engine RPM with no flow, low pressure standby is 45 - 50 bar (653 - 725 psi). High pressure standby at the same speed is 207 - 213 bar (3000 - 3090 psi). The 350 at 2000 RPM flows 151 l/min (40 US gpm) standard and 208 l/min (55 US gpm) high flow. The 400 to 600 at 2100 RPM flow 159 l/min (42 US gpm) standard and 216 l/min (57 US gpm) high flow. p. 2367
