Need the daily maintenance rules and operating limits for your 2007-2009 power plant? This 114-page JCB 444 Engine, 448 Engine, JCB Dieselmax Engine (Mechanical) Operator Manual PDF (OEM #9801/9310) covers every fluid check, start-up routine, and service schedule. Open to a fault-finding section with dedicated diagnostic charts for fuel, oil, and coolant issues. Complete maintenance intervals cover changing the water separator pre-filter, bleeding the fuel system, and adjusting valve clearances. Lock down the fuel filter retaining strap bolts to 22-26 Nm, and confirm your cold start advance switch is tightened to the correct torque. A dead motor stops the whole job site. Download this bookmarked file right to your tablet, click straight to the spec, and get your equipment running.
What's Inside This JCB 444 Engine, 448 Engine, JCB DIESELMAX ENGINE (MECHANICAL) Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Care and Safety | 7-16 | Important Information (Operator Manual, Safety Warnings), Safety, Yours and Others, Checklists (Operating Safety, Maintenance Safety, Safety Labels) |
| General Information | 17-20 | Introduction (Product Compliance, Using This Manual, Left Side, Right Side, Units of Measurement, Machine / Equipment Related Data, Acronyms and Abbreviations) |

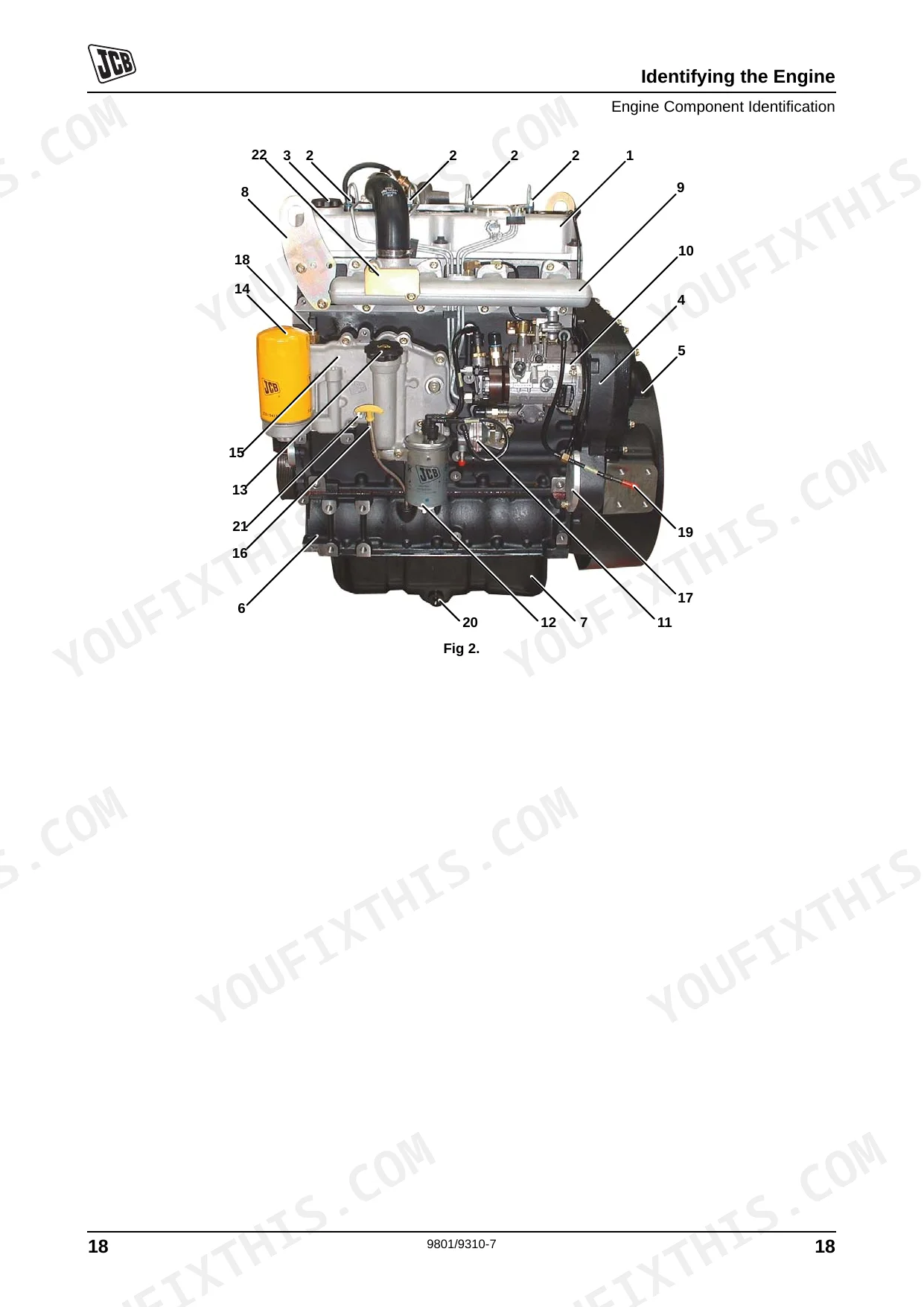

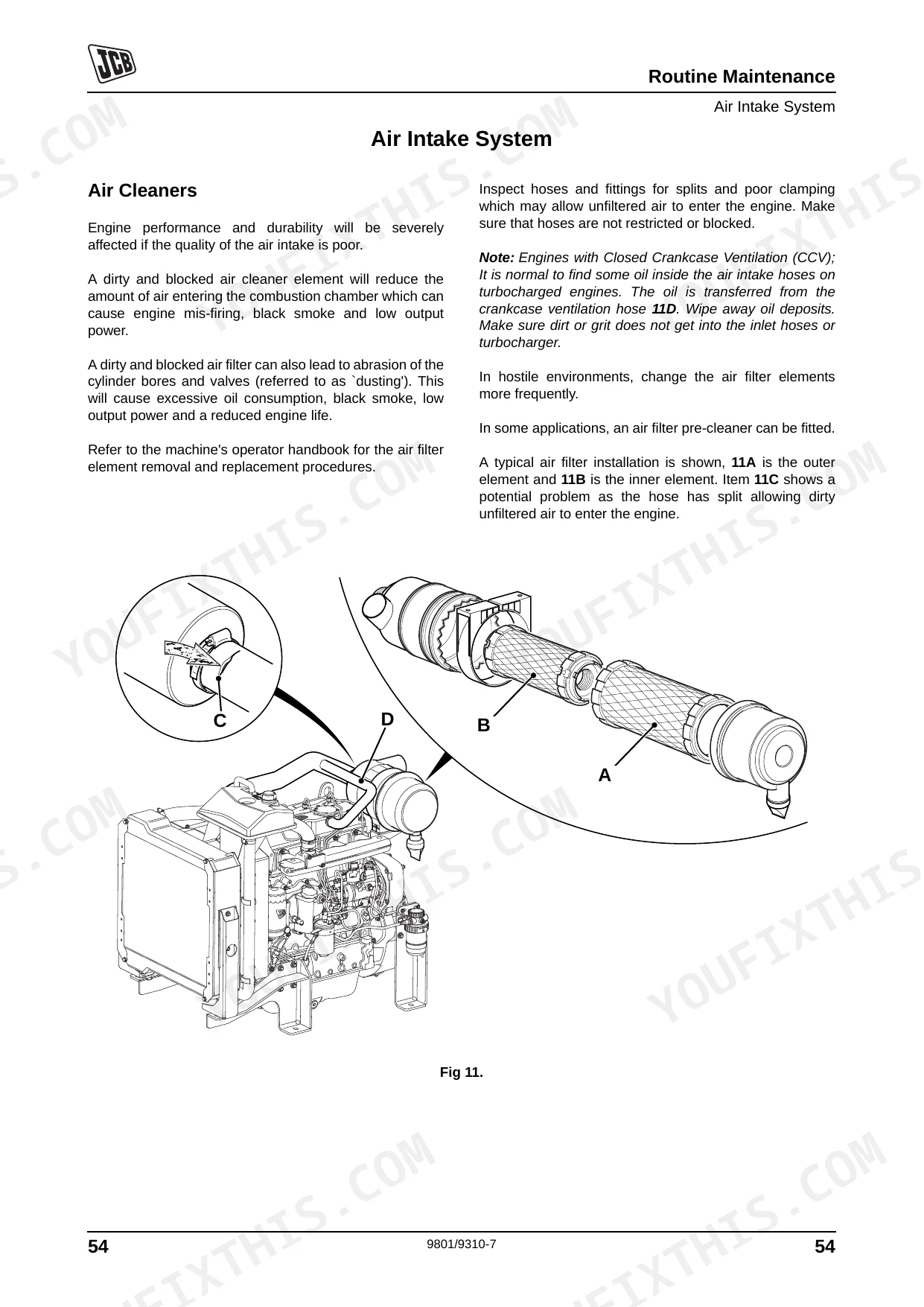

| Identifying the Engine | 21-28 | Engine Identification Plate, Typical Engine Identification Number, Component Labels, Engine Component Identification, Independent Power Unit Component Identification |
| Operating Procedures | 29-34 | Starting the Engine (Pre-Start Notes, Start Procedure, Engine Checks After Start-Up, Engine Running - in Procedure, Stopping the Engine) |
| Fluids, Lubricants and Capacities | 35-42 | Engine Lubricating Oil (Recommended Oils, Engine Oil Capacity), Coolant (Capacity, Mixtures), Fuel (Fuels) |
| Routine Maintenance | 43-64 | Introduction, Cleaning the Engine, High Pressure Cleaning, Lubricants - Health and Safety (Hygiene, Storage, Waste Disposal, Handling, First Aid - Oil, Spillage, Fires) |
| Fault Finding | 65-92 | Introduction, Fault Finding Charts, A Charts - Engine, B Charts - Fuel, C Charts - Lubricating Oil, D Charts - Coolant |
| Storage and Preservation | 93-96 | Storage, Preservation (Capping Engine Openings, Hot Test Description) |

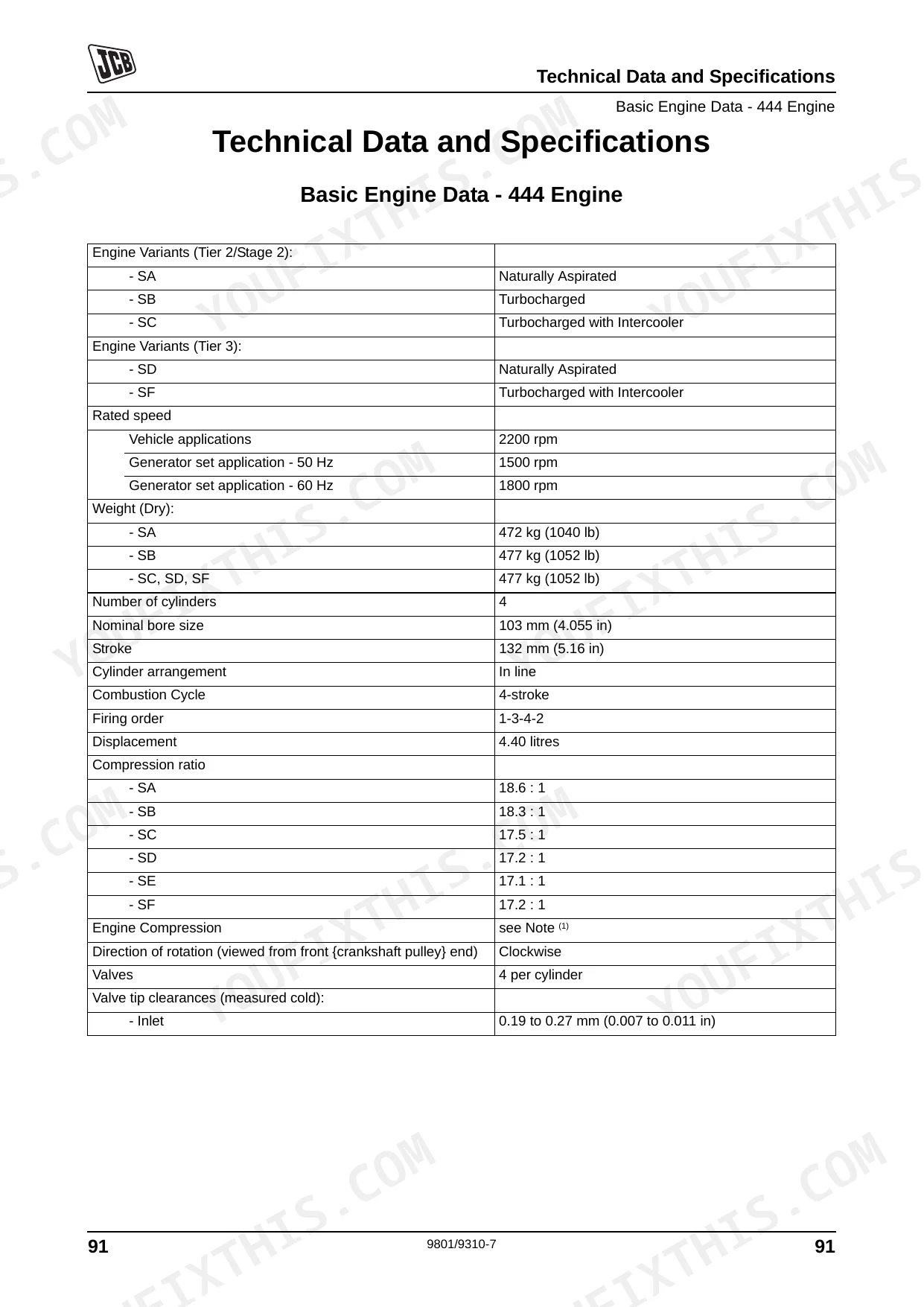

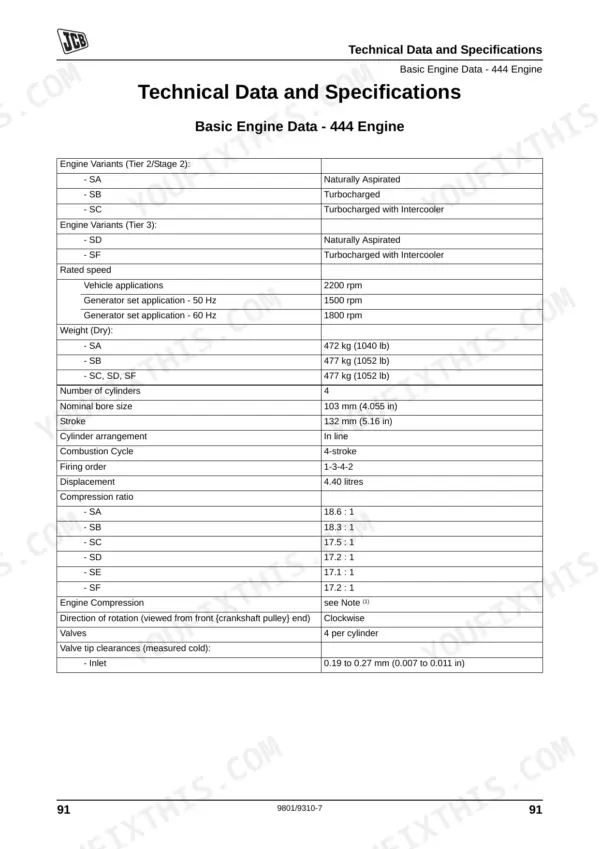

| Technical Data and Specifications | 97-108 | Basic Engine Data - 444 Engine, Basic Engine Data - 448 Engine, Torque + Angle Explanation, Torque + Angle Tightening Procedure, Engine Torque Figures |
| European Community Standards | 109-112 | Ec Declaration of Incorporation (Introduction, Explanation of the Ec Declaration of Incorporation) |
| JCB Service | 113-114 | Warranty, JCB Technical Service |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel filter retaining strap bolt torque | 22-26 Nm (16-19 lbf ft) | p. 104 |
| Starter motor retaining bolts torque | 43-51 Nm (32-38 lbf ft) | p. 108 |
| Cold start advance switch torque | 16 Nm (12 lbf ft) | p. 106 |
| High pressure fuel pipes torque | 25-29 Nm (19-22 lbf ft) | p. 107 |
| Inlet manifold retaining bolts torque | 22-26 Nm (16-19 lbf ft) | p. 107 |
| Exhaust manifold retaining bolts torque (first stage) | 25 Nm (19 lbf ft) | p. 106 |
| Engine Oil Capacity (Minimum) | 12 litres | p. 35 |
| Coolant Capacity | 18.5 litres | p. 36 |
| Valve Tip Clearances (Inlet, measured cold) | 0.19 to 0.27 mm | p. 97 |
| Valve Tip Clearances (Exhaust, measured cold) | 0.56 to 0.64 mm | p. 98 |
| Lubricating Oil Pressure (at normal operating temperature and maximum revs) | >4.6 bar | p. 98 |
| Oil Cooler Drain Plug Torque | 35-40 Nm | p. 103 |
JCB 444 Engine, 448 Engine, JCB DIESELMAX ENGINE (MECHANICAL) Common Problems This Manual Covers
JCB 444 Engine cranks but will not start or starts briefly and then dies immediately p. 104
Inspect the fuel lines for air leaks and drain any water from the separator. Replace the fuel filters if restricted. When reinstalling, tighten the fuel filter retaining strap bolts to 22-26 Nm as shown on page 104. Verify the lift pump operates correctly.
Manual Section: Technical Data and SpecificationsHard starting in cold weather or starter motor cranks the engine too slowly p. 108
Test the battery charge and inspect cables for corrosion. Verify the starter motor connections are tight. Check the starter motor retaining bolts and torque them to 43-51 Nm according to page 108. Test the cold start advance switch circuit if cranking speed is adequate.
Manual Section: Technical Data and SpecificationsCoolant over temperature warning light illuminates or radiator boils over during heavy operation p. 36
Check the radiator matrix for blockages and clear any debris. Inspect the hoses for leaks or restrictions. Fill the system to the specified 18.5 litres coolant capacity for the Independent Power Unit detailed on page 36. Verify the fan drive belts are tensioned correctly.
Manual Section: Fluids, Lubricants and CapacitiesLow engine oil pressure warning indicator turns on while running at maximum revs p. 35
Verify the engine oil level is at least the 12 litres minimum capacity specified on page 35. Inspect the oil cooler and sump for leaks. Tighten the oil cooler drain plug to 35-40 Nm as listed on page 103. Test the pressure switch if fluid levels are correct.
Manual Section: Fluids, Lubricants and CapacitiesFrequently Asked Questions
How to diagnose JCB 444 engine no start
To diagnose a no-start on a JCB 444 mechanical engine, check the fuel supply tank level, confirm the correct starting procedure, and inspect for a blocked fuel filter or aerated fuel. Verify the fuel lift pump is operating correctly, check for air intake and exhaust blockages, and confirm injection pump timing. All diagnostic steps are laid out in the fault-finding charts.
How do I bleed the fuel system on a JCB 444 engine?
To bleed the fuel system, first remove fuel line 10A at the fuel injection pump. Then, operate the fuel lift pump priming lever 10B or 10C until air-free fuel exits the line. Reconnect fuel line 10A and start the engine, running it at 1400 - 1500 rpm to check for smooth operation.
What causes a JCB 444 engine to crank but not fire in cold weather?

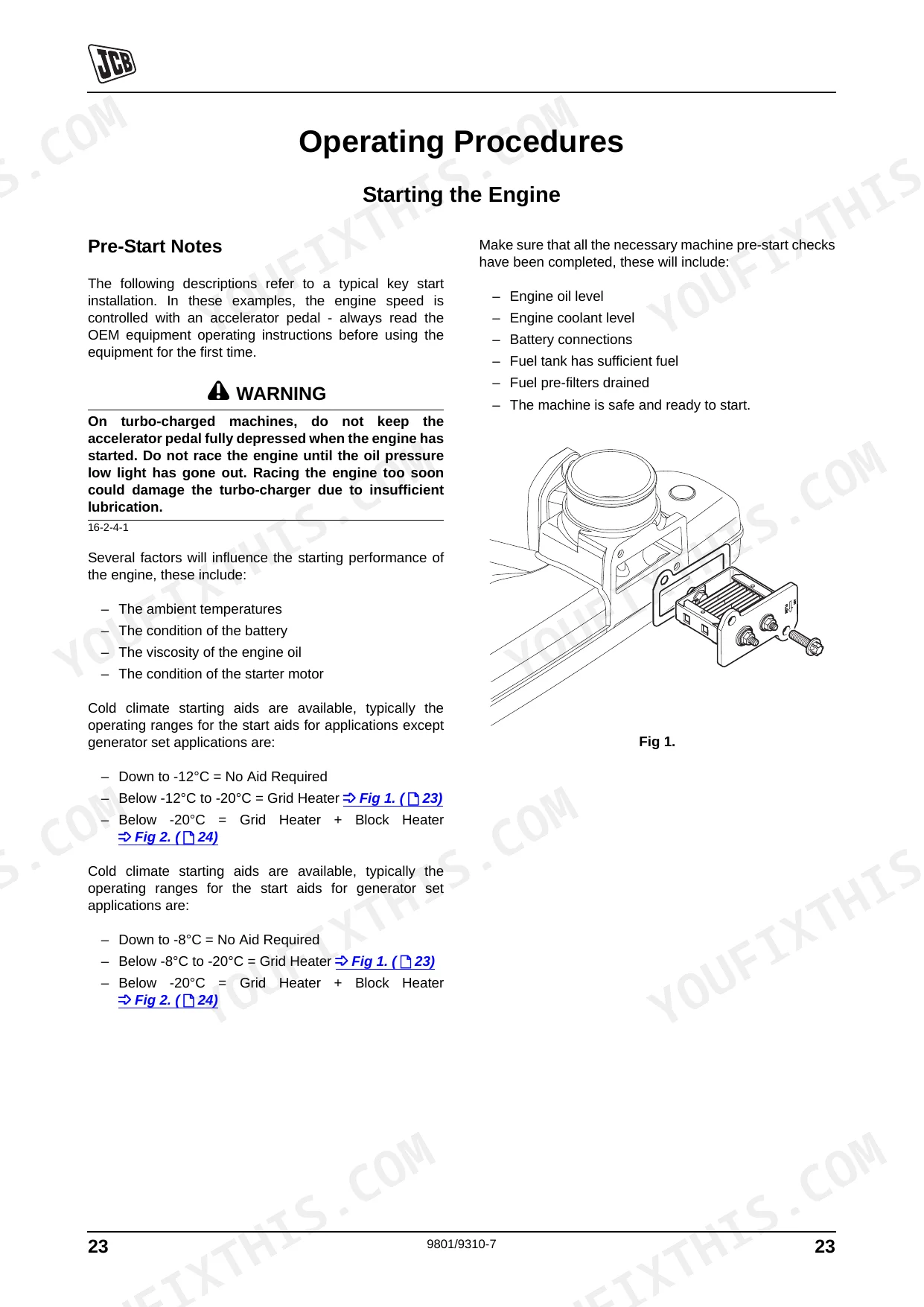

In cold weather, an engine may crank but not fire due to a faulty cold starting aid or fuel waxing at extreme temperatures. Below -12°C, a grid heater is required; below -20°C, both a grid heater and block heater are needed for generator set applications.
What are the replacement specifications for Fuel filters?
The service schedule calls for changing the fuel filter element every 500 hours. Release filter strap retaining screw 8D and lift the filter clear. No specific part number for the replacement filter is listed in the manual.
How quickly can I access this JCB 444 Engine, 448 Engine, Dieselmax Engine?
A 114-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this JCB 444 Engine, 448 Engine, Dieselmax?
Yes, print as many copies as you want, and there are no restrictions. Many mechanics print the section they need and bring it to the shop floor.
Document Quality
This document is a scanned PDF with an OCR text layer, allowing you to search and copy the full text. The text throughout is crisp and consistently readable. Diagrams and illustrations are clear raster images, and while some labels are small, they remain generally legible. Pages are clean with no scan artifacts, stains, or skewed content. You will find several pages explicitly marked as "Page left intentionally blank" or serving as filler pages.
