All 116 pages of this JCB Dieselmax T3 SE Engine, 9811/1650 Operator Manual PDF focus on keeping your 444 and 448 Engine variants running cleanly and safely. You get complete daily inspection checklists, exact fluid capacities for the cooling and lubrication systems, and a massive fault-finding section loaded with electronic DTC codes. Open up the routine maintenance schedules to see exactly when to swap filters, drain water separators, and measure valve clearances. Swap out the air cleaner outer element every 500 hours and torque the starter motor retaining bolts to exactly 43-51 Nm. Engine downtime costs you serious money. Grab this bookmarked download, pull it up on your tablet in the shop, and keep your diesel operating smoothly.
What's Inside This JCB JCB DIESELMAX T3 SE ENGINE, 9811/1650 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Care and Safety | 7-18 | Important Information, Operator Manual, Safety Warnings, Safety, Yours and Others, Checklists (Common Rail Specific, Operating Safety, Maintenance Safety, Safety Labels) |
| General Information | 19-22 | Introduction, Product Compliance, Using the Manual, Left Side, Right Side, Units of Measurement, Machine / Equipment Related Data, Acronyms and Abbreviations |

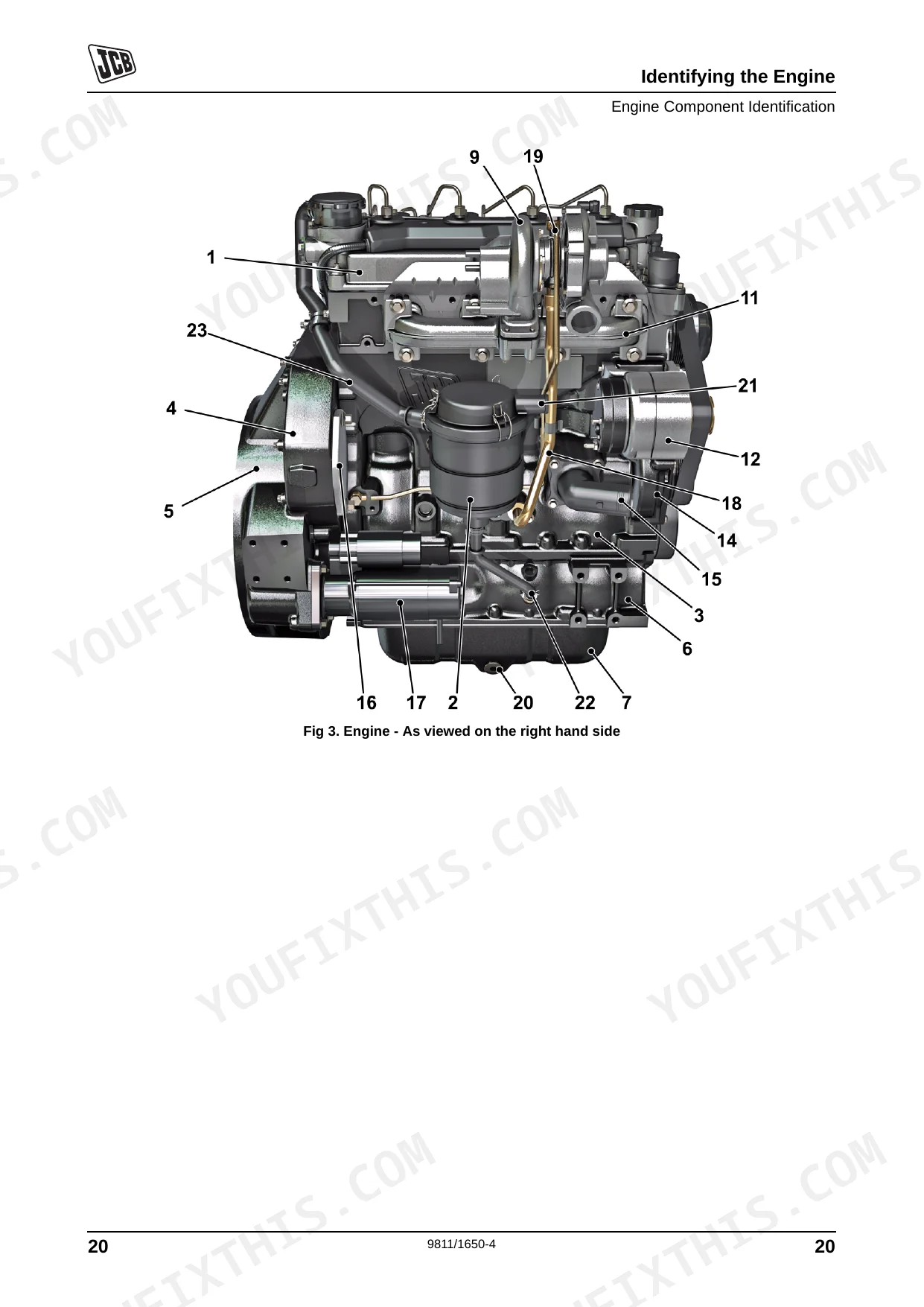

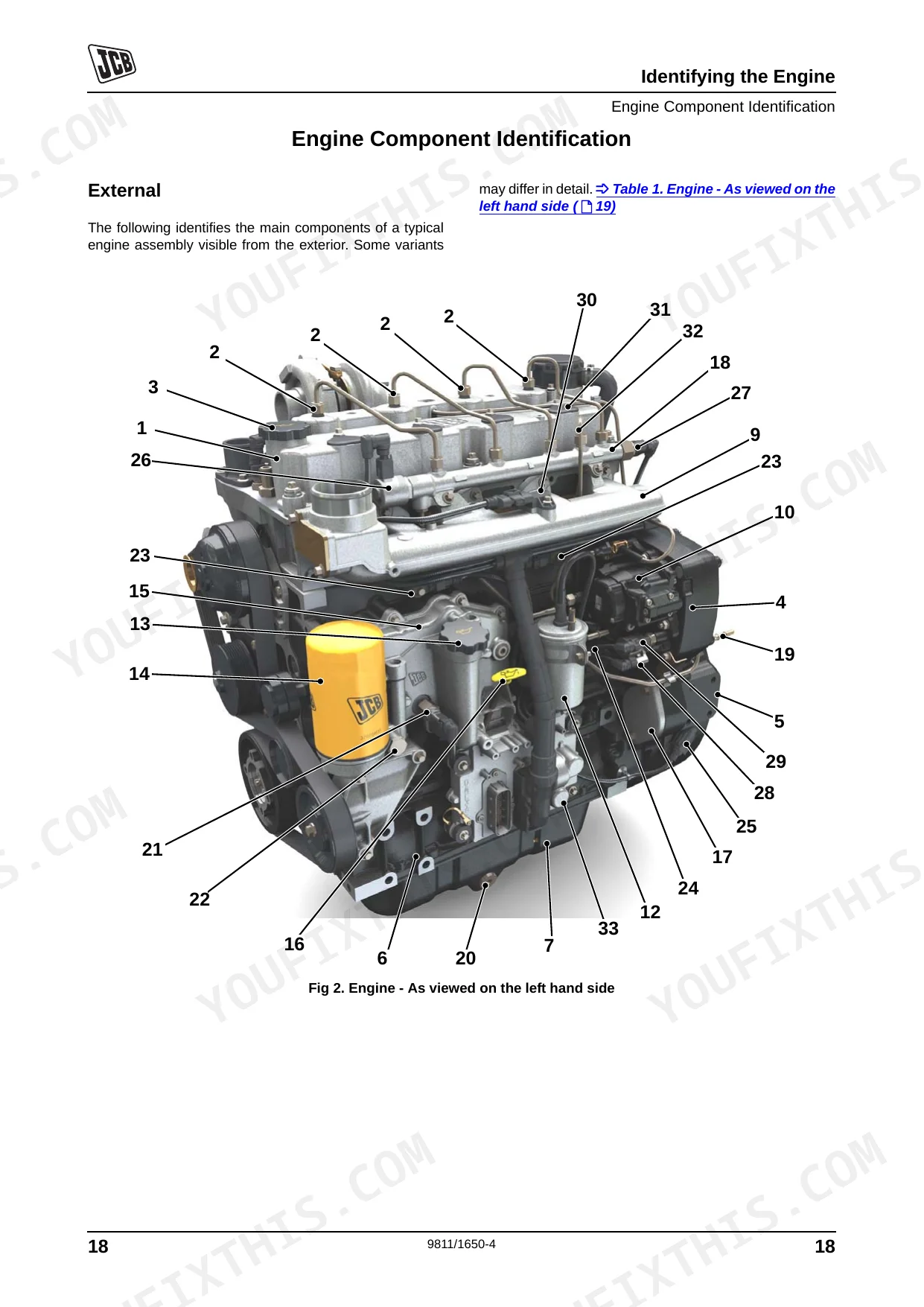

| Identifying the Engine | 23-30 | Engine Identification Plate, Typical Engine Identification Number, Component Labels, Engine Component Identification (External, Independent Power Unit Component Identification) |

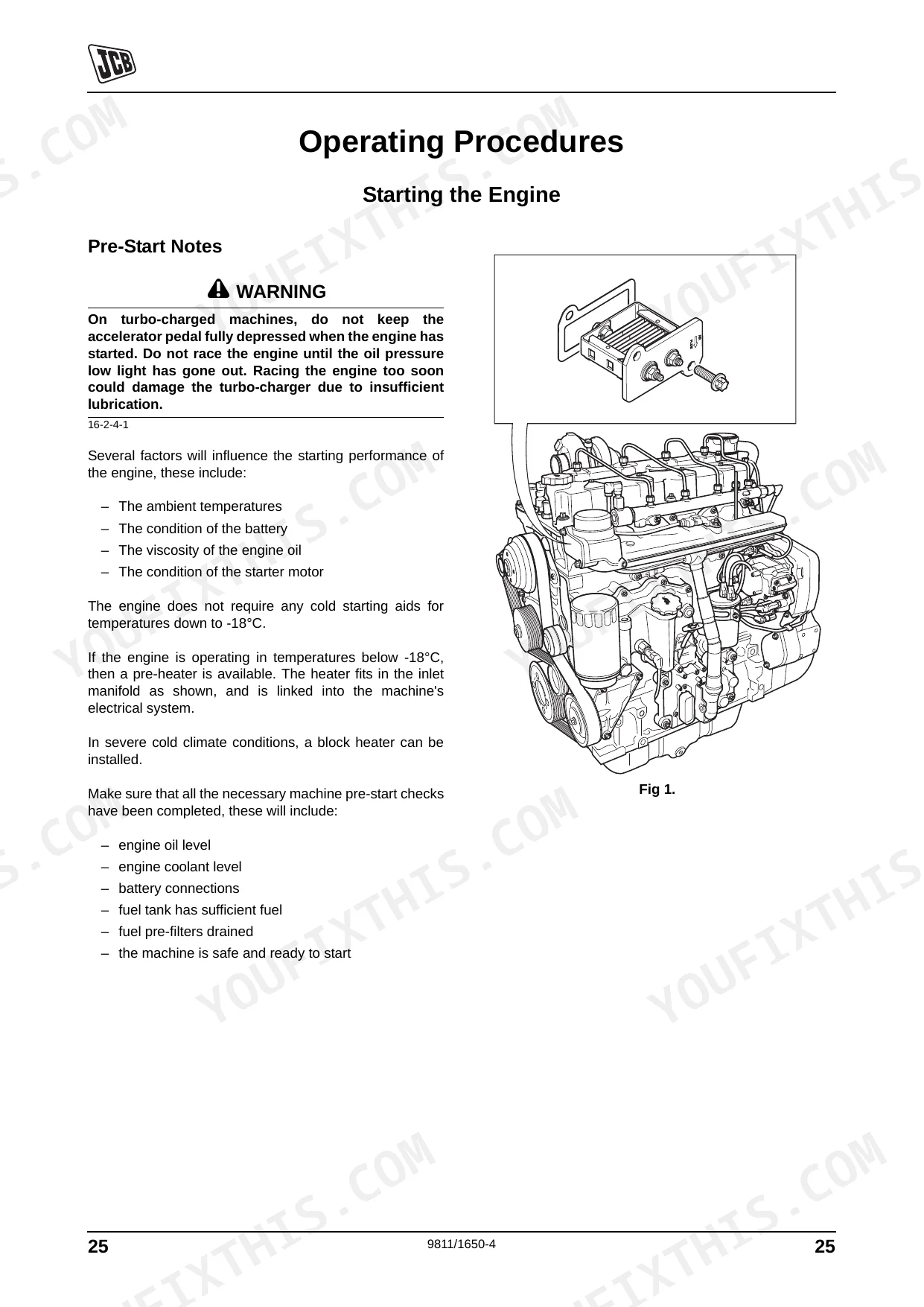

| Operating Procedures | 31-36 | Starting the Engine (Pre-Start Notes, Start Procedure, Engine Checks After Start-Up, Engine Running-In Procedure, Stopping the Engine) |
| Fluids, Lubricants and Capacities | 37-44 | Engine Lubricating Oil (Recommended Oils, Engine Oil Capacity), Coolant (Recommended Coolant, Mixtures), Fuel (Fuels) |

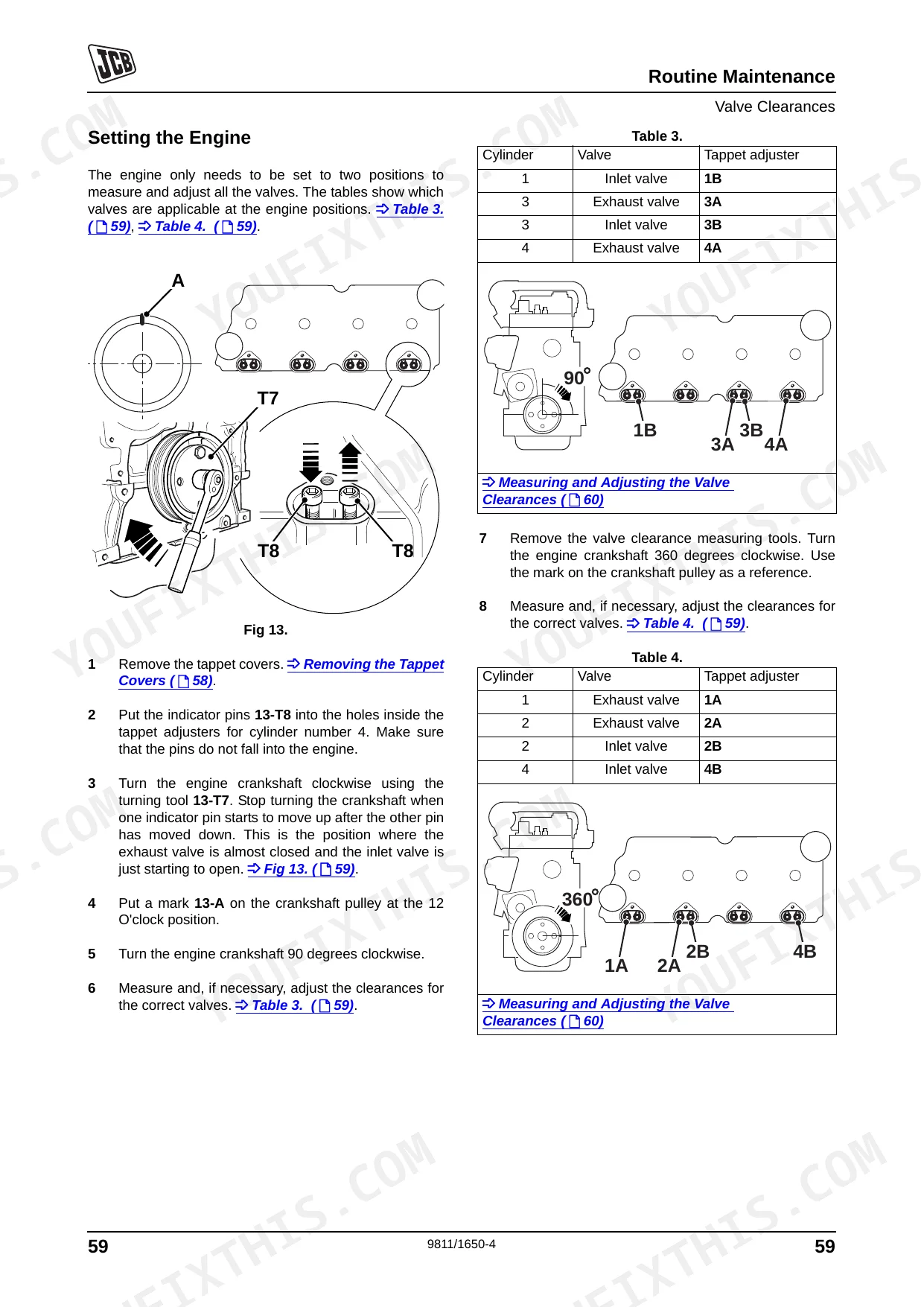

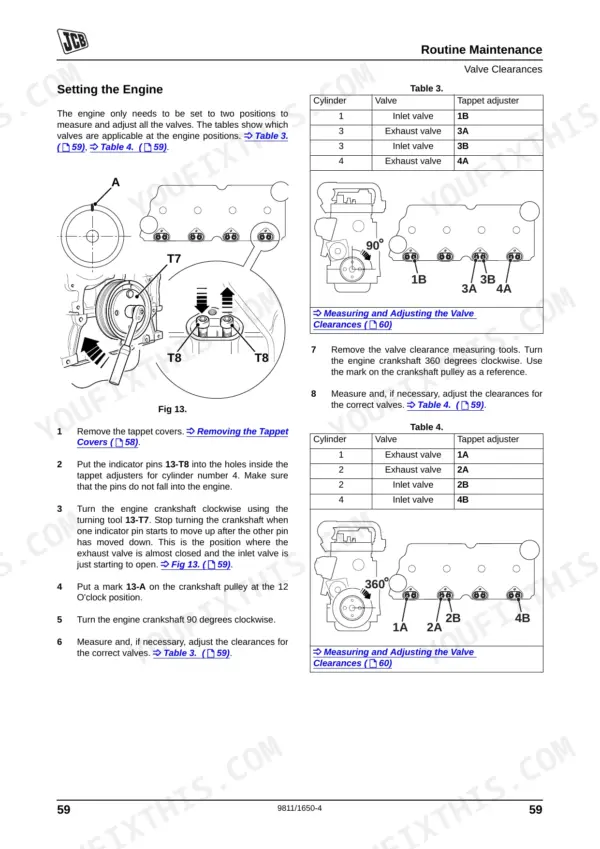

| Routine Maintenance | 45-68 | Introduction, Cleaning the Engine, Lubricants - Health and Safety (Hygiene, Storage, Waste Disposal, Handling, First Aid - Oil, Spillage, Fires), Service Schedules |
| Fault Finding | 69-98 | Introduction, Fault Codes, Limp Home Mode, Component Replacement, Fault Finding Charts, Electronic Fault Codes |
| Storage and Preservation | 99-102 | Storage, Preservation (Capping Engine Openings, Hot Test Description) |
| Technical Data and Specifications | 103-114 | Basic Engine Data - 444 Engine, Basic Engine Data - 448 Engine, Torque + Angle Explanation, Torque + Angle Tightening Procedure, Engine Torque Tightening Figures |
| JCB Service | 115-116 | Warranty, JCB Technical Service |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|

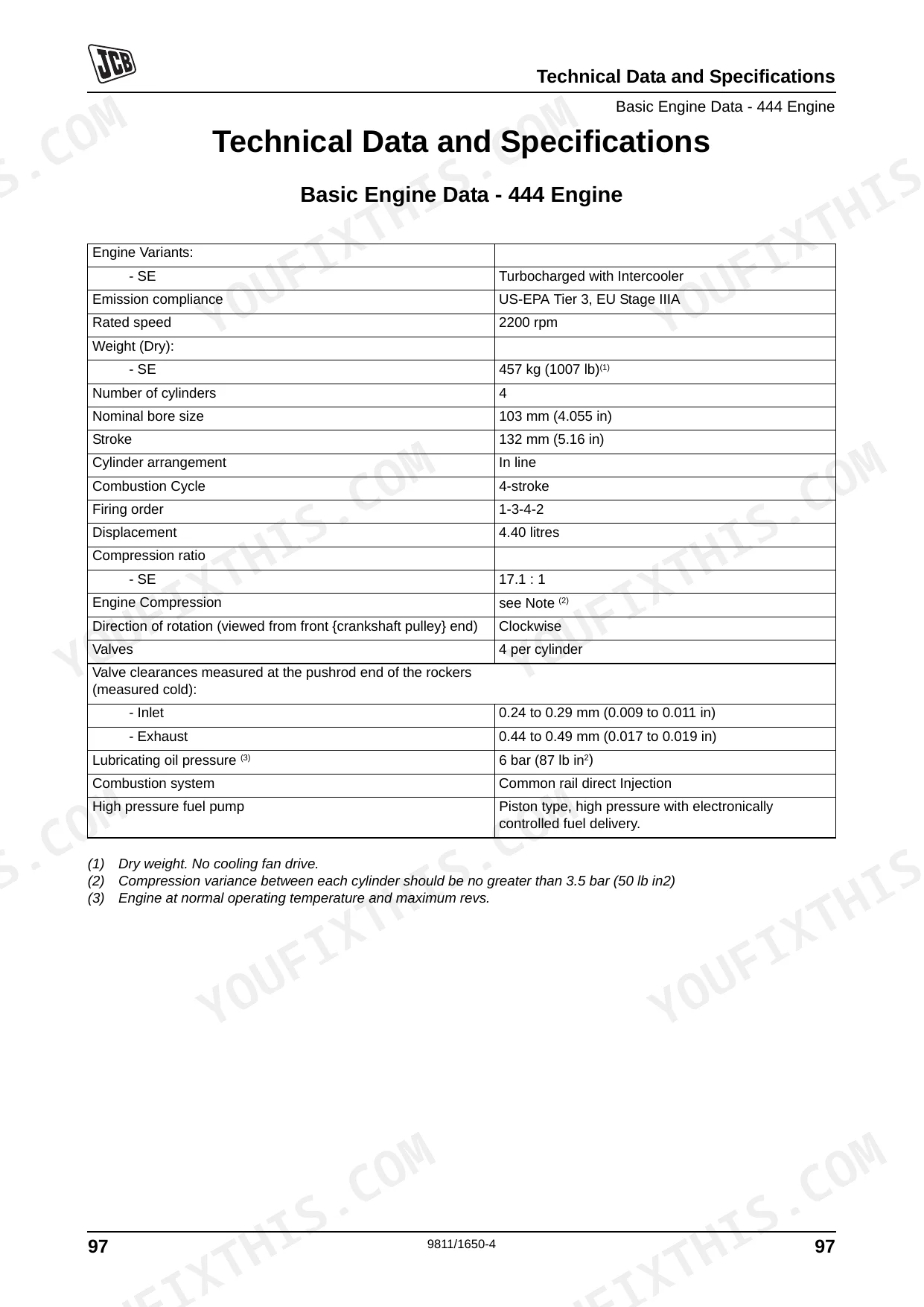

| Fuel Filter Retaining Strap Bolt Torque | 22-26 Nm (16-19 lbf ft) | p. 109 |
| Starter Motor Retaining Bolts Torque | 43-51 Nm (32-38 lbf ft) | p. 113 |
| Injector Change Interval | 2000 Hr | p. 50 |
| Air Cleaner Outer Element Change Interval | 500 Hr | p. 50 |
| Air Cleaner Inner Element Change Interval | 1000 Hr | p. 50 |
| Thermostat Housing Bolts Torque | 22-26 Nm (16-19 lbf ft) | p. 110 |
| Engine Oil Capacity (MIN) | 11.5 litres | p. 37 |
| Engine Oil Capacity (MAX) | 14 litres | p. 37 |
| Coolant Capacity (Independent Power Units) | 18.5 litres | p. 38 |
| Antifreeze Protection (Standard) | -40 °C | p. 39 |
| Engine Oil and Filter Change Interval | 500 hours | p. 49 |

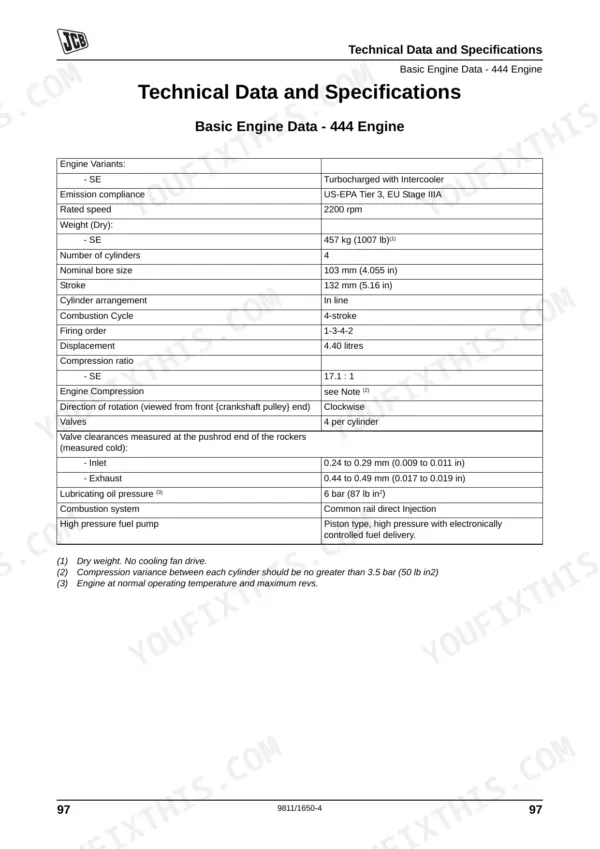

| 444 Engine Rated Speed | 2200 rpm | p. 103 |
JCB JCB DIESELMAX T3 SE ENGINE, 9811/1650 Common Problems This Manual Covers
JCB Dieselmax T3 SE engine cranks slowly or will not start in cold weather conditions p. 113
Inspect the battery connections and starter solenoid wiring. Check the starter motor retaining bolts and tighten them to 43-51 Nm (32-38 lbf ft) as specified on page 113. Verify the correct starting procedure is used for low temperatures before attempting to crank again.
Manual Section: Technical Data and SpecificationsTemperature gauge reads high and warning light flashes during heavy load operation p. 38
Check the independent power unit coolant capacity on page 38 and verify the system holds 18.5 litres. Inspect the radiator for blockages and ensure the antifreeze mixture provides protection down to -40 °C as shown on page 39. Examine the thermostat housing for leaks.
Manual Section: Fluids, Lubricants and CapacitiesEngine runs poorly and experiences a significant loss of power under load p. 109
Drain the fuel filter water separator to check for contamination. Replace the filter element and torque the retaining strap bolt to 22-26 Nm (16-19 lbf ft) according to page 109. Bleed the fuel system to remove any trapped air before restarting the equipment.
Manual Section: Technical Data and SpecificationsOil pressure warning indicator illuminates briefly on the dashboard after prolonged idle periods p. 37
Verify the engine oil level is between 11.5 and 14 litres as specified on page 37. Drain the oil and replace the filter if you have reached the 500 hours service interval listed on page 49. Torque the oil sump plug to 40-60 Nm.
Manual Section: Fluids, Lubricants and CapacitiesFrequently Asked Questions
What do JCB Dieselmax Tier 3 SE engine error codes mean?
The manual provides a table of electronic fault codes that can be sent by the engine ECU, which relate to faults from engine devices. For example, E001 means 'Engine ECU warning', E002 means 'Engine speed (crankshaft position) fault', and E076 means 'Injector solenoid valve fault, cylinder 1'. For a comprehensive list, refer to the 'Electronic Fault Codes' table.
What are the replacement specifications for Fuel filter / water separator?
The main fuel filter is rated at 2 micron (0.002 mm, 0.0007874 in). When replacing the filter element, the filter strap retaining screw 7-D should be torque tightened to 10 Nm (7.4 lbf ft). It is critical that the correct type of filter element is installed.
What are the replacement specifications for Starter motor?
When replacing the starter motor, the retaining bolts should be tightened to a torque of 43-51 Nm (32-38 lbf ft). If the starter motor is operating but not cranking, check for broken teeth on the ring gear or a broken starter motor spring.
How do you fix JCB Dieselmax T3 SE engine cranks slowly or will not start in cold weather conditions?
Inspect the battery connections and starter solenoid wiring. Check the starter motor retaining bolts and tighten them to 43-51 Nm (32-38 lbf ft) as specified on page 113. Verify the correct starting procedure is used for low temperatures before attempting to crank again.
What do I get after purchasing this JCB Dieselmax T3 SE Engine, 9811/1650?
A 116-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this JCB Dieselmax T3 SE Engine, 9811/1650 Operator Manual printable?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Document Quality
This document is a scanned PDF with an OCR layer, which means you can search and copy the full text content. The text is consistently crisp, clear, and easy to read across all pages. Diagrams and illustrations are present as raster images, but their quality is good, ensuring all labels and details are clearly visible. The pages are clean, free from scan artifacts, stains, or any significant skewing. You will find several pages marked as "Page left intentionally blank" throughout the document.
