Before you put your 1994-2005 JCB mini excavator to work, grab this 178-page JCB 8027Z, 8032Z operator manual pdf (OEM #9801/8850) to master every control and service schedule. Inside, you get complete dashboard indicator guides, safe lifting load charts, and detailed daily maintenance checklists. Open up the routine service section for a full breakdown of grease points, exact fluid capacities, and step-by-step procedures for cold climate warm-ups. Set your rubber track tension carefully between 70 mm and 90 mm, and always confirm the slew lock is in the UNLOCKED position before operating the main excavator controls. Guessing at daily maintenance intervals only leads to expensive downtime. Download this bookmarked digital file, load it directly onto your shop tablet or phone, and keep your machine digging efficiently.
What's Inside This JCB 8027Z, 8032Z Operator Manual
| System | Pages | Key Topics |
|---|---|---|

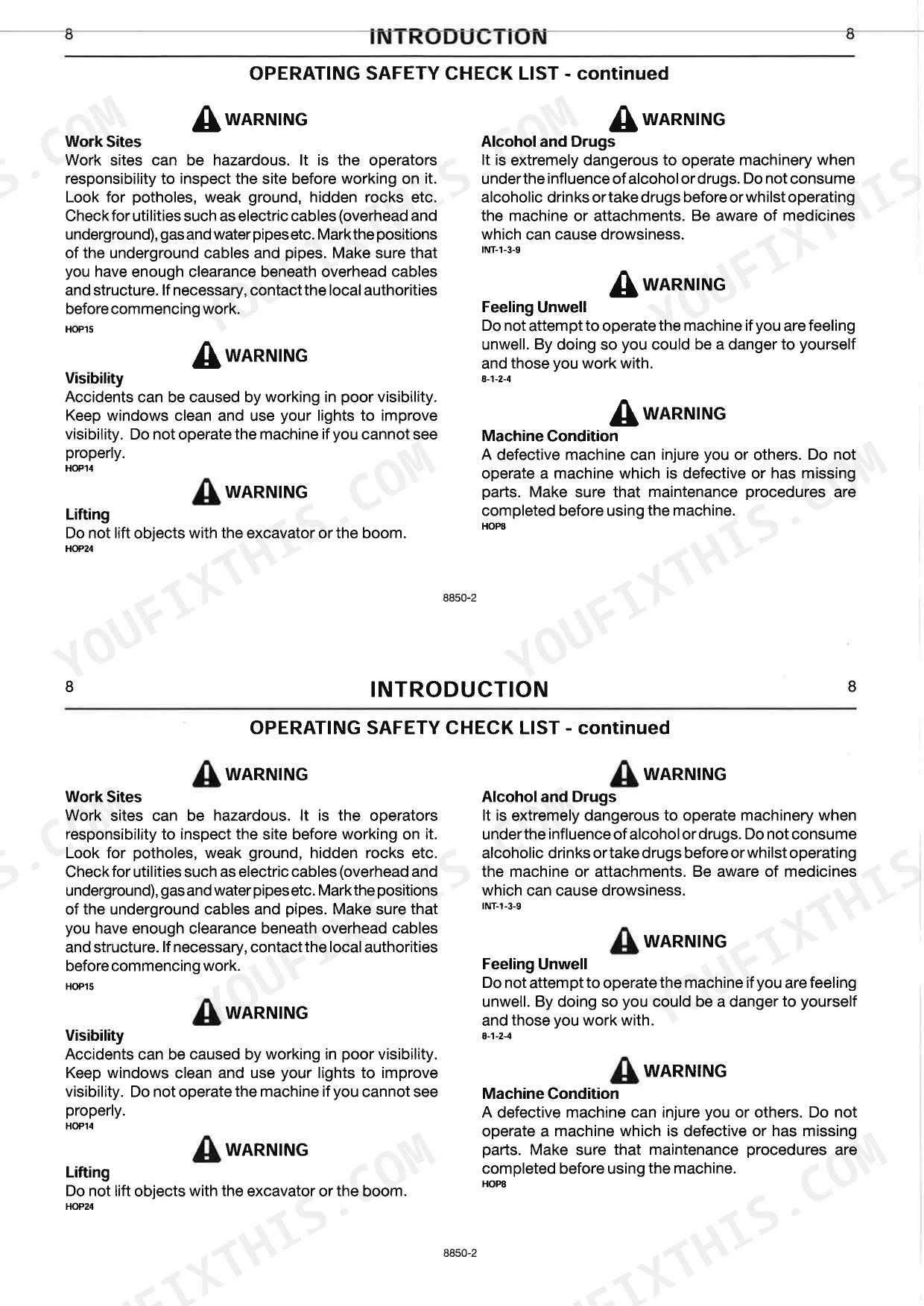

| Introduction | 6-24 | General Safety Check List |

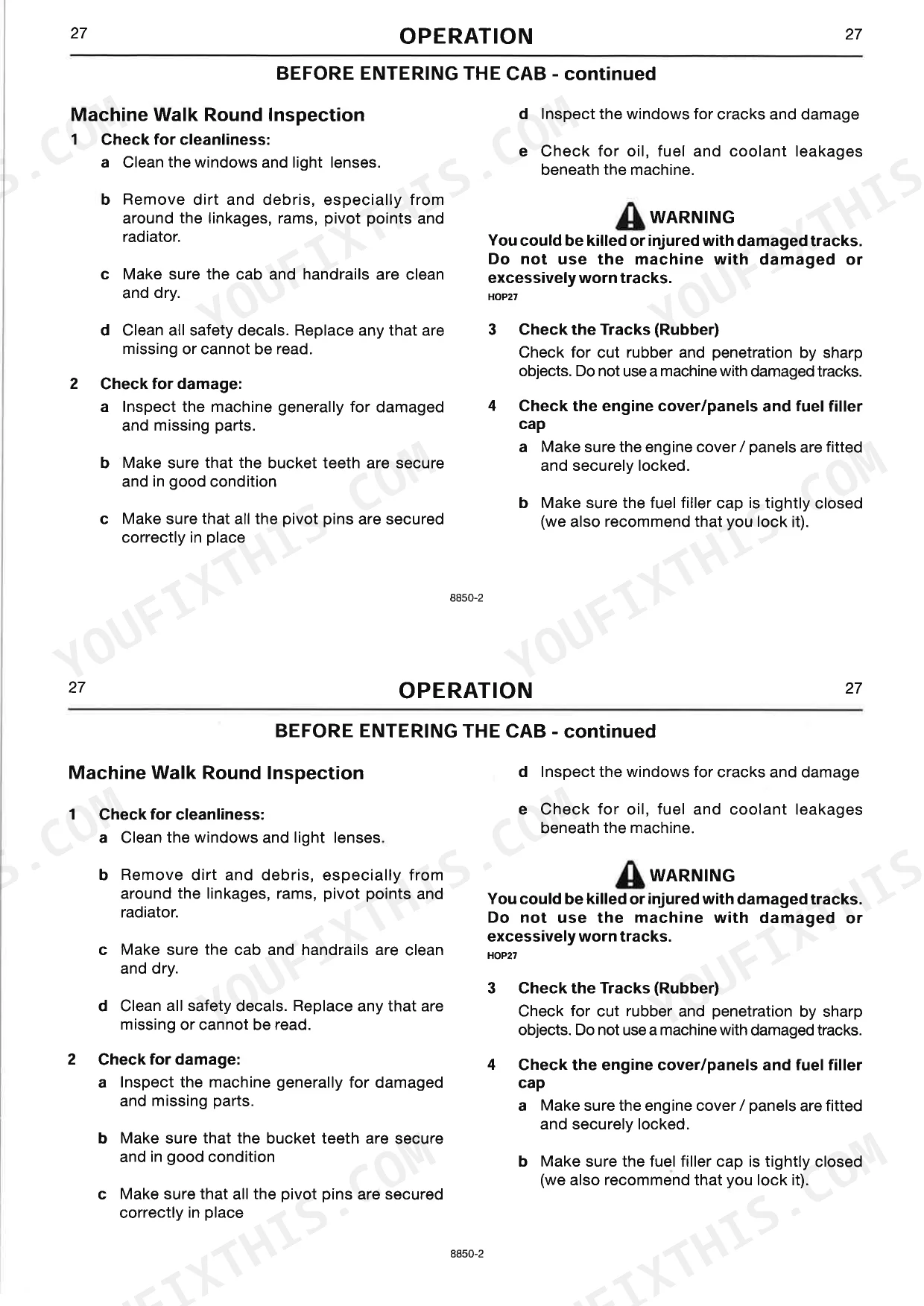

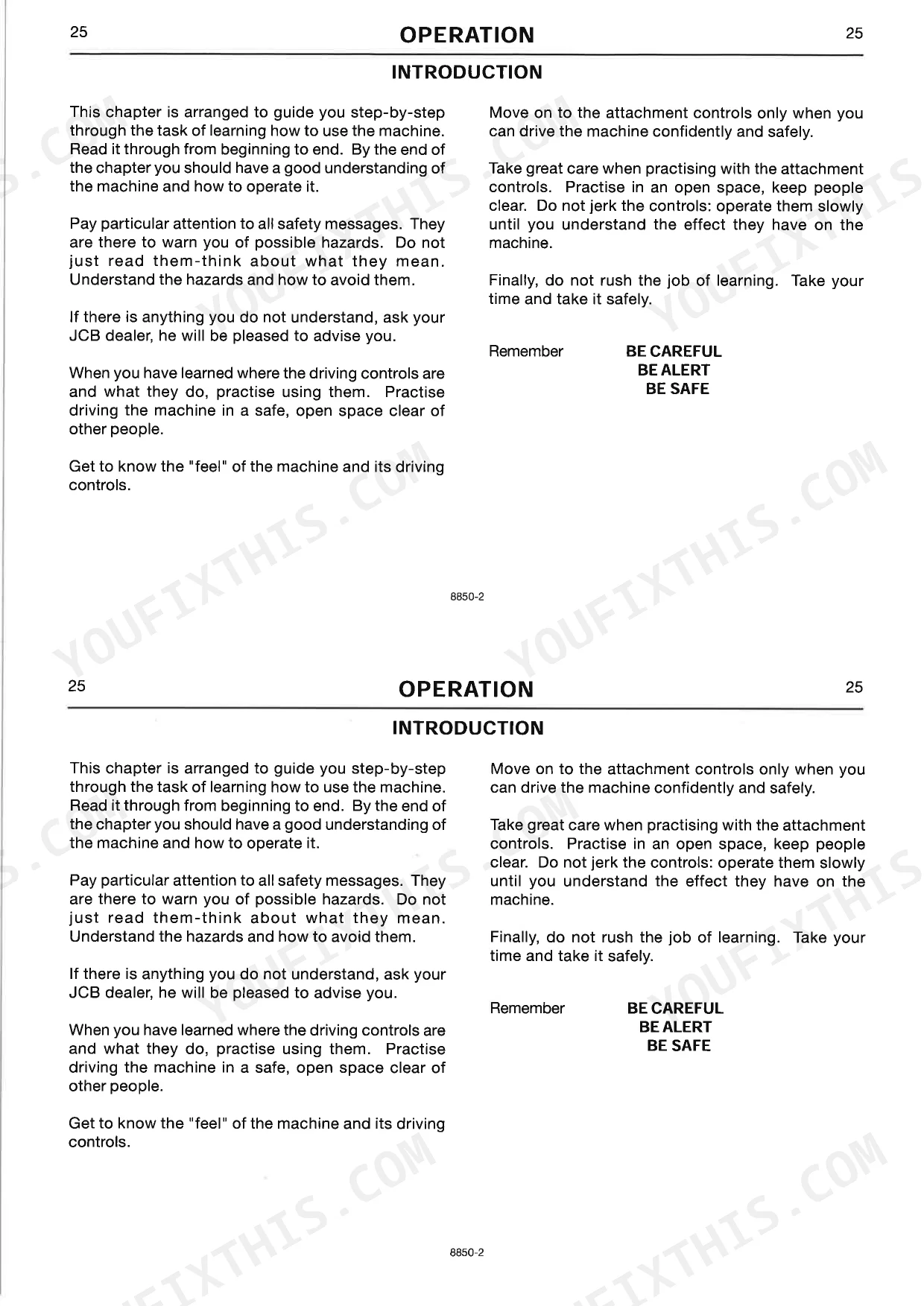

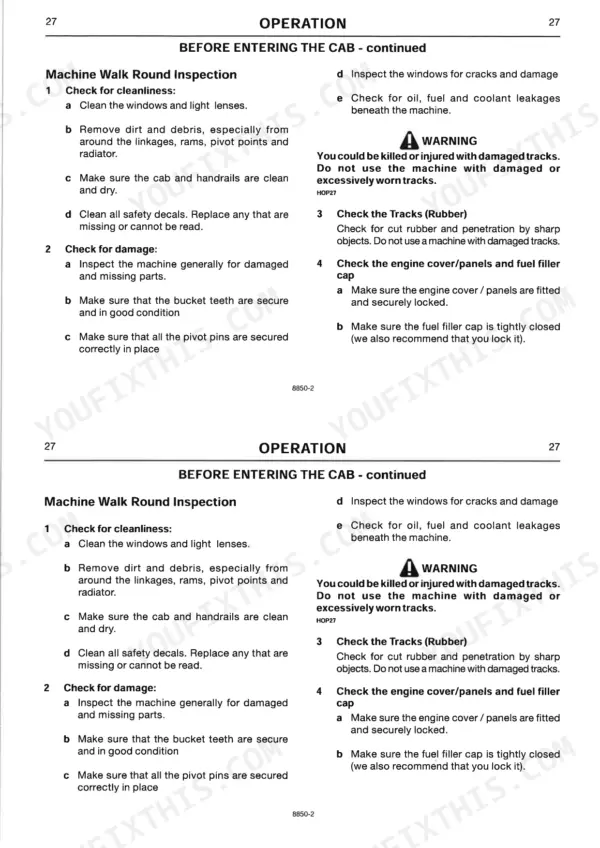

| Operation | 25-91 | Before Entering the Cab (Machine Walk Round Inspection), Entering/Exiting the Cab, Cab (Opening: and Closing the Door, The Windscreen, The Side Windows & Door Window) |
| Operation (Continued) | 92-124 | Lifting Regulations and Safe Working Loads |

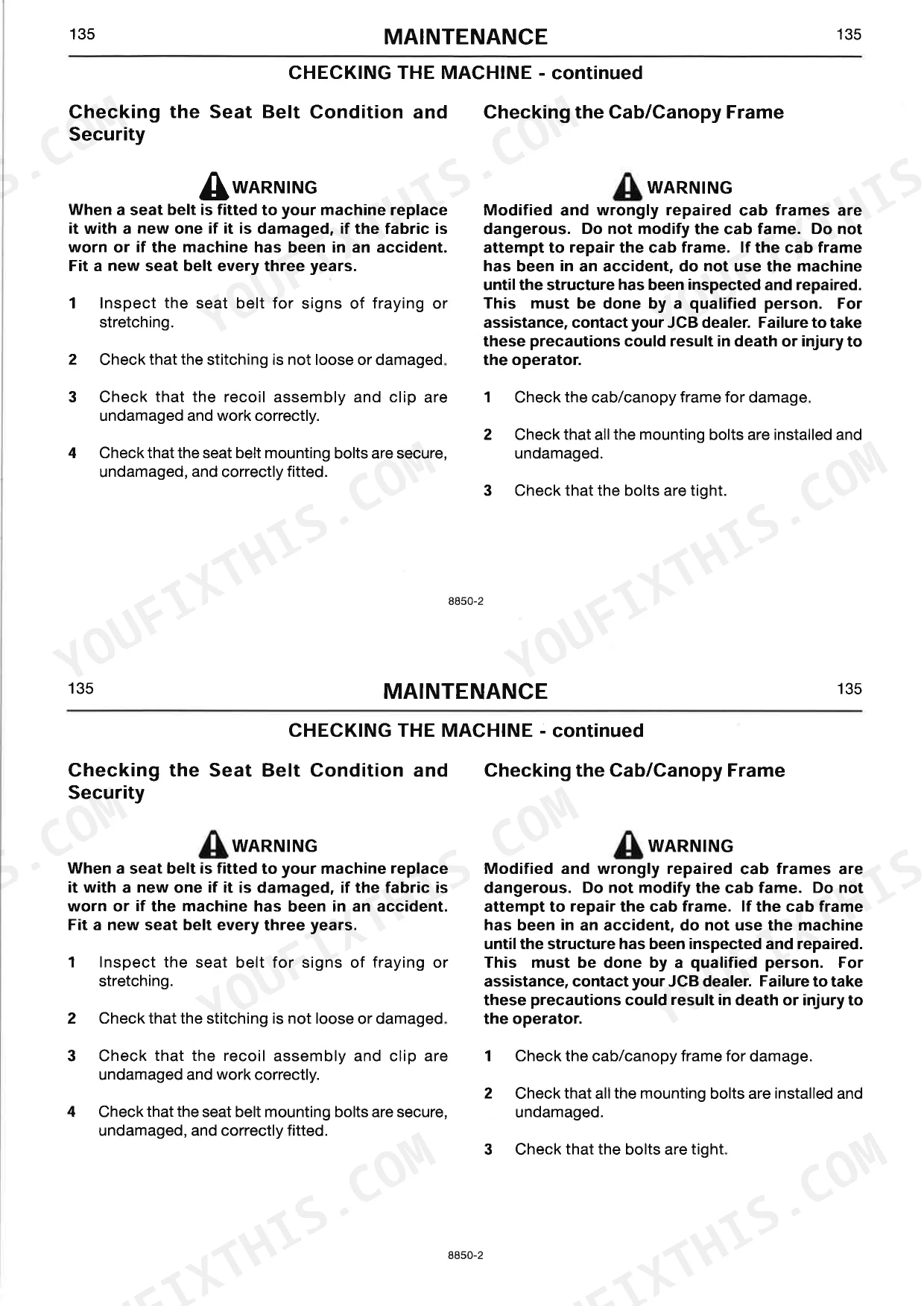

| Maintenance | 125-178 | Service Contracts, Lubricants - Health and Safety, Maintenance Safety Check List, Service Schedules |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Slew lock position for control operation | UNLOCKED | p. 52 |
JCB 8027Z, 8032Z Common Problems This Manual Covers
JCB 8027Z mini excavator control pod levers engaged but machine will not respond or move p. 52
Inspect the slew lock situated in the seat base. Verify it is set to UNLOCKED before operating the excavator controls, as shown on page 52. Check the hydraulic system capacity on page 177 and ensure the 70 Litres (15.4 UK Gal) tank is properly filled.
Manual Section: OperationUndercarriage popping noises and poor driving performance due to loose rubber tracks slipping off the idler p. 165
Measure the track tension using the procedure on page 165. Adjust the grease cylinder until the sag is between 70 mm (2.8 in.) and 90 mm (3.6 in.) for rubber tracks. For steel tracks, adjust tension to exactly 120 mm (4.8 in.) clearance.
Manual Section: MaintenanceEngine cranks continuously but will not start after repeated attempts following routine fuel filter replacement p. 159
Bleed the fuel system to remove trapped air following the instructions on page 159. Fill the tank up to the maximum 43.0 Litres (11.4 UK Gal) capacity noted on page 176. Prime the system manually until resistance is felt before attempting to crank the engine again.
Manual Section: Fuel System BleedingGrinding noises from the upper structure when rotating the cab during regular trenching operations p. 139
Lubricate the slew ring bearings immediately. Apply exactly 4 strokes of the grease gun to the fittings as detailed on page 139. Check the maintenance schedule on page 125 to ensure all daily grease points are being serviced before entering the cab for operation.
Manual Section: MaintenanceFrequently Asked Questions
How do you fix mini excavator control pod levers engaged but machine will not respond or move?
Inspect the slew lock situated in the seat base. Verify it is set to UNLOCKED before operating the excavator controls, as shown on page 52. Check the hydraulic system capacity on page 177 and ensure the 70 Litres (15.4 UK Gal) tank is properly filled.
How do you fix undercarriage popping noises and poor driving performance due to loose rubber tracks slipping off the idler?
Measure the track tension using the procedure on page 165. Adjust the grease cylinder until the sag is between 70 mm (2.8 in.) and 90 mm (3.6 in.) for rubber tracks. For steel tracks, adjust tension to exactly 120 mm (4.8 in.) clearance.
How do you fix engine cranks continuously but will not start after repeated attempts following routine fuel filter replacement?
Bleed the fuel system to remove trapped air following the instructions on page 159. Fill the tank up to the maximum 43.0 Litres (11.4 UK Gal) capacity noted on page 176. Prime the system manually until resistance is felt before attempting to crank the engine again.
How do you fix grinding noises from the upper structure when rotating the cab during regular trenching operations?
Lubricate the slew ring bearings immediately. Apply exactly 4 strokes of the grease gun to the fittings as detailed on page 139. Check the maintenance schedule on page 125 to ensure all daily grease points are being serviced before entering the cab for operation.
How quickly can I access this manual after buying?
You get a 210-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print specific sections of this Operator Manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Document Quality
This document is a native digital PDF, allowing you to search and copy text directly from its pages. The text quality is consistently crisp and clear, ensuring easy readability throughout. Diagrams and illustrations are sharp line drawings with readable labels, maintaining clarity even when zoomed in. Pages are clean with no scan artifacts, stains, or skewed content. Please note that there are several blank pages, some explicitly marked as "PAGE LEFT INTENTIONALLY BLANK," and others that are simply empty.
