Skip the guesswork on your heavy equipment with this 102-page JCB 456B Operator Manual PDF (OEM #9801/8210), built specifically for running and maintaining your wheeled loader. You get complete daily maintenance schedules, clear explanations of every dashboard warning light, and step-by-step startup procedures. Open to the fluid capacities and service intervals to keep your machine running cool under heavy loads. Lock down those wheel nuts at exactly 600 Nm (443 lbf ft) and tighten the hydraulic system filter element cover plate nut to a precise 7 Nm. Stop relying on faded cab decals to understand your controls. This bookmarked digital file opens instantly on your phone, so you can jump to the right spec and get straight to work.
What's Inside This JCB 456B Operator Manual
| System | Pages | Key Topics |
|---|---|---|

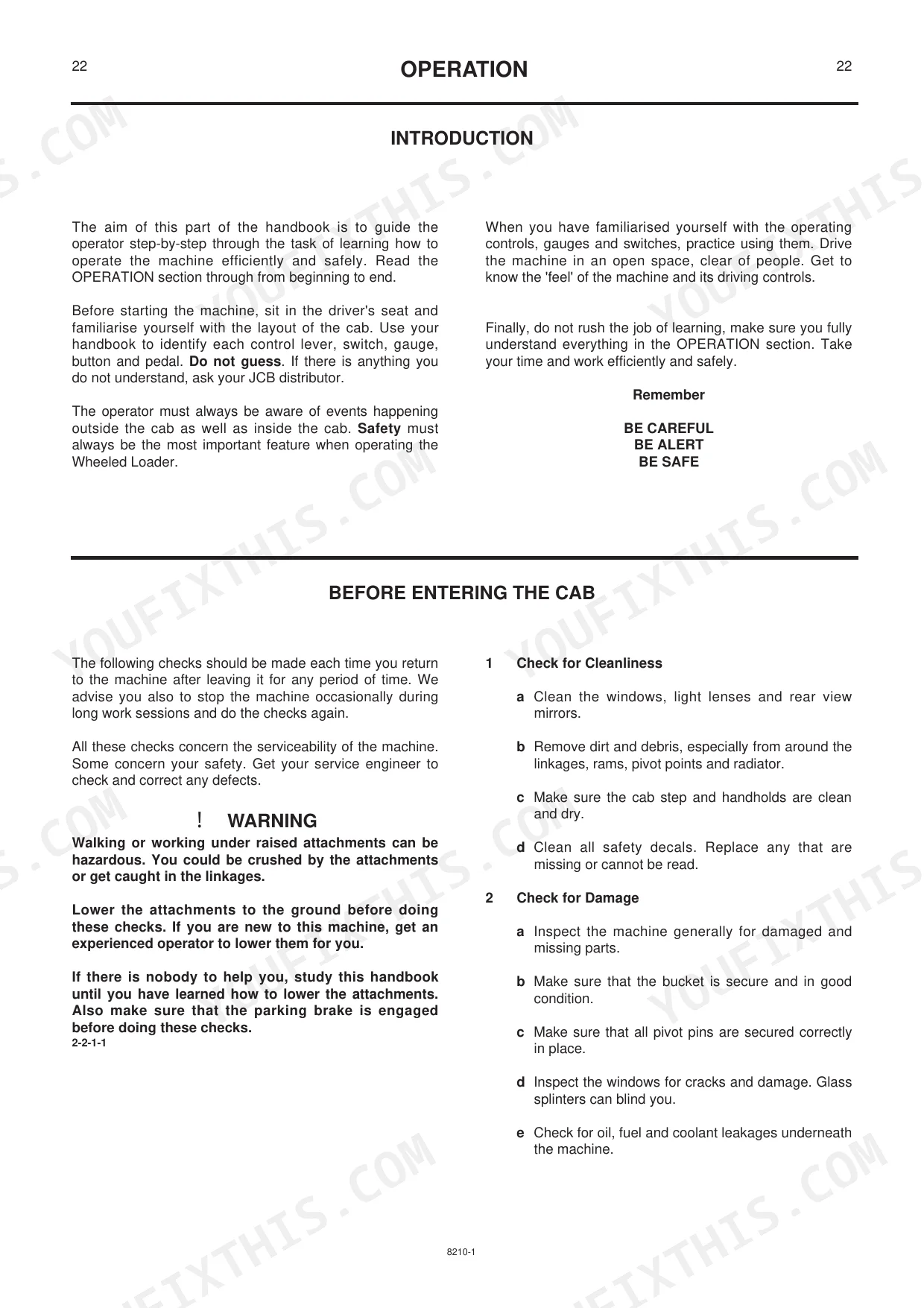

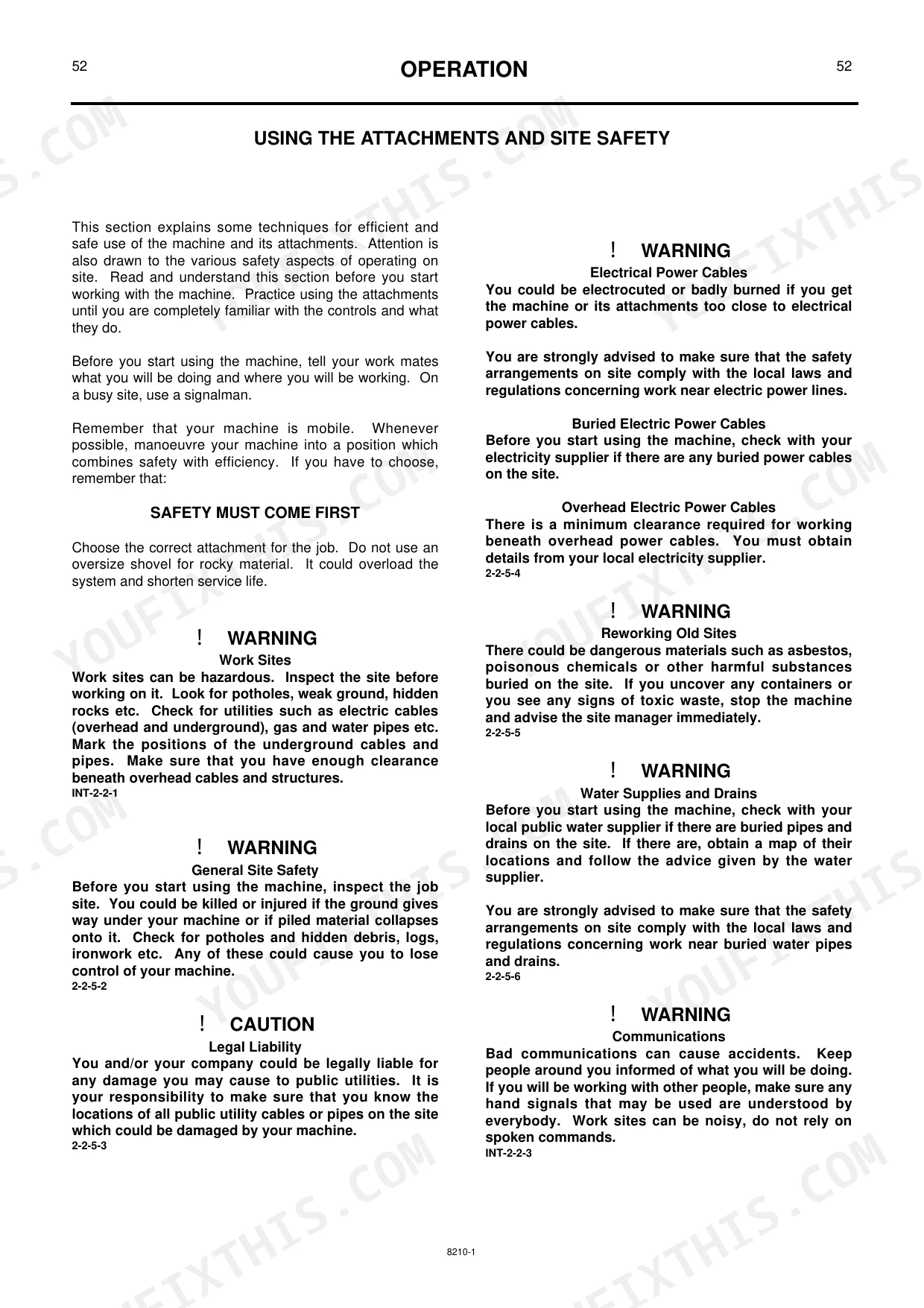

| Operation | 15-52 | Introduction, Before Entering the Cab, Entering/Leaving the Cab, Door and Windows (Opening and Closing the Door, Opening and Closing the Side Windows, Emergency Exit) |

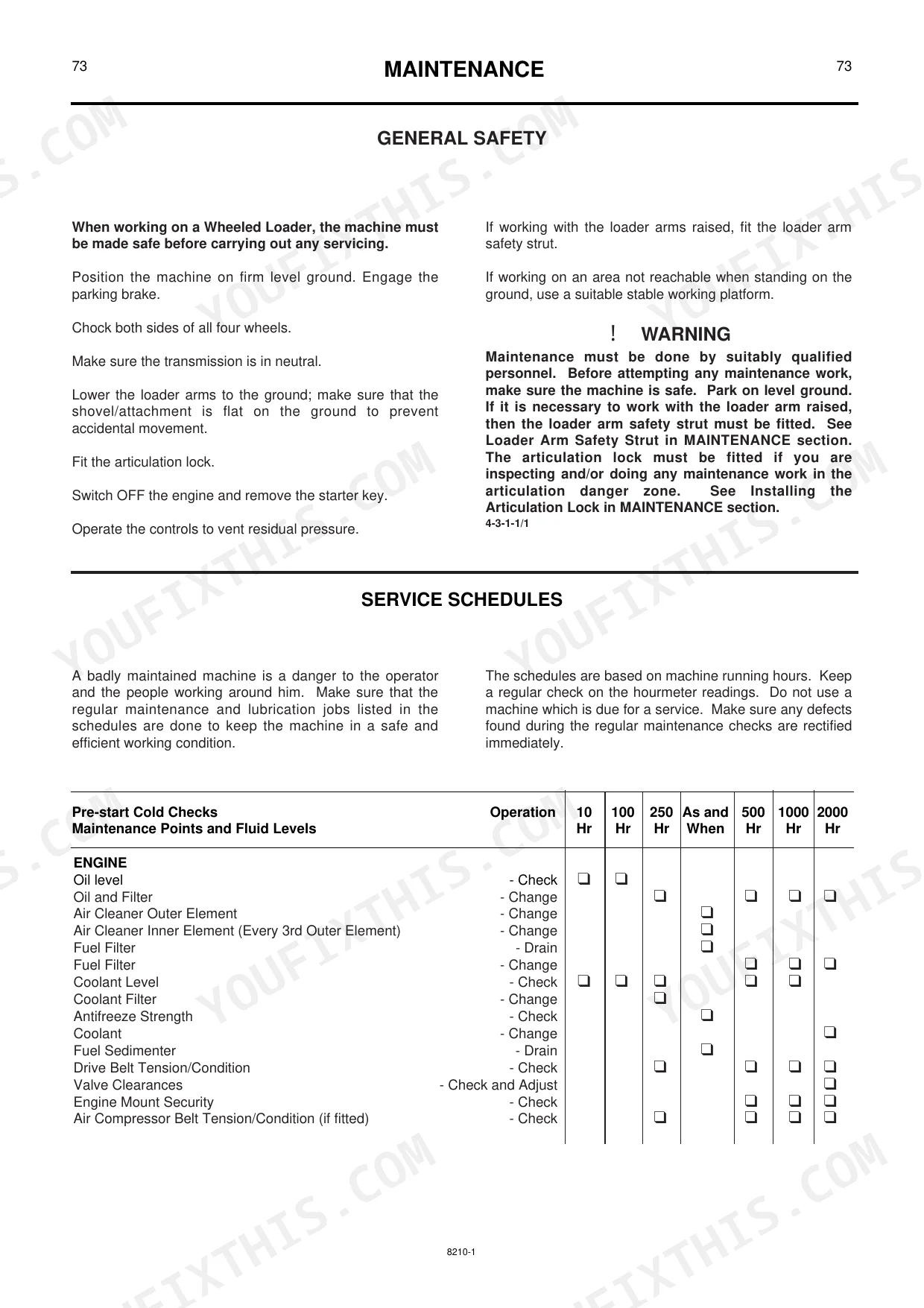

| Maintenance | 53-90 | Lubricants - Health and Safety, Service Requirements, General Safety, Articulation Lock, Loader Arm Safety Strut, ROPS/FOPS Structure, Engine Covers, Greasing |
| Optional Attachments | 91-92 | Introduction |

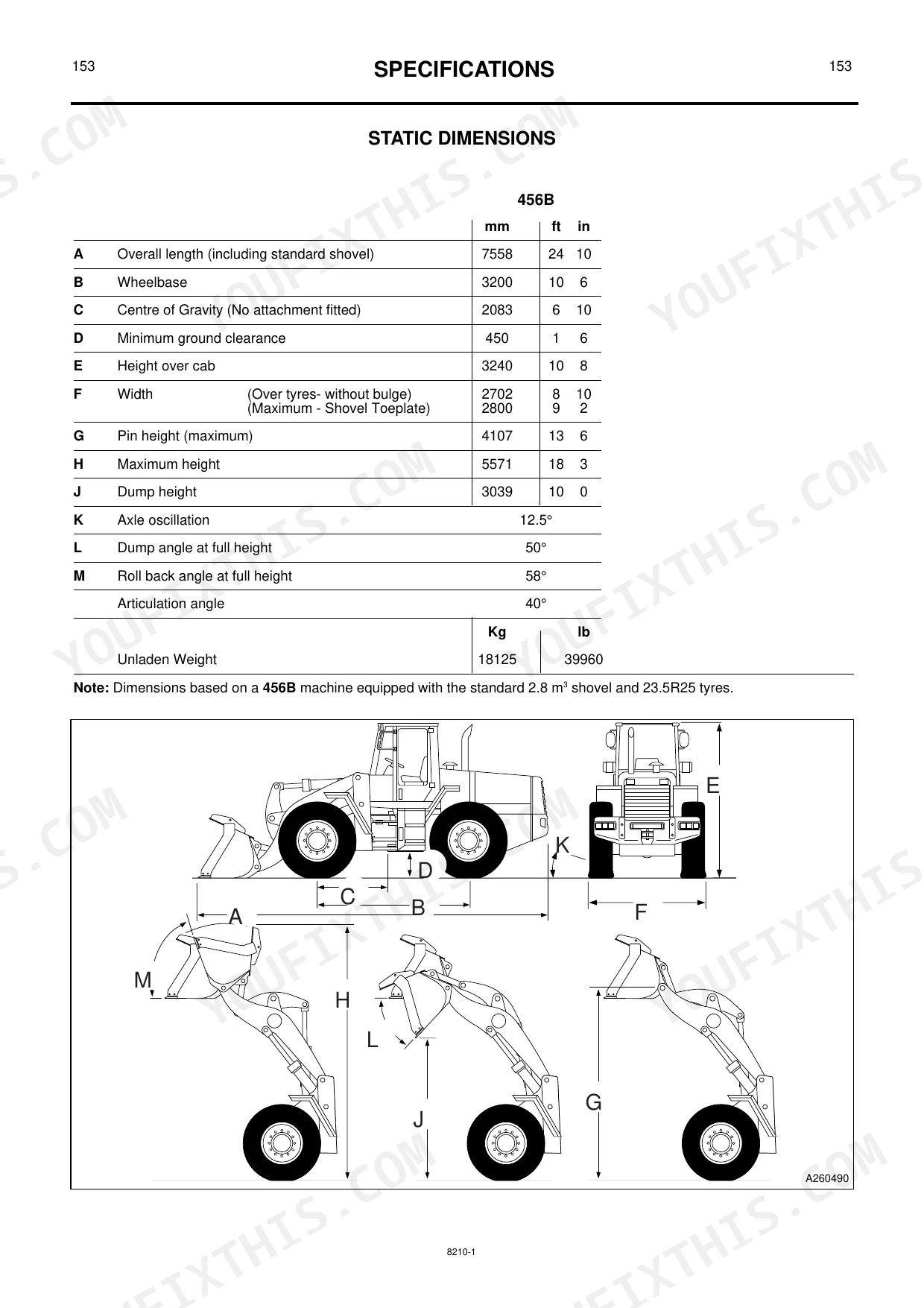

| Specification | 93-96 | Lifting (Craning) Regulations and Safe Working Loads, Working Capacity, Static Dimensions, Noise and Vibration Data |
| Service Record Sheet | 97-100 | Distributor Preparation /P.D.I., First 100 Hr./2 Weeks, 500 Hr./3Month, 1000 Hr./6 Month, 2000 Hr./12 Month Annual Insurance Inspection |
| Warranty | 101-102 | Manufacturer's Liability, Failures, Defects or Damage, Defective Parts Return, Registration Card Completion, 100 Hour Service, Genuine Parts Usage |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Wheel Nut Torque | 600 Nm 443 lbf ft | p. 88 |
| Hydraulic Hoses Inspection Criteria | Damaged end fittings, Chafed outer covers, Ballooned outer covers, Kinked or crushed hoses, Embedded armouring in outer covers, Displaced end fittings | p. 12 |
| Hydraulic System Filter Element Cover Plate Nut Torque | 7 Nm (5 lbf ft) | p. 82 |
| Hazard Warning Lights and Direction Indicators Fuse Rating | 5 Amps | p. 86 |
| Front Work Lights Fuse Rating | 15 Amps | p. 86 |
| Cab Heater/Recirculation Filter Replacement | Renew the filter if damaged | p. 65 |
| Lamp Lenses Condition | Check all lamp lenses for damage | p. 64 |
| Rear View Mirror Adjustment | Set to give a good view close behind the machine | p. 37 |
| Shovel Teeth Condition | Check all shovel teeth for damage and security | p. 64 |
| Servo Pressure Gauge Range | 0-40 bar (0-600 lbf/in2) | p. 83 |
| Engine Oil Capacity | 18.9 litres | p. 89 |
| Gearbox Capacity | 28.0 litres | p. 89 |
JCB 456B Common Problems This Manual Covers
JCB 456B Wheeled Loader hydraulic functions operate poorly or not at all immediately after morning startup p. 83
Inspect the hydraulic hoses for chafed outer covers or kinked lines as detailed on page 12. Connect a test gauge and verify servo pressure reads within the 0-40 bar (0-600 lbf/in2) range shown on page 83. Top up the 215-litre hydraulic system if the fluid level is low.
Manual Section: Hydraulic Servo Filter Element ChangeMachine steering feels heavy and front tires show excessive or uneven wear along the outer tread blocks p. 94
Check the front tires and inflate them to the specified 3.0 Bar pressure shown on page 94. Inspect all wheel studs for damage and tighten the wheel nuts to 600 Nm as directed on page 88. Verify the loader arm safety strut is completely disengaged before testing.
Manual Section: MaintenanceFront work lights fail to turn on and hazard warning indicators flash intermittently or stop working entirely p. 86
Inspect the cab fuse panel on page 86 for blown circuits. Replace the hazard warning lights fuse with a new 5 Amps fuse. Install a 15 Amps fuse for the front work lights. Check all lamp lenses for physical damage as outlined on page 64 before testing the switch.
Manual Section: Electrical System FusesAirflow from the cab vents is extremely weak and the interior fills with dust during operation p. 65
Remove the cab heater and recirculation filter to inspect for heavy dust accumulation. Renew the filter if damaged as instructed on page 65. If the blower fails to run, check the fuse panel on page 86 and replace the blown heater blower circuit with a 20 Amps fuse.
Manual Section: MaintenanceFrequently Asked Questions
What do JCB 456B error codes mean?
The JCB 456B display panel shows various warning messages to indicate faults. For example, "BATTERY LOW" indicates low battery voltage, "ENG OIL PRESS" signifies low engine oil pressure, and "HYD OIL TEMP" warns of high hydraulic fluid temperature. These messages are displayed on the top line of the display panel, often accompanied by a buzzer and a master warning light to draw attention to the fault. For a complete list of warnings and their meanings, refer to page 30 of the manual.
How do you fix JCB 456B Wheeled Loader hydraulic functions operate poorly or not at all immediately after morning startup?
Inspect the hydraulic hoses for chafed outer covers or kinked lines as detailed on page 12. Connect a test gauge and verify servo pressure reads within the 0-40 bar (0-600 lbf/in2) range shown on page 83. Top up the 215-litre hydraulic system if the fluid level is low.
How do you fix machine steering feels heavy and front tires show excessive or uneven wear along the outer tread blocks?
Check the front tires and inflate them to the specified 3.0 Bar pressure shown on page 94. Inspect all wheel studs for damage and tighten the wheel nuts to 600 Nm as directed on page 88. Verify the loader arm safety strut is completely disengaged before testing.
How do you fix front work lights fail to turn on and hazard warning indicators flash intermittently or stop working entirely?
Inspect the cab fuse panel on page 86 for blown circuits. Replace the hazard warning lights fuse with a new 5 Amps fuse. Install a 15 Amps fuse for the front work lights. Check all lamp lenses for physical damage as outlined on page 64 before testing the switch.
What do I get after purchasing this JCB 456B manual?
A 102-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Document Quality
This document is a scanned PDF with an accurate OCR layer, allowing you to search and copy the full text content. The text throughout the handbook is crisp and consistently easy to read. Diagrams and illustrations are clear raster images, and their labels are readable, though they are not vector. Pages are generally clean with no significant scan artifacts, stains, or skewed content. There are a few blank pages and some pages with minimal content, such as the blank page 2 and the barcode page at the end.
