Looking for the exact teardown and rebuild procedures for your excavator? This 485-page JCB 8085 Service Manual PDF (OEM #9803/9990-1) breaks down the complete hydraulics, electrics, and track assemblies for the JCB 8085. You get high-quality wiring diagrams to trace stubborn electrical faults, plus full hydraulic circuit schematics showing every valve and pump connection. Open the file to find detailed exploded views of the undercarriage, routine maintenance schedules, and step-by-step troubleshooting charts. Dial in your hydraulic performance by setting the Main Relief Valve pressure to exactly 300 bar, and torque the track motor mounting bolts to 267-312 Nm. Stop wasting shop hours hunting for the right specifications. Grab this bookmarked download, pull it up on your tablet right next to the machine, and get your equipment back in the dirt.
What's Inside This JCB 8085, JCB 8085 Manual
| System | Pages | Key Topics |
|---|---|---|

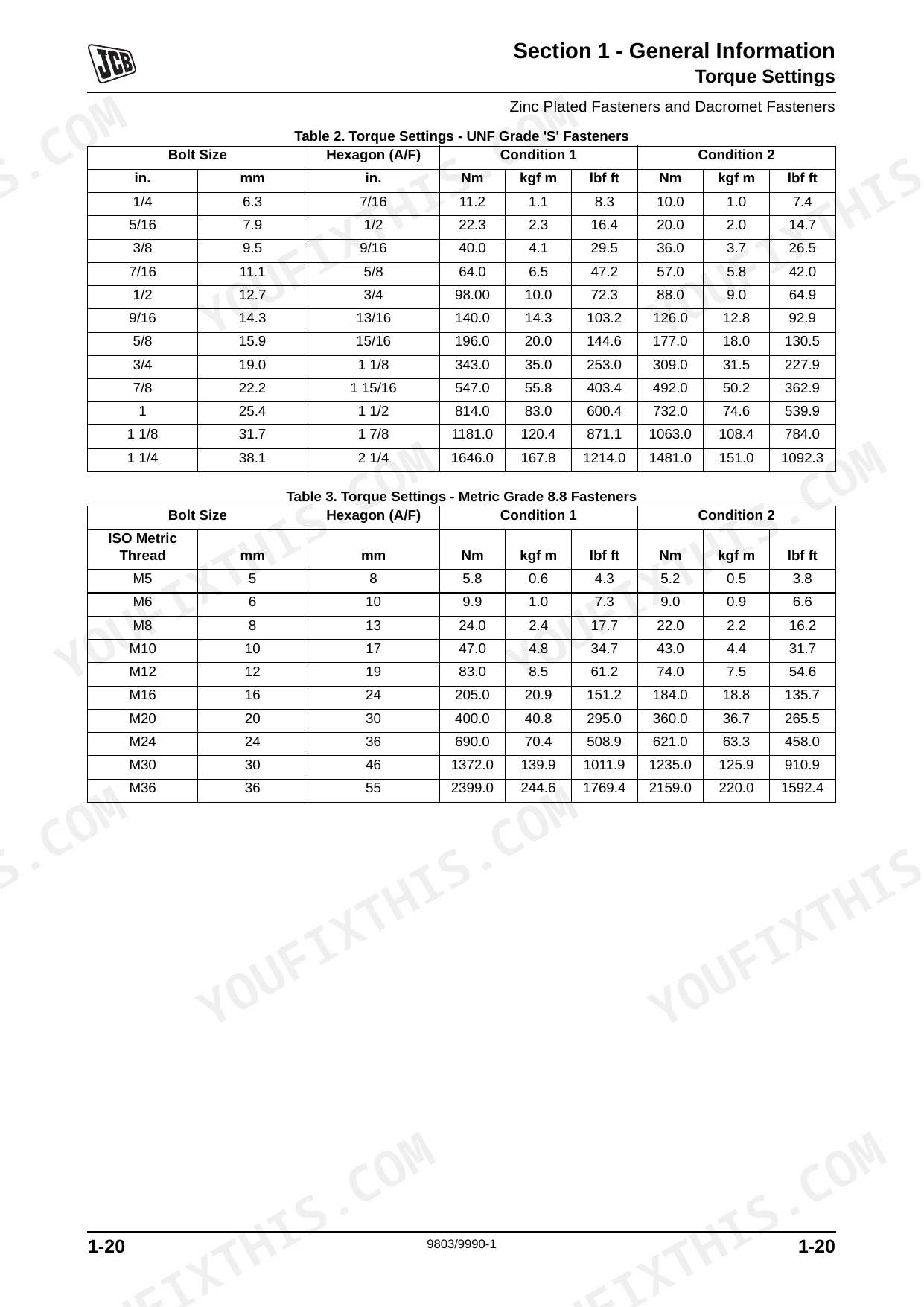

| General Information | 1-35 | Introduction, Machine Identification, Service Tools, Torque Settings, Service Consumables, Terms and Definitions |
| Care & Safety | 36-53 | Service Manual - JCB 8085, Section 1 - General Information, Section 2 - Care & Safety, Section 3 - Routine Maintenance, Section A - Attachments, Section B - Body & Framework, Section C - Electrics, Section E - Hydraulics |
| Routine Maintenance | 54-107 | Health and Safety, Service Schedules, Fluids, Lubricants and Capacities, Cleaning the Machine, Checking for Damage, Seat Belt, Checking the ROPS/FOPS Structure |

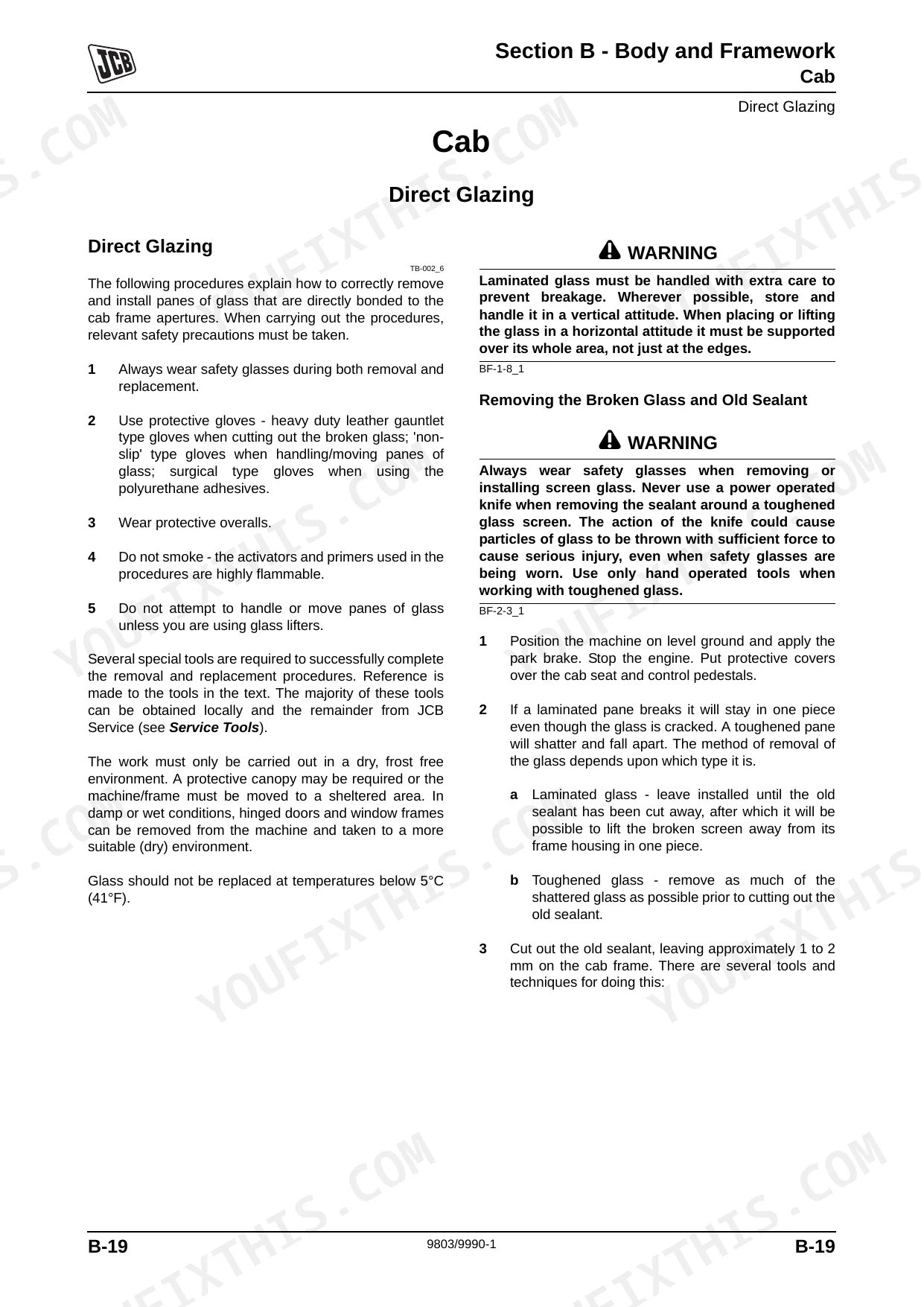

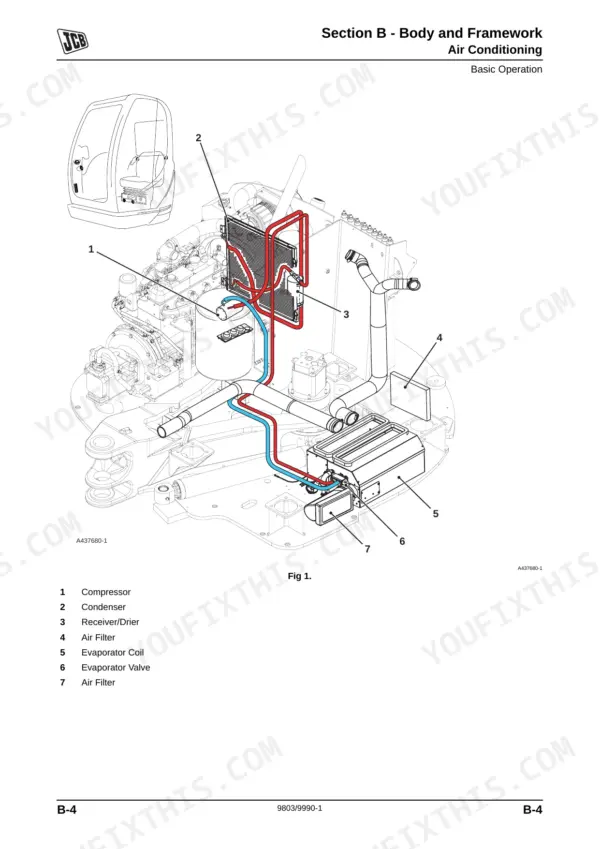

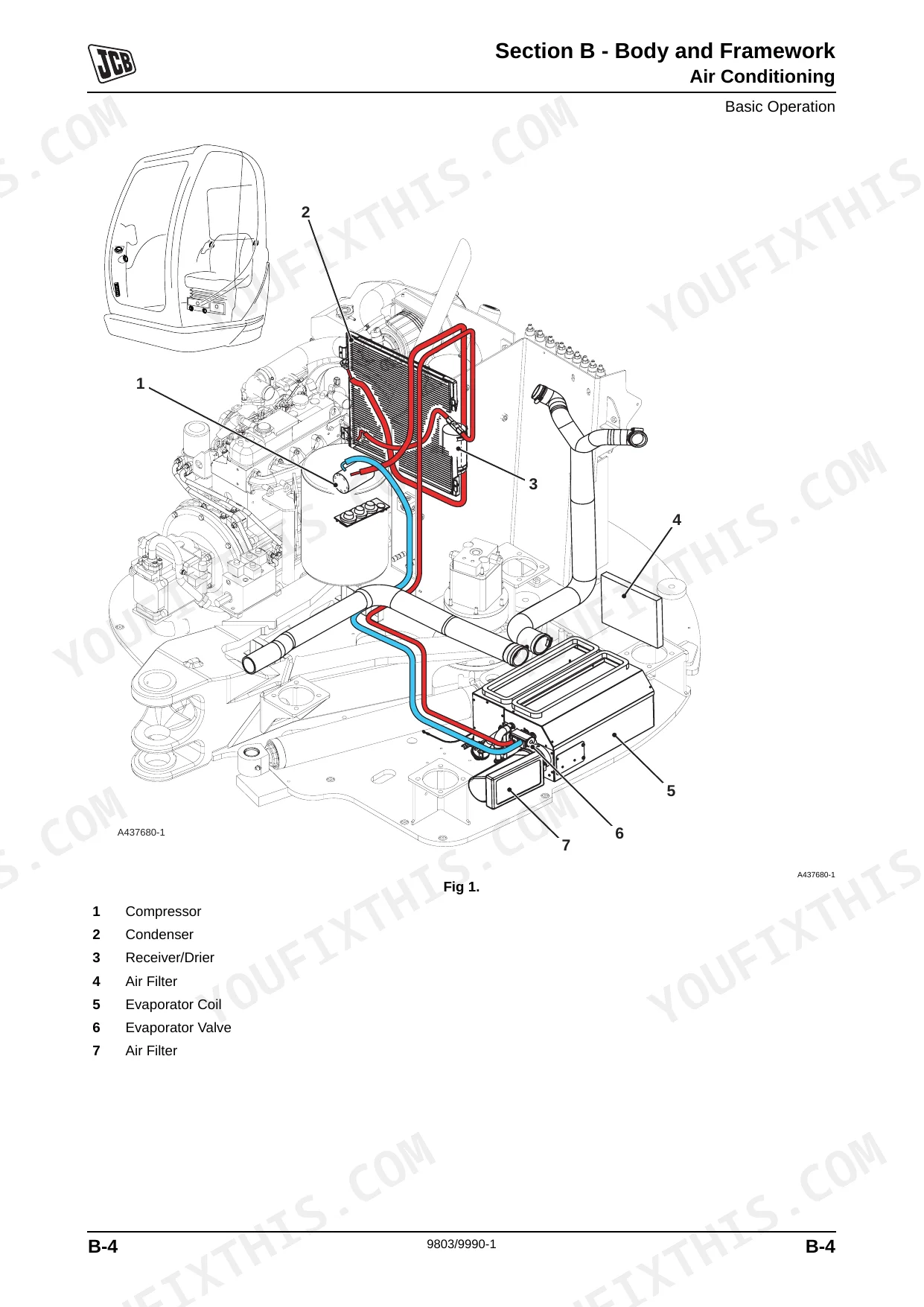

| Body & Framework | 108-149 | Technical Data, Air Conditioning (Basic Operation, Safety Procedures, Inspection, Fault Finding, Service Procedures), Cab (Direct Glazing) |
| Electrics | 150-319 | Technical Data (Fuses and Relays), Basic System Operation (Switches and Controls), Schematic Diagrams (Component Identification) |
| Hydraulics | 320-427 | Technical Data (Description and General Data), Service Procedures (Hydraulic Contamination, Cleaning Operation) |
| Transmission | 428-441 | Service Manual - JCB 8085, Section 1 - General Information, Section 2 - Care & Safety, Section 3 - Routine Maintenance, Section A - Attachments, Section B - Body & Framework, Section C - Electrics, Section E - Hydraulics |
| Tracks | 442-479 | Technical Data, Idler Wheel and Recoil Unit, Grease Cylinder, Drive Sprocket, Top Roller, Bottom Roller |
| Engine | 480-485 | Service Manual - JCB 8085, Section 1 - General Information, Section 2 - Care & Safety, Section 3 - Routine Maintenance, Section A - Attachments, Section B - Body & Framework, Section C - Electrics, Section E - Hydraulics |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Main Relief Valve (MRV) Pressure | 300 bar (4350 lbf/in2) | p. 349 |
| Servo Relief Pressure | 35 bar (508 lbf/in2) | p. 351 |
| Track motor mounting bolts torque | 267-312 Nm (196-229 lbf ft) | p. 438 |
| Engine oil filter replacement interval | Change at 500 hours | p. 61 |
| Engine oil filter installation torque | hand-tight, then turn another 90 degrees | p. 84 |
| Fuel filter element replacement interval | Change at 500 hours | p. 61 |
| Fuel pre-filter/sedimenter drain and clean interval | Drain and Clean at 50 hours | p. 61 |
| Fuel pre-filter/sedimenter-filter replacement interval | Change at 500 hours | p. 61 |
| Fan belt deflection | approximately 7 mm (0.28 in.) | p. 88 |

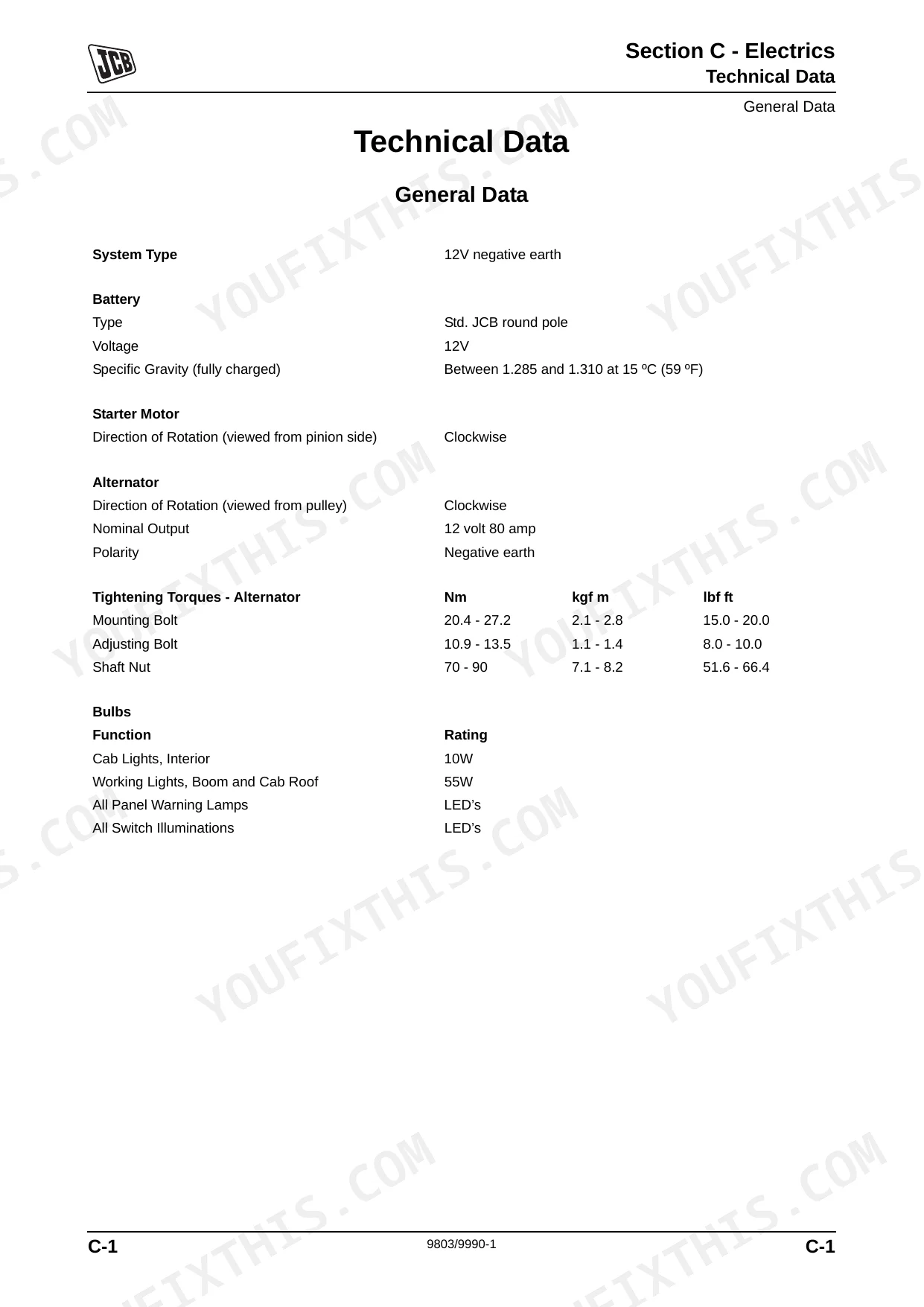

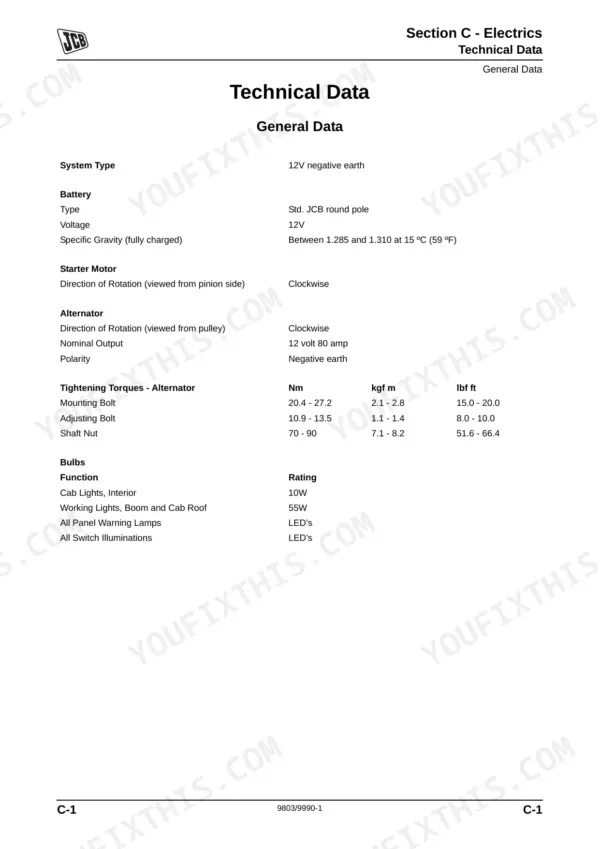

| Alternator mounting bolt torque | 20.4 - 27.2 Nm (15.0 - 20.0 lbf ft) | p. 154 |
JCB 8085, JCB 8085 Common Problems This Manual Covers

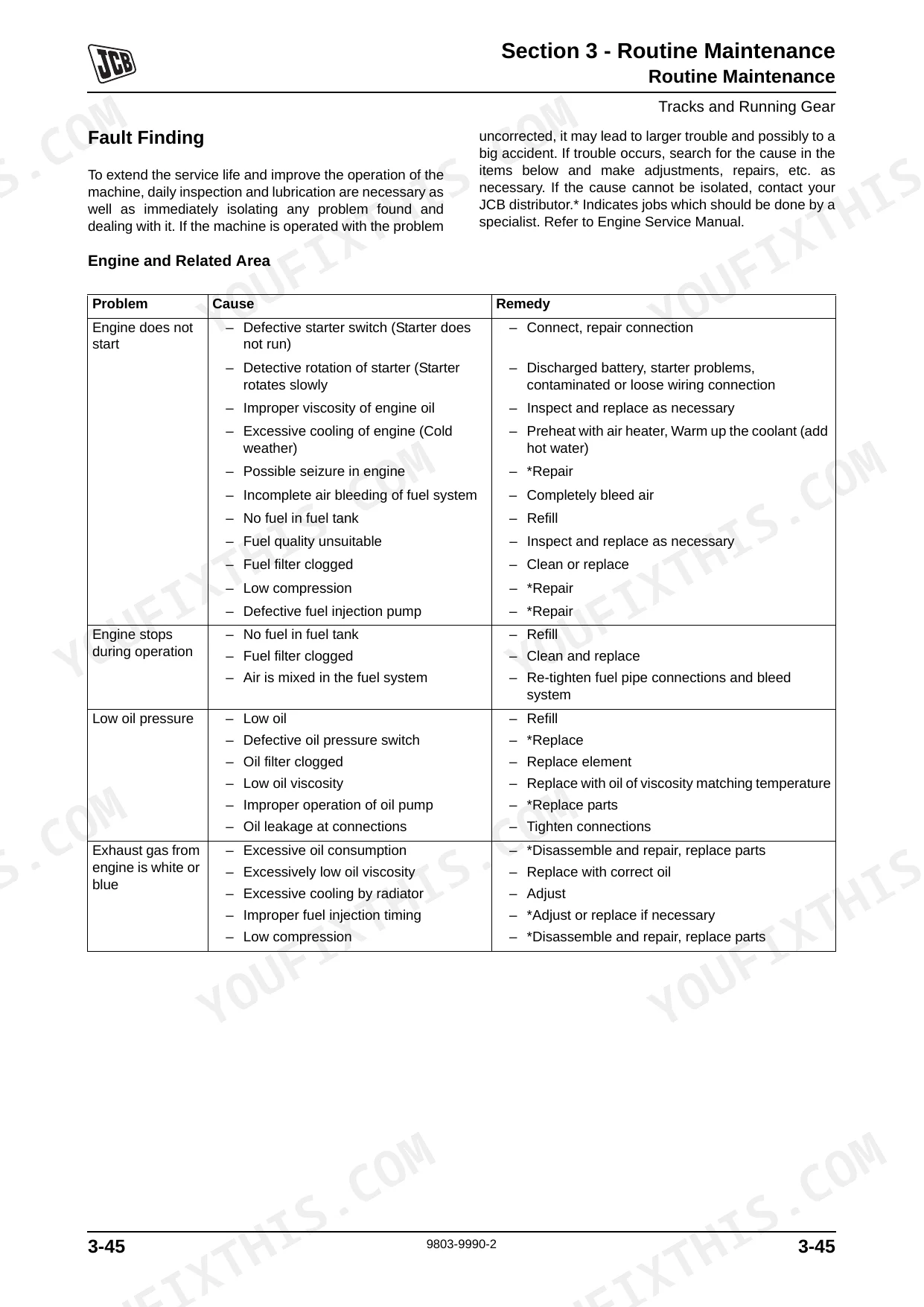

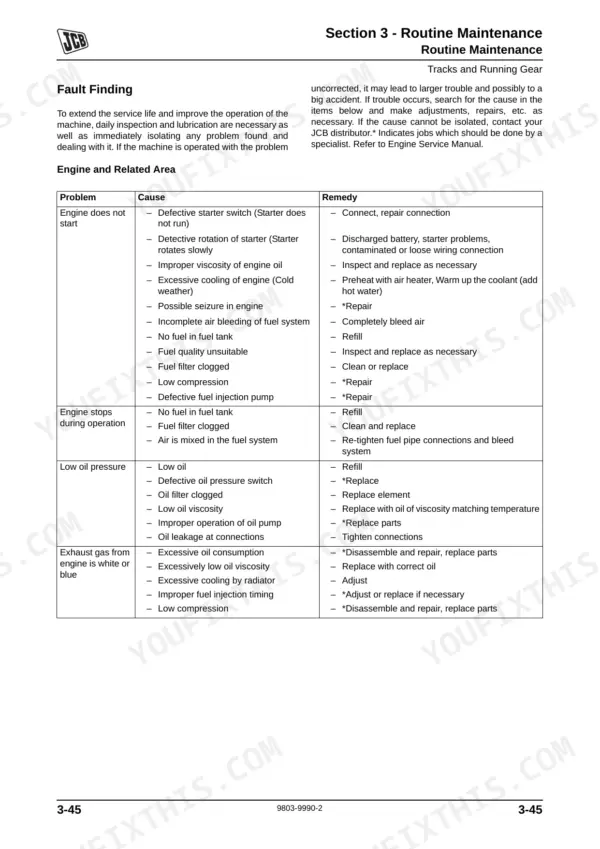

JCB 8085 engine cranks but will not start after sitting or repeated attempts.
Drain and clean the fuel pre-filter sediment bowl. Replace the fuel filter element if it exceeds the 500-hour change interval noted on page 61. Bleed the fuel system completely to remove trapped air. Inspect fuel hoses and replace any that show signs of deterioration or cracking.
Manual Section: Engine TroubleshootingHydraulic performance is weak or erratic during heavy digging and boom swing operations. p. 349
Test the main relief valve pressure and verify it reaches 300 bar (4350 lbf/in2) as specified on page 349. If system pressure drops, check the servo relief pressure is 35 bar (508 lbf/in2) per page 351. Inspect the hydraulic oil level and top up with clean fluid.
Manual Section: HydraulicsRubber track tension is loose and running gear operation feels rough on hard ground. p. 99
Measure the rubber track tension on hard ground and adjust the sag to the value specified in the Routine Maintenance section. Inspect the track shoe mounting bolts for wear and torque them to the specification listed in the manual. Add grease to the tension cylinder.
Manual Section: Routine MaintenanceElectrical accessories fail to operate and the starter motor turns over slowly during cold mornings. p. 222
Test the battery charging voltage and verify it stays within the limits specified in the Electrics section. Check the battery electrolyte level and top up if needed. Clean the battery terminals and test the starting circuit for high resistance.
Manual Section: ElectricsFrequently Asked Questions
How do I reset the AMS on a JCB 8085?
To reset the machine settings, access the Calibration Menu by pressing the SET and MODE buttons together for 20 seconds. Select "DEFAULT SET" to set all machine settings back to their default values. This action confirms that the machine settings should be reset.
What do the JCB 8085 diagnostic error codes mean?
The JCB 8085 diagnostic error codes are organized by type, with open circuit errors starting with 1XX numbers and short circuit errors with 2XX numbers. The specific XX number depends on the function with the error. For example, if the horn (function 15) has an open circuit fault, the code is Err# 115; a short circuit gives Err# 215. Refer to the manual for the complete function-to-number mapping.
How do I clear a fault code on a JCB 8085?
Fault codes on the JCB 8085 clear automatically once the underlying error is removed. Pressing the "ACK" button on the EMS panel will acknowledge warnings, clearing the message and silencing the buzzer, but it will not extinguish warning lamps or clear the fault code itself.
What are the hydraulic pressure settings for a JCB 8085?
The hydraulic pressure settings for the JCB 8085 are: Boom/Arm/Bucket at 300 bar (4351 lbf/in²), Swing Circuit at 226 bar (3278 lbf/in²), Travel Circuit at 300 bar (4351 lbf/in²), and Pilot Control at 40 bar (580 lbf/in²). The Servo Pressure Relief Valve is set to 35 bar (508 lbf/in²), with a tightening torque of 60 Nm (6.1 kgf/m, 44 lbf/ft).
What format is this manual in?
This is a 485-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Am I able to print pages from this manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.

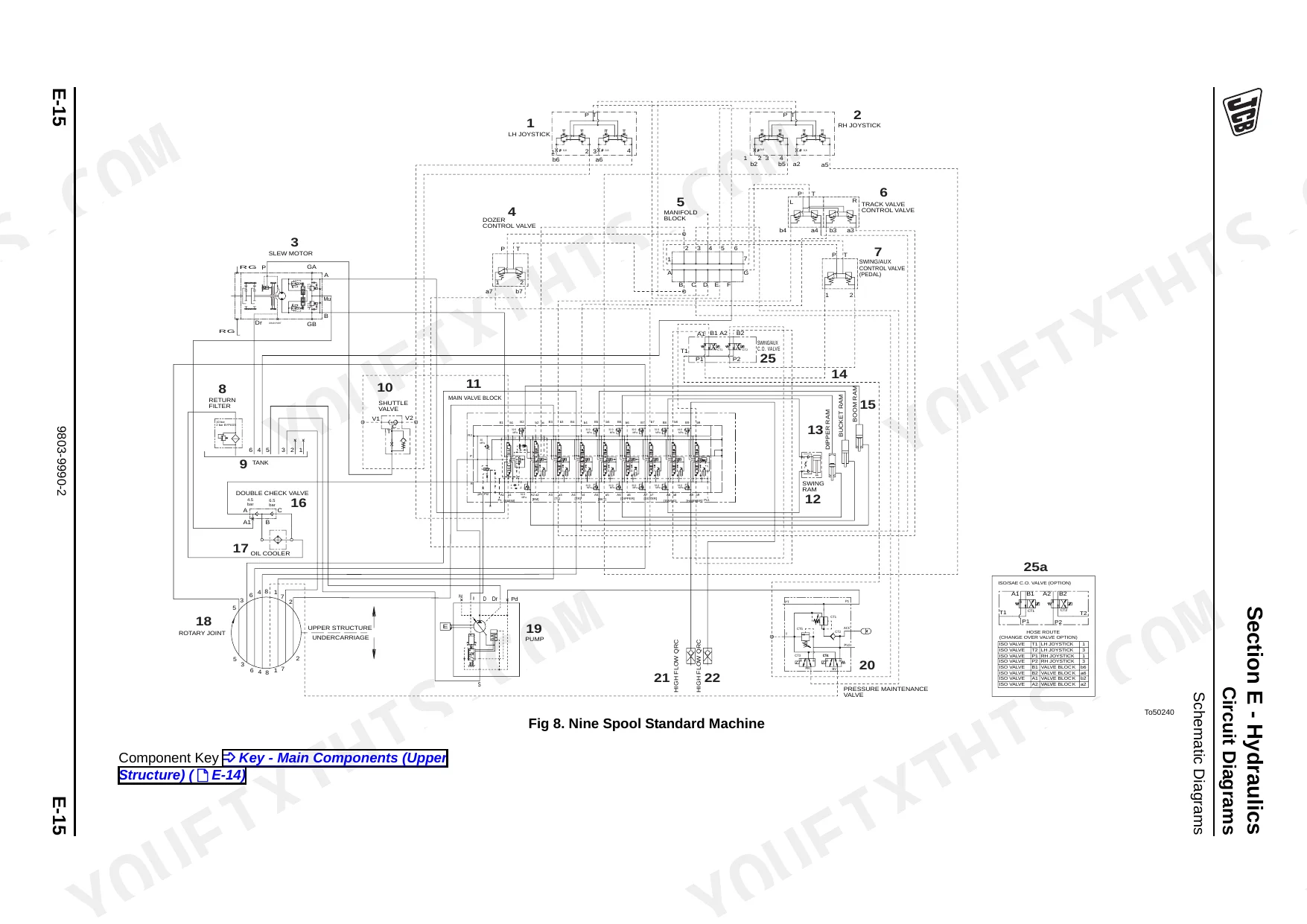

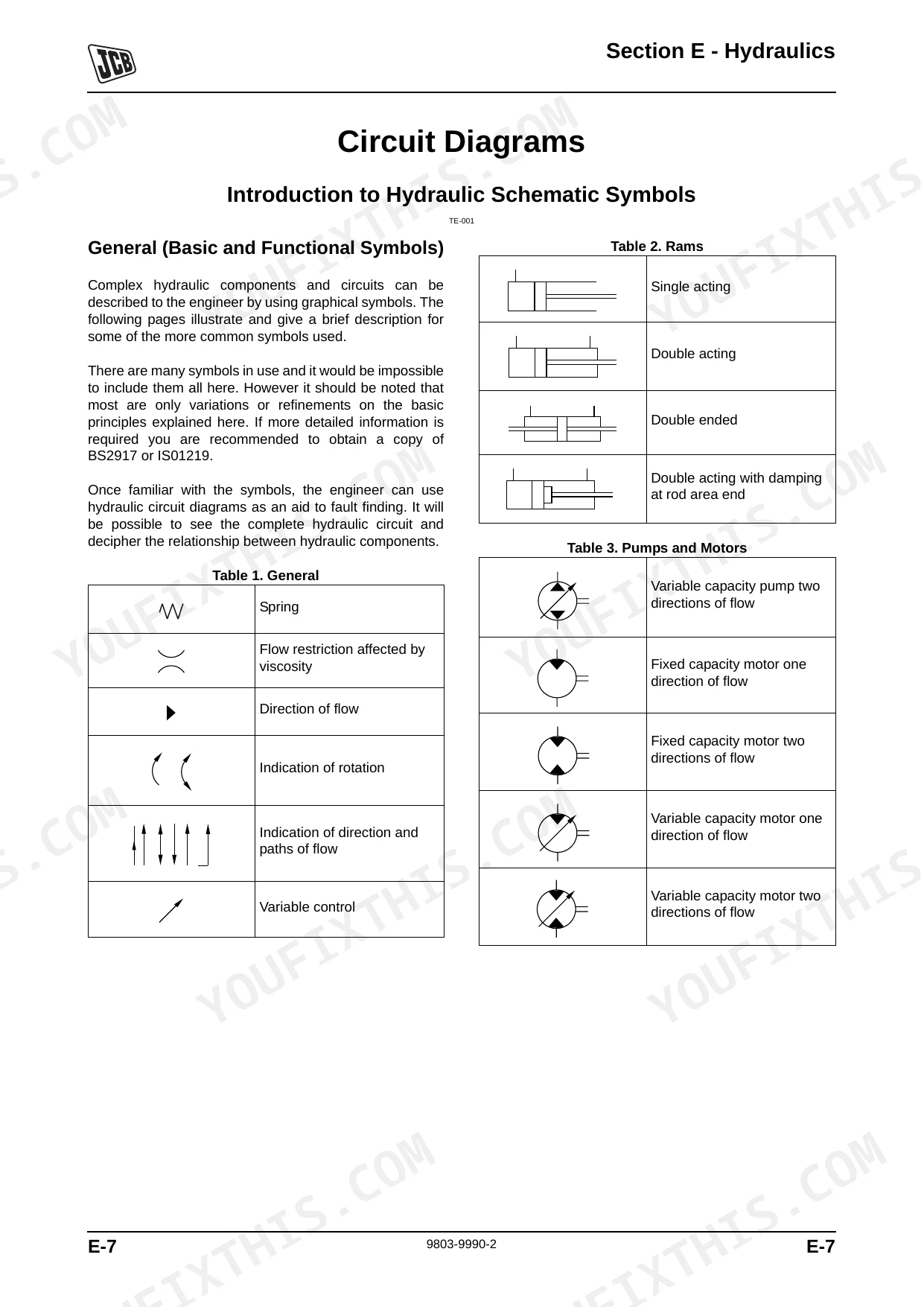

Does this JCB 8085 manual include hydraulic schematics?
Full hydraulic system diagrams are included, covering circuits, valve locations, and hydraulic component specs for the JCB 8085.
Document Quality
This is a scanned service manual with an OCR layer, allowing you to search and copy text throughout the document. The text is generally crisp and easy to read, with no significant blurriness or fading. Diagrams and illustrations are mostly clear, though some very fine details or smaller text might appear slightly less sharp due to the scanning process. Pages are clean with minimal scan artifacts, and the document includes several "Page left intentionally blank" filler pages.
