Need the official factory operating instructions? This 198-page JCB Teletruk 2.5D, Teletruk 3.0D, Teletruk 3.5D, Teletruk 3.0 D High Lift operator manual PDF (OEM #9821/0550-5) also covers the 3.0D 4x4 and 3.5D 4x4 variants to keep your site moving safely. Open to the maintenance section for complete daily service schedules, dashboard indicator breakdowns, and error code troubleshooting. Clear instructions cover safe load handling, Longitudinal Load Moment Indicator (LLMI) operation, and complete rated payload lifting capacities. Secure the multi-function valve to 41 Nm, and always verify the engine oil drain plug is tightened to 55 Nm after a routine fluid change. Don't risk machine damage by ignoring dashboard warnings. Download this bookmarked file, pull it up on your phone, and knock out your daily checks.
What's Inside This JCB Teletruk Series Operator Manual

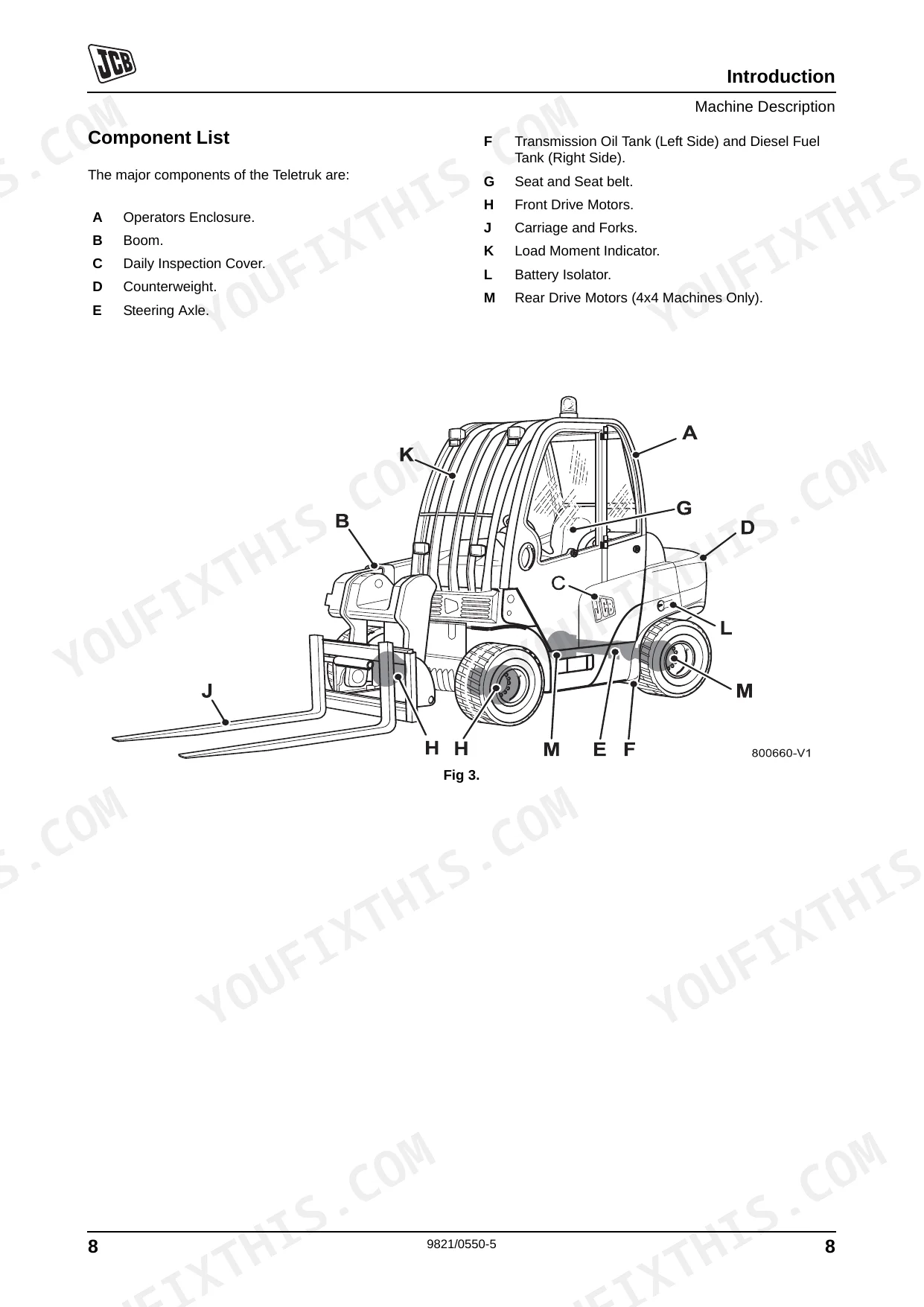

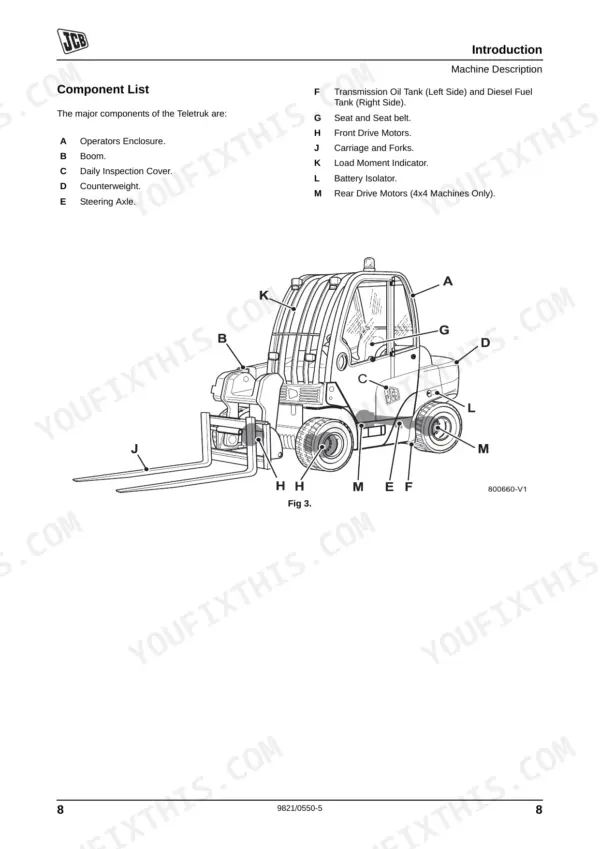

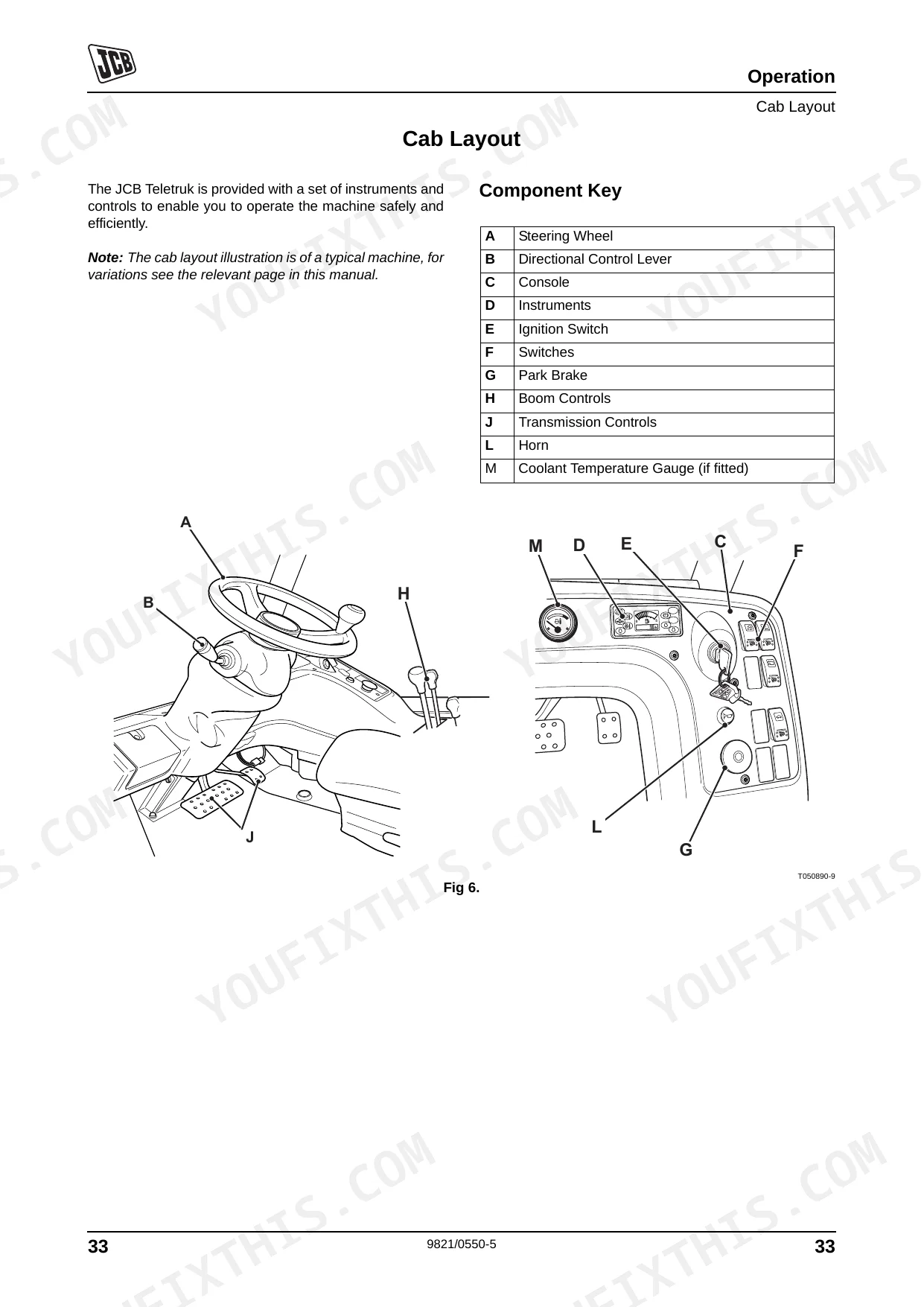

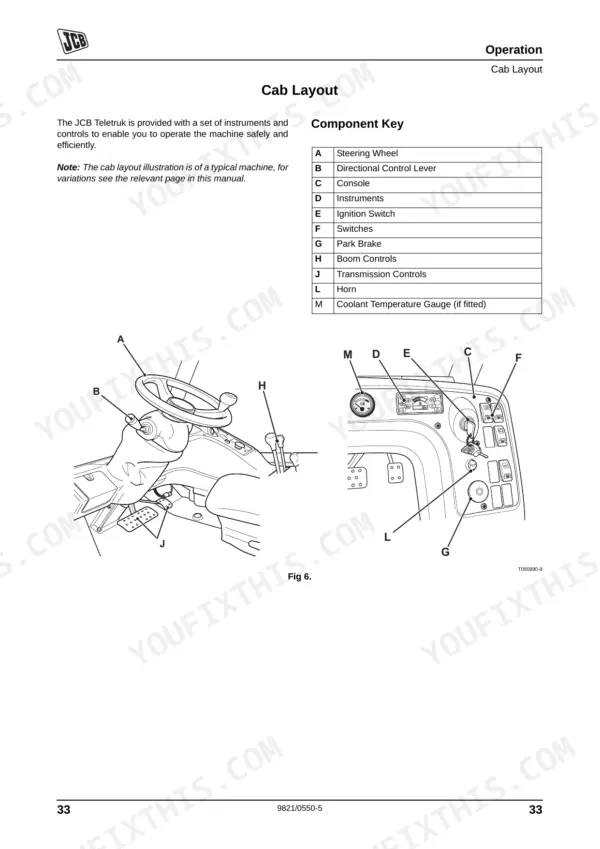

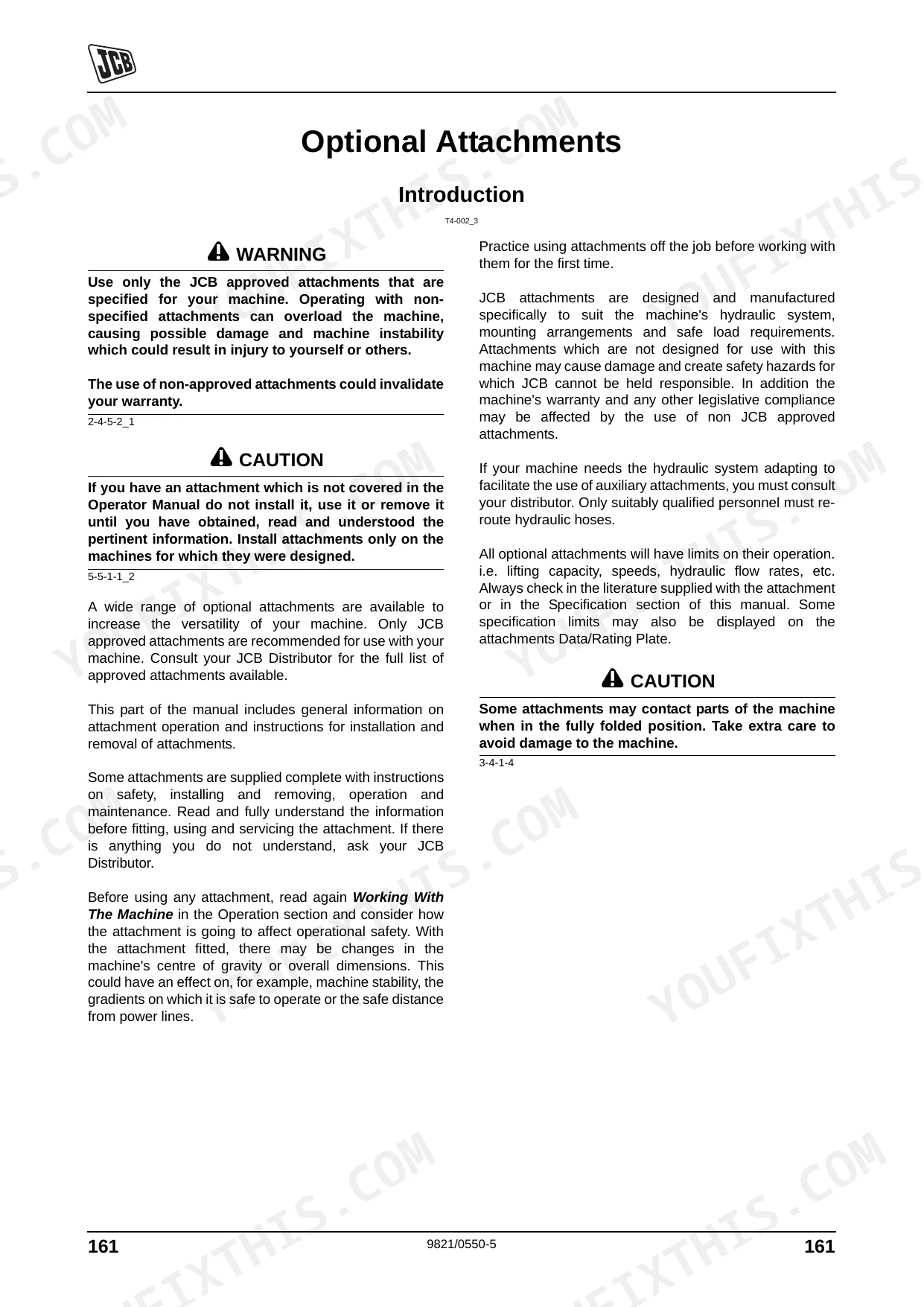

| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 11-12 | Important Information, The Operator Manual, Safety Warnings |
| Introduction | 13-36 | About This Manual, Machine Description, Safety Check List, Safety Labels, Identifying Your Machine, Machine Security |
| Operation | 37-103 | Cab Layout, Drive Controls, Switches and Instruments, Operating Levers, Safety Equipment, Starting the Engine, Working with the Machine, Refuelling, Transporting the Machine, Storage |
| Service Requirements & Schedules | 105-114 | Service Requirements, Health and Safety, Service Schedules, Pre-start Cold Checks, Functional Test and Final Inspection |
| Fluids, Lubricants and Capacities | 115-119 | Fluids and Capacities, Coolant Mixtures, Fuels |
| Routine Servicing | 120-128 | Prepare the Machine for Maintenance, Cleaning the Machine, Checking for Damage, Greasing |
| Access Panels & Brakes | 129-133 | Operator's Enclosure/Cab, Daily Inspection Cover, Front Cover, Belly Plate, Park Brake |
| Electrical System | 134-143 | Battery, Battery Disconnection/Connection, Electrolyte Level, Battery Isolator, Jump Starting the Engine, Fuses, Link Box Fuses |
| Engine | 144-150 | Oil and Filter, Cooling System, Fan Belt, Alternator Drive Belt, Air Filter |
| Diesel & LPG Fuel System | 151-157 | Water Separator and Engine Fuel Filter, Bleeding the System, LPG Fuel System, Filling the LPG Tank |
| Hydraulic System | 158-161 | Releasing the Hydraulic Pressure, Checking the Fluid Level, Checking for Leaks, Changing the Filter Element |
| Tyres and Wheels | 162-170 | Tyre Inflation, Changing a Wheel, Forks, Windscreen Washer, Fire Extinguisher |
| Optional Attachments | 171-180 | Connecting/Disconnecting Hydraulic Hoses, Quick Release Couplings, Shovel/Attachments, Changezee Quickhitch, Work Platforms |
| Specifications | 181-190 | Static Dimensions, Noise Data, Vibration Data, Attachments Data, Tyre Sizes and Pressures, Travel Speed |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Teletruk 2.5D | ||
| Wheel Nut Torque (Front, From SN 1539943) | 250 Nm | p. 155 |
| Wheel Nut Torque (Rear, From SN 1539943) | 250 Nm | p. 155 |
| Teletruk 3.0D, Teletruk 3.0 D High Lift | ||
| Wheel Nut Torque (Front, From SN 1539943) | 250 Nm | p. 155 |
| Wheel Nut Torque (Rear, From SN 1539943) | 250 Nm | p. 155 |
| Teletruk 3.5D | ||
| Wheel Nut Torque (Front, From SN 1539943) | 250 Nm | p. 155 |
| Wheel Nut Torque (Rear, From SN 1539943) | 250 Nm | p. 155 |
| All Models | ||
| Oil Seal Replacement | Renew whenever disturbed unless otherwise instructed | p. 27 |
| Hydraulic Filter Canister Seal Lubrication | Lubricate seal D on the new filter canister with clean engine oil | p. 161 |
| Gasket Replacement | Renew whenever disturbed unless otherwise instructed | p. 27 |
| Hydraulic Hose Replacement | Replace damaged hoses before you use the machine again | p. 125 |
| Hydraulic Hose Size and Standard | same size and standard | p. 125 |
| Hydraulic Filter Canister Torque | hand tight only | p. 161 |
JCB Teletruk Series Common Problems This Manual Covers
JCB Teletruk 2.5D boom lift functions become weak, jerky, or completely stop working under heavy load p. 105
Check the hydraulic fluid level sight glass. If low, fill the tank to the proper mark, keeping in mind the total system capacity is 62.5 Litres as noted on page 105. Inspect hoses for visible damage and replace damaged hoses before you use the machine again.
Manual Section: Routine MaintenanceEngine will not start or starts intermittently with rough idling during cold morning operations p. 153
Drain water from the sedimenter bowl. Tighten the water sedimenter pump locking ring finger tight, then a further 1/4 of a turn according to page 153. Bleed the diesel fuel system to remove trapped air from the lines before attempting to start the engine again.
Manual Section: Cleaning Diesel Fuel Water Sedimenter PumpReduced performance and poor traction on 4x4 models when operating on loose dirt or mud p. 179
Verify front tire pressure on the 27 x 10 x 12 Solideal SKS tires is exactly 7.0 bar as shown on page 179. Inspect wheel nuts for looseness. Torque all 4x4 model wheel nuts to 250 Nm using a calibrated torque wrench.
Manual Section: Routine MaintenanceDashboard display unit faulty or machine electrical system completely dead when turning the key p. 134
Inspect the battery terminals for corrosion and clean if necessary. Check the battery cells on page 134 to ensure the electrolyte level is 6 mm (1/4 in) above the plates. Top up with distilled water if low, then test the starting circuit.
Manual Section: Routine MaintenanceFrequently Asked Questions
How to reset JCB Teletruk fault codes?
If the system detects a fault and displays a fault code, the audible alarm and fault code display will cancel after 10 seconds. To attempt to clear the fault, switch the starter key off and on again. If the fault persists, contact your JCB distributor as the Load Moment Indicator may be faulty.
What do JCB Teletruk error codes mean?

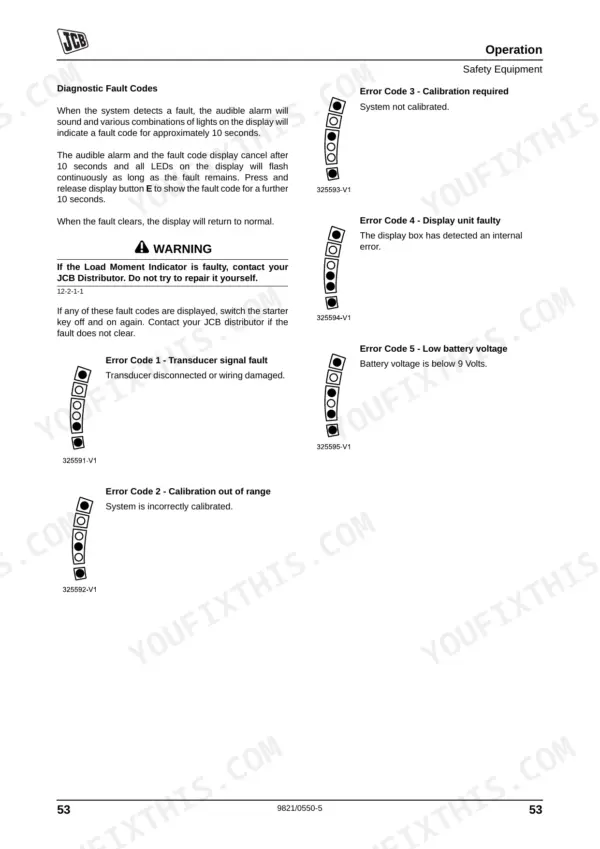

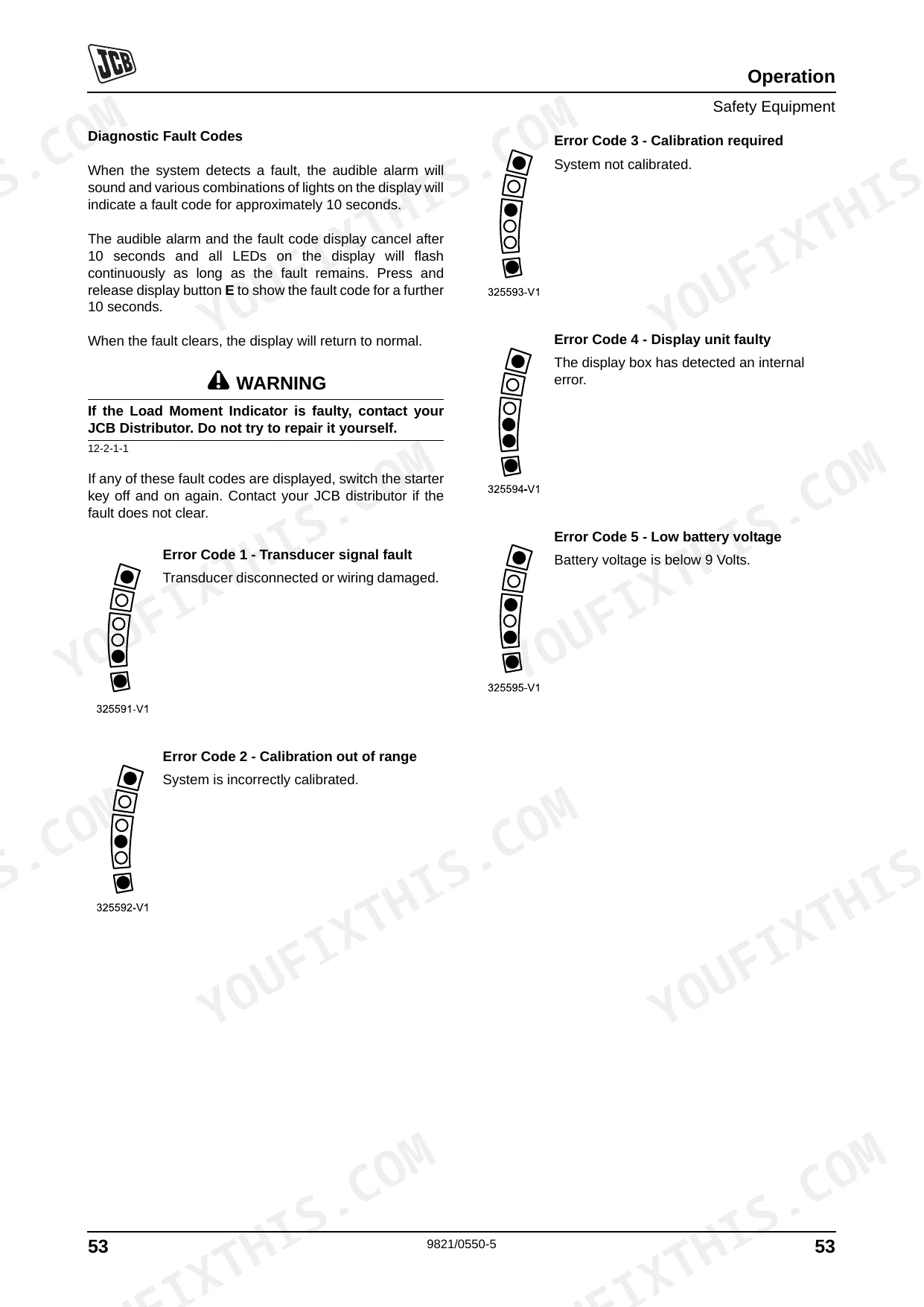

The JCB Teletruk's Longitudinal Load Moment Indicator (LLMI) system displays specific fault codes: Error Code 1 indicates a transducer signal fault (disconnected or damaged wiring); Error Code 2 means calibration is out of range (incorrectly calibrated system); Error Code 3 signifies calibration is required (system not calibrated); Error Code 4 points to a display unit fault (internal error detected); and Error Code 5 indicates low battery voltage (below 9 Volts).
How do you fix JCB Teletruk 2.5D boom lift functions become weak, jerky, or completely stop working under heavy load?
Check the hydraulic fluid level sight glass. If low, fill the tank to the proper mark, keeping in mind the total system capacity is 62.5 Litres as noted on page 105. Inspect hoses for visible damage and replace damaged hoses before you use the machine again.
How do you fix engine will not start or starts intermittently with rough idling during cold morning operations?
Drain water from the sedimenter bowl. Tighten the water sedimenter pump locking ring finger tight, then a further 1/4 of a turn according to page 153. Bleed the diesel fuel system to remove trapped air from the lines before attempting to start the engine again.
How will I receive this JCB Teletruk 2.5D & variants Operator Manual?
This is a 198-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
