Mastering the daily operations of your 2006-2007 machine starts with this 324-page JCB Midi CX Backhoe Loader Operator Manual PDF (OEM #9811/1090 - ISSUE 3). Inside, you get a complete breakdown of daily maintenance schedules, dashboard indicator guides, and safe lifting load charts for heavy grading buckets. Open directly to the routine service section to find exact fluid capacities and step-by-step procedures for safely venting hydraulic pressure before removing quickhitch attachments. Pour exactly 60 litres into the fuel tank and lock down the engine sump drain plug to 40-60 Nm during your initial 100-hour inspection. Keeping your iron running smoothly should never involve blind guesswork or forum scrolling. Download the bookmarked file, pull it up on your phone right in the cab, and get to work.

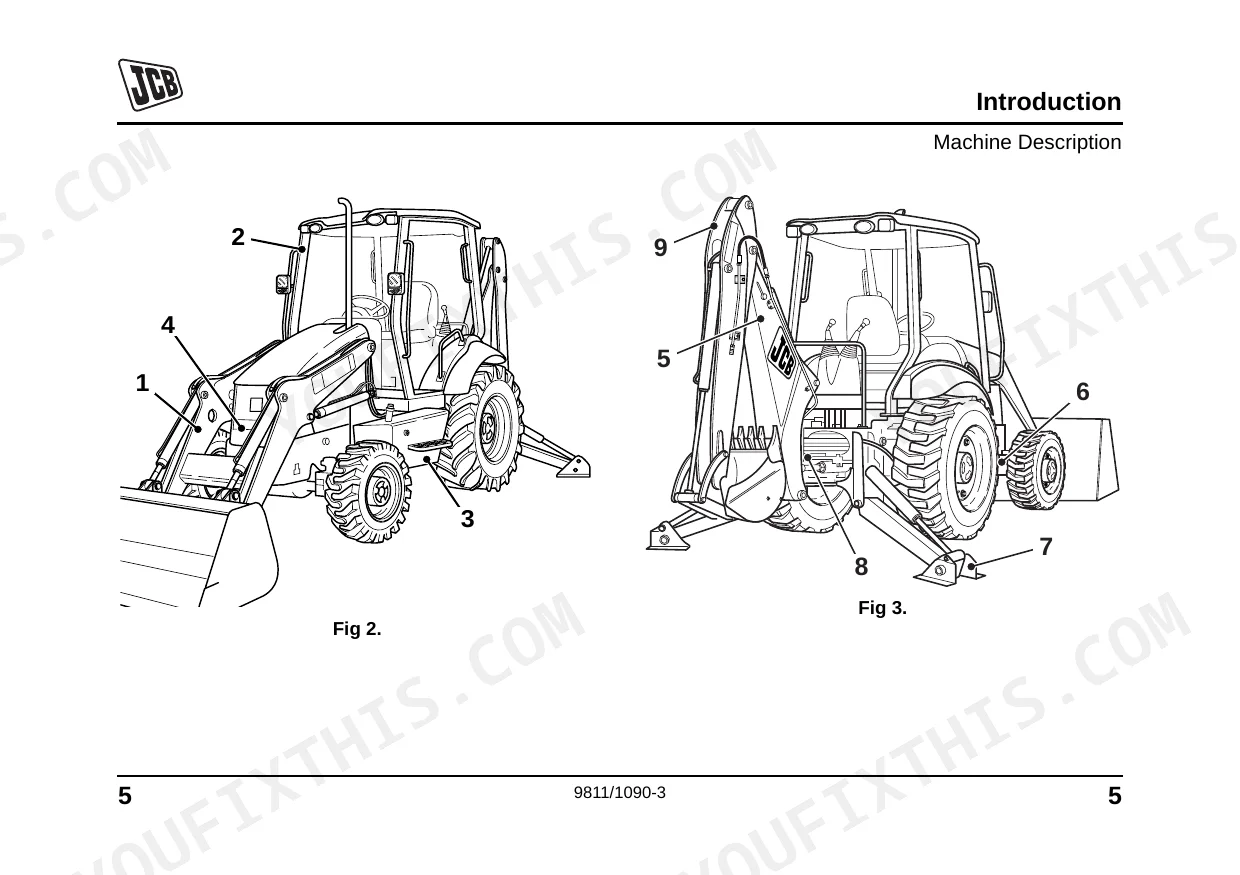

What's Inside This JCB MIDI CX BACKHOE LOADER Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 15-16 | Important Information, Operator Manual, Safety Warnings |

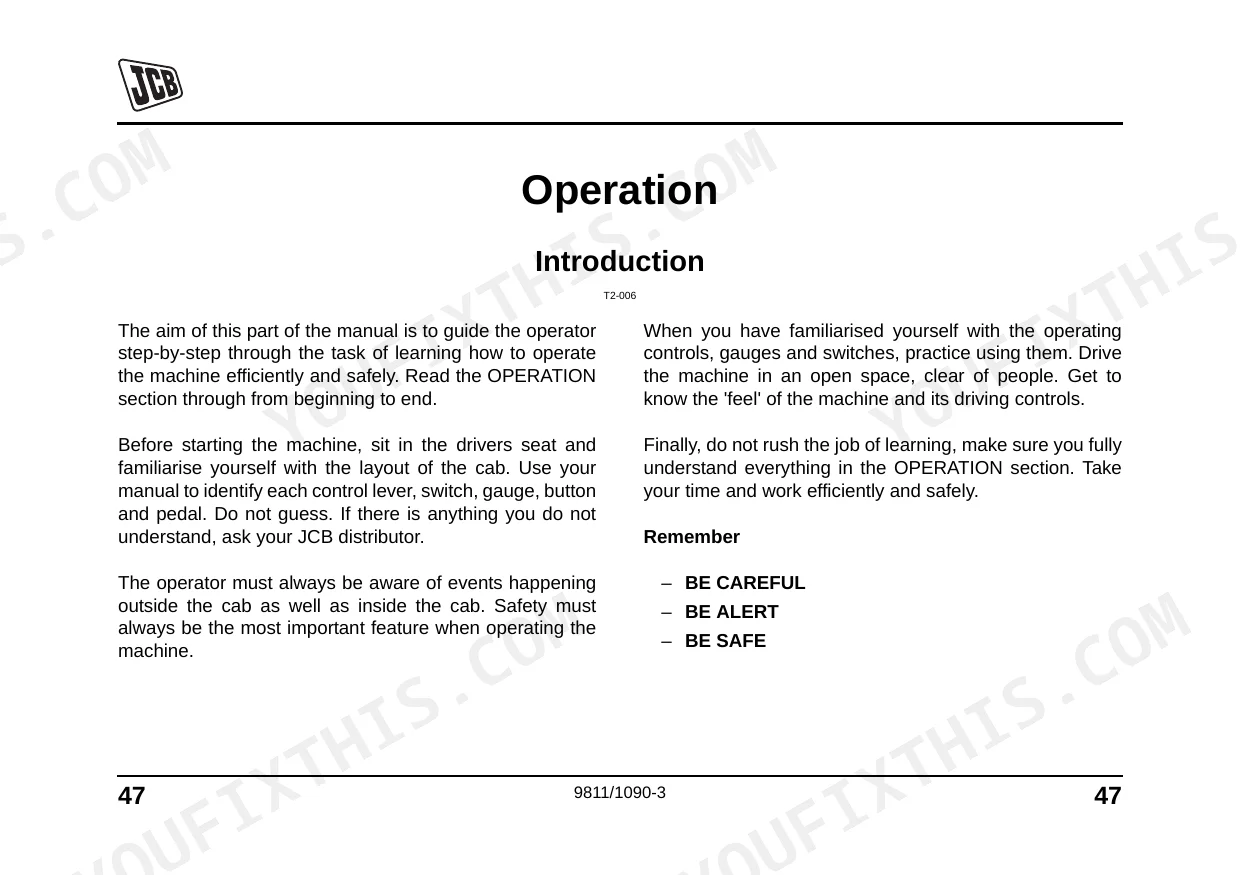

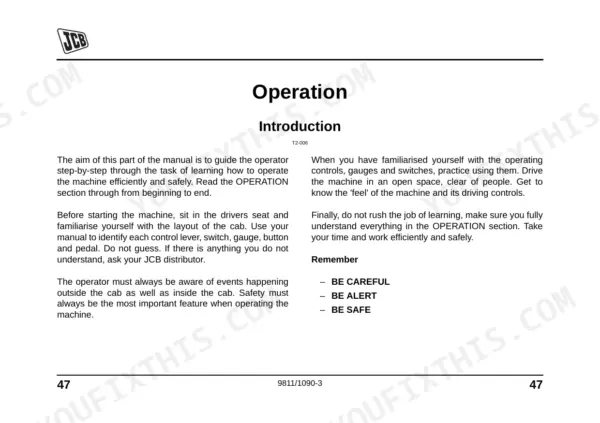

| Operation | 63-186 | Operation Introduction, Before Entering the Cab, Entering and Leaving the Cab, Seat Controls, Seat Belt, Cab Layout, Drive Controls, Switches and Instruments |
| Routine Maintenance | 187-294 | Service Requirements, Owner/Operator Support, Initial Service and Inspection (100 Hours), Health and Safety, Battery, Service Schedules, How to Use the Service Schedules |

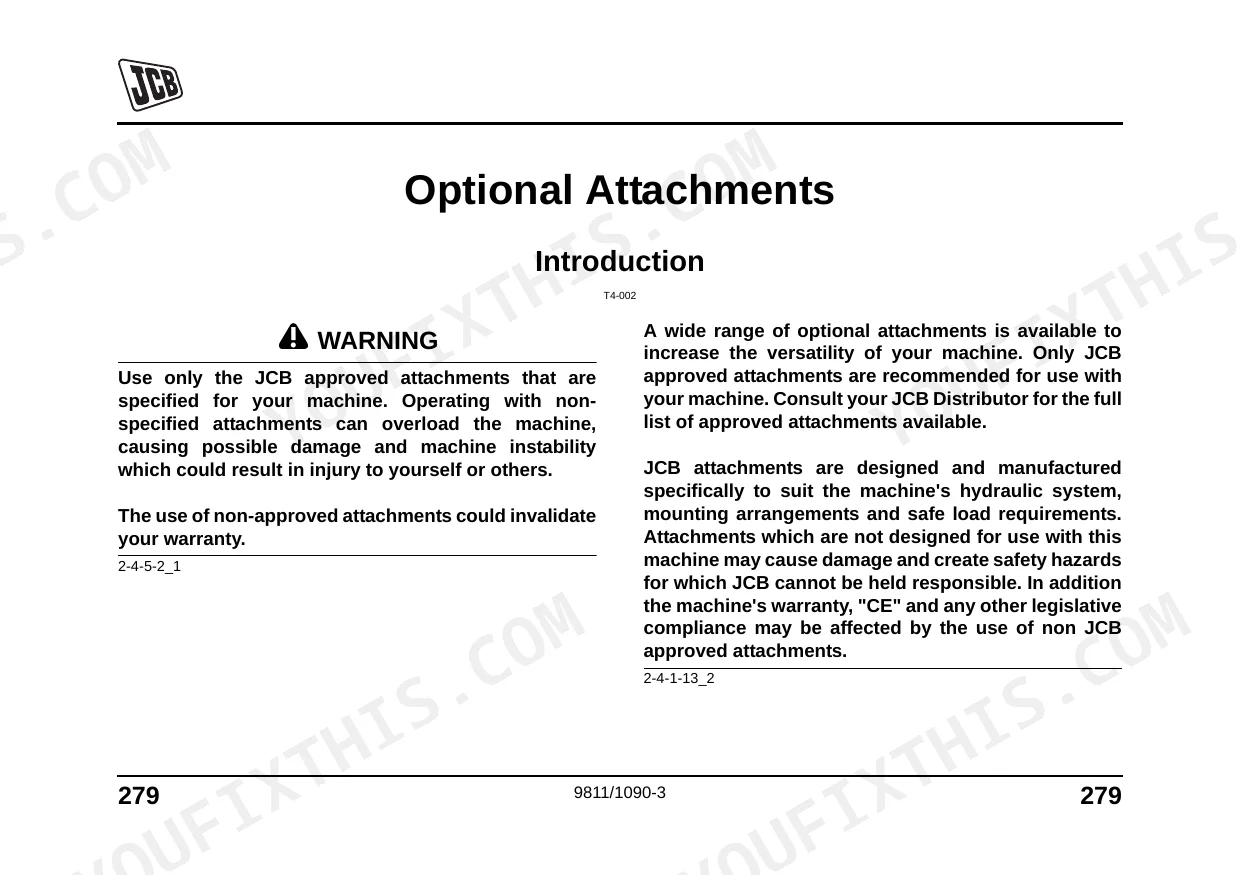

| Optional Attachments | 295-308 | Optional Attachments Introduction, Attachments for Your Machine, Quick Release Couplings, Venting Hydraulic Pressure, Loader Attachments, Removing Quickhitch Attachments |
| Specifications | 309-318 | Lifting (Craning) and Safe Working Loads, Performance, Backhoe Performance, Backhoe Bucket Weights and Dimensions, Grading Buckets, Static Dimensions, Tyre Sizes and Pressures |
| Warranty Information | 319-324 | Machine Service Record Sheet, Registration Information |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| ROPS/FOPS Structure Bolts A and B torque | 205 Nm (150 lbf ft) | p. 228 |
| Engine sump drain plug torque | 40-60Nm (30-44lbf ft) | p. 238 |

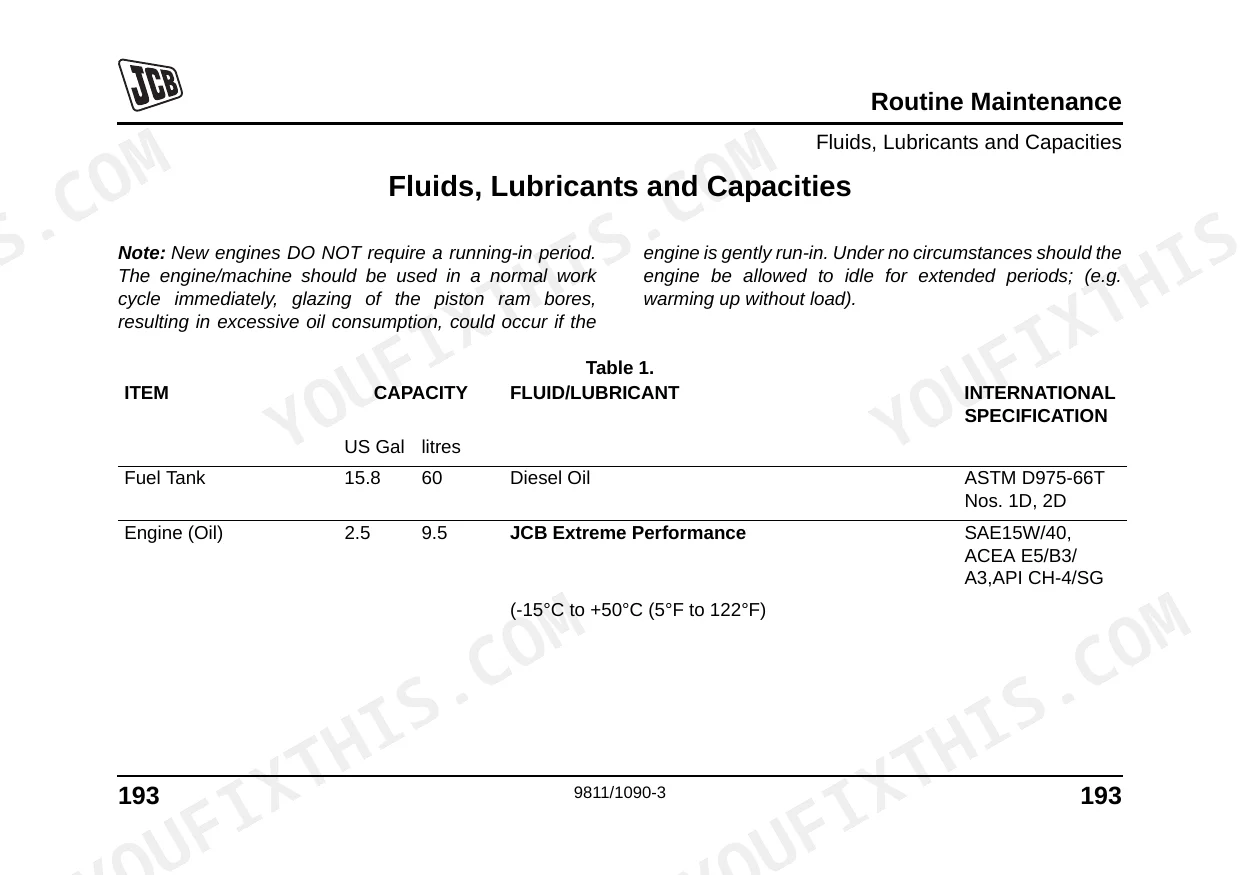

| Fuel Tank Capacity | 60 litres | p. 209 |
| Engine Oil Capacity | 9.5 litres | p. 209 |
| Engine Coolant Capacity | 11.9 litres | p. 210 |
| ROPS/FOPS Mounting Bolt Torque | 205 Nm | p. 228 |
| Alternator Drive Belt Deflection | 7mm | p. 245 |
| Hydraulic Filter Element Service Interval | 100 hours | p. 276 |
| Hydraulic Suction Strainer Torque | 15-20 Nm | p. 279 |
| Transmission Differential Drain Plug Torque | 79 Nm | p. 284 |
| Wheel Nut Torque | 680 Nm | p. 292 |
| GP Shovel Bucket Breakout Force | 2894 kgs | p. 294 |
JCB MIDI CX BACKHOE LOADER Common Problems This Manual Covers
JCB Midi CX hard starting and rough running until the fuel system is completely bled. p. 239
Inspect the primary and secondary fuel filters for restrictions. Drain and replace the elements, then bleed the air from the system as described on pages 252-255. When reinstalling the engine oil filter housing drain plug, torque it to 40-60Nm (30-44lbf ft) as specified on page 239.

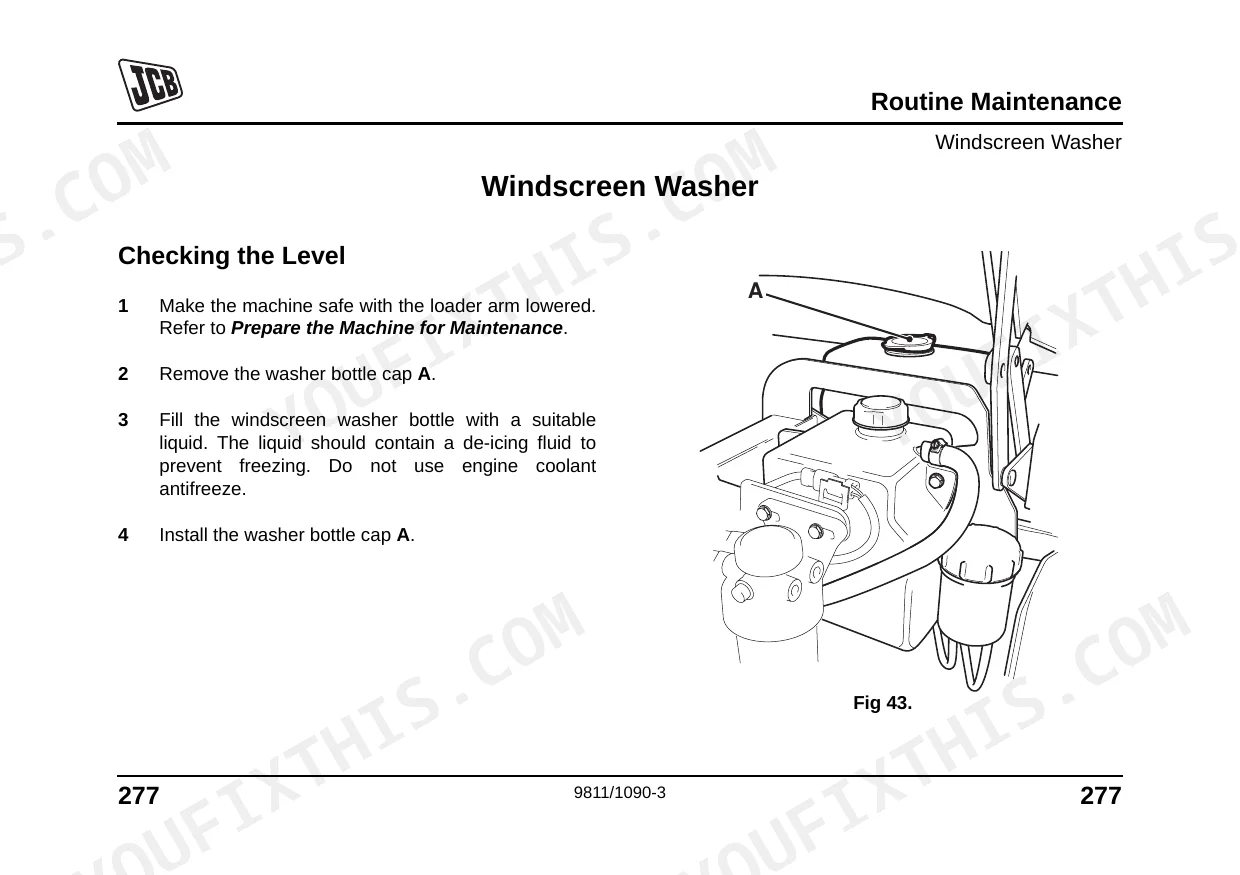

Manual Section: Routine MaintenanceHydraulic performance degradation and slow loader arm response after exceeding standard service intervals. p. 276
Change the hydraulic filter element immediately if the machine has exceeded the 100 hours service interval shown on page 276. Remove the cover plate, swap the filter, and tighten the cover plate screws A to exactly 20 Nm (14.75 lbf ft) per page 277.
Manual Section: Routine MaintenanceEngine temperature gauge reads excessively high during heavy backhoe operation in hot summer weather. p. 210
Check the engine coolant level in the expansion tank before starting the machine. If the level is low, top off the cooling system with an approved antifreeze mixture up to the maximum capacity of 11.9 litres as detailed on page 210. Inspect the radiator fins for debris.
Manual Section: Routine MaintenancePopping noise from the axles and loose wheel rims noticed during roading or transport. p. 292
Verify all wheel nuts are tight before operating the loader. Use a heavy duty torque wrench to tighten the front and rear wheel nuts to exactly 680 Nm (500 lbf ft) per the specifications on page 292. Check tyre pressures daily.
Manual Section: Routine MaintenanceFrequently Asked Questions
What are the torque specs for JCB MIDI CX wheel nuts / axle components / engine bolts?
The torque specifications for various components are provided in the manual. Wheel nuts (front and rear) should be torqued to 680 Nm (500 lbf ft). The engine sump drain plug should be torqued to 40-60 Nm (30-44 lbf ft). For ROPS/FOPS bolts, the torque setting is 205 Nm (150 lbf ft). Additionally, the hydraulic filter cover plate screws should be tightened to 20 Nm (14.75 lbf ft), and the hydraulic tank drain plug to 85-100 Nm (63-74 lbf ft).
Why is my JCB MIDI CX hard to start or losing power?
Your JCB MIDI CX may be hard to start or lose power due to several reasons. If the engine fires but does not fully start, avoid operating the starter motor for more than 40 seconds. A significant cause of power loss is air entering the fuel system, which can lead to dramatically varying engine speed. Additionally, if the engine or steering fails, you should stop the machine immediately and correct the fault before further operation. Any illuminated warning lights or sounding alarms also indicate a problem that needs attention.
How do I bleed the fuel system on a JCB MIDI CX?
To bleed the fuel system on your JCB MIDI CX, first ensure there is enough fuel in the tank. Then, turn the starter key to position I for three minutes to activate the electric priming pump before attempting to start the engine. After the engine starts, keep the engine RPM low for at least 2 minutes to allow any trapped air in the pump to escape. Operating the engine with air in the system can damage the fuel injection pump.
What are the replacement specifications for primary fuel filter?
When changing the engine fuel filter element, the manual instructs to fit a new filter element. To assist with bleeding, fill the new filter full of fuel before fitting. The manual does not specify a particular part number or detailed replacement specifications beyond using a 'new filter element'.
How will I receive this JCB Midi CX Backhoe Loader Operator Manual?
Immediate download of the complete 324-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Is this JCB Midi CX Backhoe Loader Operator Manual printable?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Document Quality
This is a scanned PDF document with an OCR layer, enabling you to search and copy the full text content. The text is generally crisp and easy to read throughout the manual. Diagrams and illustrations are clear, with readable labels, though they appear to be raster images which may pixelate at high zoom levels. Pages are clean, showing no significant scan artifacts, stains, or skewed content. Please note that several pages are intentionally left blank as filler.
