Running a 2017 JCB 8290 or 8330 and want the factory operating reference on hand? This 286-page operator manual (OEM EN - 9831/0000) lays out the full cab, three-point linkage, front and rear PTO, auxiliary hydraulics, trailer hitches, and instrument panel for both Fastrac tractors. The bulk of it walks through operating procedures and error code identification, then a maintenance section maps service intervals from the first 100-hour check through the 11,000-hour milestone. Fluid capacities are spelled out plainly: 24L engine oil, 70L DEF tank, 75L transmission. No digging through scattered spec sheets, no waiting on a forum reply while the tractor sits. Every section is bookmarked and the text is keyword-searchable, so you can pull it up on a tablet and walk straight to the machine.
What's Inside This JCB 8290, 8330 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Notes | 4-9 | Introduction, Name And Address Of The Manufacturer, Product Compliance, Table Of Contents, Acronyms Glossary, About The Product, Safety |
| Acronyms Glossary | 10 | 2WD, 2Ws, 4WD (Engine, Axle) |

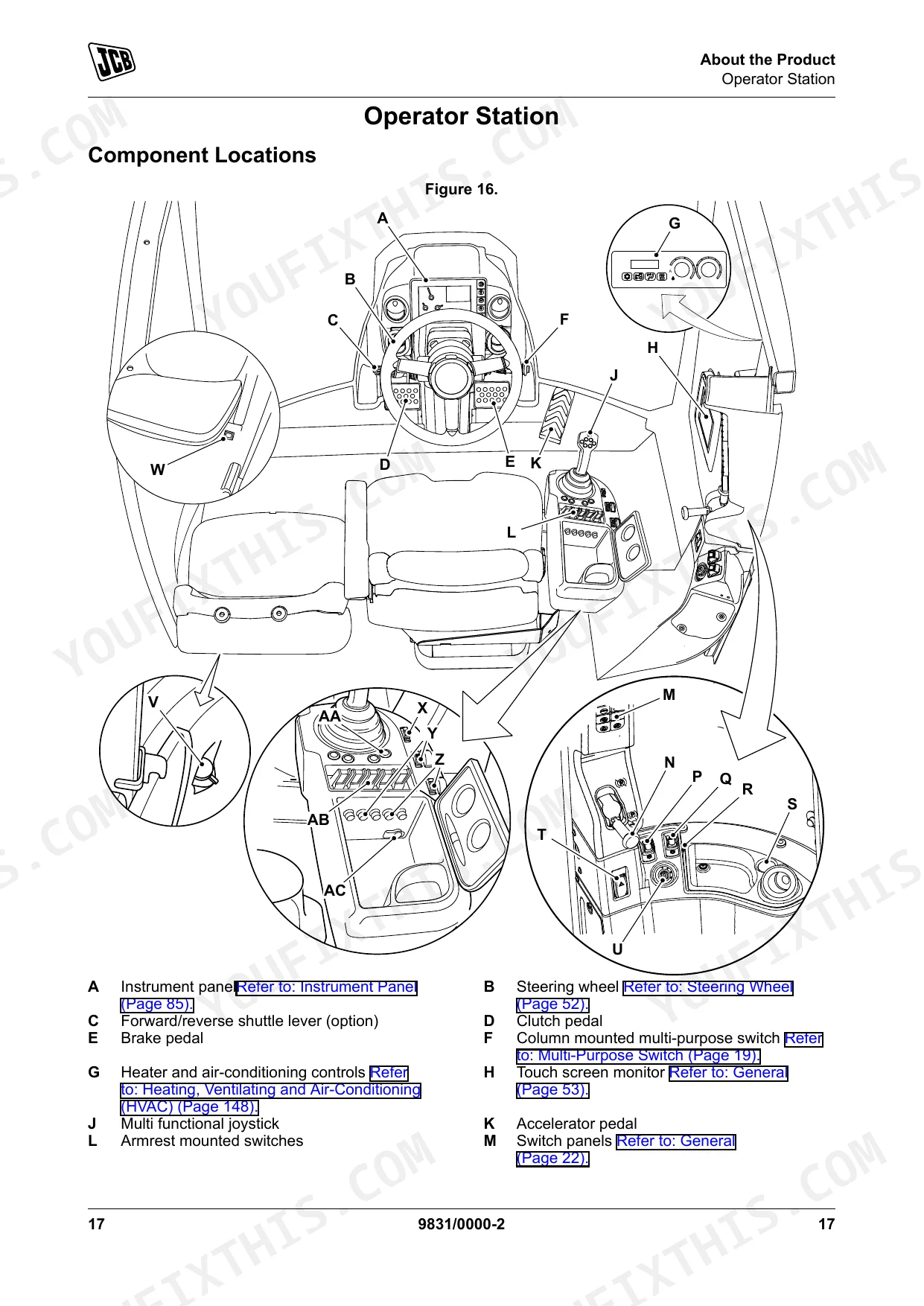

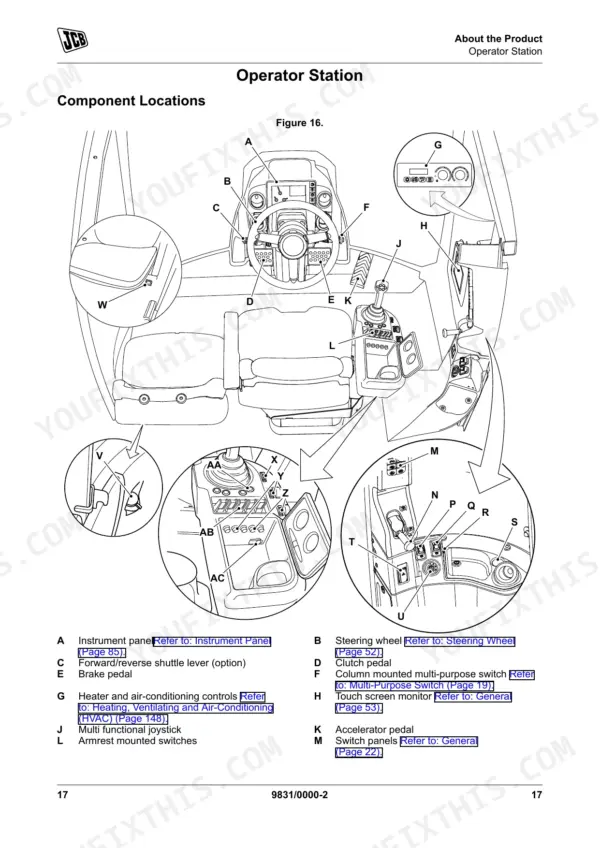

| About the Product | 15-34 | Operator Station (Component Locations), Interior Switches (Ignition Switch, Multi-Purpose Switch, Cab Interior Light/Step Light), Console Switches (General, Hazard Warning Lights) |

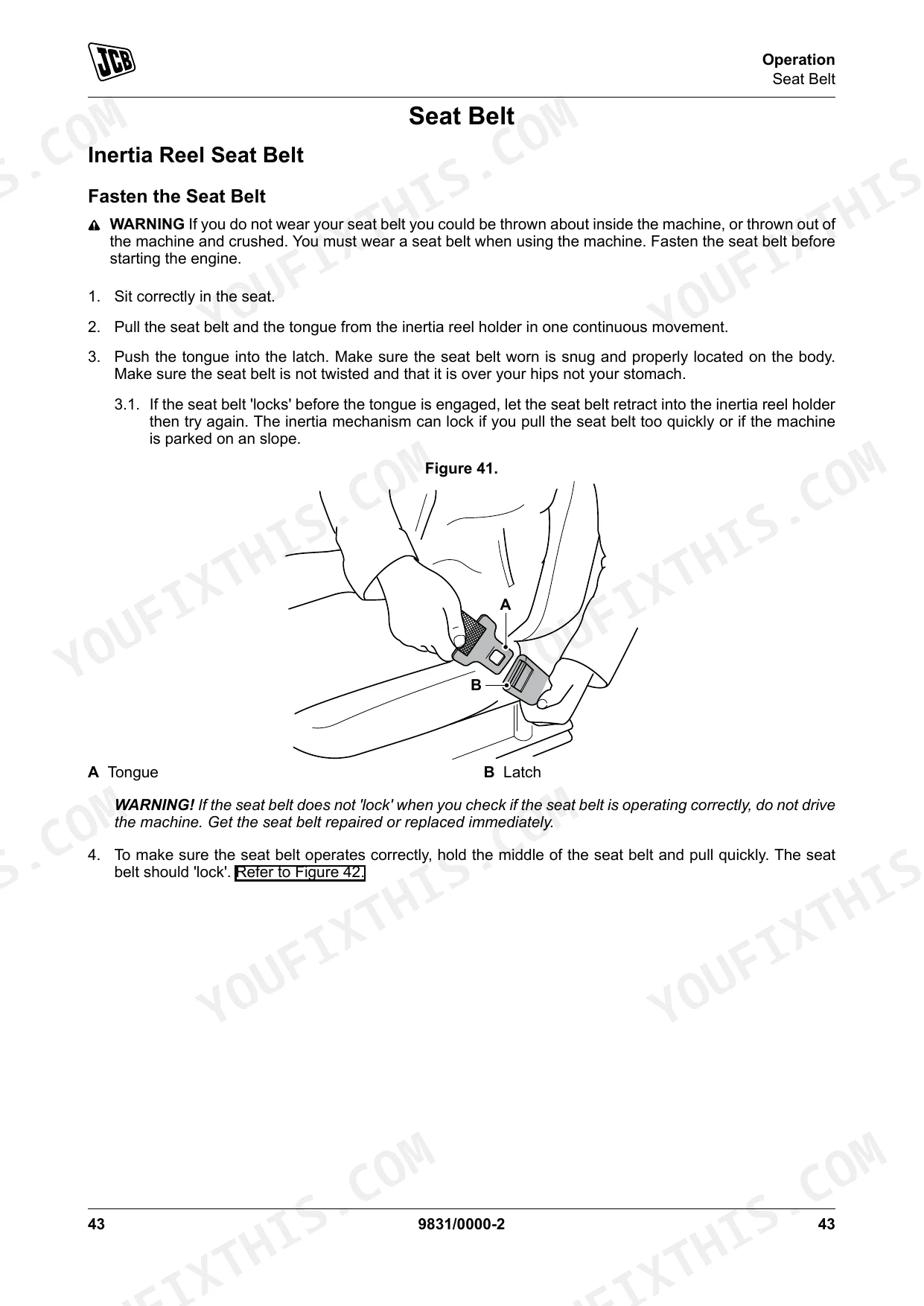

| Starting the Engine | 35-48 | Operator Seat, Before Starting the Engine, Battery Isolator, Seat Belt, Passenger Seat, Inertia Reel Seat Belt, Mirrors |
| Instruments | 49-91 | Drive Controls, Stopping and Parking, Preparing for Travel, Preparing for Road Travel, Steering Wheel, Steering Column, Instrument Panel |
| Getting the Machine Moving | 92-105 | - |
| Three Point Linkage | 106-116 | Slopes, Driving on Slopes, Front Three Point Linkage, Rear Three Point Linkage |
| Trailer Hitches | 117-138 | Auxiliary Hydraulics, Auxiliary Electrics, Ladder Hitch, Pick-Up Hitch (Puh), Swing Drawbar, 110mm Ball |
| Power Take-Off (PTO) | 139-147 | Trailer Brakes, Power Take-Off (Front), Power Take-Off (Rear) |
| Moving a Disabled Machine | 148-154 | Heating, Ventilating and Air-Conditioning (HVAC), Air-Conditioning Controls, Power Sockets, Auxiliary Power Socket, Jump-Starting the Engine |
| Refuelling | 155-160 | Operating Environment, Transporting the Machine, Operating in Low Temperatures, Operating in High Temperatures, Low Fuel Levels, Filling the Tank |
| Preservation and Storage | 167-172 | Cleaning (General, Preparation), Checking for Damage (General), Storage (General, Put Into Storage, During Storage, Take Out of Storage), Security (General, LiveLink) |
| Maintenance | 173-234 | Introduction (General, Owner/Operator Support, Service/Maintenance Agreements, Obtaining Spare Parts), Maintenance Safety (General, Fluids and Lubricants) |
| Technical Data | 235-269 | Static Dimensions (Weights), Performance Dimensions (General), Noise Emissions (General, Noise Data), Vibration Emissions (General, Vibration Data), Fluids |
| Warranty Information | 270-286 | Service Record Sheet (Table 89, Figure 225. Installation Checklist, Figure 226. 1st 100h/1 Month, Figure 227. 500h/6 Month, Figure 228. 1000h/12 Month, Figure 229. 1500h/18 Month, Figure 230. 2000h/24 Month, Figure 231. 2500h/30 Month, Figure 232. 3000h/36 Month, Figure 233. 3500h/42 Month, Figure 234. 4000h/48 Month, Figure 235. 4500h/54 Month, Figure 236. 5000h/60Month, Figure 237. 5500h/66 Month, Figure 238. 6000h/72 Month, Figure 239. 6500h/78 Month, Figure 240. 7000h/84 Month, Figure 241. 7500h/90 Month, Figure 242. 8000h/96 Month, Figure 243. 8500h/102 Month, Figure 244. 9000h/108 Month, Figure 245. 9500h/114 Month, Figure 246. 10000h/120 Month, Figure 247. 10500h/126 Month, Figure 248. 11000h/132 Month) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Rear cab mounts torque | 200N·m | p. 248 |
| Front cab mounts torque | 160N·m | p. 248 |
| Engine Oil Capacity | 24L | p. 255 |
| DEF Tank Capacity | 70L | p. 255 |
| Transmission Oil Capacity | 75L | p. 255 |
| Front/Rear Wheel Nuts Torque | 500N·m | p. 258 |
| Hydraulic System Operating Pressure | 210bar (3,043.5psi) | p. 249 |
| Internal Noise Level | 72.6 dB (A) | p. 252 |
| Total Machine Unladen Weight | 11,505kg | p. 245 |
| Max. Front 3-point linkage capacity | 3,500kg | p. 245 |
| 8290 | ||
| Max. Gross Power | 228kW | p. 249 |
| 8330 | ||
| Max. Gross Power | 267kW | p. 249 |
JCB 8290, 8330 Common Problems This Manual Covers
JCB 8290 8330 engine warning light flashing with fault code on display at startup p. 260
Check the error code reference on page 260 to identify the specific fault. Verify engine oil level; the sump holds 24L (page 255). Inspect the coolant expansion tank level. If an oil pressure or high-temperature code is active, shut down immediately, allow the engine to cool, and do not restart until the cause is confirmed.
Manual Section: Engine Fault Diagnosis (Error Codes)DEF AdBlue warning lit on dash, tractor close to automatic power derate p. 260
Fill the 70L DEF tank with ISO 22241-compliant AdBlue fluid (page 255). Seat the filler cap firmly after filling; a loose or missing seal triggers quality warnings independently of fluid level. If the light stays on after refilling, check the fault code on page 260. Never run the tank dry: the system enforces a power derate at critically low DEF levels.
Manual Section: Engine Fault Diagnosis (Error Codes)Engine won't start or cranks over slowly in cold morning conditions p. 35
Confirm the battery isolator is switched ON and the park brake is applied before cranking (page 35). Set the transmission to neutral. In cold conditions, wait for the complete glow plug preheat cycle to finish before engaging the starter. Check fuel level and follow the startup sequence in the operating instructions exactly as described.
Manual Section: OperationRear or front hydraulic arms moving slowly, won't reach full operating speed p. 233

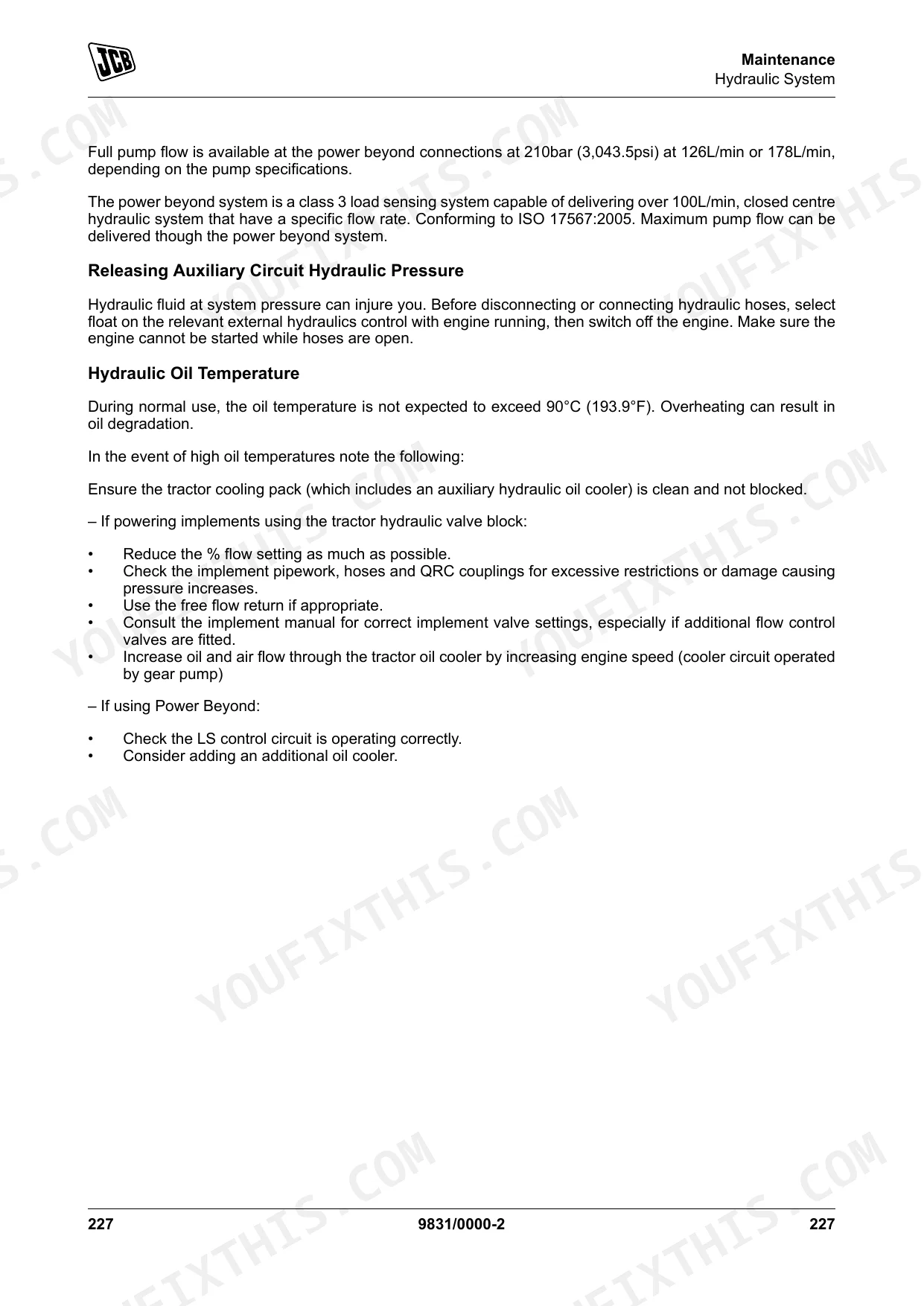

Top up the hydraulic oil if the sight glass reads below the minimum mark before starting work. Inspect all external hoses and fittings for visible leaks. The system runs at up to 210 bar (3,043.5 psi); if performance stays poor after the oil level checks out, see the troubleshooting procedures on page 237.
Manual Section: Hydraulic System DiagnosisBattery dead overnight, starter motor barely turns engine over in the morning p. 238
Switch the battery isolator to OFF whenever the tractor is parked for the day (page 35). Verify all cab interior lights and console switches are off before leaving the machine. Clean corroded terminals and confirm clamps are tight. Follow the battery inspection interval in the maintenance schedule on page 173.
Manual Section: Electrical System Faults & Component ReplacementCoolant temperature warning light active on dash, engine running hot in field p. 86
Stop work and let the engine idle to help reduce temperature. Check the coolant level at the expansion tank; never remove the cap while the system is hot. Inspect the cooling pack face for blockage from crop debris and chaff, and clean as needed. Verify the coolant top-up interval in the maintenance schedule on page 173.
Manual Section: Cooling System DiagnosisFrequently Asked Questions
How to reset JCB 8290/8330 service light?
The service-interval hours reminder shows on the instrument panel, and the operator can reset it. Use the enter button with the up/down buttons to select the function, then hold enter until the reset finishes. You will find it under 'Menu' settings, at the 'Service interval (adjust using up/down/enter keys)' icon.
How to reset JCB Fastrac 8290/8330 error code?
When an error code shows, the manual requires you to stop the machine and fix the underlying fault. If you cannot rectify it yourself, contact your nearest JCB dealer for further diagnostic information. No operator function exists to simply reset or clear the code; the fault itself has to be put right first.
How to clear JCB Fastrac 8330 fault codes?
There is no clear-the-codes shortcut. The manual has you stop the machine and put right whatever caused the fault. Beyond what you can fix yourself, a JCB dealer handles the diagnostics. The code clears once the fault is actually resolved, not before.
What are the torque specs for JCB 8290/8330 wheel nuts?
Front and rear wheel nuts on the JCB 8290/8330 torque to 500 N·m. Tighten all of them evenly in a clockwise sequence with a torque wrench to that setting, then recheck every ten hours until the readings hold steady.
What are the torque specs for JCB 8290/8330 engine components?
On the PTO stub shaft, an engine-related component, the eight bolts (M10 x 35 G10.9) tighten to 60 N·m. The manual gives this value for correct installation of the output shaft.
Is this JCB 8290, 8330 Operator Manual a digital download?
Yes, it downloads instantly. The full 286-page searchable Operator Manual lands on your device the moment payment clears. Open it on a laptop, tablet, or phone right in the shop.
Are there any print restrictions on this manual?
Yes. The PDF carries no DRM, so you can print any page or section you need for the shop. Works with any standard printer.
Document Quality
This document is a scanned PDF with an OCR text layer, allowing you to search and copy the full text. The text throughout the manual is crisp and easy to read. Diagrams and illustrations are clear black and white raster images, and all labels are perfectly readable. Pages are clean with no noticeable scan artifacts, stains, or skewed content. Please note that there are several blank "Notes:" pages and a few other blank pages included as filler.
