Protect your side-engine Loadall investment with this 310-page JCB Dieselmax (SA, SB, SC Builds) Operator Manual PDF (OEM #9811/0400) covering the 2006-2012 model years. Complete operating procedures, daily maintenance intervals, and detailed dashboard indicator guides for the 531-70, 533-105, 535-95, and other compatible variants are all included. Packed with pre-start checklists, clear safety warnings, and complete cab control layouts, this guide helps keep your machine out of the shop. Top off the 15-litre engine oil capacity and confirm the drain plug is tightened to 40-60 Nm before firing up the engine for the day. Operator errors cost serious money. Download this bookmarked file, load it onto your tablet, and keep the exact factory maintenance schedule right in the cab.
What's Inside This JCB JCB Dieselmax (SA, SB, SC Builds) Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 9-10 | Important Information, Operator Manual, Safety Warnings |
| Operation | 37-51 | Introduction, Before Entering the Cab, Entering and Leaving the Cab |

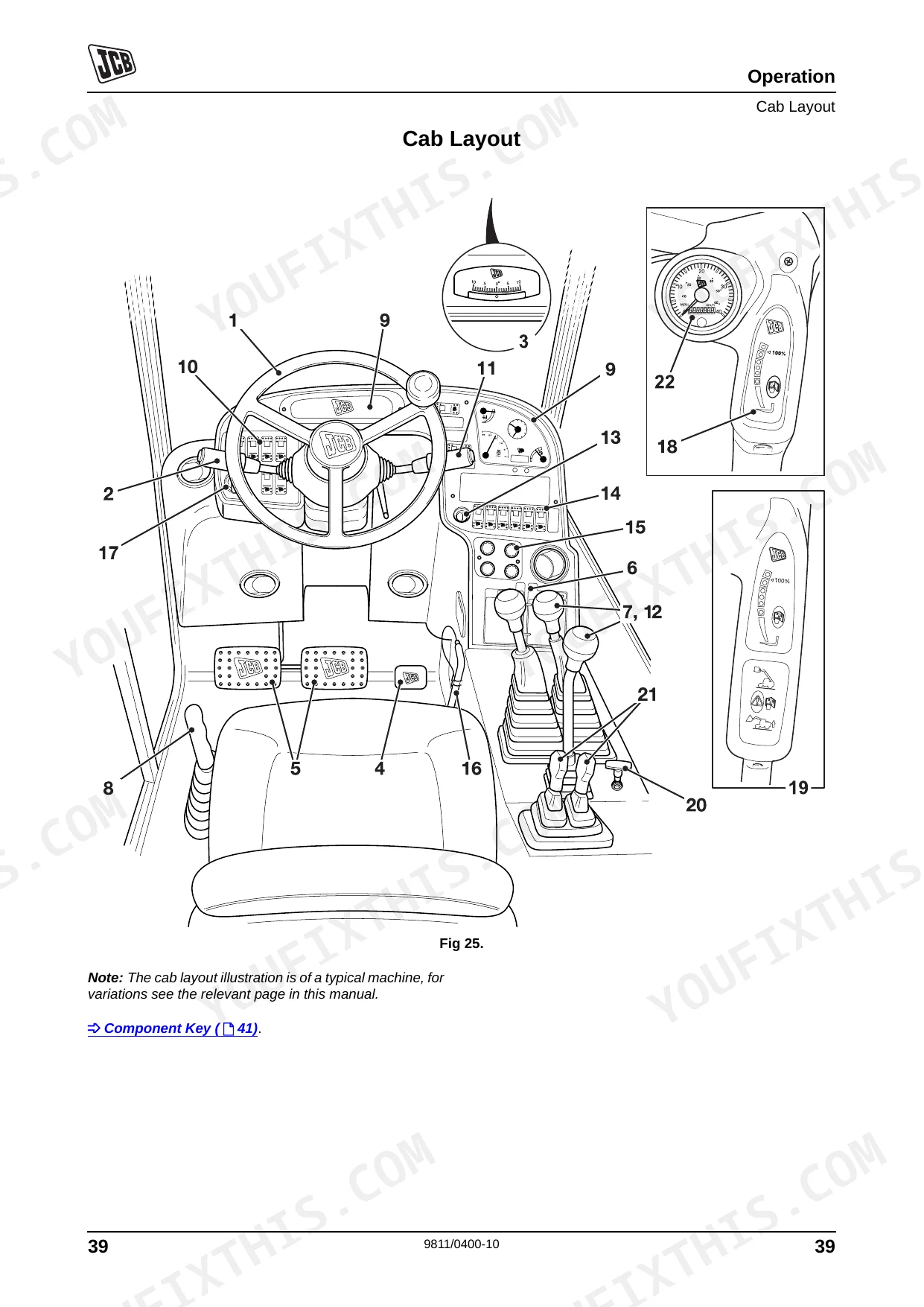

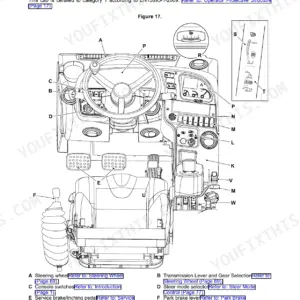

| Drive Controls, Switches and Instruments | 52-74 | Drive Controls, Switches, Instruments, Instrument Panel, Torque Lock, Air Conditioning and Heater Controls |
| Boom and Carriage Controls | 76-85 | Boom Lift, Carriage Tilt, Fork Controls |
| Auxiliary Controls | 86-95 | Auxiliary Hydraulics, Load Moment Indicator, Lcs Diagnostic Fault Codes |

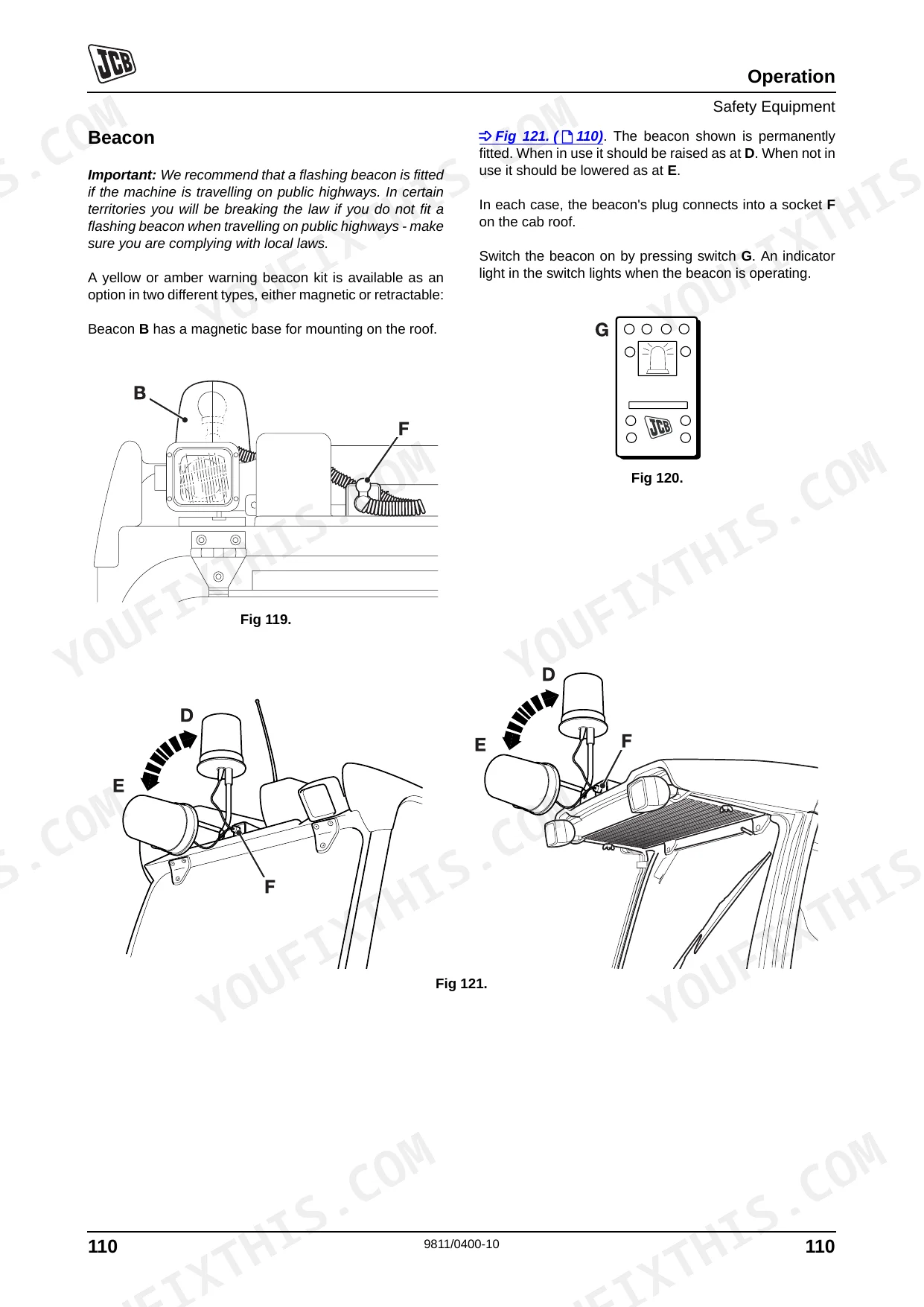

| Safety Equipment | 96-124 | ROPS/FOPS, Seat Belts, Beacon, Fire Extinguisher, Safety Signs |
| Preparing the Machine for Travel | 125-133 | Road Travel Configuration, Stabiliser Legs, Boom Stow, Lighting Checks |
| Working with the Machine | 134-137 | Load Charts, Lift Capacities, Fork Attachment, Safe Lifting Procedures |
| Mechanical Tow Hitch Option | 138-144 | Tow Hitch Engagement, Towing Limits, Coupling Procedure |

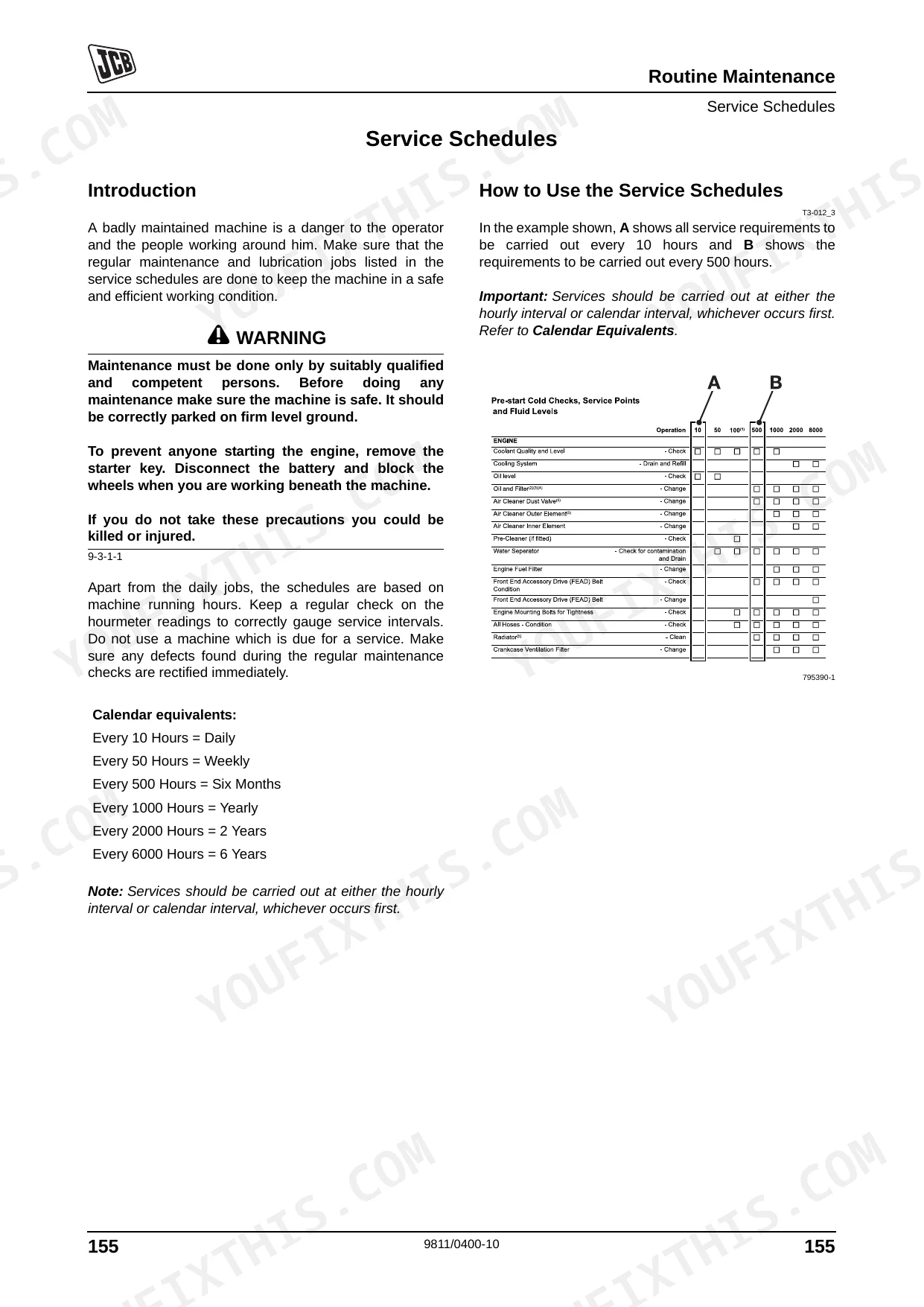

| Maintenance and Service | 145-310 | Service Schedules, Engine Oil and Filter (500 Hr), Fuel Filters, Coolant (22 L), Axle Fluids, Transmission Fluid, Bleeding Fuel System, Hose Burst Protection Valve Checks, Storage Procedures |

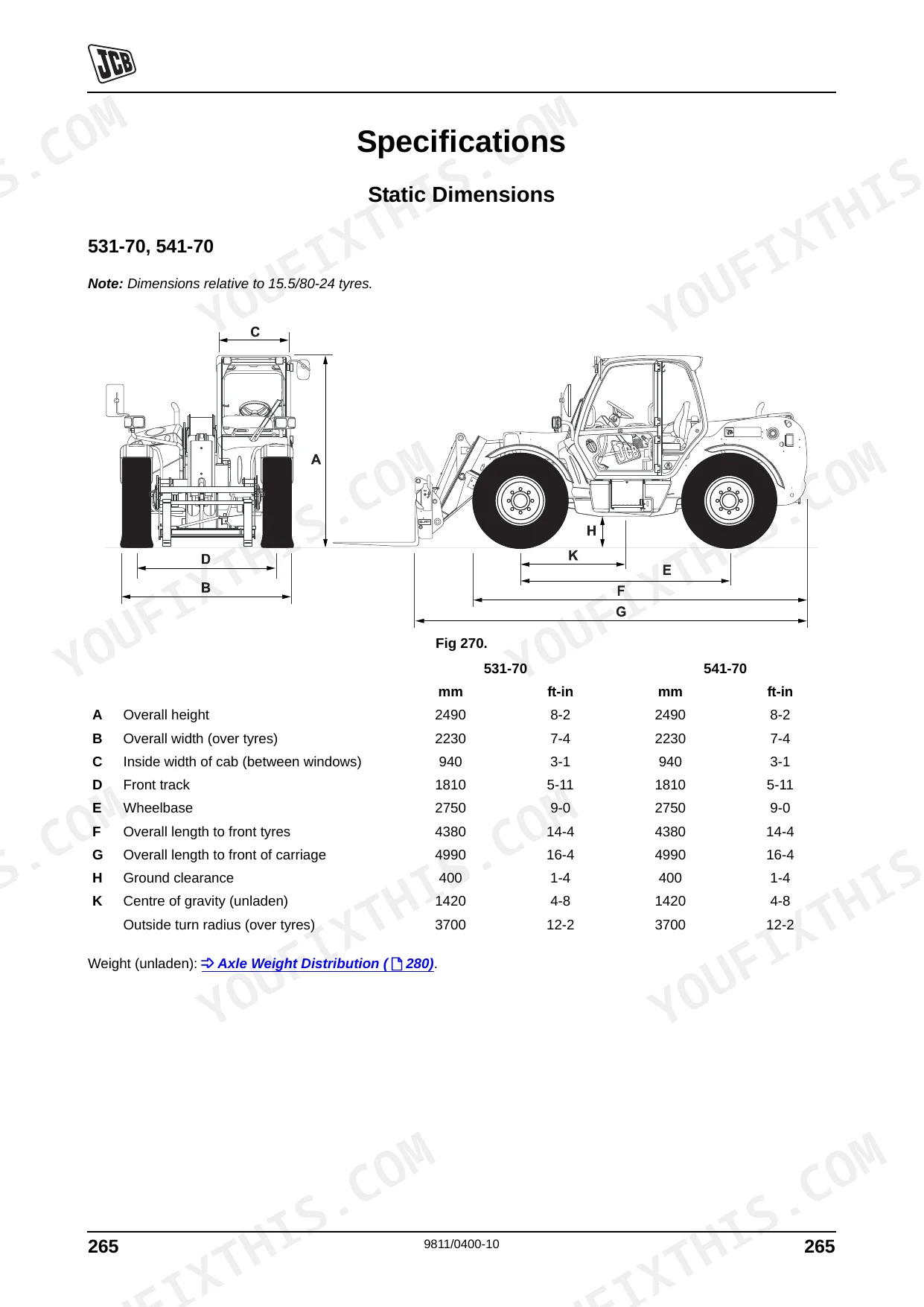

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Engine oil drain plug torque | 40-60Nm (30-44lbf ft) | p. 222 |
| Engine Oil Capacity (MAX) | 15 litres | p. 172 |
| Engine Coolant Capacity | 22 litres | p. 172 |
| Front Axle Housing Capacity | 17.7 litres | p. 172 |
| Front Axle Hubs Capacity (x2) | 1.9 litres | p. 172 |
| ROPS/FOPS Mounting Bolts Torque | 244 Nm | p. 181 |
| 531-70, 533-105, 535-95, 536-60, 536-70, 541-70 | ||
| Fuel Tank Capacity | 148 litres | p. 172 |
| Rear Axle Housing Capacity | 10 litres | p. 172 |
| 535-125, 535-140, 540-140, 540-170 | ||
| Fuel Tank Capacity | 125 litres | p. 172 |
| Rear Axle Housing Capacity | 19 litres | p. 172 |
| SC type engine and 4 speed gearbox only | ||
| Transmission Fluid Capacity (Wet fill) | 17 litres | p. 172 |
| all other machines | ||
| Transmission Fluid Capacity (Wet fill) | 21 litres | p. 172 |
JCB JCB Dieselmax (SA, SB, SC Builds) Common Problems This Manual Covers
JCB Dieselmax engine overheating and coolant temperature warning light flashing on dashboard during heavy work cycles p. 147
Inspect the radiator and charge-air cooler for blockages. Verify the engine coolant level is correct, ensuring the system holds the required 22 litres capacity as listed on page 172. Top up if low and check the hoses for visible leaks.
Manual Section: EngineEngine runs extremely rough, loses power under heavy load, or stalls completely from air in fuel system p. 222
Bleed the fuel system to remove trapped air. Check page 222 for the exact bleeding sequence. Drain the engine oil if contaminated, and torque the engine oil drain plug to 40-60 Nm (30-44 lbf ft) when reinstalling. Replace the main fuel filters.
Manual Section: Bleeding the Fuel SystemLoad Moment Indicator display unit faulty or showing calibration out of range transducer signal fault p. 95
Review the LMI diagnostic fault codes on page 95. Test the battery voltage — Error Code 5 fires when voltage drops below 9 Volts. Check the boom sensors and verify the ROPS/FOPS mounting bolts are secured to 244 Nm as shown on page 181.
Manual Section: Load Moment Indicator (LMI) Diagnostic Fault CodesUncontrolled boom movement or faulty carriage tilt ram dropping rapidly under heavy lifting load p. 242
Inspect the hose burst protection valves for proper operation on page 242. Verify the boom lift and extension rams hold pressure and check all hydraulic connections for leaks. Consult the manual for attachment torque specifications before returning the machine to service.
Manual Section: Checking the Hose Burst Protection ValvesFrequently Asked Questions

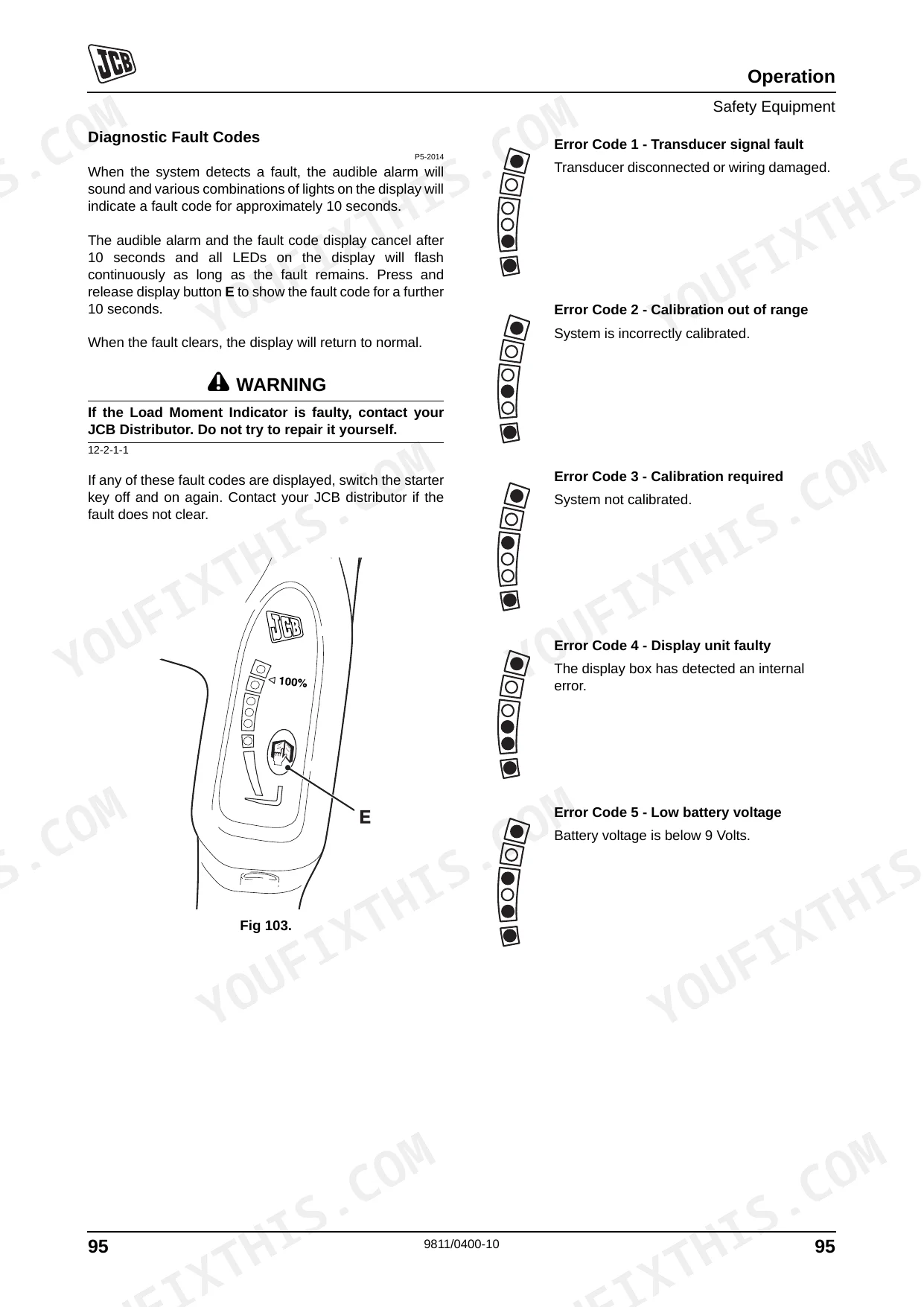

What does error code on a JCB Dieselmax mean?
The manual provides diagnostic fault codes for the Load Moment Indicator (LMI) and Load Control Systems (LCS). For LMI, Error Code 1 indicates a transducer signal fault, Error Code 2 means calibration is out of range, Error Code 3 signifies calibration is required, Error Code 4 points to a display unit fault, and Error Code 5 indicates low battery voltage (below 9 Volts). For LCS, an additional Error Code 6 indicates a fault in the LCS manifold.
How do I reset the ECU/diagnostic fault on JCB Dieselmax?
To address diagnostic fault codes, if any are displayed, you should switch the starter key off and on again. If the fault does not clear after this action, it is recommended to contact your JCB distributor for further assistance.
What are the replacement specifications for fuel filters?
The fuel filters, including the water separator fuel filter and the engine fuel filter, should be changed every 500 hours as part of routine maintenance. The manual specifies fitting a "new element" during the replacement procedure, but does not provide specific part numbers or detailed technical specifications for the filters themselves.
What are the replacement specifications for engine oil filter?
The engine oil and filter should be changed every 500 hours, or more frequently (every 250 hours) if operating under arduous conditions. When replacing the engine oil filter, it is specified to "Fit only a genuine supplied JCB filter" to prevent damage to the system.
What format is this manual in?
Immediate download of the complete 310-page searchable Operator Manual. Access it on any device, from a laptop at your desk to a phone in the field.
Can I print specific sections of this manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
