Looking for the John Deere 2305 Technical Manual PDF? This 362-page factory technical manual (OEM #TM2289) covers your entire compact utility tractor: the Yanmar 3TNV76 diesel, hydrostatic transaxle, hydraulics, steering, and brakes. You get factory electrical schematics for every harness, W1 main through W7 PTO cutout, with wire color codes, plus hydraulic schematics tracing the steering, SCV, and rockshaft circuits. Symptom-based diagnostics walk you from a no-crank complaint or spongy brakes straight to the failed component, and step-by-step repair procedures handle everything from valve clearance adjustment to a full transaxle rebuild. Pull the injector pump mounting nuts to 22.5-28.4 N-m (17-21 lb-ft) and set steering relief pressure at 6377 kPa (925 psi). No more chasing electrical gremlins with a multimeter and a prayer. Bookmarked with a full text layer: search any spec, jump to any section, fix the tractor.
What's Inside This John Deere 2305 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3-4 | Manual Description |
| Safety | 5-12 | Recognize Safety Information, Understand Signal Words, Replace Safety Signs, Handle Fluids Safely - Avoid Fires, Be Prepared for Emergencies |

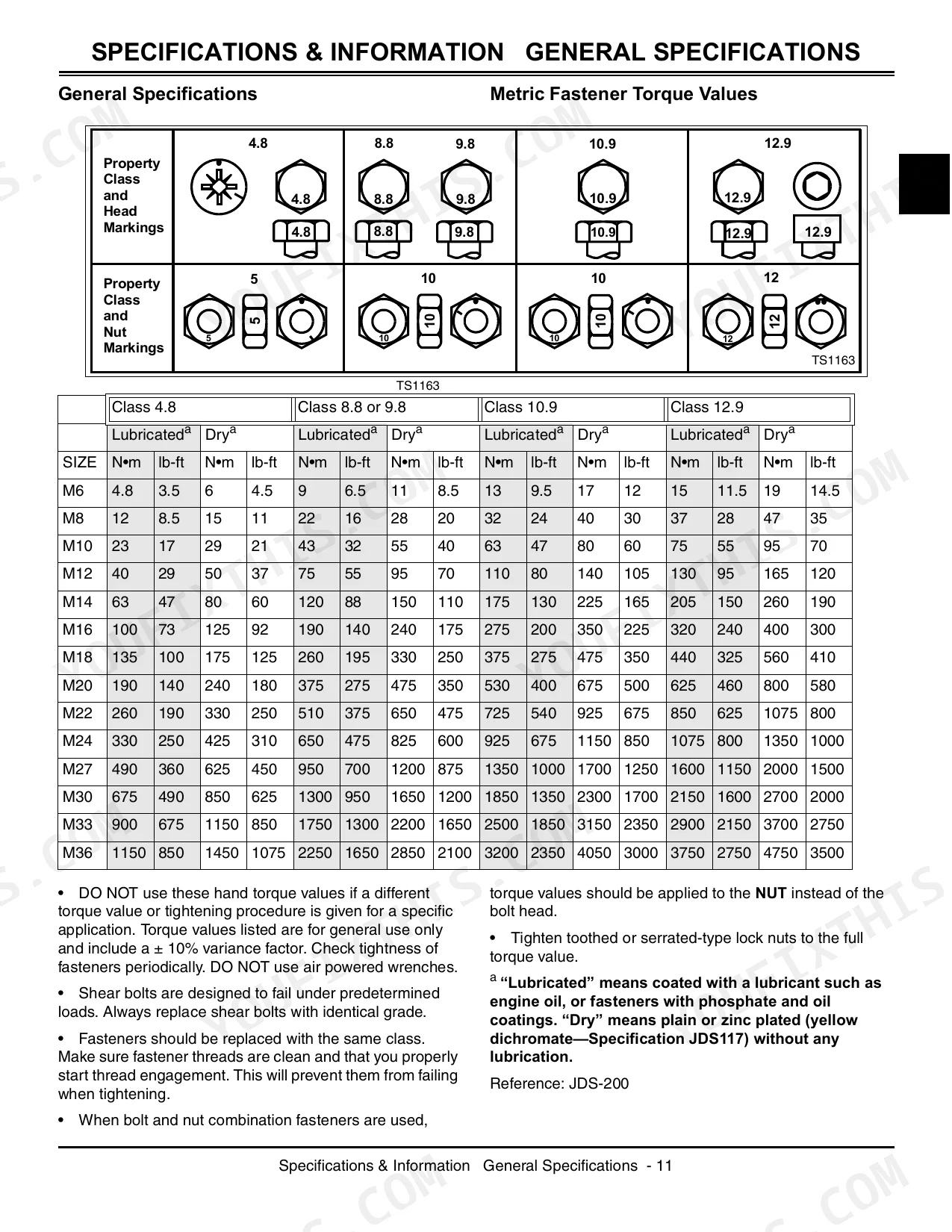

| Specifications & Information | 13-24 | Seal Service Recommendations (Face Seal Fittings with Inch Stud Ends Torque, Face Seal Fittings with Metric Stud Ends Torque, O-Ring Face Seal Fittings, O-Ring Boss Fittings, Gasket Sealant Application) |

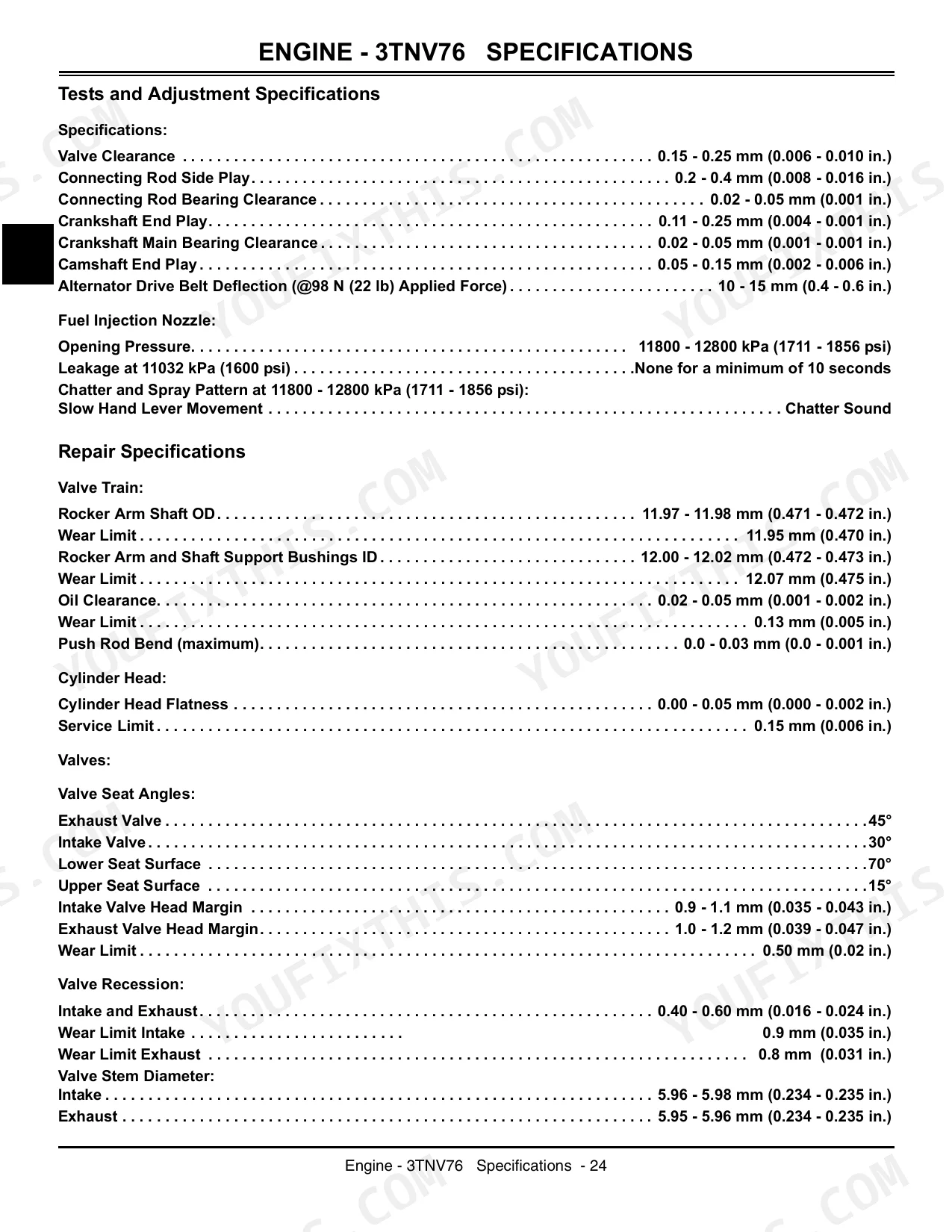

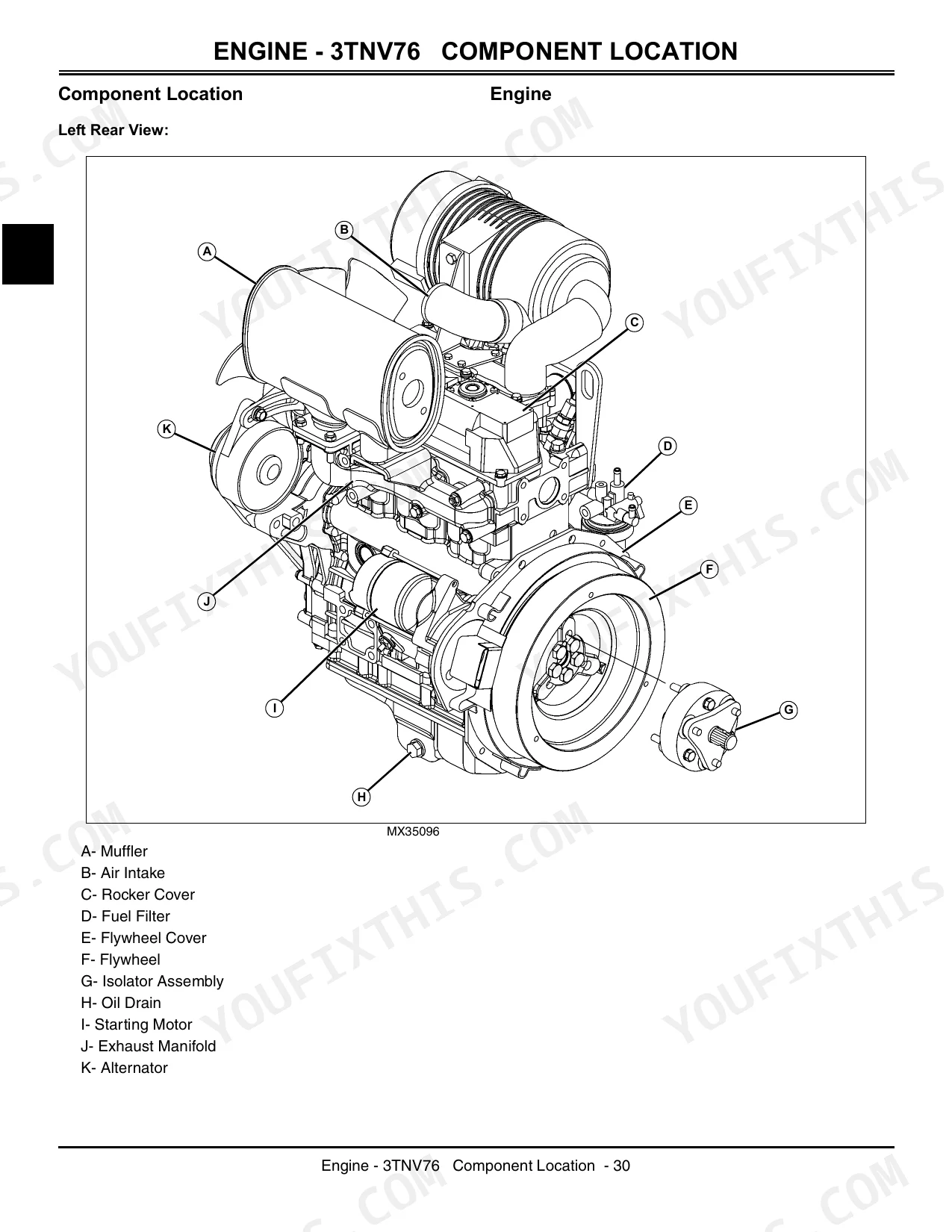

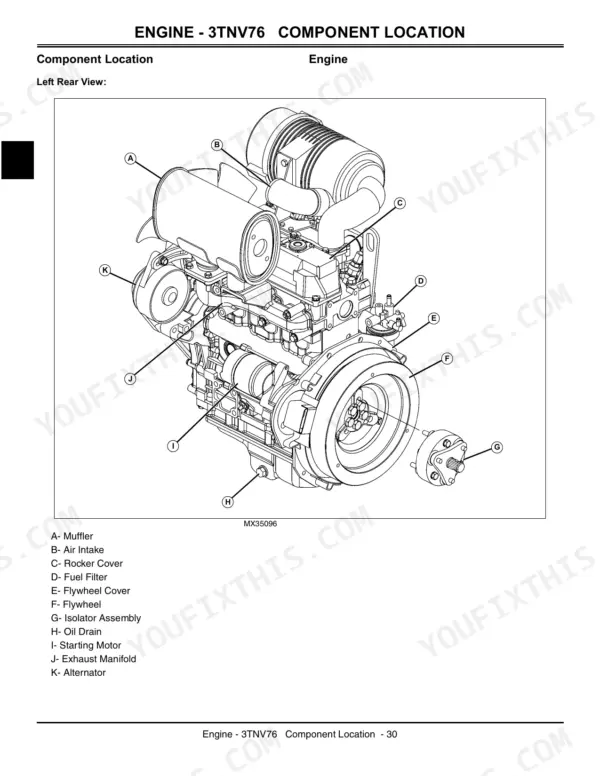

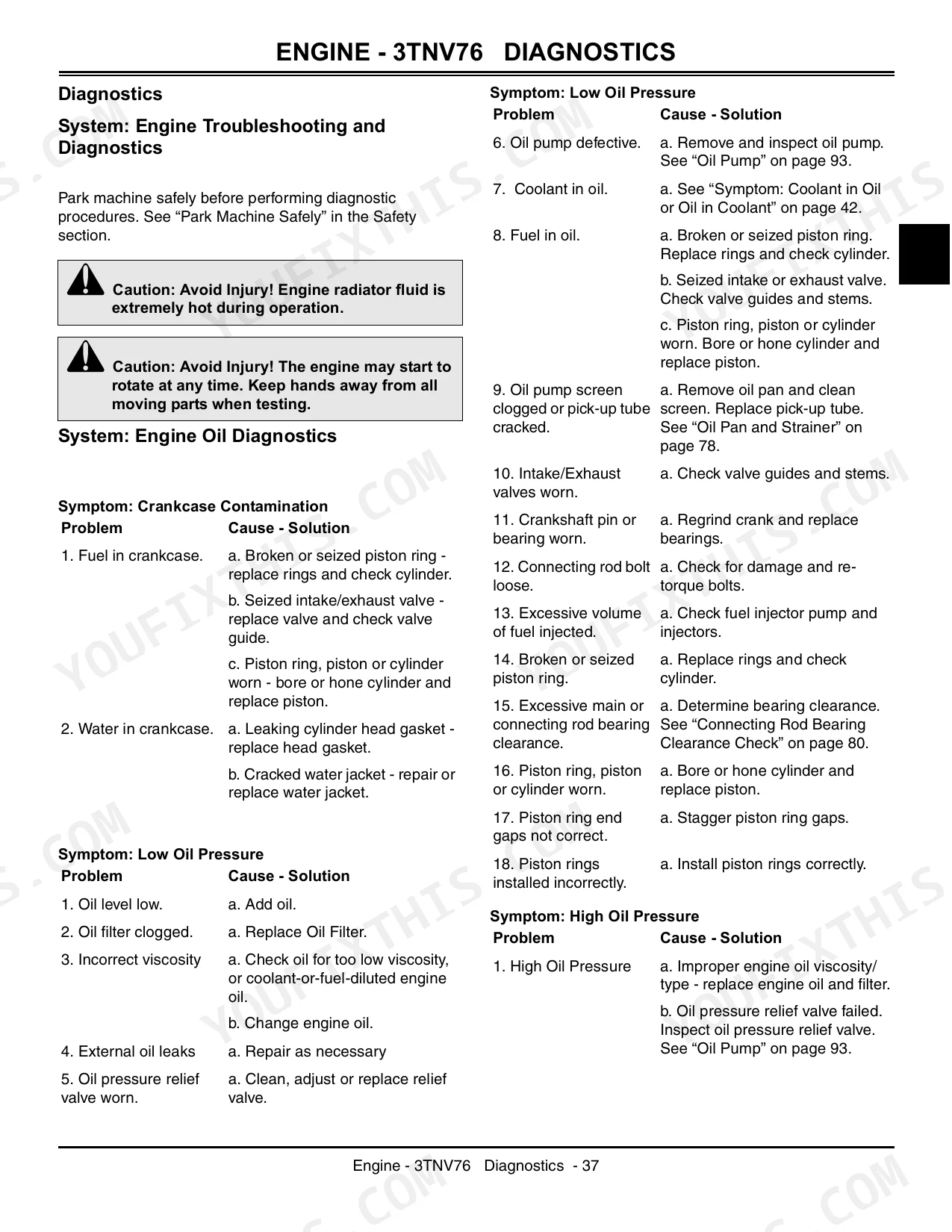

| Engine - 3TNV76 | 25-114 | Specifications (Operational Tests, Tests and Adjustment Specifications, Repair Specifications, Tightening Torques, Special Tools, Other Materials) |
| Electrical | 115-192 | Specifications (System Specifications), Component Location (Electrical Components, Control Panel) |
| Power Train | 193-272 | Specifications (Torque Specifications, Other Materials) |
| Hydraulics | 273-314 | Specifications (Test and Adjustment Specifications, Repair Specifications) |
| Steering | 315-326 | Specifications (Steering Specifications, Torque Specifications), Component Location (Steering: System Components, Control Unit), Theory of Operation (Steering: System Schematic) |
| Brakes | 327-342 | Specifications (Brake Specifications), Component Location (Brake: System Component Location, Housing Component Location), Theory of Operation (Brake System Operation) |
| Miscellaneous | 343-354 | Repair (Seat and Seat Frame Removal and Installation, Roll Over Protection System Removal and Installation, Rear Fender Platform Removal and Installation, Front Wheel Removal and Installation, Rear Wheel Removal and Installation, Front Grille Removal and Installation, Hood Removal and Installation, Steering Wheel Removal and Installation, Control Panel Removal and Installation, Control Panel Lower Shroud Removal and Installation, Foot Rest Removal and Installation, Battery Removal and Installation, Fuel Tank Removal and Installation, Three Point Hitch Removal and Installation) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Fuel Filter Removal and Installation | 102 | p. 26 |
| Starting Motor Solenoid | 108 | p. 26 |
| Injector Pump Mounting Nuts | 22.5-28.4 N•m (17 - 21 lb-ft) | p. 32 |
| Fuel Line-to-Injection Pump Nuts | 29.4 - 34.4 N•m (22 - 25 lb-ft) | p. 32 |

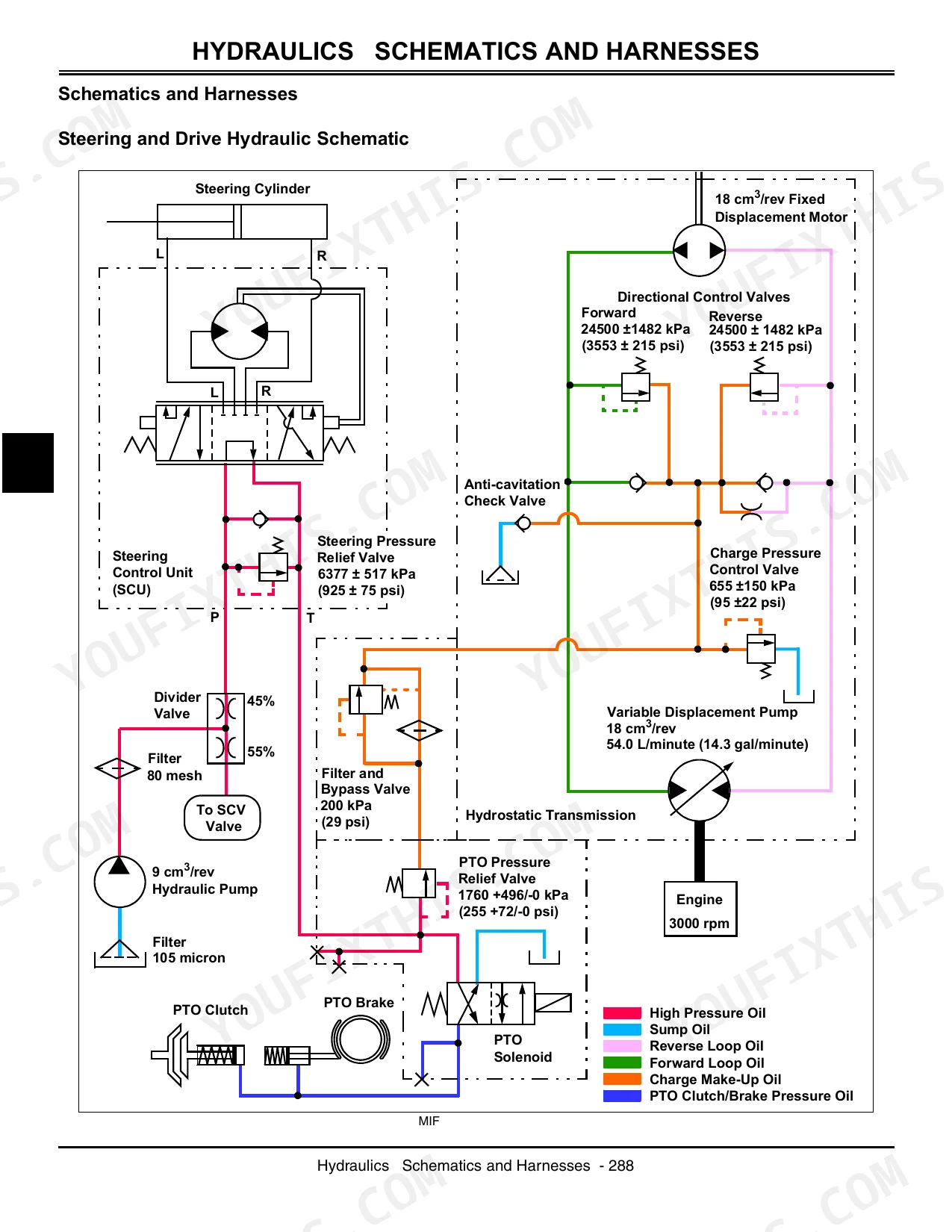

| Steering relief valve oil pressure | 6377 ± 517 kPa (925 ± 75 psi) | p. 291 |
| Rockshaft Lift Cycle Time | Less than 3 seconds | p. 301 |
| Engine Oil Capacity (w/filter) | 3.2 L | p. 27 |
| Cooling Capacity (includes coolant bottle) | 3.2 L | p. 27 |
| Engine Coolant Temperature Switch (Continuity (Closing) Temperature) | 107 - 113 °C | p. 32 |
| Slow Idle Speed | 1200 ± 50 rpm | p. 27 |
| High Idle (no-load) | 3170 ± 25 rpm | p. 27 |

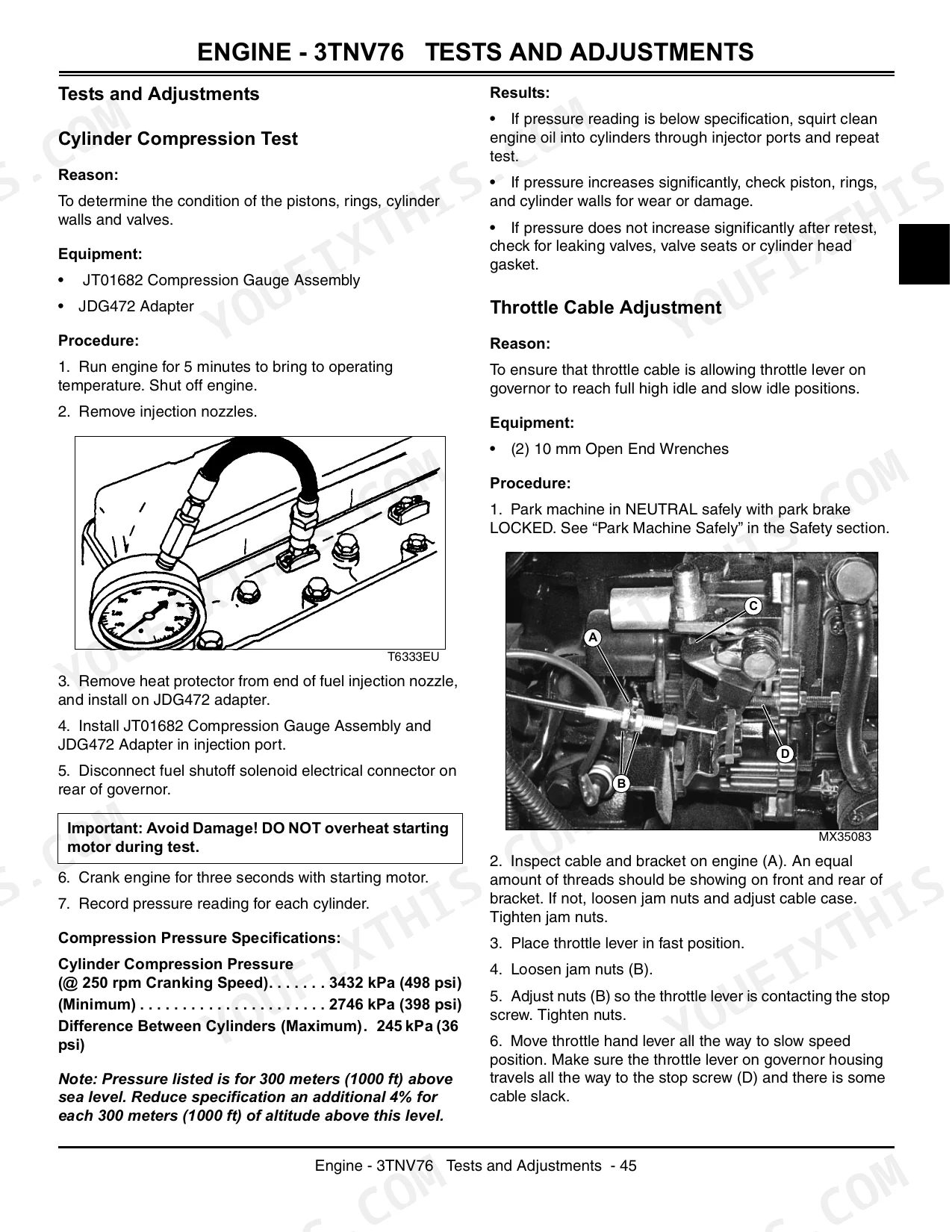

| Cylinder Compression Pressure (@ 250 rpm Cranking Speed) | 3432 kPa | p. 27 |
John Deere 2305 Common Problems This Manual Covers
Coolant boils over and temperature warning trips during mowing in hot weather
Clean the radiator fins and screen with compressed air, blowing from the engine side outward. Pressure-test the radiator cap; it must hold 88.3 ± 14.7 kPa, spec on page 27. Refill the system to its full 3.2 L capacity including the coolant bottle, then run the coolant temperature diagnostics starting if the warning still trips.
Manual Section: Engine DiagnosticsPTO won't engage or kicks off when the mower deck hits heavy grass
Test the seat switch and PTO safety switch for continuity; a worn switch drops the PTO solenoid circuit the moment you shift your weight. Verify a full 12 volts reaches the solenoid connector with the switch engaged, tracing the circuit on the wiring diagram. Replace any switch that reads open when it should be closed.
Manual Section: Electrical System DiagnosticsFrequently Asked Questions
How do I reset the steering column on a John Deere 2305?
The manual describes removal and installation procedures for the steering column and steering wheel, including torque specifications for reassembly. It does not explicitly mention a "reset" procedure for the steering column itself. For installation, the steering wheel lock nut should be tightened to 39 - 49 N•m (29 - 36 lb-ft), and the steering column upper cap screws to 20 - 23 N•m (15 - 17 lb-ft). p. 325
How do you fix john Deere 2305 engine only starts with PTO switch on, fuel shut-off solenoid clicks then dies?
Check the V4/V5 diode in the glow plug timer module; a failed diode backfeeds the fuel shut-off solenoid through the PTO circuit, which is why the key alone won't hold it running. Trace both circuits on the wiring diagram, then test the solenoid pull-in and hold coils directly with 12 volts before buying parts.
How do you fix engine stalls under load, hard starting, or won't restart after running out of fuel?
Replace both fuel filters and bleed air from the system at the injection pump. Verify fuel pump output reaches 29 kPa; the spec is on page 32. If it still starves, crack each line to isolate a blocked nozzle, then retorque fuel line-to-injection pump nuts to 29.4-34.4 N•m (22-25 lb-ft). Full starting diagnostics begin.
How do you fix steering wanders at road speed or wheel turns with little response from front tires?
Check hydraulic oil level and condition first; milky oil means water contamination, so drain and refill before condemning hardware. Test steering relief pressure against the 6377 ± 517 kPa (925 ± 75 psi) spec on page 291. Low pressure points to the steering pump; good pressure means a worn column shaft or coupling, covered in the steering section starting on page 315. p. 315
Is this John Deere 2305 Technical Manual a digital download?
A 362-page Technical Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this John Deere 2305 Technical Manual printable?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.

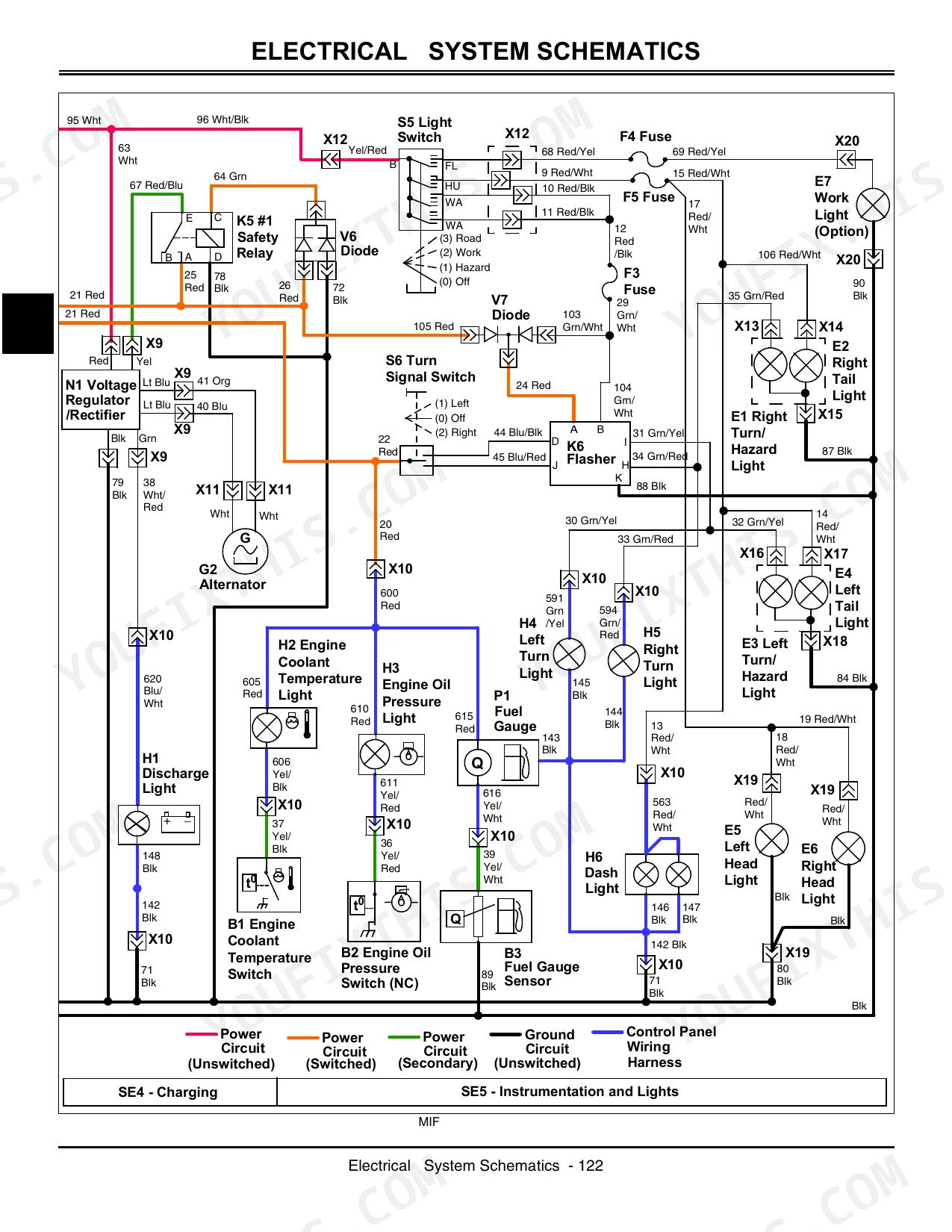

Does this John Deere 2305 Technical Manual have electrical diagrams?
Yes, this John Deere 2305 Technical Manual includes a wiring diagram for the electrical system.
