Part of the John Deere Repair Manuals.
This is the complete John Deere factory repair manual (TM2266) for the 7630, 7730, 7830 and 7930 tractors. Across 1,100 pages it covers every major system on the machine: removing and rebuilding the 4.5L and 6.8L PowerTech diesel engine, servicing the PowrQuad-Plus and AutoPowr/IVT transmissions, repairing MFWD and drive systems, and tracing the full electrical system with wiring harness routings. It is the same information a John Deere dealer technician works from, with the torque values, capacities and test pressures called out so a repair is done to spec the first time.
What's Inside This John Deere 7630, 7730, 7830, 7930 Repair Manual
| System | Pages | Key Topics |
|---|---|---|
| General Information | Safety, General Specifications | |
| Engine | Component Removal and Installation, Engine Repair | |
| Fuel, Air Intake and Cooling Systems | Controls, Diesel Fuel System, Air Intake System, Engine Cooling System, Hydraulic Oil Cooler and Air Conditioning Condenser/Fuel Cooler, Exhaust System | |

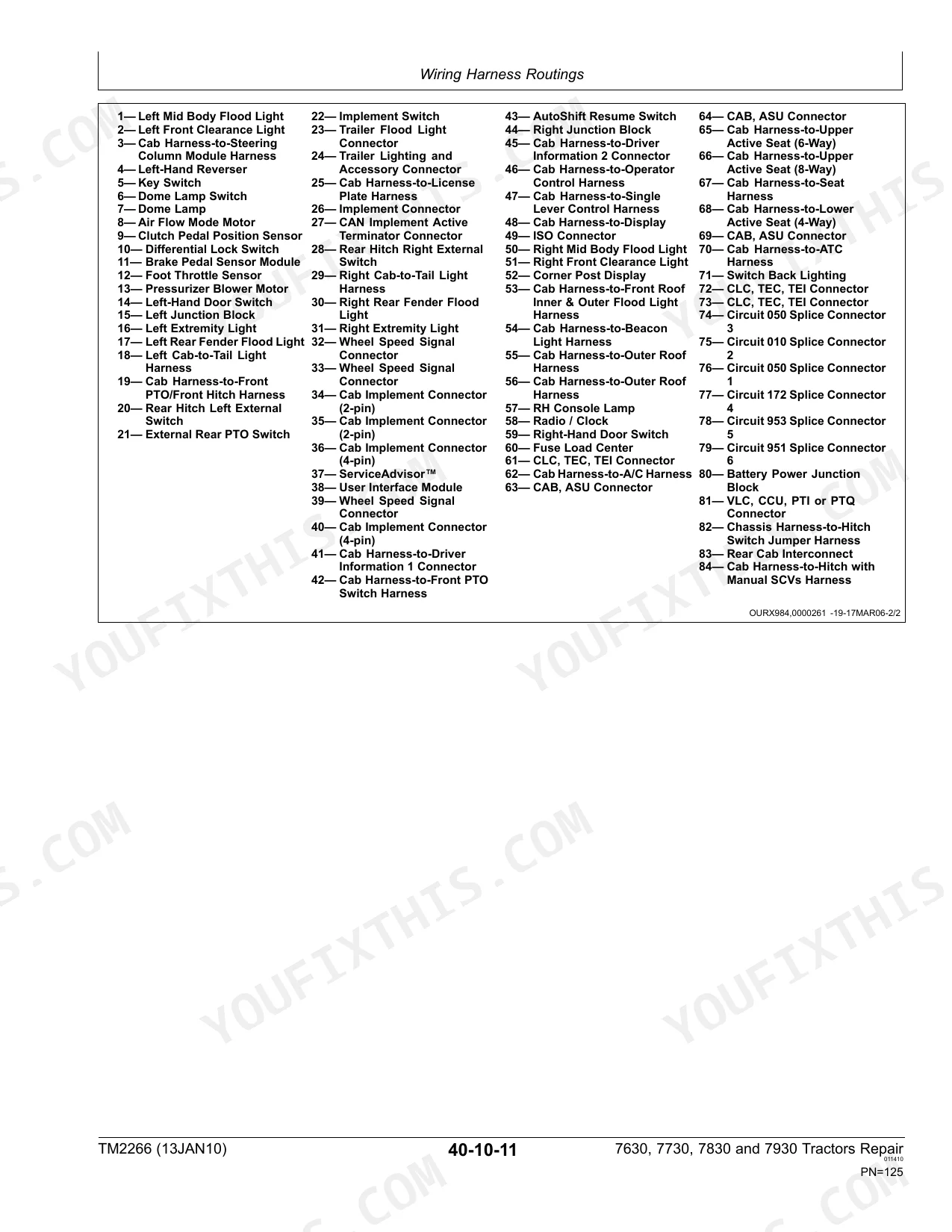

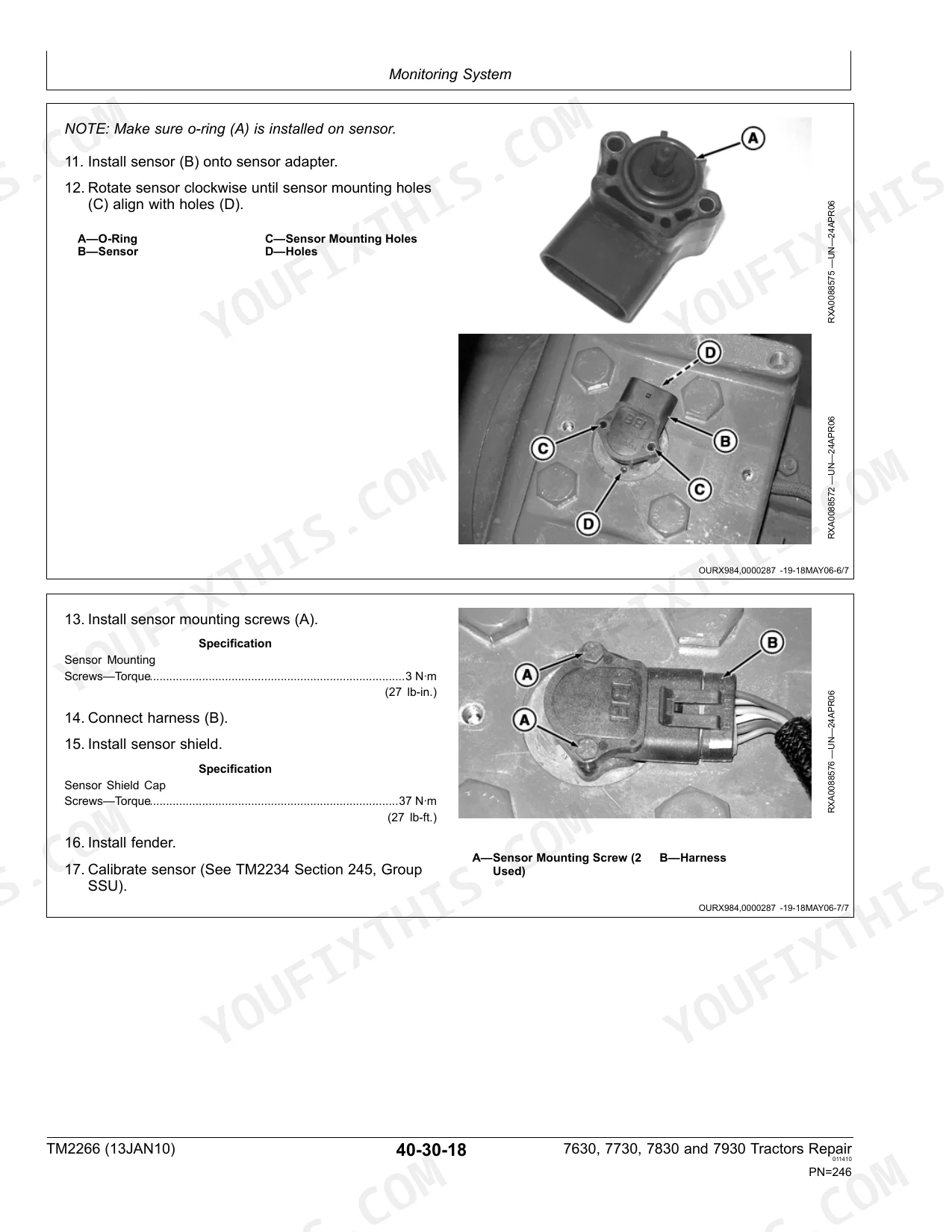

| Electrical System | Connectors, Wiring Harness Routings, Charging Circuit, Starting Circuit, Relays/Fuses/Solenoids and Switches, Monitoring System, Armrest Control, Implement and Accessory Connectors, Convenience and Accessory Components | |

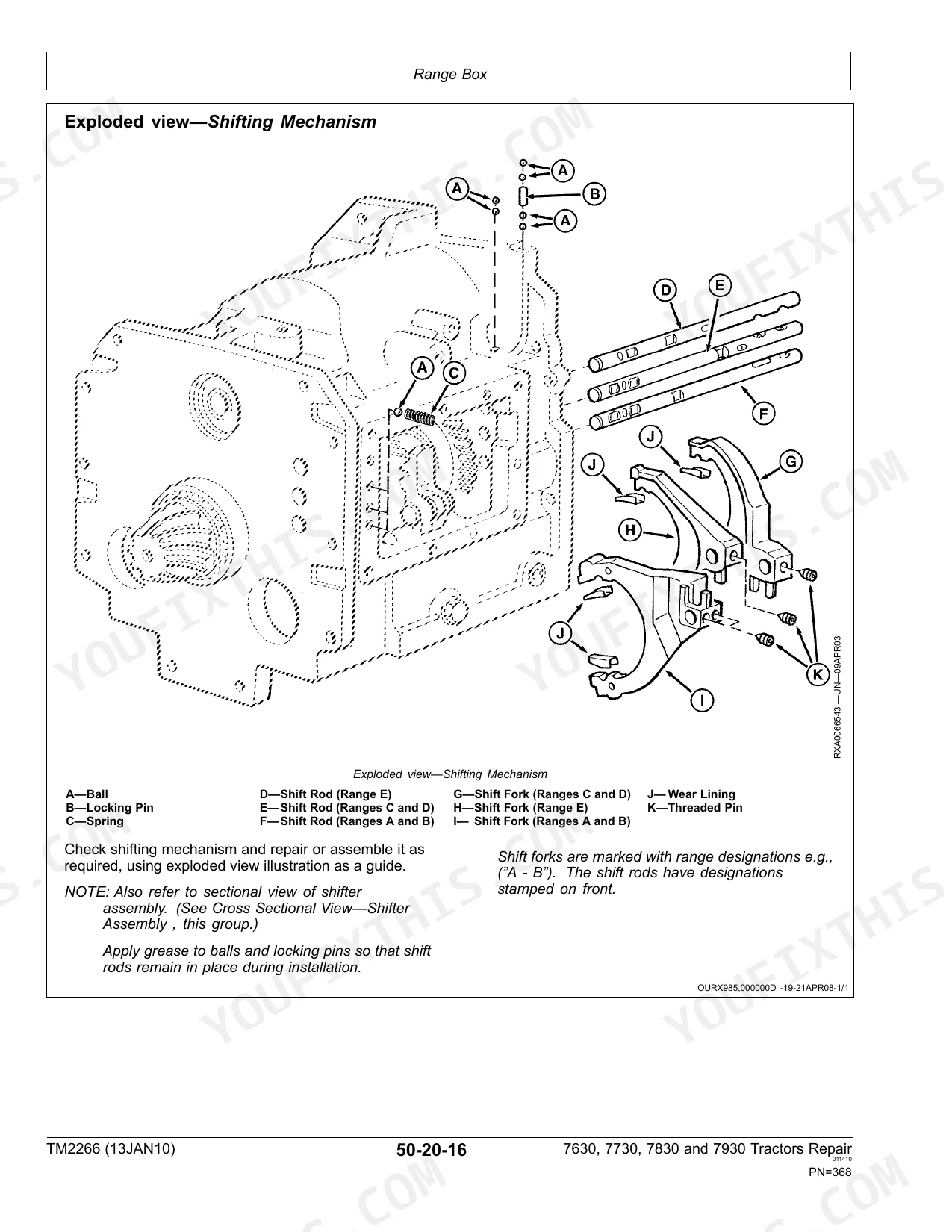

| PowrQuad-Plus Transmission | Component Removal and Installation, Transmission Shifting Mechanisms, PowrQuad-Plus Module, Range Box | |
| AutoPowr/IVT Transmission | Component Removal, Controls, Front Pump/Control Valve Assembly, Transmission Front Housing, Hydrostatic Module, Shift Valve Assembly, Transmission Rear Housing, Differential Input Assembly | |
| MFWD Drive Systems | Component Removal and Installation, Controls, MFWD Clutch, MFWD Axle, Suspended MFWD Axle Components | |
| Drive Systems | Component Removal and Installation, Rear Differential, Final Drive, Rear PTO, Front PTO Repairs, Primary Brakes | |
| Steering and Brakes | Steering Column, Hydrostatic Steering, Service Brakes, Trailer Brakes | |
| Hydraulics | Component Removal and Installation, Hydraulic System Repair, Hydraulic Pump and Charge Pump, Hydraulic System Valves, Selective Control Valves and Couplers, Rear 3-Point Hitch, Front 3-Point Hitch, Bleed Hydraulic System | |
| Miscellaneous | Hood, Front Axle (Two-Wheel Drive), Steering Cylinders (Two-Wheel Drive), Rear Wheels, Wagon and Pick-Up Hitch | |
| Operator Station | Component Removal and Installation, Heating/Ventilating and Air Conditioning (HVAC), Air Conditioning System, Air Suspension Seat, Active Seat, Armrest, Cab Door and Windshield | |
| Dealer Tools | Dealer Fabricated Tools, Essential and Recommended Tools |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All models | ||
| OEM Manual Number | TM2266 (13JAN10) | |
| Coolant Capacity (6.8L Engine) | 33 L (35 qt) | |
| Radiator Pressure Test | 80 kPa (0.8 bar / 12 psi) | |
| Radiator Cap Pressure Test | 60-80 kPa (0.6-0.8 bar / 9-12 psi) | |
| 7630, 7730, 7830, 7930 | ||
| Engine Options | PowerTech 4.5L and 6.8L / PowerTech Plus 6.8L Diesel | |
| Engine Cooling System | ||
| Viscous Fan Drive Nuts Torque | 41 N.m (30 lb-ft) | |
| Fan-to-Viscous Drive Cap Screws Torque | 25 N.m (18 lb-ft) | |
| Belt Tensioner Cap Screw Torque | 50 N.m (37 lb-ft) | |
| Air Intake System | ||
| Air Intake Clamps Torque | 8-12 N.m (71-106 lb-in.) | |
John Deere 7630, 7730, 7830, 7930 Common Problems This Manual Covers
MFWD front wheel assist stays engaged and will not shut off
Check the wiring harness pigtail and connector to the MFWD solenoid first - a corroded or broken wire is the most common cause. The MFWD Drive Systems section covers solenoid removal and testing and the MFWD clutch, so you can confirm whether the fault is a stuck clutch, a bad solenoid or a wiring harness problem before disassembling the axle. The CCU fault code ACU 000974.04 points directly to this circuit.
Manual Section: MFWD Drive SystemsLow engine fuel pressure with code 1347.07 or 1347.47.
Start by replacing the fuel filters with genuine John Deere filters and testing the electric lift pump output at the filter housing - low flow from the lift pump starves the Denso high-pressure pump. If pressure is still low after filter service, test and clean or replace the suction control valve on the high-pressure pump as described in the Diesel Fuel System group of Section 30. Also check the rail pressure sensor connector for a loose fit.
Manual Section: Fuel, Air Intake and Cooling SystemsRail pressure sensor connector keeps losing connection
The rail pressure sensor connector on these tractors is a known wear point. Clean the connector terminals and apply dielectric grease, then secure the connector with a cable tie to prevent vibration-induced dropout. The Connectors group in the Electrical section and the Diesel Fuel System group in Section 30 cover the correct harness repair procedure so the fix holds long-term.
Manual Section: Fuel, Air Intake and Cooling SystemsAir conditioning ATC diagnostic codes, poor cab cooling or heating
The most common cause is a plugged cab recirculation air filter or a restricted condenser. Clean or replace the recirculation filter and inspect the condenser for crop debris. The Heating, Ventilating and Air Conditioning (HVAC) and Air Conditioning System groups in Section 90 cover system pressure testing, component replacement and the diagnostic codes specific to the ATC system on these tractors.
Manual Section: Operator StationFrequently Asked Questions
What is the OEM manual number for the John Deere 7630, 7730, 7830 and 7930 tractor repair manual?
This is TM2266, dated January 13, 2010. It covers the Repair portion of the technical manual set. The companion Operation and Test manual for these tractors is TM2234. Both manuals together give you the full diagnostic and repair picture the dealer technician uses.
Why does the MFWD stay engaged and won't shut off on a 7630, 7730, 7830 or 7930?
This is typically a fault in the wiring harness to the MFWD solenoid or a stuck solenoid itself. The chassis control unit (CCU) detects low solenoid current and reports ACU 000974.04. The MFWD Drive Systems section covers the MFWD clutch, solenoid testing and the wiring harness pigtail repair so you can isolate whether the fault is electrical or mechanical before pulling the axle.
What causes error code 1347.07 on the John Deere 7630, 7730, 7830 or 7930?
Code 1347.07 is low fuel pressure detected at the high-pressure rail. The most common causes are a sticking suction control valve on the Denso high-pressure pump, a weak electric fuel lift pump at the top of the filter housing, or clogged fuel filters (non-genuine filters are a known trigger). The Fuel System group in Section 30 covers suction control valve removal and testing, electric pump output testing and filter service.
Does this manual cover both the PowrQuad-Plus and AutoPowr/IVT transmissions?
Yes. Section 50 covers the PowrQuad-Plus transmission including the shifting mechanisms, PowrQuad-Plus module and range box removal and rebuild. Section 51 covers the AutoPowr/IVT transmission including the front pump and control valve assembly, hydrostatic module, shift valve assembly and differential input assembly. Each section lists the essential tools needed for that transmission.
What engine coolant capacity and radiator test pressure apply to these tractors?
The 6.8L PowerTech engine holds 33 L (35 qt) of coolant. The radiator tests at 80 kPa (0.8 bar / 12 psi) and the radiator cap tests at 60-80 kPa (0.6-0.8 bar / 9-12 psi). These values are in the Engine Cooling System group and must be met during any pressure test before returning the tractor to service.
