![John Deere 8430 8630 Repair Manual [Tractors]](https://youfixthis.com/wp-content/uploads/2012/02/Manual_Download-300x300.jpg)
Part of the John Deere Repair Manuals.
This is the John Deere factory repair manual for the 8130, 8230, 8330, 8430 and 8530 row-crop tractors. All 1,618 pages are the same information a John Deere dealer technician works from: engine teardown with crankshaft and cylinder-head procedures, complete Power Shift and AutoPowr/IVT transmission service, MFWD and ILS front axle repair, the load-sensing hydraulic system from pump to selective control valves, full electrical coverage with wiring diagrams, and operator station including air conditioning. Torque values, fluid capacities and test pressures are called out in each section so a repair is done to specification the first time.

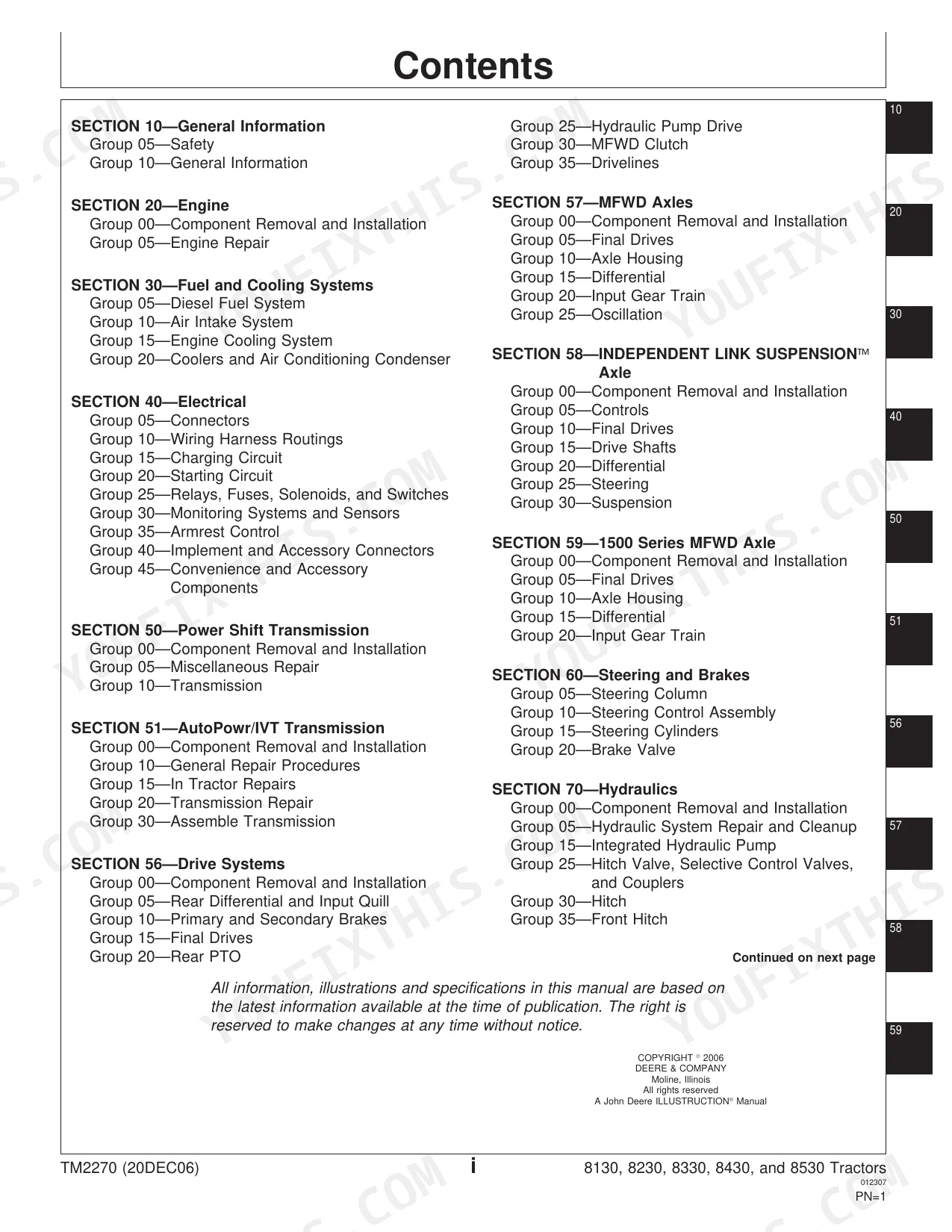

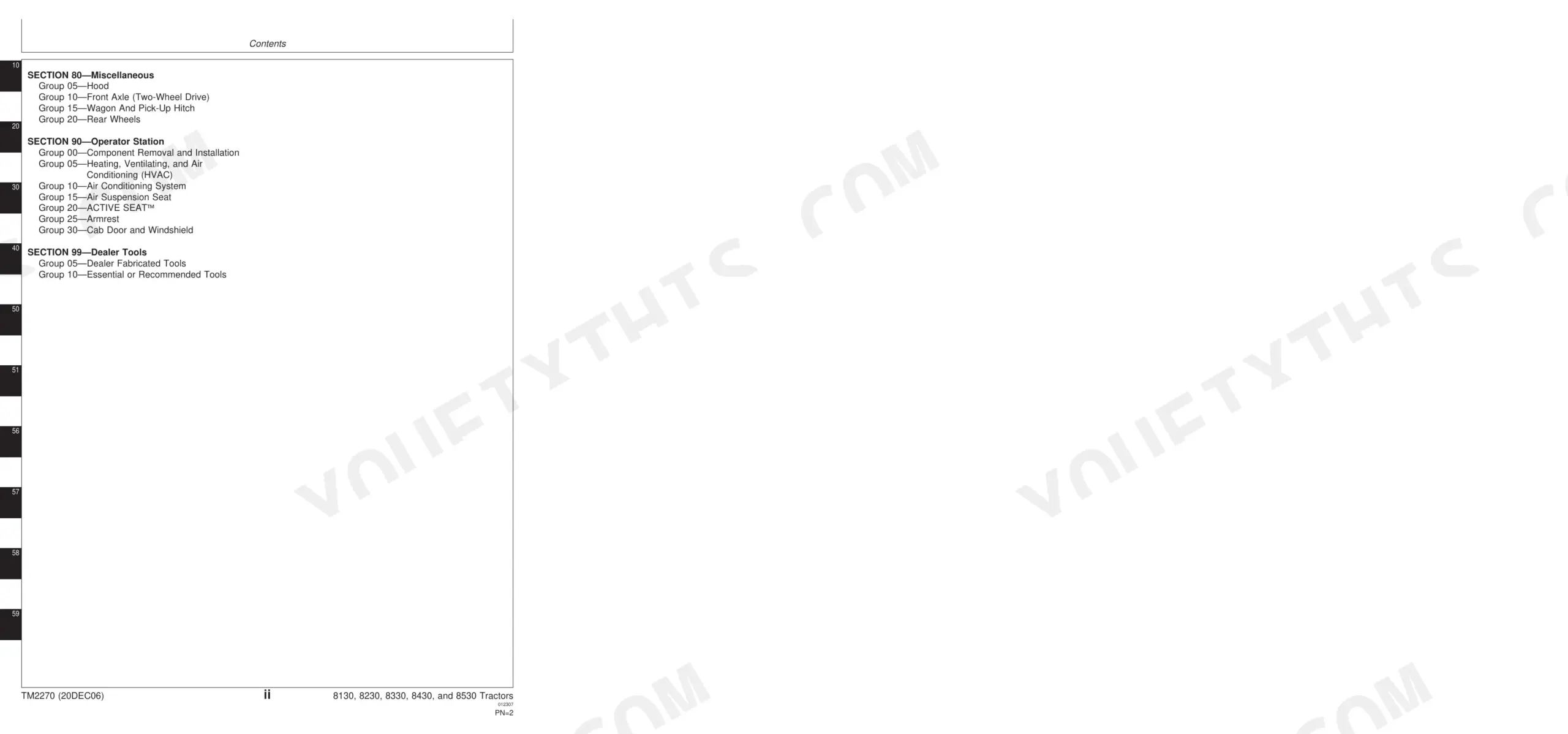

What's Inside This John Deere 8130, 8230, 8330, 8430, 8530 Repair Manual

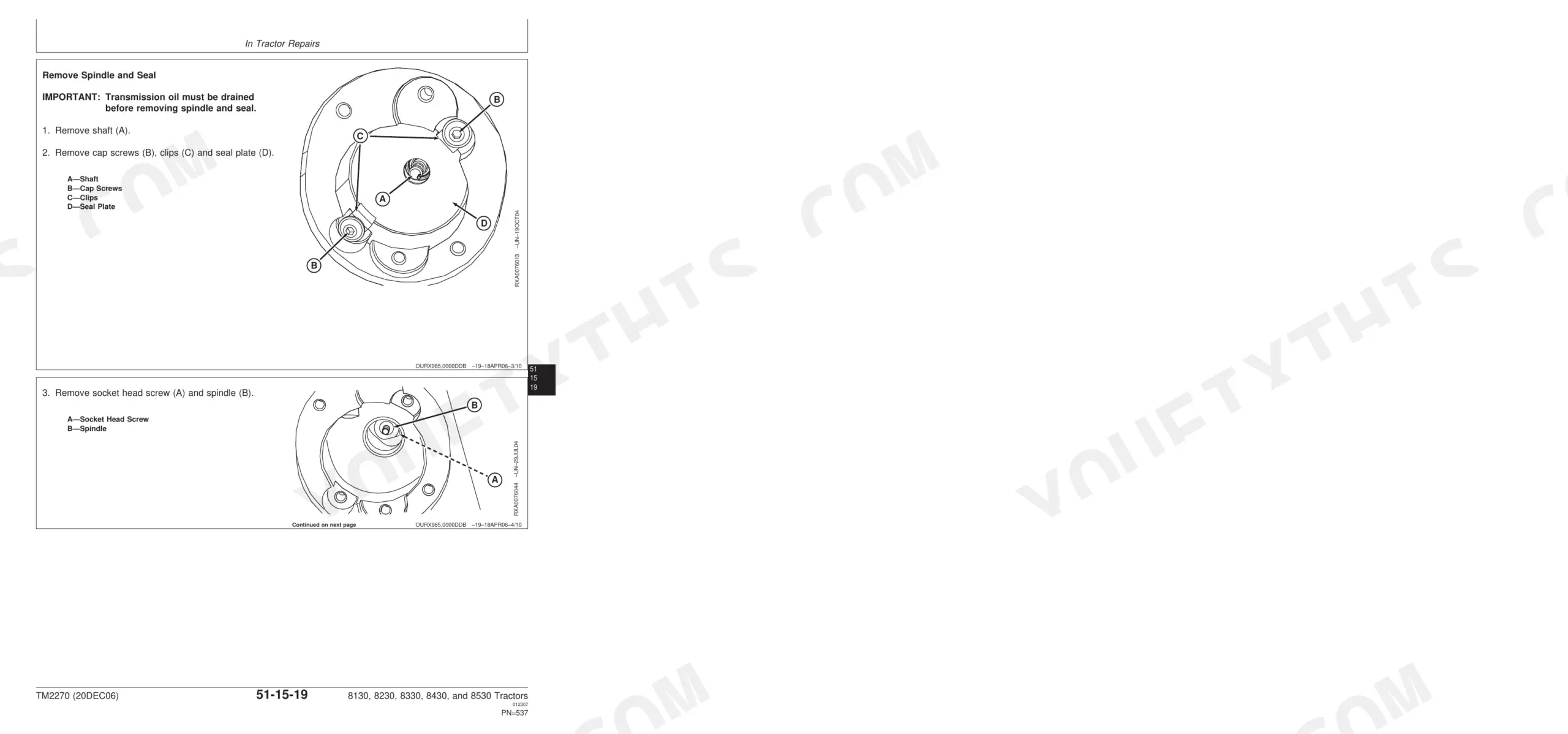

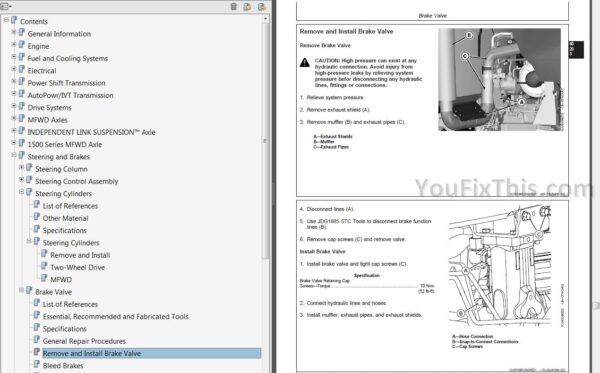

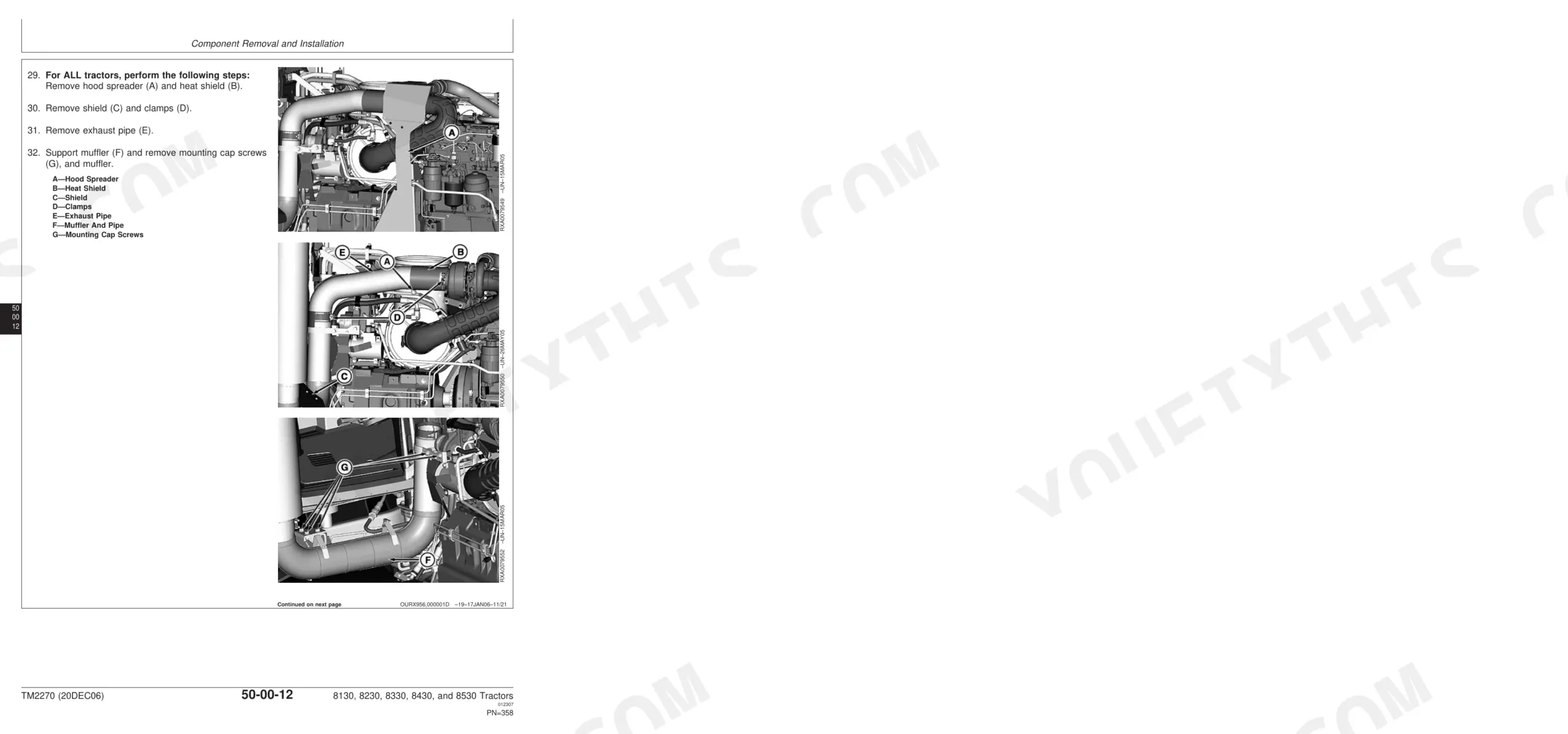

| System | Pages | Key Topics |
|---|---|---|
| General Information | Safety, Serial Number Locations, General Specifications, Torque Values, Fluids and Lubricants | |
| Engine | Engine Removal and Installation, Cylinder Head, Crankshaft, Cylinder Block, Valvetrain, Oil Pump, Engine Rebuild | |
| Fuel and Cooling Systems | Diesel Fuel System, Injection Pump, Injectors, Air Intake System, Coolant System, Thermostat, Water Pump, Radiator | |
| Electrical | Batteries, Starting System, Charging System, Lighting, Wiring Harness, Instrument Cluster, Sensors, Connectors | |
| Power Shift Transmission | Transmission Removal and Installation, Clutch Packs, Valve Body, Hydraulic Control, Gear Sets, Torque Specs | |
| AutoPowr/IVT Transmission | Stepless Transmission, CVT Unit, Hydrostatic Section, Clutch Packs, Electronic Controls, Pressure Tests | |
| Drive Systems | Front Axle Drive, Rear Axle Differential, Driveshafts, PTO Shaft and Clutch | |
| MFWD Axles | Front Axle Assembly, Steering Knuckles, Wheel Ends, Differential Lock, Toe Adjustment | |
| Independent Link Suspension Axle | Ils Front Axle, Suspension Components, Wheel Ends, Alignment | |
| 1500 Series MFWD Axle | 1500 Series Axle Assembly, Wheel Ends, Differential, Toe Adjustment | |
| Steering and Brakes | Steering Cylinder, Steering Valve, Power Steering Pump, Brake Packs, Park Brake | |
| Hydraulics | Hydraulic Pump, Load Sensing Valve, Selective Control Valves, Three-Point Hitch Valve, Remote Cylinders, Pressure Tests | |
| Miscellaneous | Drawbar, Ballast Weights, PTO Shafts, Hitch Components | |
| Operator Station | Cab Structure, Seat and Suspension, Controls, Air Conditioning, Heating, HVAC Service | |
| Dealer Tools | Special Service Tools, Test Equipment, Tool Part Numbers |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All models | ||
| Front Cab Mount Cap Screws Torque | 430 N.m (317 lb-ft) | |
| Rear Cab Mount Cap Screws Torque | 600 N.m (443 lb-ft) | |
| Inertia Ring/Dampener-to-Flywheel Cap Screws Torque | 70 N.m (52 lb-ft) | |
| Transmission Drive Hub-to-Flywheel Dampener Cap Screws Torque | 126 N.m (92 lb-ft) | |
| Drive Sheave-to-Drive Cap Screw Torque | 375 N.m (276 lb-ft) | |
| Radiator Pressure Test | 80 kPa (0.8 bar / 12 psi) | |
| Radiator Cap Pressure Test | 60-80 kPa (0.6-0.8 bar / 9-11 psi) | |
| Oil Cooler Air Pressure Test | 700-1000 kPa (7-10 bar / 102-145 psi) | |
| 8130, 8230, 8330, 8430, 8530 | ||
| Production Years | 2007-2012 | |
John Deere 8130, 8230, 8330, 8430, 8530 Common Problems This Manual Covers
Hydraulic system loss of power or erratic implement movement
Start by replacing the hydraulic oil filter (RE210857) if it is past the 1,500-hour interval, then test system pressure at the load-sensing valve as described in the Hydraulics section. The section covers removing and testing the hydraulic pump, load sensing valve and selective control valves to isolate whether the fault is pump wear, a stuck valve spool, or a failed pressure-compensating element before replacing components.
Manual Section: HydraulicsAutoPowr/IVT transmission slips or loses drive under load
Measure clutch pack clearances and run the valve body pressure tests outlined in the AutoPowr/IVT Transmission section. Low clutch pressure usually means a worn pump or a leaking solenoid valve in the control circuit. The section provides the test port locations, pressure specifications and clutch pack shim selection procedure so you can confirm the fault before transmission removal.
Manual Section: AutoPowr/IVT TransmissionEngine oil pressure drops or warning light activates during operation
Replace the engine oil filter (RE509672) if it is at or past the 250-hour service interval, then check oil level before starting the engine. If pressure remains low, the Engine section covers oil pump removal, the pressure relief valve and bearing clearance checks so you can determine whether the fault is a clogged filter, a failing pump or worn main bearings.
Manual Section: EngineVariable cooling fan runs at maximum speed continuously or fan drive noisy
A fan locked at maximum speed points to a hydraulic proportional valve fault or a failed fan drive motor. The Fuel and Cooling Systems section covers the variable fan drive assembly removal and the Engine Cooling System pressure tests, including the radiator pressure test at 80 kPa (12 psi) and the oil cooler air test at 700-1000 kPa, so you can distinguish a failed drive motor from a hydraulic control fault.
Manual Section: Fuel and Cooling SystemsFrequently Asked Questions
What are the torque specs for John Deere 8330 and 8430 engine and transmission bolts?
The General Information section lists the key tightening torques for this tractor family. Specific values include 70 N.m (52 lb-ft) on the inertia ring-to-flywheel cap screws, 126 N.m (92 lb-ft) on the transmission drive hub-to-flywheel dampener cap screws, and 375 N.m (276 lb-ft) on the drive sheave cap screws. Each repair section lists the fastener torques for that assembly.
Why does the AutoPowr/IVT transmission slip under load on an 8430 or 8530?
Slipping under load on the IVT usually points to worn clutch packs or low internal pressure from a failing hydrostatic unit. The AutoPowr/IVT Transmission section covers pressure testing the valve body circuits and measuring clutch pack clearances so you can identify whether the fault is hydraulic pressure or mechanical wear before pulling the transmission.
How do you reset error codes on a John Deere 8130, 8230 or 8330?
Active diagnostic codes are cleared through the CommandCenter display after the fault condition is corrected. The Electrical section covers the instrument cluster and sensor circuits so you can trace the root cause - whether it is a pressure sensor, temperature sensor or wiring fault - rather than clearing a code that will return.
Why does the variable fan drive fail or run at full speed on an 8330 or 8430?
The variable fan drive is hydraulically controlled. A failed fan drive motor, a stuck proportional valve in the cooling circuit, or a blocked orifice will lock the fan at maximum speed. The Fuel and Cooling Systems section covers the engine cooling circuit and the fan drive assembly, and the Hydraulics section covers the valves that control fan speed under load.
What is the hydraulic oil filter replacement interval and which filter fits the 8130-8530?
Owners report the hydraulic/transmission oil filter (part RE210857) should be replaced at the 1,500-hour interval or annually. Skipping this service is one of the most common causes of hydraulic pump wear and overheating on these tractors. The Hydraulics section covers filter housing removal and the correct torque for the drain plug and filter head.
