Need factory answers for your John Deere G100 or G110 garden tractor? This 312-page John Deere G100, G110 Technical Manual PDF (OEM #TM2020) covers both models front to back, straight from Deere engineering. Inside: full electrical schematics with harness routing and component locations, hydrostatic power train theory and diagnostics, and hydraulic schematics that show you exactly where the flow goes. You also get fastener torque tables, a serious troubleshooting section, and step-by-step repair procedures for the gas engine, steering, and attachments. Gap the Champion RC12YC spark plug at 0.76 mm (0.030 in.), and check that the battery reads 12.4 volts or higher before you condemn a starter. Tired of burning a Saturday on forum threads? This bookmarked PDF opens on your phone or tablet; carry it out to the tractor, find the spec, and fix the machine.
What's Inside This John Deere G100, G110 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 3-4 | How to Use This Technical Manual, Section and Group Layout, Identification Numbers |
| Safety | 5-10 | Recognize Safety Information, Understand Signal Words, Handle Fuel Safely, Service Machine Safely, Battery and Blade Precautions |

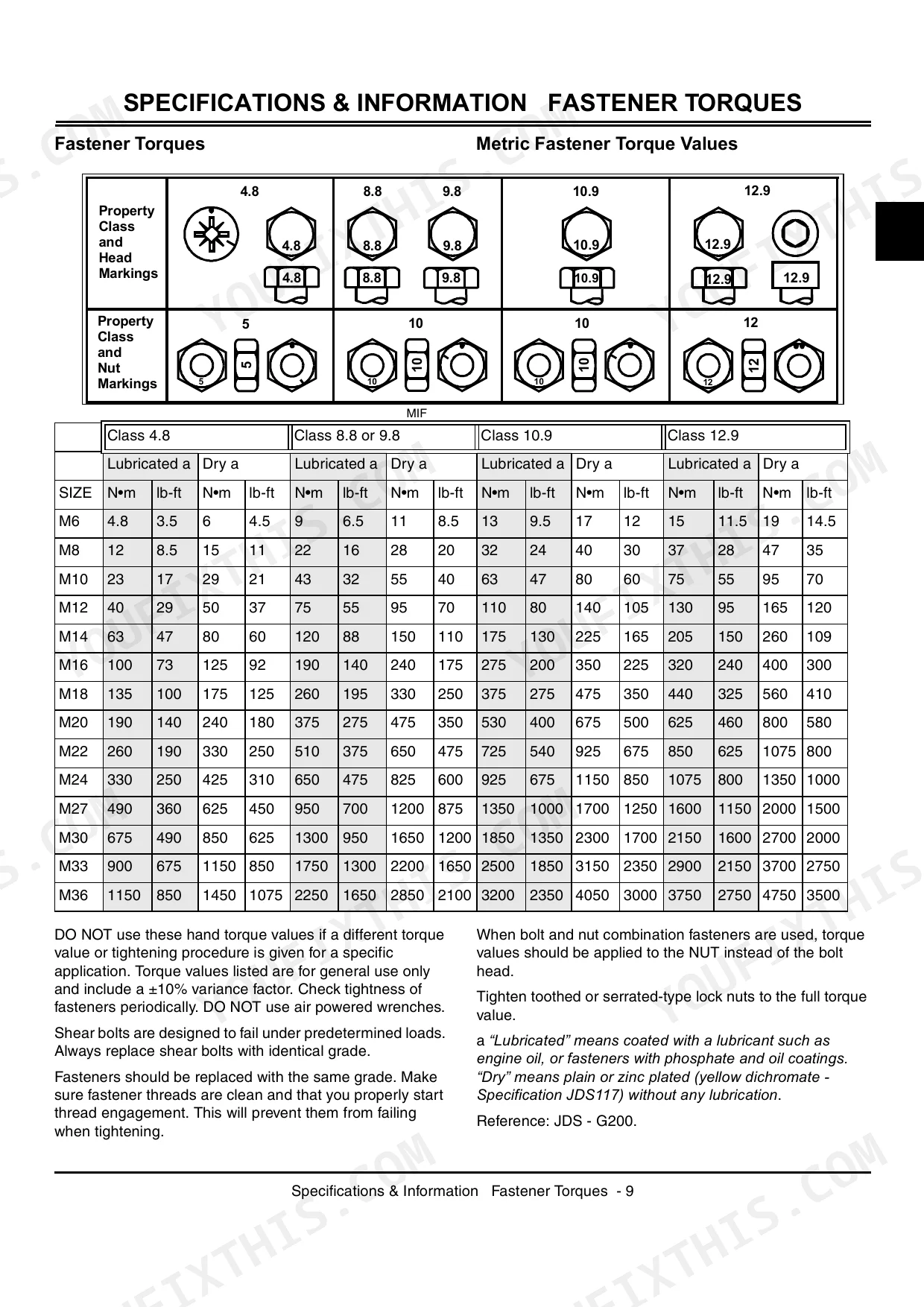

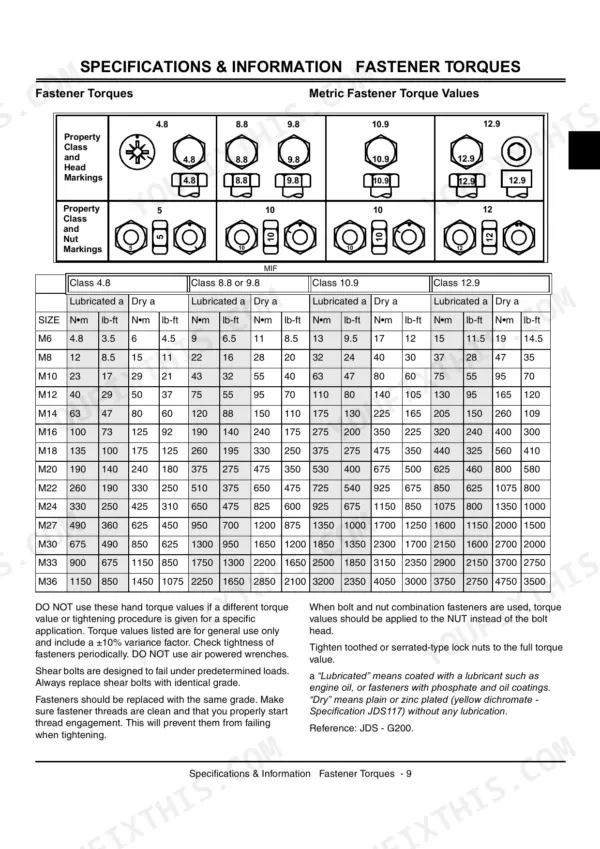

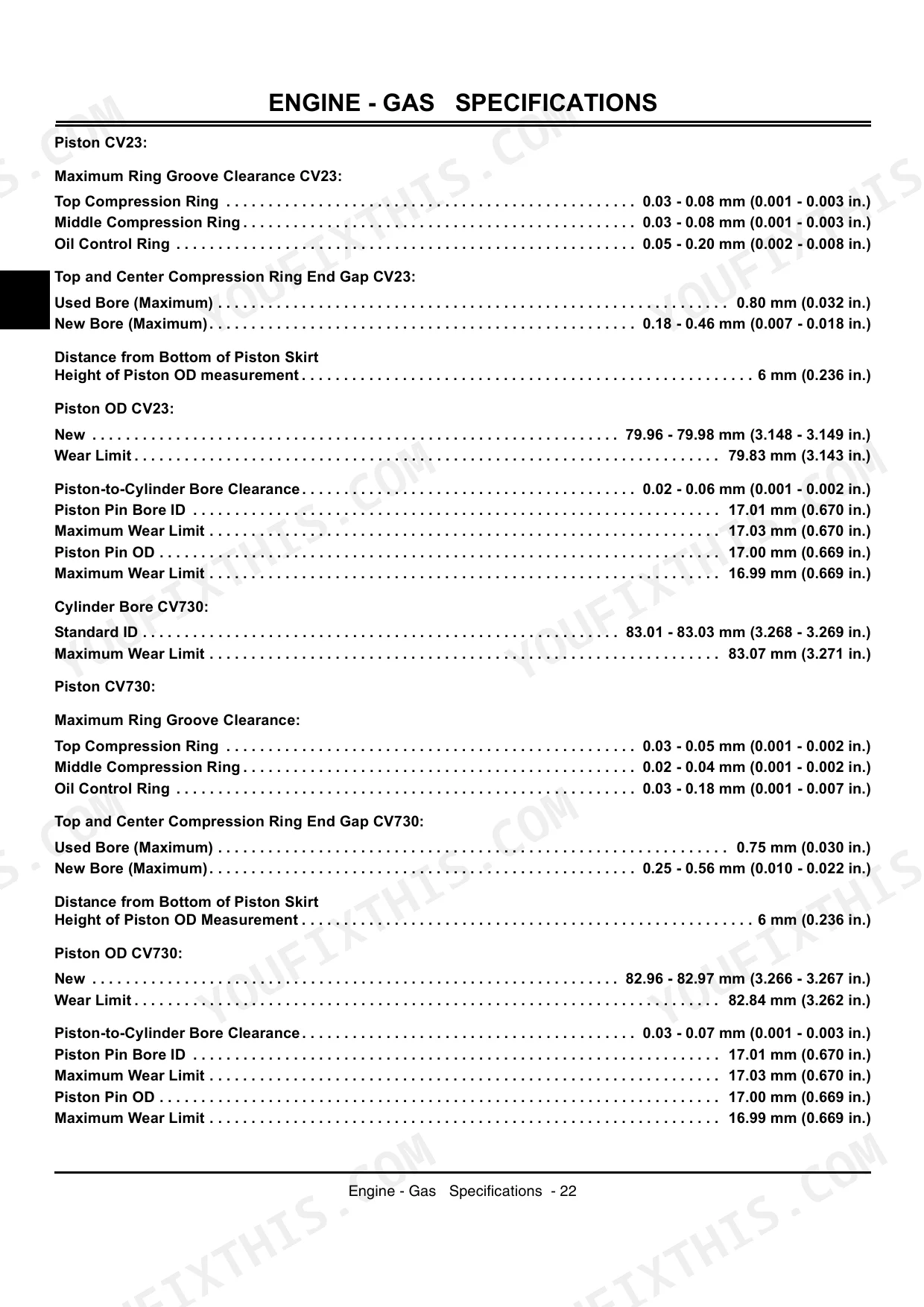

| Specifications & Information | 11-20 | Fastener Torque Values, Serial Number Locations, Fuel and Lubricants, Machine Specifications |
| Engine - Gas | 21-74 | Briggs & Stratton / Kohler Gas Engine: General and Repair Specifications, Torque Values, Diagnostics, Theory of Operation, Governor, Choke and Idle Adjustment, Cylinder Head, Valves and Springs, Camshaft, Flywheel and Stator, Crankcase Breather |

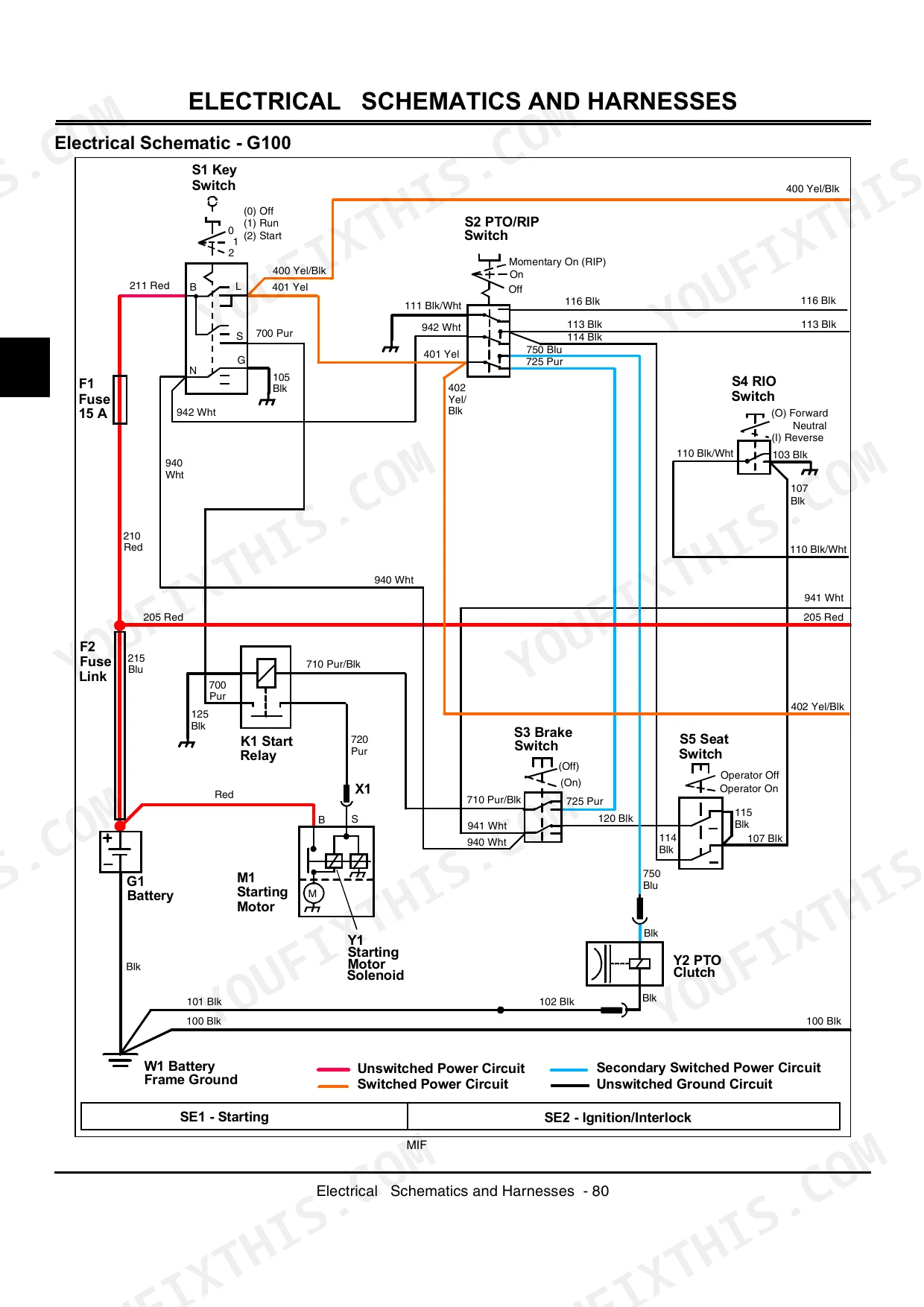

| Electrical | 75-172 | Specifications, Component Location, Wiring Schematics and Harnesses, Battery and Charging Circuit, Starting Circuit, Safety Interlock System, Tests and Adjustments, Repair |

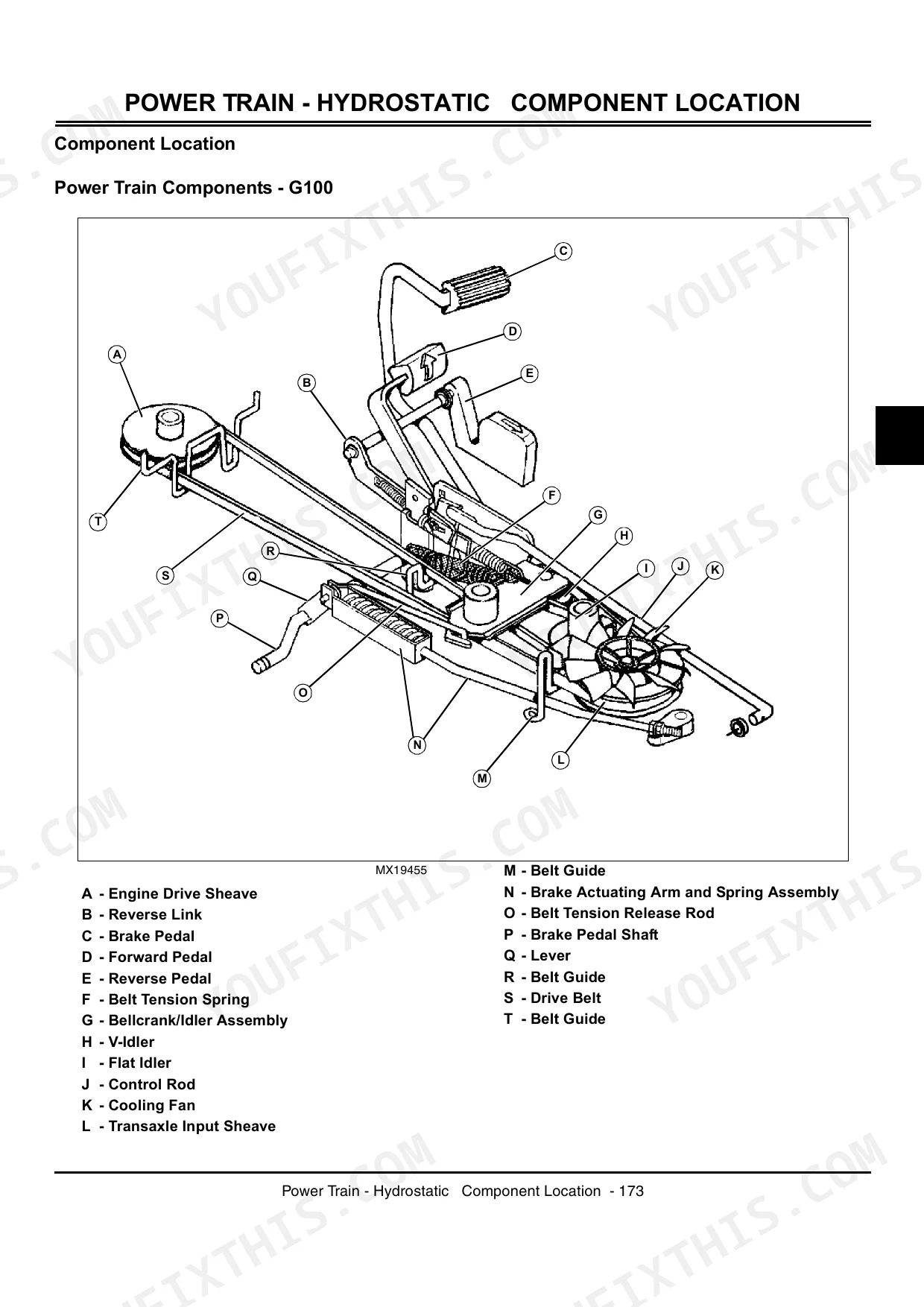

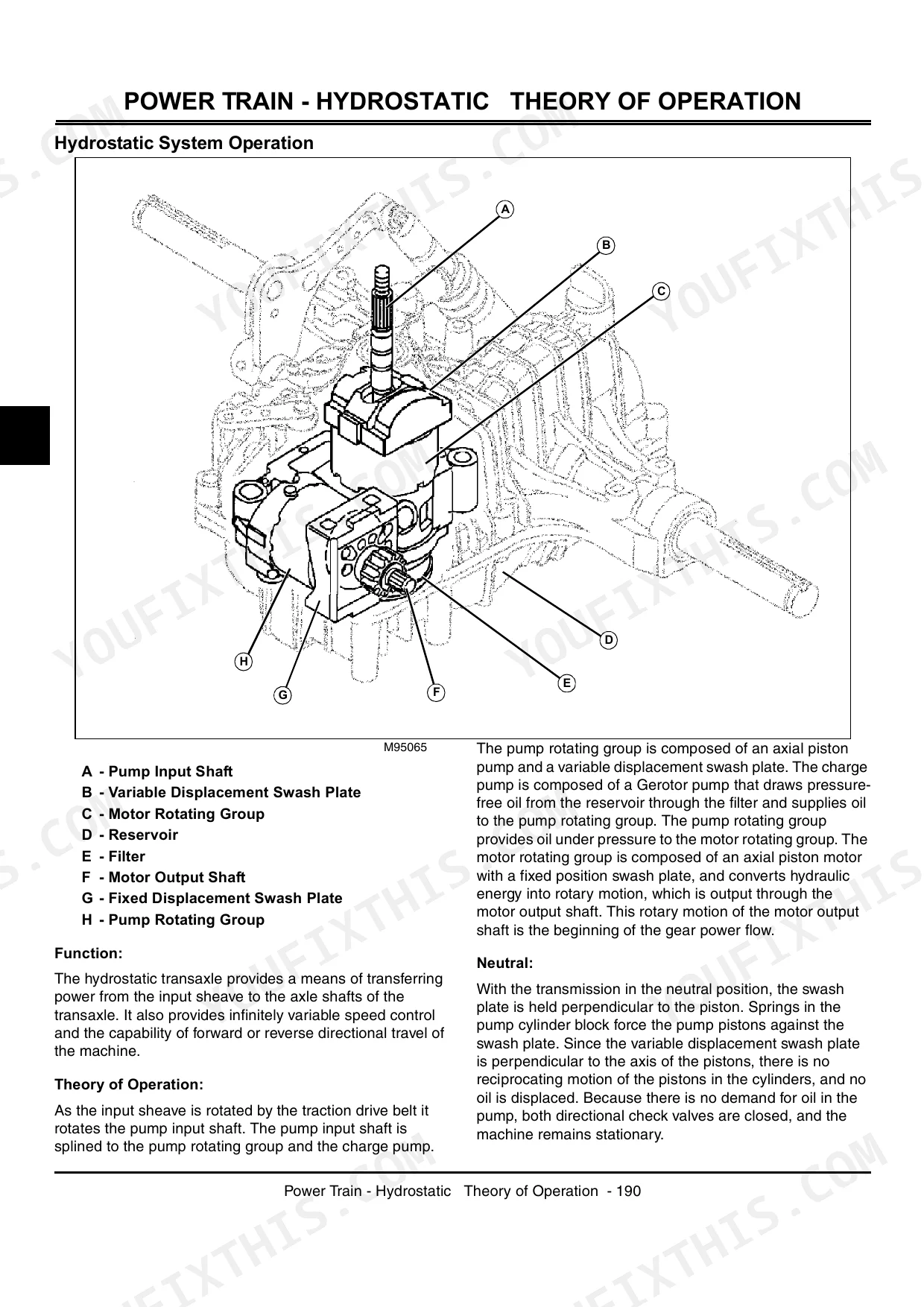

| Power Train - Hydrostatic | 173-240 | Hydrostatic Transaxle Specifications, Component Location, Theory of Operation, Neutral and Linkage Adjustment, Diagnostics, Transaxle Removal and Repair, Drive Belt |
| Steering | 241-262 | Steering Specifications, Theory of Operation, Steering Gear and Sector, Front Axle and Spindles, Toe-In Adjustment, Repair |
| Attachments | 263-288 | Mower Deck Specifications, Component Location, Deck Levelling and Height-of-Cut Adjustment, Spindles and Belts, Blade Service, Bagger and Snow Attachments |
| Miscellaneous | 289-304 | Operator Seat and Fenders, Hood and Body Panels, Wheels and Tires, Cooling and Air Intake, Decals |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery (12V) replacement value | Warm battery to 16°C (60°F) | p. 6 |

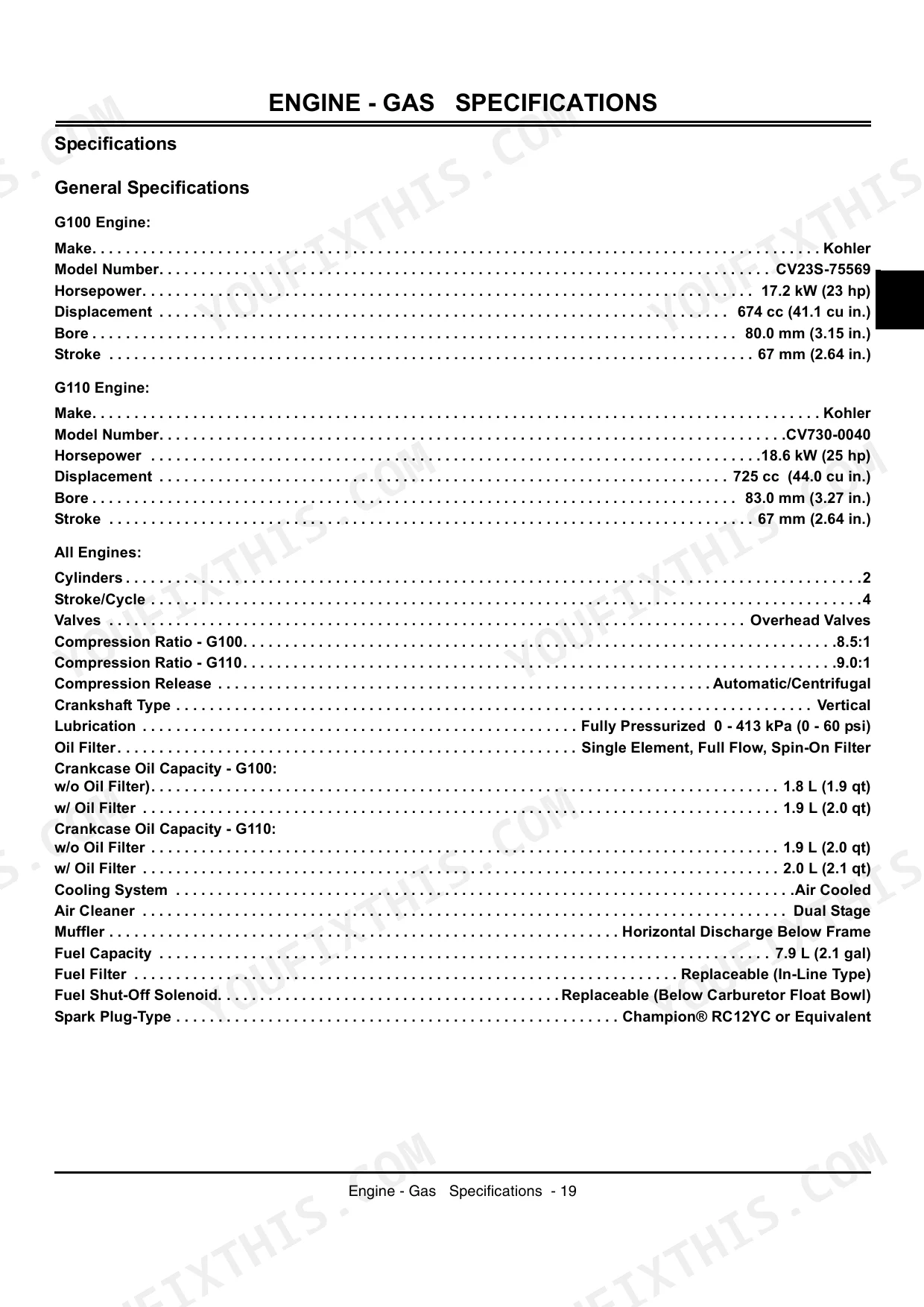

| Spark Plug-Type | Champion® RC12YC or Equivalent | p. 23 |
| Spark Plug-Gap | 0.76 mm (0.030 in.) | p. 24 |
| Fuel Filter | Replaceable (In-Line Type) | p. 23 |

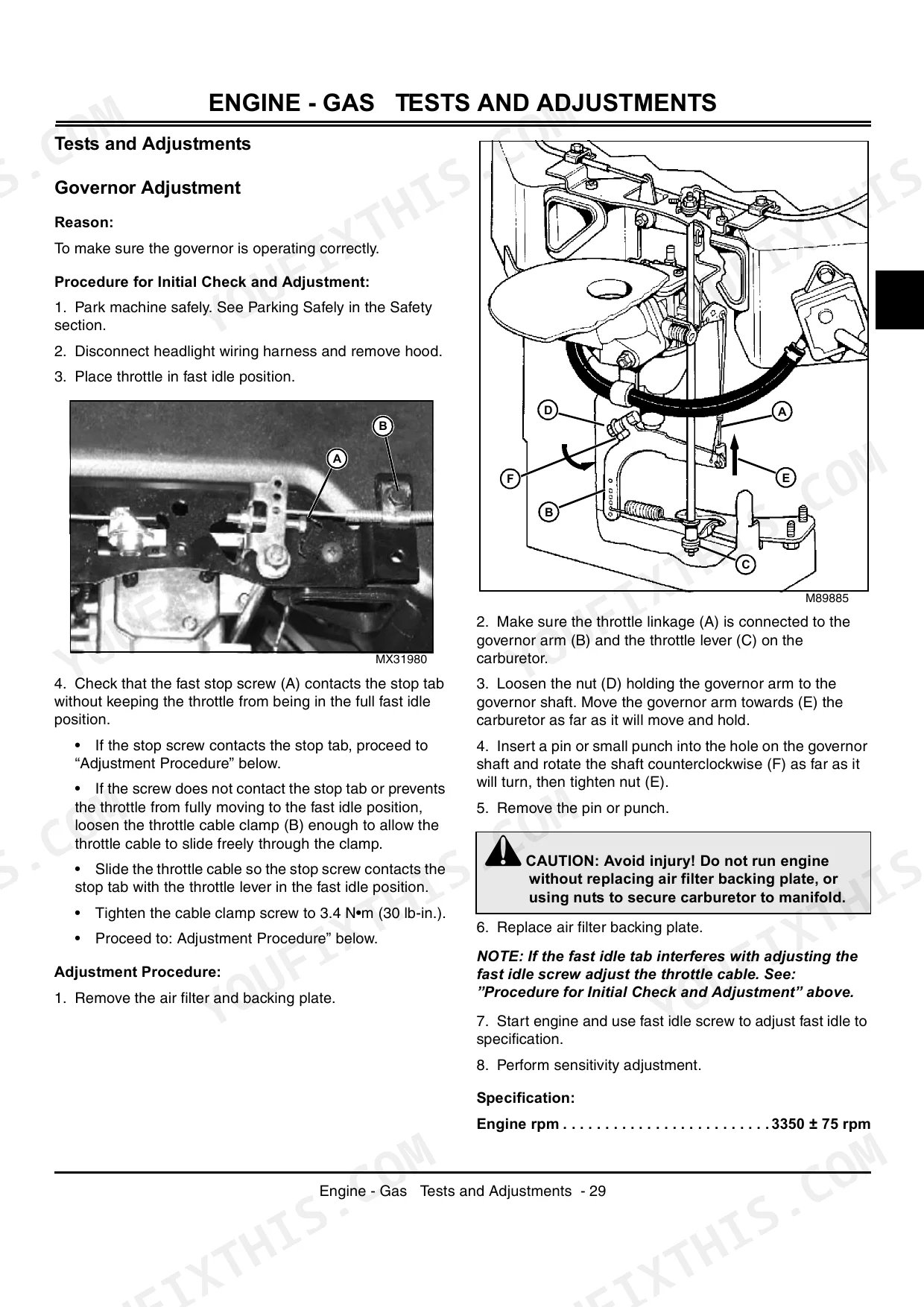

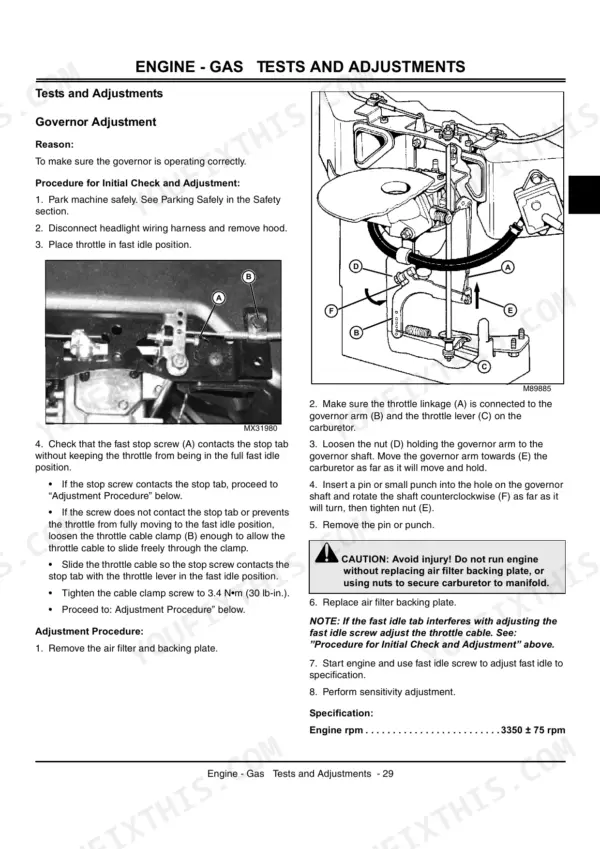

| Engine rpm | 3350 ± 75 rpm | p. 33 |
| Air Cleaner Mounting Nuts | 9.9 N•m (88 lb-in.) | p. 28 |
| Engine Mounting Bolts | 32 N•m (24 lb-ft) | p. 45 |
| Battery BCI Group | U1 | p. 77 |
John Deere G100, G110 Common Problems This Manual Covers
John Deere G100 garden tractor won't start, battery reads dead after overnight charge
Check battery voltage before condemning anything; the diagnostic on page 30 calls for 12.4 volts or higher. Clean and tighten both battery terminals and the ground cable connection at the frame. If it still cranks slowly, work through the no-start troubleshooting chart and listen for the starter solenoid click.
Manual Section: Electrical Cranking Circuit Diagnosis p. 30Engine cranks but no spark at the plug after sitting all winter
Remove the spark plug and inspect the electrode for fouling. Replace it with a Champion RC12YC gapped to 0.76 mm (0.030 in.) per page 41, and torque it to 26 N·m (240 lb-in.). If spark is still missing, check the plug cable connection and the ignition interlock switches before blaming the magneto.
Manual Section: Electrical Ignition Circuit Diagnosis p. 41Engine overheats after 15 to 20 minutes of mowing in tall grass
Clean the cooling fins and blower housing; packed grass against the shroud kills airflow fast. Remove and service the air intake filter, then torque the air cleaner mounting nuts to 9.9 N·m (88 lb-in.) on reassembly per page 28. Mow at full throttle and verify fast idle reaches 3350 ± 75 rpm using the procedure on page 33.
Manual Section: Engine - Gas p. 33Hydrostatic transmission won't pull in forward or reverse, creeps when pedal released
Verify the freewheel lever is not stuck in the tow position. Check transaxle oil level and condition; drain and refill with 2.5 L (2.7 qt) per page 175 if the oil is dark or burnt. Inspect the drive belt for glazing, check the brake switch adjustment, then run the hydrostatic diagnostics for creeping and one-direction faults.
Manual Section: Power Train - Hydrostatic Diagnostics p. 175Mower deck cuts uneven, leaves steps in the lawn, vibrates at full throttle
Check rear tire pressure first, 69 kPa (10 psi), before touching any deck adjustment. Level the deck side to side within 3 mm (0.125 in.) using the specs on page 265, then set front-to-rear blade height difference at 6 to 9 mm (0.24 to 0.35 in.) per page 280. Replace any bent blade and check each spindle for wobble.
Manual Section: Attachments - Mower Decks Troubleshooting p. 265Frequently Asked Questions
How to reset John Deere G110 transmission after slip?
To reset the John Deere G110 transmission after a slip, perform the transaxle bleeding procedure. This involves raising the rear wheels, running the engine at slow idle, alternately depressing and engaging/disengaging the forward/reverse pedals and freewheel lever for 5-10 minutes, then repeating a quick depress/release of pedals at fast idle after turning the engine off and pushing the machine. p. 204
What is the torque specification for the John Deere G100 spark plug?
The torque specification for the spark plug on a John Deere G100 is 24.4 - 29.8 N·m (18 - 22 lb-ft). This ensures proper seating and prevents damage to the engine. p. 27
How to reset the John Deere G100 battery light?
The manual does not describe a specific "reset" procedure for the John Deere G100 battery light. The H1 discharge light indicates a low voltage condition in the battery, controlled by the A1 discharge module. Troubleshooting involves checking battery voltage (12.4 volts or higher), wiring connections (404 and 403 Yel wires, 104 Blk wire, 600 Brn wire), and replacing the lamp or discharge module if necessary, which should resolve the light. p. 125
What are the replacement specifications for Spark plug?
The replacement spark plug type for both John Deere G100 and G110 garden tractors is Champion RC12YC or an equivalent. The spark plug gap should be set to 0.76 mm (0.030 in.) for optimal performance. p. 23
What are the replacement specifications for Battery (12V)?
The battery specifications for the John Deere G100 and G110 are 12VDC with a BCI Group U1. The minimum specific gravity should be 1.225 points. If the battery voltage is less than 12.4 VDC, it should be charged or replaced. p. 80
Is this John Deere G100, G110 Technical Manual a digital download?
A 312-page Technical Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this John Deere G100, G110 Technical Manual?
No restrictions at all. Print individual pages, full chapters, or the entire manual. The PDF is completely unlocked.
