![John Deere Scotts L1642 L17.542 L2048 L2548 Repair Manual [Lawn & Garden Tractor]](https://youfixthis.com/wp-content/uploads/2013/10/YouFixThis-Kawasaki-Screen-11-300x300.png)
Part of the John Deere Repair Manuals.
All 398 pages of this Scotts Lawn Tractor Technical Manual (OEM #TM1776) target one job: putting your S1642, S1742, S2046, or S2546 Limited Edition back on the lawn and cutting clean. Inside, you get three complete engine chapters covering Briggs & Stratton single-cylinder, Kohler single-cylinder, and Briggs & Stratton V-Twin units, each with full tests, adjustments, and repair sequences. The electrical chapter runs deep: component locations, wiring harnesses, and a thorough troubleshooting section covering gear and hydrostatic power trains alike. Torque the spindle assembly nuts to 27 N-m (20 lb-ft) and the blade cap screws to 53 N-m (39 lb-ft). Confirmed specs, not forum estimates. Your machine is down and every hour it sits costs you. Search any spec by keyword, jump straight to the wiring section, or pull up deck leveling procedures on your phone right next to the tractor. One download, every answer.
What's Inside This Scotts S1642–S2546 Series Manual
| System | Pages | Key Topics |
|---|---|---|
| Mower Deck – 42 & 46 Inch | - | Deck Removal and Installation, Mower Blade Service, Drive Belt Replacement, Deck Leveling, Gauge Wheel Adjustment |
| Introduction | 3-8 | - |

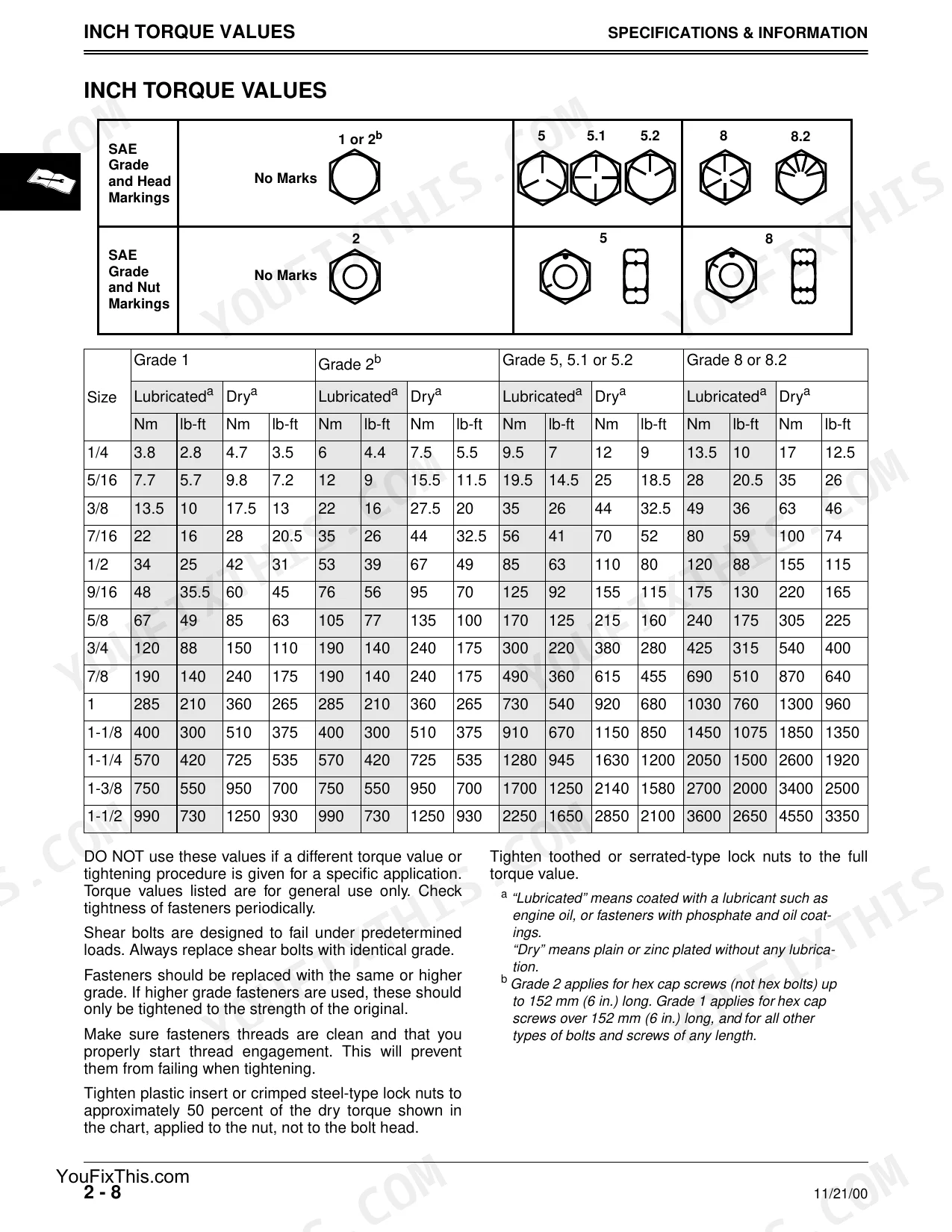

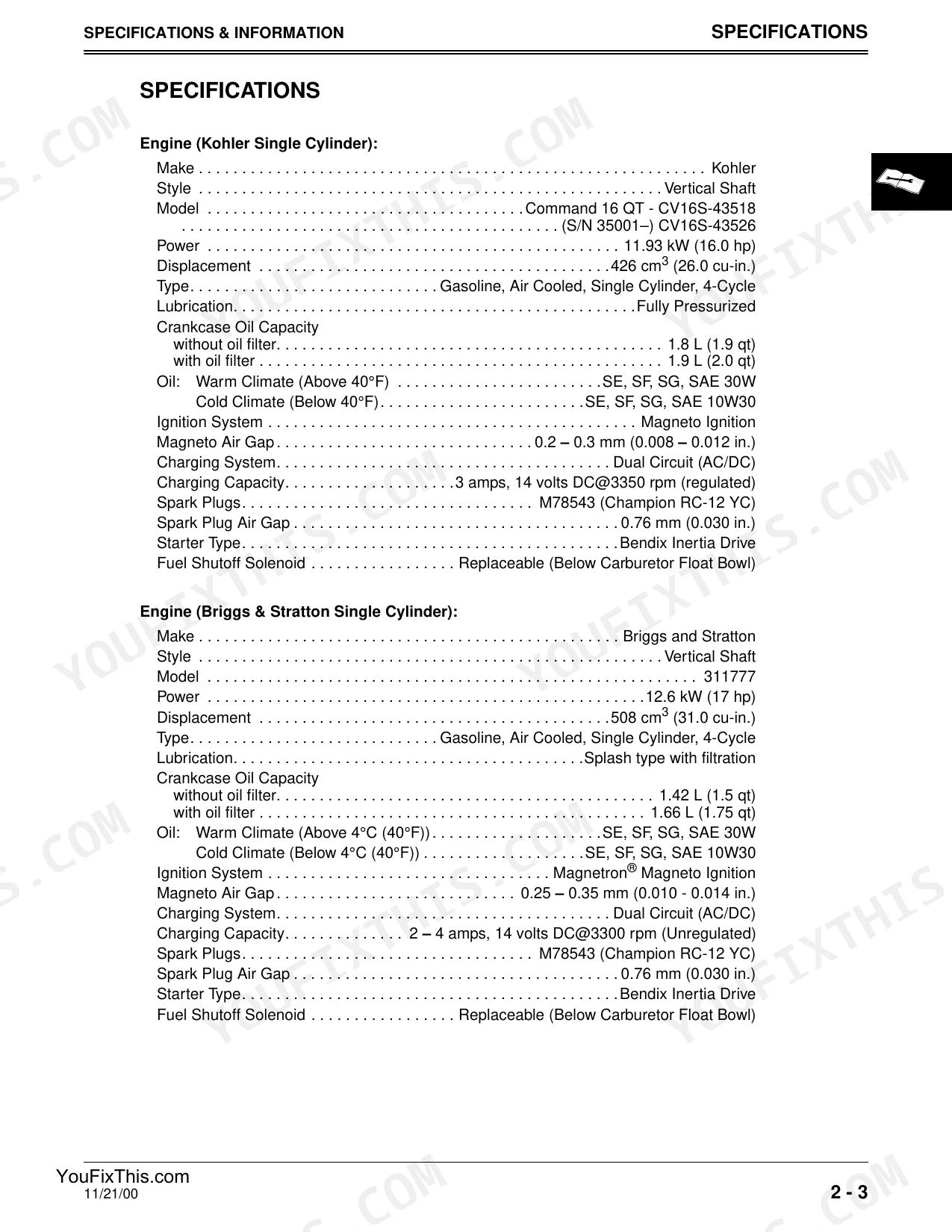

| Specifications and Information | 9-20 | Specifications, Inch Torque Values, Metric Torque Values, Gasoline Specifications, Lubricant Specifications, Serial Number Locations |
| Engines – Briggs & Stratton (Single Cylinder) | 21-66 | Air Cleaner Service, Breather Valve Service, Cam Gear Bearing Inspection, Carburetor (Assembly) |
| Engines – Kohler (Single Cylinder) | 67-118 | Specifications, Tests and Adjustments, Fuel and Air Repair, Engine Repair, Troubleshooting |
| Engine – Briggs & Stratton V–TWIN | 119-168 | Specifications, Tests and Adjustments, Repair, Troubleshooting |
| Electrical | 169-290 | Specifications, Component Location, Wiring Harnesses, Troubleshooting, Tests and Adjustments, Repair, General |

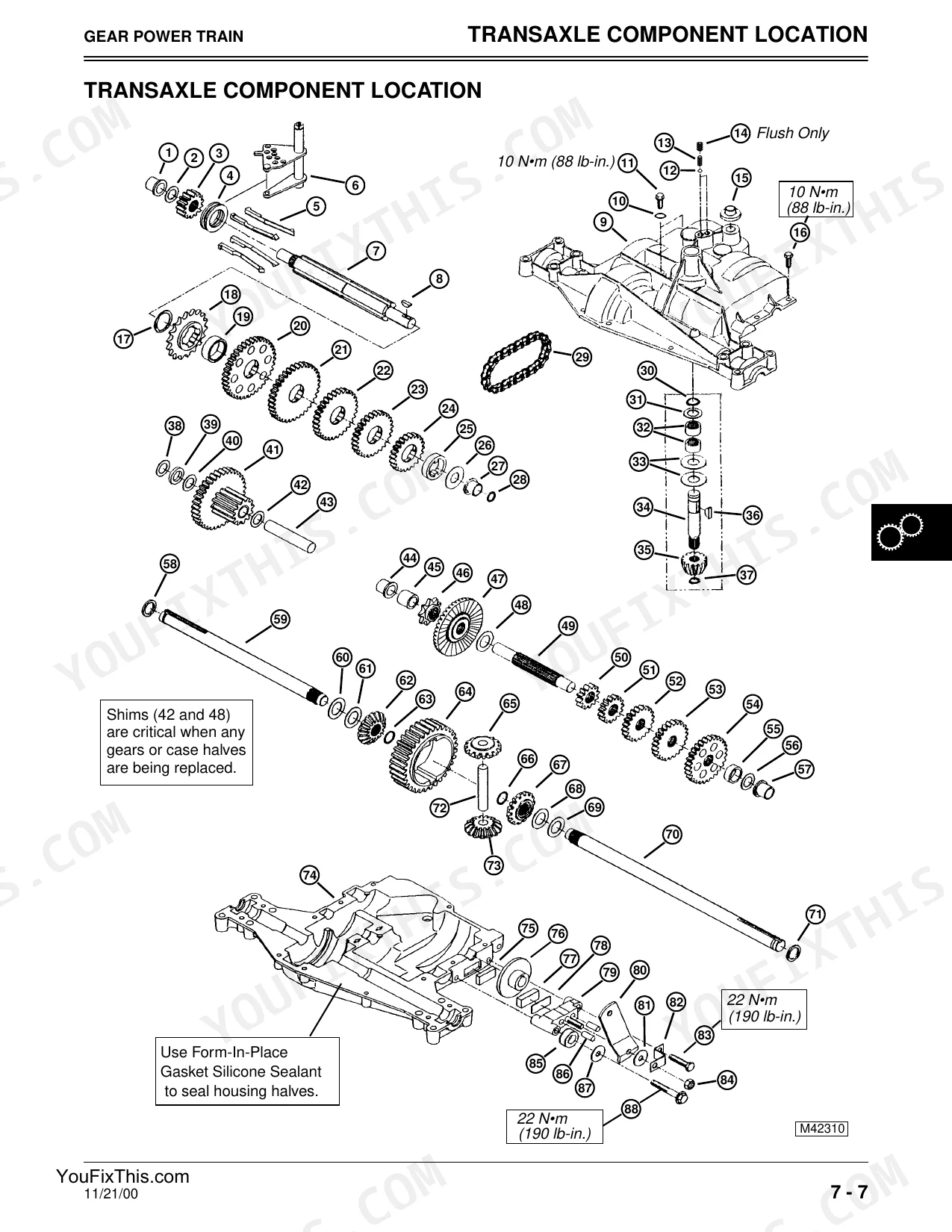

| Gear Power Train | 291-324 | Specifications, Troubleshooting, Component Location, Theory of Operation, Tests and Adjustments, Repair |
| Hydrostatic Power Train K51 | 325-364 | Specifications, Component Location, Theory of Operation, Troubleshooting, Tests and Adjustments, Repair |
| Steering | 365-370 | Component Location, Service Equipment and Tools, Steering Gear - Fixed Drag Link, Steering Gear - Adjustable Drag Link, Replace Pedestal Bushings, Adjust Steering Backlash |
| Attachments | 371-384 | Lift Linkage, Mower Deck, Spindle Brake Adjustment, Mower Belt Tension Adjustment, Deck Leveling, Gage Wheel Adjustment |
| Miscellaneous | 385-392 | Fuel Tank and Dash Panel, Front Wheels Removal and Installation, Rear Wheels Removal and Installation, Front Wheel Bearing Repair, Front Axle Removal, Front Axle Repair |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Spindle Assembly Nuts Torque | 27 N•m (20 lb-ft) | p. 384 |
| Blade Cap Screw Torque | 53 N•m (39 lb-ft) | p. 384 |
| 42-Inch Deck (Single Cylinder Engine) | ||
| Mower Deck Drive Belt - Actual effective length | 2920 ± 10 mm (115.03 ± 0.4 in.) | p. 14 |
| 42-Inch Deck (V-Twin Engine) | ||
| Mower Deck Drive Belt - Actual effective length | 3921.8 ± 10 mm (154.40 ± 0.4 in.) | p. 14 |
| all (Gear Transaxle) | ||
| Clutch actuating spring length (maximum) | 42 – 45 mm (1.65 – 1.77 in.) | p. 306 |
| Sheaves, idlers and idler bearings condition | good condition | p. 303 |
| Input Shaft/Pinion Gear Clearance (between pinion gear and snap ring) | 0.127 mm (0.005 in.) or less | p. 315 |
| Model K51 (Hydrostatic Transaxle) | ||
| Bellcrank spring length (maximum production spring) | 20 ± 1 mm (0.78 ± 0.04 in.) | p. 348 |
| Briggs & Stratton Engine | ||
| Fuel shutoff solenoid ground wire continuity | Continuity to ground | p. 212 |
| Briggs & Stratton Single Cylinder Engine | ||
| Fuel Shutoff Solenoid Torque | 4.4 N•m (40 lb-in.) | p. 24 |
| all (Hydrostatic Transaxle) | ||
| Drive sheaves and idlers condition | good condition and adjusted properly | p. 342 |
| all (Hydrostatic Transaxle K51) | ||
| Pump (Input) Shaft - Wear Limit | Visual Check | p. 328 |
Scotts S1642–S2546 Series Common Problems This Manual Covers
Scotts S1642 mower deck blades disengage mid-mow and engagement lever drops completely on its own. p. 348
Inspect the K51 bellcrank spring length during operation. Measure the maximum production spring length as detailed on page 348. Adjust the tension spring until the length is exactly 20 ± 1 mm (0.78 ± 0.04 in.). Replace the spring if it stretches beyond this limit.
Manual Section: Hydrostatic Power Train K51Tractor drive system fails to engage completely or transmission refuses to move forward or reverse. p. 212
Test the fuel shutoff solenoid ground wire for continuity to ground as shown on page 212. Clean the terminal connections if the circuit reads open. Install the solenoid and torque the mounting hardware to exactly 4.4 N•m (40 lb-in.) to ensure a solid electrical ground.
Manual Section: ElectricalTransaxle pump input shaft feels excessively loose and spins incorrectly when attempting to drive. p. 315
Measure the clearance between the pinion gear and the snap ring on the input shaft. Adjust the shims using the procedure on page 315 until the clearance is 0.127 mm (0.005 in.) or less. Rebuild the transaxle if the input shaft shows excessive wear.
Manual Section: Gear Power TrainMower deck drive belt shreds rapidly and slips off pulleys during heavy cutting conditions. p. 342
Verify the drive sheaves and idlers are in good condition and adjusted properly according to page 342. Replace any rusty pulleys destroying the belt. Torque the spindle assembly nuts to 27 N•m (20 lb-ft) to keep the mower deck belt aligned under heavy loads.
Manual Section: Hydrostatic Power Train K51Frequently Asked Questions
What are the torque specs for Scotts Limited Edition mower deck bolts?
The manual provides torque specifications for components related to the mower deck. For the 42-inch and 46-inch decks, the Spindle Assembly Nuts should be tightened to 27 N•m (20 lb-ft) and the Blade Cap Screw to 53 N•m (39 lb-ft).
What are the replacement specifications for Deck belt (due to shredding from misrouting/rusty pulleys)?
The replacement specifications for the Mower Deck Drive Belt vary by deck size and engine type. For a 42-Inch Deck (V-Twin Engine), the actual effective length is 3921.8 ± 10 mm (154.40 ± 0.4 in.). For a 46-Inch Deck (Single Cylinder Engine), it's 3665 ± 10 mm (144.29 ± 0.4 in.).
How do you fix scotts S1642 mower deck blades disengage mid-mow and engagement lever drops completely on its own?
Inspect the K51 bellcrank spring length during operation. Measure the maximum production spring length as detailed on page 348. Adjust the tension spring until the length is exactly 20 ± 1 mm (0.78 ± 0.04 in.). Replace the spring if it stretches beyond this limit.
How do you fix tractor drive system fails to engage completely or transmission refuses to move forward or reverse?
Test the fuel shutoff solenoid ground wire for continuity to ground as shown on page 212. Clean the terminal connections if the circuit reads open. Install the solenoid and torque the mounting hardware to exactly 4.4 N•m (40 lb-in.) to ensure a solid electrical ground.
Is this Scotts S1642 & variants Technical Manual a digital download?
This is a 398-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this Scotts S1642 & variants Technical Manual?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.

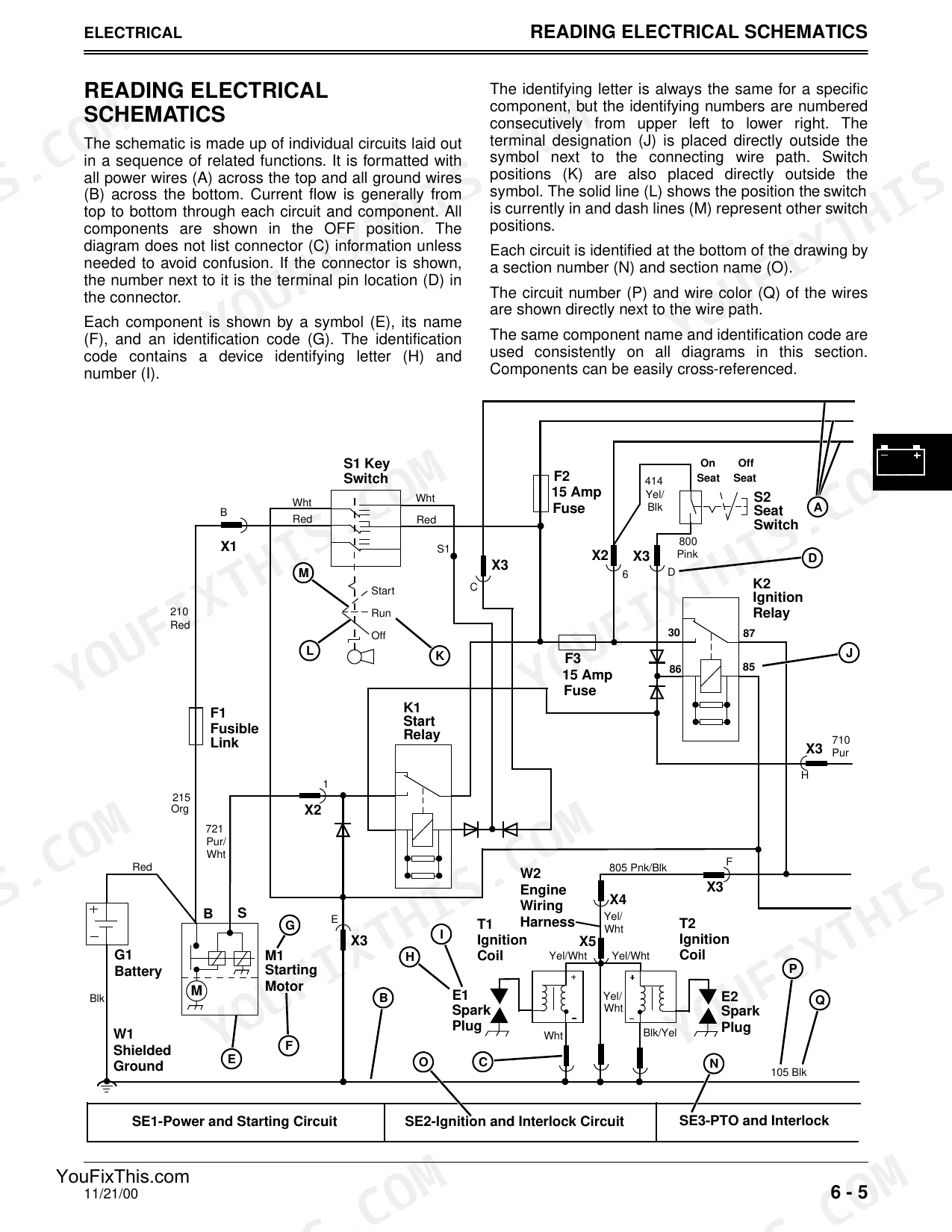

Does this Scotts S1642 & variants Technical Manual have electrical diagrams?
Yes. You'll find an electrical wiring diagram covering the main wiring layout.
