John Deere built TM1908 MAY02 around a single machine, the SST15/SST16/SST18 Spin-Steer Lawn Tractor, and these 340 pages stay on it. Repair procedures run 100 pages and cover both the Briggs & Stratton and Kohler engine variants, with wiring schematics for every circuit. Diagnostics fill another 60 pages across electrical faults, drivetrain trouble, and steering failures. Factory specs take 47 pages, torque tables 11 more, and exploded views span 30 pages of powertrain, brakes, and deck attachments. Need the steering gear assembly-to-frame bolt? It is 25 N•m (18 lb-ft). The SST18 blade bolt torques to 68 N•m (50 lb-ft). No more guessing at forum numbers that might not fit your tractor. Every section is bookmarked and the text is searchable, so any device opens straight to the procedure in front of you.
What's Inside This John Deere SST15, SST16, SST18 Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 5-8 | Recognize Safety Information, Be Prepared for Emergencies, Use Care in Handling and Servicing Batteries, Service Machines Safely, Work in Clean Area, Avoid Harmful Asbestos Dust |
| General Vehicle Specifications | 9-22 | Engine Specifications, Fuel System, Electrical, Powertrain Specifications, Fastener Torques, Serial Number Locations |
| Engine ? Briggs and Stratton | 23-70 | Engine Specifications, Torque Specifications, Tests and Adjustments, Carburetor Adjustment, Engine Removal and Installation, Piston, Rings & Rod Removal and Installation |
| Engine ? Kohler | 71-116 | General Specifications, Torque Specifications, Troubleshooting, Tests and Adjustments, Engine Repair, Starting Motor Removal and Installation |

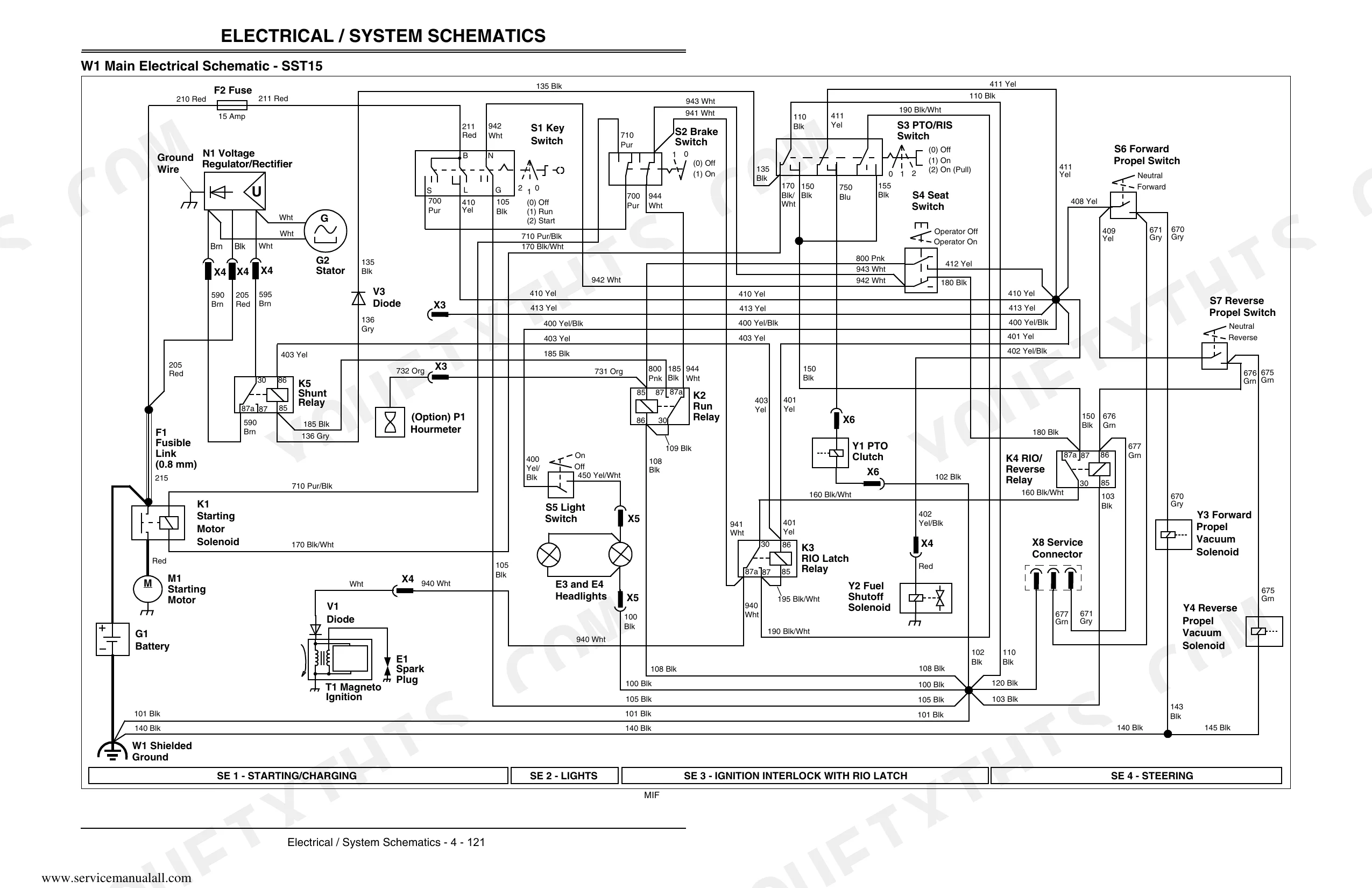

| Electrical | 117-200 | General Information, Specifications, System Schematics, Diagnostics & Operation, Tests and Adjustments |
| Power Train | 201-246 | Specifications, Component Location, Theory of Operation, Diagnostics, Tests & Adjustments, Repair |
| Steering | 247-270 | Specifications, Component Location, Theory of Operation, Diagnostics, Adjustments, Repair |
| Brakes | 271-282 | Specifications, Component Location, Theory of Operation, Tests & Adjustments, Repair |
| Attachments | 283-326 | Repair Specifications, Component Location, Diagnostics, Tests & Adjustments, Repair |
| Miscellaneous | 327-334 | Repair Specifications, Torque Specifications, Tire Pressure Adjustment, Hood Removal and Installation, Fender Deck Removal and Installation, Rear Wheel Removal and Installation |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Steering Gear Assembly to Frame | 25 N•m (18 lb-ft) | p. 249 |
| Fender Deck Front Bolts | 6.8 N•m (60 lb-in.) | p. 249 |
| Declutch Spring Length | 54 – 58 mm (2.12 – 2.28 in.) | p. 203 |
| Declutch Idler Pulley Nut | 26 N•m (19 lb-ft) | p. 203 |
| Reverse Rod Length | 747.5 mm (29.43 in.) | p. 249 |
| Steering Switch Gap | 1.5 mm (0.1 in.) | p. 249 |
| Forward Pedal to Deck Height | 50 mm (1.97 in.) | p. 202 |
| Forward/Reverse Pedal Lock Nuts | 47 N•m (35 lb-ft) | p. 329 |
| SST18 | ||
| Blade Bolt Torque | 68 N•m (50 lb-ft) | p. 14 |
| Blade cap screw | 68 N•m (50 lb-ft) | p. 285 |
| SST15 | ||
| SST15 Horsepower | 11.2 kW (15 hp) | p. 11 |
| SST16 | ||
| SST16 Horsepower | 11.9 kW (16.0 hp) | p. 11 |
John Deere SST15, SST16, SST18 Common Problems This Manual Covers
John Deere SST16 drives normally in reverse but pedal has no response when trying to drive forward p. 202
Inspect the traction drive linkage and forward pedal mechanism. Verify on page 202 that forward pedal to deck height measures 50 mm (1.97 in.). Tighten the forward/reverse pedal lock nuts to 47 N•m (35 lb-ft) per page 329, and replace any broken steering/drive springs.
Manual Section: Power Train - Propel TroubleshootingSteering wheel feels exceptionally stiff and tractor exhibits poor spin-steer response during operation p. 249
Examine the spin-steer linkage and steering gear assembly under the fender deck. Torque the front axle pivot cap screw to 75 N•m (55 lb-ft) per the specs on page 249. Adjust the steering switch gap, then check the reverse rod for binding or wear.
Manual Section: Steering System TroubleshootingMower deck vibrates excessively and blades fail to rotate when the PTO switch is engaged p. 285
Trace the no-rotation fault to the mower deck drive belt and spindle assemblies. On an SST18, torque the blade cap screw to 68 N•m (50 lb-ft) per page 313. Confirm the spindle mounting nuts sit at 27 N•m (20 lb-ft) per page 312 to kill the vibration.
Manual Section: Attachments - DiagnosticsMachine loses traction on hills or feels highly unstable during side-slope mowing p. 13
Check rear tire pressure with the mower attached and set it to exactly 70 kPa (10 psi) per page 13. Drain and refill the transaxle housing with 5.8 L (6.1 qt) of fluid, staying within the capacity on page 203.
Manual Section: Power Train - Tests & AdjustmentsFrequently Asked Questions
How do I reset the steering on a John Deere SST16?
On an SST16 (Later Tractors), turn adjusting screw (C) left until the wheels begin to rotate, then right until they begin to rotate. Note the "range" of that adjustment, then set the screw to the "middle" so the tires stop rotating completely. That zeros the steering pump swashplate linkage. Page 259 covers it step by step.
How do I reset the reverse steering on a John Deere SST18?
The SST18 (Later Tractors) uses the same procedure, reverse steering included. Turn adjusting screw (C) left until the wheels start to rotate, then right until they start again. Note the "range," then center the screw at the "middle" until the tires stop rotating completely, which zeros the steering pump swashplate linkage. See page 259.
What do I do if my John Deere SST15 will not steer in reverse?
When an SST15 won't steer in reverse, start at the steering switches: clear any debris and confirm they are adjusted right. If steering does not respond at all, look for lost vacuum to the actuators, damaged or failing actuators, and check the front and rear steering linkages and their attachment. One reverse-specific clue: if the machine doesn't spin-turn before backing up when you lightly press the reverse pedal, the steering switch gap on the bottom switch is too large.
How do I fix a pinched wire or micro switch issue on a John Deere SST18?
For a micro switch problem on the SST18, reposition the switch bracket so the gap between the metal plunger and its lever reaches no more than 1.5 mm (0.1 in.). To chase a pinched wire, disconnect the wires at the connectors one at a time until the component quits, which pinpoints the short or open circuit. The "Microswitch Clearance Check" on page 257 and "Switch Adjustment" on page 258 walk through the adjustments.
Is this John Deere SST15, SST16, SST18 Technical Manual a digital download?
A 340-page Technical Manual in searchable PDF format, available the moment you finish checkout. View it on a computer, tablet, or phone. No shipping wait.
Can I print this John Deere SST15, SST16, SST18 manual?
None at all. The PDF is DRM-free, so print whatever sections you need for the shop. Standard letter or A4 paper works.
Can I find wiring schematics in this John Deere SST15, SST16, SST18 manual?
Yes. Full electrical schematics are included, with wire colors, connector locations, and circuit descriptions.
Document Quality
This document is a scanned PDF with an OCR text layer, allowing you to search and copy text. The text quality is generally crisp and readable throughout. Diagrams and illustrations are scanned images, which means they may not be perfectly sharp when zoomed in, but their labels are mostly clear. Pages are largely clean, though some exhibit minor scan artifacts or black marks on the left margin. Page 2 and 4 are notable blank filler pages.
