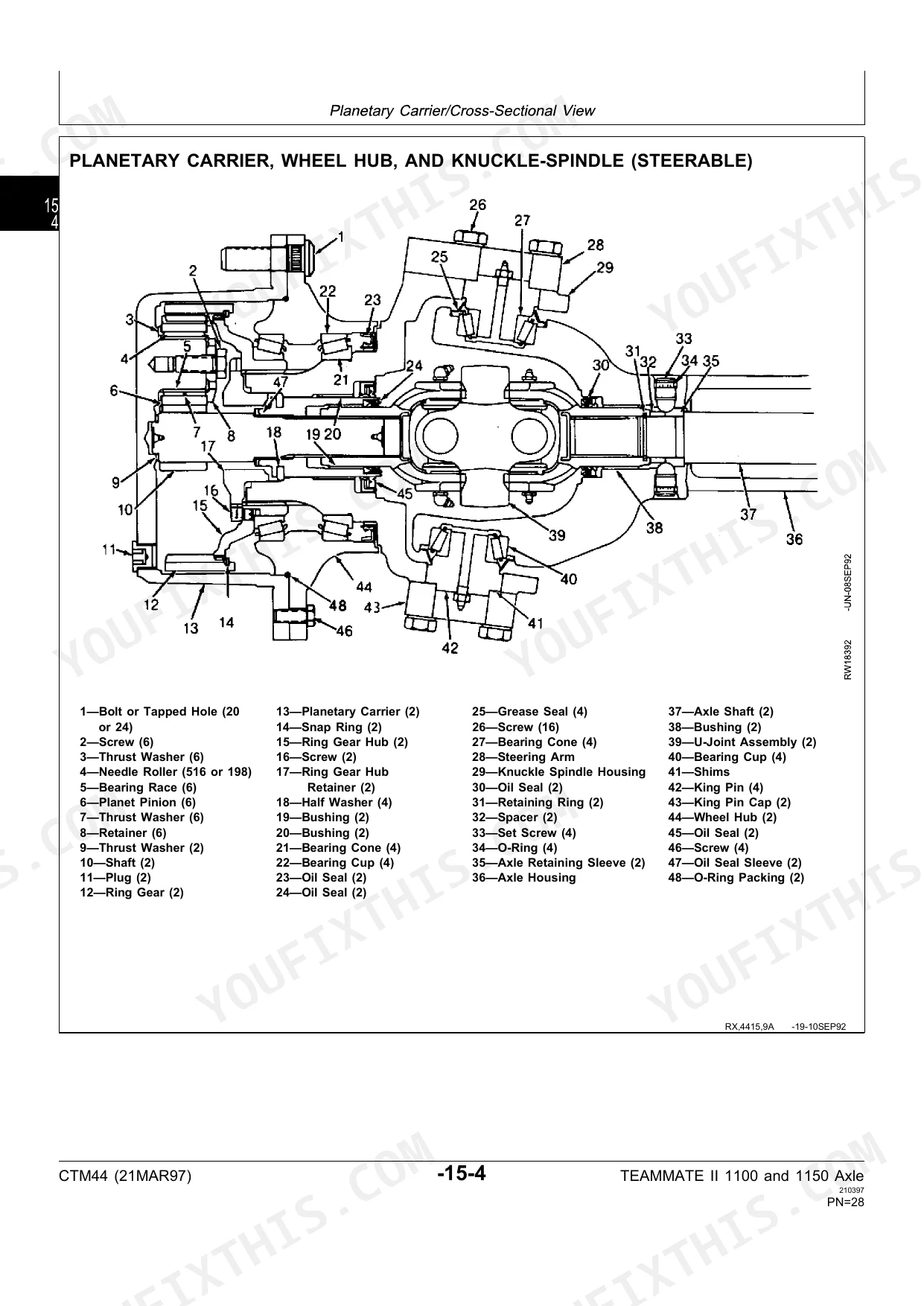

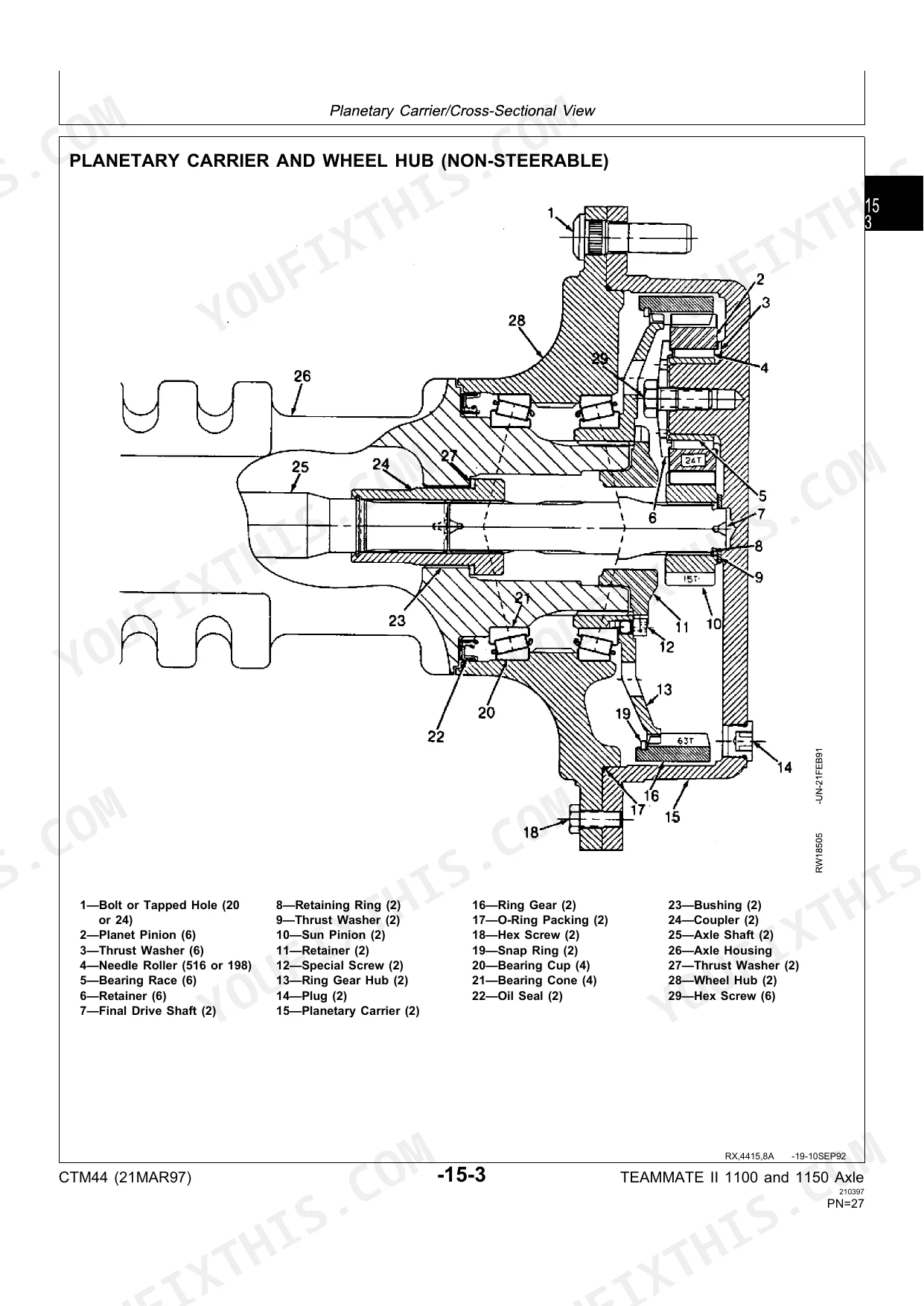

You will have the planetary carrier off the hub and this book open beside it within the hour: the John Deere 1100, 1150, Teammate II 2561R Technical Manual PDF, OEM number CTM44, 116 pages written for outboard planetary axles. Exploded views break the input quill, differential, and knuckle-spindle assembly down to the last thrust washer, and the teardown procedures run the length of the book, each one closing with the reassembly spec you need. Diagnosis work is covered too, including the air test of the axle assembly and the leakdown test on brake piston packings. Torque the planet pinion retaining screws to 310 N·m (229 lb-ft), and scrap that knuckle-spindle bushing once wear passes 75.155 mm (2.959 in.). Guessing costs a second teardown, or a ruined ring gear. Bookmarks drop you straight into Steering or Brakes, so your field window stays open.
What's Inside This John Deere TeamMate II 1100 & 1150 Axle Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety | 9-16 | Handle Fluids, Prepare for Emergencies, Park Machine, High-Pressure Fluids, Support Machine, Protective Clothing, Clean Area, Service Machines |
| General | 17-28 | Axle Specifications, Axle Identification, General Repair Procedures |
| Planetary Carrier | 29-38 | Special or Essential Tools, Planetary Carrier Disassembly |
| Wheel Hubs, Knuckle-Spindle, and Axles | 39-56 | Special or Essential Tools, Axle Housing, Knuckle-Spindle Assembly |
| Brakes | 57-60 | Brake Inspection and Repair |
| Input Quill and Differential | 61-86 | Special or Essential Tools, Input Quill and Drive Shaft, Differential Assembly |
| Steering | 87-94 | Steering Adjustments, Steering Cylinder |
| Axle Mounting | 95-98 | Oscillating Supports |
| Dealer Fabricated Tools | 99-104 | Axle Wheel Hub Tool, Knuckle-Spindle Support Bracket, Differential Input Yoke Holding Tool, Differential Side Bevel Gear End Play Tool, Ring Gear to Wheel Hub Clamp |
| Operational Checks | 105-106 | Ring Gear and Pinion Tooth Contact Pattern |
| Diagnosis and Testing | 107-108 | Air Test Axle Assembly, Leakdown Test Brake Piston Packings |
| Theory of Operation | 109-116 | Outboard Planetary Axles, Differential Operation, Service Brakes |

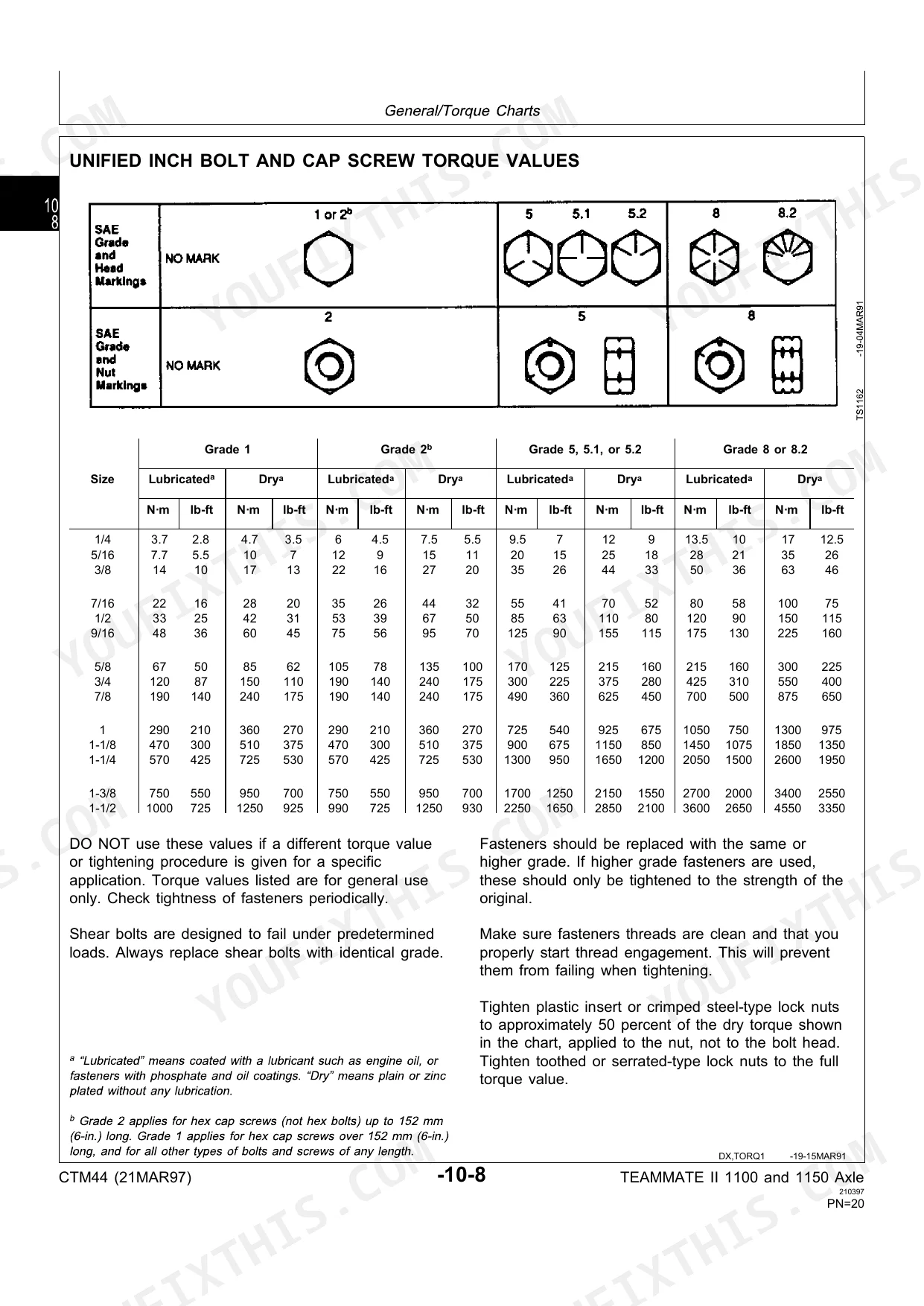

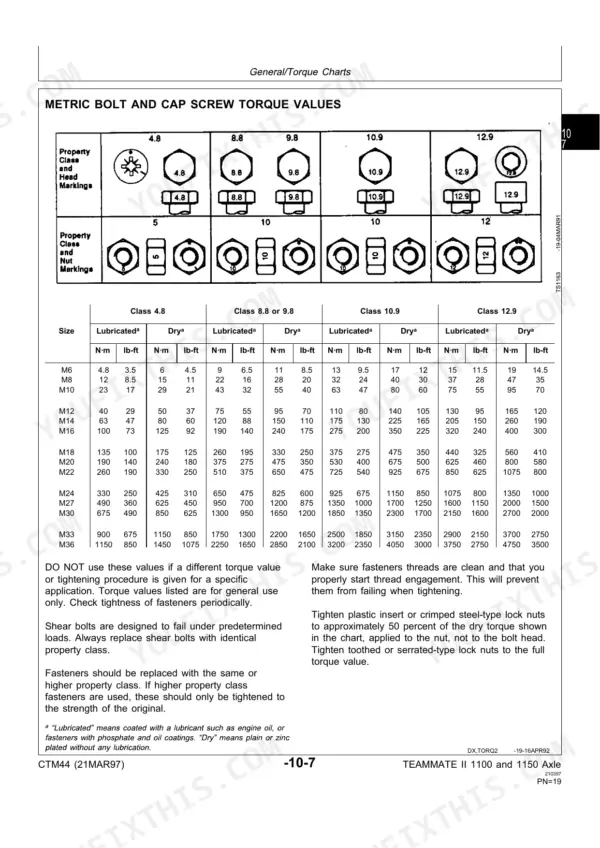

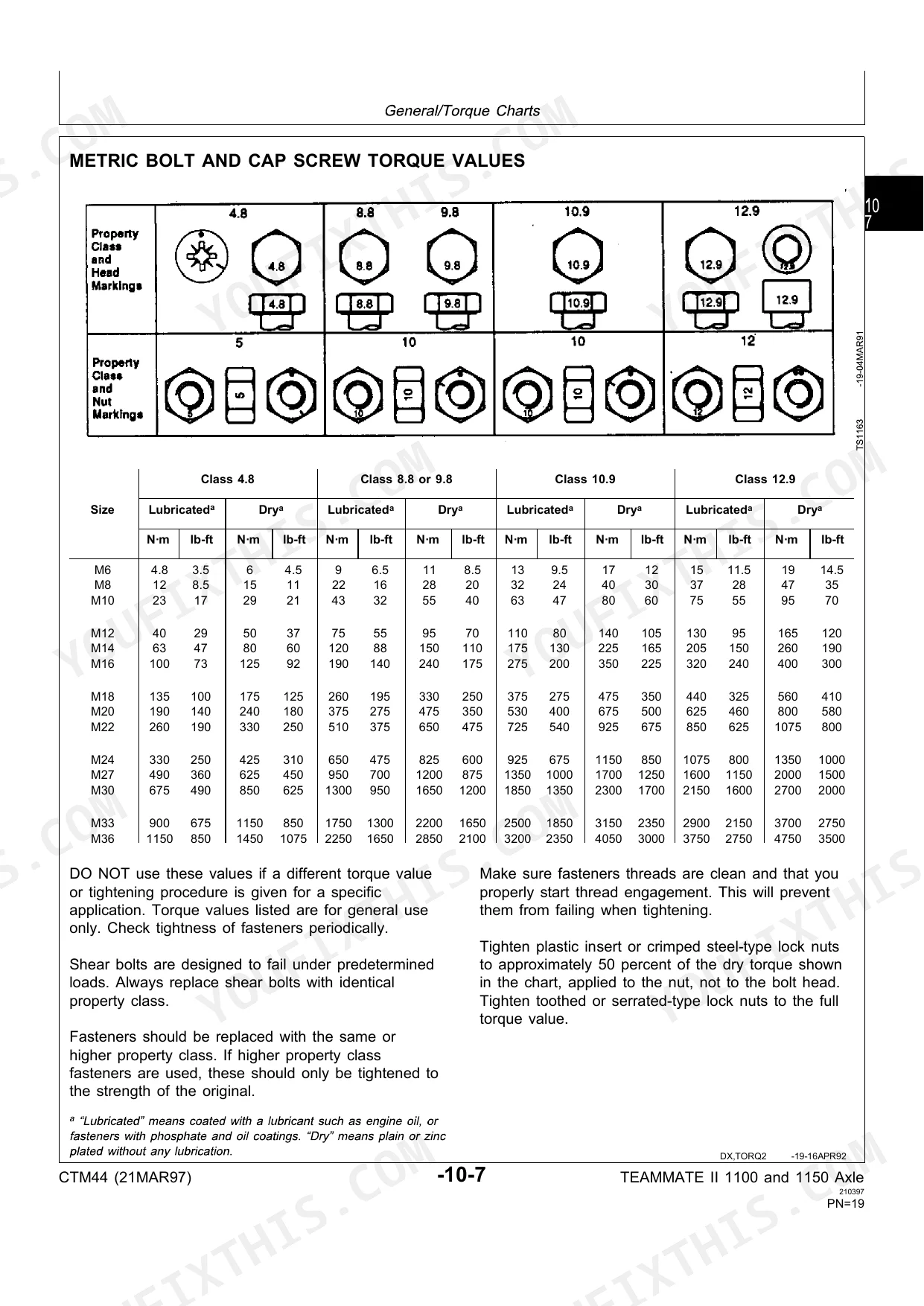

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| U-Joint Yoke Bushing Wear Limit | 56.062 ± 0.059 mm (2.207 ± 0.002 in.) | p. 41 |
| Knuckle-Spindle Bushing Wear Limit | 75.155 ± 0.05 mm (2.959 ± 0.002 in.) | p. 41 |
| Sleeve Bushing Wear Limit | 56.062 ± 0.059 mm (2.207 ± 0.002 in.) | p. 41 |
| Planet Pinion Retaining Screws Torque | 310 N·m (229 lb-ft) | p. 30 |
| Planet Pinion Carrier-to-Hub Cap Screws Torque | 126 N·m (92 lb-ft) | p. 30 |
| Ring Gear Hub Retaining Screw Torque | 50 N·m (37 lb-ft) | p. 41 |
| Lower Kingpin Retaining Cap Screw Torque | 310 N·m (229 lb-ft) | p. 41 |
| Steering Arm Cap Screws Torque | 310 N·m (229 lb-ft) | p. 41 |
| Steering Stop Cap Screws Torque | 90 N·m (66.5 lb-ft) | p. 41 |
| Axle Housing-to-Differential Case Cap Screws Torque | 310 N·m (229 lb-ft) | p. 41 |
| Brake Disk Thickness (New) | 3.3 mm (0.130 in.) | p. 57 |
| Lock Plate Screws Torque | 50 N·m (37 lb-ft) | p. 62 |
John Deere TeamMate II 1100 & 1150 Axle Common Problems This Manual Covers
TeamMate II 1100 axle: MFWD front wheel turns with axle input but tire will not pull

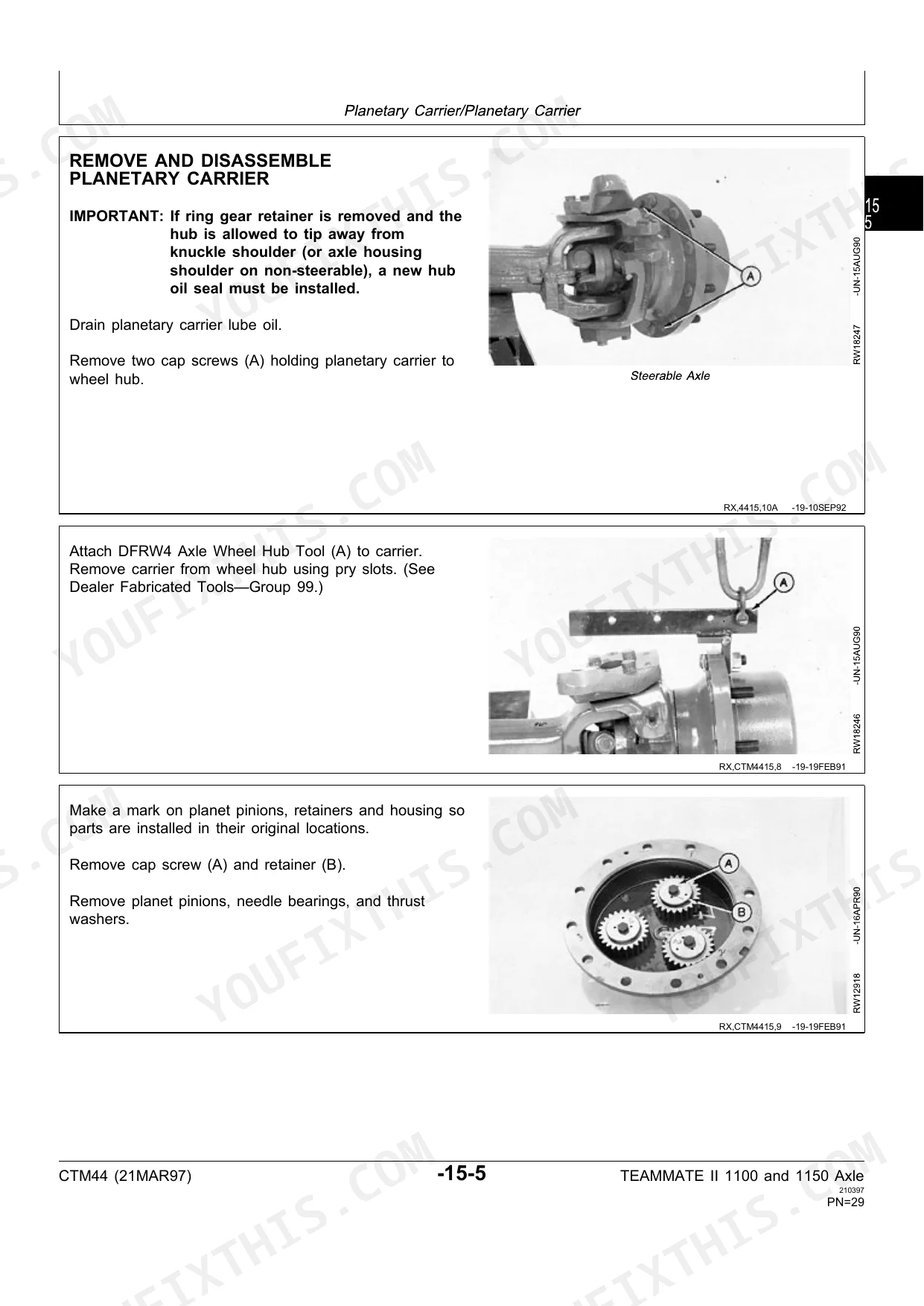

Pull the planetary carrier and inspect the sun gear, planet pinions, and pins for stripped or spalled teeth as covered starting on page 29. Replace any gear set as a matched group. On reassembly, torque the planet pinion retaining screws to 310 N·m (229 lb-ft) and the carrier-to-hub cap screws to 126 N·m (92 lb-ft) before you head back to the field.
Manual Section: Planetary Carrier p. 30Grinding, knocking, or metallic noise at the wheel end while pulling in field gear
Drain the wheel end and look for glitter or chunks in the oil before you tear anything down. Inspect the planet pins, bearings, and thrust washers per the carrier procedures on page 33. Clean every case surface, then torque the planet pinion retaining screws to 310 N·m (229 lb-ft) so the pins stay seated under load.
Manual Section: Planetary Carrier p. 33Only one front wheel spins during MFWD engagement test, the other sits dead
Verify the drive shaft U-joints turn the axle input first, then check the U-joint yoke bushings against the 56.062 mm (2.207 in.) wear limit listed on page 41. If the bushings pass, move inboard and inspect the differential drive shaft and side bevel gears using the input quill procedures on page 61.
Manual Section: Input Quill and Differential p. 61Repeated hub and axle shaft failure at the snap ring groove after a rebuild
Remove the hub and measure the knuckle-spindle bushing against the 75.155 mm (2.959 in.) wear limit on page 41. A worn bushing lets the shaft cock and load the snap ring. Then torque the ring gear hub retaining screws to 50 N·m (37 lb-ft).
Manual Section: Wheel Hubs, Knuckle-Spindle, and Axles p. 41Oil weeping from the wheel end or axle housing joint after planetary service
Clean the housing and run the air test procedure on page 107 to find the leak path before you pull the whole axle apart. Replace the seals and O-rings, then torque the axle housing-to-differential case cap screws to 310 N·m (229 lb-ft). Refill the wheel end and recheck the level before the next pass.
Manual Section: Diagnosis and Testing p. 107Front wheel drags or brake will not release after axle reassembly
Measure brake disk thickness and compare it to the 3.3 mm (0.130 in.) new dimension given on page 57. Replace any disk that is worn thin or heat glazed. Run the leakdown test on the brake piston packings using the procedure on page 107, then bleed the service brakes until the pedal comes up firm.
Manual Section: Brakes p. 57Frequently Asked Questions
What is the torque spec for the planet pinion retaining screws on a John Deere TeamMate II 1100 & 1150 Axle?
The torque specification for the planet pinion retaining screws is 310 N·m (229 lb-ft). p. 30

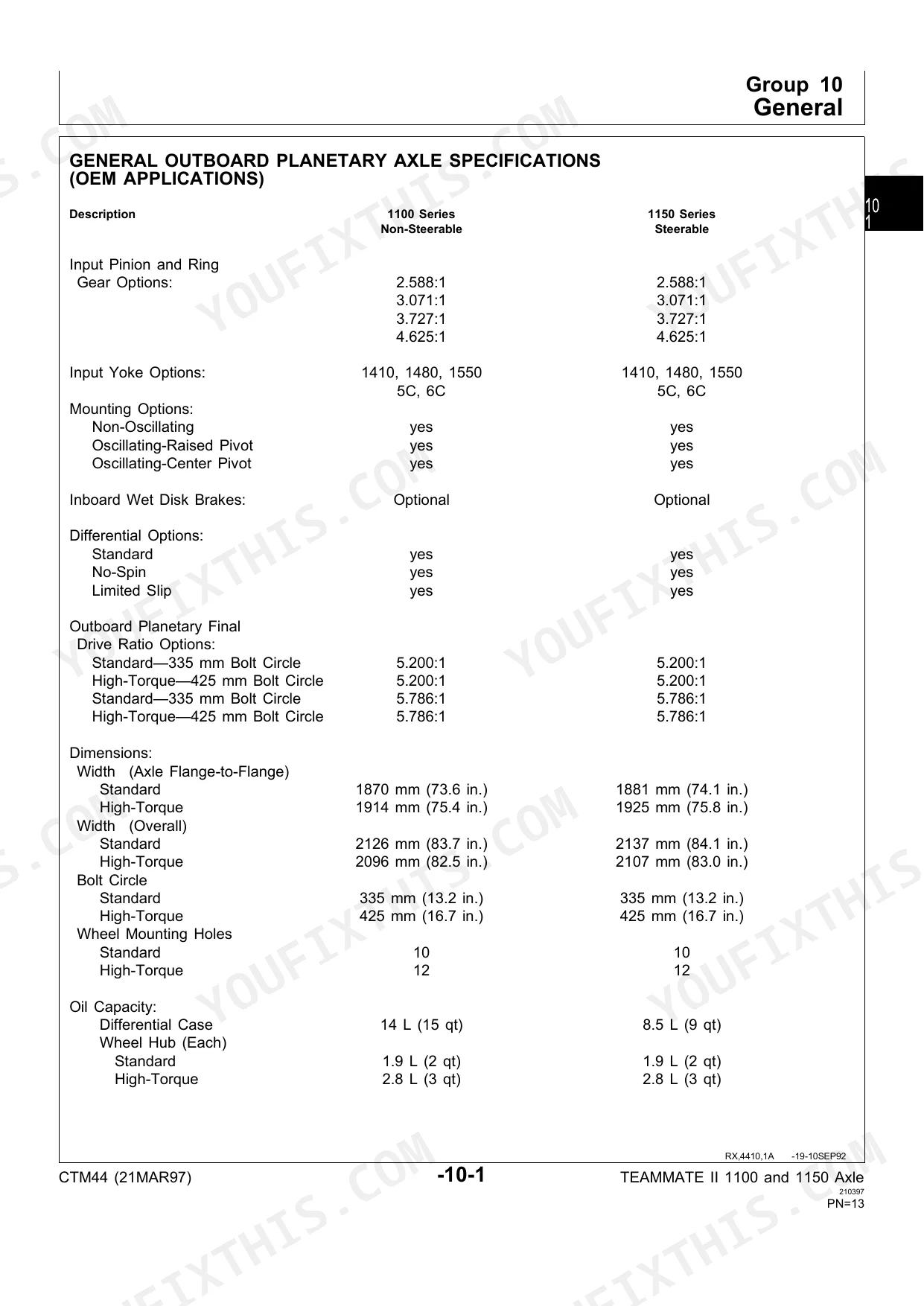

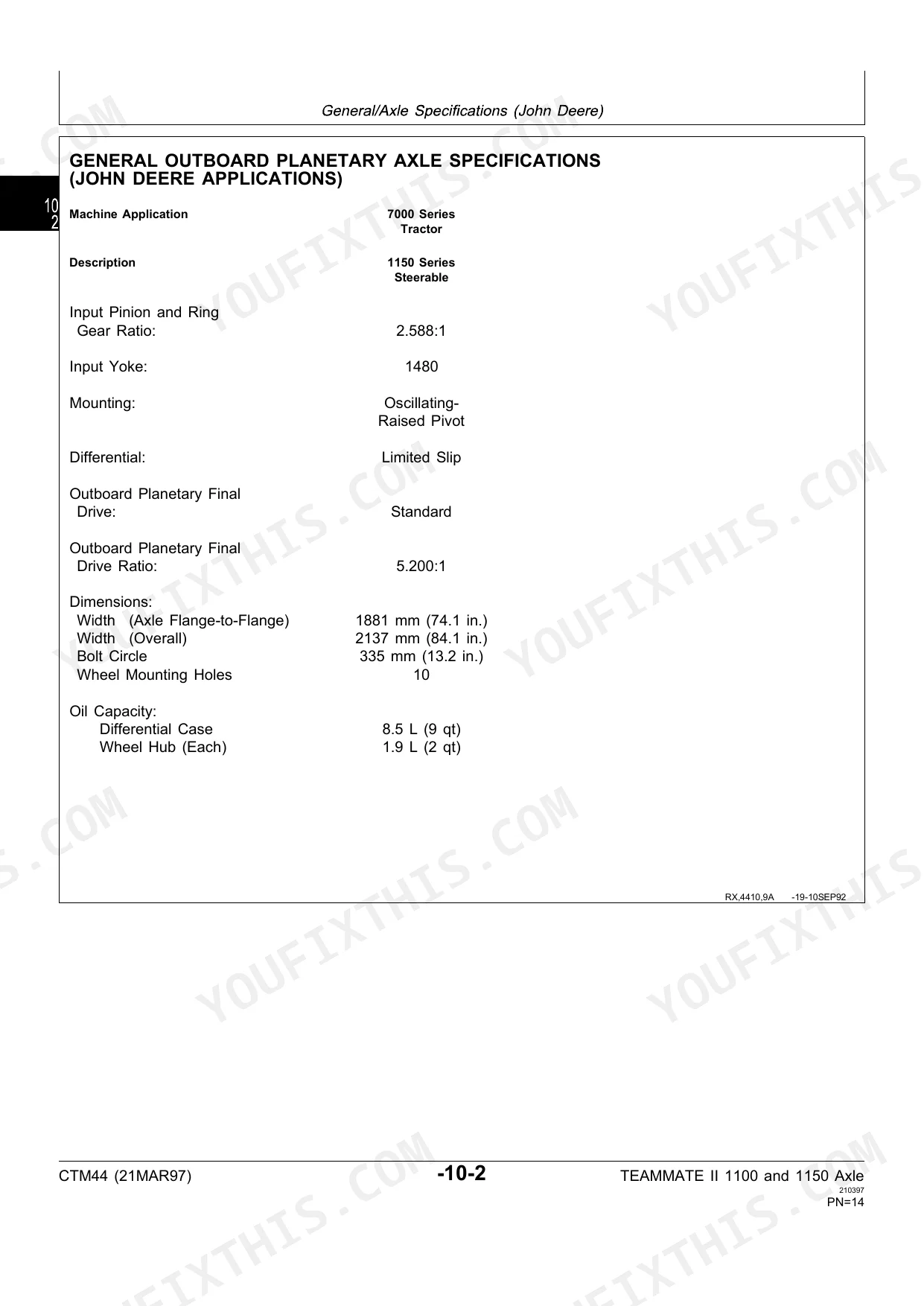

What is the oil capacity for the differential case on a 1100 Series non-steerable axle?
The oil capacity for the differential case on a 1100 Series non-steerable axle is 14 L (15 qt). p. 17
What is the oil capacity for the wheel hub on a 1100 Series standard axle?
The oil capacity for each wheel hub on a 1100 Series standard axle is 1.9 L (2 qt). p. 17
What is the torque spec for the steering stop cap screws on a John Deere TeamMate II 1100 & 1150 Axle?
The torque specification for the steering stop cap screws is 90 N·m (66.5 lb-ft). p. 41
What is the torque specification for the axle housing-to-differential case cap screws?
The torque specification for the axle housing-to-differential case cap screws is 310 N·m (229 lb-ft). p. 41
What format is this John Deere 1100 manual in?
You get a 116-page non-searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this John Deere 1100 manual?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.
