Need the factory part numbers for your Kubota B7200D? This 214-page Kubota b7200d parts catalog pdf (OEM #11055) maps every component on your compact tractor to its exact OEM number, from the crankcase to the 3-point linkage. Inside: 26 pages of engine diagrams covering the crankcase, cylinder head, injection pump, and governor, plus hydraulic system exploded views for the pump, block, and piping. You get 48 drivetrain system exploded views, rear axle and differential breakdowns, and component identification for every speed change fork and brake rod on the machine. The radiator assembly (Part No. 15531-72060) lists at 4.5 kgf; the cap (15272-72020) at 0.071 kgf. Real factory weights, not forum guesses. Chasing a part number wastes shop time. Bookmarked and keyword-searchable, this PDF opens on any device. Pull it up at the tractor and order the right part on the first try.
What's Inside This Kubota B7200D Parts Manual
| System | Pages |
|---|---|

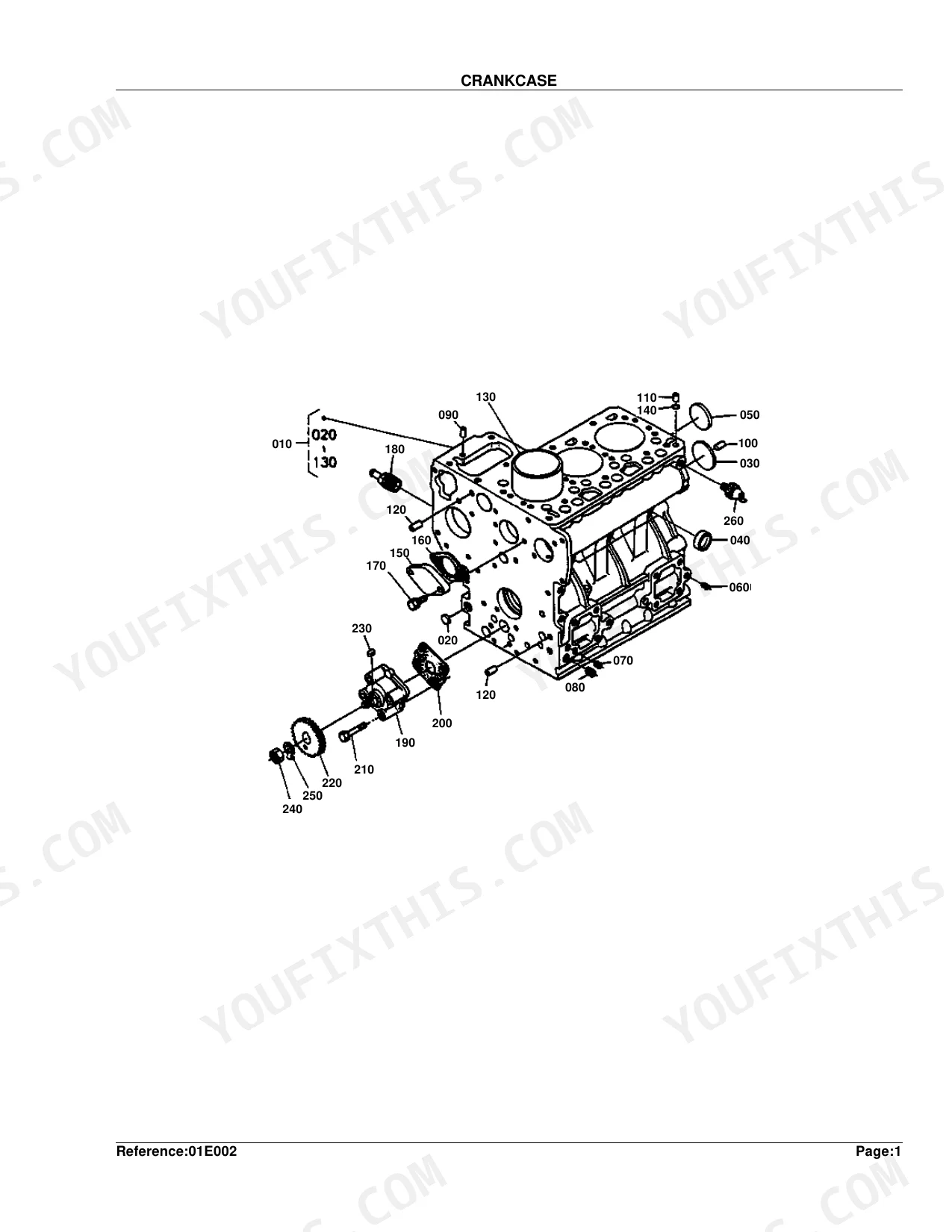

| Crankcase | 5-6 |
| Oil Pan | 7-8 |
| Cylinder Head | 9-10 |
| Gear Case | 11-12 |
| Main Bearing Case | 13-14 |
| Cylinder Head Cover | 15-16 |
| Manifold | 17-18 |
| Valve/Rocker Arm | 19-20 |
| Camshaft | 21-22 |
| Piston/Crankshaft | 23-24 |
| Flywheel | 25-26 |
| Injection Pump | 27-28 |
| Nozzle Holder | 29-30 |
| Engine Stop Lever | 31-32 |
| Speed Control Plate | 33-34 |
| Governor | 35-36 |
| Hydraulic Pump | 37-38 |
| Dynamo | 39-40 |
| Water Flange | 41-42 |
| Water Pump | 43-44 |
| Injection Pump [Section Parts] | 45-46 |
| Nozzle Holder [Section Parts] | 47-48 |
| Dynamo [Section Parts] | 49-50 |
| Hydraulic Pump [Section Parts] | 51-52 |

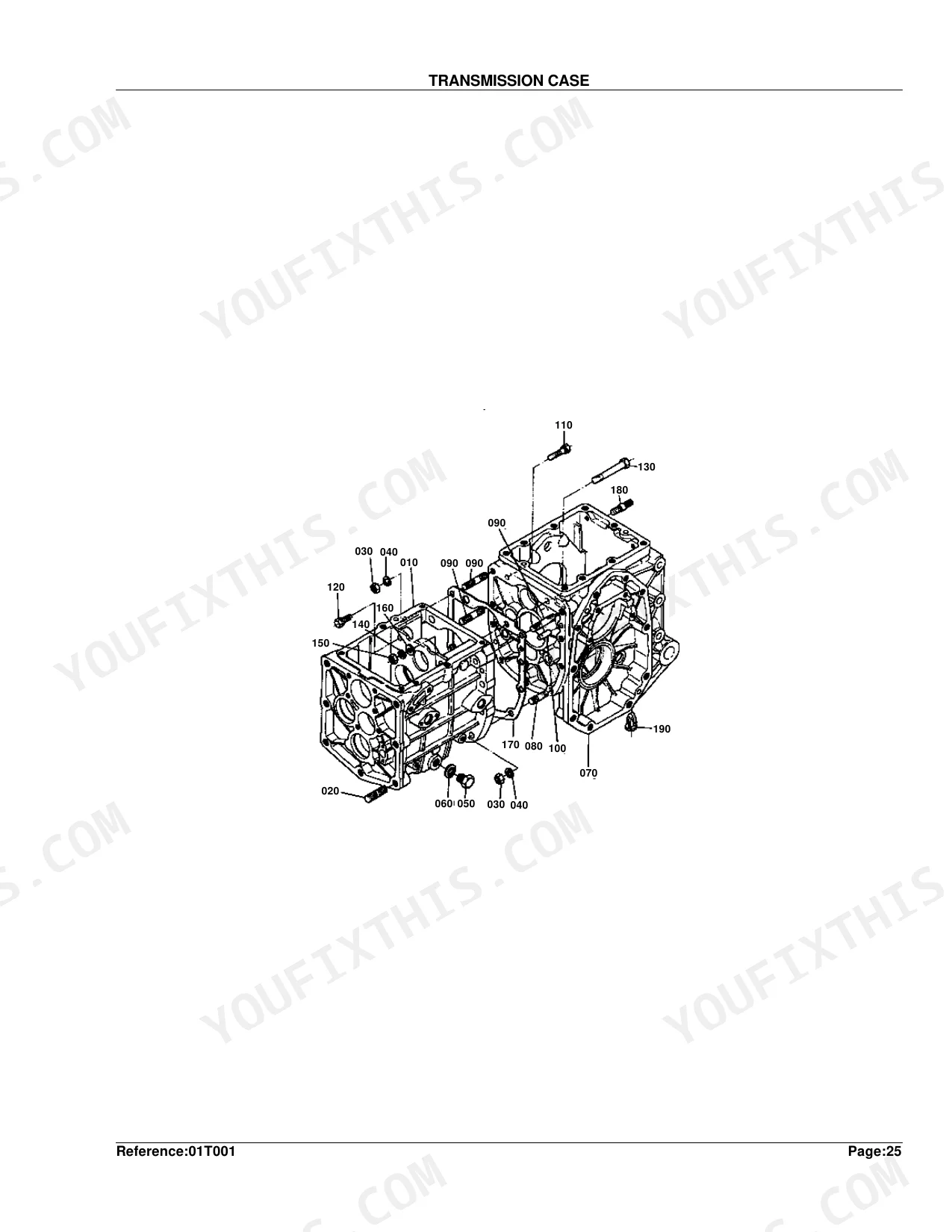

| Transmission Case | 53-54 |
| PTO Cover | 55-56 |
| Cover | 57-58 |
| Case Cover | 59-60 |
| Rear Axle Case | 61-62 |
| Clutch Rod | 63-64 |
| Clutch | 65-66 |
| 2nd Shaft | 67-68 |
| 3rd Shaft | 69-70 |
| 4th Shaft,5th Shaft | 71-72 |
| Spiral Bevel Shaft | 73-74 |
| PTO Shaft | 75-76 |
| Reverse Shaft | 77-78 |
| Rear Differential | 79-80 |
| Rear Axle | 81-82 |
| Rear Wheel (9.5-16) | 83-84 |
| Rear Wheel (8-16) | 85-86 |
| Rear Wheel (29 X 12.00-15) | 87-88 |
| Rear Wheel (31 X 13.5-15) | 89-90 |
| Rear Wheel Hub | 91-92 |
| Speed Change Fork | 93-94 |
| Main Speed Change | 95-96 |
| Aux. Speed Change | 97-98 |
| Rotary Speed Change Fork | 99-100 |
| Brake | 101-102 |
| Hydraulic Pipe | 103-104 |

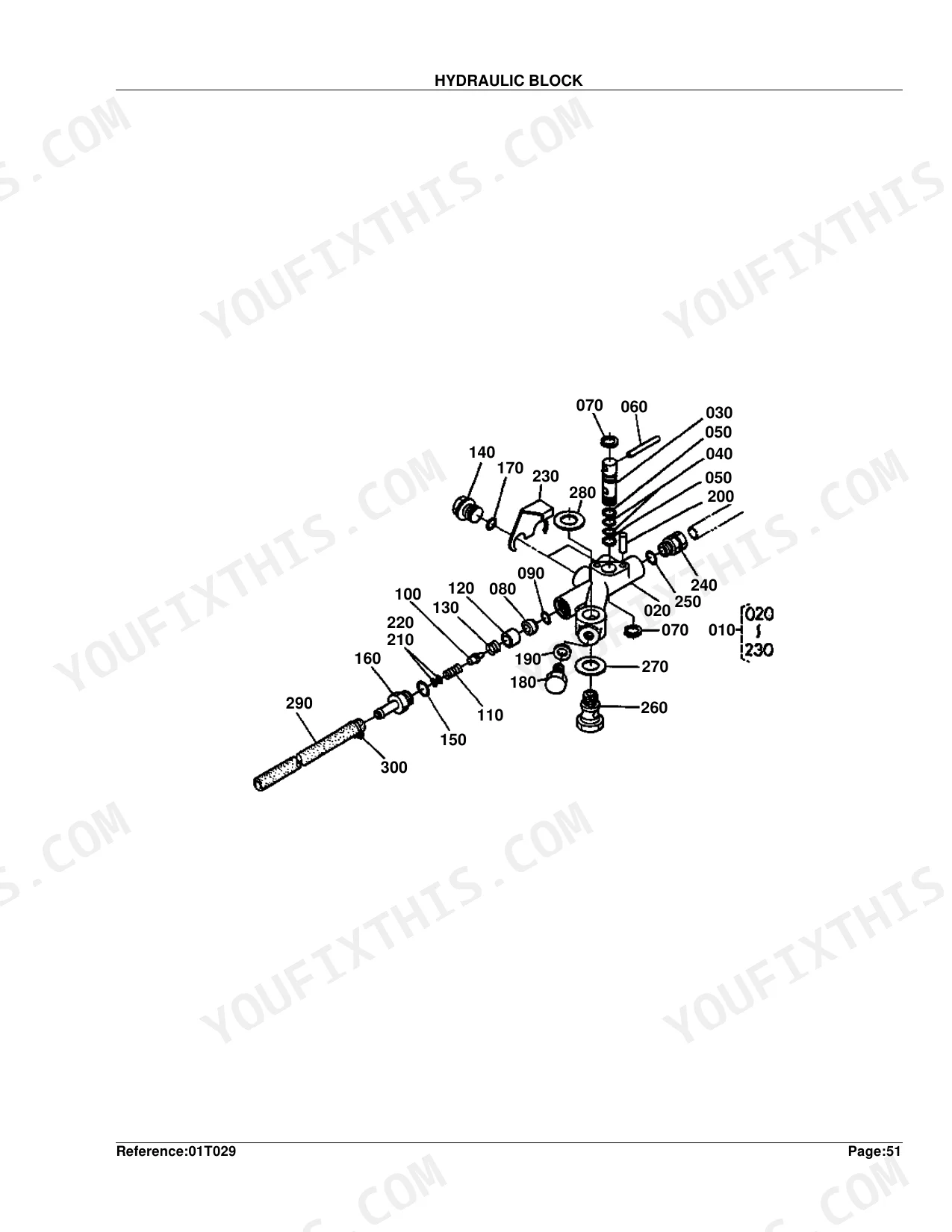

| Hydraulic Block | 105-106 |
| Hydraulic 2 | 107-108 |
| Steering | 109-110 |
| Speed Change Lever | 111-112 |
| Brake Rod | 113-114 |
| Pedal | 115-116 |
| Release Rod | 117-118 |

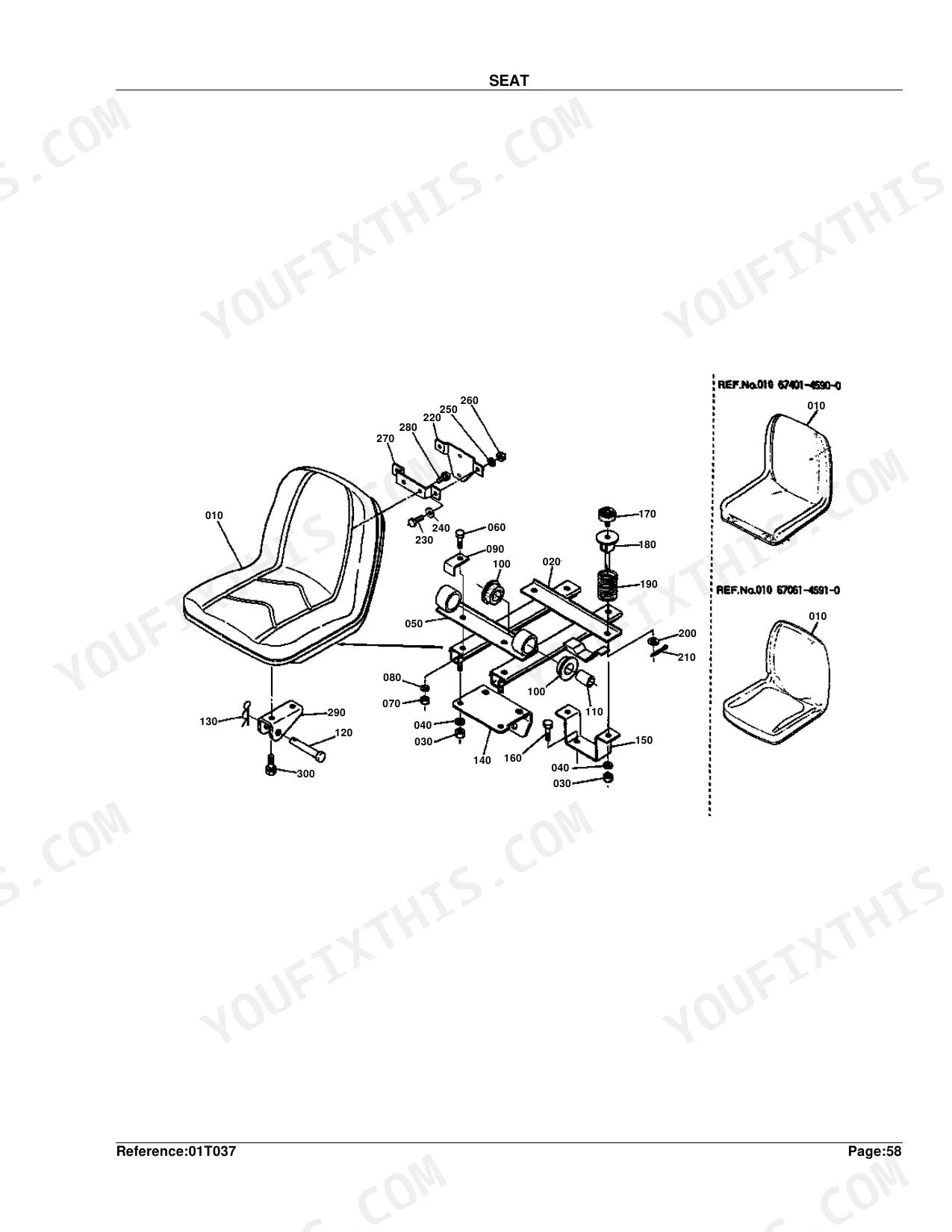

| Seat | 119-120 |
| Label | 121-122 |
| Clutch Housing/Step/Starter | 123-124 |

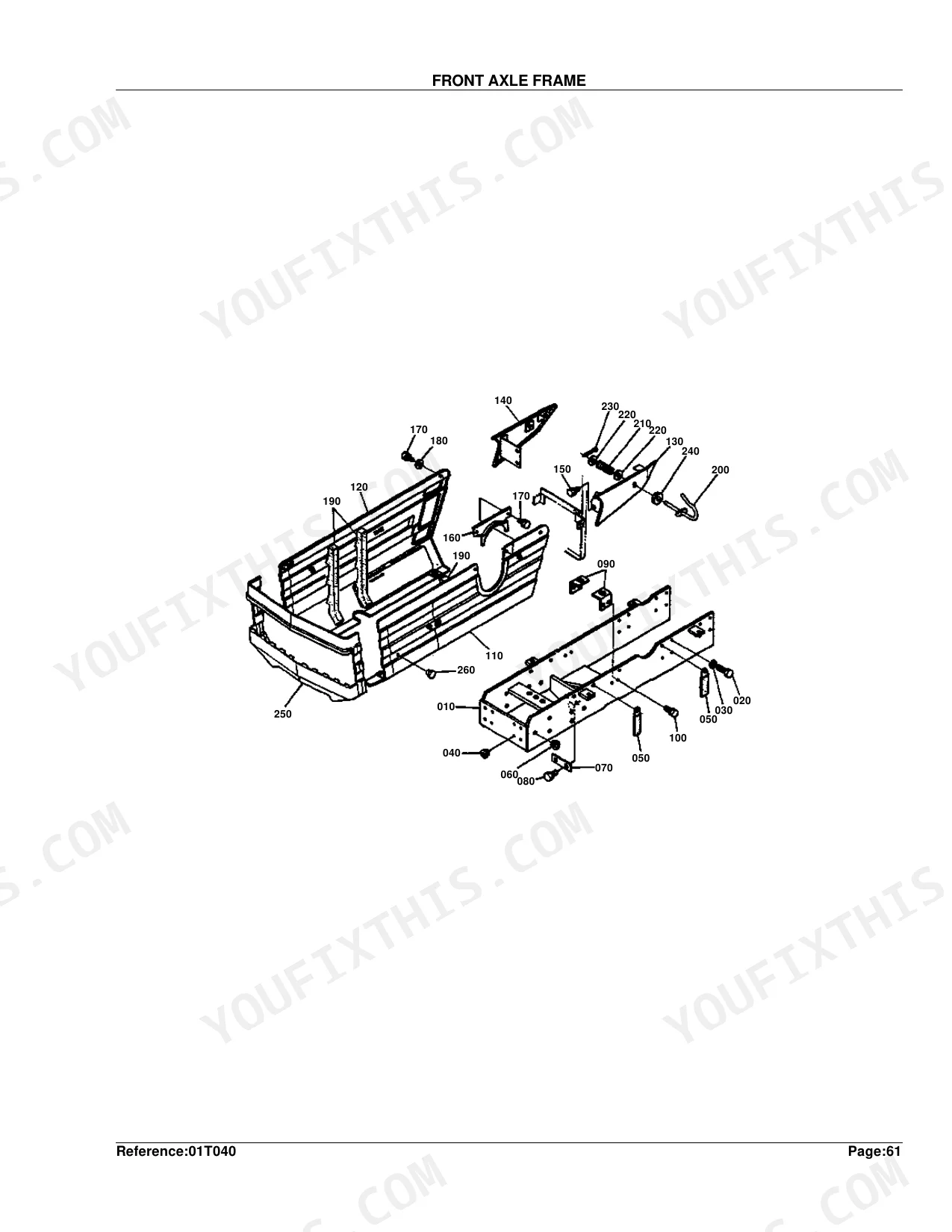

| Front Axle Frame | 125-126 |
| Radiator | 127-128 |
| Fender | 129-130 |
| Hood | 131-132 |
| Battery | 133-134 |
| Muffler and Muffler Pipe [A],[CA] | 135-136 |
| Fuel Tank | 137-138 |
| Fuel Pipe | 139-140 |
| Fuel Filter | 141-142 |
| Panel | 143-144 |
| Panel Switch | 145-146 |
| Decompress Wire and Engine Stop Wire | 147-148 |
| Flasher Light/Tail Light/Head Lamp | 149-150 |
| Air Cleaner | 151-152 |
| Front Axle Case | 153-154 |
| Front Gear Case | 155-156 |
| Knuckle Arm | 157-158 |
| Front Differential | 159-160 |
| Front Wheel Hub | 161-162 |
| Drive Shaft | 163-164 |
| Front Axle Arm | 165-166 |
| Bevel Gear Case | 167-168 |
| Bevel Gear | 175-176 |
| Front Wheel (6-12B) B6200D-Gp-[A][CA], B7200D-P-[A][AU] | 179-180 |
| Front Wheel (6-12) B7200D-Gp | 181-182 |
| Front Wheel (20.5 X 8.00-10) | 183-184 |
| 3-Point Linkage | 185-187 |
| Dynamo 1 [Option] | 188-189 |
| Dynamo 2 [Option] | 190-191 |
| Hydraulic Outlet [Option] | 192-193 |
| Horizon Muffler [Option] | 194-195 |
| Working Light [Option] | 196-197 |
| Flange F.Pto [Option] | 198-199 |
| Power Steering [A] [CA] [Option] | 200-202 |
| Control Valve [Section Parts] | 203-204 |
| Starter [Section Parts] | 205-206 |
| Booster [A] [CA] [Section Parts] | 209-210 |
| Hydraulic Block [A] [CA] [Section Parts] | 211-212 |
| Accessories and Service Parts | 213-214 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Weight of ASSY CAP (Part No. 15272-72020) | 0.071 kgf | p. 128 |
| Weight of ASSY RADIATOR (Part No. 15531-72060) | 4.5 kgf | p. 128 |
| WASHER,ADJUSTING (1.00MM) | 0.001 kgf | p. 48 |
| WASHER,ADJUSTING (1.05MM) | 0.001 kgf | p. 48 |

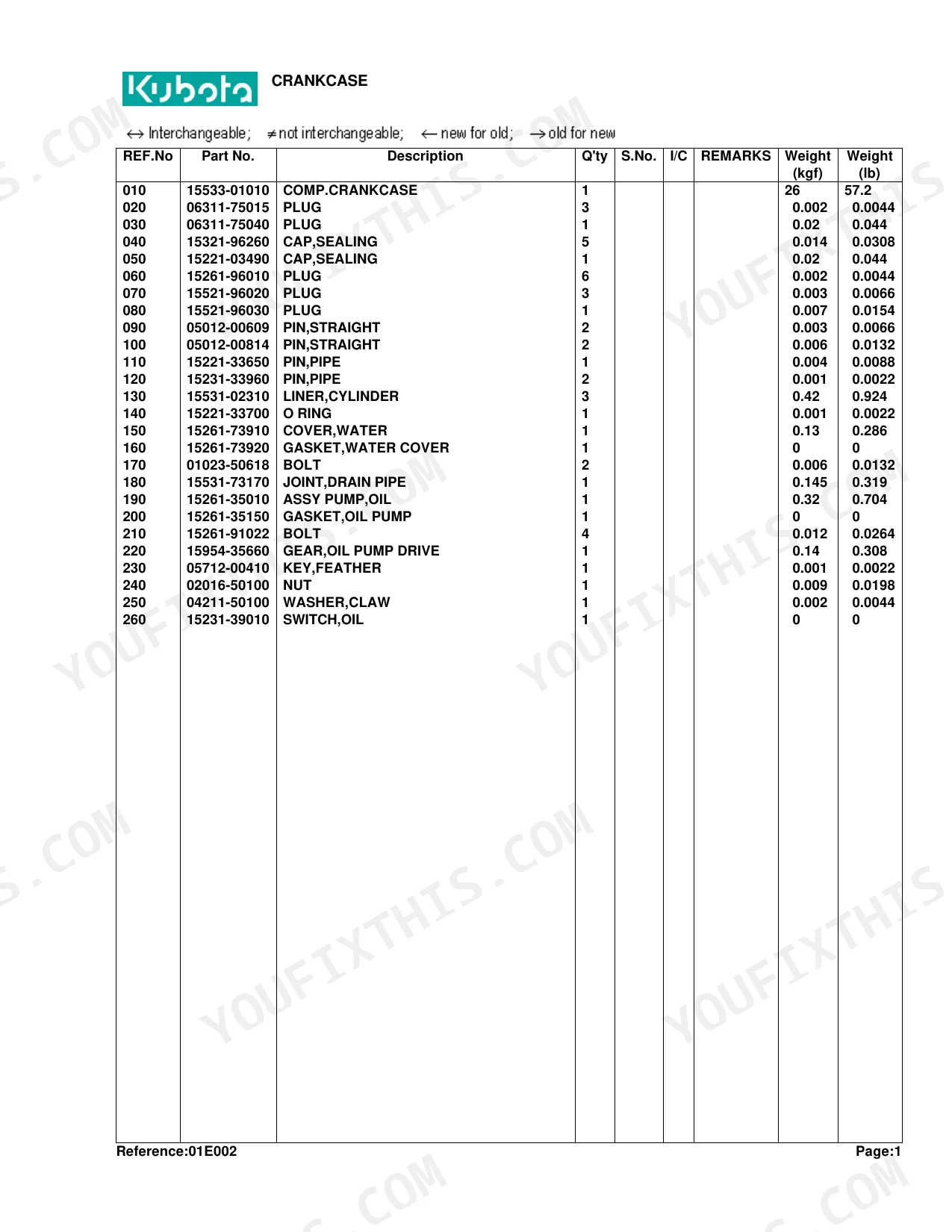

| COMP.CRANKCASE Weight | 26 kgf (57.2 lb) | p. 6 |
| COMP.CYLINDER HEAD Weight | 9 kgf (19.8 lb) | p. 10 |
| PISTON Weight (STD) | 0.365 kgf (0.803 lb) | p. 24 |
| ASSY PUMP,INJECTION Weight | 2.1 kgf (4.62 lb) | p. 28 |
Kubota B7200D Common Problems This Manual Covers
Kubota B7200D persistent overheating during operation and coolant boiling out past the damaged radiator cap p. 127
Review the exploded view on page 127 to locate replacement part numbers for the cooling system. Identify the full 4.5 kgf (9.9 lb) radiator assembly and the matching hoses. Order the exact OEM radiator cap, which weighs 0.071 kgf, to restore proper system pressure.
Manual Section: RadiatorHydrostatic transmission slipping under load and struggling to find the correct internal rebuild components p. 53
Inspect the transmission case parts lists on page 53. Locate the specific shafts, gears, and seals required for a complete rebuild. Cross-reference the adjustment washers, such as those found in the Nozzle Holder [Section Parts] on page 48, to ensure exact clearances during reassembly.
Manual Section: Transmission CaseEngine runs but expels a milky coolant and oil mixture from the breather tube p. 9
Check the parts diagram on page 9 to identify the correct sealing components. Order the required head gasket and associated hardware for the 9 kgf (19.8 lb) cylinder head assembly. Match the part numbers to your specific serial number range to correct the internal leaks.
Manual Section: Cylinder HeadEngine cranks fast but refuses to fire due to internal wear inside the injection pump p. 27
Examine the parts breakdown on page 27 to find the correct replacement components. Identify the complete 2.1 kgf (4.62 lb) injection pump assembly or individual internal seals. Match these exact part numbers before ordering to guarantee correct fuel delivery and proper engine operation.
Manual Section: Injection PumpFrequently Asked Questions
What are the replacement specifications for Radiator cap?
The replacement radiator cap for the Kubota B7200D is part number 15272-72020, listed as 'ASSY CAP'. It has a weight of 0.071 kgf (0.1562 lb).
What are the replacement specifications for Radiator?
The replacement radiator for the Kubota B7200D is part number 15531-72060, listed as 'ASSY RADIATOR'. It has a weight of 4.5 kgf (9.9 lb).
How will I receive this Kubota B7200D Parts Catalog?
Immediate download of the complete 214-page searchable Parts Catalog. Access it on any device, laptop at your desk or phone in the field.
Can I print specific sections of this Kubota B7200D Parts Catalog?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Does this Kubota B7200D manual include hydraulic schematics?
This is a parts catalog, so it shows exploded parts diagrams rather than circuit schematics. It includes detailed exploded views of the hydraulic components, pump, control valve, cylinder, and oil lines, with OEM part numbers, not wiring-style circuit diagrams.
Document Quality
This is a scanned document with an optical character recognition (OCR) layer, so you can search and copy the full text. The text throughout the document is crisp and easy to read. Diagrams and illustrations are raster images, meaning they may show some pixelation when highly zoomed, but labels within them are generally clear. Pages are clean with no noticeable scan artifacts or skewed content, though one page explicitly states "IMAGE NOT AVAILABLE" for a section.
