Factory procedures for the Kubota J-series gensets, covering the full J106-J324 Series from J106-STD through J324-STD in Standard, Auto Start/Stop, and Australian builds (OEM #G3907-8911-5). The 85 pages break down like this: 10 on safety, including backfeeding dangers, isolation switch installation, and shock prevention; 13 on operation, from cold-weather starting to load connection and circuit breaker handling. A full control panel layout, daily pre-operation checks for battery, oil, coolant, and fuel, and a 3-page troubleshooting guide round out the front half, followed by 19 pages of wiring diagrams for every variant. Maintenance timing is explicit: inspect fuel pipes every 50 hours, clean the fuel filter at 100, swap the cartridge at 200. Bookmarked by section and keyword-searchable, so it loads fast when the power is out and the clock is running.
What's Inside This Kubota J106–J324 Series Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safe Operation | 7-16 | Safety instructions, Safety clothing, Engine pre-operation check, Electrical components handling, Fuel and lubricants handling, Exhaust gases and fire prevention |
| Servicing of Generator | 17 | Generator, Engine |
| Specifications | 18-23 | Phase Type |

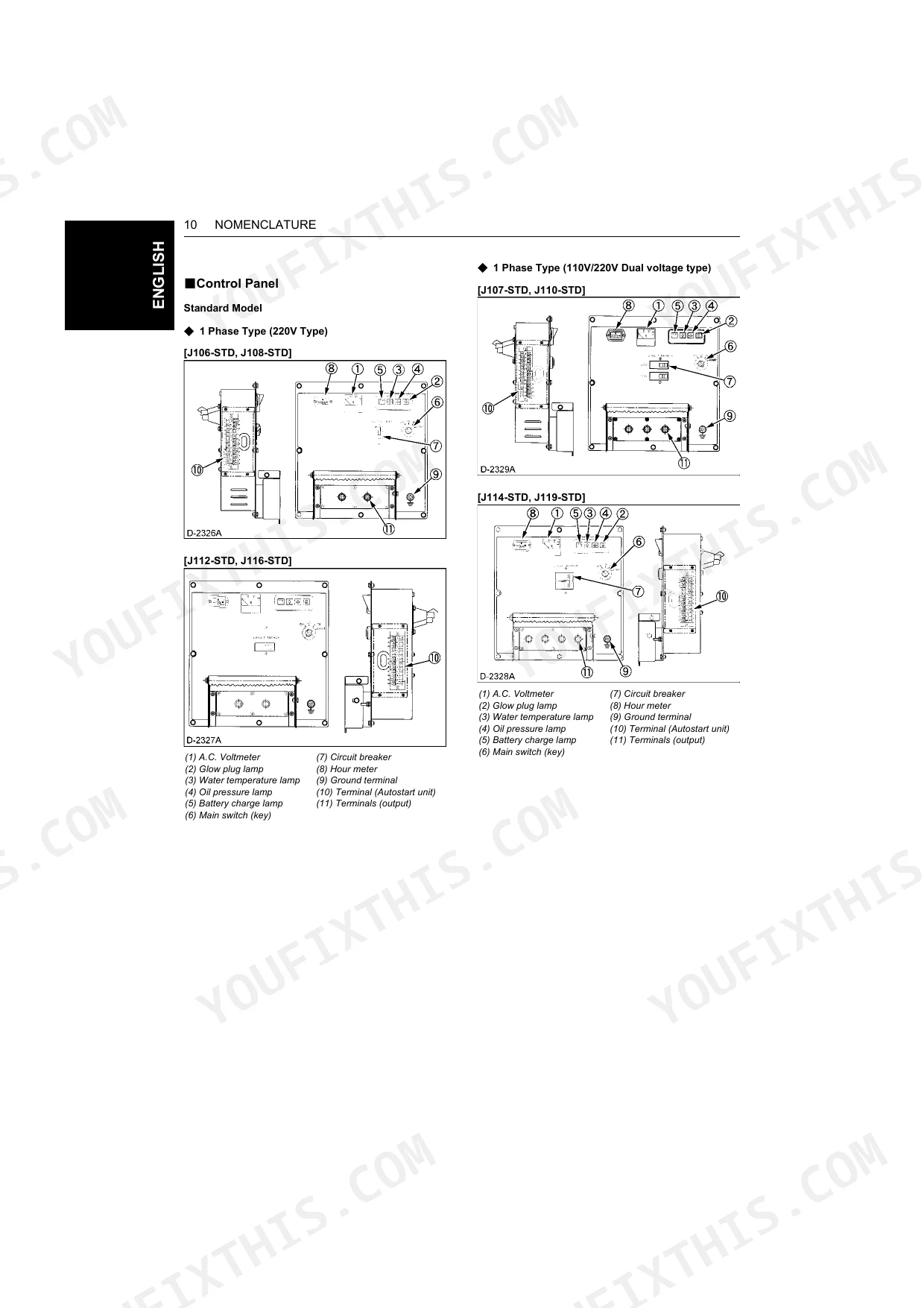

| Nomenclature | 24-29 | Control Panel |
| Preparation to Supply the Electric Power | 30-31 | Generator grounding, Electrical devices capacity, Motor connection, Lights and electric heaters connection, Power factor calculations |
| Connecting the Load | 32-34 | Connection Notes |
| Handling the Circuit Breaker | 35 | Single phase circuit breaker, Circuit breaker protector, Circuit protector resetting |
| Pre-Operation Check | 36-37 | Daily check, Battery, Engine oil, Coolant, Fuel |

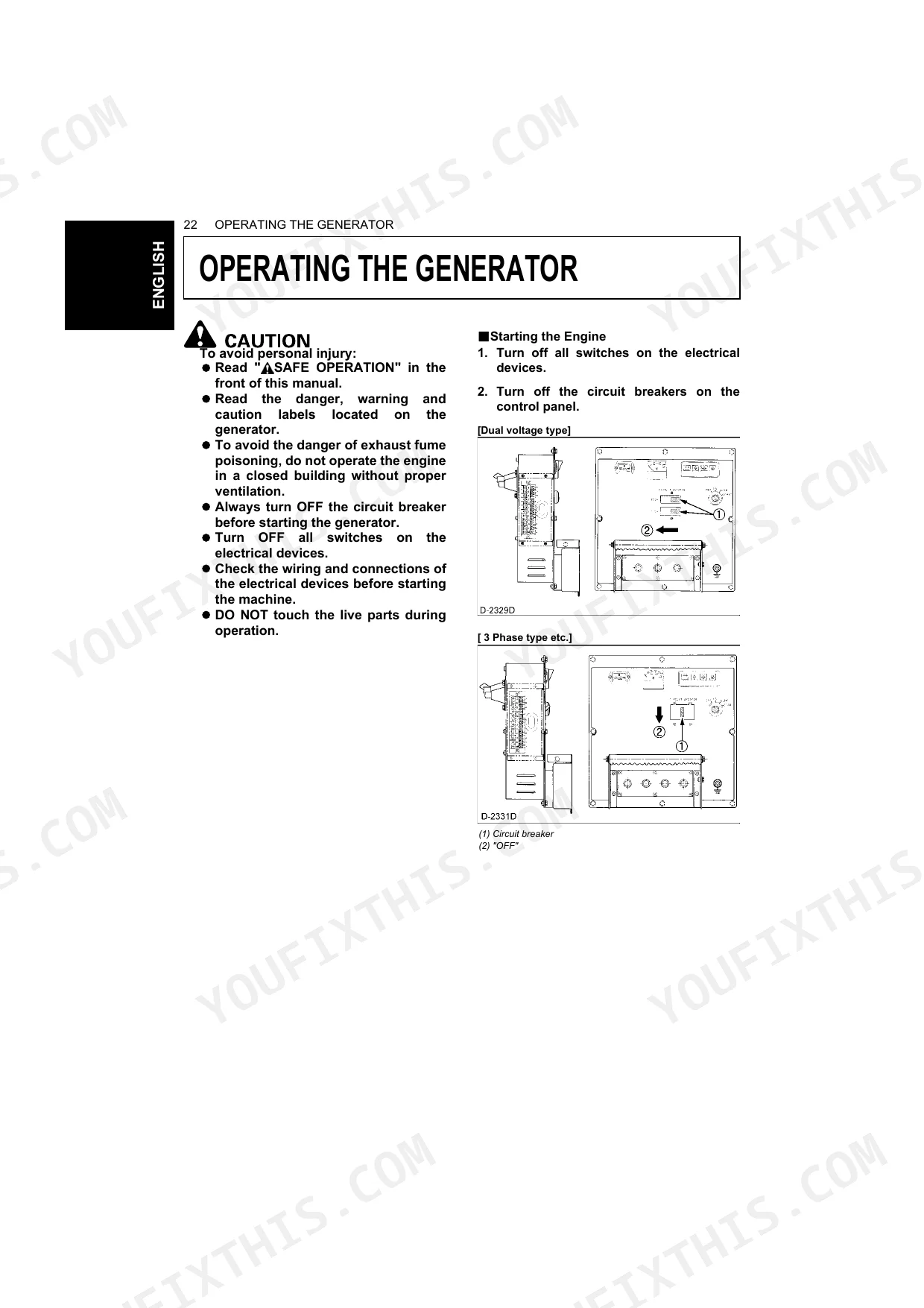

| Operating the Generator | 38-42 | Starting The Engine, Cold Weather Starting, Stopping The Engine, If The Engine Fails To Stop In The Usual Procedure, Electric Wiring |

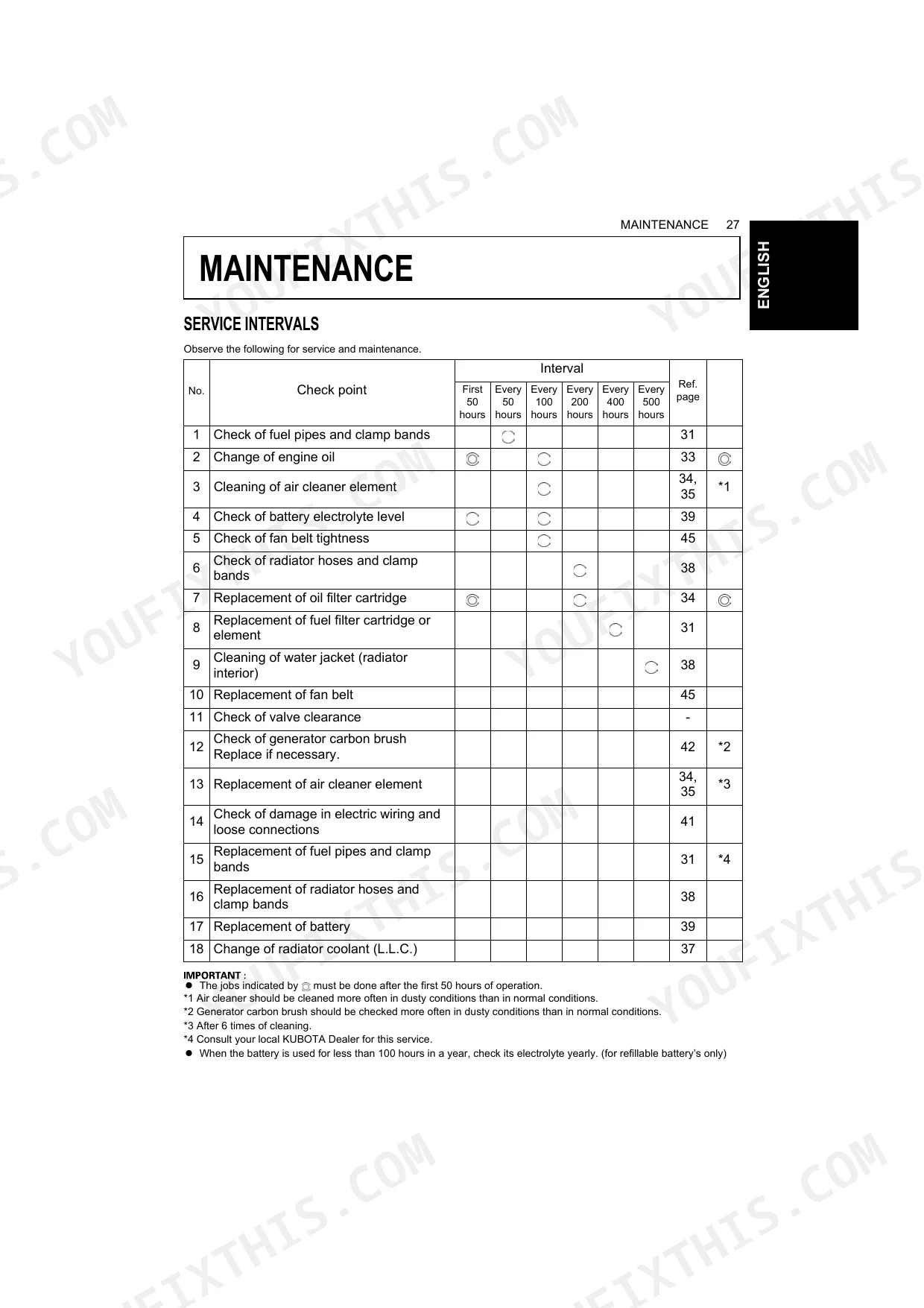

| Maintenance | 43-44 | Fuel, Engine oil, Air cleaner, Radiator, Battery, Fan belt |
| Periodic Service | 45-61 | Fuel, Easy Checker, Control Box |

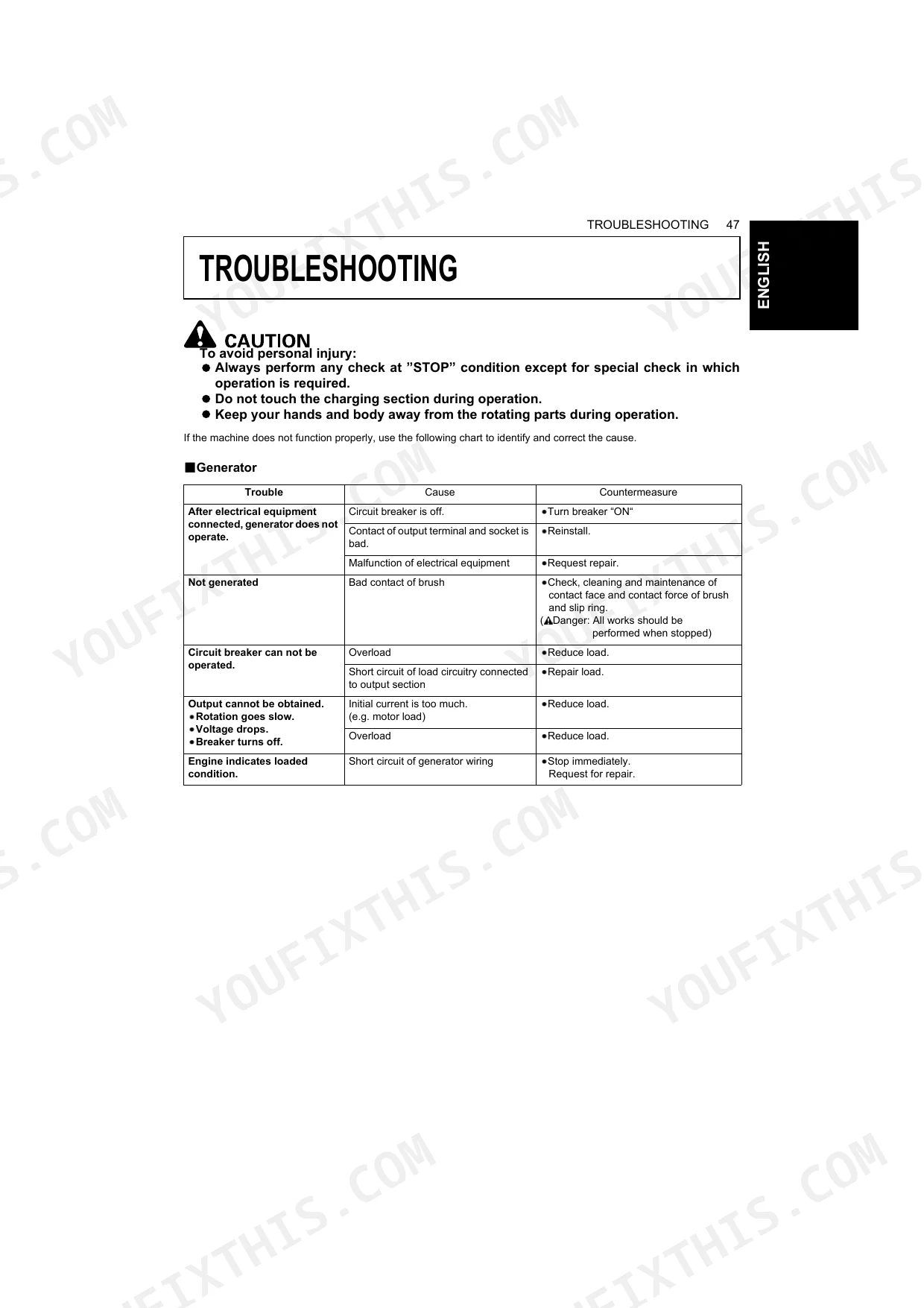

| Troubleshooting | 63-65 | Generator issues, Easy checker diagnostics, Engine issues |
| Automatic Start / Stop Unit (A S/S Unit) | 66 | Unit connection, Exterior apparatus connection, Terminal taps cover, ECTT connection, TTC assembly |

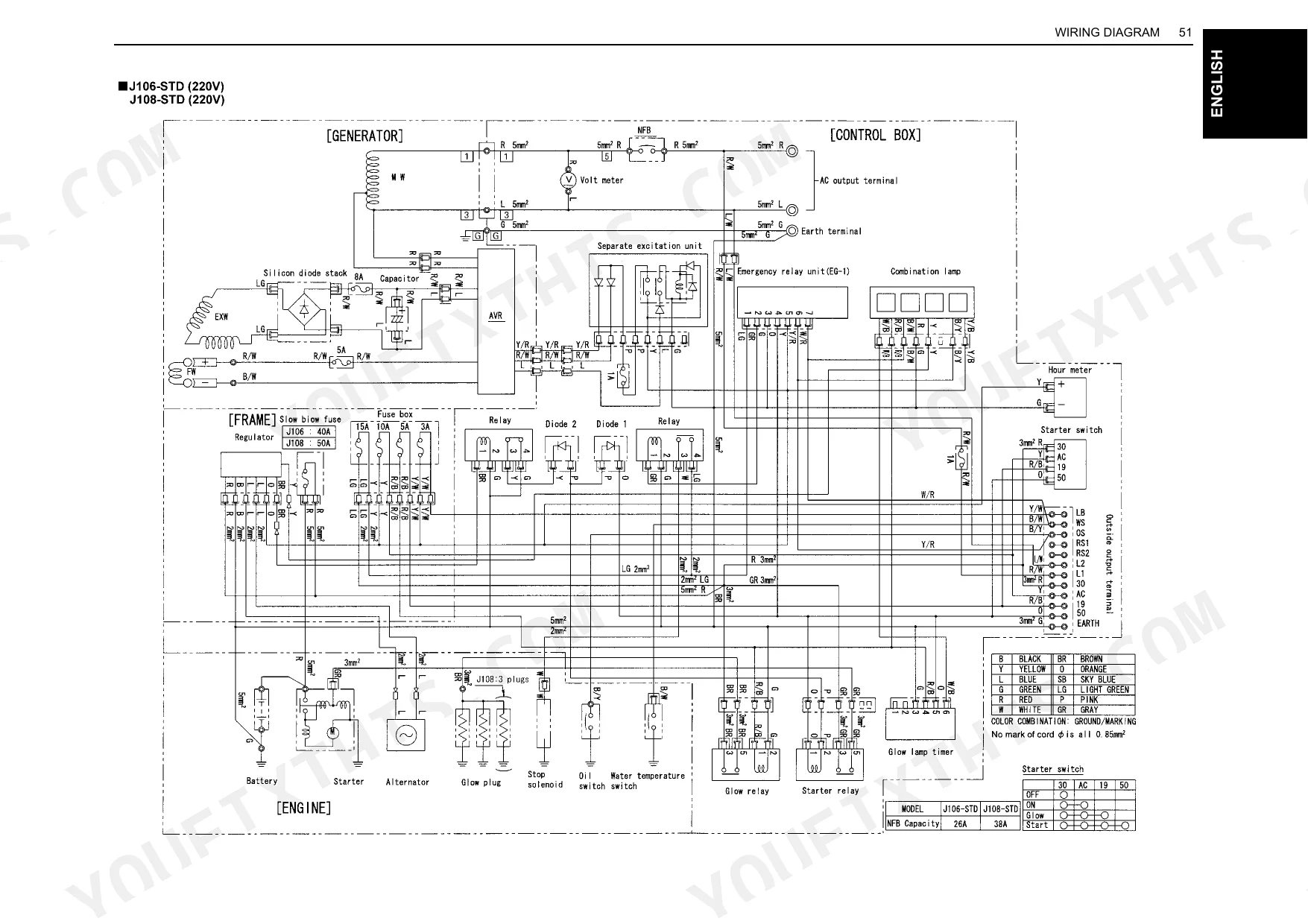

| Wiring Diagrams | 67-85 | Generator Circuitry, Control Box Circuitry, Engine Electrical System, Fuse Box, Relays and Diodes, Output Terminals |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| M4 x 8 mm machine screw tightening torque (carbon brush holder assembly) | 1.0 to 1.4 N-m (0.1 to 0.14 kgf-m) | p. 59 |
| M6 x 15 mm bolt tightening torque (reassembly after carbon brush holder assembly check) | 7.84 to 11.8 N-m (0.8 to 1.2 kgf-m) | p. 59 |
| Fuel filter cleaning interval | Every 100 hours of operation | p. 47 |
| Fuel filter cartridge or element replacement interval | Every 200 hours | p. 43 |
| Fuel pipes and clamp bands check interval | Every 50 hours of operation | p. 47 |
| Fuel pipes and clamp bands replacement interval | Every 2 years | p. 47 |
| Radiator core (outside) cleaning interval | as necessary | p. 53 |
| Radiator cooling system cleaning interval | Every 500 hours | p. 54 |
| J106-STD, J107-STD | ||
| Engine Oil Capacity | 2.2 L | p. 49 |
| J108-STD, J110-STD, J310-STD, J313-STD | ||
| Engine Oil Capacity | 3.4 L | p. 49 |
| Z482-B-SEC engine models | ||
| Coolant Capacity | 2.3 L | p. 53 |
| V1305-BG-SEC engine models | ||
| Coolant Capacity | 3.5 L | p. 53 |
Kubota J106–J324 Series Common Problems This Manual Covers
Kubota J106-STD generator cranks normally but will not start or starts and then stalls under load p. 47
Inspect the fuel filter and fuel lines for air leaks or water contamination. Clean the fuel filter every 100 hours as directed on page 47. Drain water from the separator and prime the system before restarting.
Manual Section: Fuel System IssuesUnit shuts down unexpectedly or shows warning lights indicating signs of engine overheating and restricted airflow p. 54
Check the radiator core for debris and confirm the fan belt deflection sits at 7 to 9 mm. Clean the cooling system every 500 hours as shown on page 54. Confirm the coolant level before returning the unit to service.
Manual Section: Cooling System OverheatingInstrument gauge cluster is completely blank or intermittently unreadable during normal generator operation p. 43
Verify the main harness connector is fully seated at the control panel. Inspect the connector pins for moisture or corrosion. Check the generator carbon brushes every 1000 hours as outlined on page 43, since brush wear undermines stable output and can blank the gauges.
Manual Section: MaintenanceEngine runs rough with abnormal sound and large vibration coming from the enclosure panels p. 60
Torque the M6 x 12 mm cleaner cover lock screws to 7.84 to 11.8 N-m (0.8 to 1.2 kgf-m) as specified on page 60, then confirm every enclosure fastener is tight. Examine the air cleaner element daily in dusty conditions.
Manual Section: Engine Mechanical IssuesFrequently Asked Questions
How do I reset a Kubota J106/J107/J108/J110/J112/J114/J116/J119/J310/J313/J315/J318/J320/J324 generator after a fault?
Stop the engine first whenever you reset after an over-current fault. If the circuit protector's center knob has popped up, press it back down to reset it. For general breaker faults, switch the breaker "ON" once you have fixed the underlying cause, as detailed on page 35.
What do Kubota J-series generator error codes mean?
Rather than numerical error codes, Kubota J-series sets flag faults through warning lamps on the "Easy Checker" panel: a Charge lamp, a Water temperature-overheat lamp (flashes when cooling water hits 112 to 118°C), an Engine oil pressure drop lamp (flashes below 39 to 59 kPa), and a Glow plug lamp, all described on page 29.
How do I clear an alarm on a Kubota J-SA or J-AUS generator set?
Clearing an alarm on a Kubota J-SA or J-AUS set starts with finding and fixing whatever the "Easy Checker" warning lamps are flagging (page 29). If the water temperature lamp lights from engine overheating, for example, see "Precaution Overheating" on page 38 and resolve it before you restart.
How to reset Kubota J106-STD generator
With the J106-STD, always cut the engine before clearing an over-current fault. When the circuit protector's center knob has popped up, push it back down to reset the protector. Stopping the engine before you touch the protector matters for your own safety, as outlined on page 35.
What format is this Kubota J106–J324 Series manual in?
Immediate download of the complete 85-page searchable Operator Manual. Open it on any device, laptop at your desk or phone out in the field.
Are there any print restrictions on this Kubota J106–J324 Series manual?
None at all. The PDF is DRM-free, so print whatever sections you need for the shop. Standard letter or A4 paper works fine.
Can I find wiring schematics in this Kubota J106–J324 Series manual?
Yes. You'll find wiring diagrams for each variant in pages 67–85, covering all STD, SA, and AUS configurations.
Document Quality
This is a scanned PDF document with an OCR text layer, allowing you to search and copy text. The text quality is generally good, though some pages exhibit minor blurriness or fading from the original scan. Diagrams and illustrations are raster images; their labels are readable but can appear slightly pixelated on zoom. Pages are mostly clean with minimal scan artifacts and slight skewing on a few pages. Page 4 is a blank filler page.
