Kubota wrote these 1,210 pages (OEM #9Y111-15657) for one job: stripping an M5N-series tractor down and rebuilding it to factory spec. The manual carries hydraulic circuit diagrams for both the F12/R12 and F24/R24 transmission models, plus extensive electrical coverage spanning starting, charging, the engine ECU, ACU, lighting, instrument panel, and cabin A/C circuits. Tightening torques run across general fasteners, hydraulic fittings, metric and UNC/UNF threads, and stud bolts. Exploded-view procedures walk through every assembly, while troubleshooting charts span transmission, brakes, steering, front axle, and cabin systems. Fill the engine with 10.7 L of oil, top the 76 L fuel tank, confirm coolant at 10.0 L, and every figure you work from is real. Search any spec by keyword, bookmark a section, and get back to wrenching.
What's Inside This Kubota M5N-091, M5N-111 Manual
| System | Pages | Key Topics |
|---|---|---|
| Information | 5-57 | Safety First (Before You Start Service, Start Safely, Operate Safely, Avoiding High Pressure Fluid, Avoiding Hot Exhaust, Cleaning Exhaust Filter, Prevent a Fire, Keep a Good Airflow in the Work Area, Discard Fluids Correctly, Prevent Acid Burns, Preparing for Emergencies) |
| General | 58-246 | Tractor Identification (Model Name and Serial Number, Tightening Bolts and Nuts, Applying Thread-Locking Fluid, Installing Circlips, Installing Spring Pins, Handling Split Pin, Handling Chain Joint and Split Pin, Handling Liquid Gasket, Replacing O-Rings, Replacing Oil Seals, Replacing Floating Seals, Connecting Hydraulic Hoses, Wrapping Thread Seal Tape, Installing Elbows with Male Seat, Connecting and Disconnecting Quick Hose Couplings, Handling the Battery, Handling Wire Harness, Handling Fuses, Handling Connectors, Wiring Color, Washing the Machine with a High Pressure Washer, Dispose Fluids Correctly) |

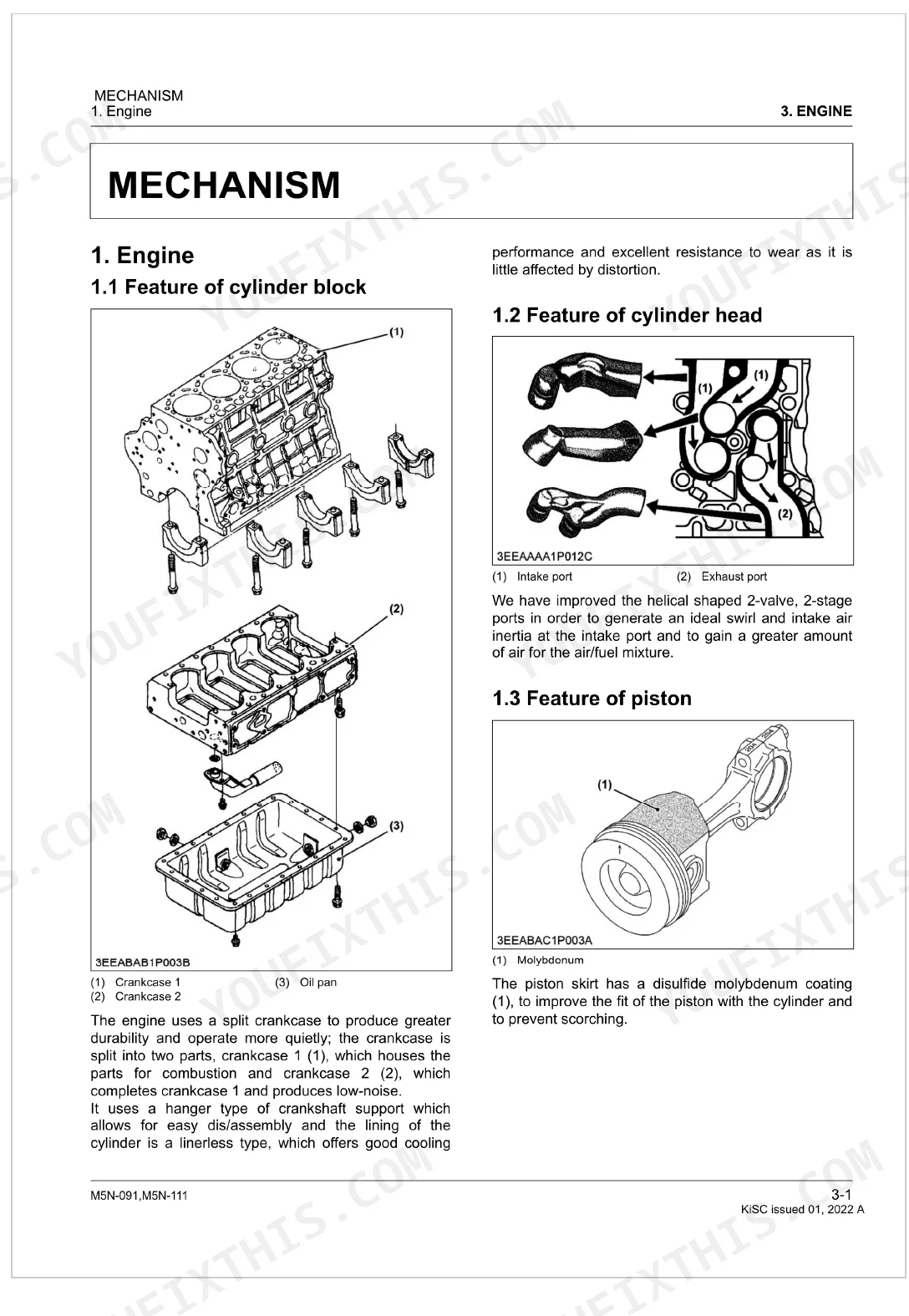

| Engine | 247-401 | Feature of Cylinder Block, Feature of Cylinder Head, Feature of Piston |
| Transmission | 402-626 | Mechanism, Structure (F12/R12 Speed Transmission Model, F24/R24 Speed Transmission Model) |
| Rear Axle | 627-679 | Mechanism, Wheel Model (Features of Rear Axle) |
| Brakes | 680-714 | Mechanism, Traveling Brake (Structure of Traveling Brake, Function of Master Cylinder Assembly), Parking Brake (Structure of Gear Locked Parking Brake), Servicing |
| Front Axle | 715-741 | Structure of Front Axle (4WD Model), Troubleshooting for Front Axle, Servicing Specifications for Front Axle, Tightening Torques for Front Axle, Checking Toe-In, Adjusting Toe-In, Checking Axial Sway of Front Wheel, Adjusting Front Axle Pivot |
| Steering | 742-804 | Mechanism, Mechanism of Steering, Feature of Steering Cylinder, Servicing, Troubleshooting for Steering, Servicing Specifications (Steering) |

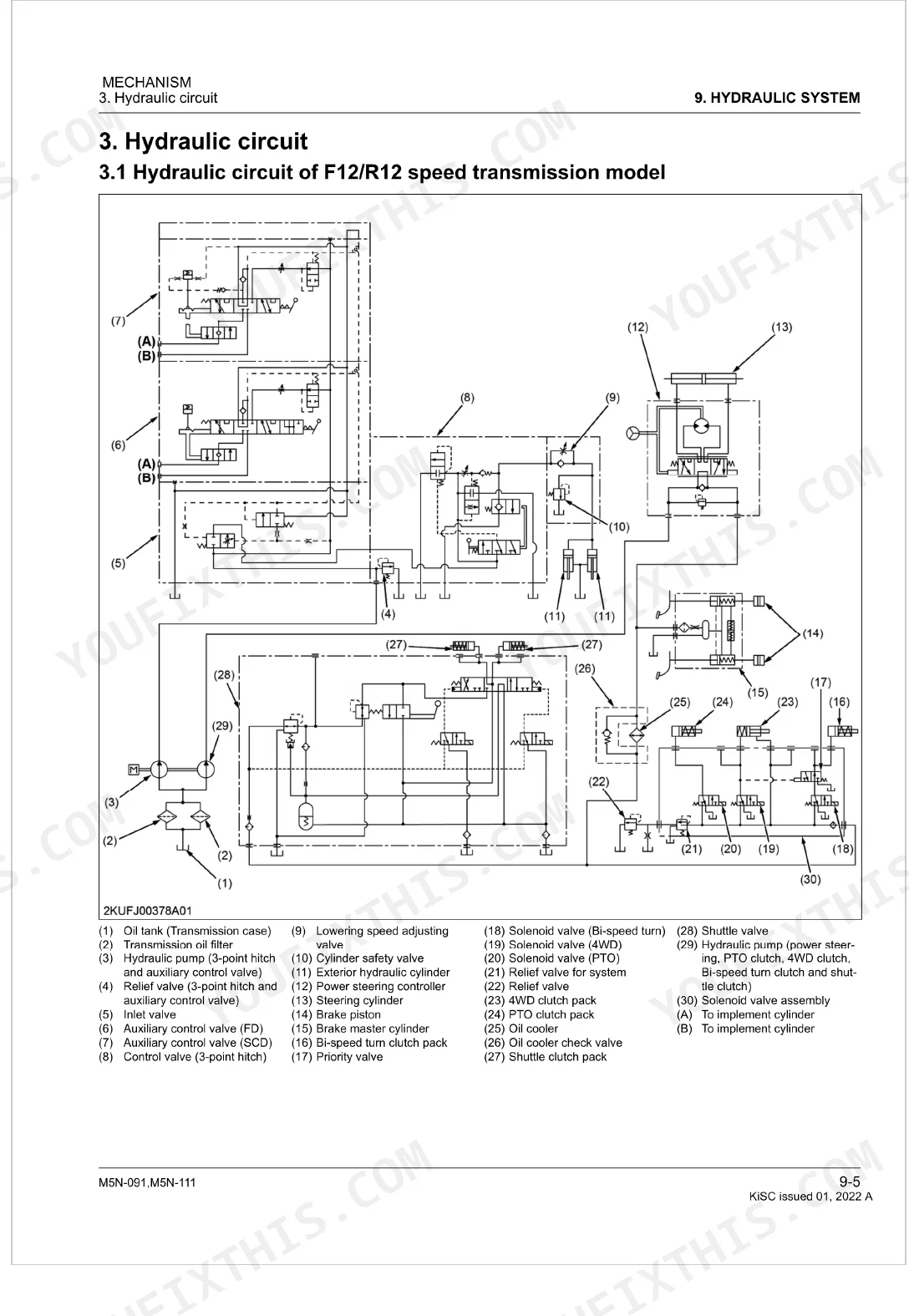

| Hydraulic System | 805-877 | Mechanism, Outline (Whole Hydraulic System), Structure (F12/R12 Speed Transmission Model Hydraulic System, F24/R24 Speed Transmission Model Hydraulic System) |

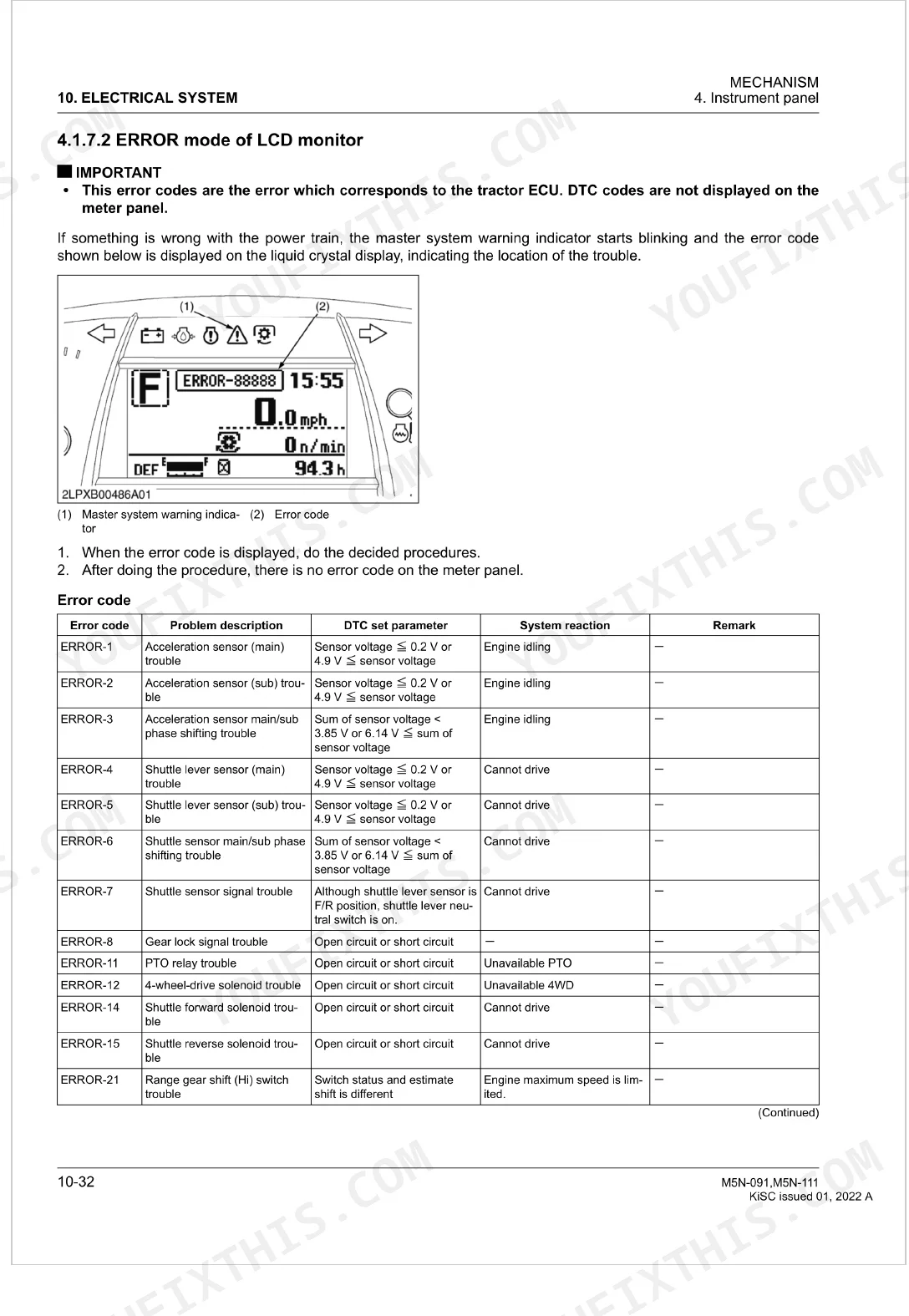

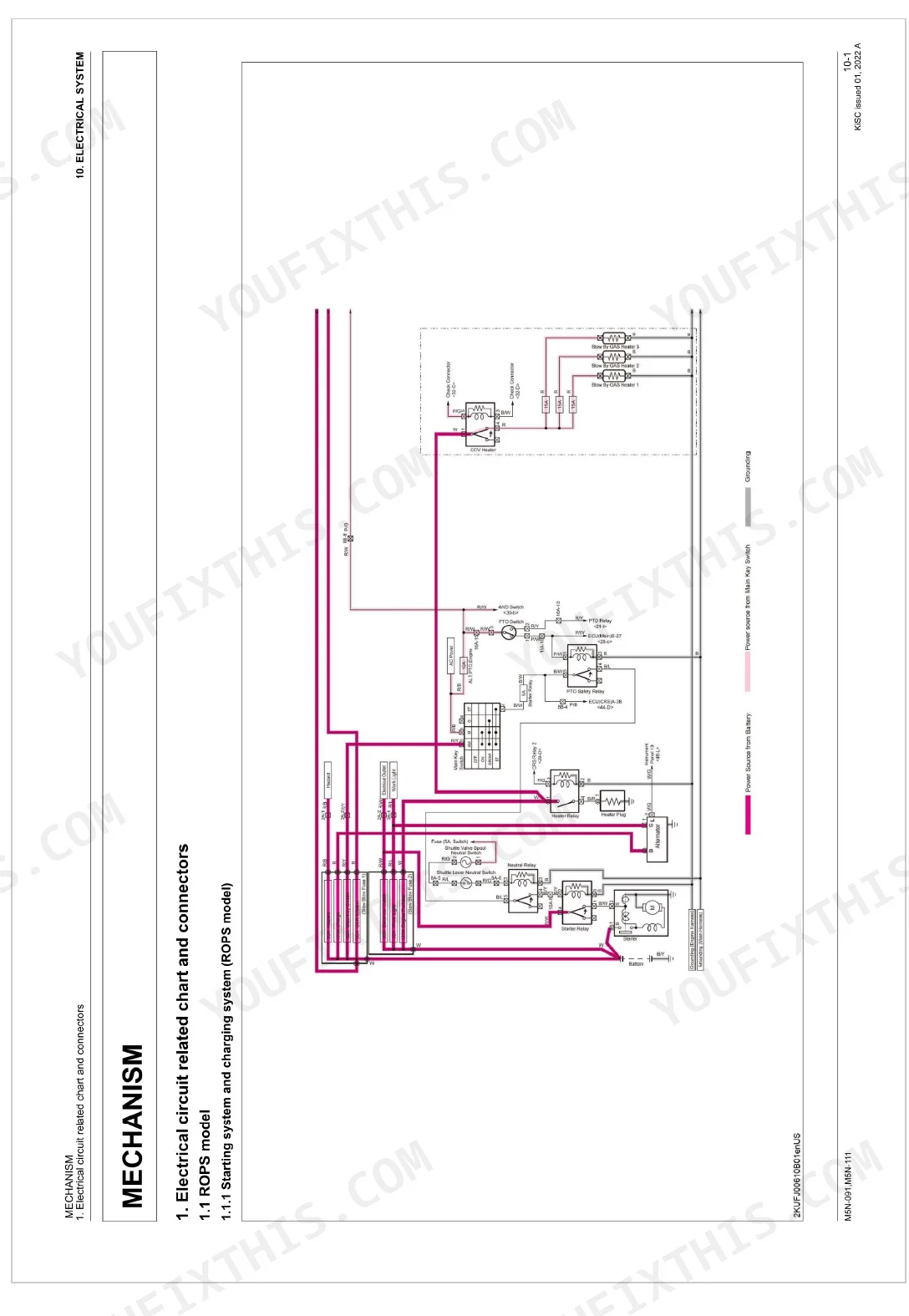

| Electrical System | 878-1054 | ROPS Model, Engine Control System (Acu) (ROPS Model), Lighting System (ROPS Model), Instrument Panel (ROPS Model), Cabin Model, Engine Control System (Acu) (Cabin Model), Lighting System (Cabin Model), Instrument Panel (Cabin Model) |
| Cabin | 1055-1210 | Air Conditioning System, Structure of Air Conditioning System, Structure of Compressor, Operation of Compressor, Property of Compressor Oil, Feature of Air Conditioner Unit, Feature of A/C Blower, System Control of Air Conditioner |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| M5N-091,M5N-111 | ||
| Fuel tank capacity | 76 L (20.1 U.S.gals, 16.7 Imp.gals) | p. 42 |
| Coolant capacity | 10.0 L (10.6 U.S.qts, 8.8 Imp.qts) | p. 42 |
| M5N-091-PC | ||
| Fuel tank capacity | 76 L (20.1 U.S.gals, 17 Imp.gals) | p. 46 |
| Coolant capacity | 10.0 L (11 U.S.qts, 8.8 Imp.qts) | p. 44 |
| Final gear case oil capacity | 3.0 L (3.2 U.S.qts, 2.6 Imp.qts) | p. 77 |
| Front idler case oil capacity | 0.5 L (0.5 U.S.qts, 0.44 Imp.qts) | p. 77 |
| Rear idler case oil capacity | 0.5 L (0.5 U.S.qts, 0.44 Imp.qts) | p. 77 |
| All Models | ||
| Engine oil capacity | 10.7 L (11.3 U.S.qts, 9.41 Imp.qts) | p. 42 |
| DEF/AdBlue® capacity | 12.3 L (3.2 U.S.gals, 2.71 Imp.gals) | p. 42 |
| Transmission case fluid capacity | 52 L (54.9 U.S.qts, 45.8 Imp.qts) | p. 42 |
| Front differential case oil capacity [4WD] | 5 L (5.3 U.S.qts, 4.4 Imp.qts) | p. 42 |
| Front axle gear case oil capacity [4WD] | 3 L (3.2 U.S.qts, 2.6 Imp.qts) | p. 42 |
Kubota M5N-091, M5N-111 Common Problems This Manual Covers

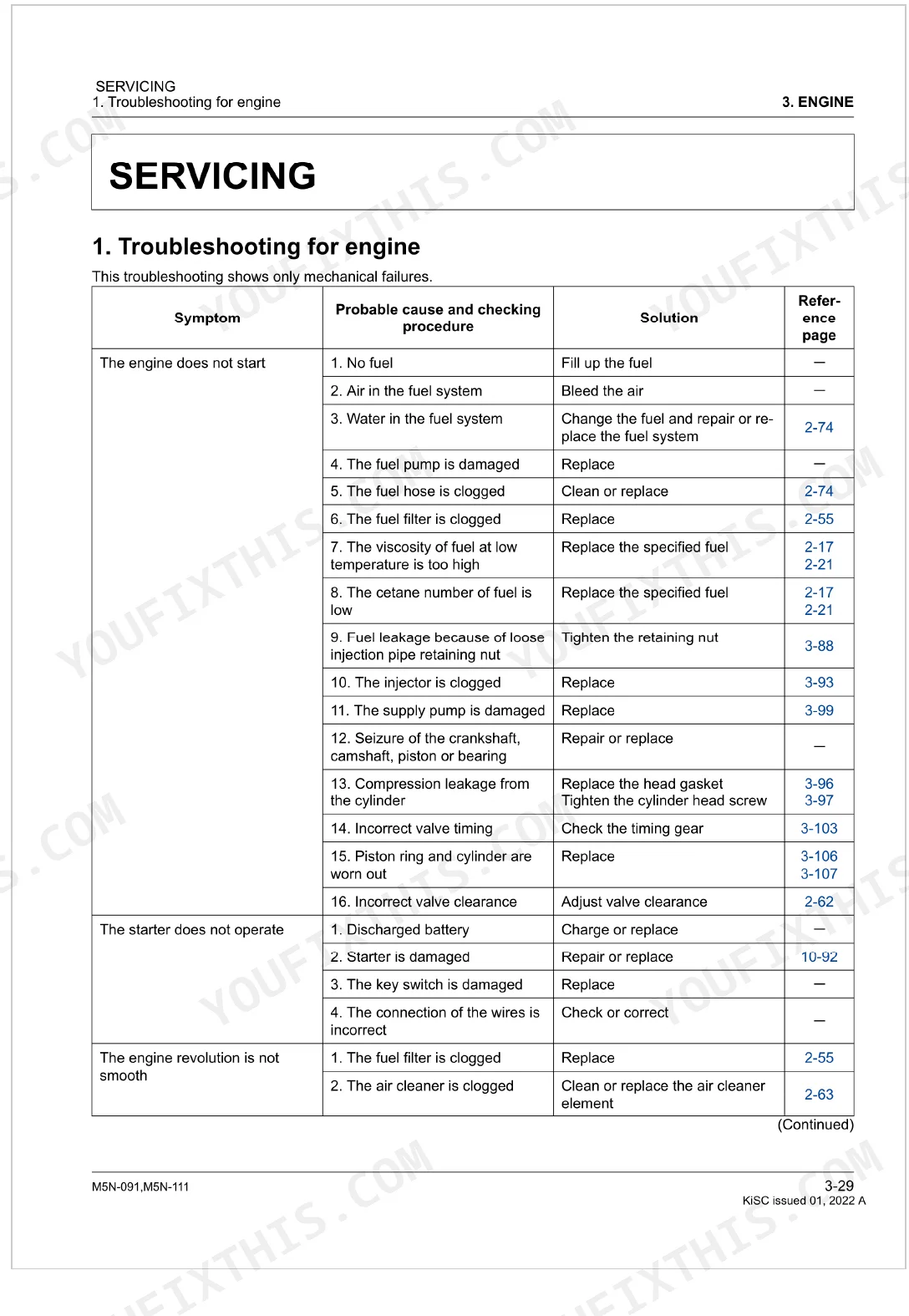

Engine cranks slowly in cold weather, or idles rough once it catches
Inspect the fuel system and load-test the battery. With the engine cold, set valve clearance to 0.23 to 0.27 mm. Work through the troubleshooting chart to pin down fuel-delivery faults before you replace injectors.
Manual Section: Engine TroubleshootingUnder heavy load the PTO clutch slips, and the implement stops turning altogether p. 431
Put a gauge on the hydraulic system with the PTO clutch valve ON. A healthy reading sits between 1.97 to 2.15 MPa, as outlined on page 431. Drops below that point to worn clutch-pack seals: drain the fluid and inspect them.
Manual Section: Transmission TroubleshootingBrake pedal goes spongy and braking pulls unevenly on steep grades p. 688
Bleed the lines to drive out trapped air, then check every fitting for seepage. Torque the brake pipe retaining nut to 20 to 28 N·m per page 688. Refill the reservoir and confirm firm pedal resistance before operating.
Manual Section: Brakes TroubleshootingAt transport speed on pavement the front wheels wander side to side p. 719
Check the tie rod ends for play, then measure front wheel alignment and bring the toe-in to 2.0 to 8.0 mm as specified on page 719. Swap out any worn steering linkage and make sure the cylinder mounts are tight.
Manual Section: Front Axle TroubleshootingFrequently Asked Questions
What are the recommended service intervals?
Service intervals are laid out for both Wheel and Crawler models. On the Wheel model, the first service lands at 50 hours, then recurring checks at 50, 100, 200, 400, 500, 600, 1000, 1500, 2000, 3000, and 8000 hours, plus calendar intervals of 3 months and 1, 2, 3, and 4 years. Engine oil, for instance, changes at the initial 50 hours and every 400 hours after.
What fluids and capacities does this machine require?
On the Wheel model, the fuel tank holds 76 L (20.1 U.S.gals), the engine takes 10.7 L (11.3 U.S.qts) of oil, coolant runs 10.0 L (10.6 U.S.qts), and DEF/AdBlue® is 12.3 L (3.2 U.S.gals). The transmission case calls for 52 L (54.9 U.S.qts) of KUBOTA SUPER UDT2 fluid.
How to troubleshoot engine won't start?
A no-start usually traces to no fuel, air in the fuel system, or water in it. The fixes, in order: fill the tank, bleed the air, or change and repair the fuel system. Other culprits include a damaged fuel pump, a clogged fuel hose or filter, wrong fuel viscosity or cetane number, or a discharged battery.
What are the hydraulic system specifications?
Power steering pump delivery comes in above 26.0 L/min (6.87 U.S.gals/min) at system pressure and 25.5 L/min (6.73 U.S.gals/min) at rated pressure. On the relief valve, operating pressure is 19.7 to 20.5 MPa (200 to 210 kgf/cm²), while the safety valve runs 23.1 to 24.5 MPa (235 to 250 kgf/cm²).
What format is this Kubota M5N-091, M5N-111 manual in?
A 1210-page Workshop Manual in searchable PDF, ready the moment checkout clears. Open it on a computer, tablet, or phone, with no shipping wait.
Can I print specific sections of this Kubota M5N-091, M5N-111 Workshop Manual?
Yes. Print as many copies as you like; there are no restrictions. Plenty of mechanics print just the section they need and carry it out to the shop floor.
Reviews
There are no reviews yet.
