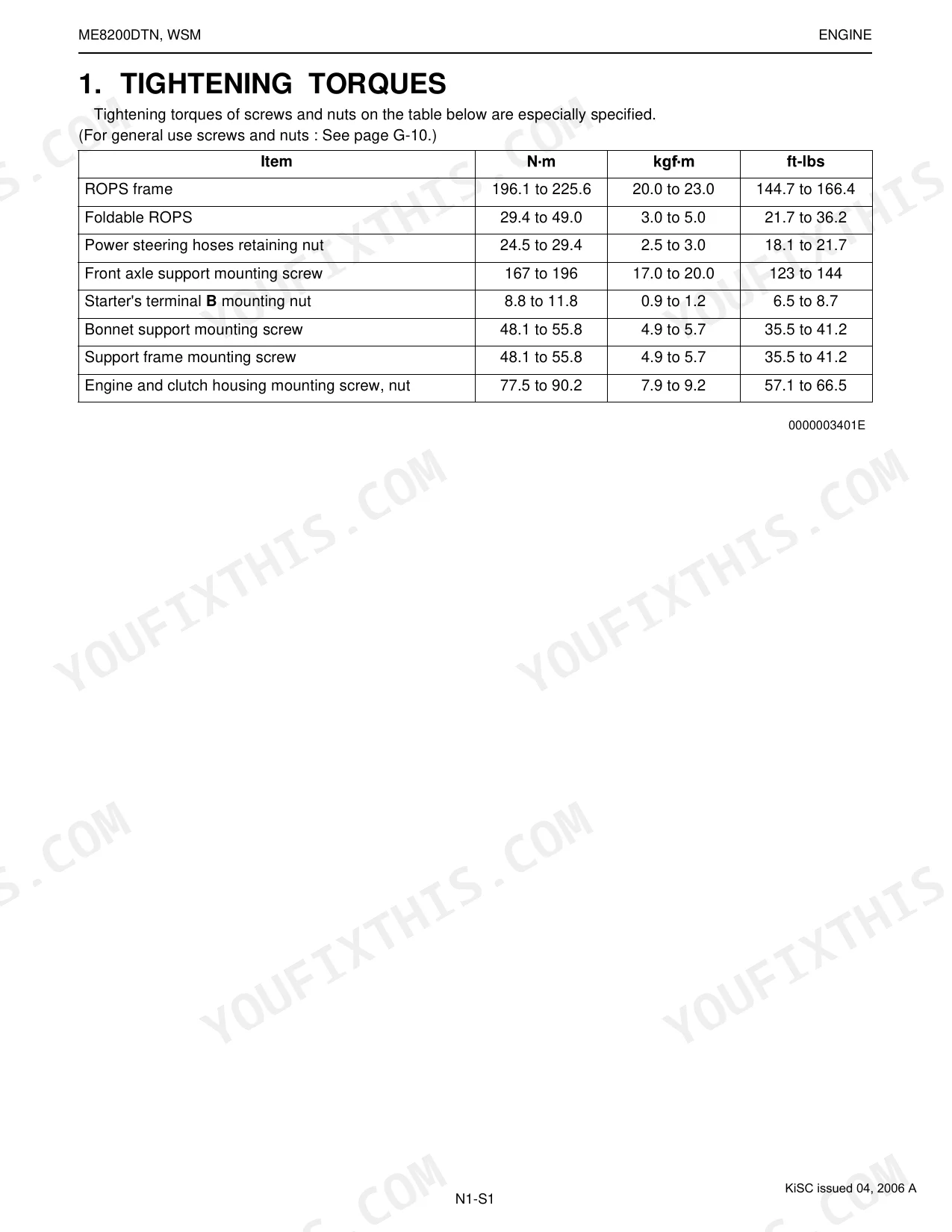

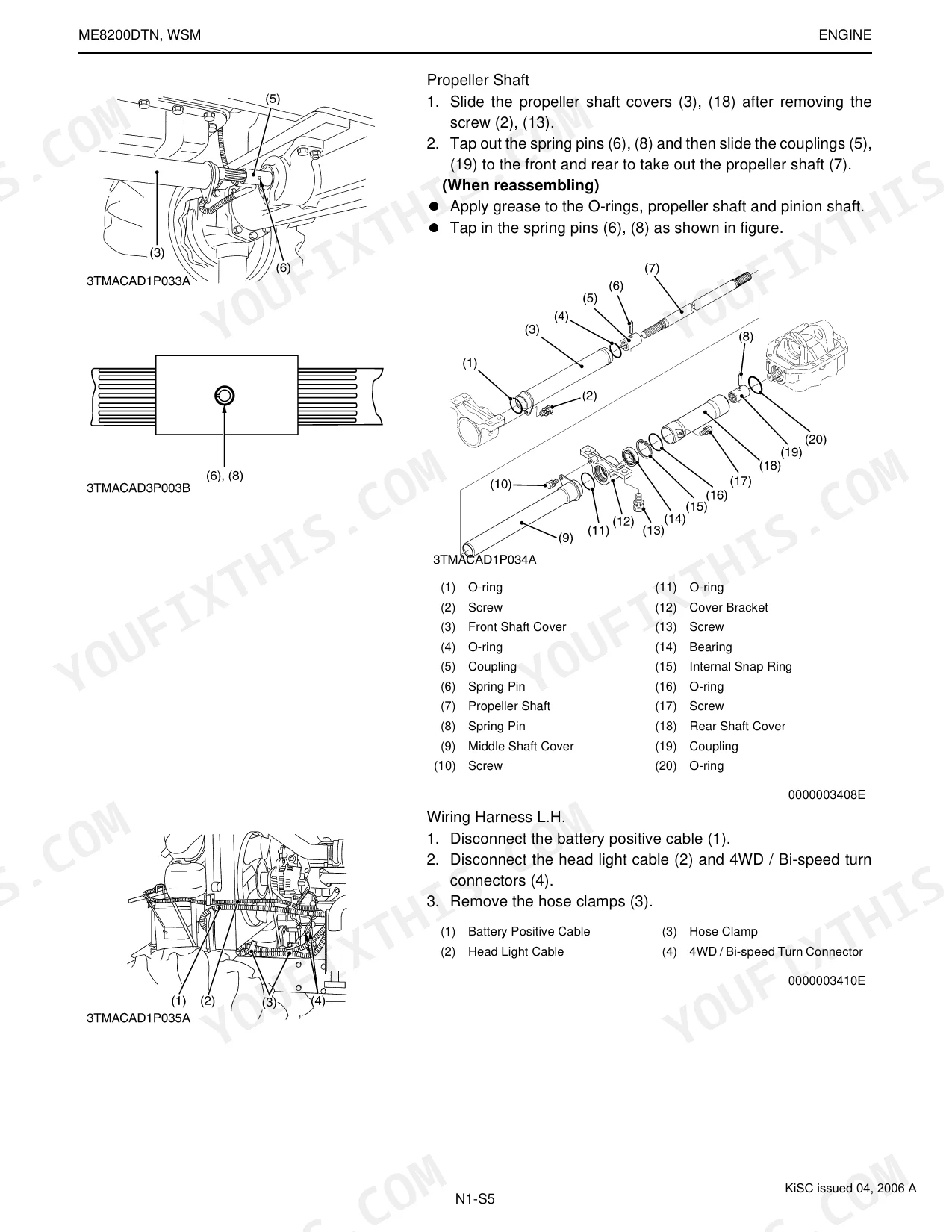

Open this 192-page Kubota ME8200DTN Shop Manual and you hold the complete factory reference for the ME8200DTN, ME8200, and ME9000 tractors: engine to rear axle, clutch to electrical. Hydraulic schematics map the full system routing, wiring diagrams cover the N9 electrical section, and torque tables run from the engine block through the steering gear. Exploded-view drawings back every major teardown, while troubleshooting charts and clearance specs reach across the transmission, brakes, front axle, and hydraulic system. Rear wheel mounting nuts torque to 260 to 304 N·m; the engine block takes 9.0 L of coolant. Factory numbers, not forum guesses. When the machine is down, every hour costs money, so the file is bookmarked by system and searchable by keyword. Pull it up on a tablet and walk straight to the work.
What's Inside This Kubota ME8200DTN Manual

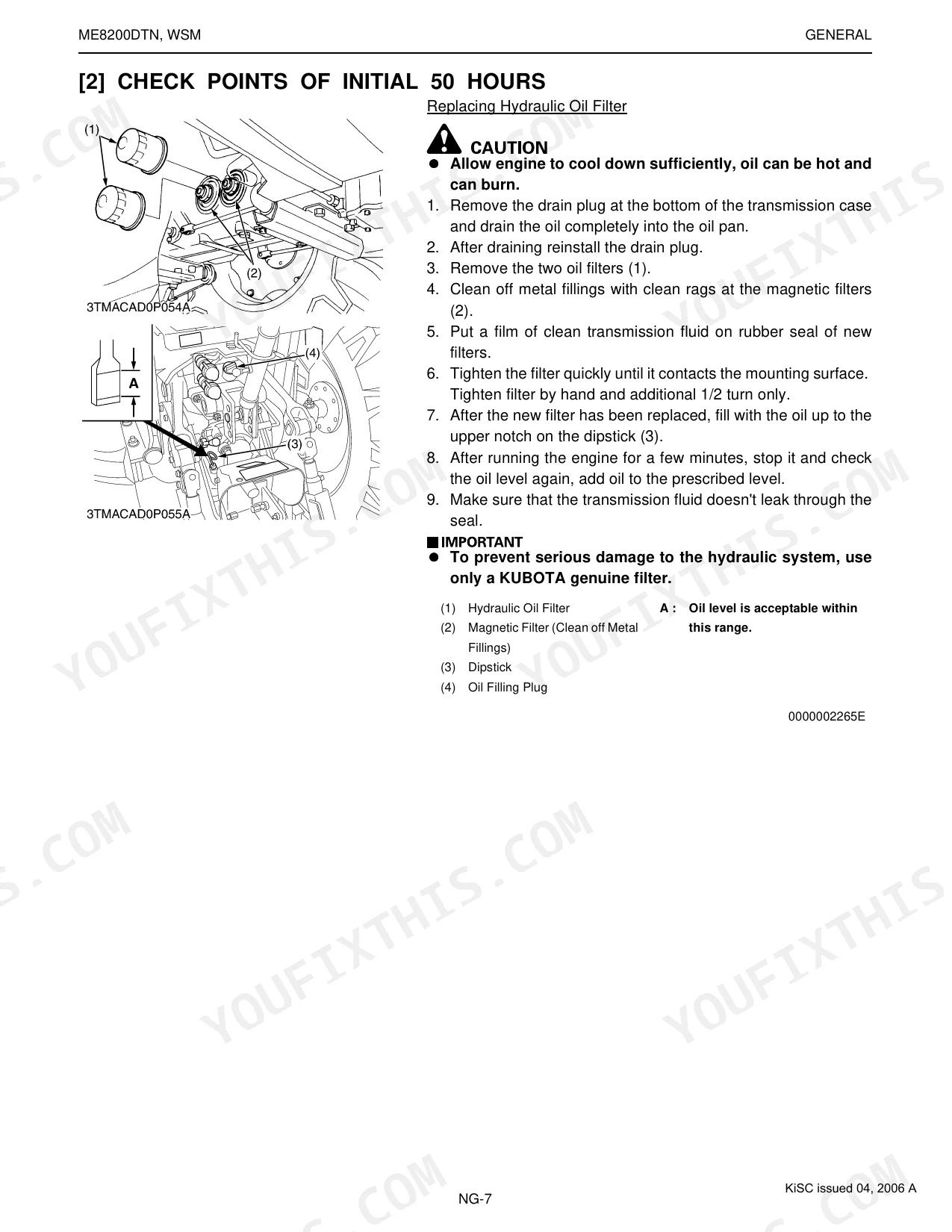

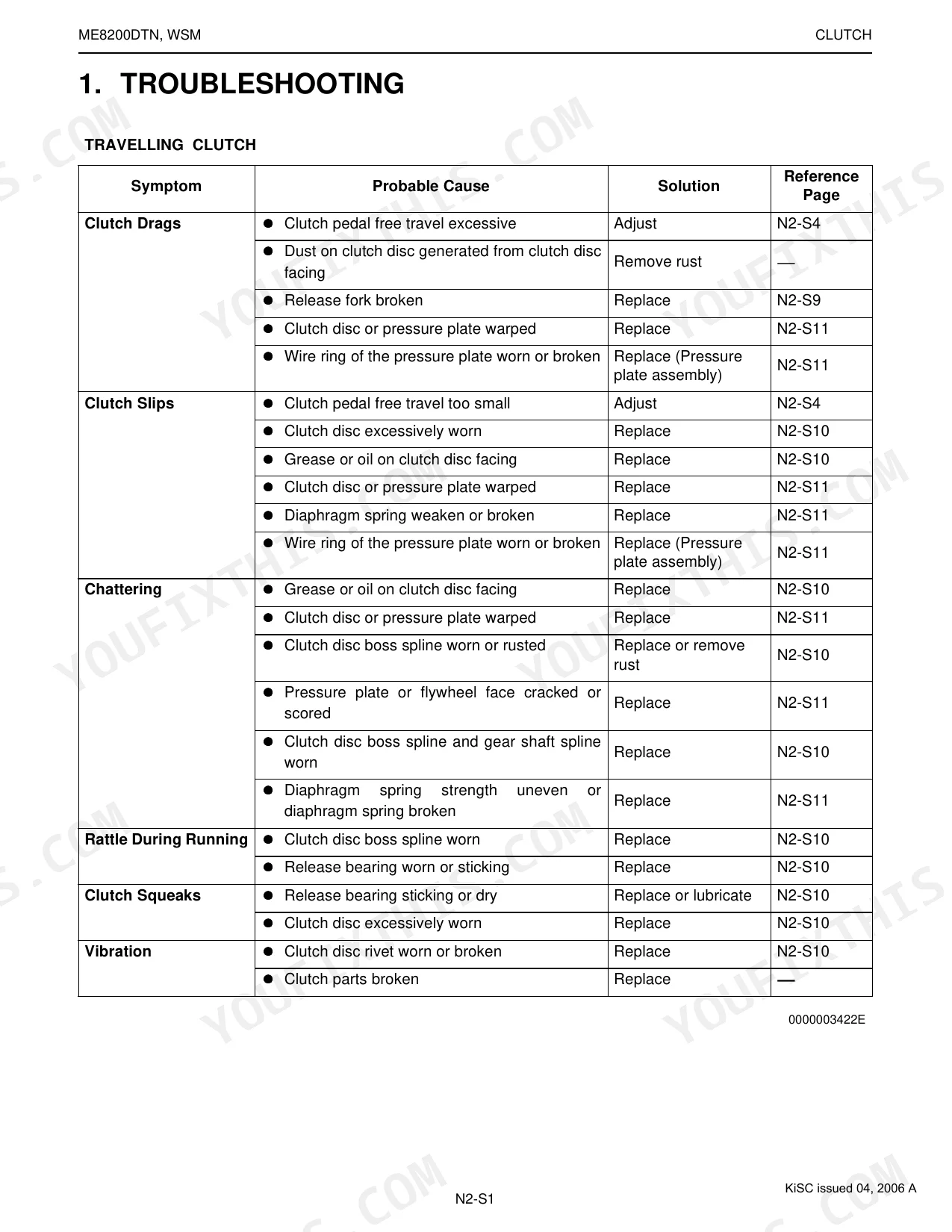

| System | Pages | Key Topics |
|---|---|---|
| General | 12-32 | Tractor Identification, Lubricants, Fuel and Coolant, Maintenance, Check and Maintenance, Special Tools, Tires, Implement Limitations |
| N1 Engine | 33-41 | ROPS frame, Foldable ROPS, Power steering hoses, Front axle support, Bonnet, Exhaust pipe, Radiator hoses, Air cleaner hoses |
| N2 Clutch | 42-56 | Travelling Clutch, Clutch Pedal, Clutch Disc, Pressure Plate, Diaphragm Spring, Propeller Shaft, Wiring Harness, Steering Wheel |

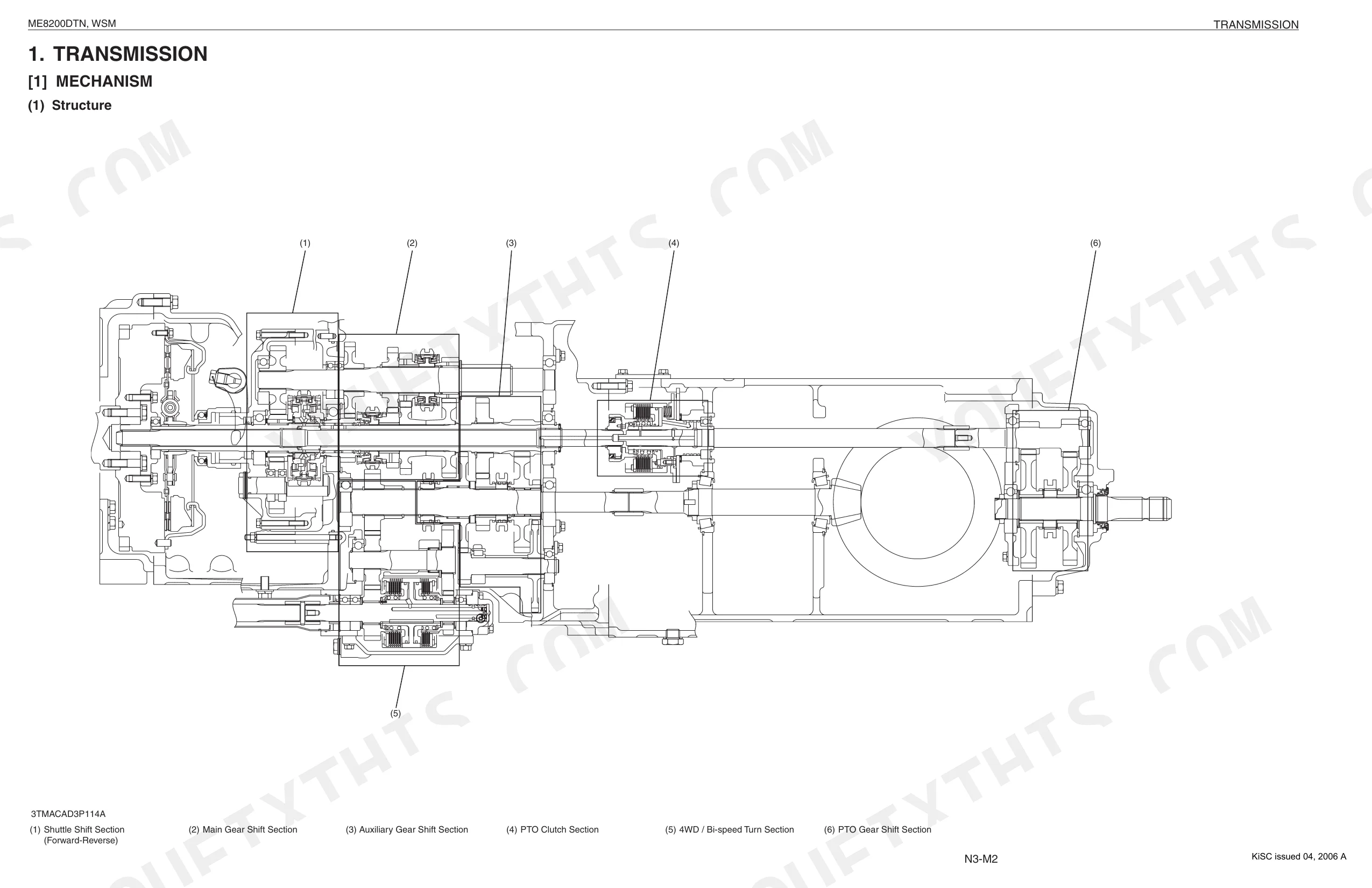

| N3 Transmission | 57-101 | Transmission, Power Train for Travelling Gear, Power Train for PTO System, Clutch Housing Case, Transmission Case, 4WD / Bi-speed Turn Clutch, Pedal Frame, Speed Change Cover |
| N4 Rear Axle | 102-112 | Rear Axle, Rear Axle Case, Planetary Gear, Rear Axle Shaft, Rear Axle Nut, Rear Axle Cover |
| N5 Brakes | 113-123 | Brake Case, Brake Cam Lever, Parking Brake Lever, Brake Pedal, Brake Rod, Brake Lever, Turnbuckle, Parking Brake Rod |
| N6 Front Axle | 124-143 | Front Axle, Propeller Shaft, Power Steering Hoses, Tie-rod, Bi-speed Turn Switch, Bevel Gear Case, Bevel Gear and Bevel Gear Shaft, Axle |
| N7 Steering | 144-149 | Steering Controller, Steering Cylinder, Tie-rod, Bonnet, Steering Wheel, Meter Panel, Rear Bonnet, Hydraulic Hoses |
| N8 Hydraulic System | 150-178 | Hydraulic Control Valve, 4WD/Bi-speed Turn Solenoid Valve, Hydraulic Pump for Power Steering, Auxiliary Control Valve, PTO Clutch Valve, Oil Filter Cartridge, 4WD/Bi-speed Turn Clutch Pack, Hydraulic Cylinder |
| N9 Electrical System | 179-192 | Wiring Diagram, Color of Wiring, 4WD / Bi-speed Turn System, Starting System, Stopping System |

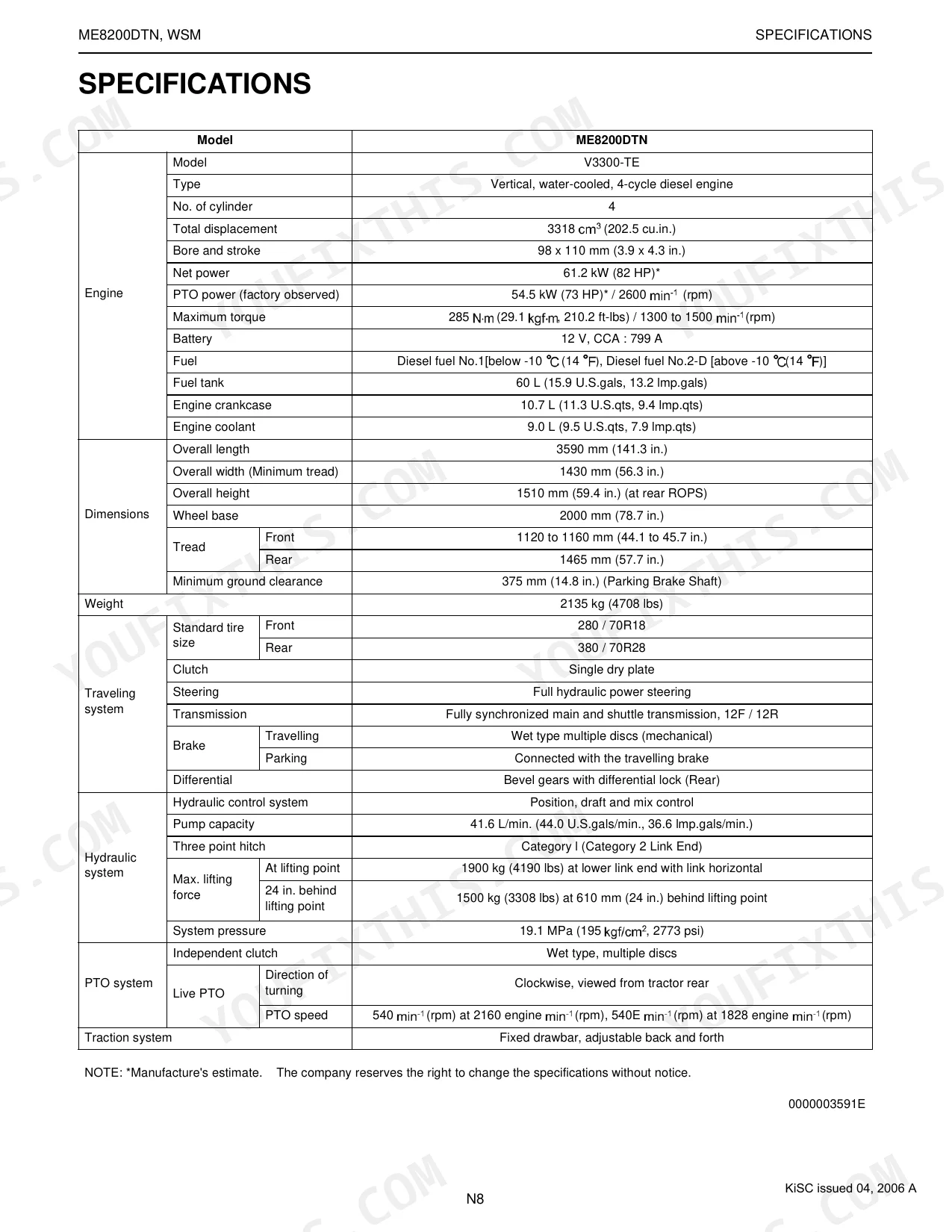

Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front wheel mounting nut torque | 166.7 to 196.1 N·m | p. 22 |
| Rear wheel mounting nut and rear disc mounting nut torque | 260 to 304 N·m | p. 22 |
| Battery | 12 V, CCA : 799 A | p. 10 |
| Engine block radiator coolant capacity | 9.0 L | p. 15 |
| Reserve tank coolant capacity | 1.0 L | p. 15 |
| Starter's terminal B mounting nut torque | 8.8 to 11.8 N·m | p. 35 |
| Engine Net Power | 61.2 kW (82 HP) | p. 10 |
| Fuel Tank Capacity | 60 L (15.9 U.S.gals, 13.2 Imp.gals) | p. 10 |
| Engine Crankcase Oil Capacity | 10.7 L (11.3 U.S.qts, 9.4 Imp.qts) | p. 10 |
| Engine Oil Change Interval | Initial 50 hours, then every 100 hours | p. 17 |
| Brake Pedal Free Travel | 40 to 45 mm (1.6 to 1.8 in.) | p. 24 |
| Front Tire Pressure (280/70R18) | 160 kPa (1.6 kgf/cm²) | p. 29 |
Kubota ME8200DTN Common Problems This Manual Covers
Engine cranks but will not start in cold weather or after sitting p. 22
Check battery voltage and load-test it against the 12 V, 799 A CCA spec (page 10). Clean or replace corroded cable terminals. Confirm both safety switches on the shuttle shift lever and PTO clutch control lever engage fully (page 22). If it keeps cranking without firing, swap the fuel filter and check the sediment bowl for water.
Manual Section: Engine Start System CheckTractor overheats under load on hot days, temperature gauge climbs into red p. 15
Blow out the radiator fins with compressed air, working from the engine side outward; clogged field debris is the most common trigger. Check coolant level, since the engine block holds 9.0 L (page 15). Inspect the fan belt for cracks, glazing, or slippage and replace it if worn. Test the thermostat in hot water before reinstalling to confirm it opens at operating temperature.
Manual Section: Daily Check and MaintenanceThree-point hitch lifts slowly or won't reach full height under load p. 158
Start at the daily fluid check (page 19) and top off if the level is low. Measure pump output at the test port; the three-point relief valve is set to 18.6 to 19.1 MPa (2702 to 2773 psi, page 158). Should pressure read in spec while lift stays slow, pull and inspect the hydraulic filter for blockage or fluid contamination.
Manual Section: N8 Hydraulic SystemDash warning lights flicker, fuses blow repeatedly, or accessories cut out intermittently p. 179
Inspect every fuse in the block and replace any blown ones with the correct amperage. Clean the battery terminal clamps and check for corrosion; the battery spec is 12 V, 799 A CCA (page 10). Test alternator output with all accessories switched on. Trace suspect relay and sensor wiring through the electrical system schematic starting at page 179.
Manual Section: N9 Electrical SystemEngine stumbles under throttle, loses power pulling implements, or stalls mid-field p. 17
Remove and inspect the air filter; replace the element if it is clogged or oil-soaked. If contamination is suspected, drain the fuel tank, which holds 60 L (page 10). Replace the fuel filter and bleed the fuel system before restarting. Confirm engine oil sits at full level and was last changed within the 100-hour interval on page 17.
Manual Section: N1 EngineFrequently Asked Questions
What are the replacement specifications for battery?
The battery replacement specs are 12 V and 799 A (CCA). You'll find them in the general specifications table for the ME8200DTN model.
How will I receive this Kubota ME8200DTN Shop Manual?
Checkout triggers an instant download of the 192-page searchable PDF. Open it on a laptop, tablet, or phone and carry it straight to the shop floor.
Am I able to print pages from this Kubota ME8200DTN manual?
Yes, print as many copies as you like; there are no restrictions. Plenty of mechanics just print the one section they happen to be working on that day.
Are there wiring harness diagrams in this Kubota ME8200DTN manual?
Complete wiring diagrams are included, covering all electrical circuits, harness routing, and connector pinouts for the Kubota ME8200DTN.
Does this manual cover the hydraulic system and steering?

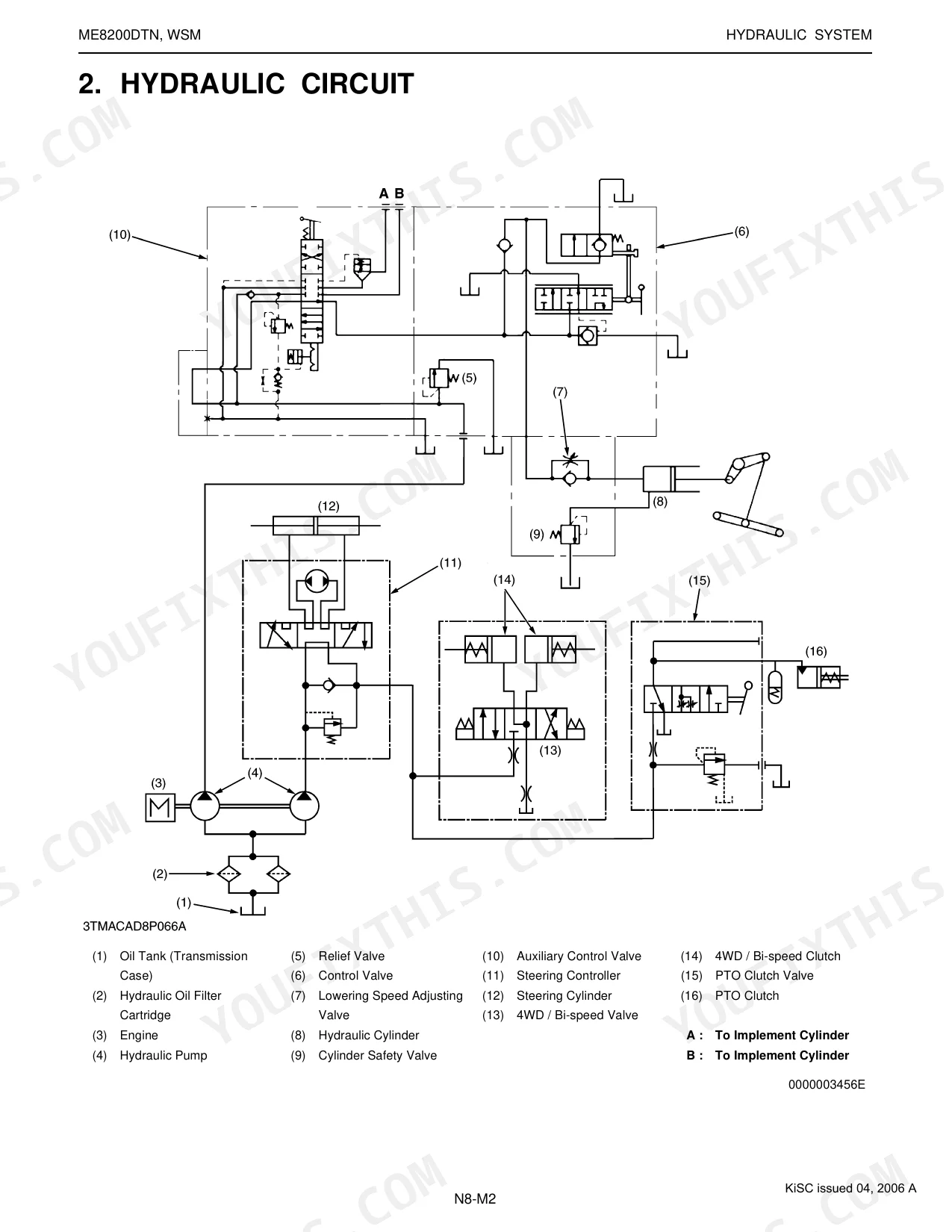

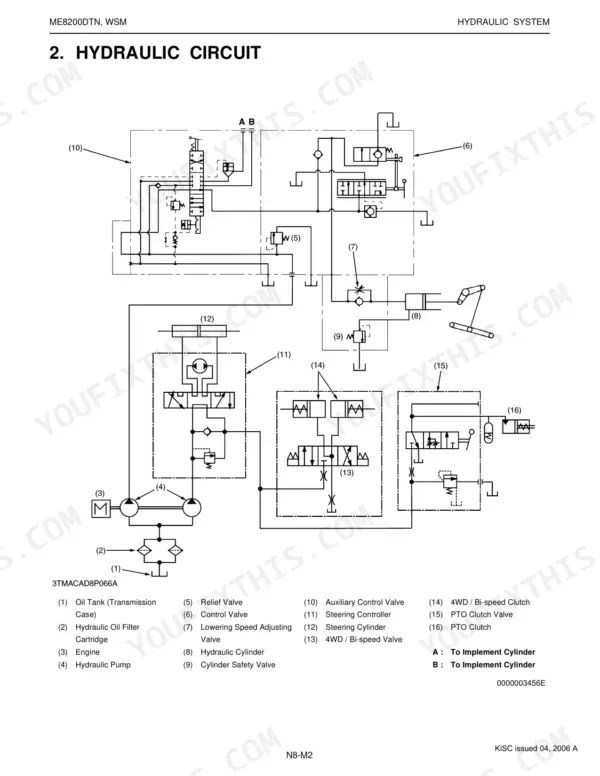

Yes. The Hydraulic System section runs from page 150 to 178 and the Steering section from page 144 to 149, with hydraulic schematics on pages 153 to 155 covering the pump, control valve, and lift circuit.
