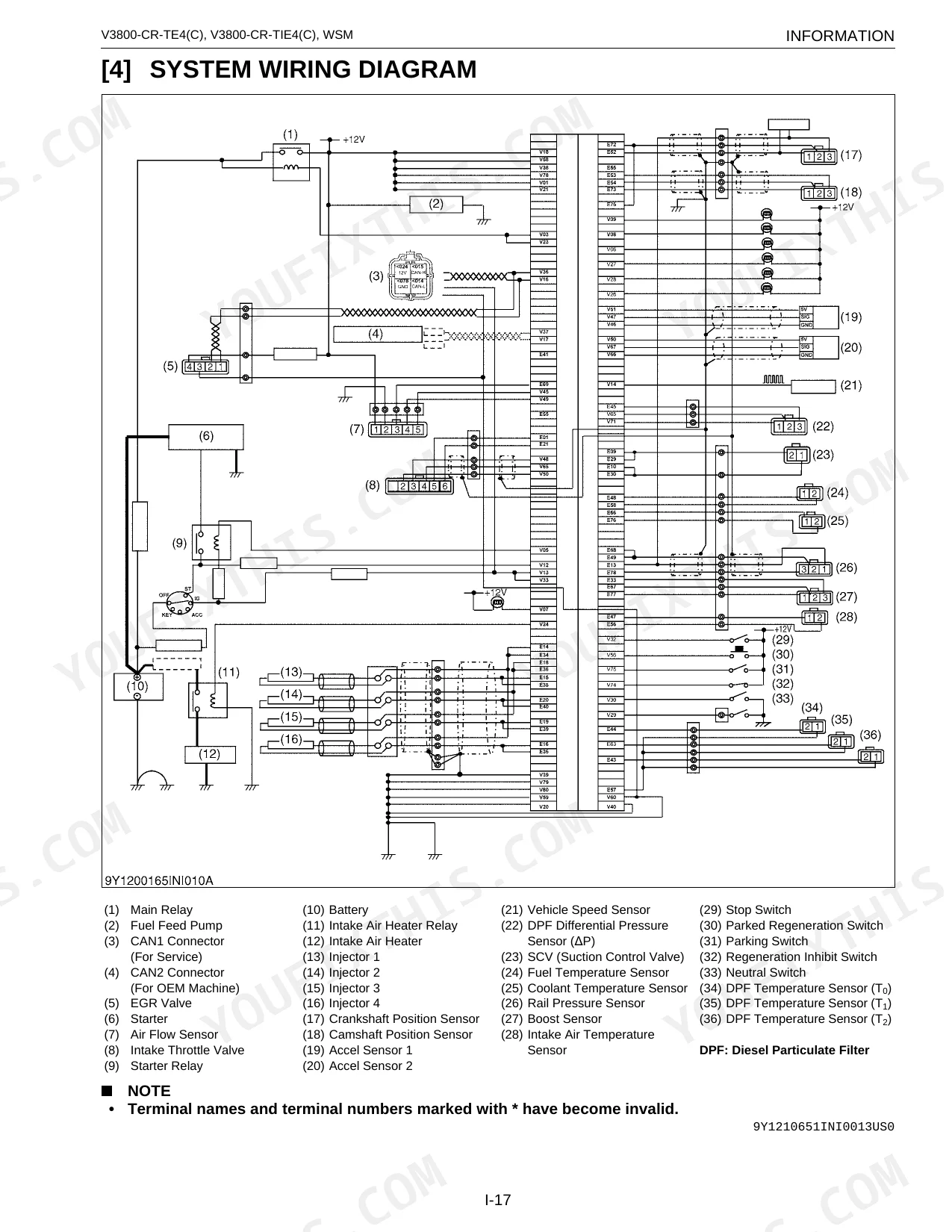

This Kubota V3800-CR Workshop Manual (OEM #9Y121-06510) targets one machine: the Tier 4 common-rail diesel, with coverage spanning the V3800-CR-TE4, TIE4, TE4C, and TIE4C configurations across 165 pages. Nine pages of wiring diagrams map the engine harness, injector harness, and ECU intermediate harness, alongside a full system wiring diagram. The Common Rail System chapter walks the supply pump, rail, injector, and engine control module step by step, while the After Treatment section details DOC, DPF, EGR valve, and intake throttle valve servicing. Twenty pages of exploded views back every disassembly sequence. Injector clamp nuts torque to 24-27 N·m; swap the fuel filter at 500 hours or one year, whichever lands first. Chasing a common-rail fault without factory data turns a half-day job into a week. Bookmarked and keyword-searchable, it opens to the right section on any device.
What's Inside This Kubota V3800 Series Manual

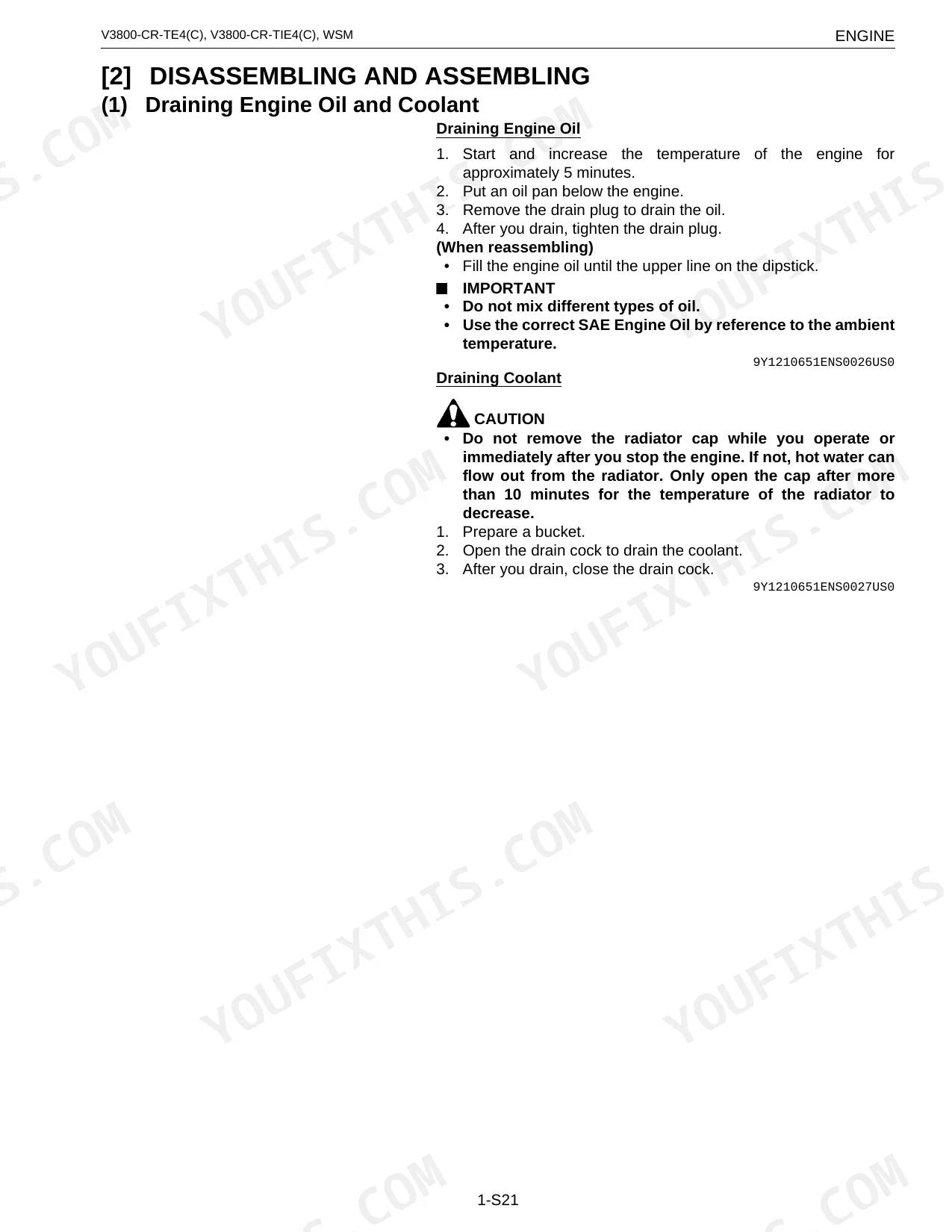

| System | Pages | Key Topics |
|---|---|---|
| Information | - | Safety First, Specifications, Preformance Curves, Dimensions |
| Mechanism | - | Cylinder Block, Cylinder Head, Piston, Oil Cooler, Thermostat, Bottom Bypass System |
| Servicing | - | Troubleshooting, Servicing Specifications, Tightening Torques, Checking and Adjusting, Disassembling and Assembling, Engine Body and Servicing |
| Engine Identification | - | Model Name and Engine Serial Number, Year of Manufacture, Month of Manufacture, E4B Engine, Cylinder Number |
| Maintenance Check List | - | Daily Check Points, Initial 50 Hours, Every 50 Hours, Every 250 Hours, Every 500 Hours, Every 1000 Hours |
| Check and Maintenance | - | Daily Check Points, Initial 50 Hours, Every 50 Hours, Every 250 Hours, Every 500 Hours, Every 1000 Hours, Every 1500 Hours, Every 3000 Hours |
| Special Tools | - | Diesel Engine Compression Tester, Oil Pressure Tester, Small End Bushing Replacing Tool, Idle Gear Bushing Replacing Tool, Gear Case Oil Seal Press Fit Tool |

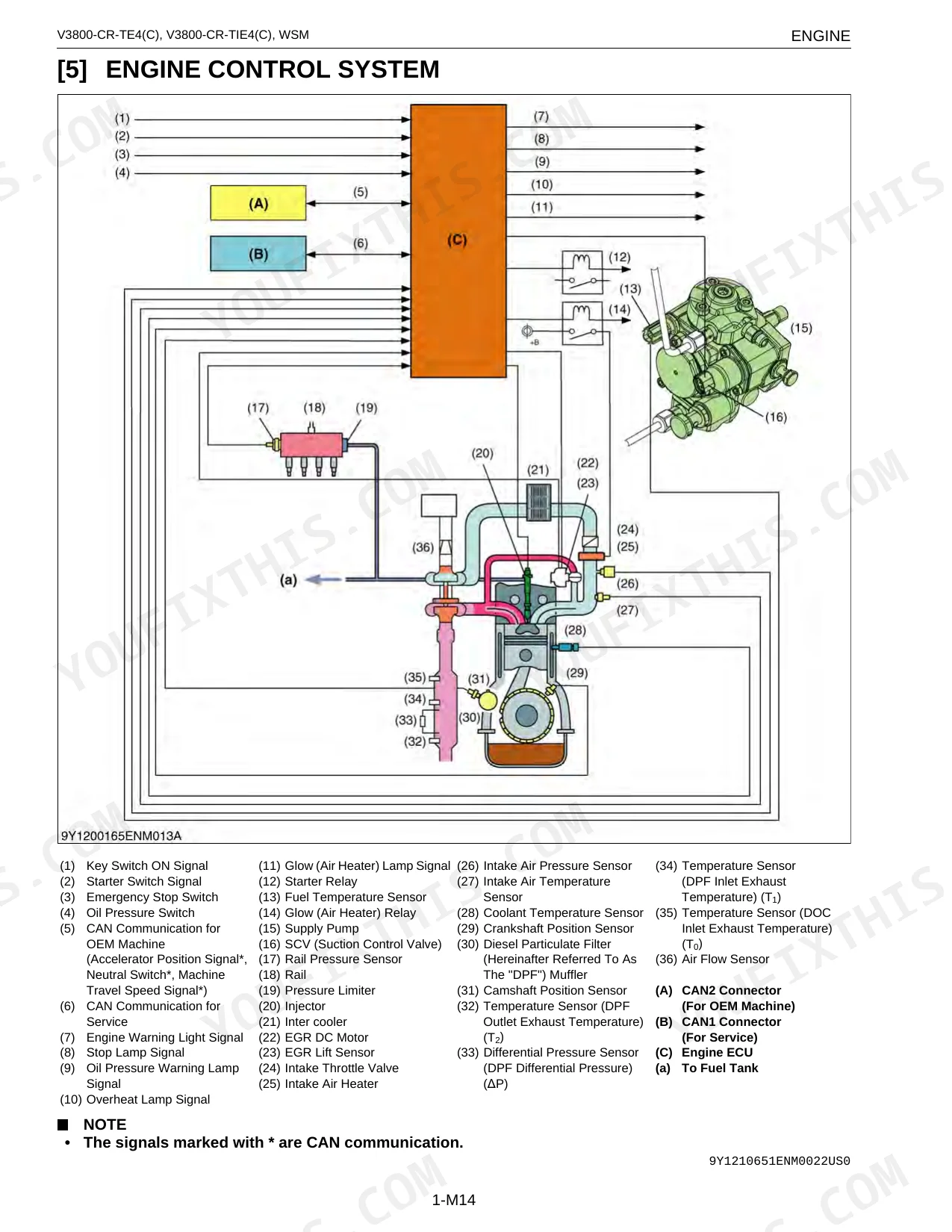

| Common Rail System (CRS) Mechanism | - | Overview, Supply Pump, Rail, Injector, Engine Control System, Sensor |
| Engine Control System Mechanism | - | Engine (Cylinder Block, Cylinder Head, Piston), Lubricating System (Oil Cooler), Cooling System (Thermostat, Bottom Bypass System) |

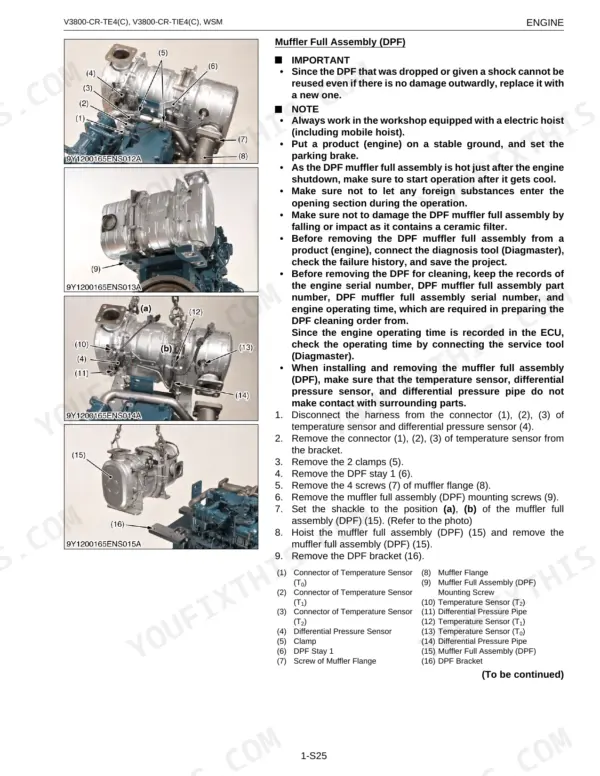

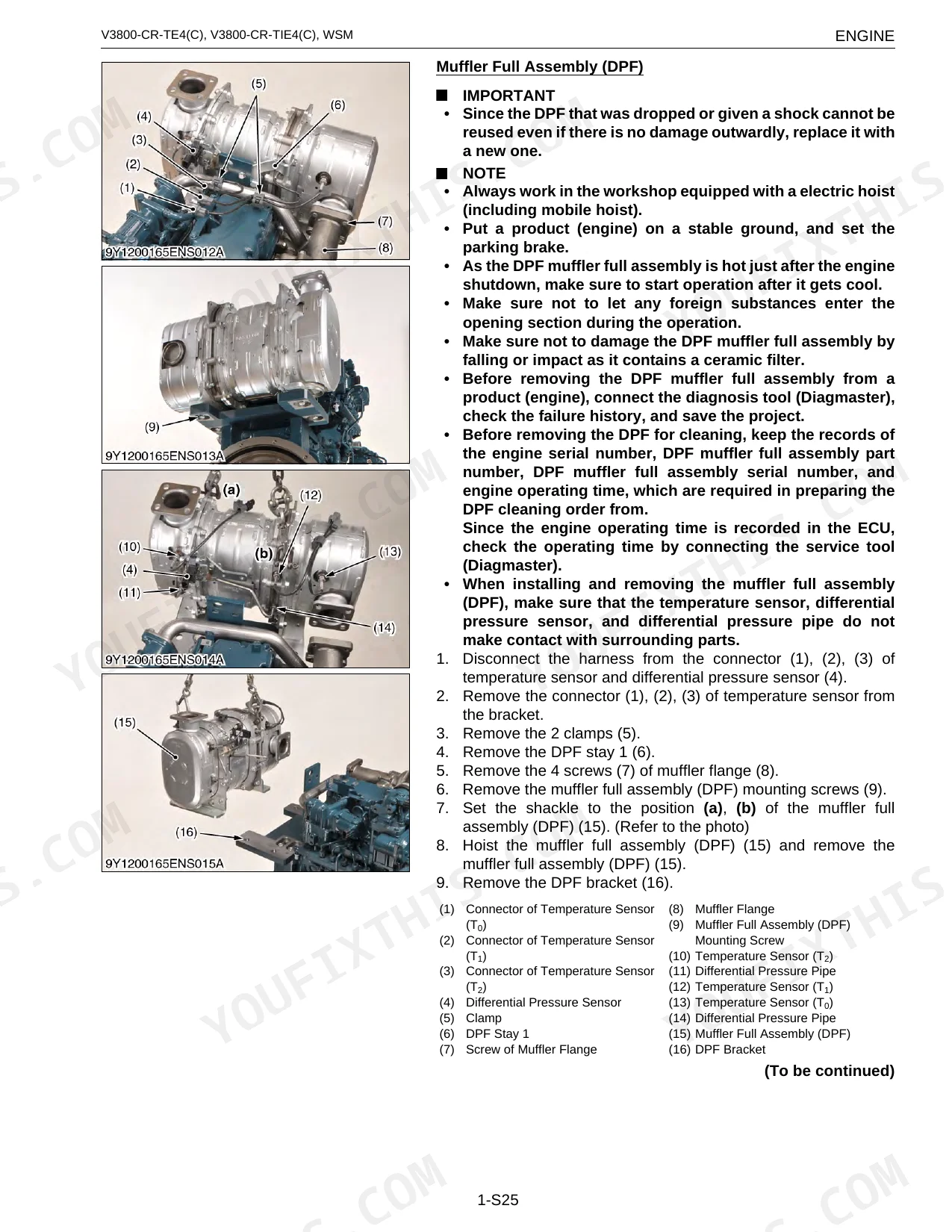

| After Treatment System Mechanism | - | AFTER TREATMENT DEVICES, Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), Intake Throttle Valve, Air Flow Sensor, Temperature Sensor |
| Checking, Disassembling and Servicing | - | Engine Body (Compression, Valve Clearance), Lubricating System (Oil Pressure), Cooling System (Fan Belt, Radiator), Electrical System (Battery, Starter, Alternator), Turbocharger |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| General tightening torque instruction | Use a torque wrench to tighten the screws, bolts and nuts to the specified torque. Tighten the screws, bolts and nuts used, such as on the cylinder head in the correct sequence and torque. Refer to tables for general and special use. | p. 99 |
| General Use Torque (M6, No-grade or 4T) | 7.9 to 9.3 N·m (0.80 to 0.95 kgf·m, 5.8 to 6.8 lbf·ft) | p. 99 |

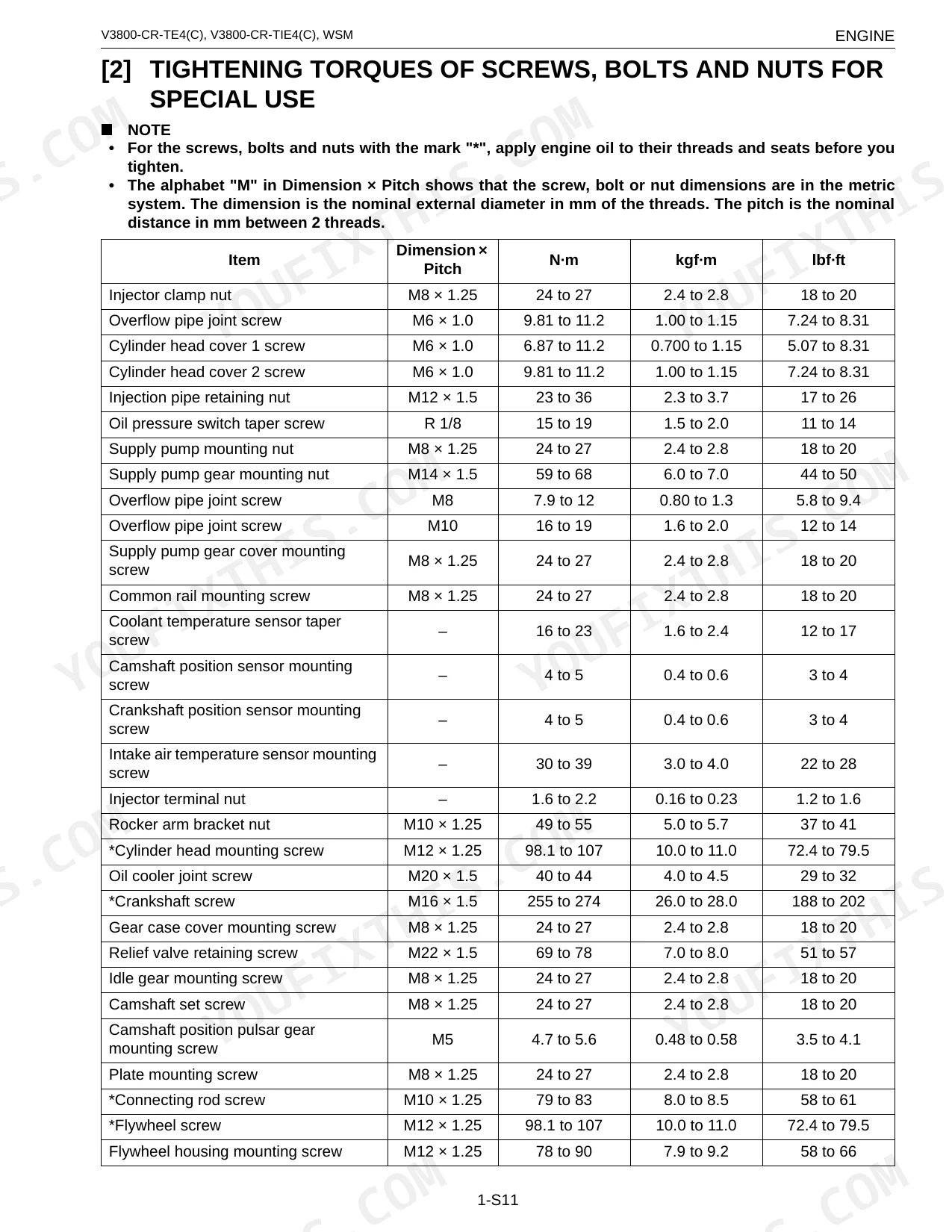

| Special Use Torque (Injector clamp nut) | 24 to 27 N·m (2.4 to 2.8 kgf·m, 18 to 20 lbf·ft) | p. 100 |
| Fuel filter cartridge replacement interval | Every 500 Hrs or 1 year whichever comes first | p. 30 |
| Battery voltage (Factory specification) | More than 12 V | p. 106 |
| Battery specific gravity (100% Charged) | 1.260 Sp. Gr. | p. 107 |
| Air cleaner element replacement interval | Once a year or every sixth cleaning | p. 37 |
| Engine Oil Capacity | 13.2 L | p. 9 |
| Compression Ratio | 17.5 | p. 9 |
| Valve Clearance (Cold) | 0.23 to 0.27 mm | p. 94 |
| Cylinder Head Surface Flatness (Allowable Limit) | 0.005 mm | p. 94 |
| Engine Oil Pressure (Idle, Allowable Limit) | 50 kPa | p. 98 |

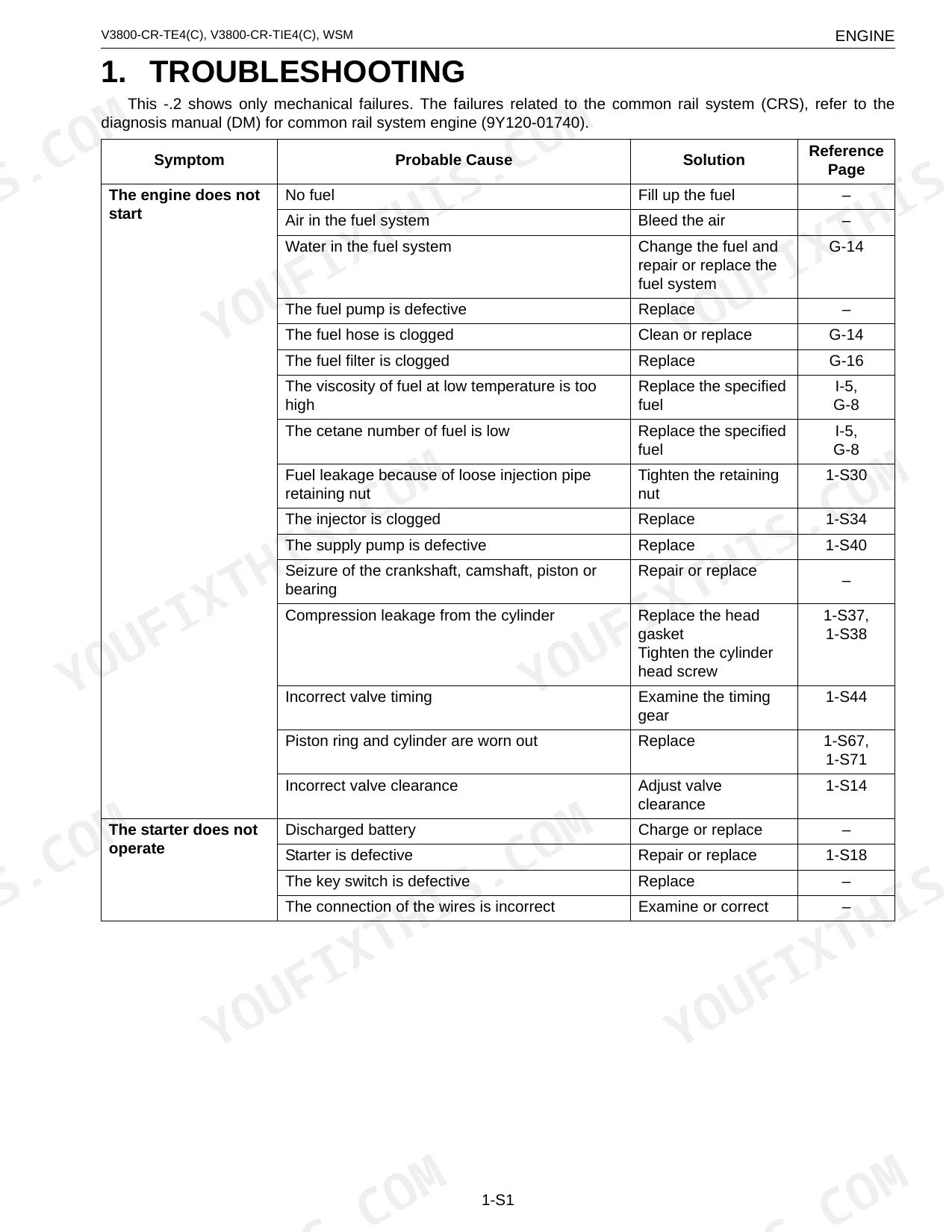

Kubota V3800 Series Common Problems This Manual Covers
Kubota V3800-CR engine cranks but will not start after replacing fuel filters or running out of diesel p. 30
Check for air in the fuel system. Confirm the fuel filter cartridge was changed at the 500 Hrs or 1 year interval shown on page 30. Bleed the fuel lines and prime the supply pump before starting.
Manual Section: Engine TroubleshootingIntermittent electrical engagement and excessive cranking with no fire in cold weather conditions p. 106
Test the battery voltage across the terminals. The reading should be more than 12 V as specified on page 106. Inspect the cables for corrosion and measure the specific gravity of a fully charged battery to confirm it reads 1.260 Sp. Gr. on page 107.
Manual Section: Electrical System DiagnosticsEngine starts but stalls, loses power, or runs extremely rough under heavy load p. 37
Inspect the air cleaner element and the fuel delivery system. Replace the air cleaner once it passes the once-a-year or every-sixth-cleaning interval listed on page 37. Drain the fuel filter housing to clear any water or debris restricting diesel flow.
Manual Section: Engine TroubleshootingLow engine oil pressure warning light illuminates at idle when fully warmed up p. 98
Measure the engine oil pressure at idle. Confirm it does not drop below the allowable limit of 50 kPa found on page 98. Pull the dipstick to verify the crankcase holds the correct 13.2 L oil capacity detailed on page 9.
Manual Section: Engine Oil Pressure CheckPoor engine performance accompanied by loud ticking noises from the cylinder head area p. 94
Remove the valve cover and examine the valve train. Adjust the cold valve clearance to 0.23 to 0.27 mm as given on page 94. Torque the cylinder head mounting screws to 98.1 to 107 N·m using the sequence on page 100.
Manual Section: Valve Clearance AdjustmentFrequently Asked Questions
How do I reset the ECU on a Kubota V3800-CR-TE4?
Replacing an ECU requires writing all of the data, including the injector corrections. Only KUBOTA can write it, so an owner cannot perform an ECU reset themselves.
How do I perform a regeneration reset on a Kubota V3800-CR-TIE4C?
Level 4 regeneration runs only with service tools. At Level 5 (DPF Cleaning), regeneration is impossible even with service tools, so the DPF must be cleaned.
What are the torque specs for head bolts on a Kubota V3800-CR engine?
Cylinder head mounting screws (M12 × 1.25) torque to 98.1 to 107 N·m (10.0 to 11.0 kgf·m, 72.4 to 79.5 lbf·ft). Oil the threads and seats before tightening.
What are the replacement specifications for Primary fuel filter?
Replace the fuel filter cartridge every 500 hours or 1 year, whichever comes first. If you run biodiesel, change the cartridge at half the usual interval.
Is this Kubota V3800 Series Workshop Manual a digital download?
The download is a 165-page searchable PDF, available instantly after checkout. Open it on a laptop, tablet, or phone and take it to the shop floor.
Am I able to print pages from this Kubota V3800 Series manual?
Yes. The PDF carries no DRM restrictions, so you can print any page or section your shop needs. It works with any standard printer.
Does this Kubota V3800 Series manual include wiring diagrams?
Yes. Full electrical schematics are included, with wire colors, connector locations, and circuit descriptions.
Document Quality
This document is a high-quality digital PDF with a fully searchable and selectable OCR text layer, allowing you to easily find information and copy text. The text throughout is consistently crisp and very easy to read. Diagrams, illustrations, and wiring diagrams are sharp and clear, maintaining readability even when zoomed in, and photographs are also well-defined. Pages are clean with no scan artifacts, marks, or skewed content. Note that some blank pages are present as section dividers.
