Part of the New Holland Repair Manuals.

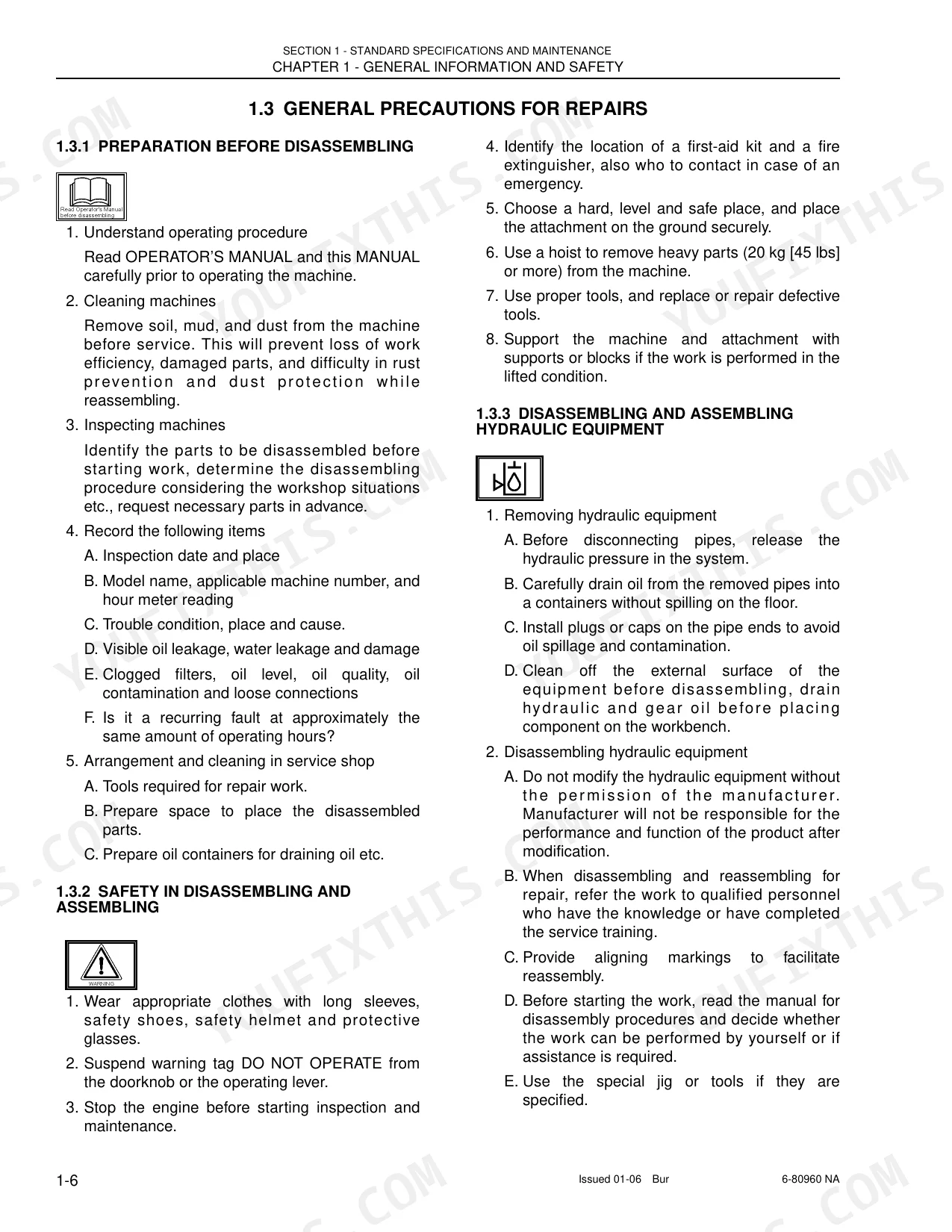

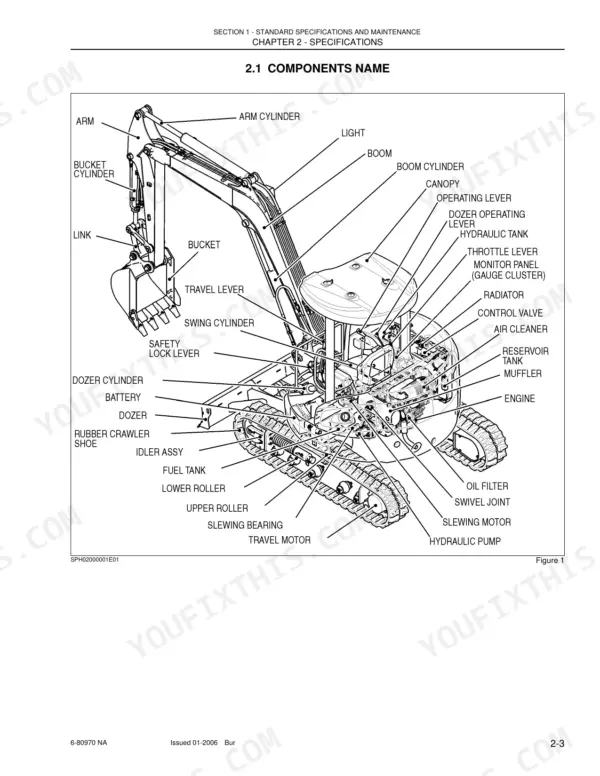

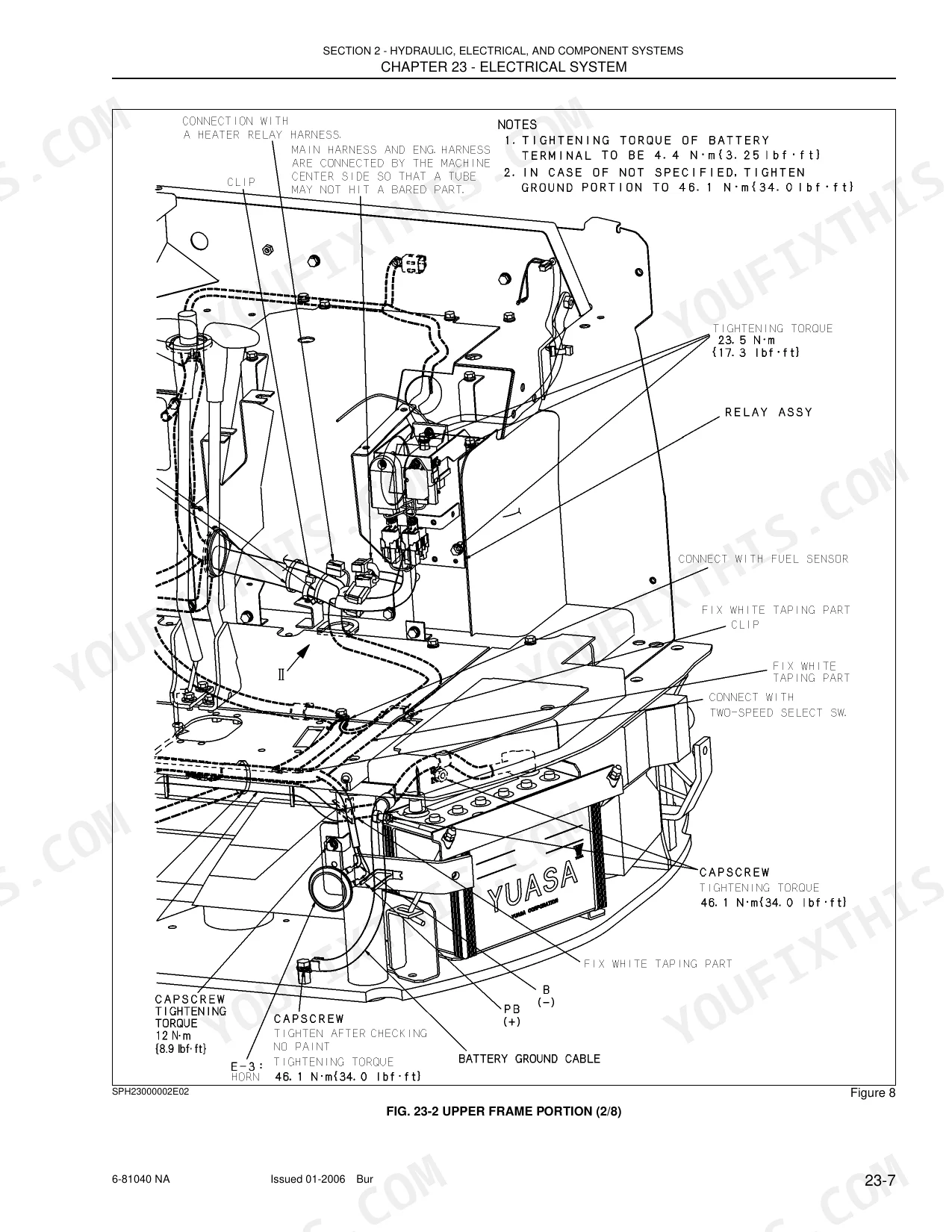

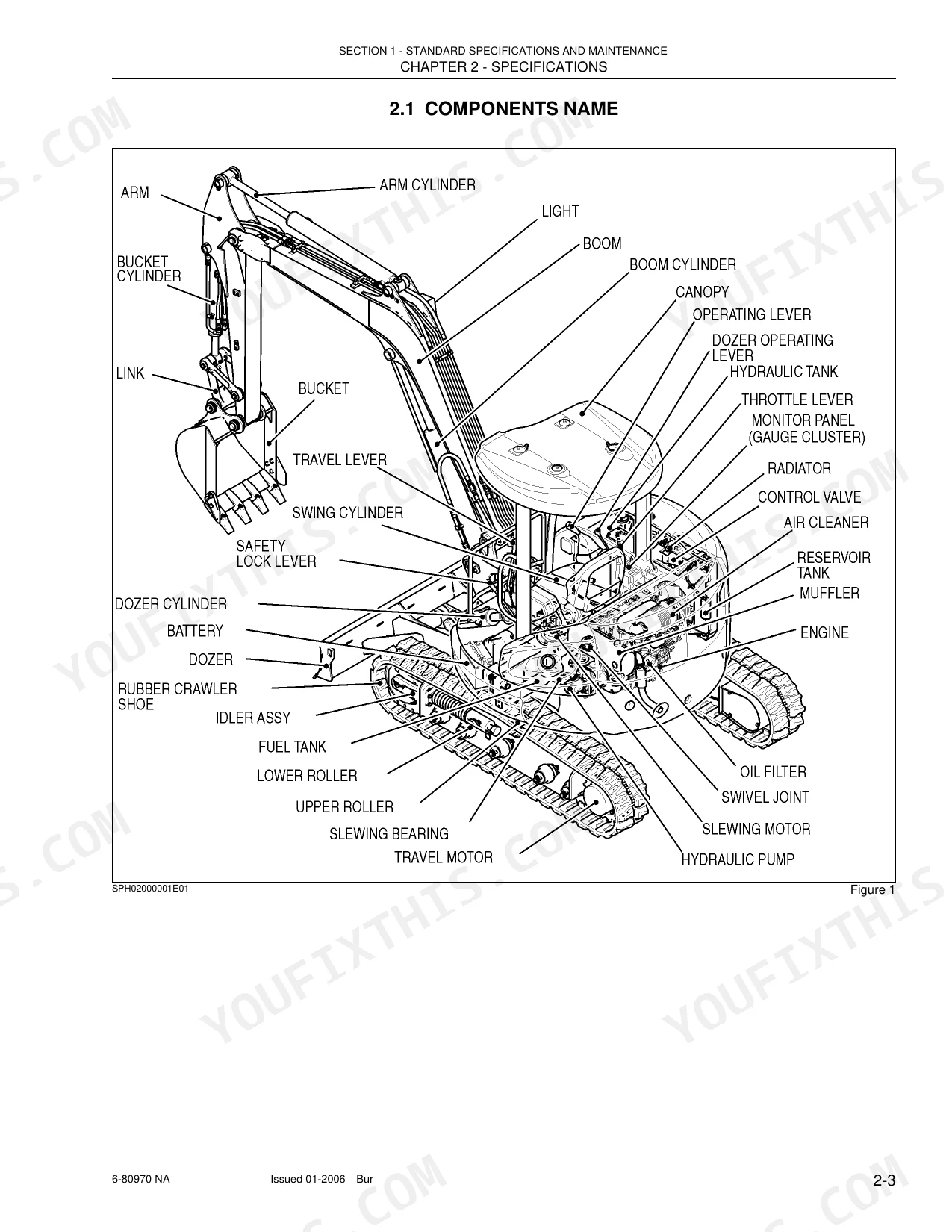

This 764-page New Holland E50 Shop Manual (OEM #87360588) covers the full Hydraulic Excavator platform, with shared coverage for the E27, E30, E35, and E50. Open it up and you get complete wiring diagrams, hydraulic circuit schematics, and a dedicated troubleshooting section spanning hydraulic, electrical, and engine faults, plus a 100-page exploded view for parts identification down to the last snap ring. You also get a full periodic maintenance schedule and fluid capacity charts so you're not mixing up specs between the boom cylinder and the final drive. Check tightening torque values before you button up the slewing structure, and confirm fluid capacities before you fire the engine back up. No more flipping between three dog-eared photocopies trying to find the right circuit. Bookmarked by section, so you jump straight to hydraulic troubleshooting or engine disassembly without scrolling past specs you don't need. Pull it up on your phone in the shop and get back under the machine.
What's Inside This New Holland E50 Manual
| System | Pages | Key Topics |
|---|---|---|
| E50 Hydraulic Excavator | 1-2 | Boom, Arm, Bucket, Dozer, Hydraulic Pump, Engine |

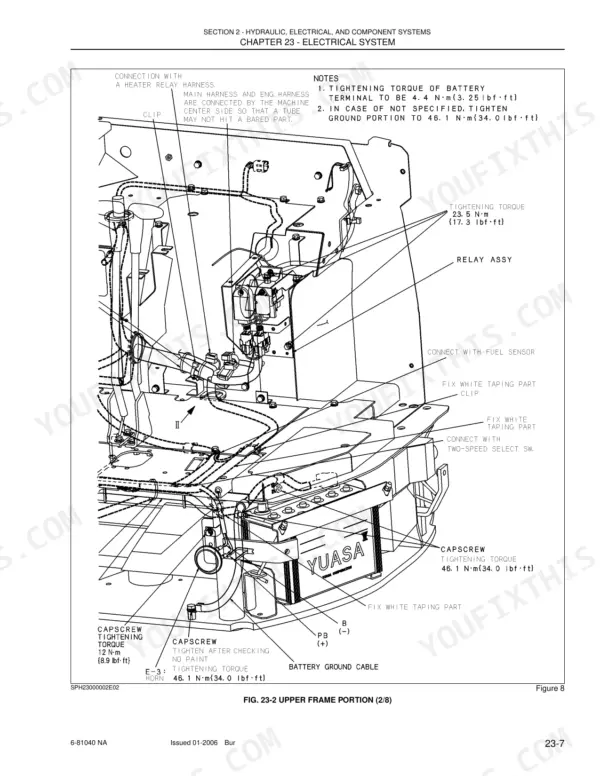

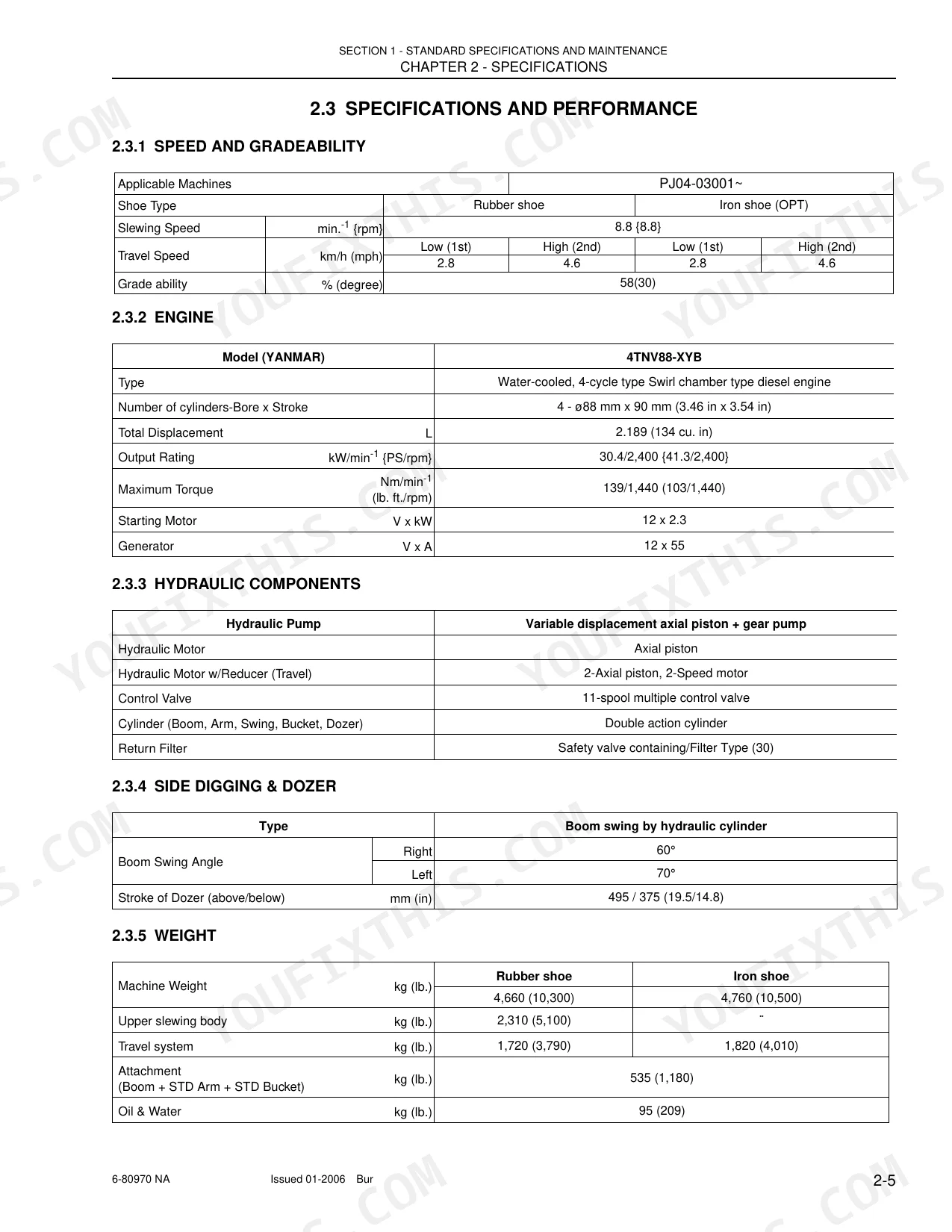

| Standard Specifications and Maintenance | 7-106 | Specifications (Components Name) |
| Hydraulic, Electrical, and Component Systems | 107-262 | Hydraulic System, Electrical System, Hydraulic Components, Electrical Equipment, Hydraulic Circuit Operation, Electrical Equipment List |
| General Disassembly and Assembly | 263-498 | Attachments, Upper Slewing Structure, Travel System, Specification of Tightening Torque |
| Troubleshooting | 499-546 | General Precautions, Trouble Diagnosis: Hydraulic, Trouble Diagnosis: Electric System, Trouble Diagnosis: Engine, Troubleshooting (Hydraulic System) |
| Engine | 547-764 | Engine Nomenclature, Specifications, Periodic Maintenance Schedule, Troubleshooting, Disassembly, Lubrication System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Troubleshooting (Hydraulic System) | 42-1 | p. 4 |
| Pinhole leaks | Very small (pinhole) leaks can result in a high velocity oil stream that will be invisible close to the hose. This oil can penetrate the skin and cause personal injury. | p. 15 |
| Fire hazard from hydraulic lines | Loose or damaged fuel, lubricant and hydraulic lines, tubes and hoses can cause fires. | p. 15 |
| Snap ring plier | For hole(for snap ring 72) | p. 352 |
| Engine oil filter | 1 | p. 370 |
| Engine oil | 1 | p. 370 |
| Water separator filter | 1 | p. 370 |
| Relief valve | 1 | p. 370 |
| High-velocity hydraulic oil stream causing pinhole leaks and skin penetration injury | High-velocity hydraulic oil stream causing pinhole leaks and skin penetration injury | p. 15 |
| Fire ignition from hydraulic system | Fire ignition from hydraulic system | p. 16 |

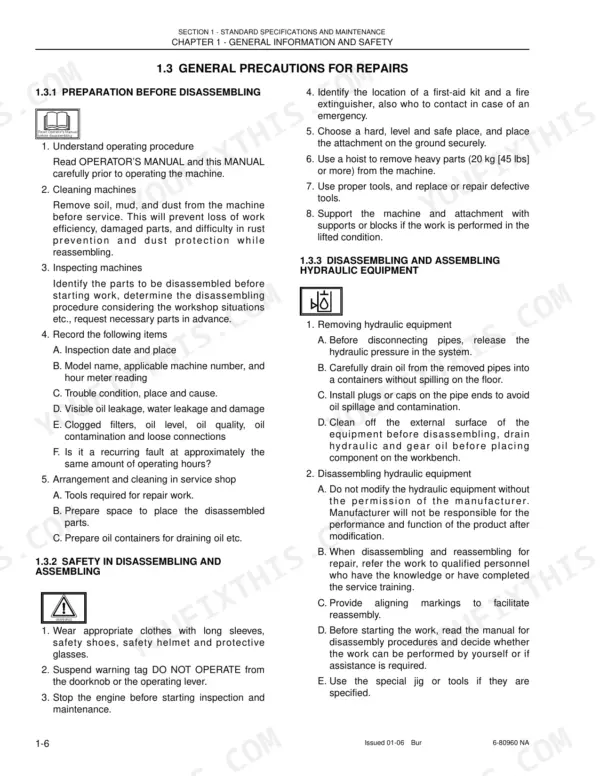

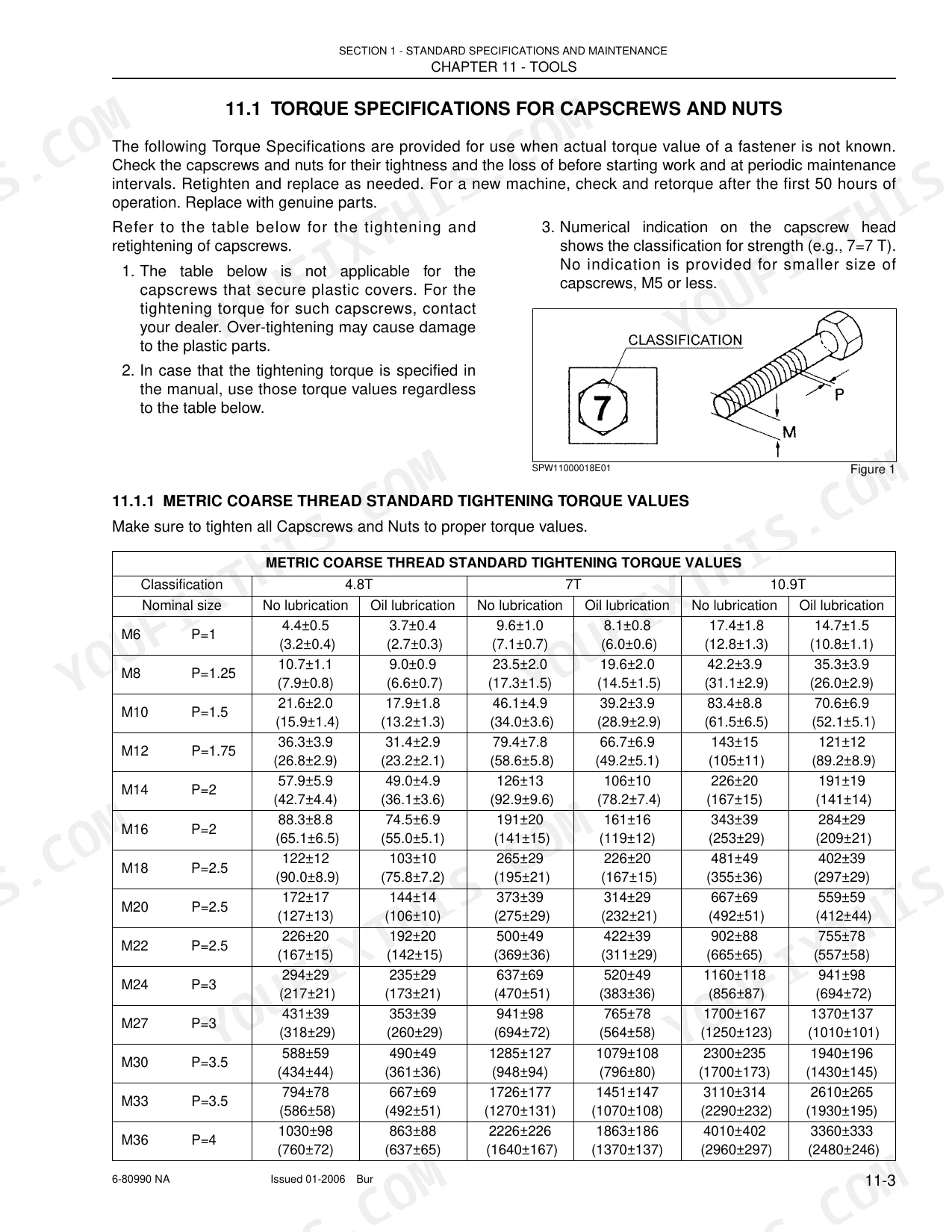

| Tightening torque | 20~24N·m (2.0~2.4kgf·m) | p. 62 |
New Holland E50 Common Problems This Manual Covers
New Holland E50 hydraulic pump grinding noise after heavy use, engine speed drops when pump is loaded
Check the troubleshooting procedures starting on page 506. Inspect the pump housing for a failed snap ring. Remove the pump cover, verify the snap ring seats fully in its groove, and replace it if deformed before reassembly.
Manual Section: Hydraulic System: Pump Issues p. 506Fine hydraulic oil mist appears near a hose fitting, no visible spray but skin stings on contact
Check for leaks with a piece of cardboard, never bare hands. Page 15 warns pinhole leaks produce a high-velocity oil stream invisible close to the hose that can penetrate skin. Relieve system pressure first, then pass the cardboard over suspect lines to find the leak. Torque the 30 degree flare fitting to 15±2.0 Nm per page 64 on reassembly.
Manual Section: Standard Specifications and Maintenance p. 15Boom and bucket move sluggishly with no fault codes, hydraulic oil runs hotter than usual after startup
Check hydraulic oil temperature at the tank surface; page 90 specifies a normal operating range of 50-60°C. If the oil runs hotter, check for a clogged filter or a relief valve stuck open. Verify main relief valve pressure reads 23.0 MPa on a test gauge tapped into the pump outlet before condemning the pump.
Manual Section: Hydraulic System: Attachment IssuesEngine cranks over but won't start in cold weather, glow plug light cycles normally
Check fuel supply and bleed air from the injection lines first. Verify engine oil is filled to the 7.4 liter maximum specified on page 32 for the 4TNV84(T)-88, since low oil can trigger a safety lockout on some units. Test battery voltage under crank load and confirm the starter engages fully before condemning the injection pump.
Manual Section: Engine: Starting TroubleSlewing rotation is slow and jerky, upper structure hesitates before it starts turning
Check pilot relief valve pressure with a gauge tee'd into the pilot circuit; page 90 lists the spec at 3.5±0.4 MPa. Low pilot pressure causes hesitant slew engagement. Inspect the slewing motor case drain for excess flow and confirm the main relief valve holds 23.0 MPa before replacing the slew motor.
Manual Section: Hydraulic System: Slewing IssuesEngine oil looks dark and gritty at every service interval, oil filter clogs faster than expected
Replace the engine oil filter every service interval; page 370 lists one filter per engine in the parts breakdown. Drain the crankcase and refill to the 7.4 liter maximum shown on page 32. Torque the water separator filter to 15~20 Nm per page 601, and torque the oil filter housing bolt to 20~24 N·m as specified on page 62.
Manual Section: General Disassembly and Assembly p. 370Frequently Asked Questions
What are the torque specs for the engine bolts on New Holland E50?
The tightening torques for main engine bolts on the New Holland E50 vary by component and engine model. For instance, the cylinder head bolts for a 3TNV82A engine require a torque of 61.7~65.7 Nm (6.3~6.7 kgf m), while connecting rod bolts for the same model require 37.2~41.2 Nm (3.8~4.2 kgf m). Flywheel set bolts for TNV82A~88 models should be tightened to 83.3~88.2 Nm (8.5~9.0 kgf m). p. 762
What error codes indicate hydraulic pump failure on New Holland E50?

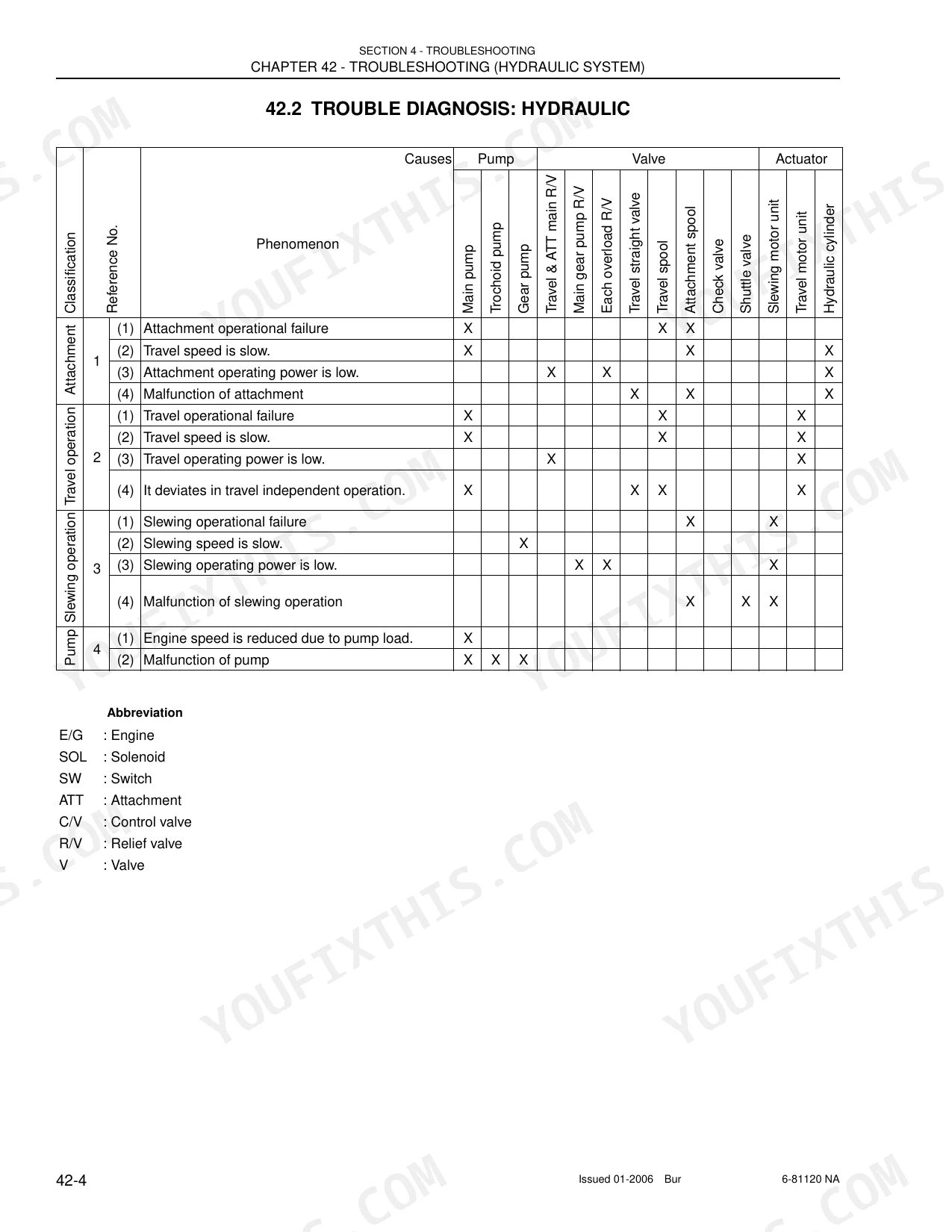

The troubleshooting guide indicates that a "Malfunction of pump" can be caused by issues with the main pump, trochoid pump, or gear pump. While specific error codes are not listed, the table suggests checking these components if pump malfunction is suspected. p. 506
What are the replacement specifications for the engine oil filter?
The engine oil filter should be replaced every 250 hours or 3 months. When installing a new filter, moisten the gasket with engine oil and tighten it manually until it contacts the mounting surface, then tighten it further to 3/4 of a turn with a filter wrench, applying a torque of 20~24 Nm (2.0~2.4 kgf m). The part numbers for applicable oil filters are 119802-55800 (for 3TNV82A~4TNV88) and 123907-55800 (for 4TNV98(T)~4TNV106(T)). p. 592
What is the total and effective engine oil capacity for the 3TNV82A engine model?
For the 3TNV82A engine model, the total engine oil capacity is 3.6 liters, with an effective volume of 1.2 liters. Depending on the specific engine installed on the machine unit, the total capacity can also be 5.5 liters with an effective volume of 2.2 liters. p. 568
How quickly can I access this New Holland E50 manual after buying?
You get a 764-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print this New Holland E50 manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Are hydraulic system diagrams in this New Holland E50 Shop Manual?

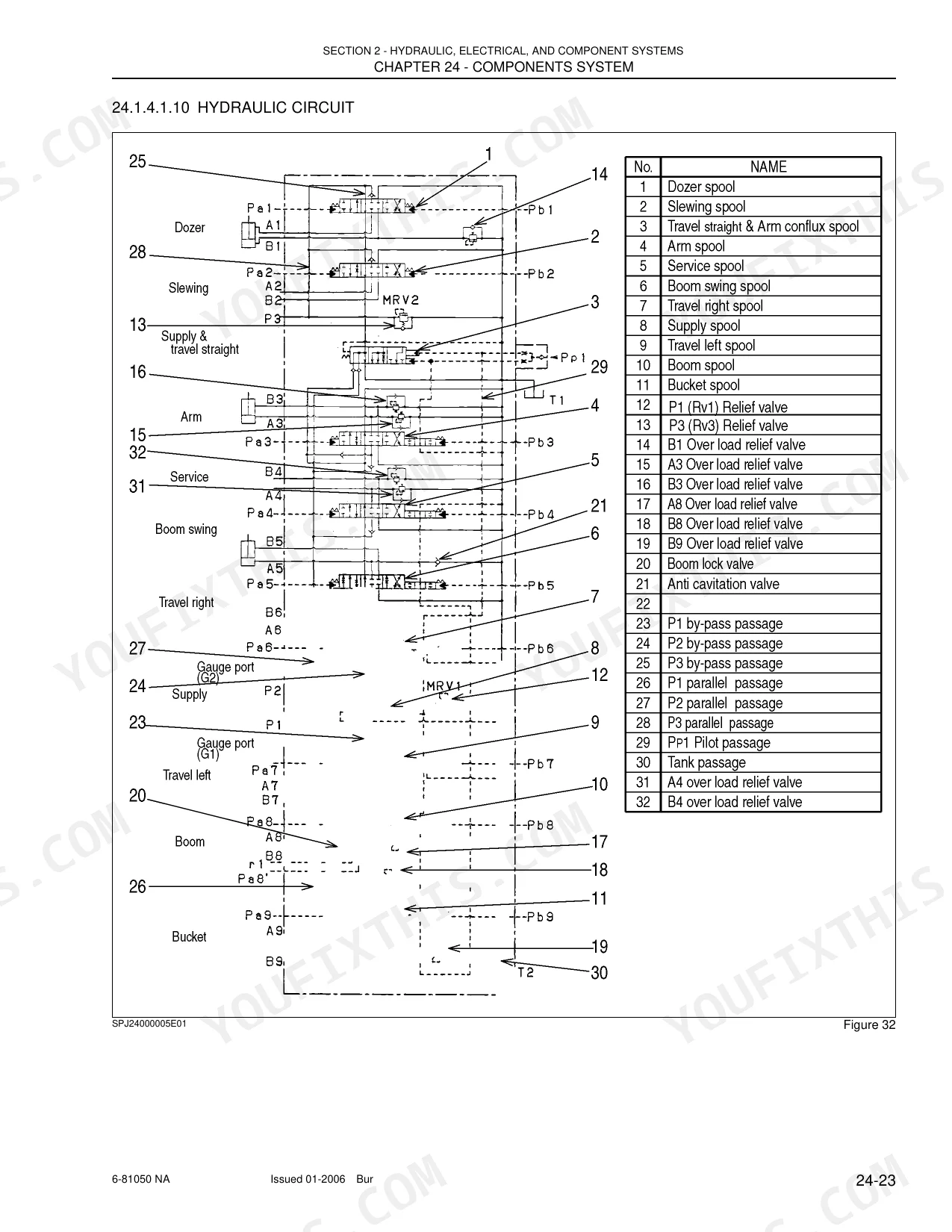

Included. Hydraulic system schematics cover all circuits, control valves, and component specifications for the New Holland E50.
