Need the factory book for your New Holland LM5020 or LM5030 Tier 3? This 759-page service manual (OEM #47787942) covers both telescopic handlers front to back, from the powered front axle and hydrostatic transmission down to the final drive hubs. Inside you get full wiring diagrams for cab controls and warning indicators, hydraulic schematics covering the variable displacement pump and main control valve, plus a dedicated torque section and fluid capacity charts so you're not eyeballing anything. The hydraulic system holds 70L on the LM5020 and 130L on the LM5030, real factory numbers, not shop-manual guesswork. Your telescopic arm hydraulics get their own procedures too. No more chasing a leak or a fault code with a parts-catalog printout. Bookmarked by system, so you jump straight to the axle, brake, or electrical section you're standing in front of and get back to wrenching.
What's Inside This New Holland LM5020, LM5030, Tier 3 Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | 7-66 | Basic Instructions - Important Notice Regarding Equipment Servicing, Basic Instructions - Shop and Assembly, Safety Rules, Personal Safety, Foreword - Ecology and the Environment |
| Engine - 10 | 67-98 | Engine and Crankcase |
| Four-Wheel Drive (4WD) System - 23 | 99-120 | Drive Shaft |
| Front Axle System - 25 | 121-328 | Powered Front Axle, Front Bevel Gear Set and Differential, Final Drive Hub, Steering Knuckles, And Shafts |
| Rear Axle System - 27 | 329-342 | Non-Powered Rear Axle |
| Hydrostatic Drive - 29 | 343-378 | Hydrostatic Transmission |
| Brakes and Controls - 33 | 379-466 | Mechanical Service Brakes, Hydraulic Service Brakes, Parking Brake or Parking Lock |
| Hydraulic Systems - 35 | 467-632 | Hydraulic Systems, Variable Displacement Pump, Hydraulic Travel System, Main Control Valve, Telescopic Arm Hydraulic System |
| Steering - 41 | 633-658 | Cylinders, Steering Control |
| Cab Climate Control - 50 | 659-666 | Air Conditioning |
| Electrical Systems - 55 | 667-759 | Electrical System, Harnesses and Connectors, Cab Controls, Warning Indicators, Alarms, And Instruments |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Telescopic arm hydraulic system | 35.5 | p. 3 |
| Main control valve | 35.4 | p. 3 |
| Tightening torque for hydraulic cylinder seals | 34 N·m (25 lb ft) | p. 30 |
| Mechanical Service Brakes Lock Lever Torque | 10 N·m (7 lb ft) | p. 403 |
| LM5020 | ||
| Hydraulic Oil Capacity | 70 L (18.5 US gal) | p. 38 |
| Main Control Valve Max Pressure | 230 bar (3335 psi) | p. 562 |
| LM5030 | ||
| Hydraulic Oil Capacity | 130 L (34.3 US gal) | p. 39 |
| Hydraulic Service Brakes Max Operating Pressure | 28 bar (406 psi) | p. 449 |
New Holland LM5020, LM5030, Tier 3 Common Problems This Manual Covers
New Holland LM5020 telescopic boom fails to extend or retract and displays error code E01.
Inspect the cylinder seals and replace any damaged components. Fill the hydraulic tank to the 70 L (18.5 US gal) capacity for this model before testing operation.
Manual Section: Hydraulic Systems - 35 p. 30Brake pedal feels spongy and machine creeps forward when parked on a slight incline.
Bleed air from the hydraulic service brake circuit. Check the mechanical parking brake stack and tighten the lock lever to exactly 10 N·m (7 lb ft) as specified on page 403. Test the pedal engagement to ensure complete holding force before returning to service.
Manual Section: Brakes and Controls - 33 p. 403Boom extends erratically with jerky motion under heavy loads or drops slightly during
Frequently Asked Questions
What fluids and capacities does the LM5020 machine require?

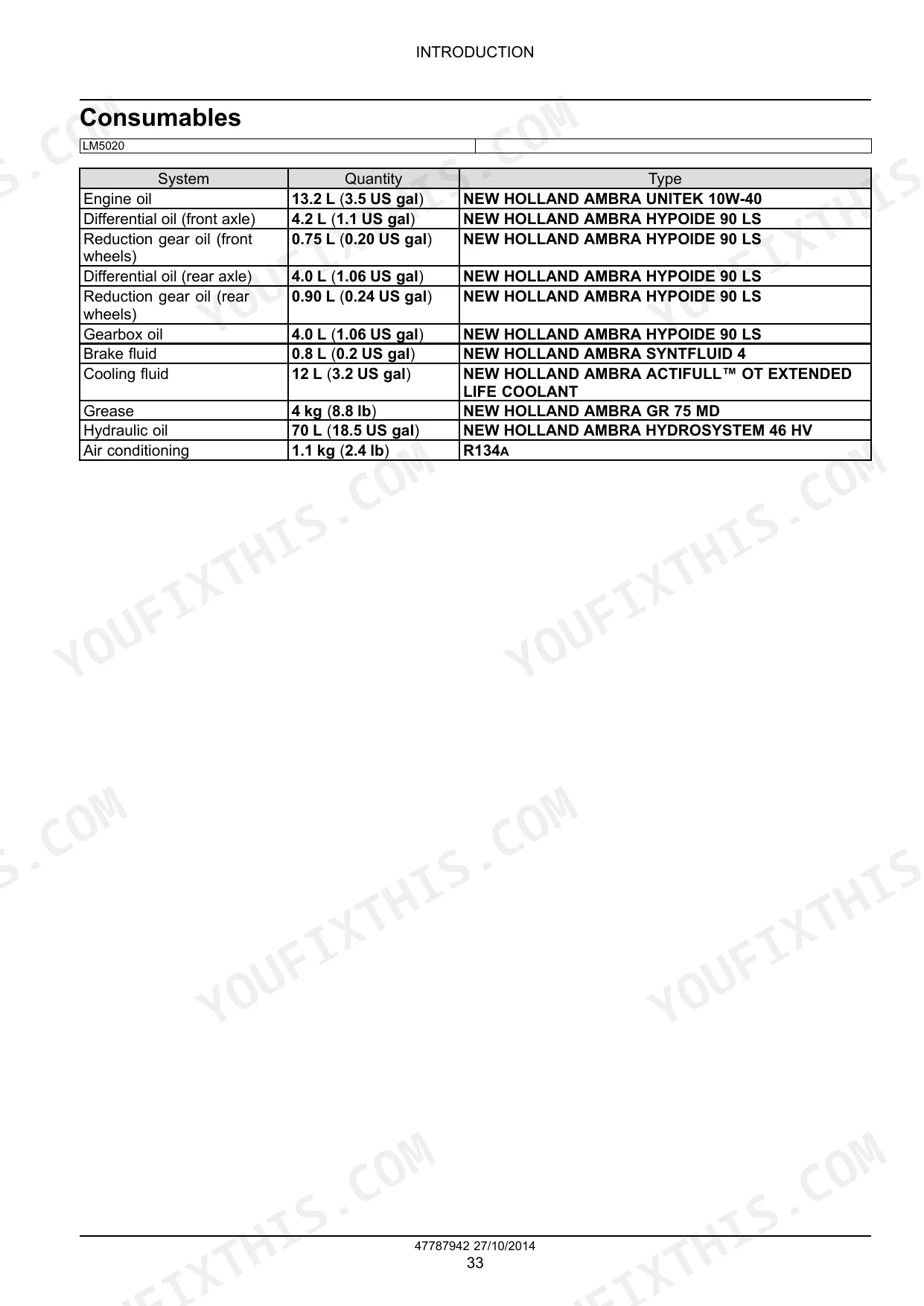

For the LM5020 model, the engine oil capacity is 13.2 L (3.5 US gal) of NEW HOLLAND AMBRA UNITEK 10W-40. The hydraulic oil capacity is 70 L (18.5 US gal) of NEW HOLLAND AMBRA HYDROSYSTEM 46 HV. The cooling fluid capacity is 12 L (3.2 US gal) of NEW HOLLAND AMBRA ACTIFULL™ OT EXTENDED LIFE COOLANT. p. 38
What torque specifications are listed for the LM5020/LM5030 telescopic handler?

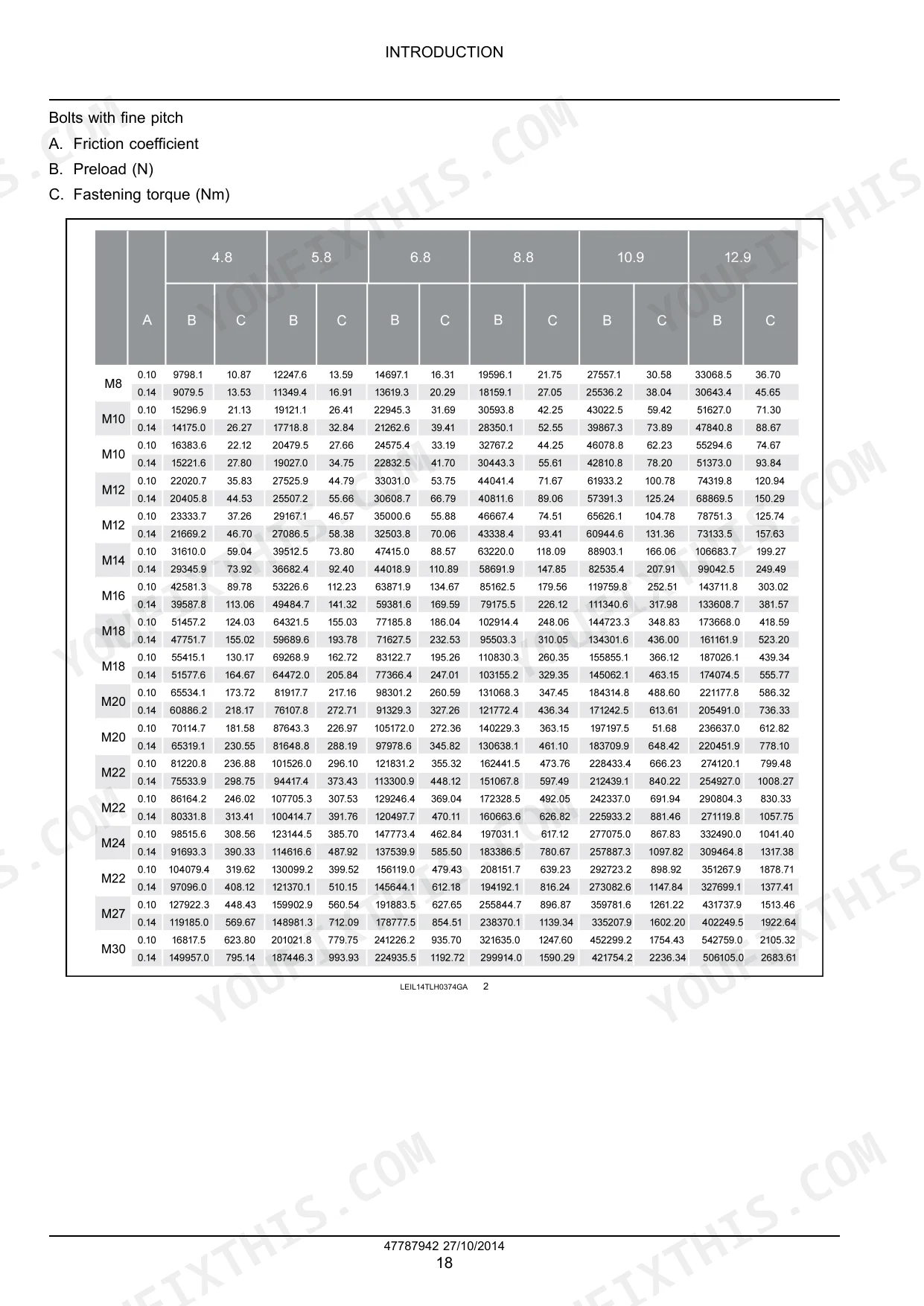

Various torque specifications are listed throughout the manual. For example, the screws of the crown wheel should be tightened to 78 - 86 N·m (57 - 63 lb ft) using LOCTITE® 270. The pinion should be checked for torque between 80 - 120 N·m (59 - 88 lb ft). For the steering cylinder, the screws should be tightened to 90 - 100 N·m (66 - 74 lb ft) using Loctite 242. p. 644
How are error codes displayed and managed on the panel?
During normal work or calibration phases, errors (codes 90-99) can be generated by the SAR control unit or the panel. These errors are displayed as “Er nn” (Error number) in place of the clock, with LED L6 switching on permanently and the buzzer sounding continuously. The operator can temporarily stop the buzzer by pressing the left key, but L6 LED remains on as long as the error is active. p. 733
What are the common electrical problems indicated by error codes?
The panel can generate up to 10 error codes ranging from 90 to 99. Common electrical problems include 'Counter error message' (90, 92), 'Timeout error message' (91, 93), 'SAR response error, different response value' (94), 'Calibrating pin no longer connected during calibration' (95), and 'Errors inside available panel' (96-99). p. 733
Is this New Holland LM5020, LM5030, Tier 3 SERVICE MANUAL a digital download?
Immediate download of the complete 759-page searchable SERVICE MANUAL. Access it on any device, from a laptop at your desk to a phone in the field.
Are there any print restrictions on this New Holland LM5020, LM5030, Tier 3?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Does this New Holland LM5020, LM5030, Tier 3 manual include wiring diagrams?
Included. The New Holland LM5020, LM5030, Tier 3 SERVICE MANUAL covers complete wiring harness diagrams, electrical circuits, and connector pinouts.
