The number printed on the cover is 47518911, New Holland's own publication number for the TD4040F operator book, and it is the first thing to check before you trust a figure inside. This is the factory document, all 184 pages of it, not a retyped summary.
It is written for the TD4040F tractor with the F5AE9484G*A 008 diesel, and it walks through controls and instruments, starting on thermostart, power take-off, hydraulic lift and Cat. II three-point linkage, remote control valves, wheel track adjustment, tires and ballasting, plus the lubrication and maintenance table from daily checks through the long interval services.
Guessing has a price: the wrong part ordered, a second teardown, a hydraulic fault chased to the wrong valve. Download the PDF, keep it where you work, and get the tractor running and back in the field.
What's Inside This New Holland TD4040F Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction and Safety Measures | 11-36 | To the Owner, Tractor Identification, Ecology and the Environment, Safety Messages Used in This Manual, Working Safely, Safety Decals, International Symbols |

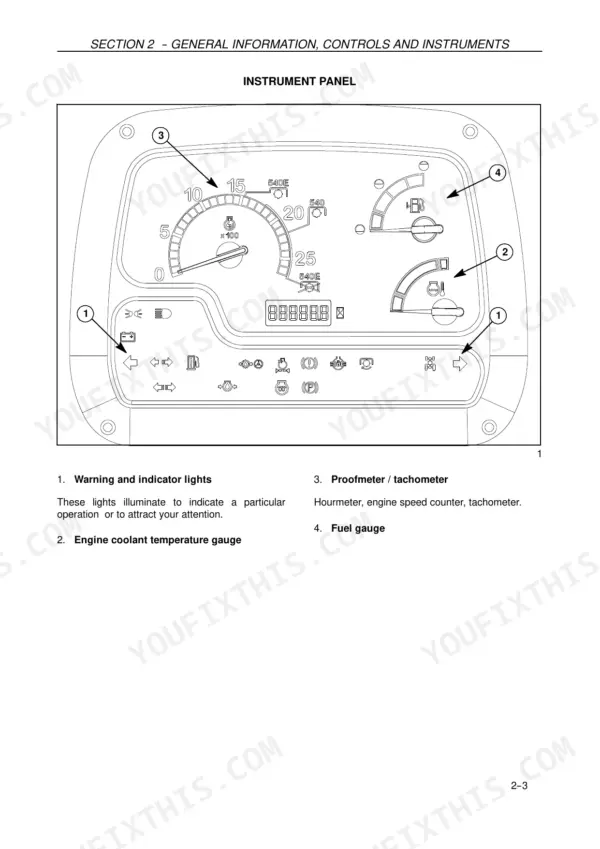

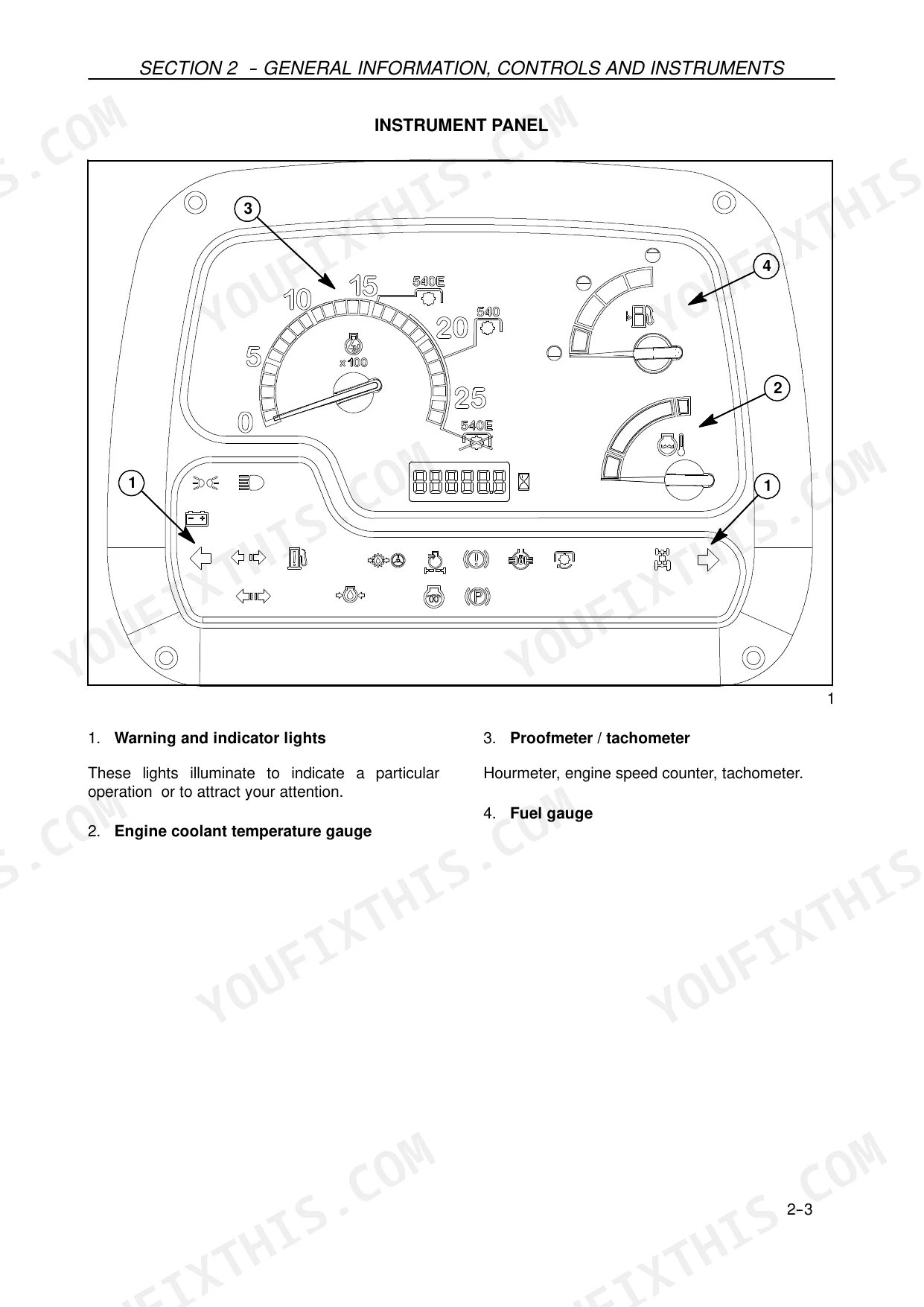

| General Information, Controls and Instruments | 37-62 | Safety Covers and Guards, Controls and Instruments, Instrument Panel, Instrument Console Controls, Right-Hand Side Operating Controls, Left-Hand Side Operating Controls, Seats |

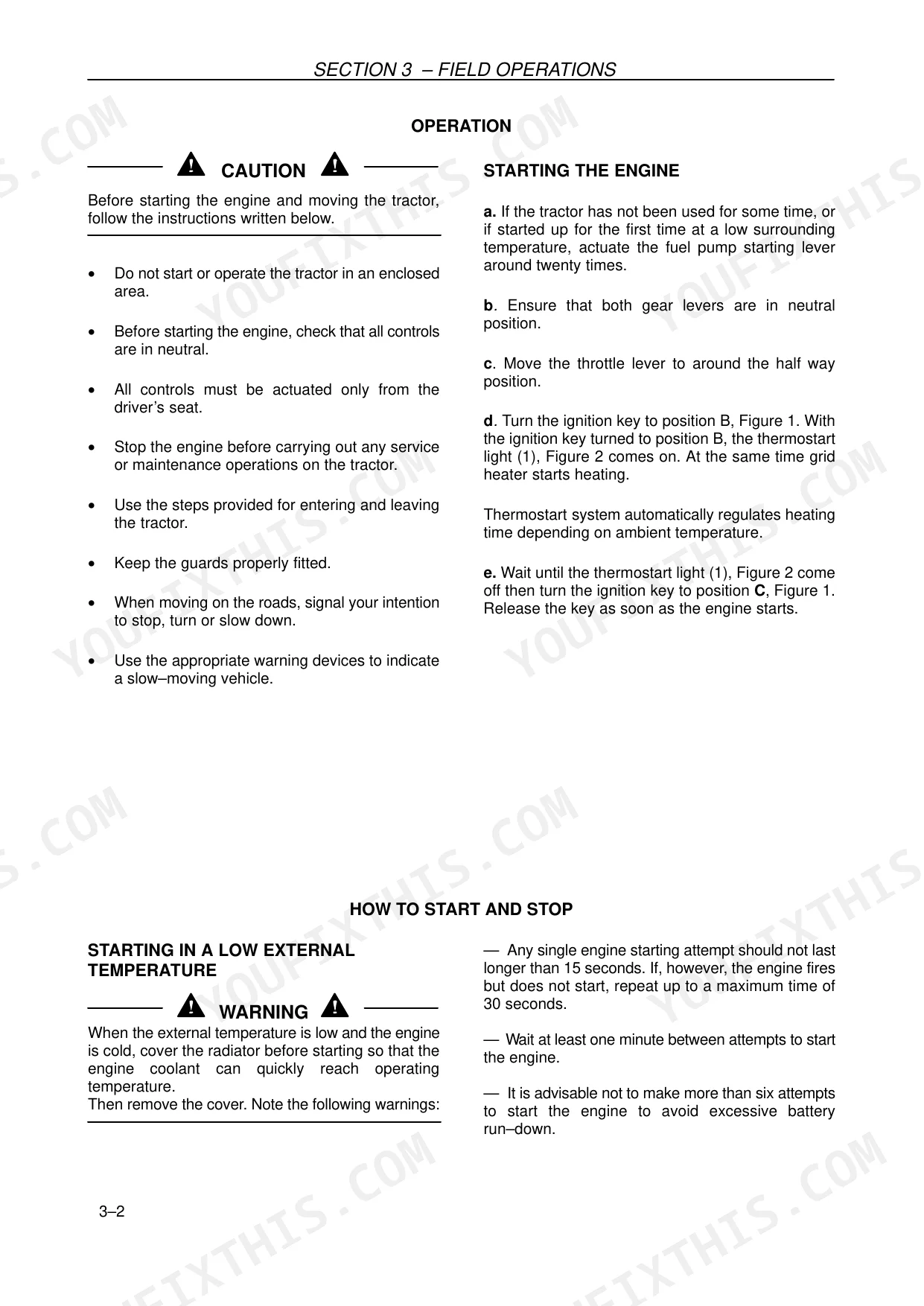

| Field Operations | 63-104 | Starting the Engine with Thermostart, Power Take-Off, Hydraulic Lift, Three-Point Linkage Cat. II, Remote Control Valves, Wheel Track Adjustment, Tires, Tire Combinations |

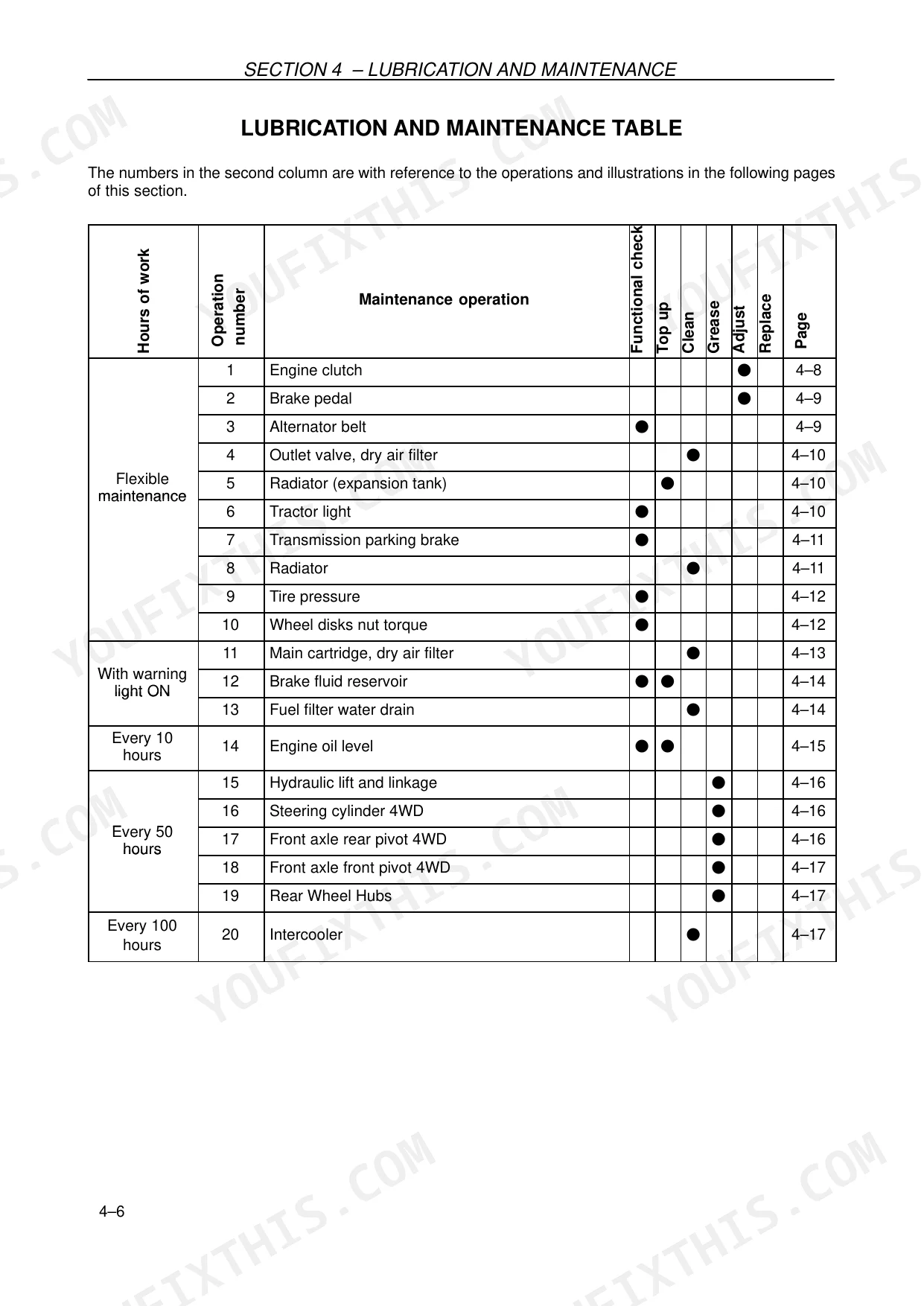

| Lubrication and Maintenance | 105-144 | Access for Inspection and Maintenance, Lubrication and Maintenance Table, Flexible Maintenance, When the Warning Light Is on, 10-Hour / Daily Service, 50-Hour Service |

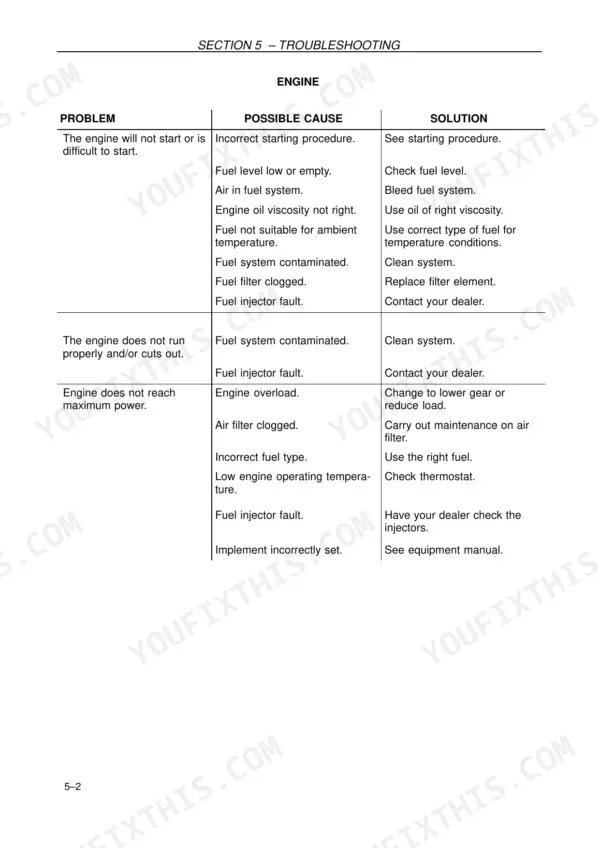

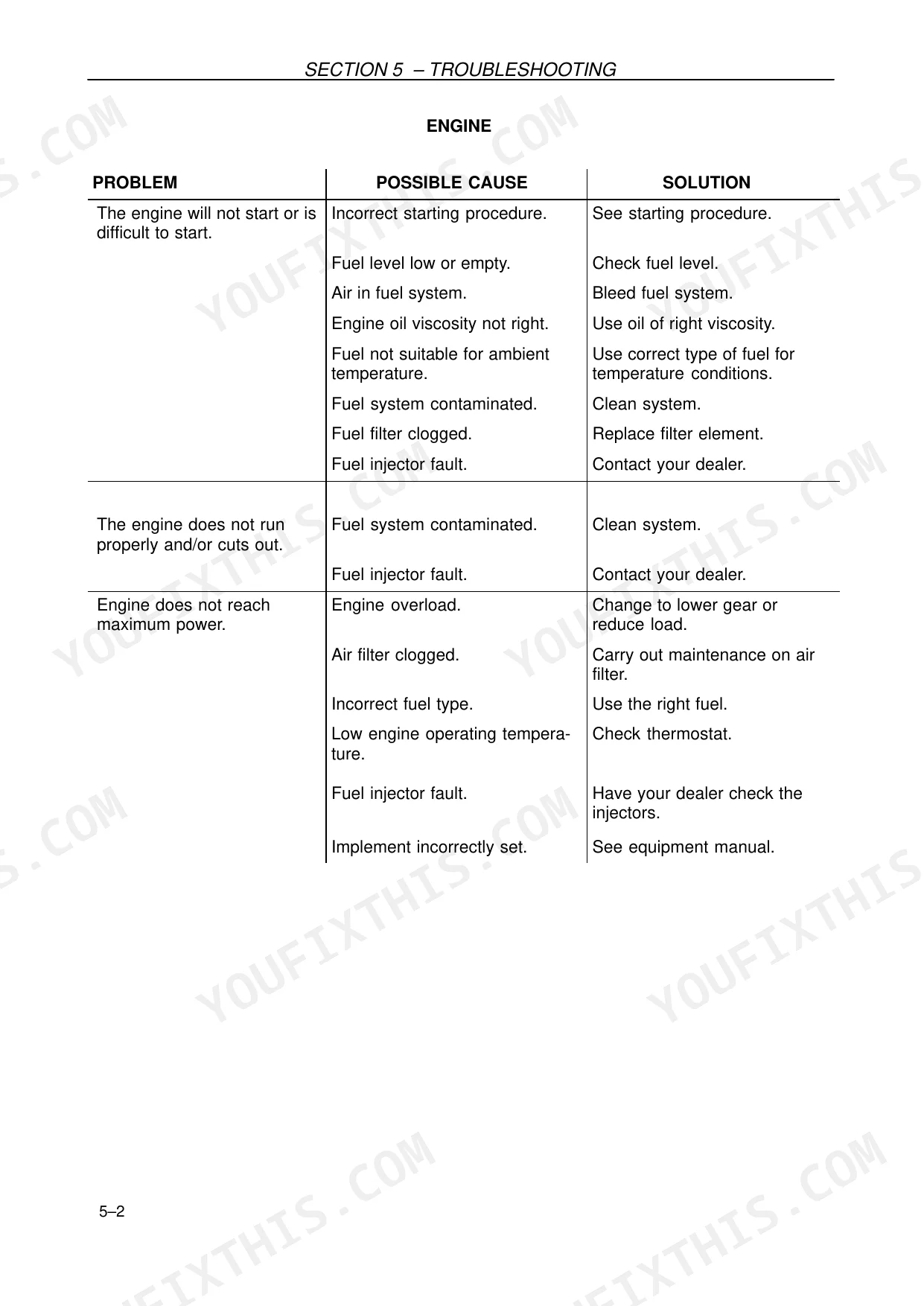

| Troubleshooting | 145-152 | Introduction, Engine, Electrical System, Hydraulic System, Three-Point Linkage, Brakes |
| Vehicle Storage | 153-154 | Engine Oil, Air Filter, Cooling System, Battery, Fuel Tank, Tire Pressure |
| Accessories | 155-162 | Beacon Lamp, Drawbars and Towing Attachments |

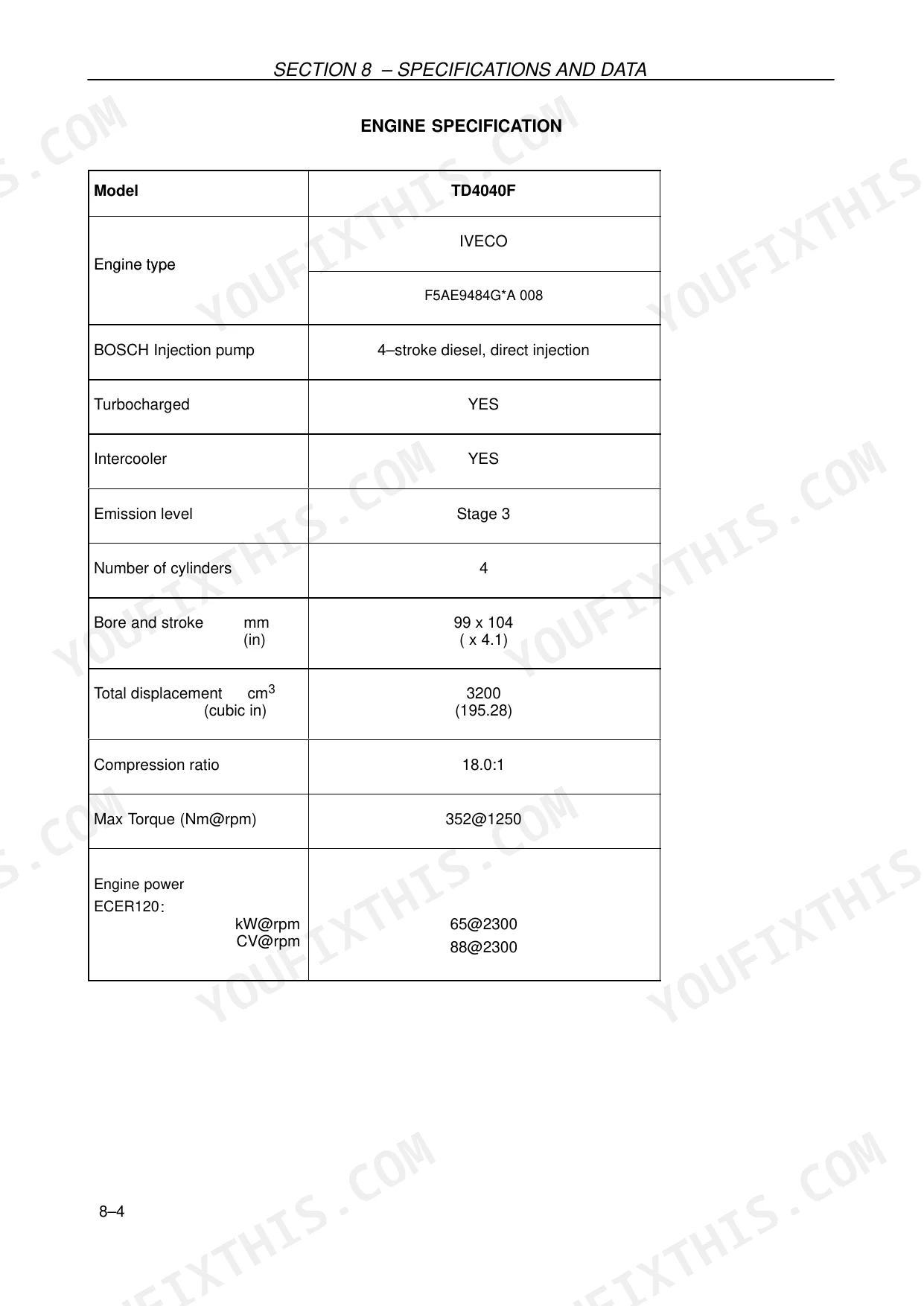

| Specifications and Data | 163-174 | Weights, Engine Specifications, Timing, Fuel System, Lubrication, Cooling System, Transmission, Power Take-Off |
| First 50-Hour Service Forms | 175-178 | Tire Pressure, Air Filter, Fuel Filter, Hydraulic Oil Filter, Lubrication Fittings, Wheel Nuts |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Towing speed limit | 8 km/h (5 mph) | p. 61 |
| Hydraulic lift pressure relief valve calibration | 2755 psi | p. 169 |
| Front wheels 4WD hub disc locknuts torque | 255 Nm (187.98 lb.ft) | p. 89 |
| Front wheels 4WD rim disc locknuts torque | 216 Nm (159.06 lb.ft) | p. 89 |
| Front axle hub disc locknuts tightening torque | 255 Nm | p. 89 |
| Front axle rim disc locknuts tightening torque | 216 Nm | p. 89 |
| Rear axle hub disc locknuts tightening torque | 255 Nm | p. 89 |
| Rear axle rim disc locknuts tightening torque | 245 Nm | p. 89 |
| Inlet valve clearance (engine cold) | 0.25 ± 0.05 mm | p. 167 |
| Exhaust valve clearance (engine cold) | 0.50 ± 0.05 mm | p. 167 |
New Holland TD4040F Common Problems This Manual Covers
Wheel nuts work loose after track changes
Track width changes and ballast swaps mean the wheels come off and go back on more often than owners expect, and nuts that were never brought up to spec back off in the field. Field Operations gives the 4WD figures: 255 Nm on the front and rear hub disc locknuts, 216 Nm on the front rim disc locknuts and 245 Nm on the rear rim disc locknuts.
Manual Section: Field Operations p. 89Mounted implement settles overnight
A three-point linkage that will not hold position, or an implement found sitting on the ground in the morning, sends people to the pump when the fault is usually in the linkage or its controls. The Troubleshooting section works through hydraulic system and three-point linkage symptoms in order before you open anything.
Manual Section: Troubleshooting p. 145Top-end clatter on a cold start
Valve clearances drift after a hard season, and the noise shows up cold before the engine warms and quiets down. Specifications and Data lists the cold settings for the F5AE9484G*A 008: 0.25 plus or minus 0.05 mm inlet and 0.50 plus or minus 0.05 mm exhaust.
Manual Section: Specifications and Data p. 167Lift slow or stalling with heavy implements
When the hydraulic lift crawls up with a loaded implement or stops partway, the relief setting is worth checking against the factory figure before anyone strips the housing. Specifications and Data gives the hydraulic lift pressure relief valve calibration as 2755 psi.
Manual Section: Specifications and Data p. 169PTO will not drive under load
An implement that will not turn, or that stops the moment it loads up, gets blamed on the clutch when the engagement sequence, the correct shaft, or a guard interlock is often what is actually wrong. Field Operations covers power take-off operation step by step.
Manual Section: Field Operations p. 63Tractor stops pulling in dusty conditions
Field dust packs the air filter and fuel filter long before the calendar says to touch them, and the first symptom is a tractor that simply will not pull the way it did last week. Lubrication and Maintenance covers access for inspection, the maintenance table, and what to do when the warning light is on.
Manual Section: Lubrication and Maintenance p. 105Transmission damage while towing home
Dragging a dead tractor back to the yard too quickly is how a repair bill doubles before the machine reaches the shop. The General Information, Controls and Instruments section covers towing the tractor and sets the limit at 8 km/h (5 mph).
Manual Section: General Information, Controls and Instruments p. 61Frequently Asked Questions
Which tractor and engine does this operator manual cover?
It is the New Holland TD4040F tractor operator manual, publication 47518911, written for the machine with the F5AE9484G*A 008 diesel. Coverage runs from tractor identification and controls through field operations, lubrication and maintenance, troubleshooting, storage, accessories and specifications. It is an operator manual rather than a workshop overhaul manual.
What are the wheel nut torque specs for a TD4040F?
For 4WD wheels the manual specifies 255 Nm on both the front and rear hub disc locknuts, 216 Nm on the front rim disc locknuts and 245 Nm on the rear rim disc locknuts. The figures sit with the wheel track adjustment material in the Field Operations section. p. 89
Is there a troubleshooting section for faults?
Yes. The Troubleshooting section runs symptom and cause lists for the engine, electrical system, hydraulic system, three-point linkage and brakes, so you can narrow a fault down in the shop instead of guessing at parts or waiting on the dealer. p. 145
Does it give the service intervals and maintenance checks?
The Lubrication and Maintenance section holds the lubrication and maintenance table, flexible maintenance, daily checks, the longer service intervals and what to do when the warning light is on. The First 50-Hour Service Forms at the back give you sheets to record the work on. p. 105
Do I get instant access to this New Holland TD4040F Operator Manual?
Instant PDF download. You get the full 184-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
Am I able to print pages from this New Holland TD4040F manual?
Printing is allowed without restriction. Pull the pages you need for the job and bin them when they get greasy.
