Looking for the factory repair procedures for your tractor? This 335-page Yanmar EG907 technical manual pdf (OEM #EG907HMT 05/2008) breaks down every mechanical and electrical system on the EG907 and EG907HMT models. You get complete electrical wiring diagrams, full hydraulic circuit routing for the HMT transmission, and step-by-step problem diagnosis for the Universal Flat Operation setup. Open up the troubleshooting section to decode display lamp errors and trace HVAC faults before you ever tear into the cab. Verify your battery fluid upper limit sits at exactly 28 mm, and confirm you swap out the 123907-55800 fuel filter element right at the 300-hour mark. Stop relying on internet guesswork when your transmission acts up. Download this bookmarked file, pull it up on your shop tablet, and get the right factory numbers on the very first try.
What's Inside This Yanmar EG907, EG907HMT Manual
| System | Pages | Key Topics |
|---|---|---|

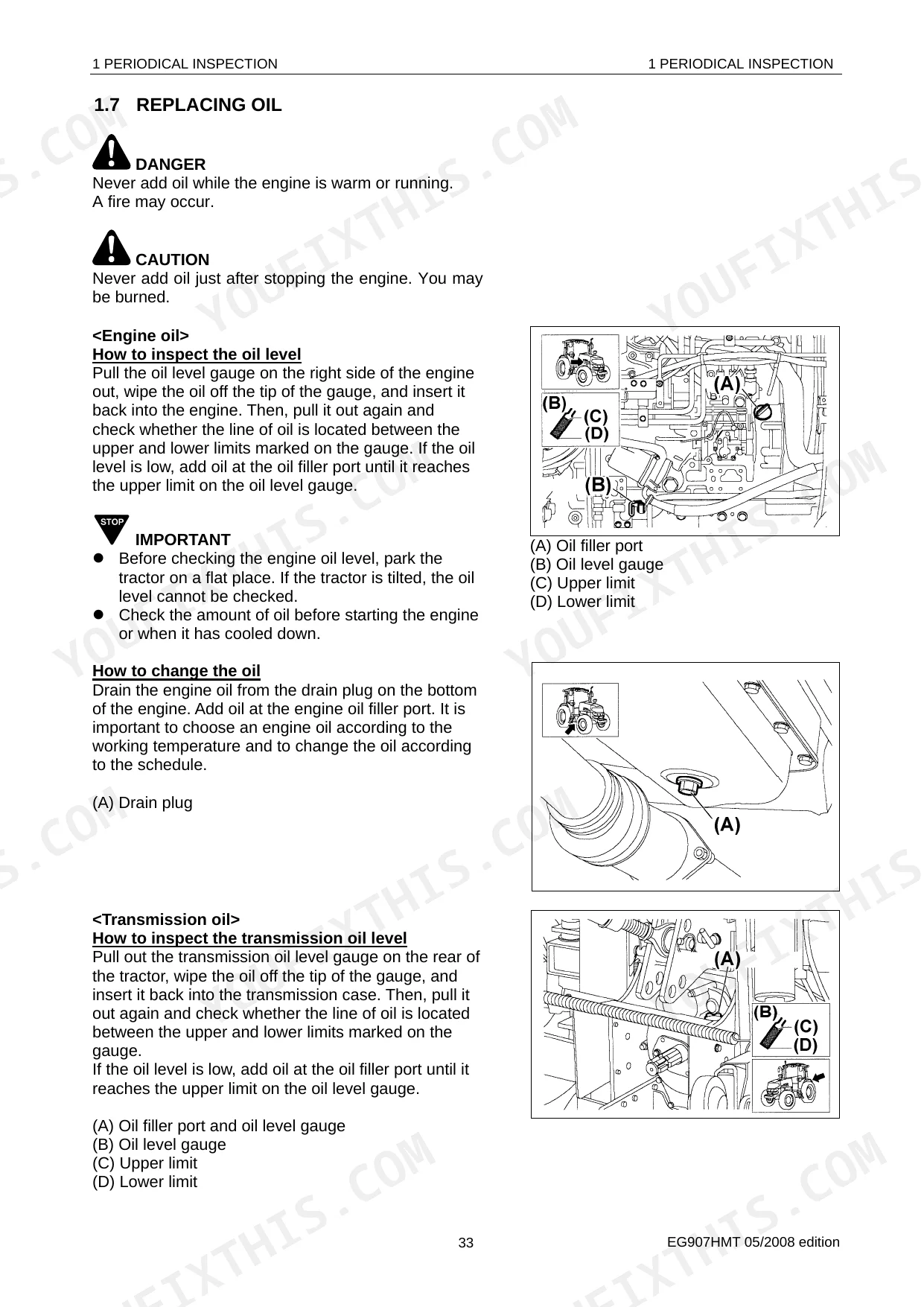

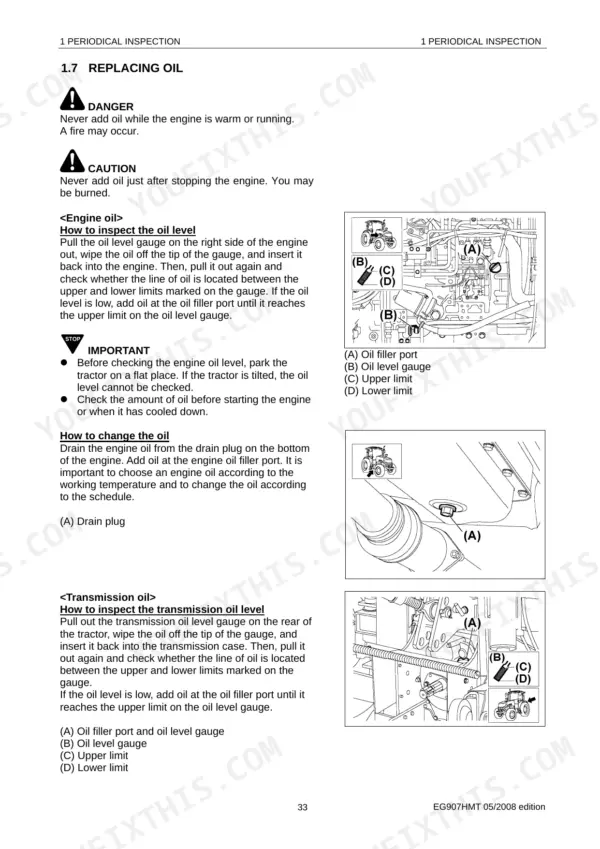

| Periodical Inspection | 35-57 | Check Intervals, Oil and Grease, Oil and Water Volume, Replacing Oil, Replacing Respective Elements, Removing Water From Water Separator |
| Rough Disassembly of Components | 58-94 | Engine Bonnet Cover, Fender, Clutch Housing, Transmission Removal, Rear Axle, PTO Module |

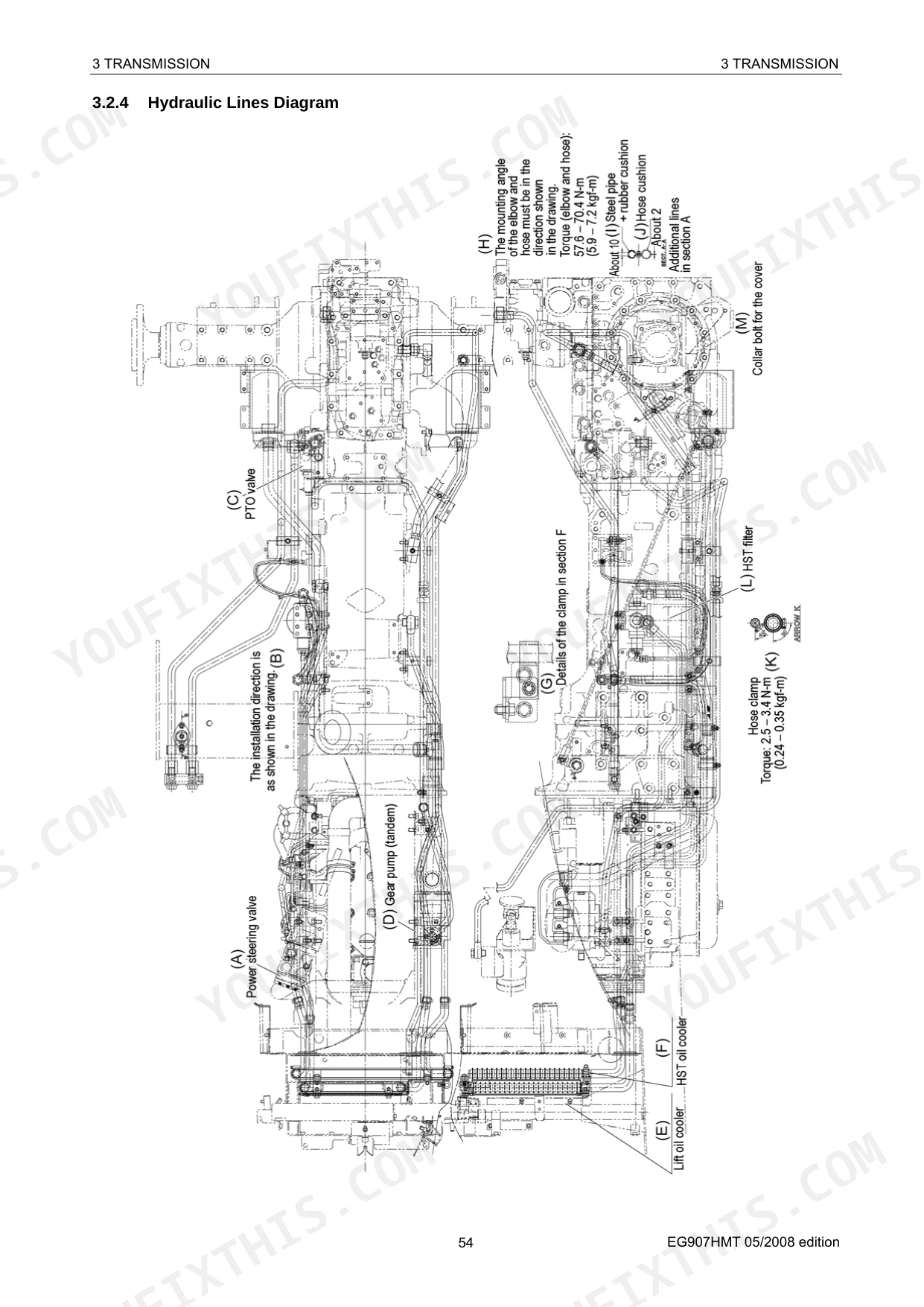

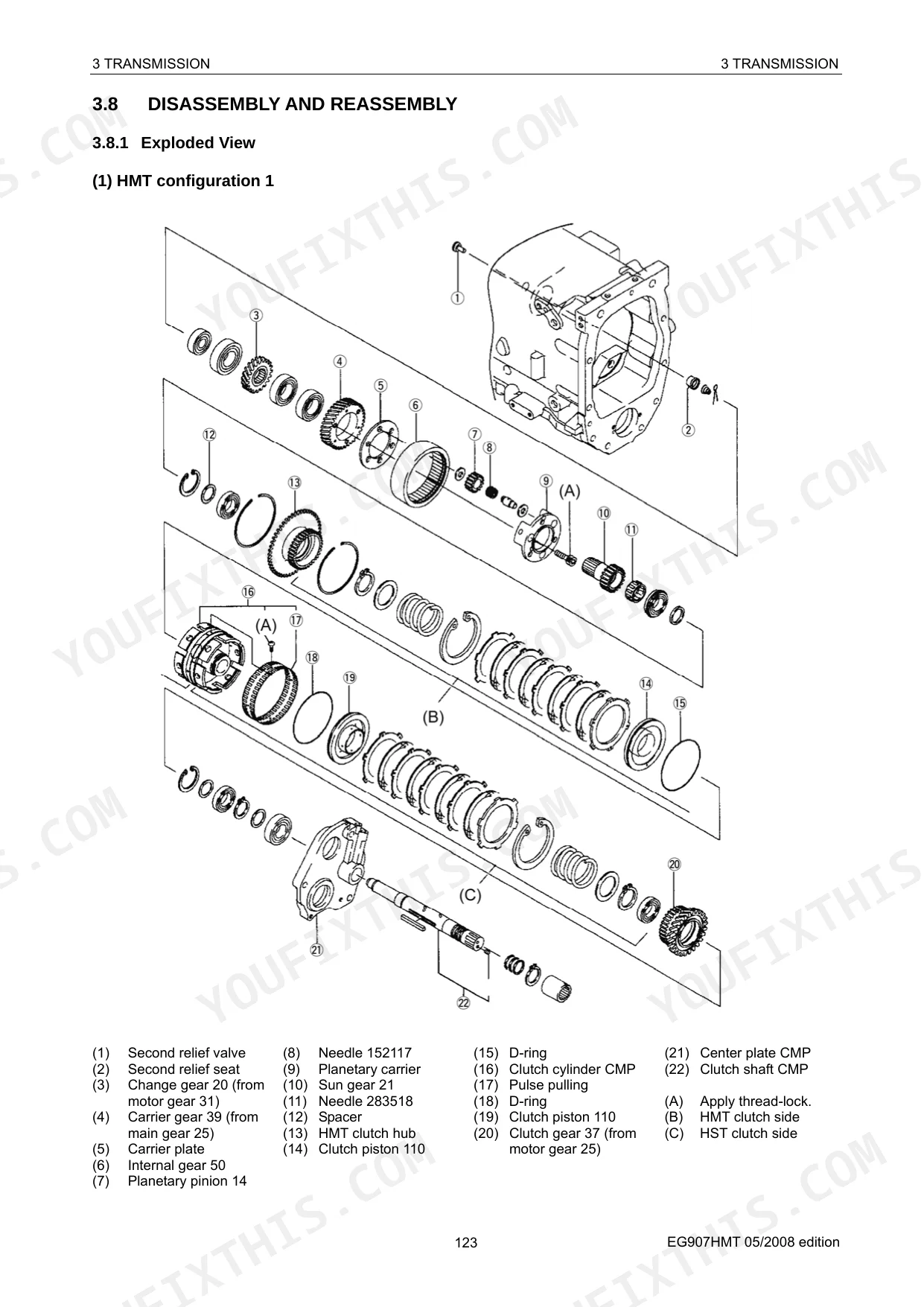

| Transmission | 95-181 | Hmt Mechanism, Power Transmission Diagram, Hydraulic Lines Diagram, Hydraulic Circuit Diagram, Damper Disc, HST Proportional Valves, Hmt Clutch Solenoids |

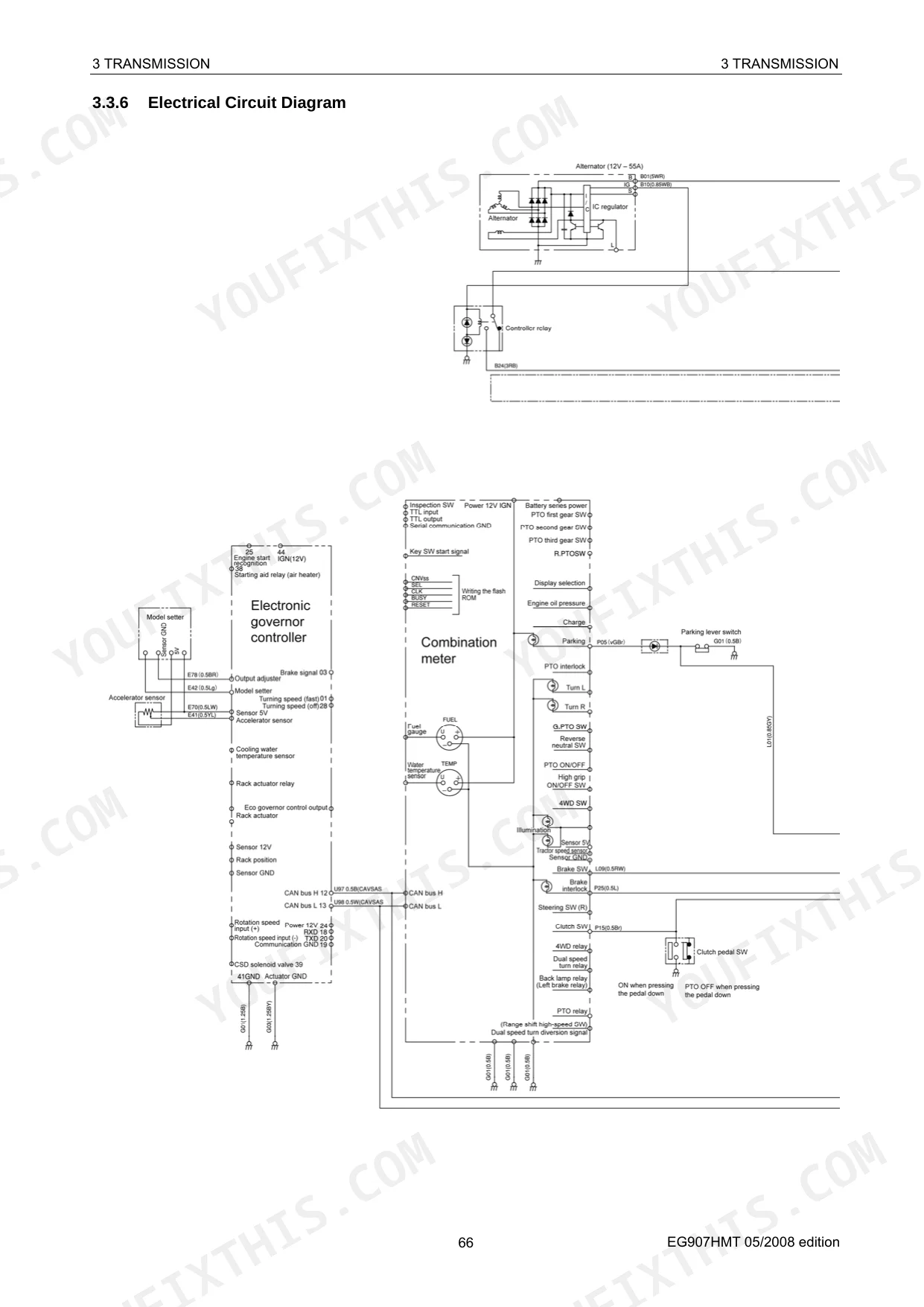

| Electric Equipment | 182-208 | Instrument Panel, Outline, Operating Message and Status Display Function, Maintenance Function, Initial Setting, Sensor Tester Function, Error Message Function, Electrical Circuit |
| Universal Flat Operation | 209-230 | Outline, Universal Flat Operation Functions, Electric Control Components |
| Hydraulic Control Components | 231-274 | Positions of the Components, Functions and Operations of the Components, Control Outline, Position Control, Auto Rotary Control, Load Control, Depth + Load Control |
| Air Conditioner | 275-329 | Outline of the Air Conditioner, Outline, Operation and Handling, Supply Openings and Operating Section, Description of the Operating Section, Operating Procedure, How to Use the Air Conditioner, And Precautions |
| Appendixes | 330-335 | Electrical Component Positions, Air Conditioning Lines, Cabin |
Quick Reference Specifications

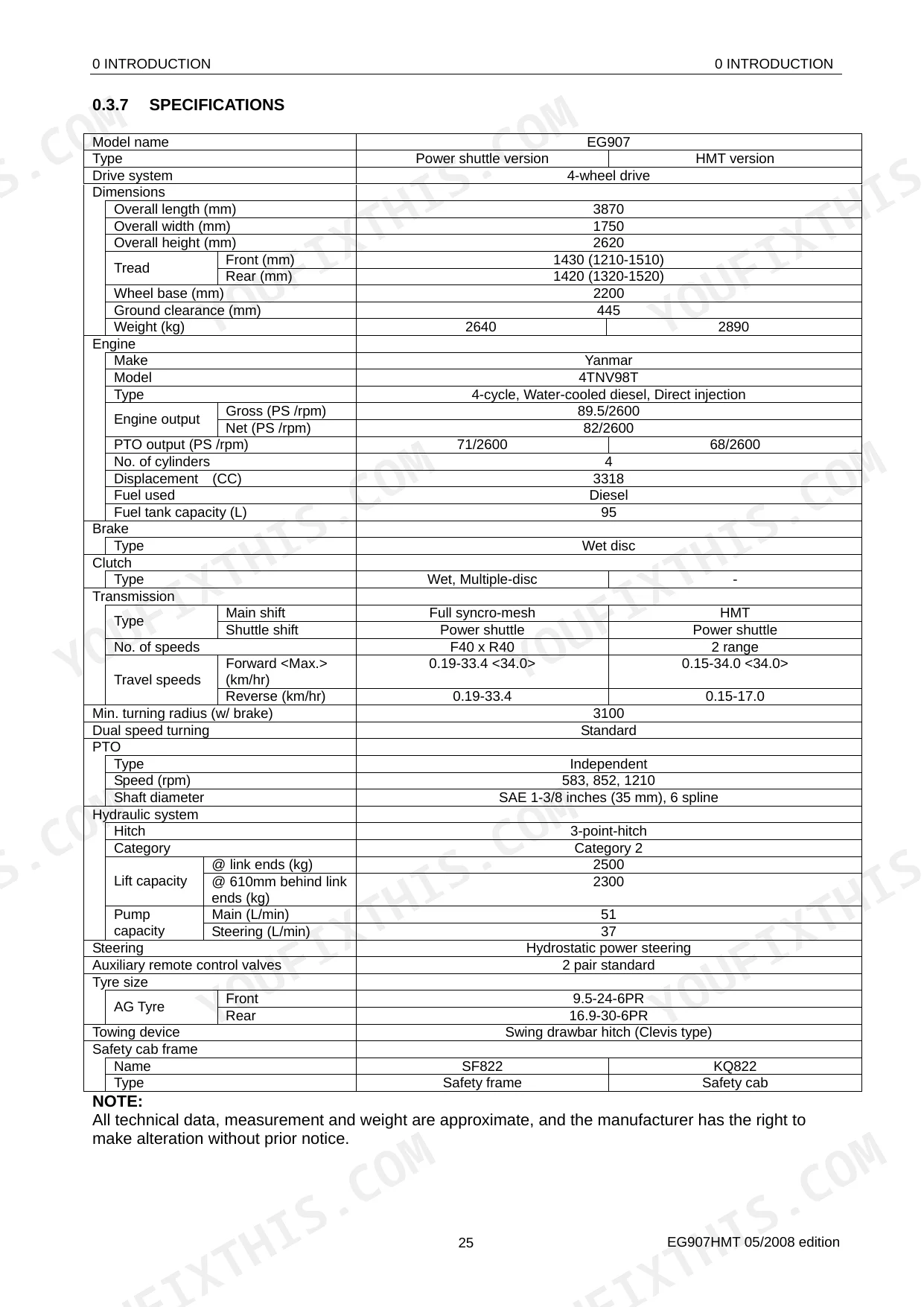

| Specification | Value | Page |
|---|---|---|
| Fuel filter element replacement interval | every 300 hours | p. 44 |
| Fuel filter element part code | 123907-55800 | p. 44 |
| Air cleaner element cleaning interval | every 50 hours | p. 47 |
| Air cleaner element replacement interval | every 300 hours or once a year | p. 37 |
| Battery fluid upper limit | Approx. 28 mm | p. 49 |
| Specified battery part code | 198450-51510 | p. 49 |
| Slow blow fuse rating (Starter motor) | 80A | p. 26 |
| Radiator screen cleaning frequency | before and after work each day | p. 47 |
| Radiator cooling water capacity | 7.7 (8.2) L | p. 38 |
| Sub tank cooling water capacity | 1.38 L | p. 38 |
| Transmission oil capacity | 39.0 L | p. 38 |
| Transmission and Hydraulic system oil type | Yanmar TF-500 Transmission fluid or equivalent | p. 38 |
Yanmar EG907, EG907HMT Common Problems This Manual Covers
Yanmar EG907 transmission will not engage forward or reverse gears after operating in heavy mud

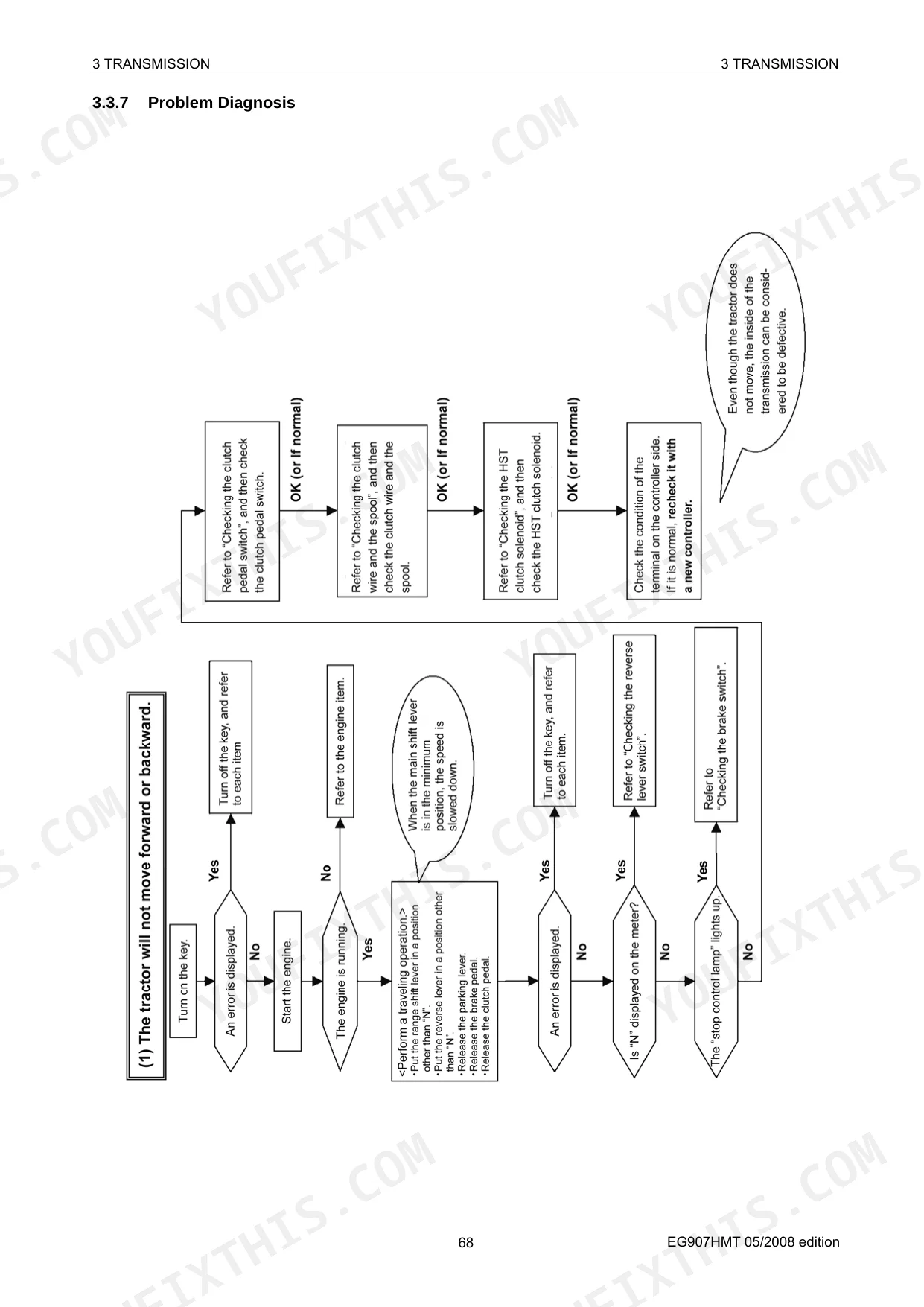

Inspect the HST proportional valves and HMT/HST clutch solenoids. Check the troubleshooting chart for diagnostic steps. Drain the transmission and refill with exactly 39.0 L of Yanmar TF-500 fluid. Clean the exterior components to ensure full linkage movement.
Manual Section: Transmission Problem Diagnosis (General)Engine turns over slowly or clicks repeatedly but will not start during cold weather operation p. 26
Check the battery fluid level and verify it is filled to the upper limit of approx. 28 mm. Inspect the 80A slow blow fuse for the starter motor on page 26. Clean and tighten all battery terminals to ensure a solid electrical connection before replacing the starter solenoid.
Manual Section: 01 Tec-Eg907HmtTemperature gauge spikes into the red zone and engine overheats during continuous field brush cutting p. 289
Remove debris from the radiator screen before and after work each day. Verify the system contains 7.7 L of coolant mixed to a 30 to 50% anti-freeze concentration as detailed on page 289. Inspect the fan belt and adjust tension to achieve 5 - 7 mm of deflection.
Manual Section: 06Tec-Eg907Engine misfires, runs rough, or completely stalls out under heavy load during power takeoff operation p. 44
Replace the fuel filter element every 300 hours as specified on page 44 to prevent restriction. Drain the 95.0 L fuel tank to remove any water or contamination. Bleed air from the fuel lines and verify injector flow before attempting to restart the tractor.
Manual Section: 01 Tec-Eg907HmtFrequently Asked Questions
How do I reset the Yanmar EG907 error codes?
To reset error codes on the Yanmar EG907, access the Error history mode on the LCD instrument panel. Once the error history is displayed, hold down the display select switch for three seconds to delete all recorded error history for the meter and the associated times, as described in the manual.
What does error code mean on a Yanmar EG907?
Error codes on the Yanmar EG907 indicate specific malfunctions within the tractor's systems, such as a broken water sensor wire or a problem with the engine controller. The manual provides a table listing various error messages, their causes, and possible working conditions, with some errors indicated by the number of times a lamp blinks.
How do I clear the alarm on a Yanmar EG907?
Alarms on the Yanmar EG907 typically clear automatically once the underlying problem is resolved, causing the warning display and blinking lamp to go out. For a clogged air cleaner specifically, you can press the sensor release button to reset the sensor after addressing the clogging.
What is the torque spec for Yanmar EG907 cylinder head bolts?

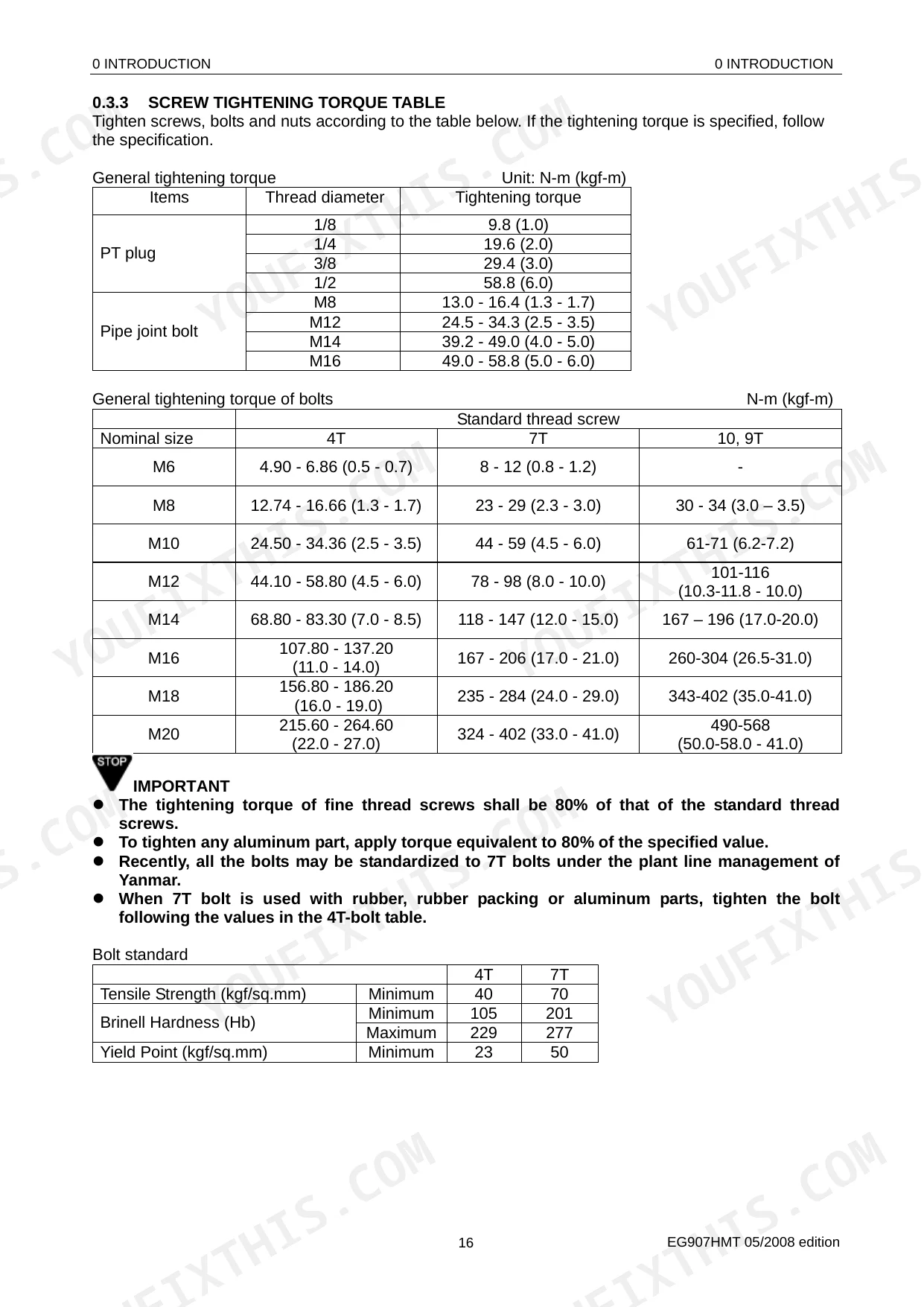

The manual provides general tightening torque specifications for various bolt sizes (e.g., M12 bolts range from 44.10 - 58.80 N-m for 4T to 101-116 N-m for 10, 9T). However, a specific torque value for "cylinder head bolts" is not explicitly listed in the provided "SCREW TIGHTENING TORQUE TABLE".
Is this Yanmar EG907, EG907HMT Technical Manual a digital download?
A 335-page Technical Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Am I able to print pages from this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Are hydraulic system diagrams in this Yanmar EG907, EG907HMT Technical Manual?
Yes, this Yanmar EG907, EG907HMT Technical Manual includes a hydraulic system diagram.
Document Quality
This is a native digital PDF document, allowing you to search and copy text effortlessly thanks to its clear OCR layer. The text throughout is crisp and consistently easy to read. Diagrams and illustrations are a mix of sharp vector graphics and clear photos, with all labels remaining readable. Pages are clean, free from scan artifacts, stains, or skewed content. The document includes section title pages, but no notable blank pages.
