Getting your industrial engine back online starts with this 234-page Yanmar TNV Series electronic control troubleshooting manual, which breaks down diagnostic procedures for the entire TNV series (3TNV82A–4TNV106T). You get complete diagnostic trouble code breakdowns, factory electrical wiring diagrams, and step-by-step testing procedures for tracing analog input failures. Open to the failure indicator flashing patterns or use the factor analysis charts to quickly isolate eco-governor speed fluctuations and black smoke issues without guessing. Verify your speed sensor resistance reads 500 ± 100Ω and check the EGR step motor coil resistance at 15 ± 2Ω before replacing expensive components. Don't waste hours throwing parts at a mysterious fault code. Grab this neatly bookmarked file, jump straight to the correct test procedure on your tablet, and get your equipment running today.
What's Inside This Yanmar TNV Series (3TNV82A–4TNV106T) Manual
| System | Pages | Key Topics |
|---|---|---|
| DTCs (Diagnostic Trouble Codes) General Description | 5-134 | Analog Input Related Failures, Pulse Sensor Related Failures, Contact Output Related Failures, Contact Input Related Failures, Actuators Etc. |
| Method and Procedure of Failure Diagnosis | 135-209 | Description Items, Analog Input Related Failures, Pulse Sensor Related Failures, Contact Output Related Failures, Contact Input Related Failures, Actuator Related Failures |
| Using the Failure Indicator for Failure Diagnosis | 210-211 | Flashing Patterns of the Failure Indicator |
| Factor Analysis | 212-219 | 2G-Type Eco-Governor Speed-Fluctuation Factor Analysis, 2G-Type Eco-Governor Engine Stalling/Start-Up Inability Factor Analysis, 2G-Type Eco-Governor Black Smoke Factor Analysis |
| Special Service Tools | 220 | Compression Gauge Kit |
| Troubleshooting by Measuring Compression Pressure | 221-223 | Compression Pressure Measurement Method, Standard Compression Pressure (Reference Value), Engine Speed and Compression Pressure (Use for Reference) |
| Quick Reference Table for Troubleshooting | 224-230 | Measured Value and Troubleshooting, Failure Diagnostic List |
| Electrical Wiring | 231-234 | - |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Accelerator Sensor Resistance (Sensor A - C) | 5 ± 1.5kΩ | p. 144 |
| Speed Sensor Resistance (Sensors A - B) | 500 ± 100Ω | p. 168 |
| CSD Solenoid Valve Coil Resistance (400W) | 8Ω (at 23°C) | p. 182 |
| EGR Step Motor Coil Resistance | 15 ± 2Ω | p. 187 |
| Rack Actuator Coil Resistance (Coils A - B) | 1Ω ± 10% | p. 197 |
| Compression Pressure Deviation Between Cylinders | 29 - 43 psi (0.2 - 0.3 MPa; 2 - 3 kgf/cm²) | p. 223 |
| 3TNV82A | ||
| Compression Pressure Standard | 443 - 473 psi (3.06 - 3.26 MPa; 30 - 32 kgf/cm²) | p. 223 |
| Compression Pressure Limit | 340 - 370 psi (2.35 - 2.55 MPa; 24 - 26 kgf/cm²) | p. 223 |
| 3TNV84, 4TNV84 | ||
| Compression Pressure Standard | 455 - 485 psi (3.14 - 3.34 MPa; 32 - 34 kgf/cm²) | p. 223 |
| Compression Pressure Limit | 355 - 385 psi (2.45 - 2.65 MPa; 25 - 27 kgf/cm²) | p. 223 |
| 3TNV88, 4TNV88, 4TNV94L, 4TNV98, 4TNV98T, 4TNV106, 4TNV106T | ||
| Compression Pressure Standard | 483 - 513 psi (3.33 - 3.53 MPa; 34 - 36 kgf/cm²) | p. 223 |
| Compression Pressure Limit | 384 - 414 psi (2.65 - 2.85 MPa; 27 - 29 kgf/cm²) | p. 223 |
Yanmar TNV Series (3TNV82A–4TNV106T) Common Problems This Manual Covers
Yanmar 3TNV82A engine cranks but will not start or starts and dies shortly after firing p. 223
Test cylinder compression using the standard values listed on page 223. Verify the readings reach the 443 - 473 psi (3.06 - 3.26 MPa) standard for this model. If pressure drops below the 340 psi limit, inspect the valves and piston rings for excessive wear.
Manual Section: Troubleshooting by Measuring Compression PressureEngine experiences loss of power or blows excessive black smoke under heavy working load p. 187
Inspect the exhaust gas recirculation system for proper operation. Measure the step motor coil resistance across the terminals. Replace the unit if the multimeter reading falls outside the specified 15 ± 2Ω range found on page 187. Clean any carbon buildup from the valve seat.
Manual Section: Contact Output Related FailuresEngine speed fluctuates erratically or drops unexpectedly while operating at constant throttle p. 168
Check the pulse sensor connections for corrosion or loose pins. Measure the speed sensor resistance across terminals A and B. Replace the sensor if the reading deviates from the 500 ± 100Ω specification noted on page 168. Clear any metallic debris from the magnetic pickup.
Manual Section: Pulse Sensor Related FailuresPoor throttle response or lack of acceleration when moving the operator control lever p. 144
Verify the analog input voltage at the main harness connector. Measure the accelerator sensor resistance between pins A and C. Install a new sensor if the reading does not match the 5 ± 1.5kΩ requirement detailed on page 144. Calibrate the new unit before starting.
Manual Section: Analog Input Sensor FailuresFrequently Asked Questions
How do I reset the ECU or fault code on a Yanmar TNV engine?
Many fault codes are automatically reset when the detected condition returns to normal, such as a sensor voltage returning to the normal range (e.g., 0.2 to 4.6[V]) or normal data being received. For ECU internal errors, a diagnostic step involves turning the key switch on/off to recheck the fault indication. If the error persists, rewriting the E-ECU software or replacing the E-ECU may be necessary, as detailed on page 124.
What does the error code mean on a Yanmar 3TNV/4TNV engine?

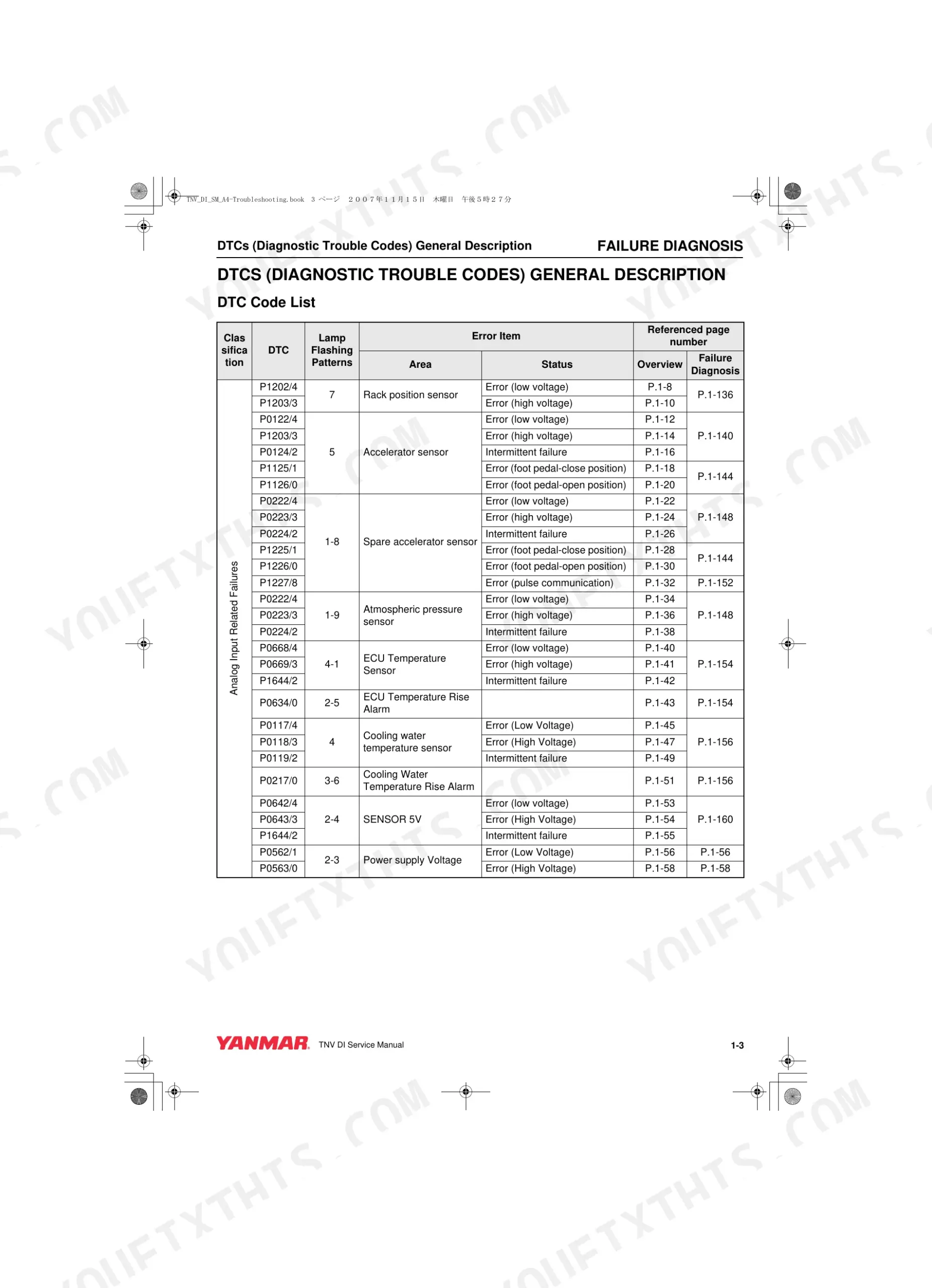

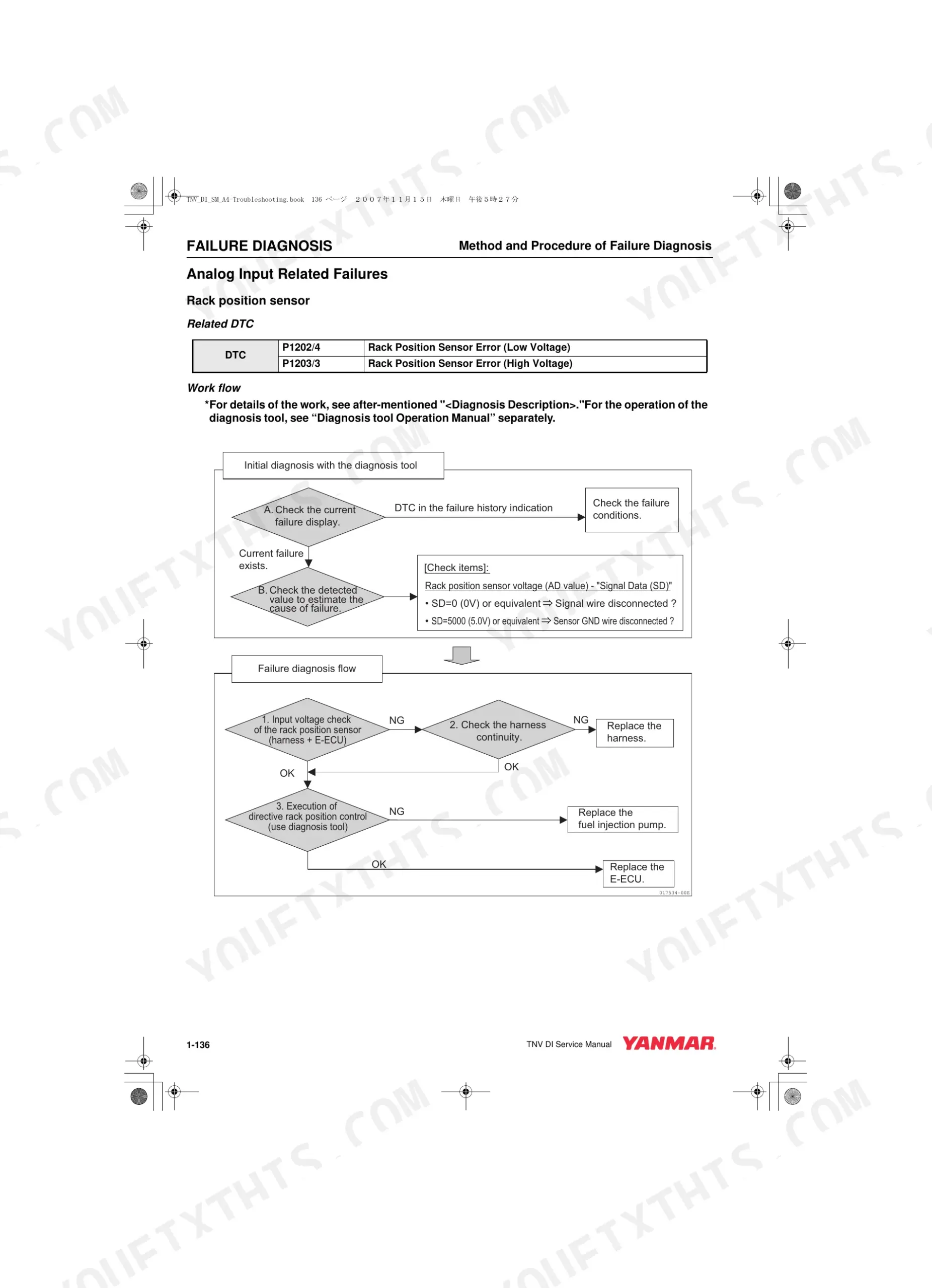

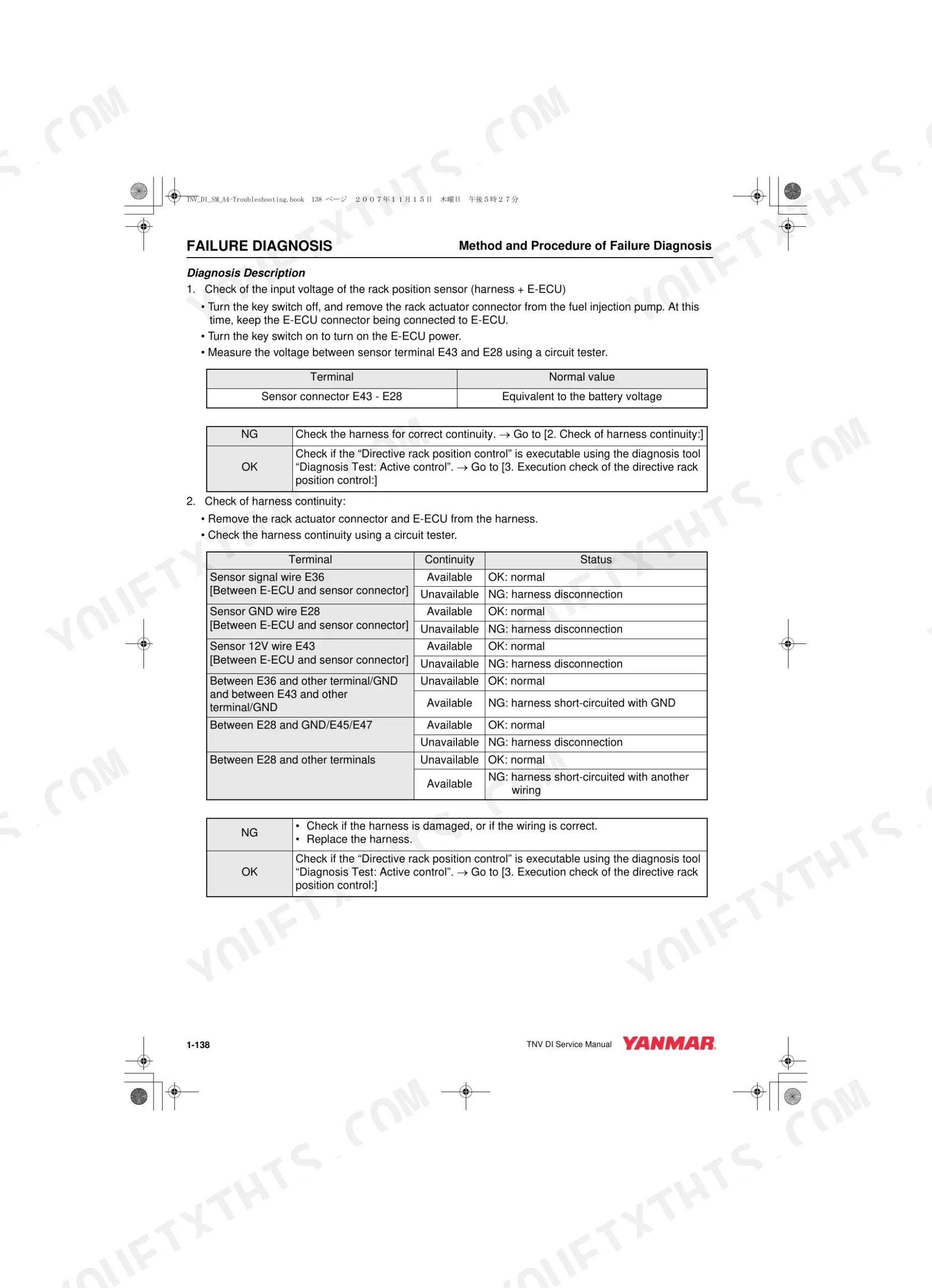

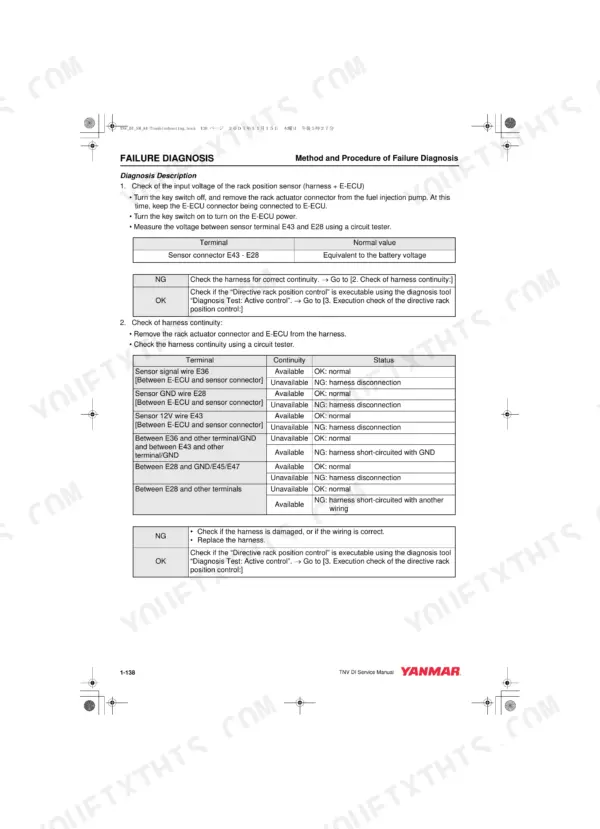

The manual provides a comprehensive list of Diagnostic Trouble Codes (DTCs) and their meanings. For example, DTC P1202/4 indicates a 'Rack position sensor Error (low voltage)', while P0122/4 signifies an 'Accelerator Sensor Error (Low Voltage)'. Each error code is associated with a specific area and status, as listed in the DTC Code List.
How to reset fault codes on Yanmar 3TNV82A
Many fault codes are automatically reset when the detected condition returns to normal, such as a sensor voltage returning to the normal range (e.g., 0.2 to 4.6[V]) or normal data being received. For ECU internal errors, a diagnostic step involves turning the key switch on/off to recheck the fault indication. If the error persists, rewriting the E-ECU software or replacing the E-ECU may be necessary, as detailed on page 124.
How to clear Yanmar engine error code
Many fault codes are automatically reset when the detected condition returns to normal, such as a sensor voltage returning to the normal range (e.g., 0.2 to 4.6[V]) or normal data being received. For ECU internal errors, a diagnostic step involves turning the key switch on/off to recheck the fault indication. If the error persists, rewriting the E-ECU software or replacing the E-ECU may be necessary, as detailed on page 124.
How quickly can I access this manual after buying?
This is a 234-page searchable PDF ready for immediate download. Works on any device, so pull it up on your phone while you're under the hood. No shipping, no waiting.
Can I print specific sections of this manual?
There are no print restrictions. The PDF is DRM-free — print whatever sections you need for the shop. Standard letter or A4 paper works.

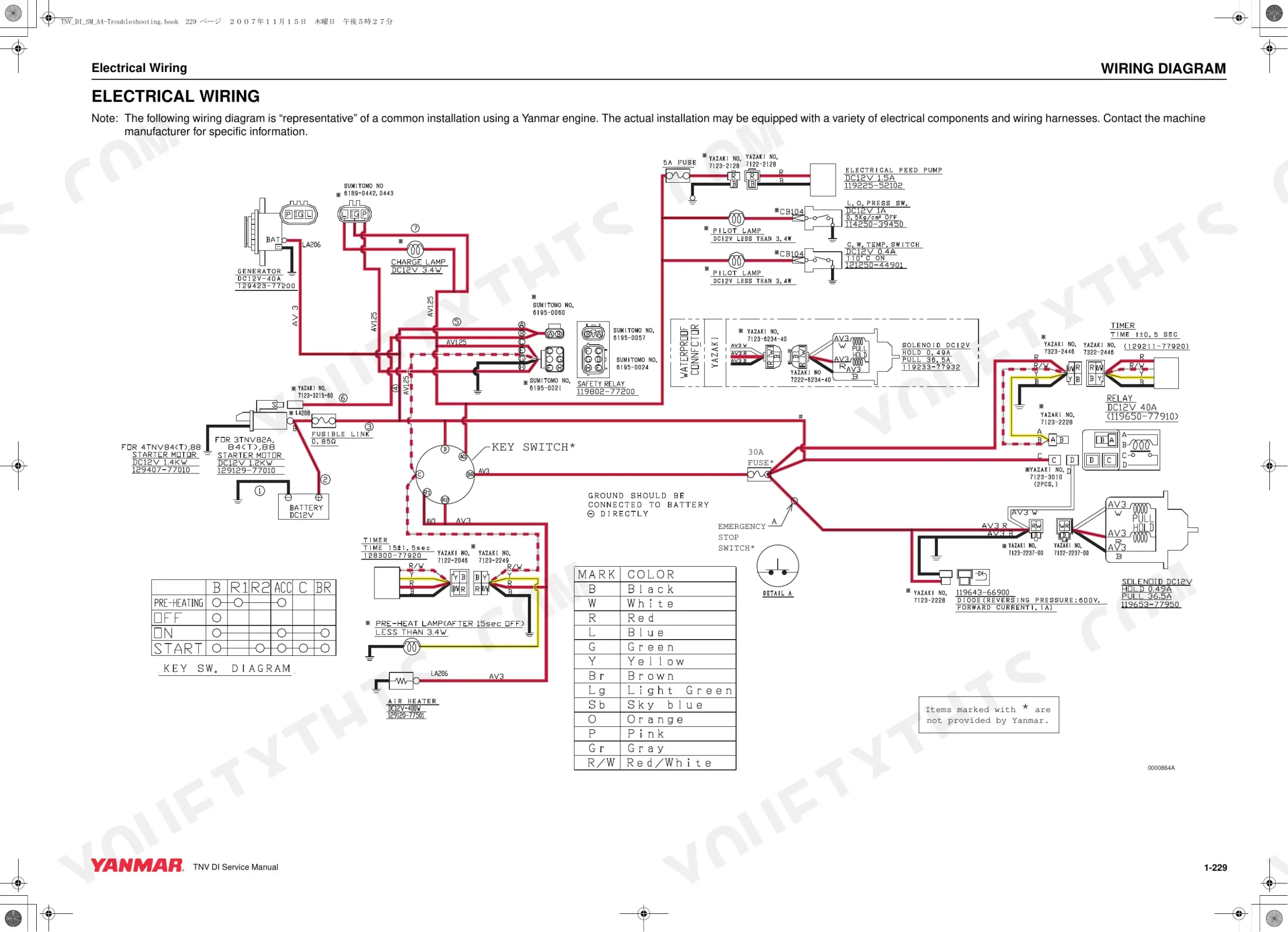

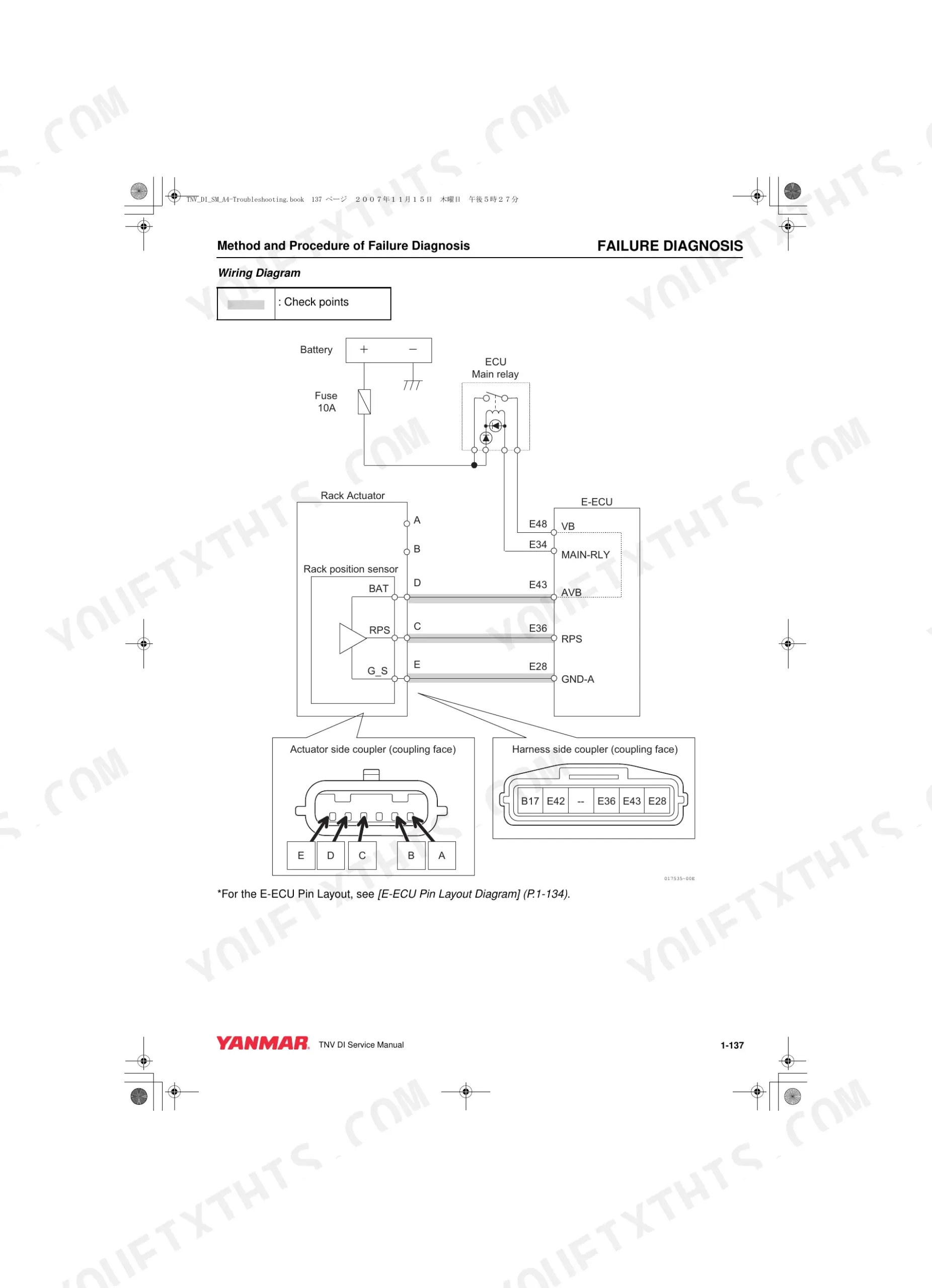

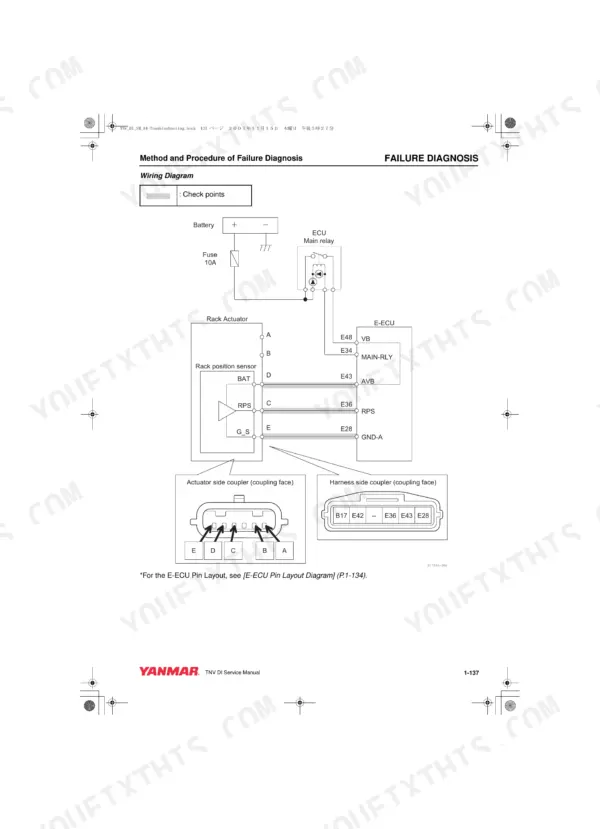

Can I find wiring schematics in this Yanmar 3TNV82A & variants manual?
Included. The Yanmar 3TNV82A & variants Troubleshooting Manual provides a wiring diagram for the electrical system.
