Part of the Hyundai Repair Manuals.
Your Hyundai HL780-9, HL780XTD-9 service manual PDF is here: all 444 pages built around these wheel loaders, from power train and brakes to steering, work equipment, and the complete electrical system. Inside: factory wiring circuits with connector pinouts and component locations, hydraulic schematics for the steering and loader systems, and exploded views backing up step-by-step disassembly and assembly work. You also get error code troubleshooting, operational checks, and tests and adjustments for every system on the machine. Torque the rubber engine mounts to 100 kgf·m, set 1/4-inch flare fittings to 4 kgf·m, and confirm stall speed at 2030 ± 70 rpm. No more chasing electrical gremlins with a multimeter and a prayer. Bookmarked with a real text layer: type in a spec, jump straight to the section, and get your loader back to work.
What's Inside This Hyundai HL780-9, HL780XTD-9 Manual
| System | Pages | Key Topics |
|---|---|---|

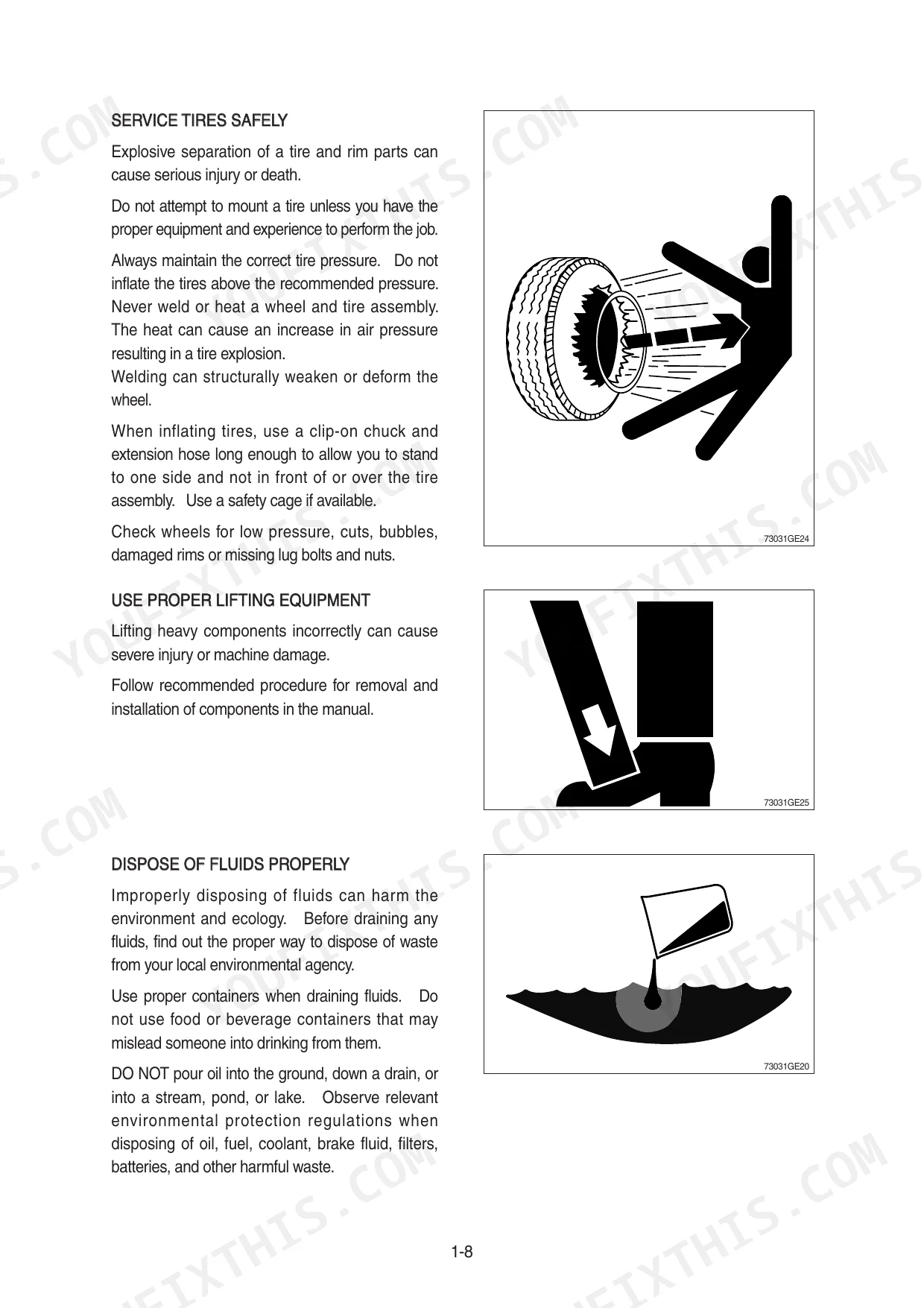

| General | 1-36 | Safety Hints, Specifications, Operational Checkout Record Sheet |
| Engine | 37-52 | Structure and Function, Engine Speed and Stall RPM, Fuel Warmer System |

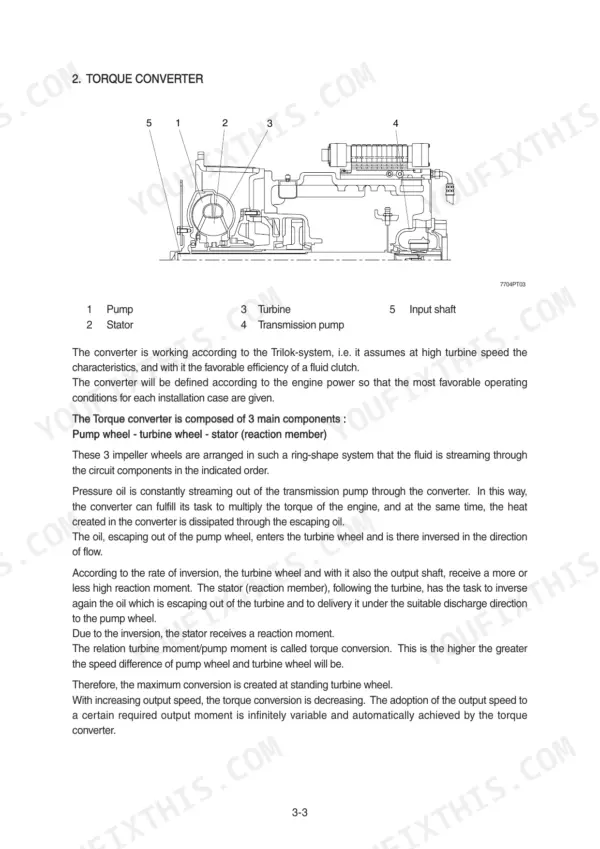

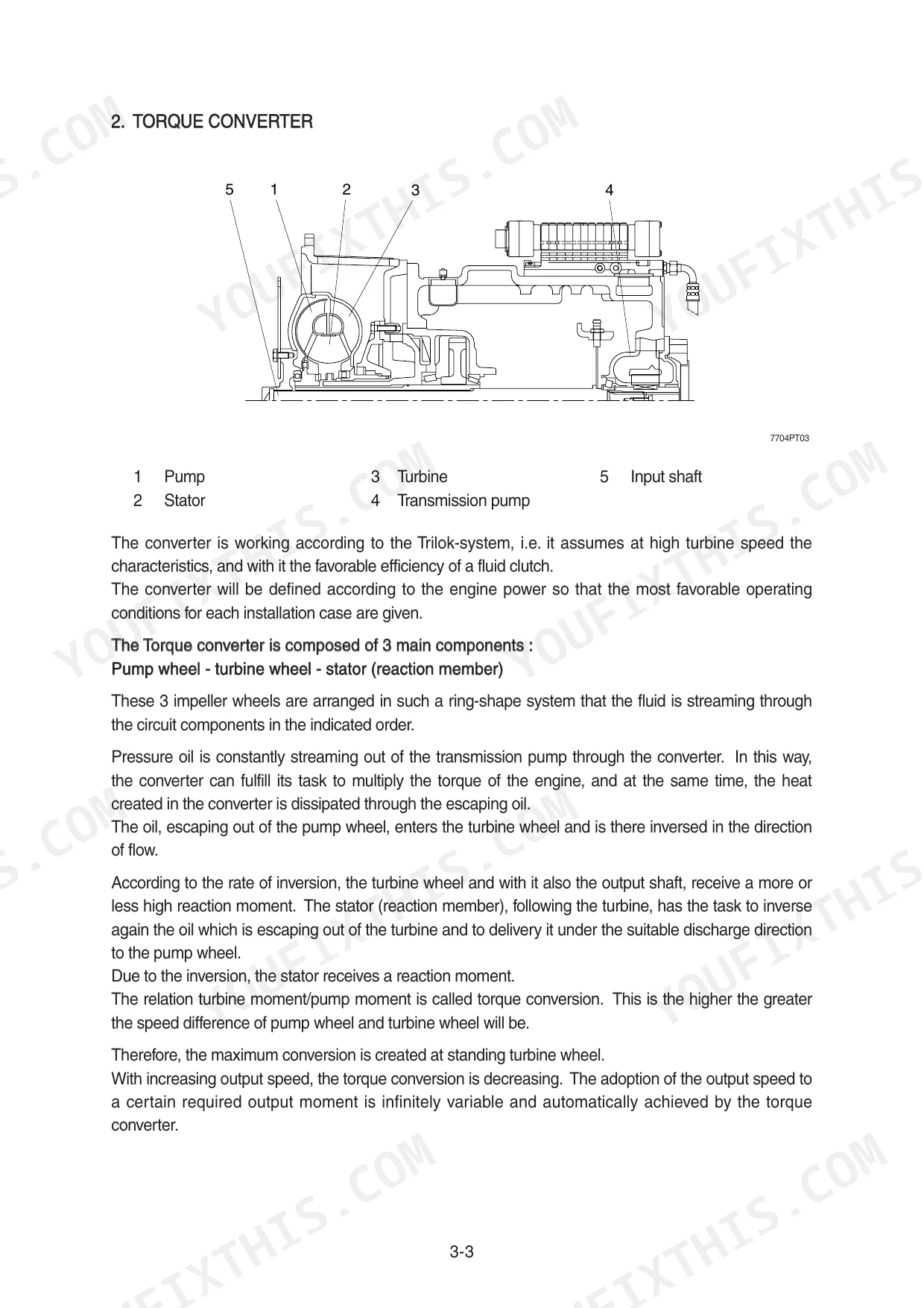

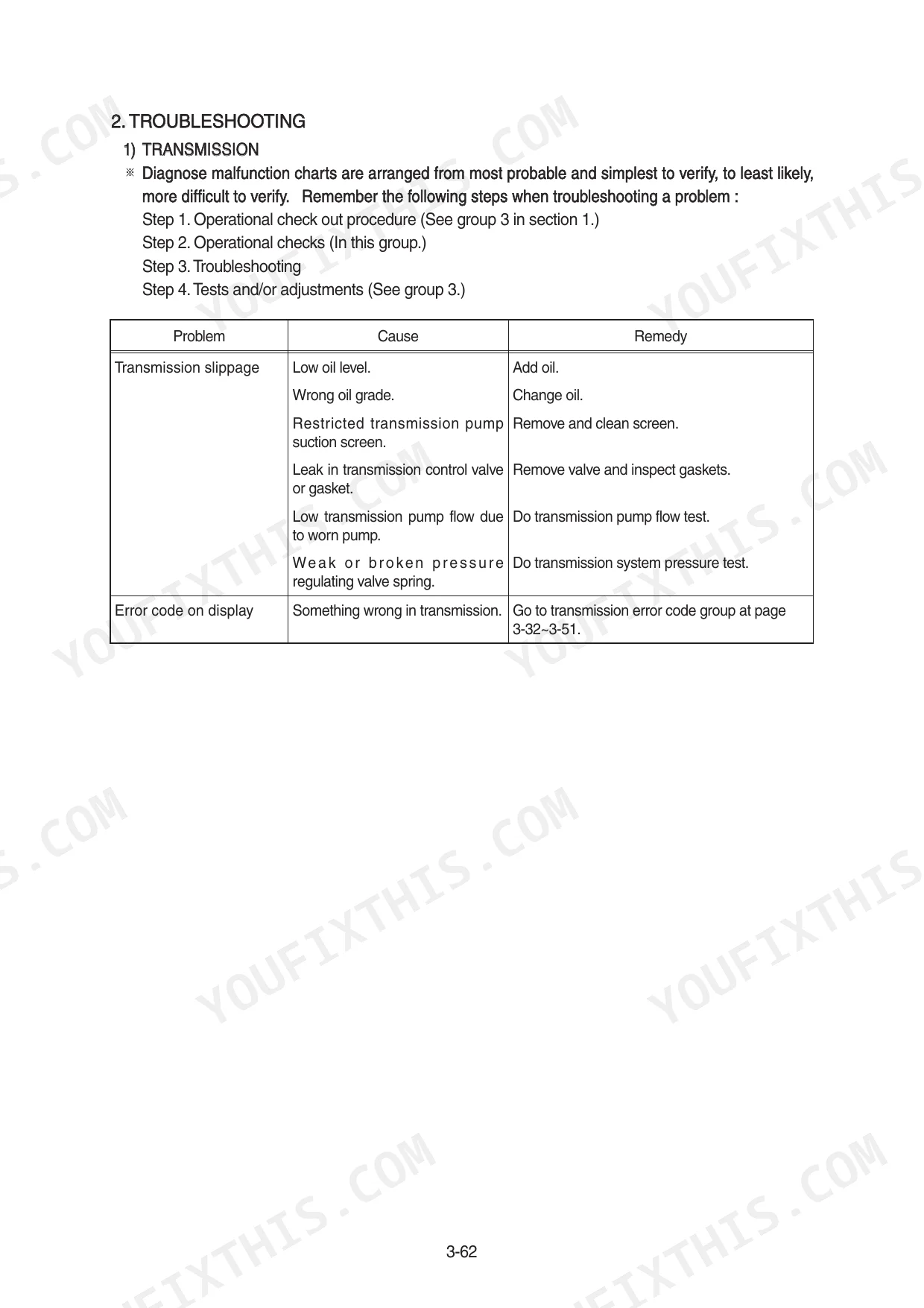

| Power Train System | 53-123 | Structure and Function, Operational Checks and Troubleshooting, Test and Adjustments, Disassembly and Assembly |
| Brake System | 124-170 | Structure and Function, Operational Checks and Troubleshooting, Tests and Adjustments, Disassembly and Assembly |
| Steering System | 171-267 | Structure and Function, Operational Checks and Troubleshooting, Tests and Adjustments, Disassembly and Assembly |
| Work Equipment | 268-357 | Structure and Function, Operational Checks and Troubleshooting, Tests and Adjustments, Disassembly and Assembly |

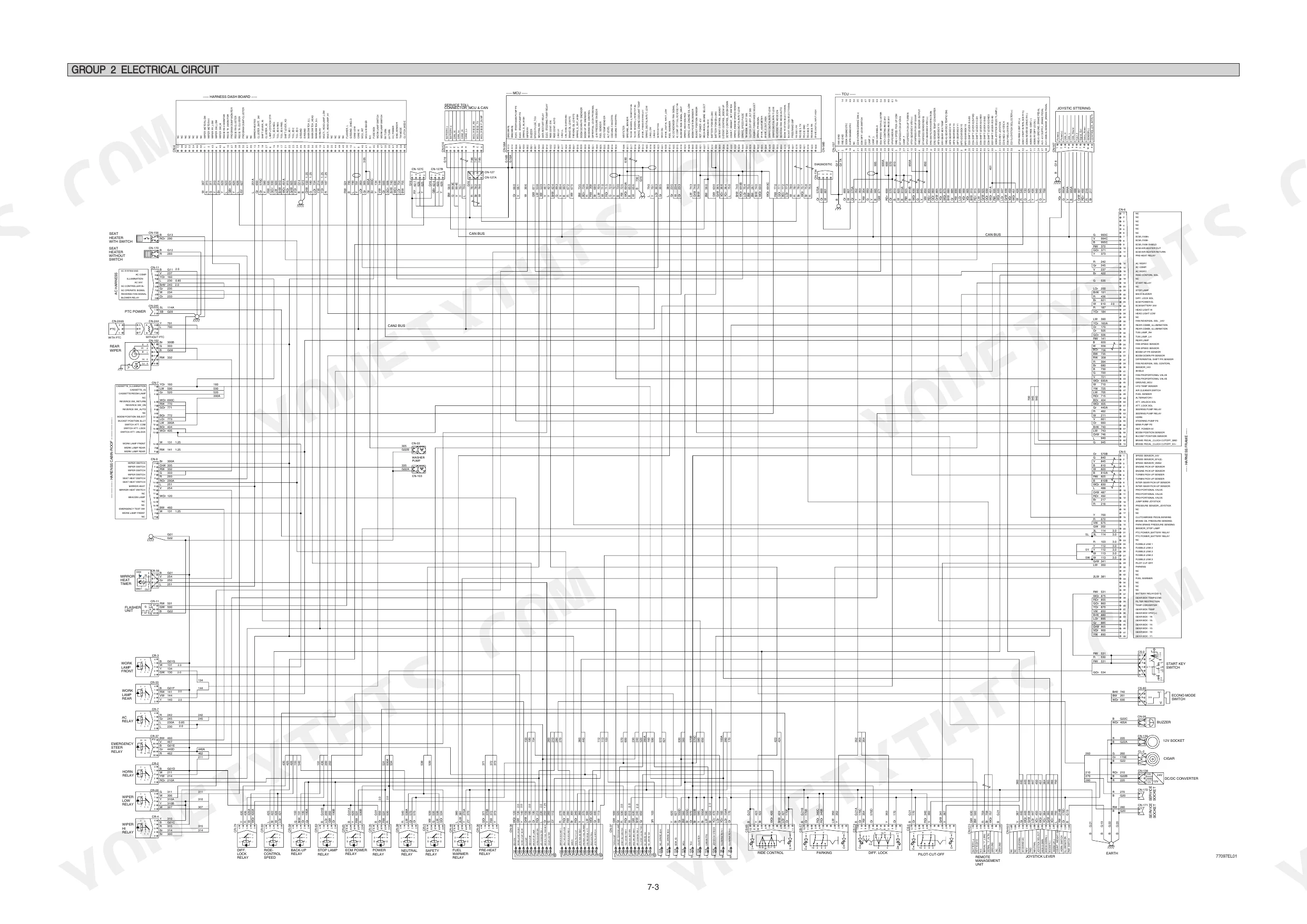

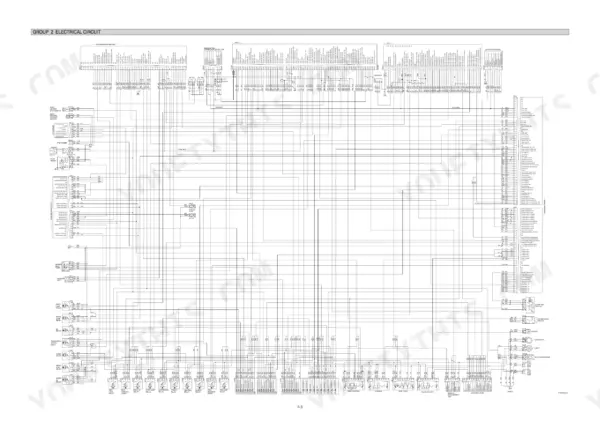

| Electrical System | 358-444 | Component Location, Electrical Circuit, Monitoring System, Electrical Component Specification, Connectors, Troubleshooting |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Engine mounting bolt, nut (rubber, 4EA) | 100 ± 15.0 kgf·m (723 ± 108 lbf·ft) | p. 30 |
| Engine mounting bolt (fly wheel housing, 8EA) | 19.4 ± 3.0 kgf·m (140 ± 21.7 lbf·ft) | p. 30 |
| Pipe and hose (Flare type) 1/4" torque | 4 kgf·m (28.9 lbf·ft) | p. 32 |
| Pipe and hose (Orfs type) 9/16-18 torque | 4 kgf·m (28.9 lbf·ft) | p. 32 |
| Stall rpm | 2030 ± 70 rpm | p. 114 |

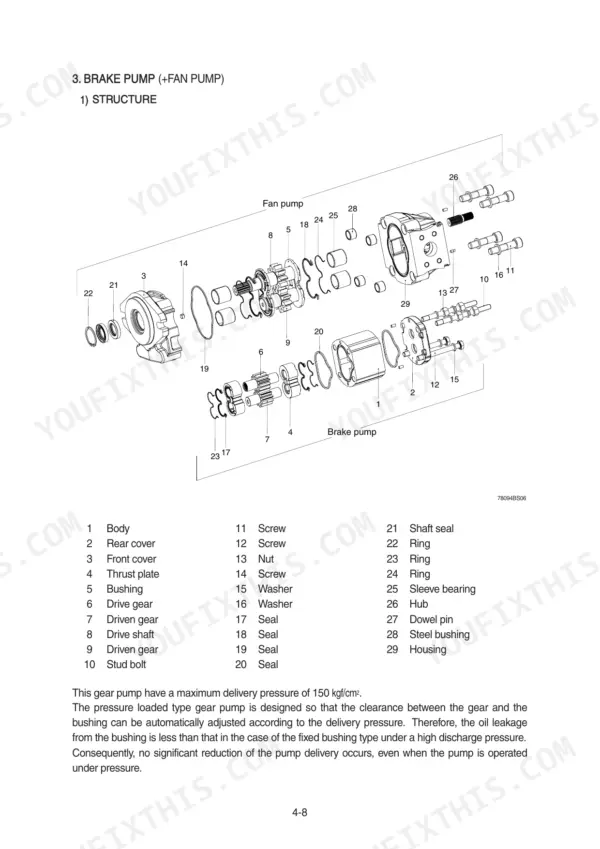

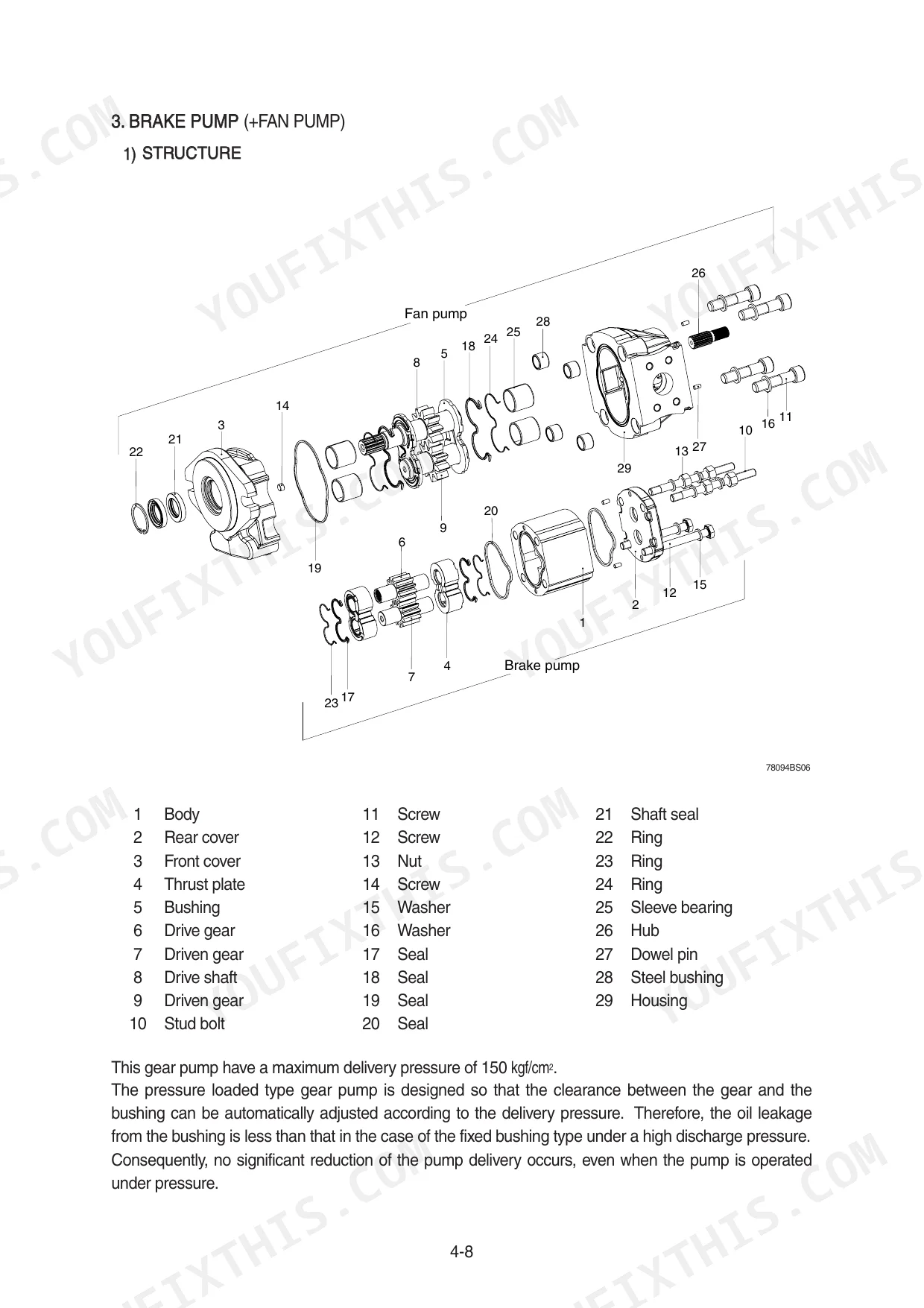

| Maximum delivery pressure | 150 kgf/cm2 | p. 132 |
| Min. residual thickness of brake lining | 2.0 mm | p. 149 |
| Carrier plate thickness | 8 mm | p. 149 |

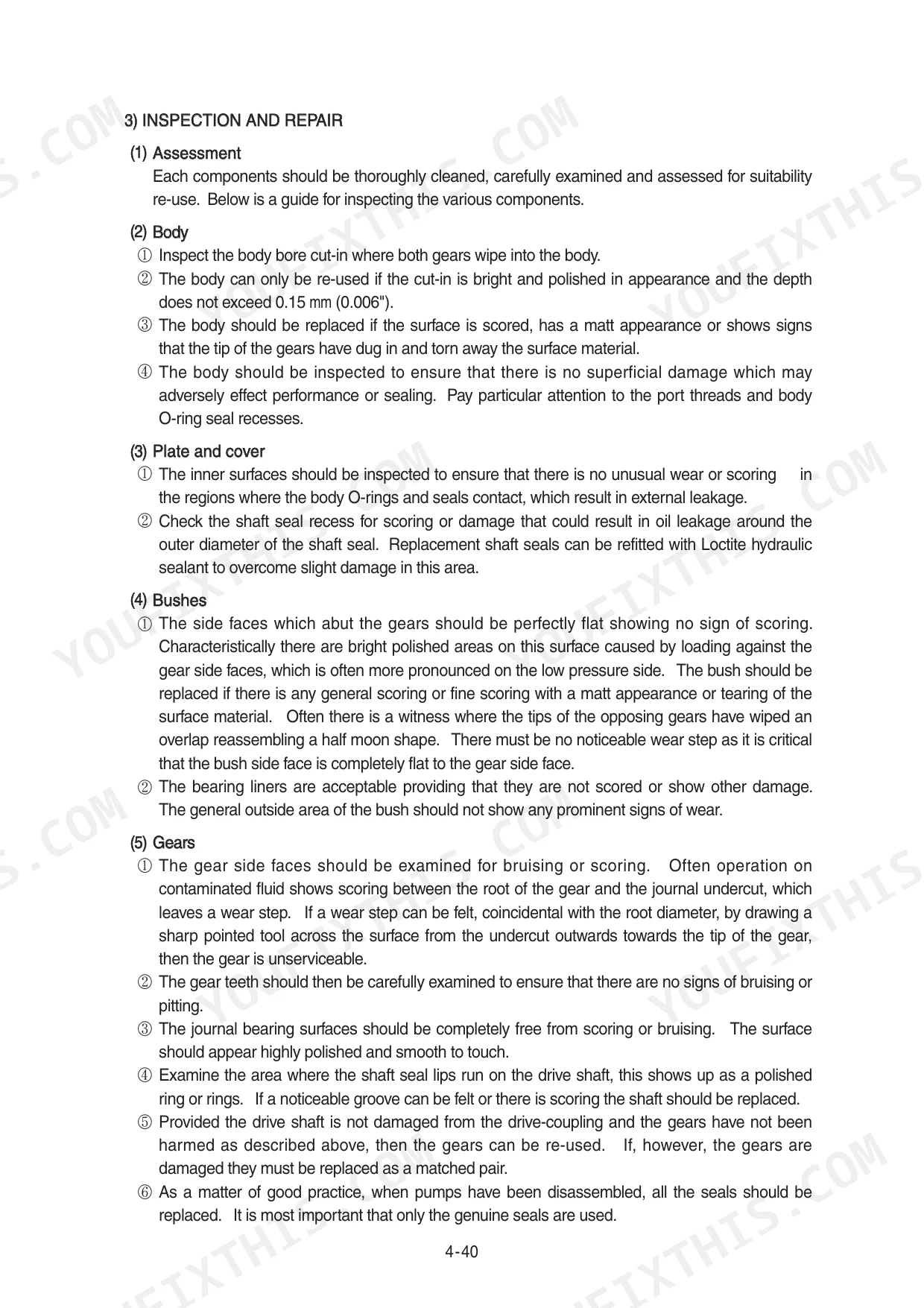

| Body bore cut-in depth | 0.15 mm (0.006") | p. 164 |
| Maximum leakage | 7.5 L/min (2 gpm) | p. 201 |
| Tightening torque for priority valve spool plug or throttle check valve | 1 ± 0.3 kgf · m (7.2 ± 2.2 lbf · ft) | p. 227 |
Hyundai HL780-9, HL780XTD-9 Common Problems This Manual Covers
Hyundai HL780-9 hydraulic pump noisy and cavitating, bucket lifts slow under load
Check hydraulic oil level with the bucket flat on the ground and top off before chasing anything else; a low tank pulls air and makes the pump growl. Inspect the suction line for kinks, clean the suction strainer, and torque flare fittings to 4 kgf·m (28.9 lbf·ft) per page 32.
Manual Section: Work Equipment p. 268Steering heavy and jerky at low idle, shock through wheel during direction changes
Measure center pivot pin clearance first; anything beyond the 0.1 to 0.2 mm spec on page 267 means worn pins. Replace the pins and torque the pivot mounting bolts to 35~43 kgf·m (253~311 lbf·ft) per page 267. Verify low idle holds 800 rpm; a slow idle starves the steering pump and feels like worn pins.
Manual Section: Steering System p. 171Hydraulic oil overheats during steady loader work, steering response slow when hot
Test main relief pressure against the 280 kgf/cm2 spec on page 28; a stuck priority valve spool forces flow over relief and builds heat fast. Remove the spool, clean it, and reinstall the plug at 1 ± 0.3 kgf·m (7.2 ± 2.2 lbf·ft), shown on page 227. Check steering unit leakage too; more than 7.5 L/min means internal wear.
Manual Section: Steering System p. 227Transmission shows fault codes 23 or 24, retarder uses default load values
Check the load sensor circuit against the error code reference: code 23 means a short to battery voltage, code 24 a short to ground or open circuit. Unplug the connector, inspect for bent pins, and repair the harness using the wiring diagram. Confirm with a stall test at 2030 ± 70 rpm, page 114.
Manual Section: Power Train System p. 86Service brakes feel weak with spongy pedal, brake pressure warning light flickers at idle
Test brake pressure at the port and compare to the 80 bar spec on page 137. If pressure bleeds down fast, check accumulator priming pressure against the 50 kgf/cm2 figure on page 141 and recharge or replace the accumulator. Pull the wheels and measure lining; replace at the 2.0 mm minimum on page 149.
Manual Section: Brake System p. 137Frequently Asked Questions
What is the procedure to clear transmission fault code 830?
Fault code 830 indicates an MCU internal memory error. The manual does not provide a specific reset procedure for this code, but generally, fault codes are cleared by the system once the underlying issue is resolved. If the error persists, it is recommended to contact a Hyundai dealer for further investigation. p. 74
What is the tightening torque for the main pump housing mounting bolts?
The tightening torque for the main pump housing mounting bolts (M14 x 2.0) is 19.6 ± 2.9 kgf·m (142 ± 21.0 lbf·ft). p. 30
What is the engine oil capacity for the HL780-9?

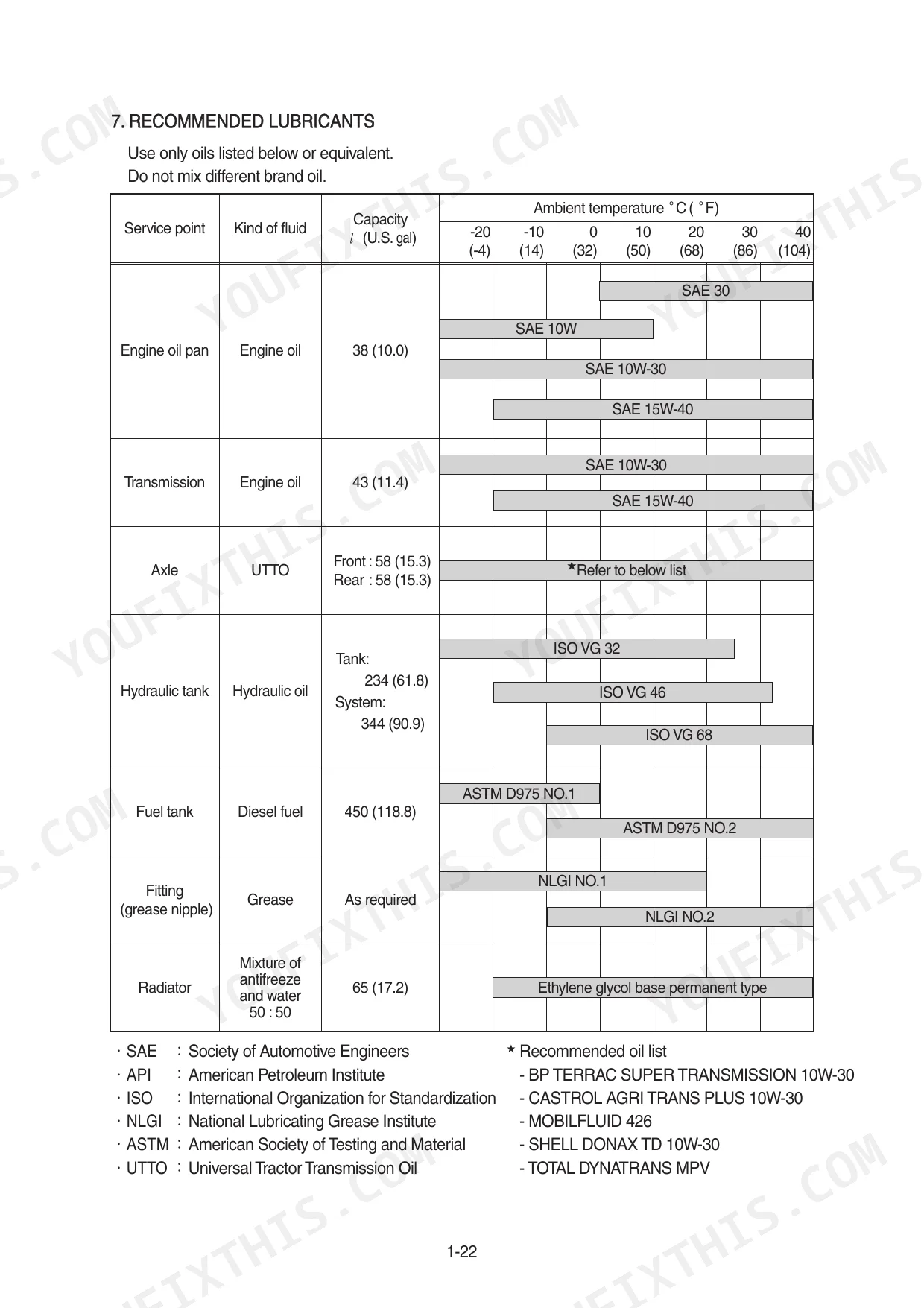

The engine oil capacity for the engine oil pan is 38 liters (10.0 U.S. gal). p. 33
What is the procedure for bleeding the hydraulic brake system?
To bleed the brake system, install the frame locking bar and engage the parking brake. Connect a clear plastic tube to the bleed screw and route it to the hydraulic oil tank filler tube. With the engine running at low idle, push and hold the brake pedal down while opening the bleed screw on the differential and axle assembly until the oil is free of air. p. 161
What is the standard clearance for the parking brake adjustment?
The standard clearance for the parking brake adjustment is 2.0 mm, with a minimum of 1.0 mm and a maximum of 3.0 mm. p. 147
Is this Hyundai HL780-9 manual a download or a disc?
You get a 444-page searchable PDF that downloads instantly after checkout. Open it on your laptop, tablet, or phone, and bring it right to the shop floor.
Can I print a copy of this Hyundai HL780-9 Service Manual for the shop?
Zero restrictions. The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
