Part of the Hyundai Repair Manuals.
Looking for the Hyundai R35Z-7A shop manual PDF? All 415 pages cover the R35Z-7A Crawler Excavator, from the hydraulic pump and main control valve to the swing and travel devices. You get full electrical circuit diagrams with connector pinouts, complete hydraulic schematics for the main and pilot circuits, and a troubleshooting section that walks both hydraulic and electrical faults. There's a full disassembly and assembly section for the pump device, travel motor, turning joint, and boom, arm, and bucket cylinders, plus mounting torque tables for every system. Change the hydraulic filter every 500 hours, and hold pump piston-to-block clearance at 0.050 mm before you sign off on a rebuild. Your excavator is down. Get factory numbers, not forum guesses. Bookmarked with a live text layer; pull it up on your phone and jump straight to the spec you need.
What's Inside This Hyundai R35Z-7A Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 11-30 | Safety, Specifications |
| Structure and Function | 31-100 | Hydraulic Pump, Main Control Valve, Swing Device, Travel Device, Rcv Lever |

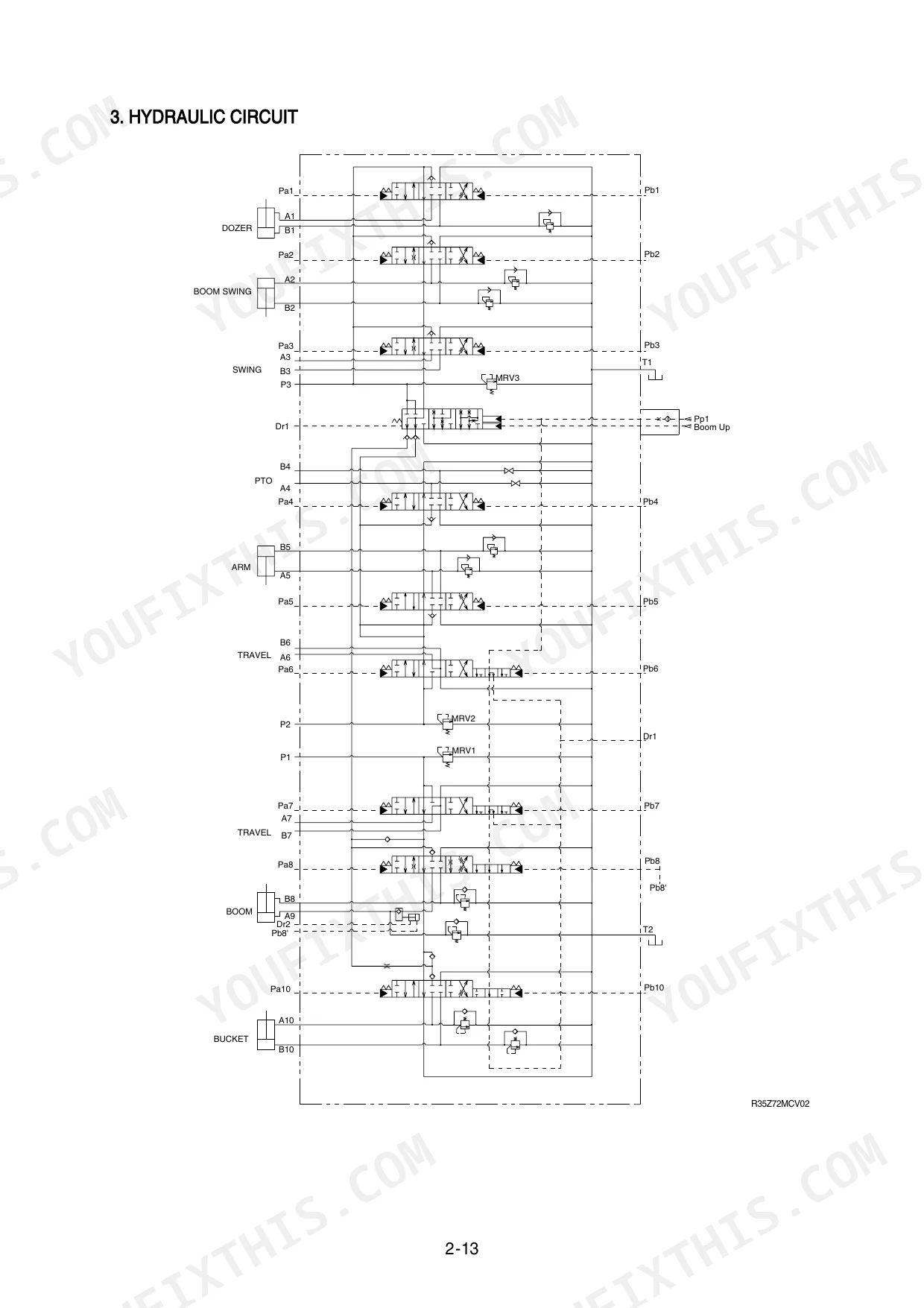

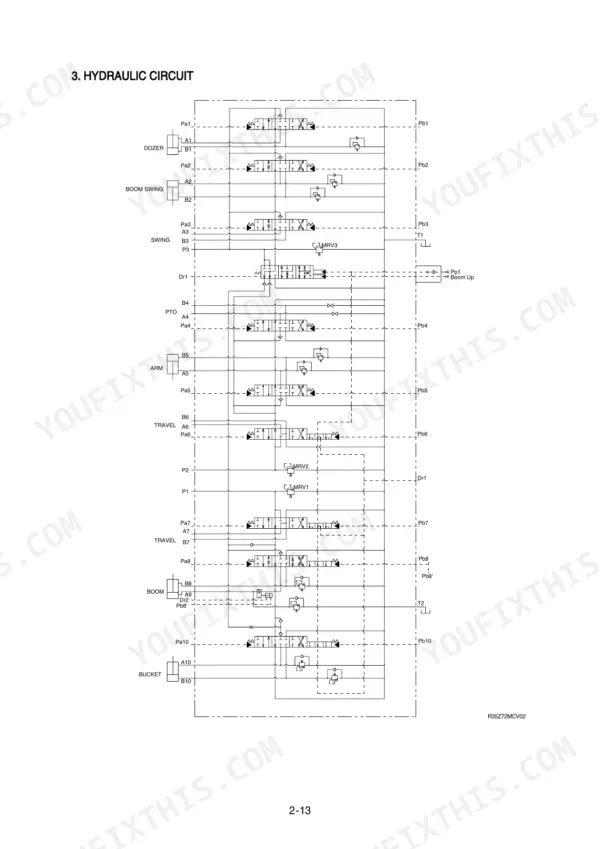

| Hydraulic System | 101-130 | Main Circuit, Pilot Circuit, Single Operation, Combined Operation |

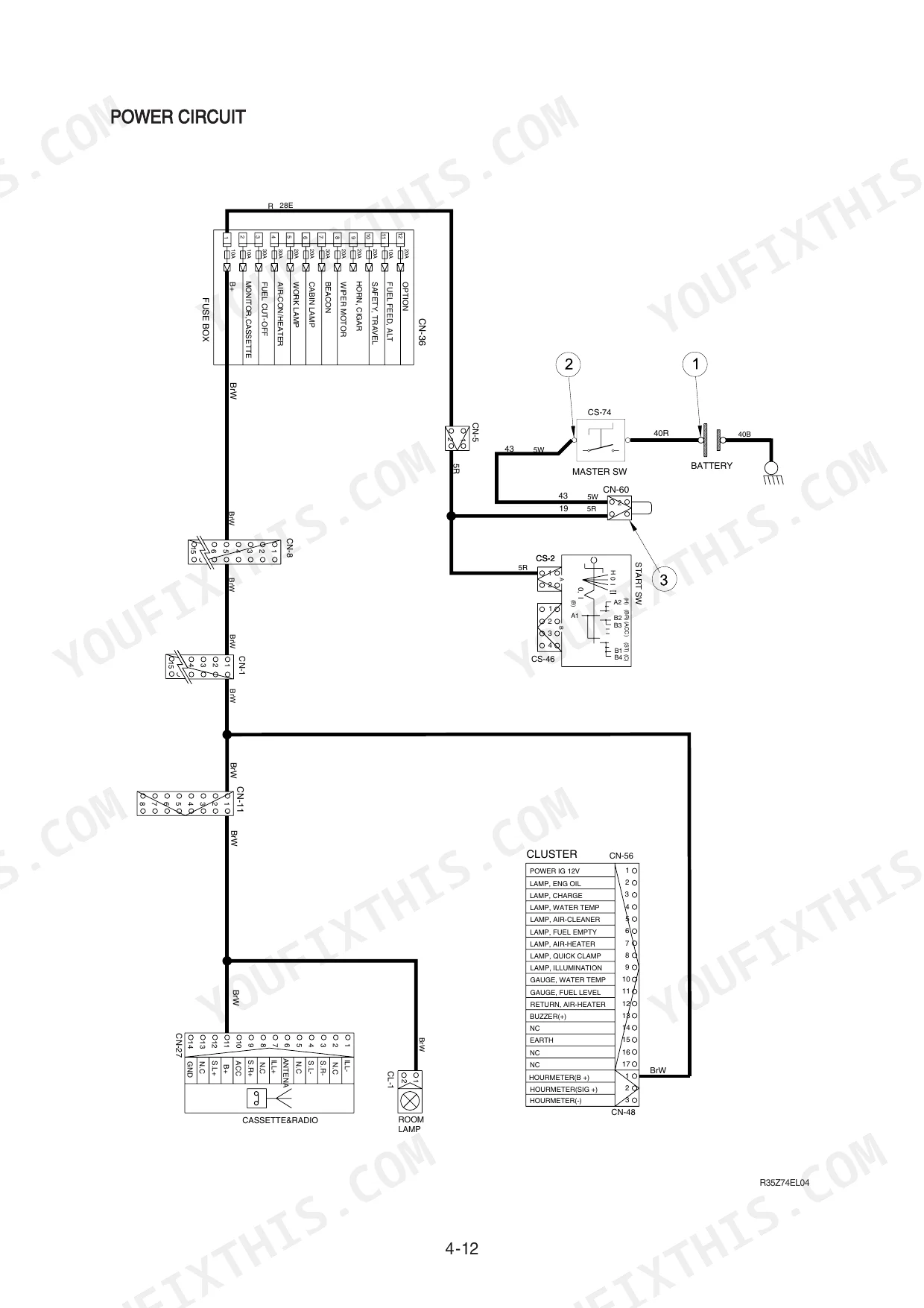

| Electrical System | 131-178 | Component Location, Monitoring System, Electrical Circuit |

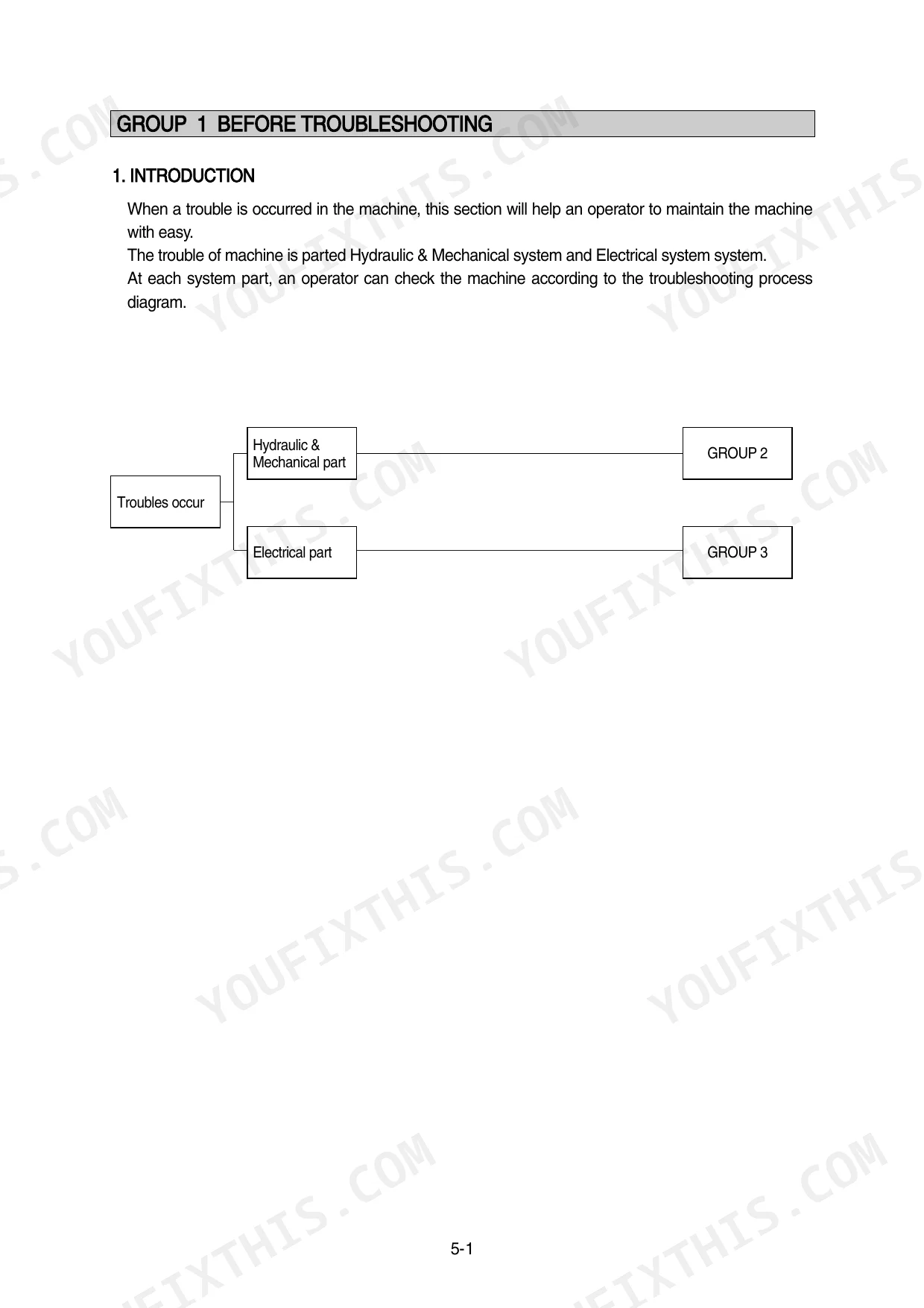

| Troubleshooting | 179-215 | Before Troubleshooting, Hydraulic and Mechanical System |
| Maintenance Standard | 216-253 | Operational Performance Test, Major Components, Track and Work Equipment |

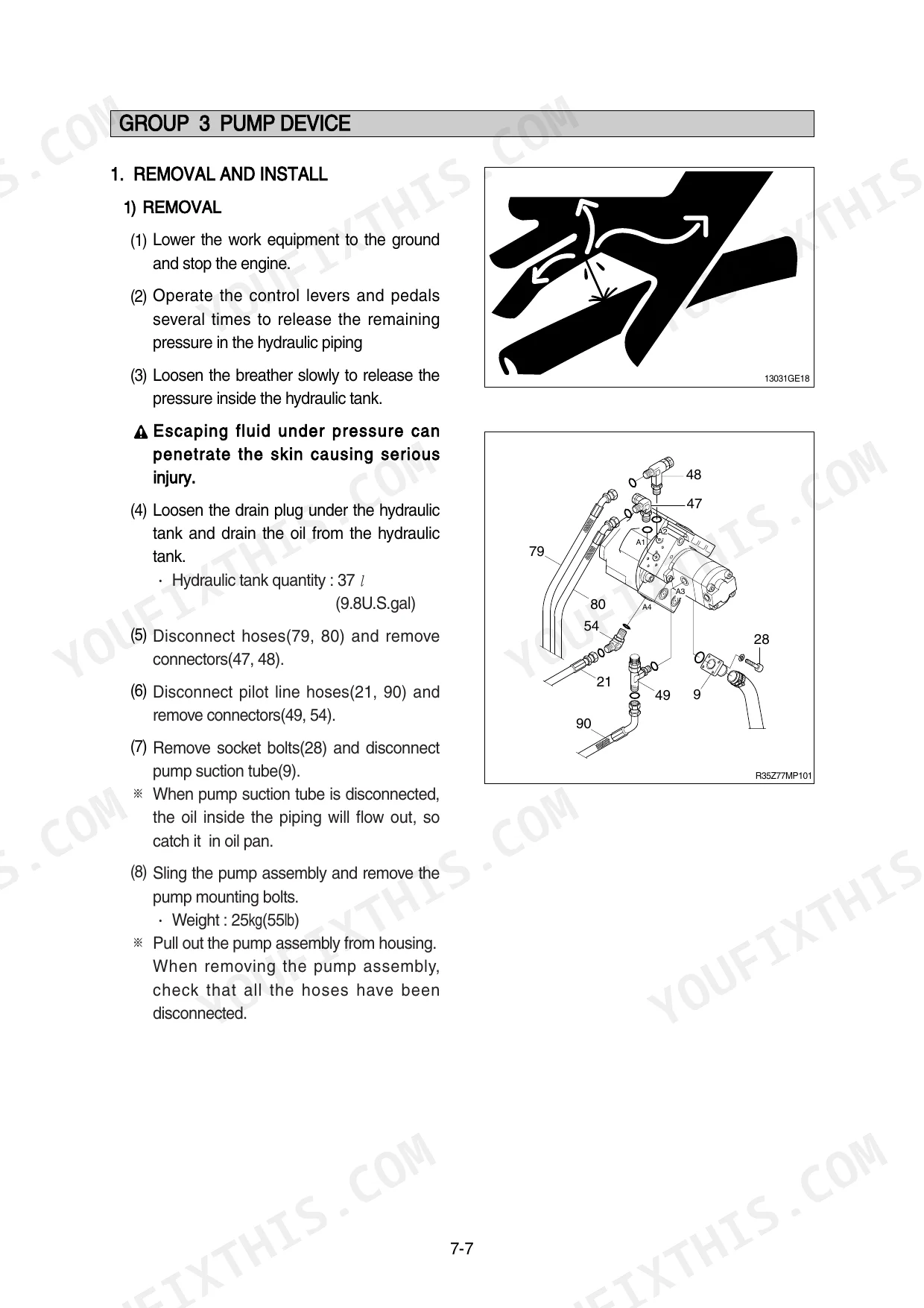

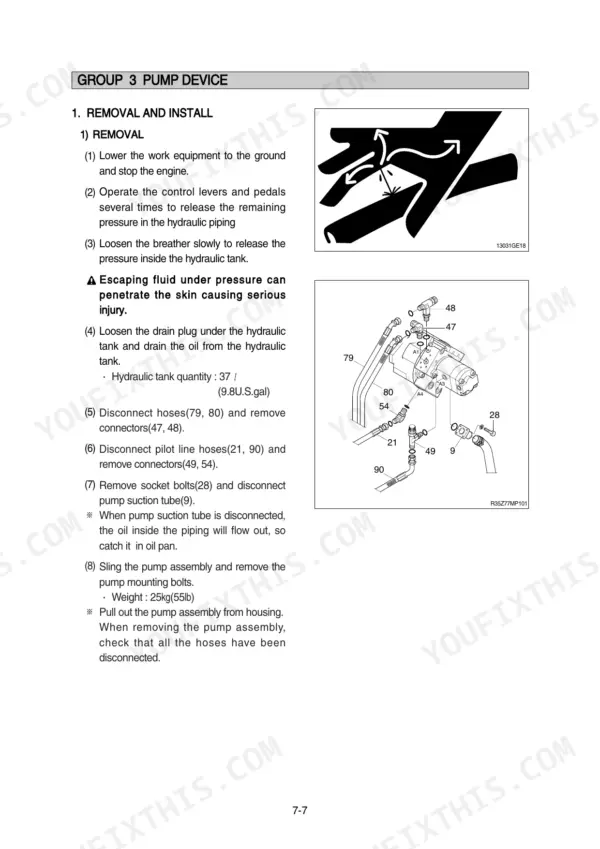

| Disassembly and Assembly | 254-397 | Precaution, Tightening Torque, Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Turning Joint |
| Component Mounting Torque | 398-415 | Introduction Guide, Engine System, Electric System, Undercarriage, Structure, Work Equipment |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Final drive gear oil capacity | 0.5 x 2 L | p. 30 |
| Filter filtration accuracy | 10 μm or less | p. 36 |
| Filter change interval | 500 hours | p. 37 |
| Clearance between the piston outside dia and cylinder block inside dia | 0.050mm | p. 236 |
| Axial play of the piston and piston shoe | 0.2mm | p. 236 |
| Horizontal width of idler guide (Track frame) | 178 mm | p. 251 |
| Recoil spring (Free length) | 286.5 mm | p. 251 |
| Tightening torque for socket head bolt (3) on reduction gear assembly | 13 ± 0.7 kgf·m (94.4 ± 5 lbf·ft) | p. 315 |
| M10 x 1.5 bolt torque | 6.9 ± 1.4 kgf·m | p. 404 |

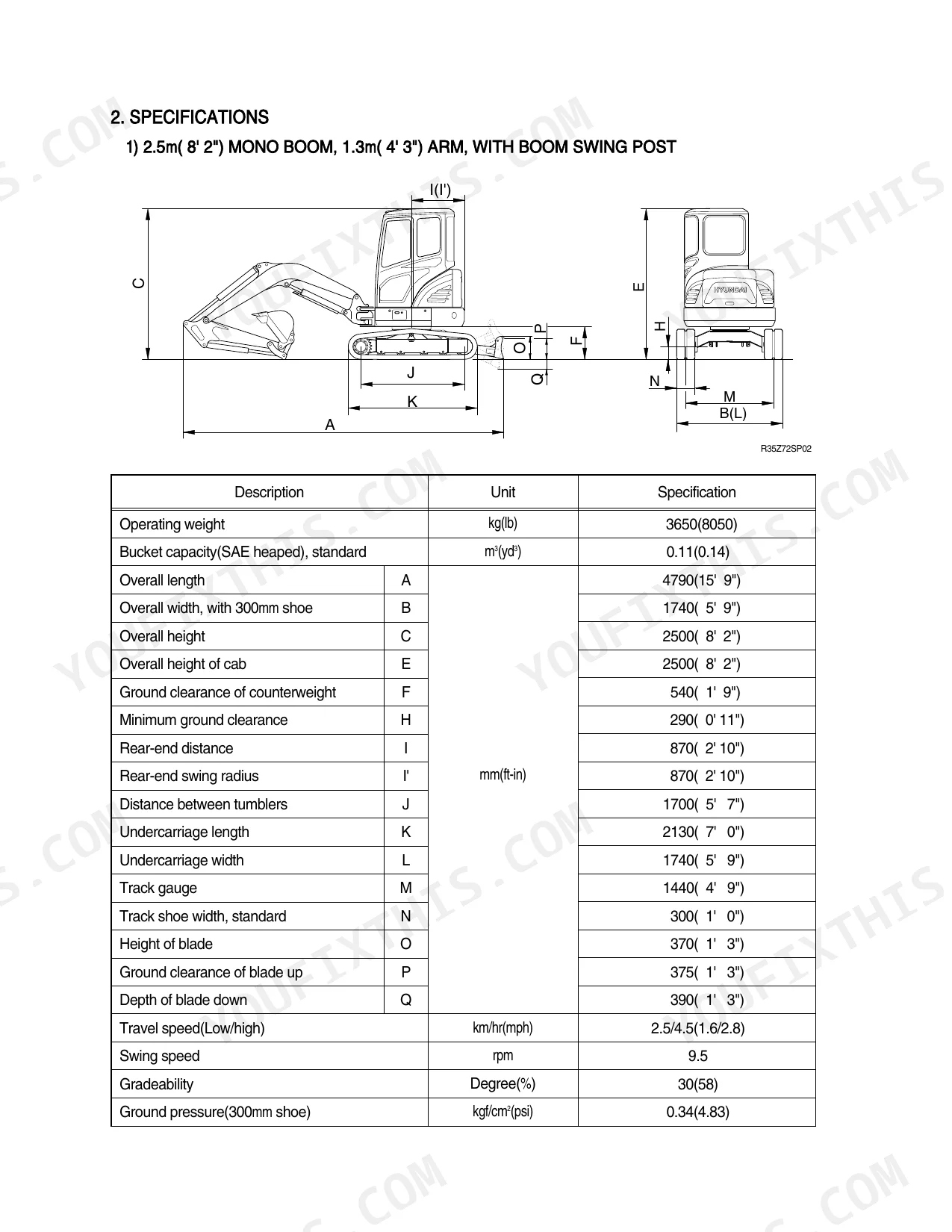

| Operating Weight | 3650 kg | p. 20 |
| Engine Oil Quantity | 6.7 L | p. 27 |
| Main Pump Rated Oil Flow | 2 x 38.5 L/min | p. 27 |
Hyundai R35Z-7A Common Problems This Manual Covers
Hyundai R35Z-7A hydraulic pump whines under load, boom and bucket lift slow and weak
Check hydraulic oil level first; low oil makes the pump cavitate and whine. Test main relief pressure against the 230 kgf/cm2 spec on page 28. If you pull the pump, measure piston to cylinder block clearance and replace the rotating group once it passes the 0.050 mm wear limit on page 236.
Manual Section: Hydraulic Pump Troubleshooting p. 28Hydraulic oil overheats and turns dark brown after a few hours of digging
Replace the return filter element; the 10 micron element listed on page 36 is due every 500 hours per page 37. A plugged element pops the bypass relief at 1.5 kgf/cm2 (21 psi), noted on page 103, and sends unfiltered oil back to tank. Drain and refill if the oil smells burnt.
Manual Section: Hydraulic System p. 37Excavator pulls to one side when traveling, one track noticeably slower than the other
Check track tension on both sides first; a loose track drags and steals speed. Verify final drive gear oil level, capacity is 0.5 L per side as shown on page 30. Test travel relief pressure against the 230 kgf/cm2 spec on page 28. If one circuit reads low, swap hoses side to side to isolate motor from valve.
Manual Section: Travel System Troubleshooting p. 30Track keeps coming loose and derailing after a day working in rocky ground
Measure the recoil spring; free length under the 286.5 mm spec on page 251 means it cannot hold tension anymore, so replace it. Inspect the idler guide against the 178 mm track frame width on the same page. Retorque undercarriage hardware per the chart on page 404; M12 bolts take 12.8 kgf·m.
Manual Section: Maintenance Standard p. 251Final drive gearbox growls and runs hot, travel feels jerky at low speed
Drain the final drive gear oil and look for metal glitter; refill with 0.5 L per side as listed on page 30. Milky or burnt oil points to seal failure or internal wear. If you split the reduction gear, torque the socket head bolts to 13 kgf·m (94.4 lbf·ft) per page 315.
Manual Section: Disassembly and Assembly p. 315Frequently Asked Questions

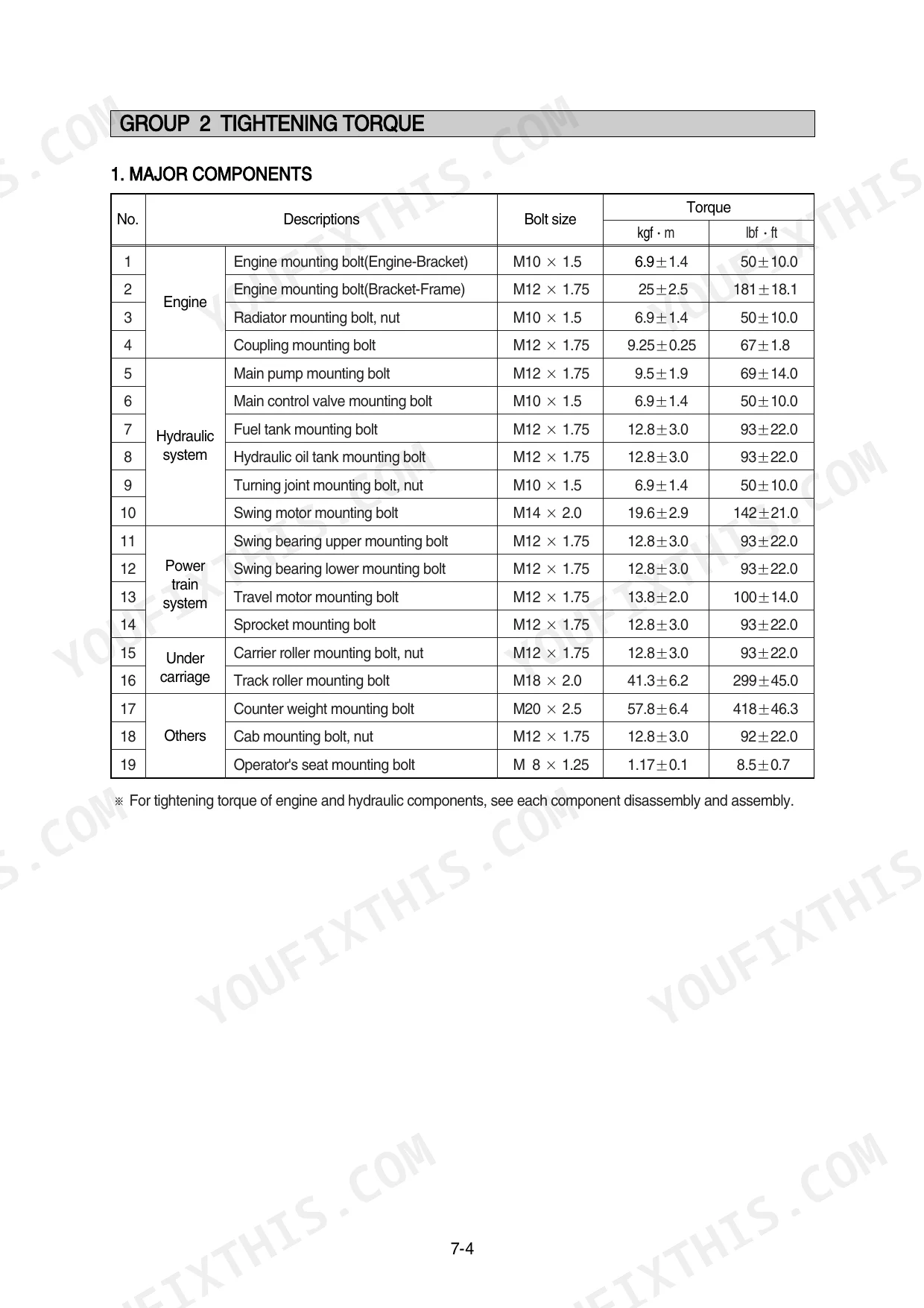

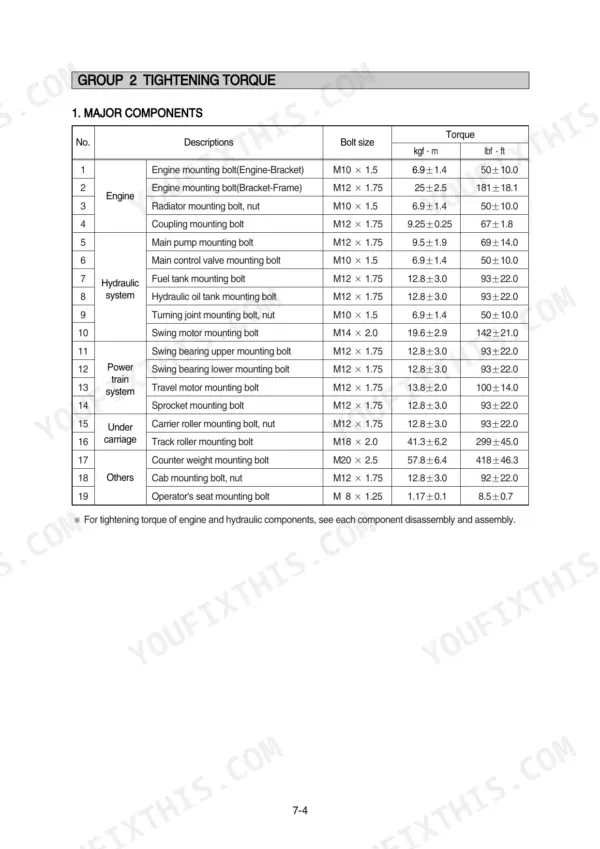

What are the torque specifications for the track roller mounting bolts on the Hyundai R35Z-7A?
The torque specification for the track roller mounting bolts on the Hyundai R35Z-7A is 41.3 ± 6.2 kgf·m (299 ± 45.0 lbf·ft). p. 257
What are the torque specifications for hydraulic hose fittings (flare type) for a 1/2 inch thread size?
For a 1/2 inch flare type pipe and hose fitting, the specified tightening torque is 9.5 kgf·m (68.7 lbf·ft). p. 259
What is the recommended service interval for changing the hydraulic oil in the R35Z-7A?
The hydraulic oil should be changed after 2000 hours of operation, or once a year, whichever comes first. p. 38
What is the standard engine oil quantity for the R35Z-7A?
The engine oil quantity for the R35Z-7A is 6.7 liters (1.8 U.S. gal). p. 27
What is the procedure for bleeding air from the hydraulic cylinders after repair?
After repairing or reassembling hydraulic cylinders, start the engine at low idling, then actuate the cylinder 4-5 times, stopping 100mm before the end of the stroke. Finally, operate the piston rod to the end of its stroke to relieve the circuit. p. 255
Is this Hyundai R35Z-7A manual a download or a disc?
Delivery is instant: a 415-page searchable PDF is yours the second checkout clears. Laptop, tablet, or phone, all fine.
Is this Hyundai R35Z-7A Shop Manual printable?
Print away. There is no DRM and no page limit. Many buyers print one chapter at a time and leave the rest on a tablet.
