Every one of the 684 pages in this Hyundai R55-7 Service Manual PDF targets one machine: the R55-7 crawler excavator. You get full electrical circuit diagrams with connector pinouts, complete hydraulic schematics covering the main and pilot circuits, and a dedicated troubleshooting section that walks hydraulic, mechanical, and electrical faults from symptom to cause. Teardown and rebuild procedures cover the pump device, main control valve, swing and travel motors, turning joint, and every cylinder on the boom, arm, and bucket. Torque the steel track shoe bolts to 19 kgf·m and replace the chain once link pitch stretches past the 139 mm repair limit. Your excavator is down and the clock is running. This bookmarked PDF opens on any device; jump straight to the spec, then get back in the seat.
What's Inside This Hyundai R55-7 Manual
| System | Pages | Key Topics |
|---|---|---|
| General | 1-31 | Safety Hints, Specifications |
| Structure and Function | 32-81 | Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever |

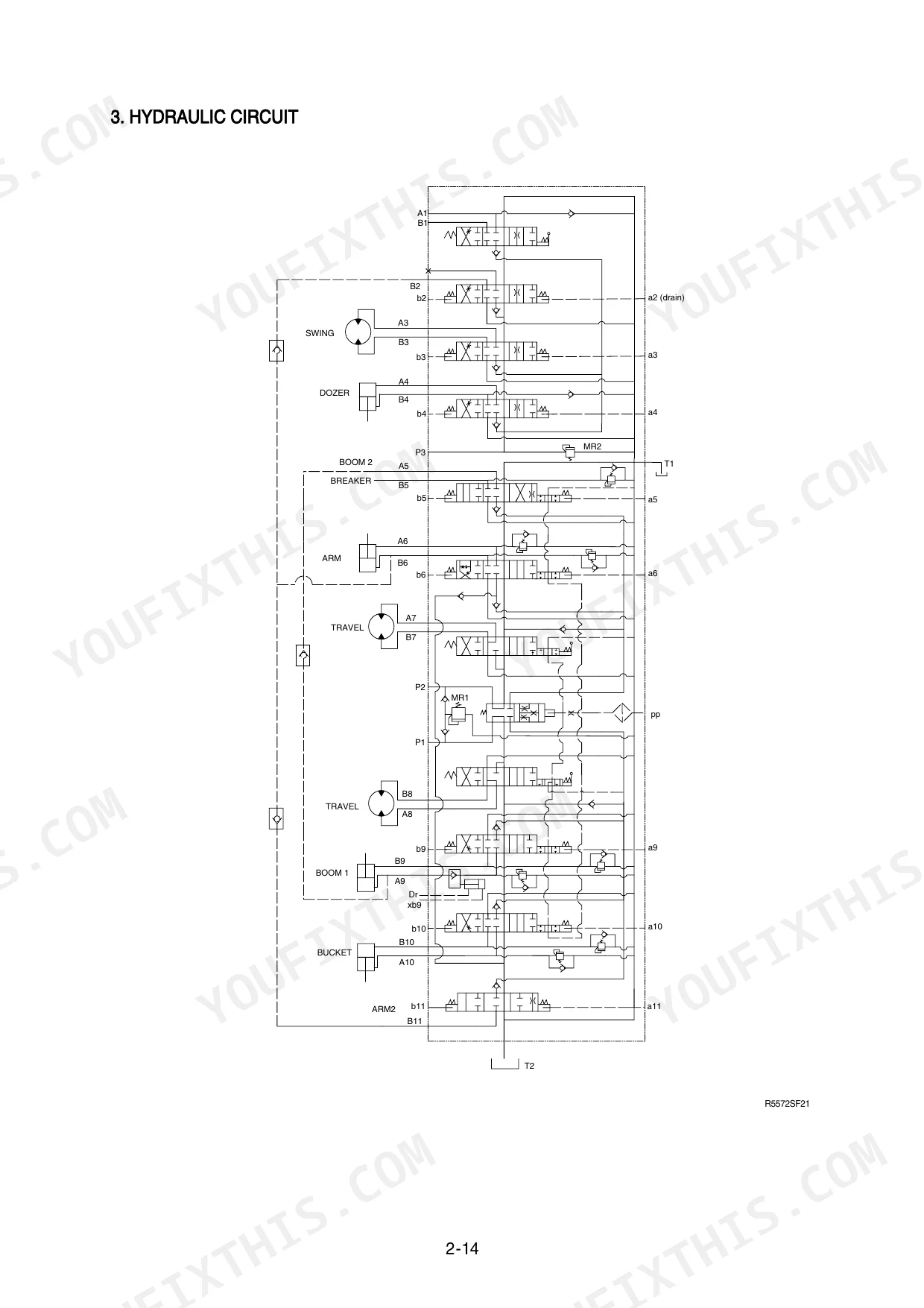

| Hydraulic System | 82-112 | Hydraulic Circuit, Main Circuit, Pilot Circuit |
| Electrical System | 113-162 | Component Location, Monitoring System, Electrical Circuit |

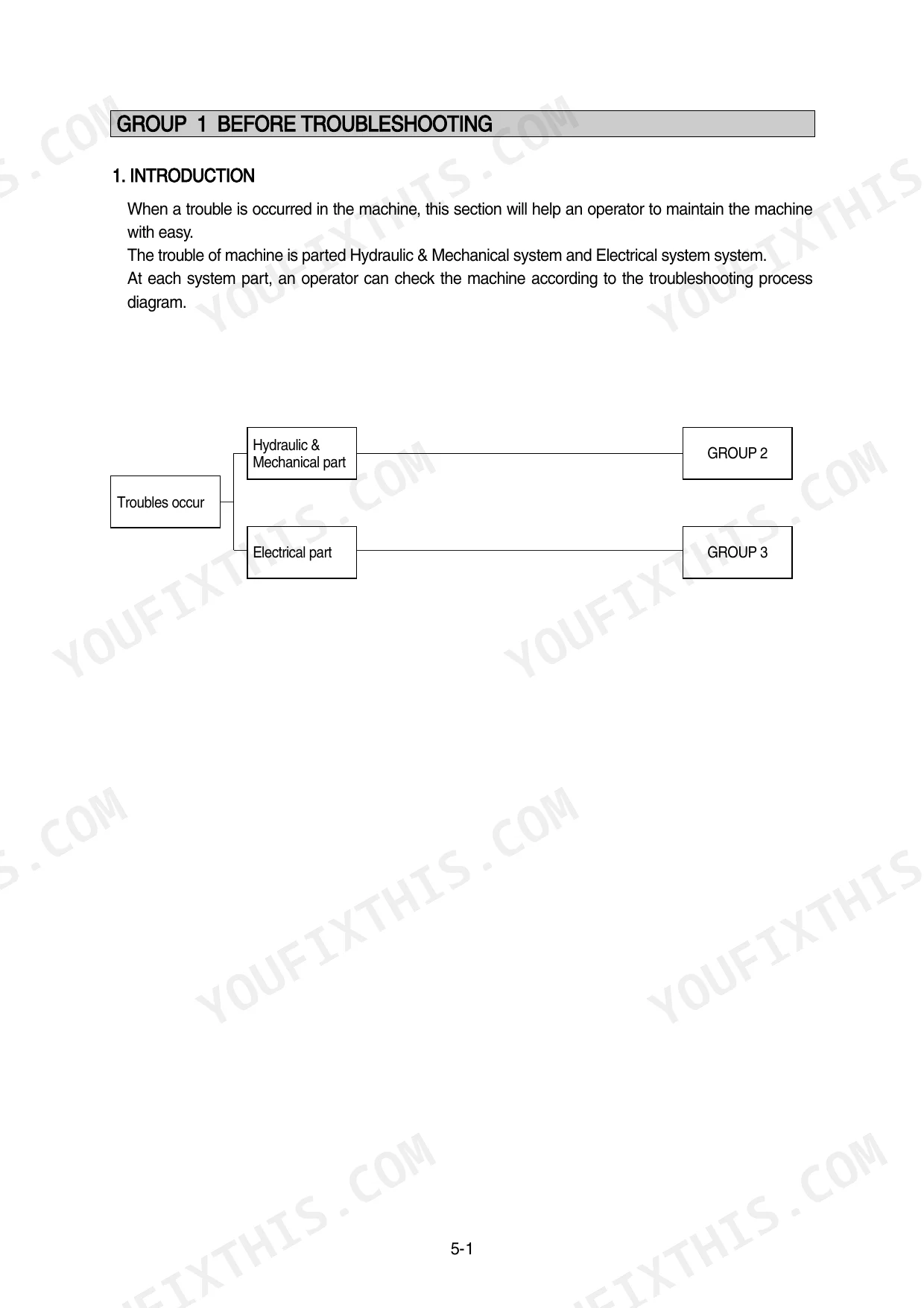

| Troubleshooting | 163-201 | Before Troubleshooting, Hydraulic and Mechanical System |

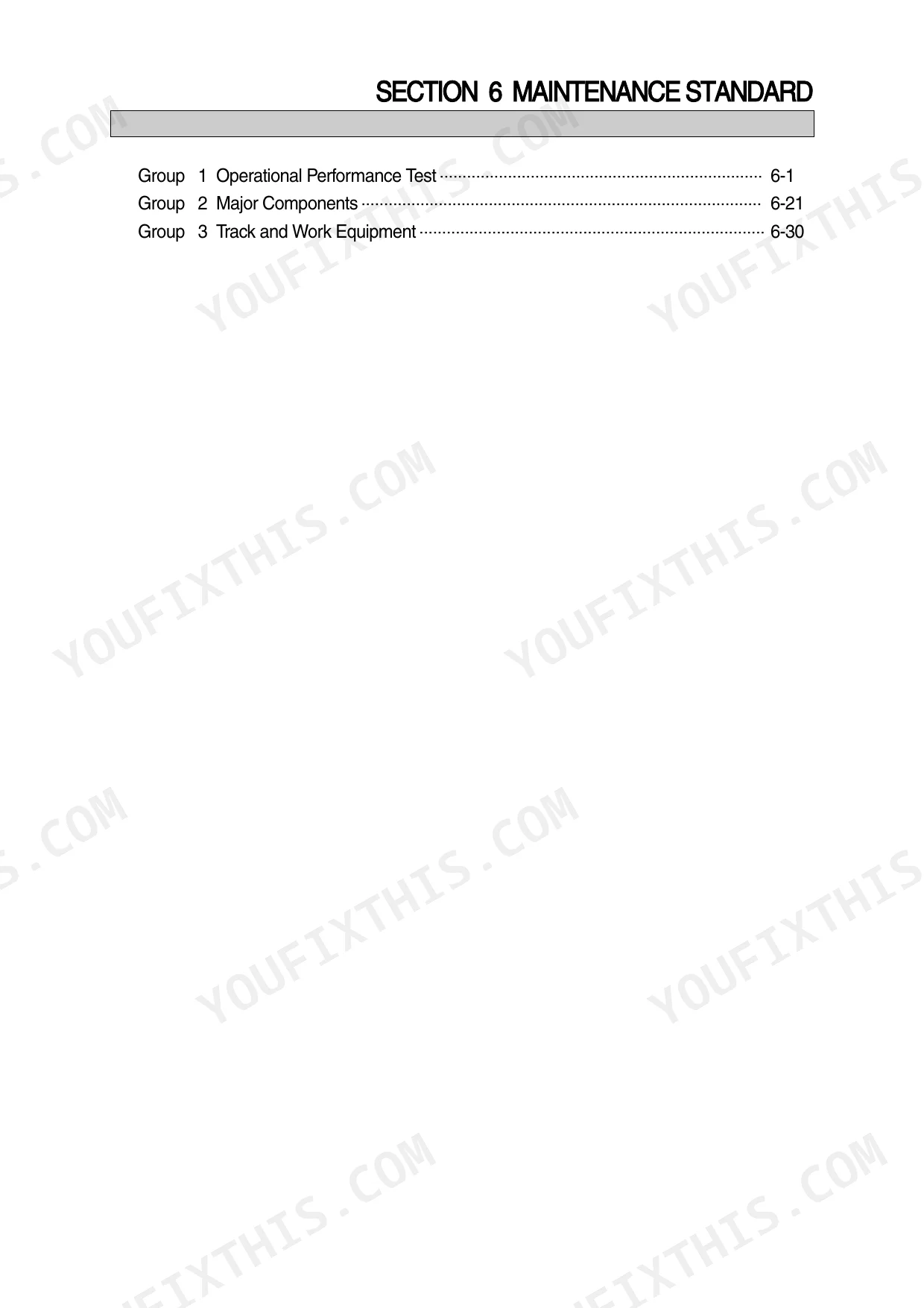

| Maintenance Standard | 202-239 | Operational Performance Test, Major Components, Track and Work Equipment |
| Disassembly and Assembly | 240-394 | Precaution, Tightening Torque, Pump Device, Main Control Valve, Swing Device, Travel Device, Rcv Lever, Turning Joint |

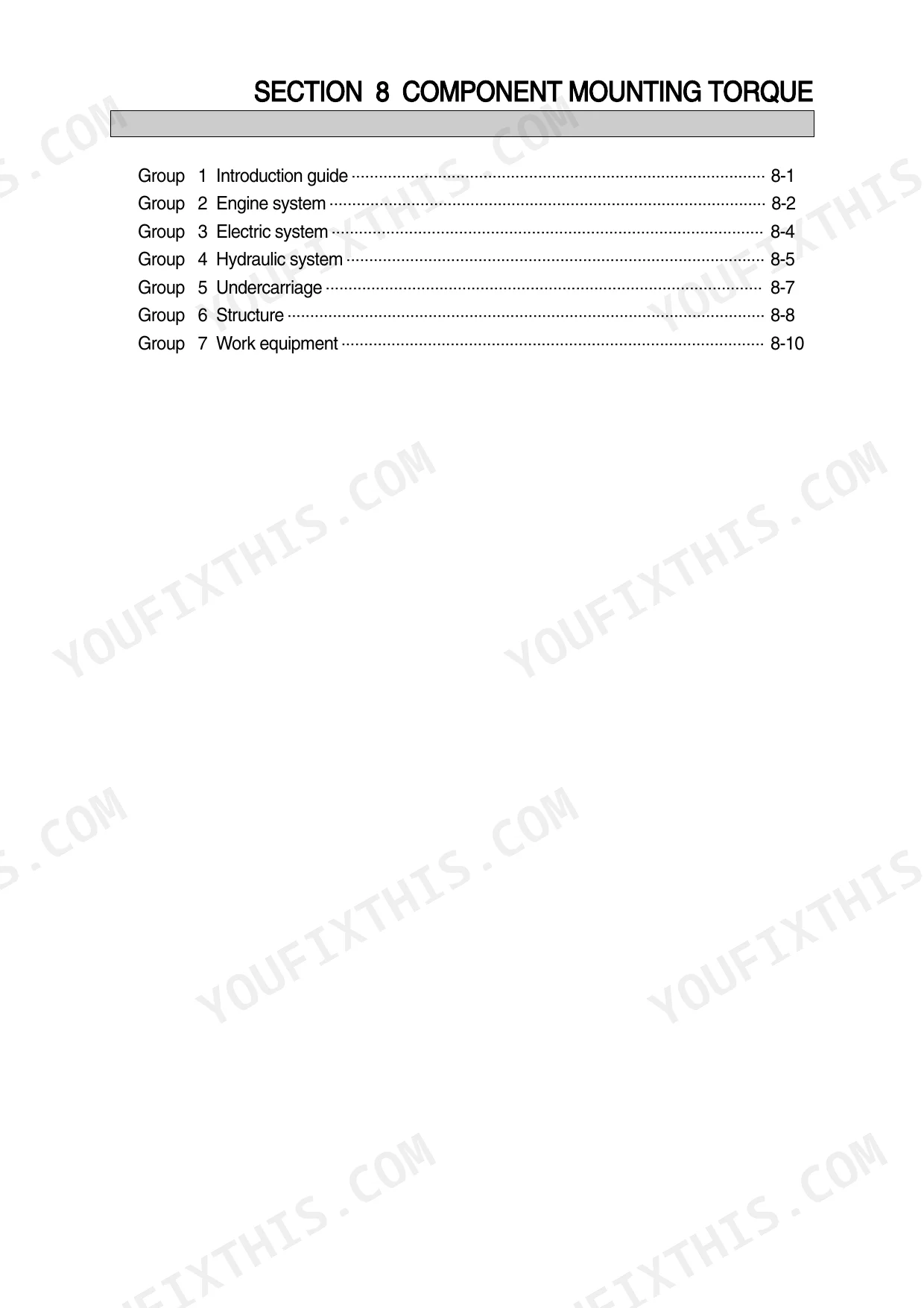

| Introduction Guide | 395-396 | Bolt Specifications, Standard Torque Values, Metric Fasteners, Cleaning Components |
| Engine System | 397-399 | Engine Mounting, Cooling System, Fuel Tank Mounting, Electric Components |
| Electric System | 400 | Electric Components Mounting, Travel Alarm, Battery Relay, Fuel Filler Pump |
| Hydraulic System | 401 | Hydraulic Components Mounting, Main Control Valve, Cylinders, Turning Joint |
| Undercarriage | 402-403 | Adjust Component, Idler, Track Chain, Swing Bearing |
| Structure | 404 | Cab Mounting, Door Latch, Cowling Mounting, Counterweight |
| Work Equipment Mounting Torque | 405 | Boom Cylinder, Arm Cylinder, Bucket Cylinder, Side Cutter |
| Yanmar TNV Engine, Service Manual | 406-559 | Engine Troubleshooting, Lubrication System, Cooling System, Fuel Injection Pump, Turbocharger, Service Standards, Engine Tightening Torque, Disassembly and Reassembly |
| Yanmar TNV Engine, Starting Motor | 560-595 | Starting Motor Construction, Performance Test, Disassembly and Inspection, Brush and Commutator Wear Limits |
| Yanmar TNV Engine, Alternator | 596-620 | Alternator Construction, Output Characteristics, Disassembly and Inspection, Rotor and Stator Checks |
| Yanmar TNV Engine, Fuel Injection Pump Service | 621-684 | Safe Servicing, General Information, Injection Pump Disassembly, Adjustment of Fuel Injection Pump, Injection Timing |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Battery specification | 12V x 100Ah | p. 139 |
| Fuel cut-off rated full current | 12V 33A | p. 142 |
| Fuel cut-off rated hold current | 12V 0.8A | p. 142 |
| Tightening torque (Steel shoe) | 19 ± 1.0 kgf·m | p. 232 |
| Link pitch (Steel shoe) | 135 mm (Standard), 139 mm (Repair limit) | p. 232 |
| Outside diameter of bushing (Steel shoe) | 35 mm (Standard), 31 mm (Repair limit) | p. 232 |
| Engine and accessories mounting tightening torque (Item 1: M8x1.25) | 2.5±0.5 kgf·m (18.1±3.6 lbf·ft) | p. 397 |
| Water separator tightening torque | 15-20 Nm (1.5-2.0 kgf-m) | p. 455 |
| Fuel filter tightening torque | 20-24 Nm (2.0-2.4 kgf-m) | p. 456 |

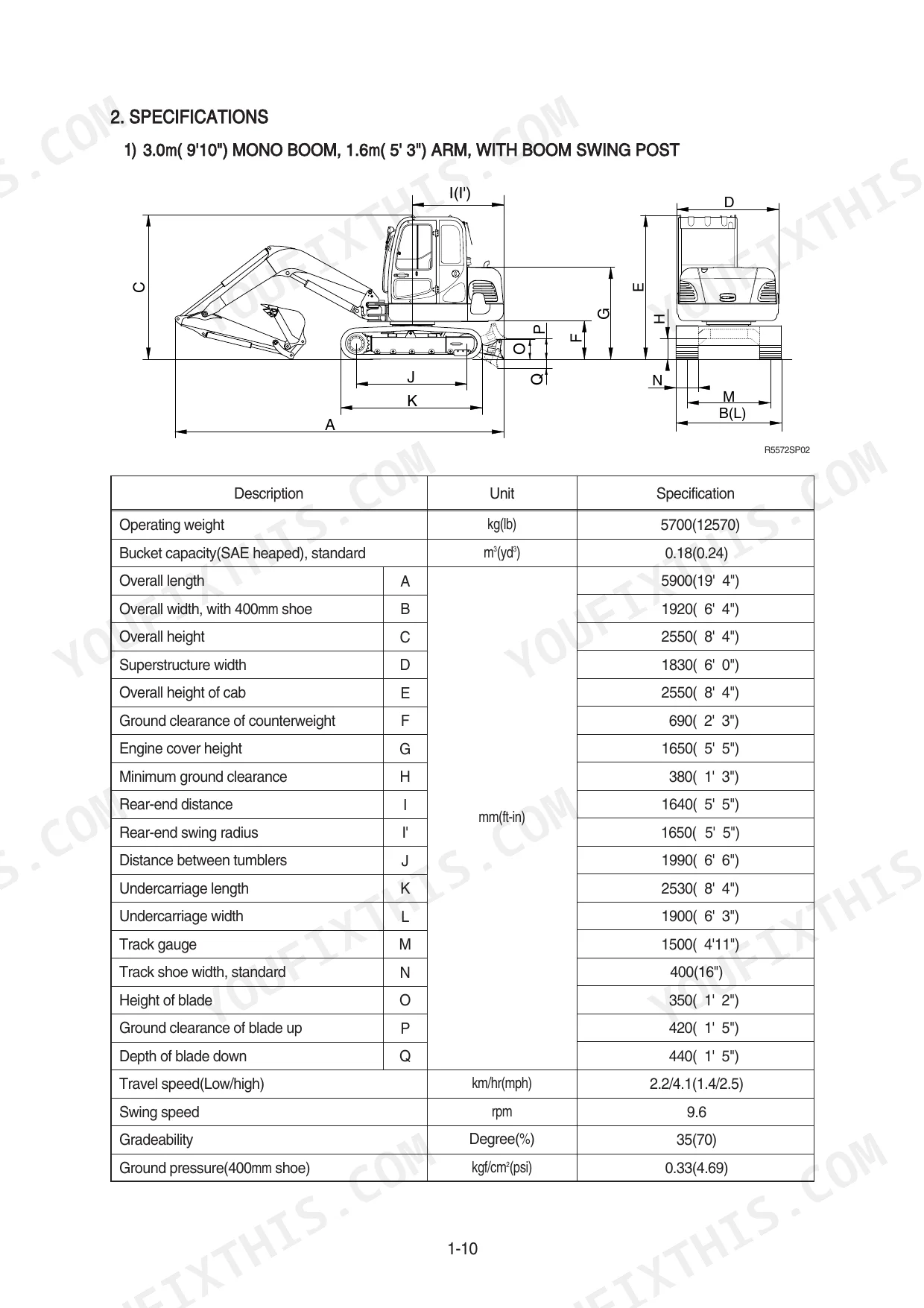

| Operating weight | 5700 kg | p. 21 |
| Swing speed | 9.6 rpm | p. 29 |
| Engine oil quantity | 9.2 L | p. 28 |
Hyundai R55-7 Common Problems This Manual Covers
Hyundai R55-7 cranks but won't start, or engine dies suddenly, fuel cut solenoid suspected
Check the fuel cut solenoid wiring at connector CN-72 first. Test the solenoid coil: pull winding draws 33A at 12V, hold winding 0.8A, listed on page 142. Verify battery voltage and grounds before condemning parts; a corroded connector mimics a dead solenoid. Replace the solenoid only if it fails the current test.
Manual Section: Electrical System Troubleshooting p. 142Boom and bucket slow or weak, all hydraulic functions lose power once oil warms up
Check hydraulic oil level and inspect the return filter and suction strainer before pulling anything apart. Test main relief pressure at the pump; spec is 220 kgf/cm2 on page 29. Low pressure on both circuits points to the relief valve or pump wear; one circuit only, work through the troubleshooting procedures starting on page 163.
Manual Section: Hydraulic and Mechanical System Troubleshooting p. 163Engine oil pressure warning lamp blinks and buzzer sounds during normal operation at working temperature
Shut the engine down immediately, do not finish the pass. Check the dipstick; engine oil capacity is 9.2 L, listed on page 28. Fill to the mark with the correct grade, restart, and watch the lamp. If it still blinks with a full sump, test oil pressure with a mechanical gauge before running the machine again.
Manual Section: Electrical System Troubleshooting p. 28Tracks loose, sagging, or throwing off the sprocket on slopes and during sharp turns
Measure link pitch before adjusting tension; steel track standard is 135 mm with a 139 mm repair limit on page 232, rubber track 73 mm standard and 76 mm limit on page 233. Chain stretched past the limit will not hold tension no matter how much grease you pump in. Inspect sprocket teeth for hooking and replace worn parts as a set.
Manual Section: Maintenance Standard p. 232Engine starts then stalls after a few seconds, hunts at idle, loses power under load
Drain the water separator and pull a fuel sample; milky fuel means water contamination. Replace the fuel filter and torque the new element to 20-24 Nm, listed on page 456, then torque the separator to 15-20 Nm per page 455. Bleed the system completely and retest under load before blaming the injection pump.
Manual Section: Fuel Injection Pump Troubleshooting p. 456Frequently Asked Questions
What are the torque specifications for the swing motor mounting bolts on a Hyundai R55-7?
The standard torque specification for the swing motor mounting bolts on the Hyundai R55-7 is 29.7 ± 4.5 kgf·m (215 ± 33.0 lbf·ft). p. 107
What is the replacement interval for the fuel filter on the Yanmar 3TNV/4TNV series engines?
The fuel filter element should be replaced every 500 hours or 6 months of operation, whichever comes first. p. 31
What is the standard valve clearance for the Yanmar engine in the R55-7?
The R55-7 runs a Yanmar 4TNV94L. The manual gives one clearance row for the whole 3TNV82A~98 family, which covers this engine: 0.15 to 0.25 mm on both intake and exhaust, measured cold with a thickness gauge between rocker arm and valve cap. Only the larger 4TNV106(T) is listed separately, at 0.25 to 0.35 mm. p. 462
What is the procedure for bleeding air from the hydraulic pump after installation?
After installation, fill the pump housing with hydraulic oil. Loosen the air vent plug, start the engine at low idling, and check that oil comes out from the plug before tightening it fully. p. 248
What is the cylinder head bolt tightening torque for the R55-7 engine?
Tighten in two steps: first 30.0 to 34.0 N·m (3.1 to 3.5 kgf·m), then 61.7 to 65.7 N·m (6.3 to 6.7 kgf·m). The manual prints this as one TNV-family row on page 494, so it applies to the 4TNV94L fitted to this machine. p. 494
What format is this Hyundai R55-7 manual in?
You download the Service Manual yourself: 684 pages, searchable PDF, available immediately. Keep a copy on every device you use.
Can I print specific sections of this Hyundai R55-7 Service Manual?
Yes. No DRM, nothing blocks printing, so run off the pages you need on whatever printer you have.
