Operating and maintaining your JCB 3C MK III or 3D MK III backhoe loader requires accurate factory specifications. This 166-page operator manual (OEM #EN-9801/3600S) details every cab control, daily inspection, and scheduled service interval. The guide details cab layout, explaining the instrument panel, warning lights, shovel controls, and driving procedures for manual and torque converter transmissions. Detailed operating procedures cover cold-start sequencing through using optional attachments like the JCB Jaw and Extending Dipper. Maintenance sections detail greasing points, engine oil, fuel systems, and electrics. Exact fluid capacities are provided, noting the 3C MK III hydraulic system holds 195 litres (43 gal) while the 3D MK III requires 204 litres (45 gal). Fan belt slack checks at 13 mm and the 12-volt, 128 amp/hr battery specs are clearly listed. Bookmarked wiring diagrams with full component keys make electrical troubleshooting straightforward.
What's Inside This JCB 3C MK III, 3D MK III Operator Manual

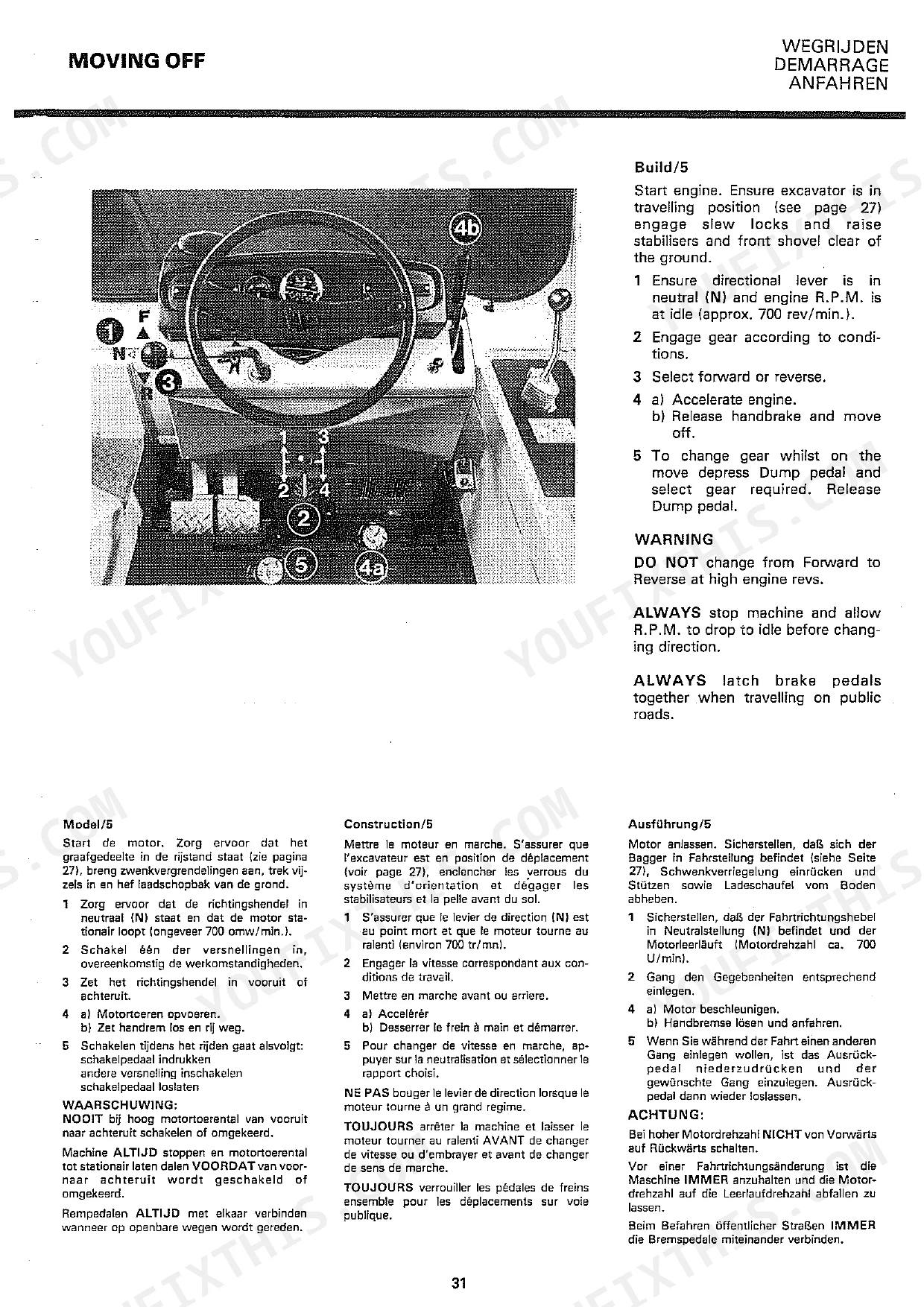

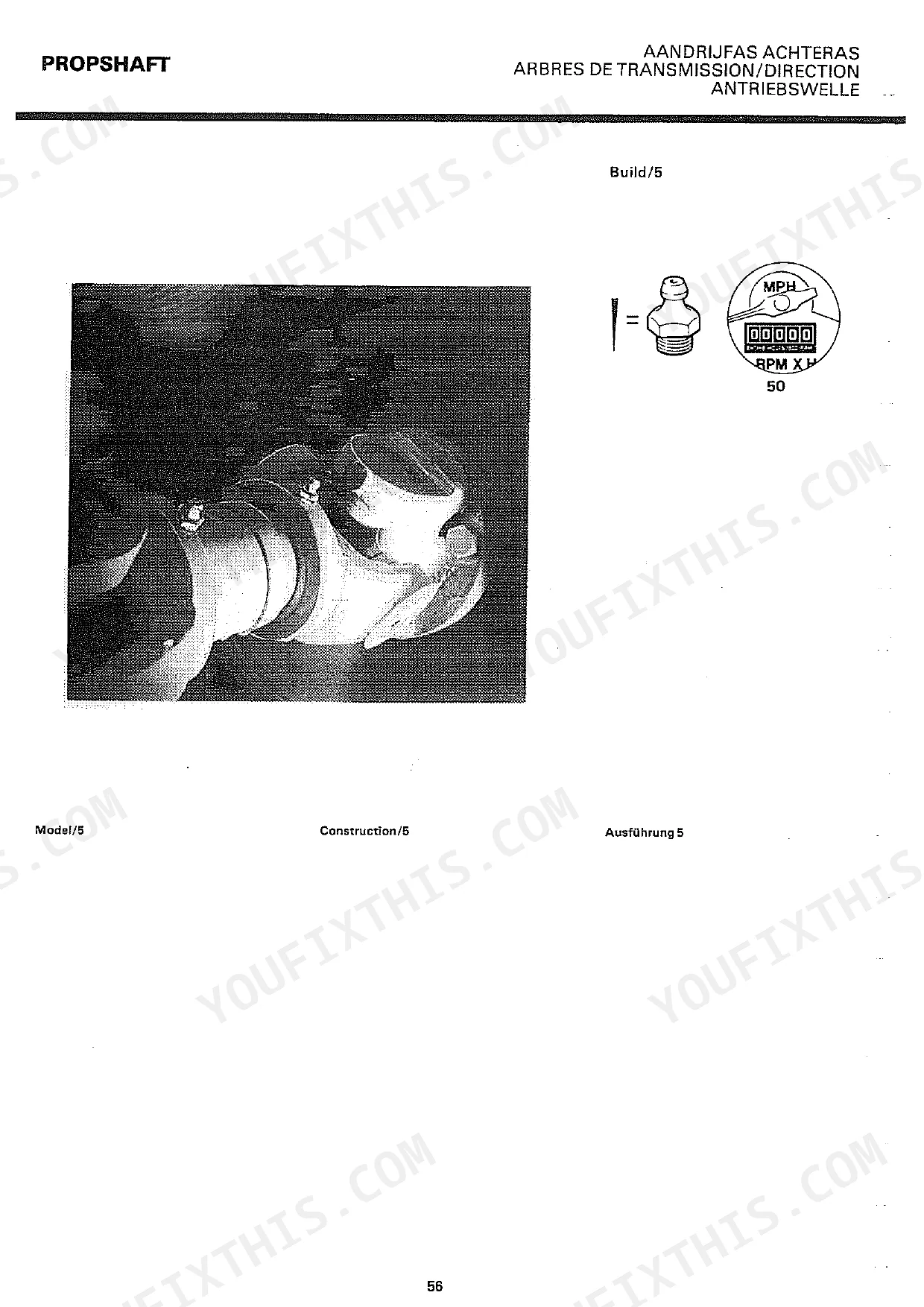

| System | Pages | Key Topics |
|---|---|---|
| General Information | 3-9 | Introduction (Warranty, Registration Card, Free Service Vouchers, Routine Service Vouchers), Service Contract, Personal Safety (Protection) |
| Operation | 10-51 | Cab Layout (Throttle Lever, Seat Adjustment, Rearscreen Wiper, Generator Warning Light, Oil Pressure Warning Light, Rear Window Stowage Pins and Tubes, Shovel Controls, Excavator Controls) |
| Maintenance | 52-97 | Machine Care (Greasing, Engine, Oil, Fuel System, Hydraulics, Electrics) |
| Optional Equipment | 98-116 | Buckets, Attachments, Jcb Jaw, Jcb Extending Dipper, Road Breaker, Power Breaker, Refuelling Pump |
| Specifications and Service | 117-159 | Specification (Service: Contract, Vouchers, Schedule), All Machines (Engine, Transmission, Steering, Brakes) |
| Warranty and Procedure | 160-166 | Warranty and Procedure - Uk and Eire |
Quick Reference Specifications

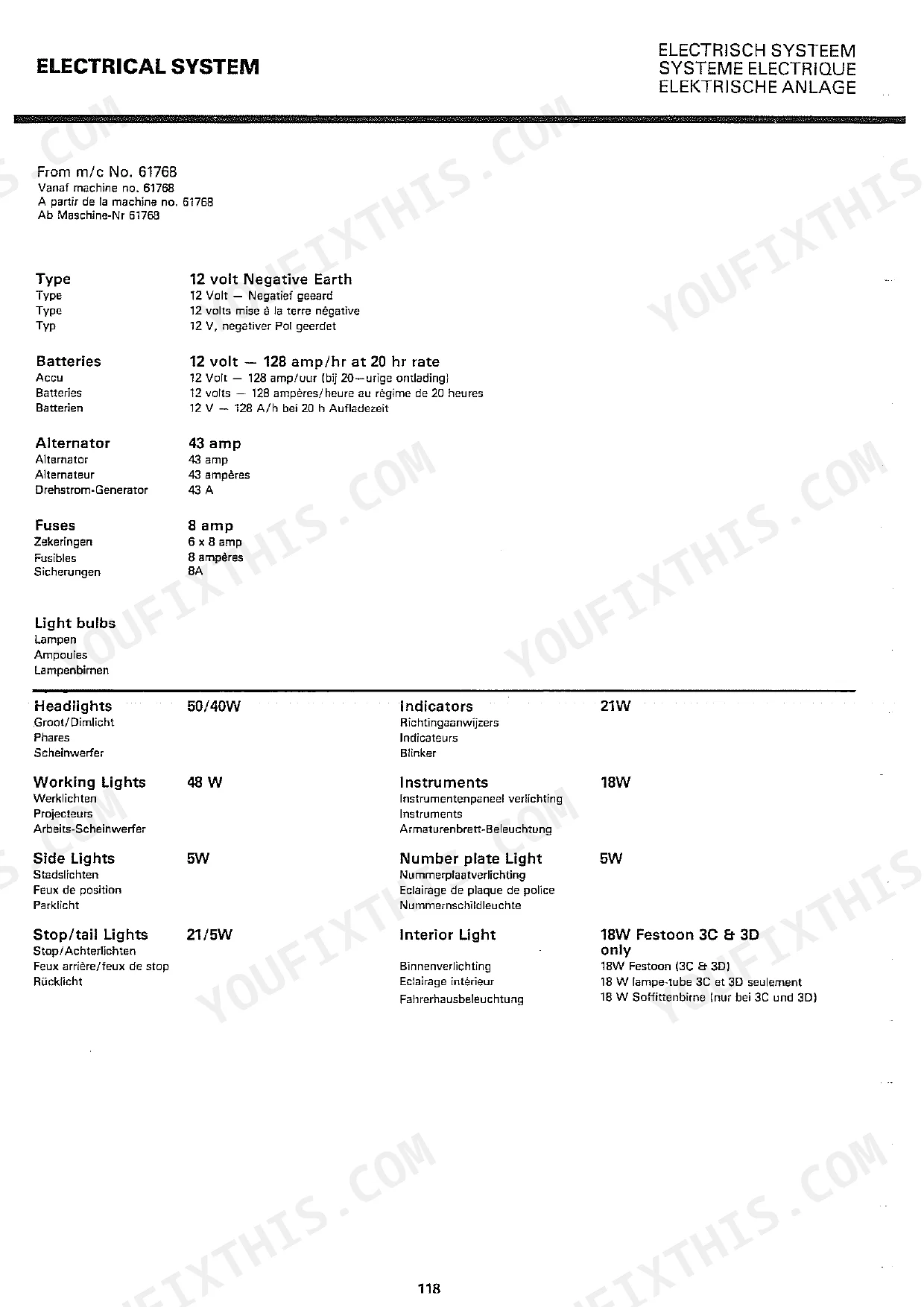

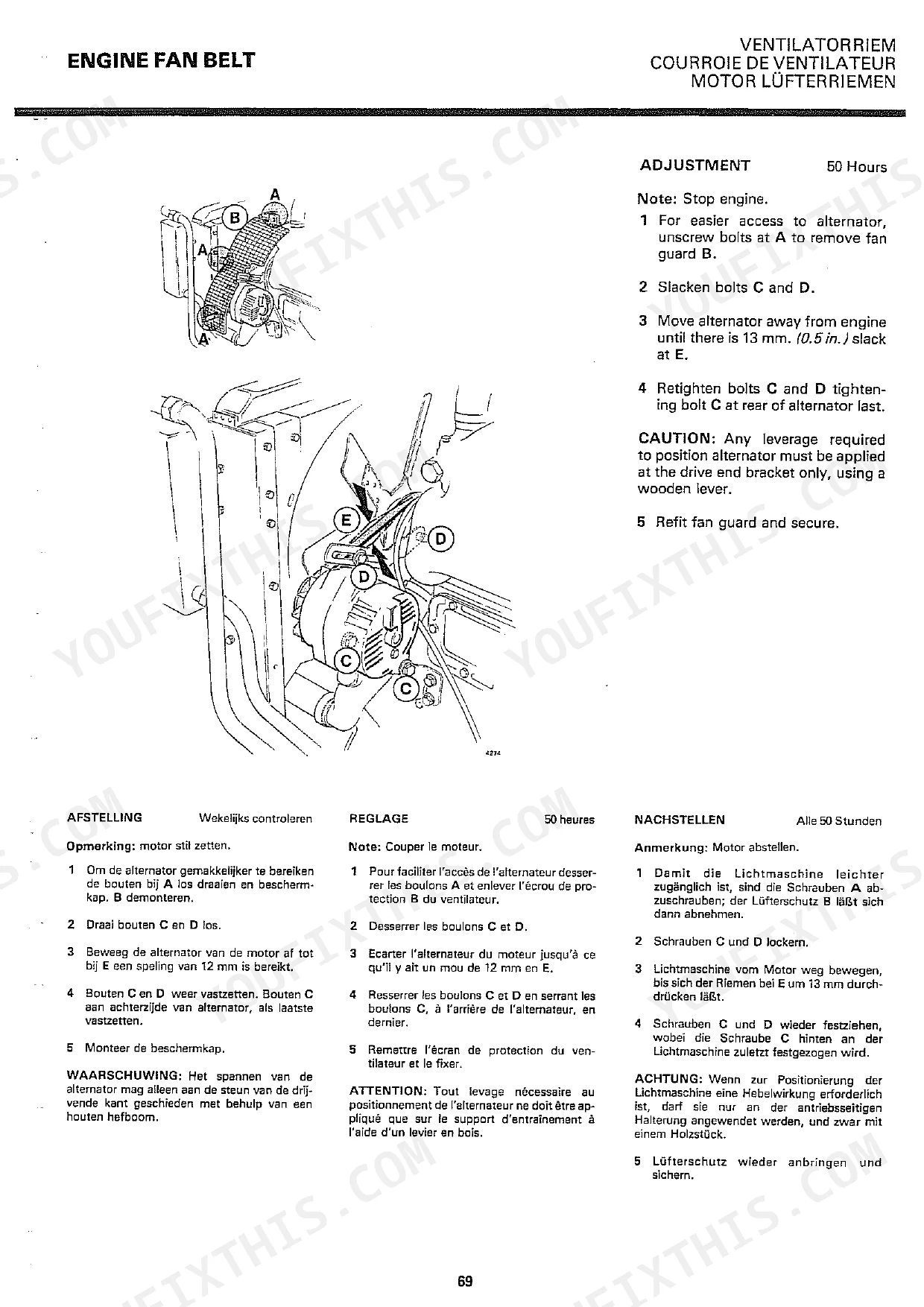

| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Battery Voltage and Capacity | 12 volt - 128 amp/hr at 20 hr rate | p. 122 |
| Alternator Output | 43 amp | p. 122 |
| Engine Fan Belt Slack (for alternator adjustment) | 13 mm (0.5 in.) | p. 72 |
| Engine Oil Filter Renewal Interval | 200 Hours | p. 63 |
| 3C MK III | ||
| Hydraulic System Capacity | 195 Litre / 43 Gal | p. 119 |
| 3D MK III | ||
| Hydraulic System Capacity | 204 Litre / 45 Gal | p. 119 |
| 3C | ||
| Engine Oil Capacity (Balanced, Steel Sump) | 9.6 Litre | p. 119 |
| Fuel Tank Capacity | 68 Litre | p. 119 |
| Cooling System Capacity | 13.6 Litre | p. 119 |
| Gearbox Oil Capacity (10 Speed) | 50 Litre | p. 119 |
| Torque Converter Oil Capacity (Build/3) | 20.4 Litre | p. 119 |
| Hydraulic System Capacity (including tank) | 195 Litre | p. 119 |
JCB 3C MK III, 3D MK III Common Problems This Manual Covers
JCB backhoe loader won't crank or turns over very slowly, battery appears dead p. 122
Check battery terminals for corrosion and confirm voltage at the posts; the specification is 12 volt, 128 amp/hr (page 122). Inspect the fan belt for more than 13 mm (0.5 in.) of slack, which prevents the 43 amp alternator from charging. Adjust belt tension per page 72 before condemning the battery.
Manual Section: MaintenanceGenerator warning light comes on and stays lit during normal engine operation p. 72
Inspect the fan belt tension immediately; allowable deflection is 13 mm (0.5 in.) as shown on page 72. A worn or loose belt prevents the 43 amp alternator from maintaining charge on the 12 volt system (page 122). Check the belt for glazing or cracking. Correct belt tension first before suspecting the alternator itself.
Manual Section: Engine Fan Belt AdjustmentHydraulic loader or backhoe functions feel sluggish or lose power during work p. 89
Examine the hydraulic fluid level every 10 hours (page 89). Park the machine with the loader and backhoe lowered to the travel position before reading the sight glass; raised arms trap fluid and give a false low reading. Top up with JCB 'Special' Hydraulic Fluid only (page 120). Look over all visible hoses for kinking, chafing, or wet spots.
Manual Section: MaintenanceOil pressure warning light comes on at idle or during normal digging cycles p. 119
Stop the engine immediately and check the dipstick. On the 3C MK III, the sump holds 9.6 litres (page 119); top up if the oil is below the minimum mark. Renew the oil filter every 200 hours (page 63). If oil level is correct and the light remains on, do not restart; contact your JCB dealer.
Manual Section: MaintenanceEngine cranks normally but will not fire after machine has been parked overnight p. 64
Verify the fuel filter is not overdue; renewal interval is 400 hours (page 64). Check the maintenance schedule on page 60 for any outstanding service items. A restricted filter cuts fuel delivery on cold starts. Confirm fuel level is adequate and the stop control is fully in the run position before cranking again.
Manual Section: MaintenanceFrequently Asked Questions
Why won't my JCB 3C MK III crank, or turns over very slowly?
Check the battery terminals for corrosion and confirm the voltage matches the 12-volt, 128 amp/hr specification (page 122). Inspect the fan belt for more than 13 mm (0.5 in.) of slack; a loose belt prevents the 43-amp alternator from charging the battery. Adjust belt tension per page 72 before replacing the battery.
What does a lit generator warning light mean on the JCB 3C/3D MK III?
A lit generator warning light almost always points to fan belt tension. The allowable deflection is 13 mm (0.5 in.) as shown on page 72. A worn or loose belt prevents the 43-amp alternator from maintaining charge on the 12-volt system (page 122). Correct belt tension before suspecting the alternator itself.
My JCB 3C backhoe hydraulics feel sluggish — what should I check first?
Check the hydraulic fluid level every 10 hours (page 89). Park the machine with the loader and backhoe in the lowered travel position before reading the sight glass — raised arms trap fluid and give a false low reading. The 3C MK III hydraulic system holds 195 litres (43 gal); the 3D MK III requires 204 litres (45 gal) (page 119). Top up with JCB Special Hydraulic Fluid only (page 120) and inspect hoses for kinking or leaks.
How do I read the JCB 3C/3D MK III electrical diagrams in the manual?
The manual includes wiring diagrams with full component keys (pages 124–129). Each diagram identifies circuits for the cab instruments, warning lights, and charging system. Use the bookmarks to jump directly to the electrical section, then cross-reference the component key to trace any circuit fault systematically.
Document Quality
This document is a scanned PDF with an OCR layer, allowing you to search and copy text. The text quality is generally good, though some pages exhibit minor blurriness or fading typical of scanned materials. Diagrams and illustrations are raster images; they are clear enough for readability, but labels may show slight pixelation upon zooming. Page condition is mostly clean, with occasional minor scan artifacts, slight skewing, and some faint background patterns. You will find several blank pages interspersed throughout the manual.
