Need the factory operating guidelines for your 2005-2008 JCB telehandler? This 172-page JCB 506C, 506CHL, and 508C operator manual PDF (OEM #9811/0350) details every control, safety checklist, and daily routine for all three models. Open to a complete breakdown of the cab layout, dashboard indicators, and boom controls before you ever turn the key. You get maintenance schedules covering pre-start cold checks, 50-hour greasing intervals, load charts, and exact fluid capacities to keep your machine running cool. Top off the cooling system with 6.2 gallons (23.5 L) of a 50 percent standard mixture, and ensure the transmission holds exactly 4.8 gallons before lifting a pallet. Skip a daily maintenance step and you risk costly downtime. Grab this bookmarked digital manual, pull it up on your phone right in the cab, and operate with confidence.
What's Inside This JCB 506C, 506CHL, 508C Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 7-8 | Important Information, Operator Manual, Safety Warnings |

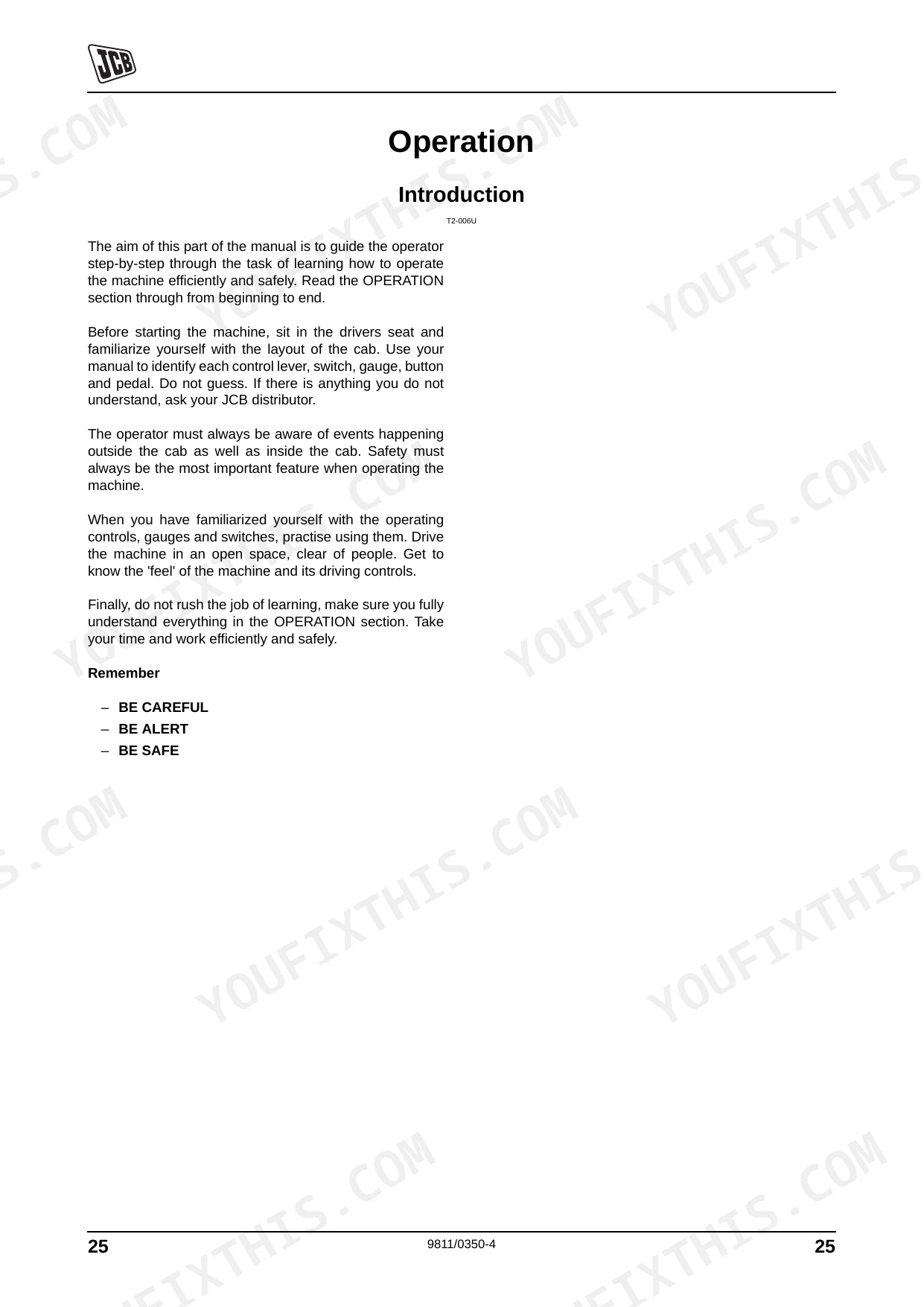

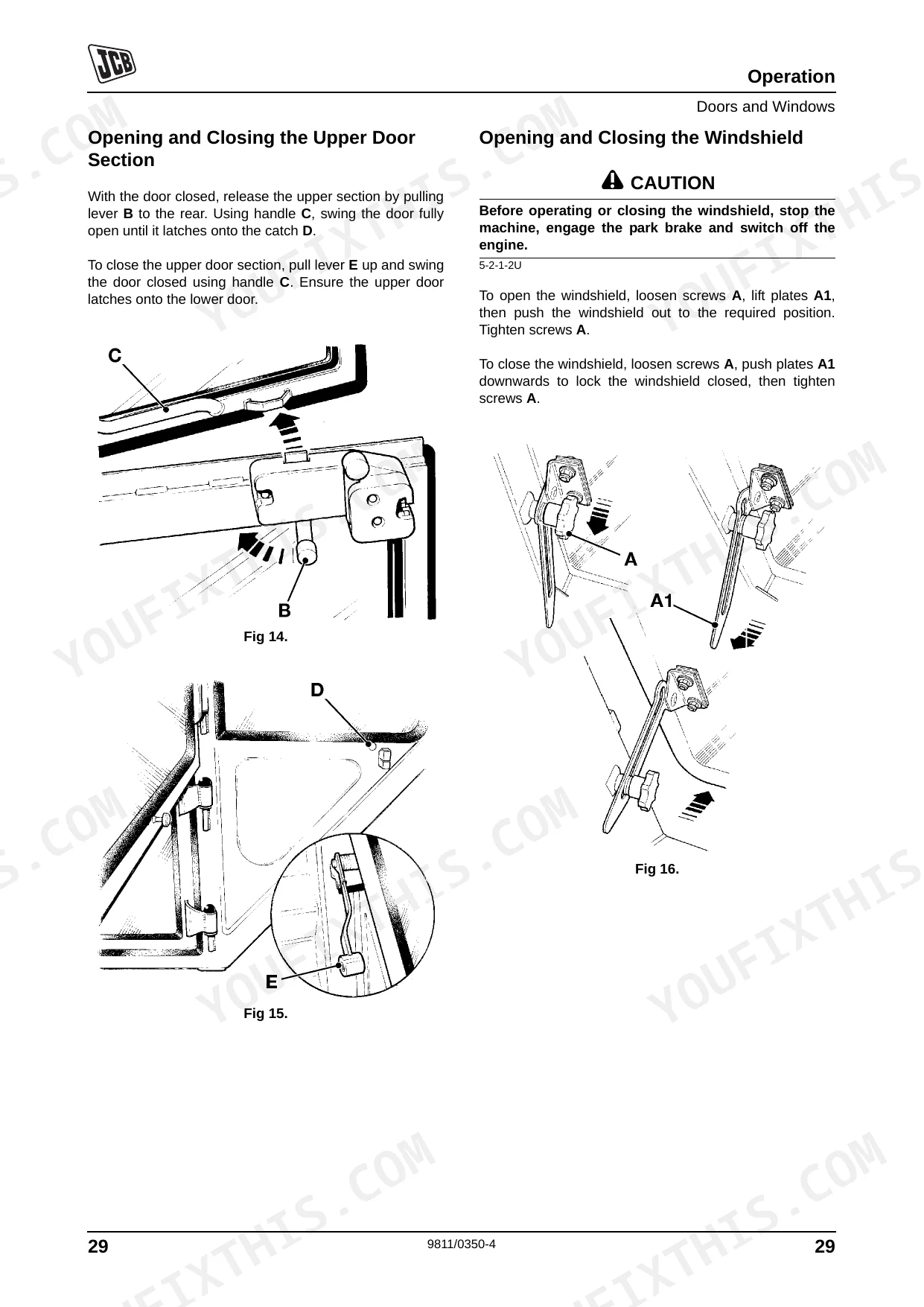

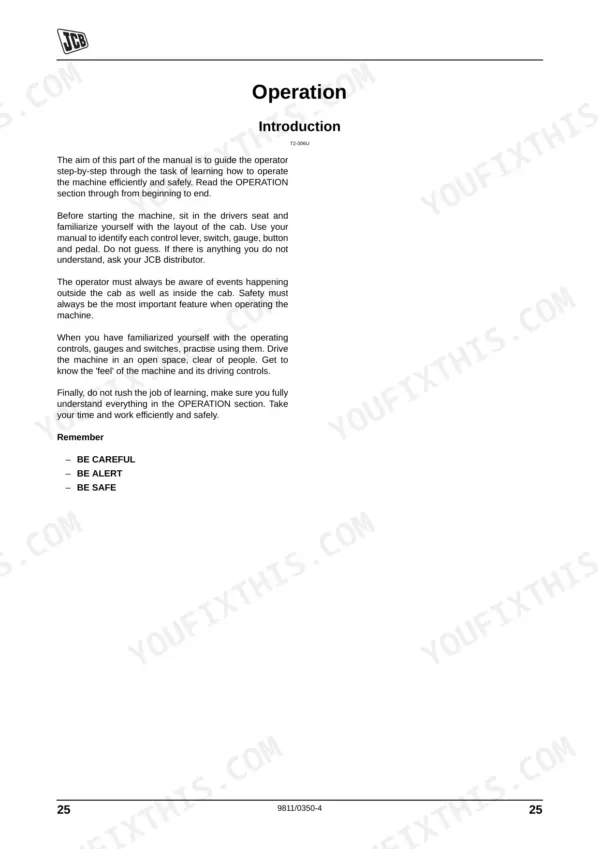

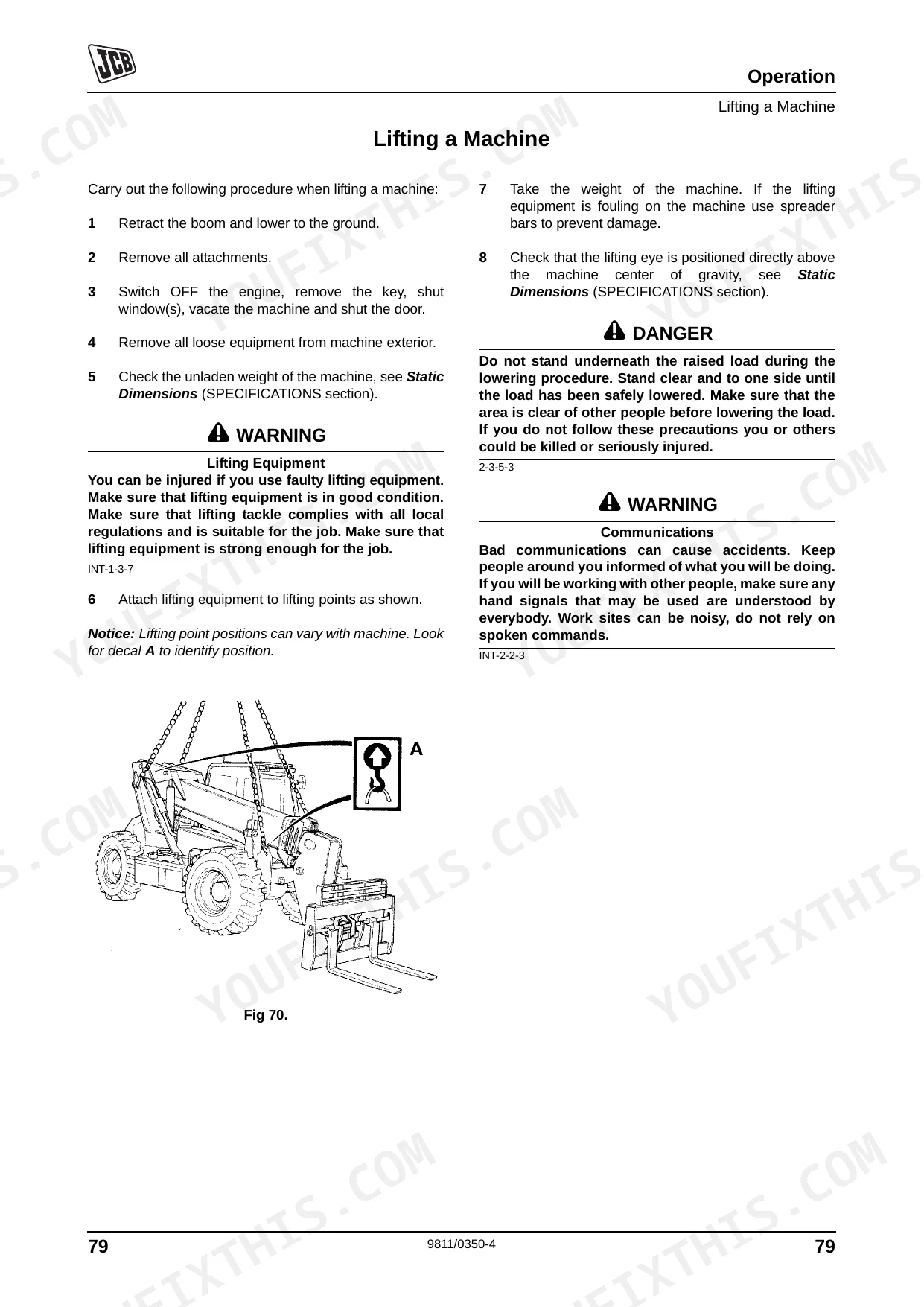

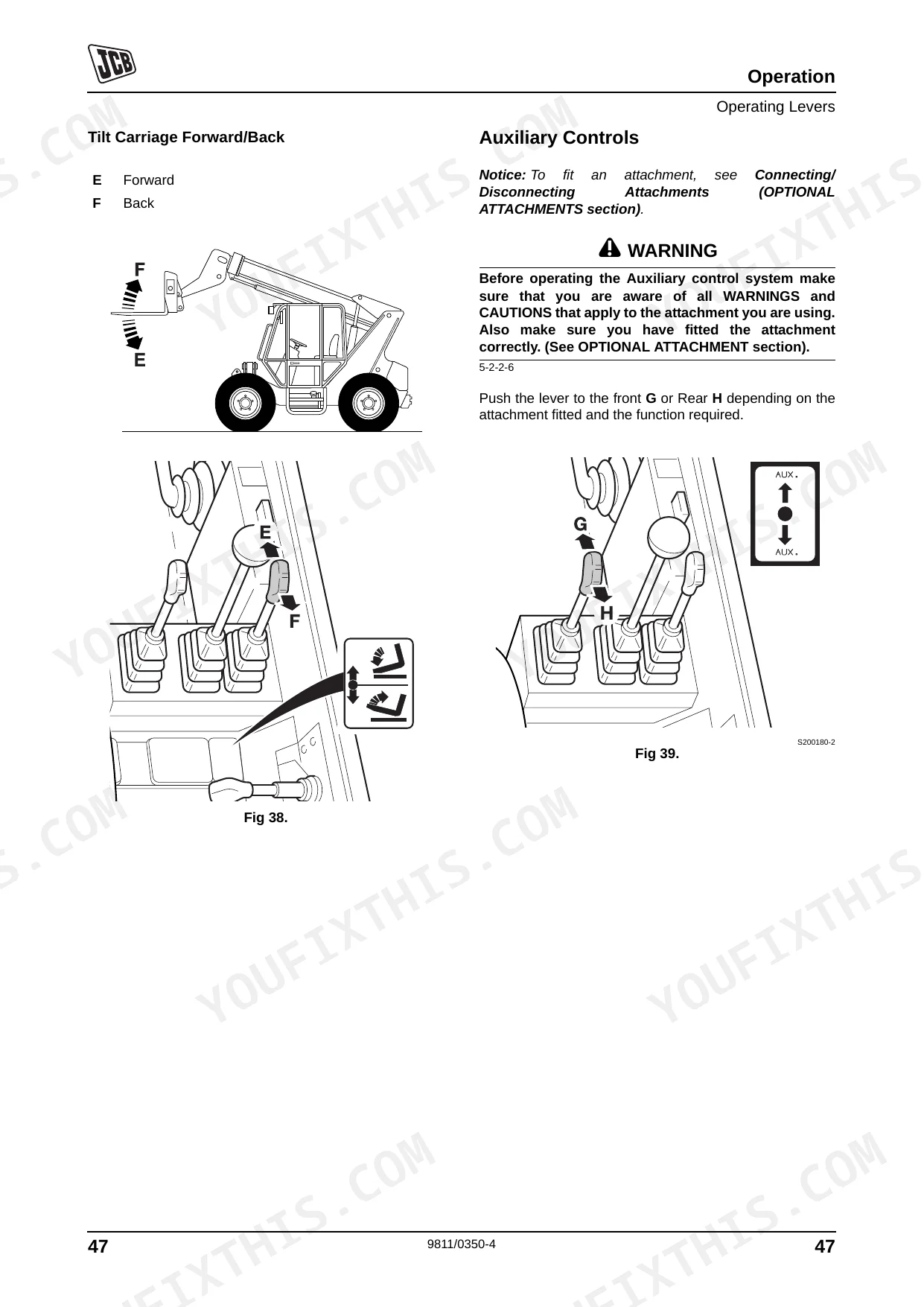

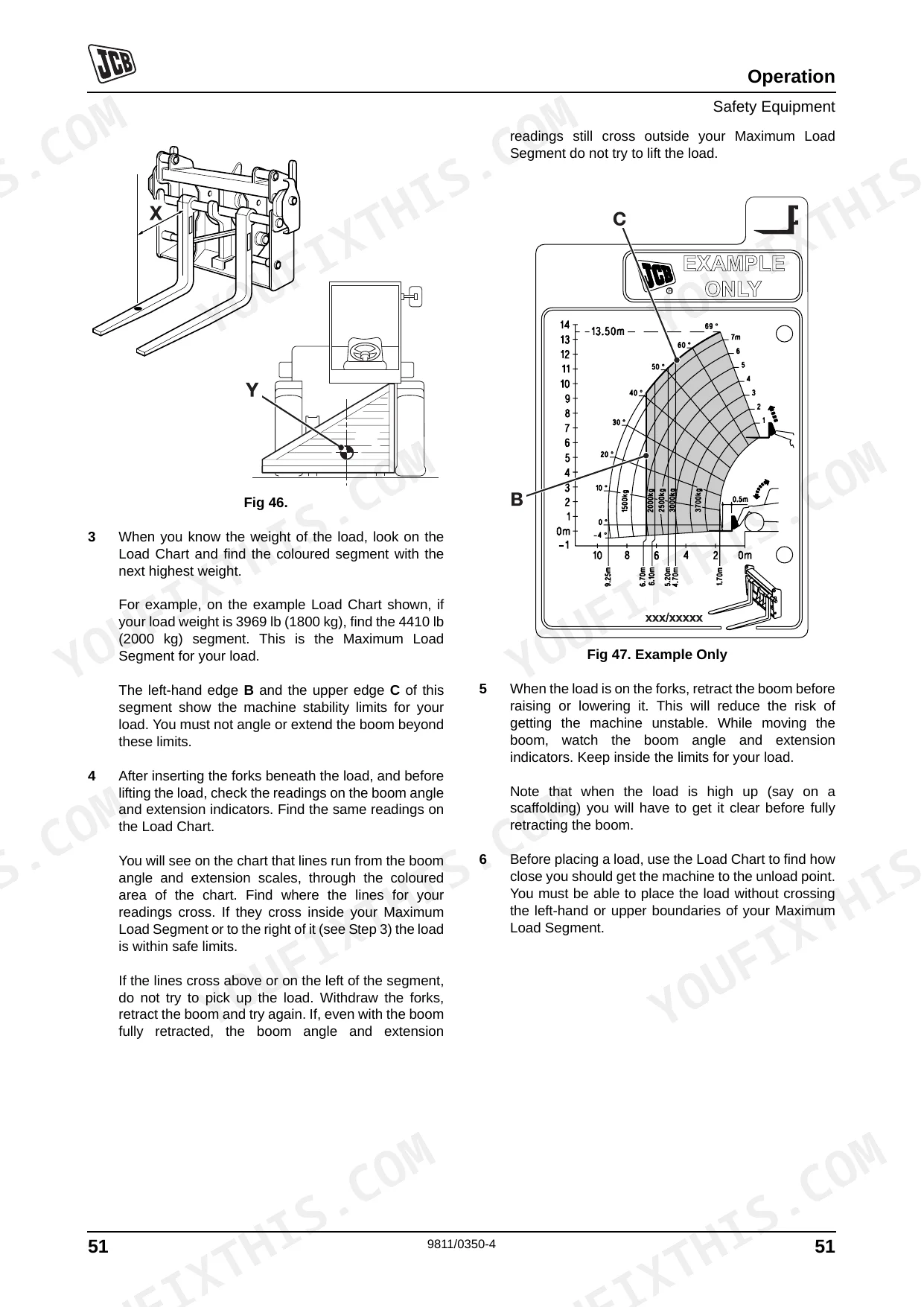

| Operation | 33-88 | Introduction, Before Entering the Cab, Entering and Leaving the Cab, Doors and Windows (Opening Closing: Upper Door Section, Windshield), Seat Controls (Introduction, Basic Seat) |
| Routine Maintenance | 89-94 | Service Requirements (Introduction, Owner/Operator Support, Service/Maintenance Agreements, Initial Service and Inspection), Obtaining Replacement Parts |
| Service Schedules | 95-100 | Introduction, How to Use the Service Schedules, Pre-Start Cold Checks, Service Points and Fluid Levels, Functional Test and Final Inspection |
| Fluids, Lubricants and Capacities | 101-102 | Coolant Mixtures, Engine Coolant Capacity (6.2 Gal / 23.5 L), Transmission Fluid Capacity (4.8 Gal / 18.25 L), Fuel Tank Capacity, Hydraulic Tank Capacity |
| Greasing | 103-115 | Every 50 Hours Lubrication Points, Greasing Schedule Intervals |
| Maintenance Torques and Checks | 116-149 | ROPS/FOPS Mounting Bolt Torque (244 Nm / 180 Lbf Ft, P. 116), Hydraulic Fluid Level Check (P. 135), Hose Burst Protection Valves (P. 145) |
| Wheel and Tire Specifications | 150-172 | Wheel Nut Torque Front and Rear (680 Nm / 500 Lbf Ft, P. 150), Tire Pressure (58 lbf/in² / 4.0 Bar, P. 165) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel Nut Torque | 680 Nm (500 lbf ft) | p. 142 |
| Coolant Mixture Concentration (Standard) | 50% Concentration | p. 102 |
| Engine Coolant Capacity | 6.2 gal (23.5 L) | p. 101 |
| Transmission Fluid Capacity | 4.8 gal (18.25 L) | p. 101 |
| ROPS/FOPS Mounting Bolts Torque | 244 Nm (180 lbf ft) | p. 116 |
| Wheel Nut Torque (Front) | 680 Nm (500 lbf ft) | p. 150 |
| Wheel Nut Torque (Rear) | 680 Nm (500 lbf ft) | p. 150 |
| Tire Pressure (15.5-25, 12 Ply, Firestone) | 58 lbf/in² (4.0 bar) | p. 165 |
| 506C | ||
| Fuel Tank Capacity | 23.7 gal (90 L) | p. 101 |
| Hydraulic Tank Capacity | 32 gal (121 L) | p. 101 |
| 506CHL, 508C | ||
| Fuel Tank Capacity | 35 gal (133 L) | p. 101 |
| Hydraulic Tank Capacity | 48 gal (181 L) | p. 101 |
JCB 506C, 506CHL, 508C Common Problems This Manual Covers
JCB 506C boom drifts down when holding position or hydraulic system slips during lifting cycle p. 135
Check the hydraulic fluid level (page 135) and inspect the hose burst protection valves (page 145) for proper function. Ensure the hydraulic tank capacity for the 506C (32 gal / 121 L) is met (page 101).
Manual Section: OperationEngine temperature gauge spikes and overheating warning light flashes during heavy load operation p. 102
Inspect the radiator core and clean out any debris blocking airflow (page 103). Verify the engine coolant mixture matches the 50% concentration spec (page 102). Drain and flush the system if contaminated, refilling with exactly 6.2 gal (23.5 L) of fresh coolant (page 101).
Manual Section: Fluids, Lubricants and CapacitiesMachine bounces excessively during transport or steering feels sluggish on hard surfaces p. 165
Verify all tires are properly inflated before operating the handler. Adjust the tire pressure to exactly 58 lbf/in² (4.0 bar) as detailed on page 165. Inspect the front and rear wheel nuts, ensuring they are tightened to 680 Nm (500 lbf ft) (page 150).
Manual Section: GreasingTransmission warning indicator illuminates on dashboard and machine hesitates during forward travel p. 51
Review the troubleshooting procedures for transmission warning indicators (page 51). Park the machine on level ground and check the transmission fluid dipstick (page 139). If the fluid level is low, add approved oil until reaching the full mark, keeping the total 4.8 gal (18.25 L) capacity in mind (page 101).
Manual Section: OperationFrequently Asked Questions
JCB 506CHL error code meaning
The manual lists several warning lights that indicate specific issues. For example, the 'Engine Coolant Temperature High' light (2) illuminates if the engine coolant temperature rises too far. The 'Transmission Oil Temperature High' light (13) indicates if the transmission oil temperature rises too far. The 'Water in Fuel Indicator' light (16) signals the presence of water in the fuel system, requiring the water separator and engine filter to be drained.
JCB 506C engine fault code list
The manual provides a list of engine-related warning lights that indicate faults. These include 'No Charge' (1) for battery charging circuit failure, 'Engine Coolant Temperature High' (2) for excessive coolant temperature, 'Engine Oil Pressure Low' (3) for low oil pressure, 'Air Filter Blocked' (4) for a clogged air filter, 'Cold Start' (5) for cold weather starting, and 'Water in Fuel Indicator' (16) for water in the fuel system.
JCB 506CHL transmission fault codes
The manual lists specific warning lights related to the transmission system. These include the 'Transmission Oil Temperature High' light (13), which illuminates if the transmission oil temperature rises too far, and the 'Transmission Oil Pressure Low' light (14), which operates if the transmission oil pressure drops too far. For the latter, the light should go out when the engine is started.
How to reset JCB 508C warning light
The manual does not provide a general 'reset' procedure for warning lights. Instead, it indicates that the lights will go out once the underlying issue is resolved. For example, if the 'Low Level Coolant Indicator' (15) lights up, the instruction is to top up the coolant level as soon as it is safe to do so, implying the light will then extinguish.
Is this JCB 506C, 506CHL, 508C Operator Manual a digital download?
A 172-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Can I print this manual?
Yes. The PDF has no DRM restrictions, so print any page or section you need for your shop. Works with any standard printer.
Document Quality
This document is a scanned PDF with an optical character recognition (OCR) layer, allowing you to search and copy the full text. The text is crisp and consistently easy to read throughout the manual. Diagrams and illustrations are raster images, but their labels are generally clear and readable. Pages are clean and well-aligned, with several pages explicitly marked as "Page left intentionally blank."
