Need the daily operating procedures and maintenance intervals for your JCB Loadall? All 200 pages of this JCB 520m, 525b-hl, 530b-hl operator manual pdf (OEM #9801/7777) focus on keeping your machine running safely and efficiently. Inside, you get complete dashboard indicator breakdowns, strict daily maintenance schedules, and full fluid capacity charts. Packed with safe operating procedures, it shows you exactly how to read load charts and handle irregular palleted loads without tipping the equipment. Torque the wheel nuts to 300 lbf ft (405Nm) before hitting the site, and remember to install the hydraulic filter element hand-tight only. Stop relying on faded safety decals and operator guesswork. Download this bookmarked file to any device, jump straight to the daily checklist, and get to work.
What's Inside This JCB 520M, 525B-HL, 530B-HL Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Introduction | - | Left Side, Right Side, Units of Measurement, Safety - Yours and Other People's, Safety Check List, Operating Safety, Maintenance Safety, Safety Decals |

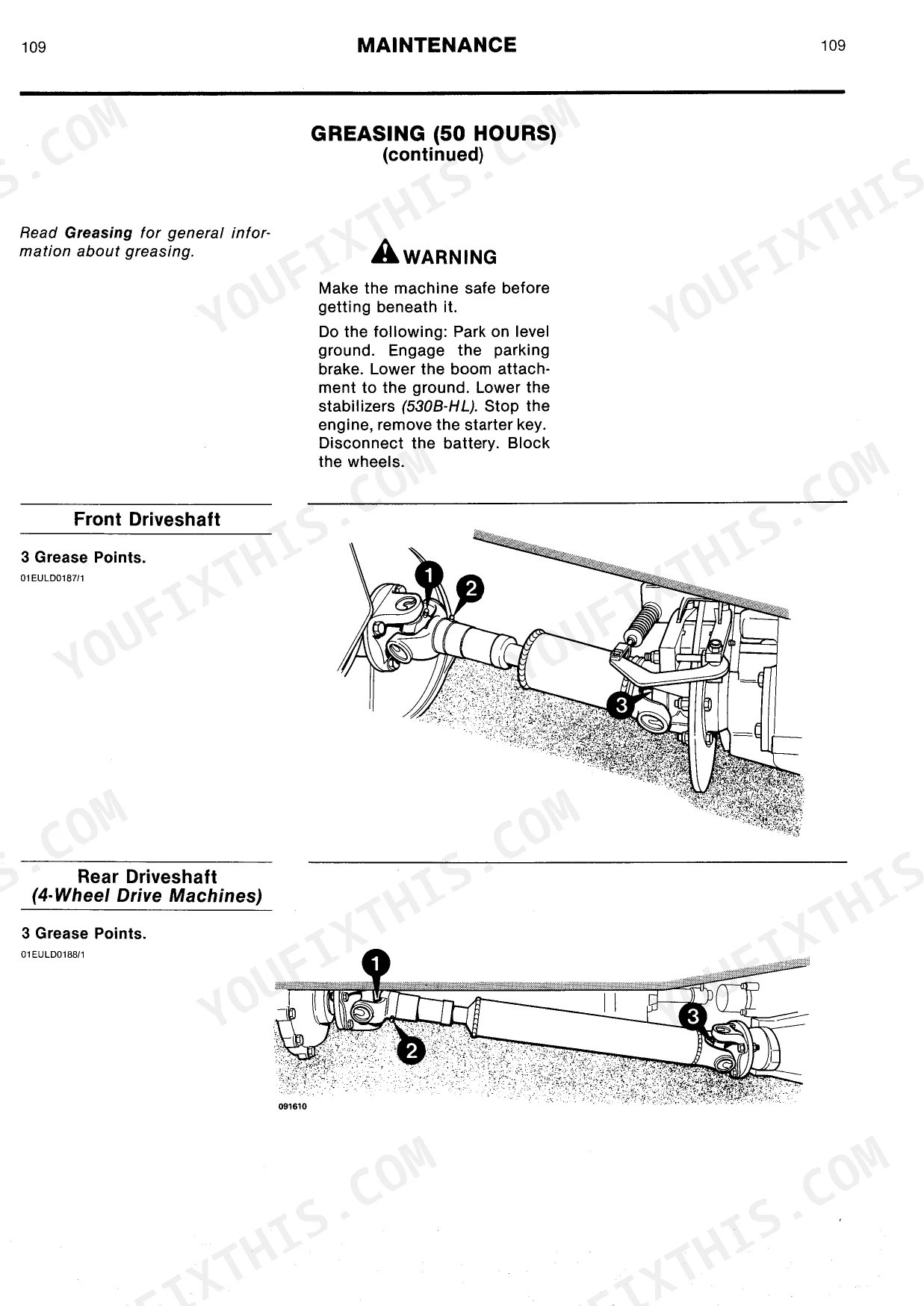

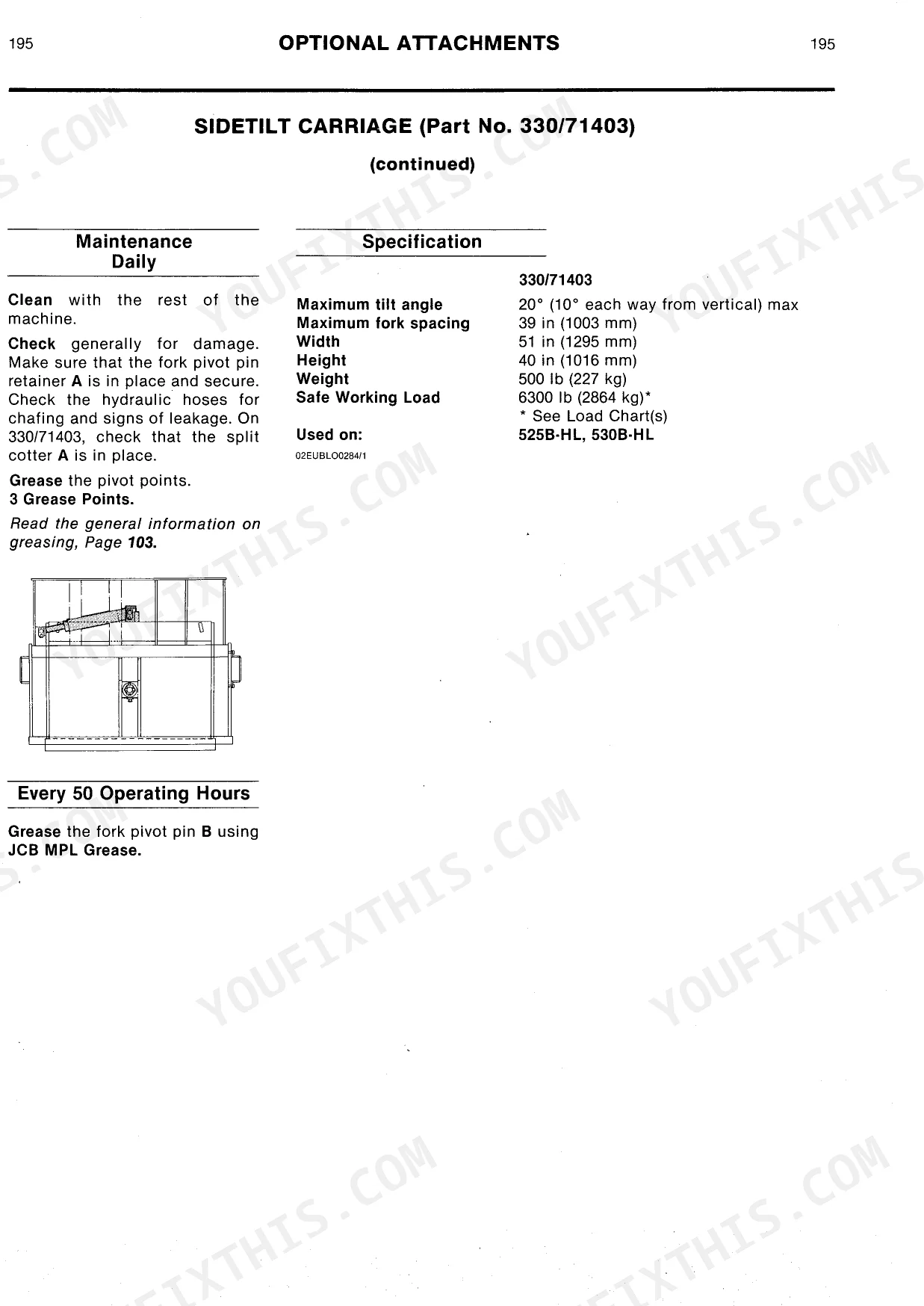

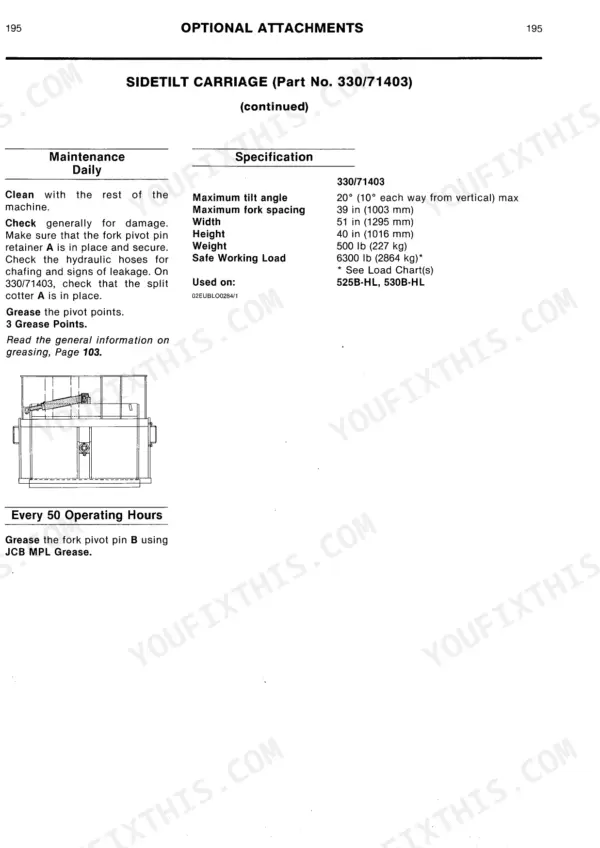

| Maintenance | - | Greasing, Oiling, Tires and Wheels, Brakes, Engine Systems, Fuel System, Hydraulic System |
| Specification | - | Model 520M, Model 525B-Hl, Model 530B-Hl, Dimensions, Weight, Forklift Performance, Loader Performance |
| Safety Notices | - | Danger, Warning, Caution, General Safety, Operating Safety, Maintenance Safety |
| General Description of Jcb Loadall | - | Main Frame and Cab, Powertrain, Engine, Transmission Unit, Axles, Brakes |

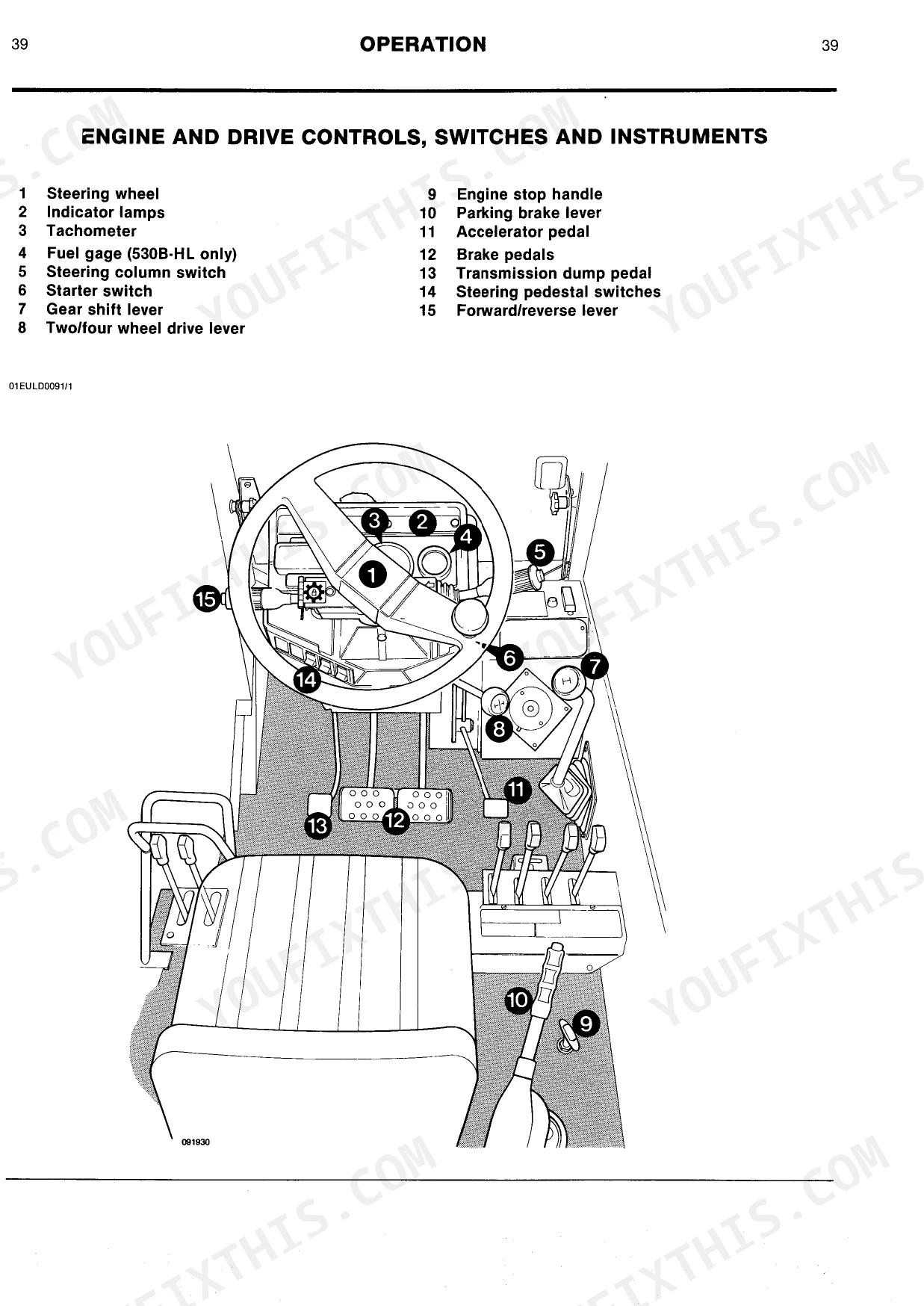

| Engine and Drive Controls | - | Controls, Indicator Lights, Tachometer, Fuel Gauge, Steering Column Switch, Starter Switch |
| Boom and Carriage Controls | - | 520M Controls, 525B-Hl Controls, 530B-Hl Controls, Raise/Lower Boom, Tilt Carriage |

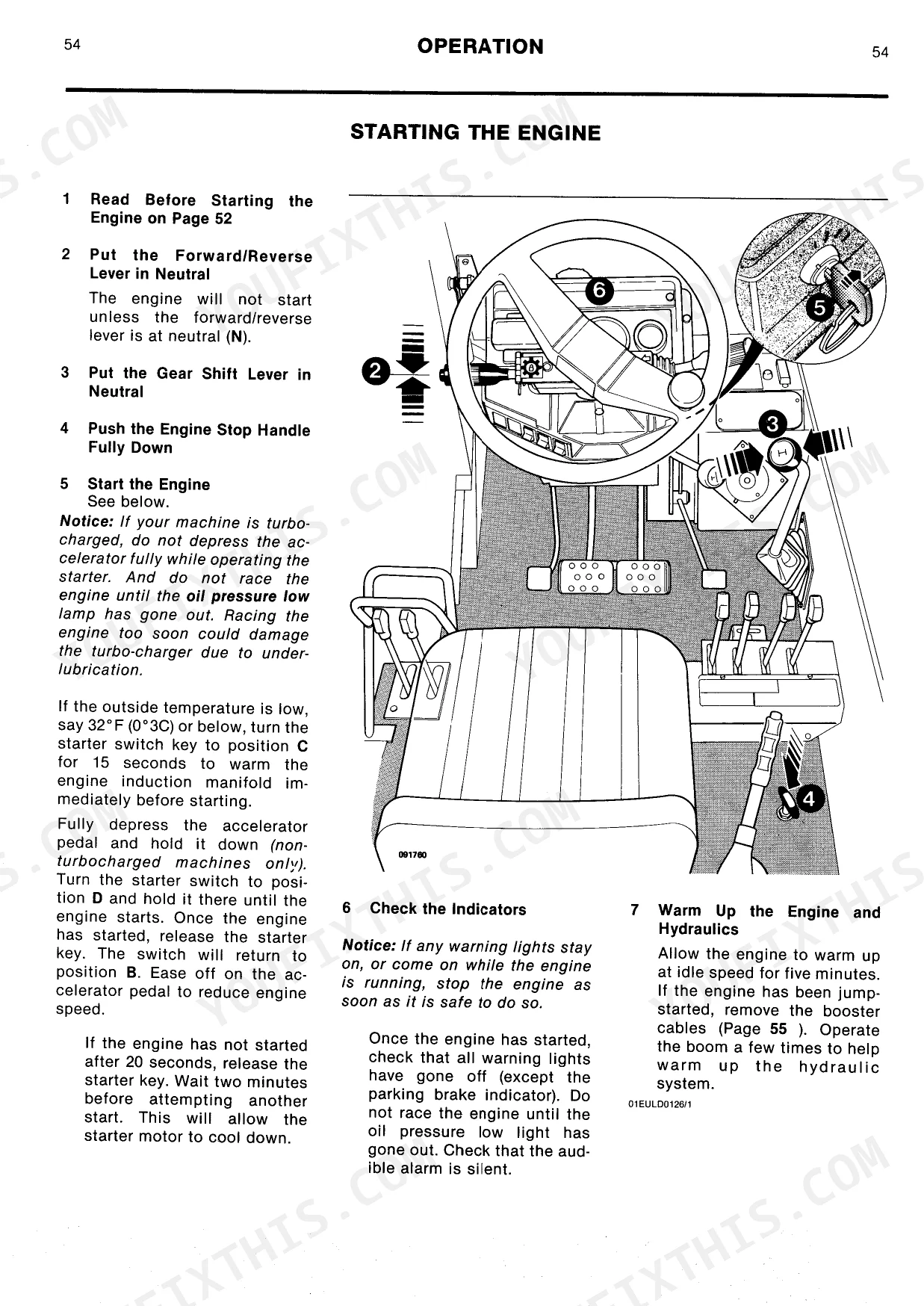

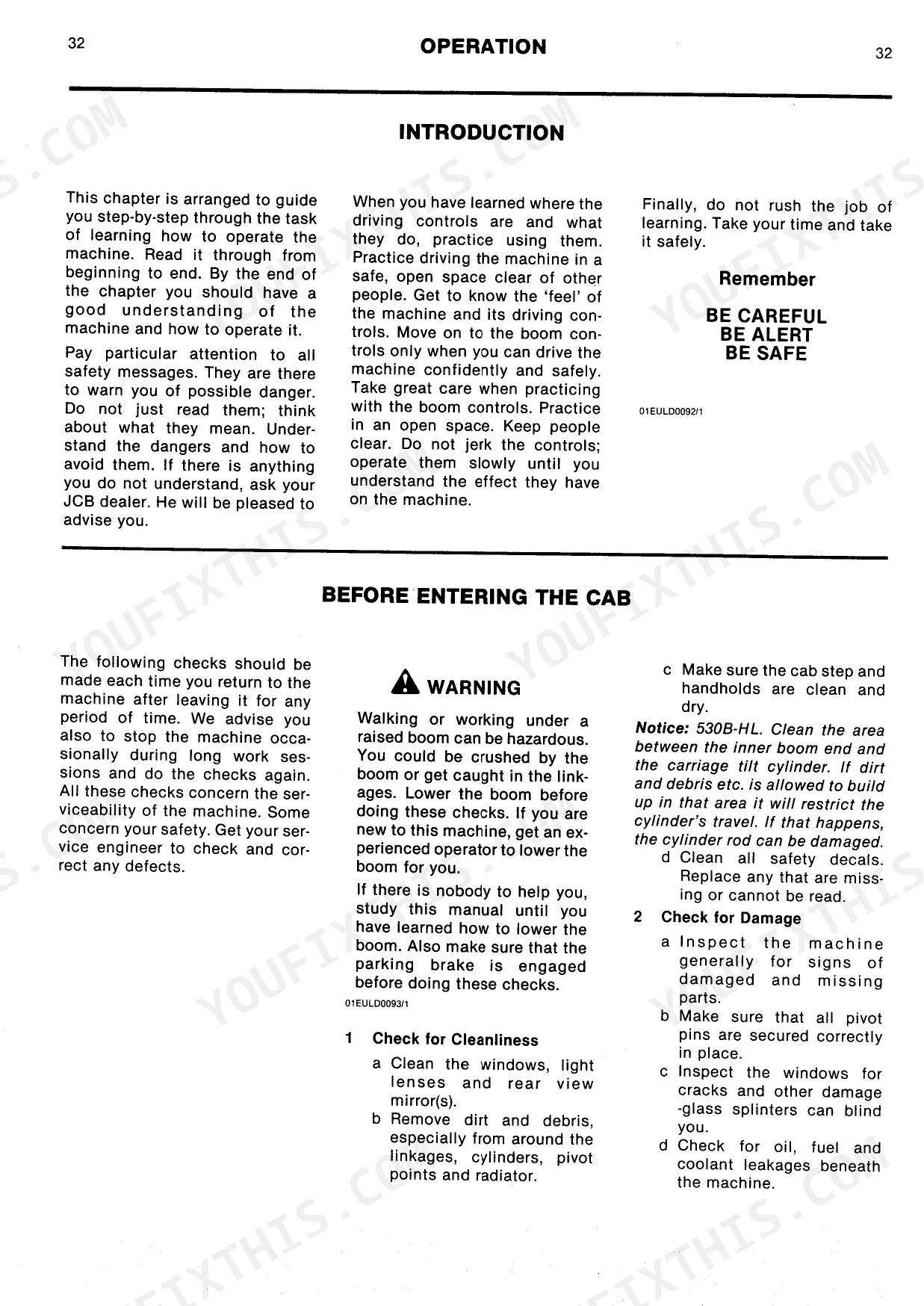

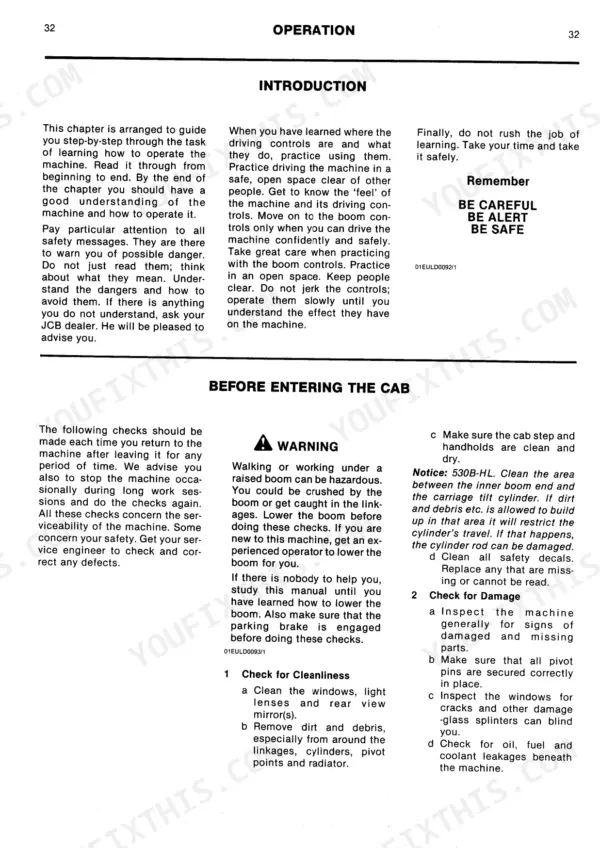

| Starting and Stopping the Engine | - | Before Starting the Engine, Starting the Engine, Jump-Starting the Engine, Testing the Parking Brake, Stopping and Parking |
| Loading and Unloading | - | Maximum Loads, Placing a Palleted Load, Using the Load Chart, Handling Irregular Loads |
| Regular Maintenance Schedules | - | Daily Checks, Every 50 Operating Hours, Every 100 |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| All Models | ||
| Wheel nut torque | 300 lbf ft (405Nm) | p. 112 |
| Hydraulic filter tightening instruction | hand-tight only | p. 127 |
| Fuel filter tightening instruction | Tighten bolt C. Check for leaks. | p. 121 |
| Coolant drain plug tightening instruction | Make sure they are fully tightened. | p. 119 |
| Air filter inner element seal tightening instruction | Fit and tighten nut K. | p. 115 |
| Engine oil filter seal tightening instruction | smear the seal G on the new filter with oil. Screw in the new filter canister -hand tight only. | p. 116 |
| Air filter inner element tightening instruction | Fit and tighten nut K. | p. 115 |
| Coolant Temperature High warning light indication | Red light and audible alarm | p. 44 |
| Cooling system pressure warning | The cooling system is pressurised when the coolant is hot. Hot coolant can spray out and burn you. | p. 118 |
| Engine Oil Capacity | 2.8 US Gal (10.8 L) | p. 133 |
| 520M, 525B-HL | ||
| Fuel Tank Capacity (520M, 525B-HL) | 24 US Gal (91 L) | p. 133 |
| 530B-HL | ||
| Fuel Tank Capacity (530B-HL) | 26 US Gal (100 L) | p. 133 |
JCB 520M, 525B-HL, 530B-HL Common Problems This Manual Covers
JCB 520M boom movement is weak and steering feels sluggish during normal operation p. 133
Check the fluid level according to instructions on page 133. Verify the hydraulic system contains the correct 23-26 US Gal (87-100 L) capacity. Inspect the filter element and screw the new unit in place hand-tight only as specified on page 127.
Manual Section: Hydraulic System MaintenanceEngine starts poorly, loses power, or shuts down completely when placed under load p. 121
Bleed the fuel system to remove trapped air. Inspect the fuel filter for contamination and tighten bolt C to secure it, as noted on page 121. Verify the fuel tank is filled to the 24 US Gal (91 L) capacity for 525B-HL models.
Manual Section: Fuel System MaintenanceRed light and audible alarm activate on the dashboard indicating high coolant temperature p. 118
Stop the machine immediately when the alarm sounds. Wait for the engine to cool, as page 118 warns the pressurized system can spray. Inspect the radiator for blockages and verify the 2.8 US Gal (10.8 L) engine oil capacity is full to prevent secondary overheating.
Manual Section: Engine Systems MaintenanceMachine feels unstable during load handling and front tires appear low on air p. 152
Measure the front tire pressure and inflate to exactly 55 PSI as specified on page 152. Torque all wheel nuts to 300 ft-lb (405 Nm) using the specifications from page 112. Inspect the tires for deep cuts or sidewall damage.
Manual Section: MaintenanceFrequently Asked Questions
What is the max lifting capacity and lift height of a JCB telehandler?
For the JCB 520M telehandler, the lift capacity is 5,500 lb (2,500 kg) and the lift height is 12 ft 0 in (3.66 m). For the 525B-HL, the lift capacity to full height is 5,500 lb (2,500 kg) with a maximum lift height of 21 ft 10 in (6.65 m). The 530B-HL has a maximum lift capacity of 8,000 lb (3,636 kg) and a maximum lift height of 35 ft 5 in (10.8 m), or 36 ft 0 in (10.9 m) on stabilizers.
What are the replacement specifications for hydraulic filters?
The hydraulic system uses JCB Hydraulic Fluid or JCB High Performance Hydraulic Fluid. For 520M and 525B-HL models, the system capacity is 23-26 U.S. Gal (87-100 Liters), while for the 530B-HL, it is 42-45 U.S. Gal (160-170 Liters). The procedure for changing the hydraulic filter element is detailed on page 127.
How do you fix JCB 520M boom movement is weak and steering feels sluggish during normal operation?
Check the fluid level according to instructions on page 126. Verify the hydraulic system contains the correct 23-26 US Gal (87-100 L) capacity. Inspect the filter element and screw the new unit in place hand-tight only as specified on page 127.
How do you fix engine starts poorly, loses power, or shuts down completely when placed under load?
Bleed the fuel system to remove trapped air. Inspect the fuel filter for contamination and tighten bolt C to secure it, as noted on page 121. Verify the fuel tank is filled to the 24 US Gal (91 L) capacity for 525B-HL models.
Is this JCB 520M, 525B-HL, 530B-HL Operator Manual a digital download?
A 200-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Are there any print restrictions on this manual?
Absolutely. No DRM or copy protection. Print the whole manual or just the pages you need. Any home or office printer works.
Document Quality
This document is a scanned manual, not a native digital PDF. You can search the full text and copy content, as an OCR layer has been applied. The text is generally crisp and readable, though some larger headings show minor pixelation. All diagrams and illustrations are raster images, clear enough to read labels, but they will pixelate if zoomed in. Pages are mostly clean with occasional minor dust specks and slight skew, and there are several blank pages that appear to be part of the original manual's structure.
