Only JCB's own book settles which fuse feeds which circuit on a Fastrac either side of machine number 120773, and this 292-page JCB 3230 operator manual PDF (part 9811/5550) does that for the 3200 and 3230 series across four variants, Plus models included. Warning lights, system error codes and instrument cluster programming sit with the cab controls, while routine maintenance fills about a third of the book: service schedules, greasing points, filter changes and fuel system bleeding. Your specification pages list load capacities, tyre pressures and top speed in every gear at 40, 50, 65 and 80 kph. Budget 350 L for the fuel tank and 17.5 L for an engine oil change, then torque rear wheel nuts to 600 Nm (440 lbf ft). A parked Fastrac loses you hours of fieldwork. Bookmarks on every section and a searchable text layer take you straight to the gearbox oil change or the relay chart in a couple of clicks.
What's Inside This JCB Fastrac 3200 & 3230 Operator Manual

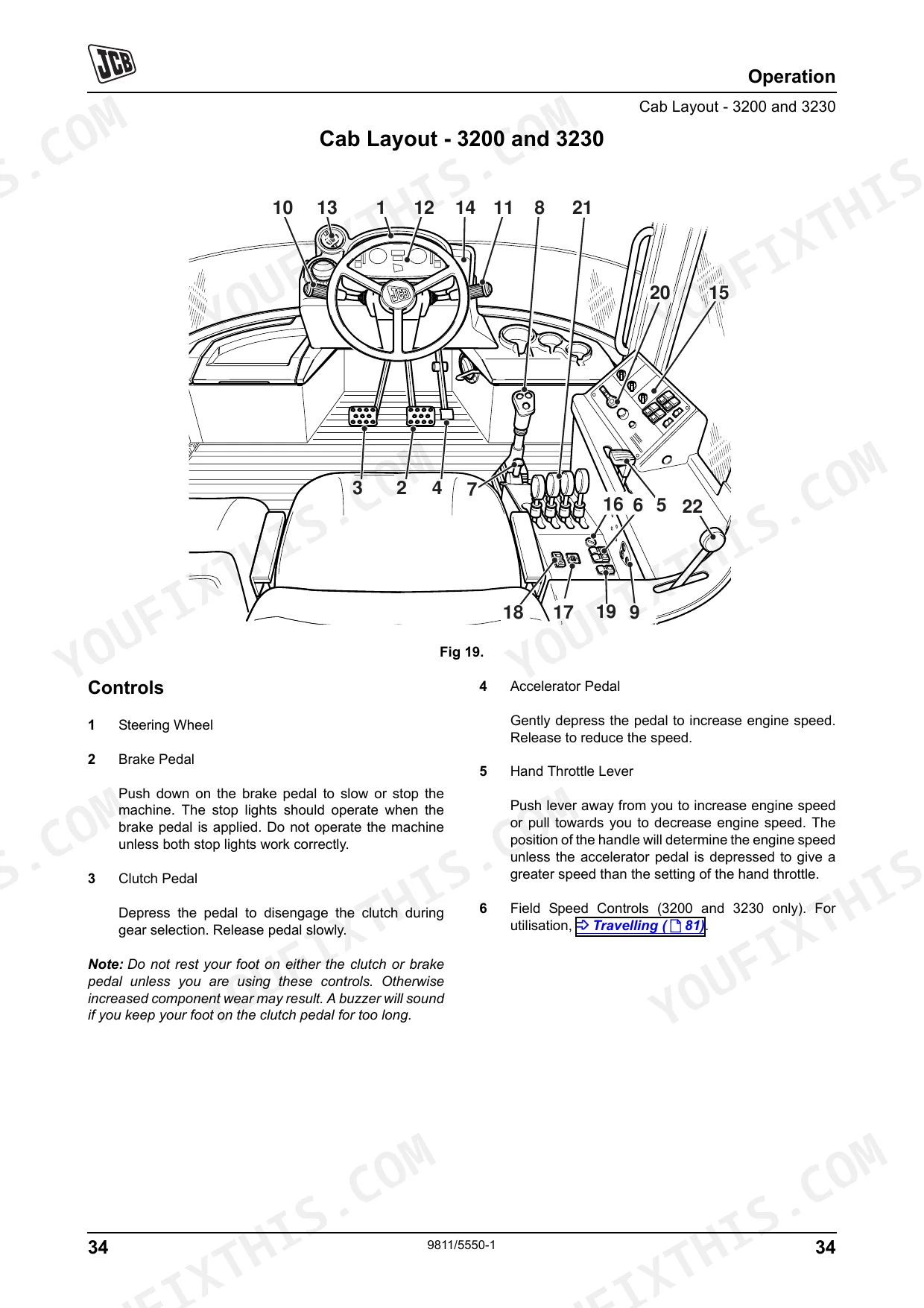

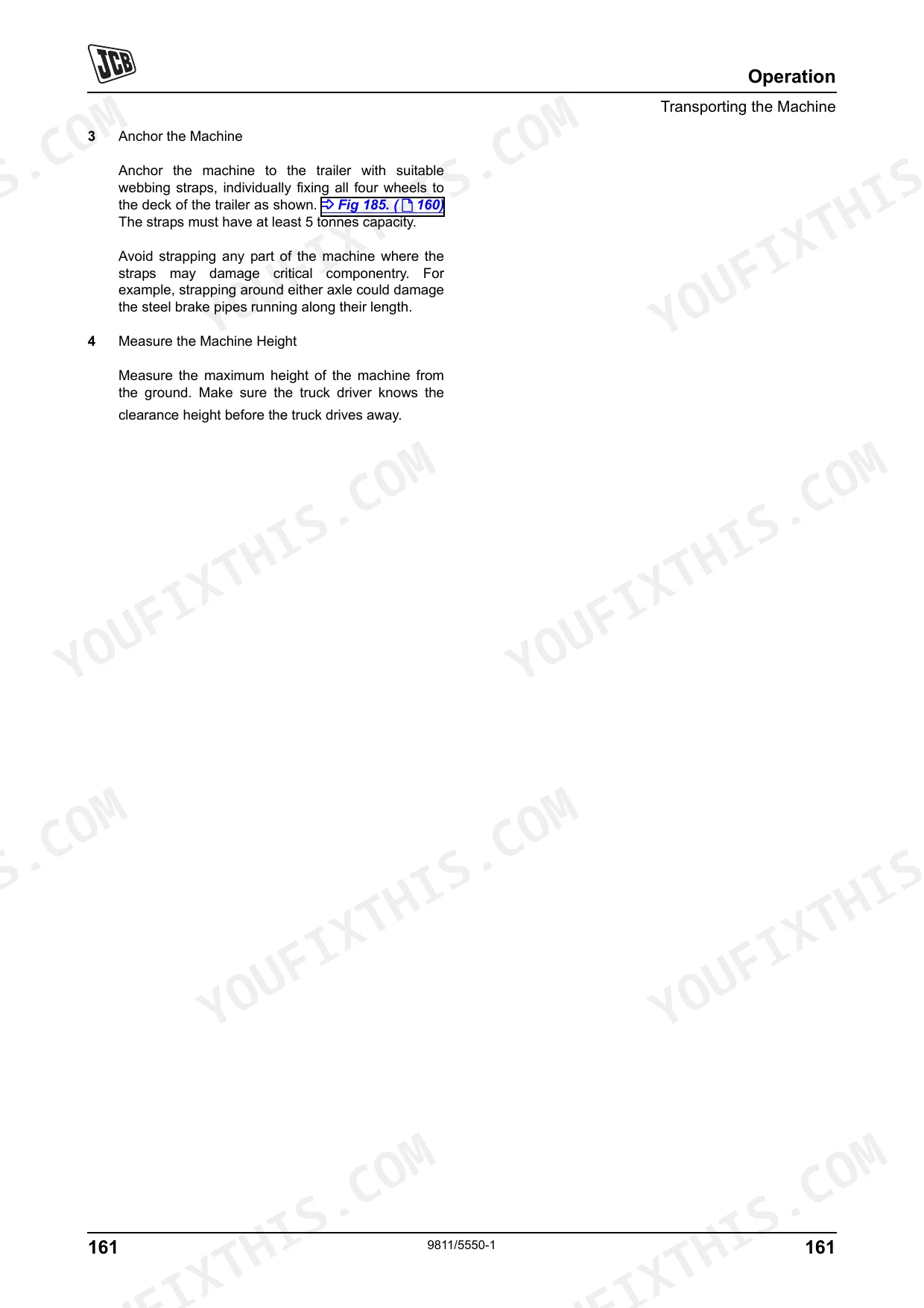

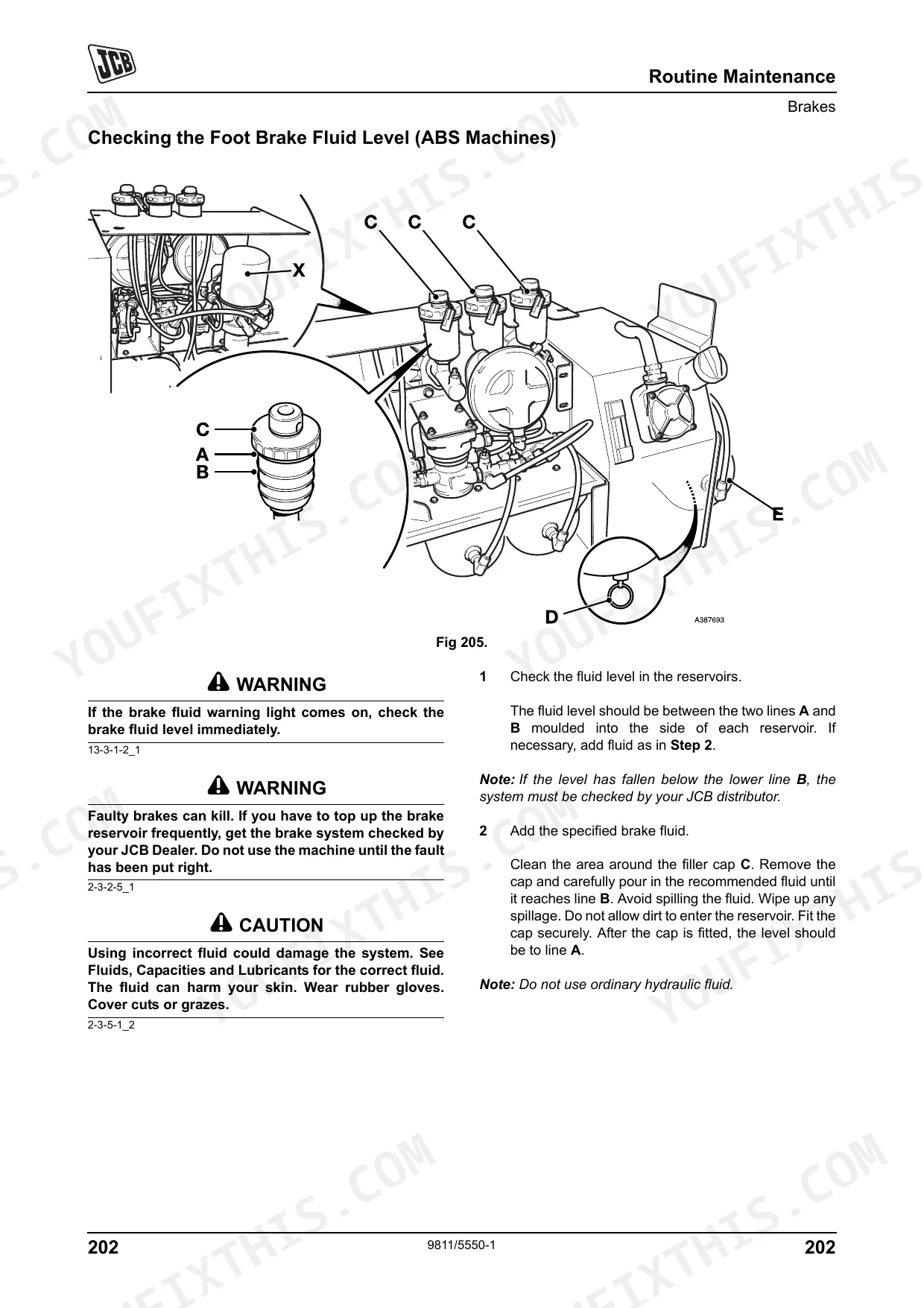

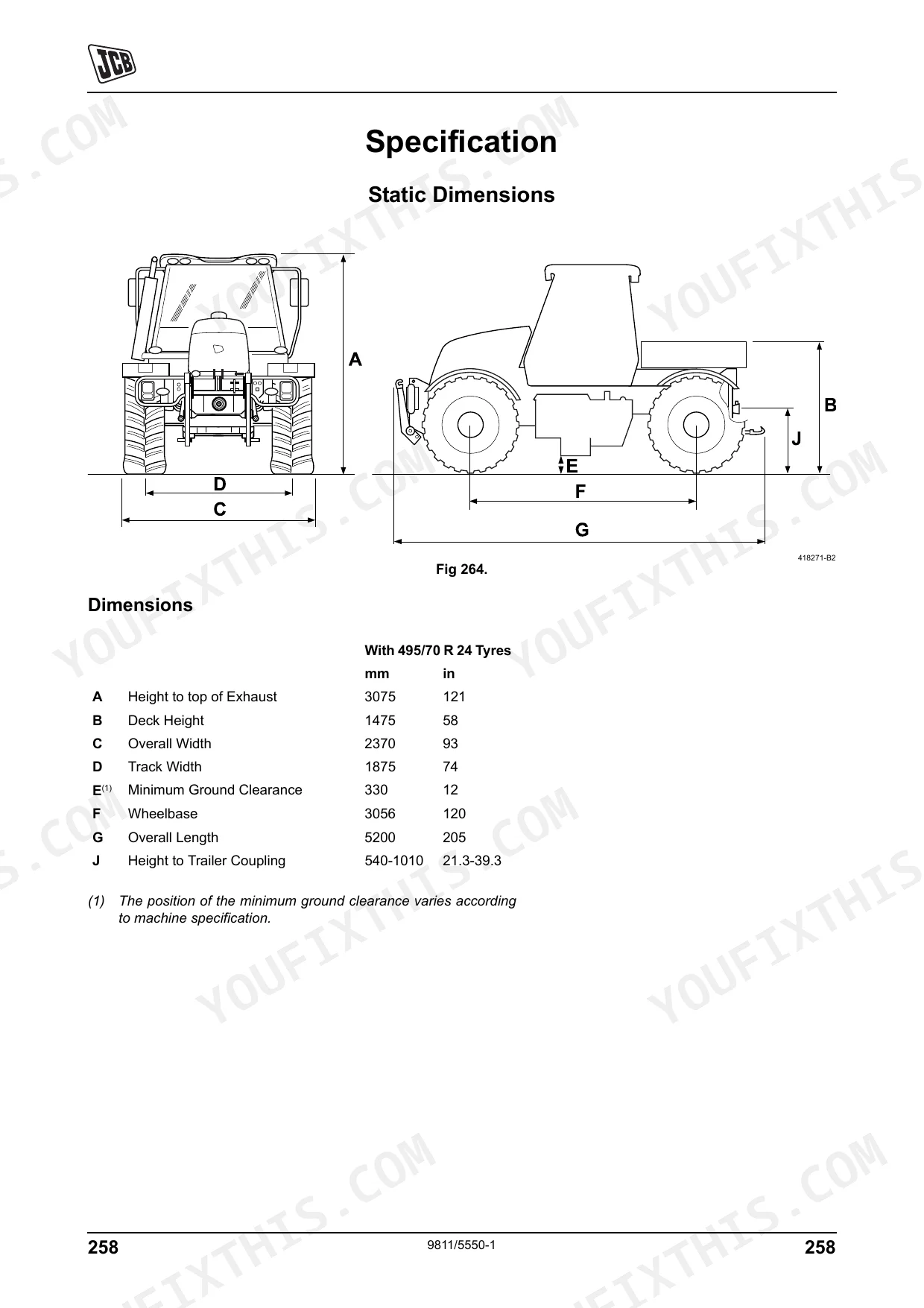

| System | Pages | Key Topics |
|---|---|---|
| Safety Notices | 9-10 | Important Information (Operator Manual, Safety Warnings) |
| Introduction | 11-26 | Machine Model and Serial Number, Machine Description, Safety Check List, Safety Labels, Identifying Your Machine |
| Operation | 37-49 | Before Entering the Cab, Entering and Leaving the Cab - Doors and Windows, Visibility Aids, Cab Layout - 3200 and 3230, Cab Layout - All Plus Models, Cab Structure, Cleanliness, Damage, Tyre Condition, Opening and Closing the Doors, Opening and Closing the Windows, Mirrors, Controls |
| Seats | 50-54 | Seat Belts, Suspension Seat (Standard), Heated Suspension Seat (Optional), Passenger's Seat, Introduction, Fasten the Seat Belt, Check the Seat Belt Is Operating Correctly, Release the Seat Belt |
| Drive Controls, Switches and Instruments | 55-84 | Safety Equipment, Steering Column Adjustment, Front Switch Panel, Steering Column Multi-Purpose Switch, Right Hand Side Switch Panel (3200 and 3230), Transport Locks - 3200 and 3230, Transport Lock - Plus Models |
| Before Starting the Engine | 85-104 | Starting the Engine, Testing the Parking Brake, Preparing for Travel, Travelling, Stopping and Parking the Machine, Parking Brake, Pre-Start Inspection, Seat Adjustment, Steering Column, Rear View Mirrors, PTO Switches, Normal Starting, Cold Starting, Mounted Implements, Parking Brake Engagement, Gear Selection, Hand Throttle, Clutch Pedal, Before Travelling on Public Roads, Utilisation of Gears |
| Working with Your Machine | 105-161 | Operating Practices and Site Safety, Clothing and Safety Equipment, Danger Zone, Safety Must Come First |
| Operating Environment | 162-165 | Refuelling the Machine, Introduction, Operating in Low Temperatures, Using the Engine and Gearbox Heaters, Operating in High Temperatures, Low Fuel Levels, Filling the Tank |
| Moving a Disabled Machine | 166-173 | Transporting the Machine, Storage of the Machine, General, Limp Home Mode, Preparation for Towing, Transporter Wheels, Loading, Parking Brake, Engine, Wheel Blocks, Cab Security, Introduction, Storage Area, Prepare the Machine for Storage, Put the Machine Into Storage |
| Routine Maintenance | 174-267 | Service Requirements (Introduction, Owner/Operator Support, Service/Maintenance Agreements, Initial Service and Inspection, Obtaining Replacement Parts) |
| Specification | 268-285 | Static Dimensions, Weights and Loads (Unladen Weights, Load Capacities, Laden Weights), Tyres (Pressures, Speeds and Loads) |
| Warranty | 286-289 | Machine Service Record Sheet, Registration Information |
| European Community Standards | 290-292 | EC Declaration of Conformity (Introduction, Explanation of the EC Declaration of Conformity) |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| Front wheels nut torque | 500 Nm (370 lbf ft, 51.0 kgf m) | p. 262 |
| Rear wheels nut torque | 600 Nm (440 lbf ft, 60.0 kgf m) | p. 262 |
| Fan belt deflection | 9.5-12.7 mm (0.375-0.5 in) | p. 239 |
| Fuel Tank Capacity | 350L | p. 187 |
| Engine Oil Capacity | 17.5L | p. 187 |
| Engine Coolant Capacity | 33L | p. 187 |
| Hydraulic System Capacity | 120L | p. 187 |
| Front Axle Housing Oil Capacity | 20L | p. 187 |
| Rear Axle Oil Capacity | 27L | p. 187 |
| Front Wheel Nut Torque | 500 Nm | p. 262 |
| Maximum Vertical Load (Pick-up Hitch) | 3000 kg | p. 133 |
| Hydraulic Priority Flow Range | 5 to 90 litres/min | p. 130 |
JCB Fastrac 3200 & 3230 Common Problems This Manual Covers

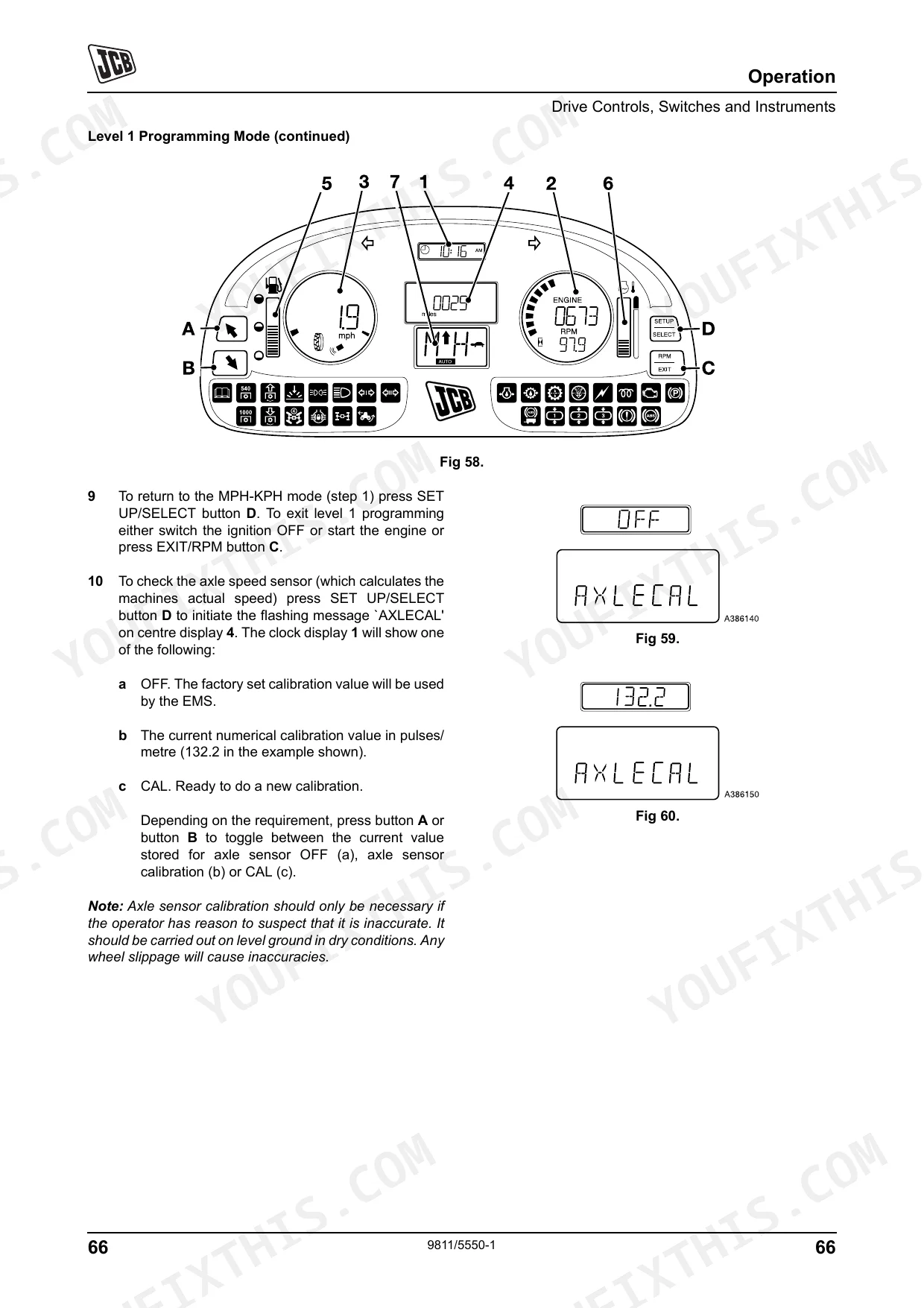

JCB Fastrac 3200 instrument cluster showing system error code for transmission or electronic spool valves
Check the displayed code against the System Error Codes table on page 77, which groups codes by instrument cluster, central controller, engine, transmission and electronic spool valves. Note which controller raised it. Verify the fuses and relays for that circuit, then restart and recheck whether the code returns.
Manual Section: System Error Codes p. 77Engine slow to fire on cold mornings with wait-to-start light staying on
Follow the cold starting procedure on page 87 and let the wait-to-start light go out before you crank. In low temperatures, use the engine and gearbox heaters as the Operating Environment section describes. Once the engine fires, check the oil pressure low light; if it stays lit, stop the engine and find out why.
Manual Section: Engine Starting Troubleshooting p. 87Selectronic transmission range change invalid or incomplete, machine dropping into neutral dump state
Check the Invalid or Incomplete Range Changes guidance on page 97 before you try another shift. Clear the neutral dump state as that procedure directs, then reselect the range. If the fault repeats, check the gearbox oil level and note any transmission error code on the instrument cluster.
Manual Section: Invalid or Incomplete Range Changes p. 97Parking brake not holding the machine stationary when tested on a slope or incline
Test the parking brake following page 88, working through mounted implements, parking brake engagement, gear selection, hand throttle and clutch pedal exactly as the procedure lists them. Keep the area clear of people while you test. If the machine creeps, do not operate it; have the brake inspected before it goes back to work.
Manual Section: Testing the Parking Brake p. 88Hydraulic fluid level low or suction strainers blocked, with implement functions slow to respond
Release hydraulic pressure before you open any part of the system. Check the fluid level and top up as required; total hydraulic system capacity is 120L, listed on page 187. Clean the suction strainers following the Cleaning the Suction Strainers procedure on page 249, then run the machine briefly and recheck the fluid level.
Manual Section: Cleaning the Suction Strainers p. 249Lights, switches or electrical functions dead after a blown fuse or failed relay
Identify the fuse and relay for the dead circuit using the fuse and relay identification charts starting on page 222. Replace a blown fuse only with one of the same rating, then check whether it blows again. If the battery is flat, jump-start the machine following the manual's jump-starting procedure.
Manual Section: Fuses to Machine Number 120773 p. 222Frequently Asked Questions
What do JCB Fastrac 3200 error codes mean?
Error codes are displayed on the centre display as 'ERR' followed by a code. For example, D001-D003 indicates an instrument cluster internal fault, while Q001-Q081 indicates an engine fault that may affect performance. A full list of codes and their meanings is provided on page 77. p. 77
What are the fuel filter and fuel-system seal replacement specifications for the JCB Fastrac 3200 & 3230?
The fuel pre-filter element should be changed according to the service schedule. When changing, ensure the 'O' ring is fitted to the sensor Y. Tighten the new element by 3/4 of a turn after the seal contacts the sealing face, hand-tight only. p. 243
What is the engine oil capacity and specification for the JCB Fastrac 3200 & 3230?
The engine oil capacity is 17.5 litres (3.9 UK gal). The recommended specification is JCB Engine Oil EP 15W/40 (API CH-4 or ACEA E3/B3A3, SAE 15W/40). p. 187
What is the correct fan belt tension on the JCB Fastrac 3200 & 3230?
The belt tension is automatically maintained by the tensioner G. The belt deflection on the longest run of the belt should be 9.5-12.7 mm (0.375-0.5 in). p. 239
How do I bleed the fuel system on the JCB Fastrac 3200 & 3230?
To bleed the fuel system, unscrew knob A from the filter head, then pump the knob backwards and forwards until resistance to movement is felt. Finally, screw knob A back into the housing. p. 245
What format is this JCB 3200 manual in?
Instant PDF download. You get the full 292-page searchable Operator Manual immediately after payment. Open it on your laptop, tablet, or phone right in the shop.
